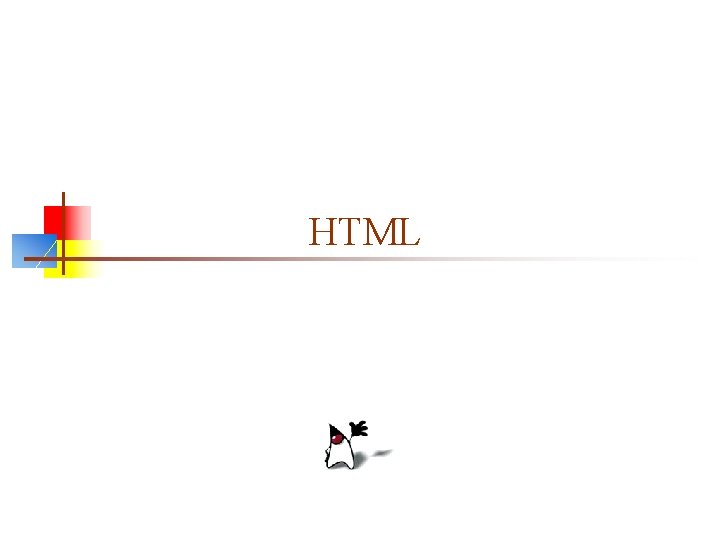

HTML Web pages are HTML n n HTML
HTML

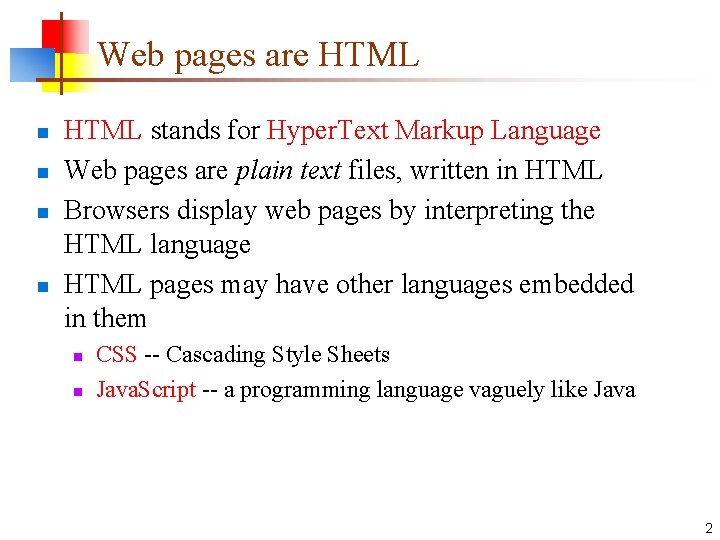

Web pages are HTML n n HTML stands for Hyper. Text Markup Language Web pages are plain text files, written in HTML Browsers display web pages by interpreting the HTML language HTML pages may have other languages embedded in them n n CSS -- Cascading Style Sheets Java. Script -- a programming language vaguely like Java 2
Example of HTML n <!DOCTYPE HTML PUBLIC "-//IETF//DTD W 3 HTML 2. 0//EN"> <html> <head> <title>factorial</title> </head> <body bgcolor="#FFFFFF"> <h 1>factorial</h 1> <strong>Definition: </strong> The factorial of an integer n ≥ 0, written n!, is n × n-1 × . . . × 2 × 1. In particular, 0! = 1. </body> </html> 3

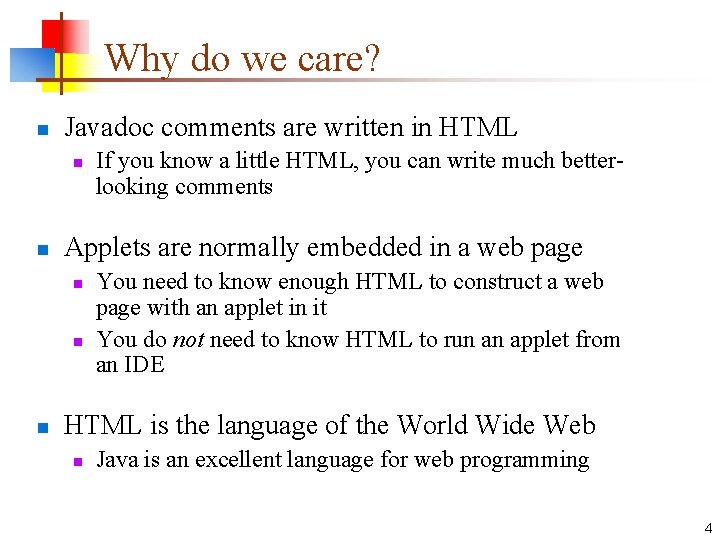

Why do we care? n Javadoc comments are written in HTML n n Applets are normally embedded in a web page n n n If you know a little HTML, you can write much betterlooking comments You need to know enough HTML to construct a web page with an applet in it You do not need to know HTML to run an applet from an IDE HTML is the language of the World Wide Web n Java is an excellent language for web programming 4
HTML Files n n n An HTML file is a plain text file containing small markup tags The markup tags tell the Web browser how to display the page An HTML file must have an htm or html file extension n . html is preferred. htm extensions are used by servers on very old operating systems that can only handle “ 8+3” names (eight characters, dot, three characters) An HTML file can be created using a simple text editor n Formatted text, such as Microsoft Word’s. doc files, cannot be used in HTML files 5
HTML Tags n n n HTML tags are used to mark up HTML elements HTML tags are surrounded by angle brackets, < and > Most HTML tags come in pairs, like <b> and </b> The tags in a pair are the start tag and the end tag The text between the start and end tags is the element content n n n The tags act as containers (they contain the element content), and should be properly nested A few tags, such as (line break) are not nested and have no end tag HTML tags are not case sensitive; <b> means the same as <B> n Lowercase tags are preferable 6

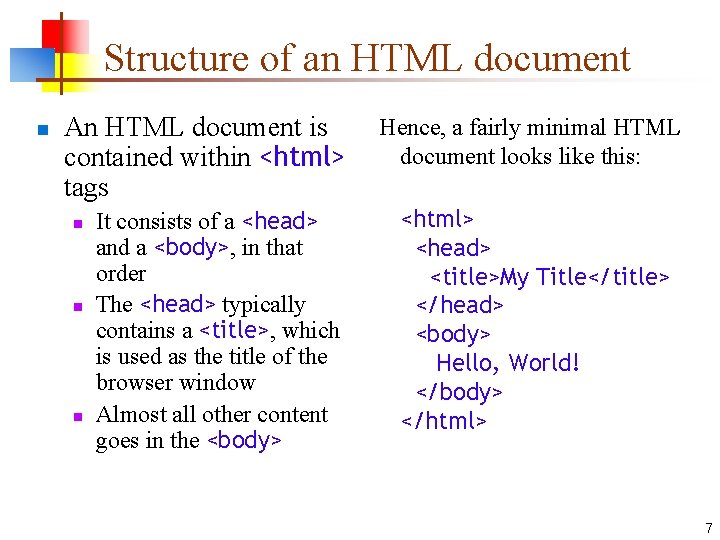

Structure of an HTML document n An HTML document is contained within <html> tags n n n It consists of a <head> and a <body>, in that order The <head> typically contains a <title>, which is used as the title of the browser window Almost all other content goes in the <body> Hence, a fairly minimal HTML document looks like this: <html> <head> <title>My Title</title> </head> <body> Hello, World! </body> </html> 7
Text in HTML n n Anything in the body of an HTML document, unless marked otherwise, is text To make text italic, surround it with <i> and </i> tags To make text boldface, surround it with <b> and </b> tags You can put headers in your document with <h 1>, <h 2>, <h 3>, <h 4>, <h 5>, or <h 6> tags (and the corresponding end tag, </h 1> through </h 6>) n n <h 1> is quite large; <h 6> is very small Each header goes on a line by itself 8
Whitespace n n Whitespace is any non-printing characters (space, tab, newline, and a few others) HTML treats all whitespace as word separators, and automatically flows text from one line to the next, depending on the width of the page To group text into paragraphs, with a blank line between paragraphs, enclose each paragraph in <p> and </p> tags To force HTML to use whitespace exactly as you wrote it, enclose your text in <pre> and </pre> tags (“pre” stands for “preformatted”) n n <pre> also uses a monospace font <pre> is handy for displaying programs 9
Lists n n Two of the kinds of lists in HTML are ordered, <ol> to </ol>, and unordered, <ul> to </ul> Ordered lists typically use numbers: 1, 2, 3, . . . Unordered lists typically use bullets ( • ) The elements of a list (either kind) are surrounded by <li> and </li> n Example: The four main food groups are: <ul> <li>Sugar</li> <li>Chips</li> <li>Caffeine</li> <li>Chocolate</li> </ul> 10
Attributes n n Some markup tags may contain attributes of the form name="value" to provide additional information Example: To have an ordered list with letters A, B, C, . . . instead of numbers, use <ol type="A"> to </ol> n n n For lowercase letters, use type="a" For Roman numerals, use type="I" For lowercase Roman numerals, use type="i" In this example, type is an attribute If a tag has more than one attribute, they can be in any order 11
Tables n n n Tables are used to organize information in two dimensions (rows and columns) A <table> contains one or more table rows, <tr> Each table row contains one or more table data cells, <td>, or table header cells, <th> n n n The difference between <td> and <th> cells is just formatting--text in <th> cells is boldface and centered Each table row should contain the same number of table cells To put borders around every cell, add the attribute border="1" to the <table> start tag 12

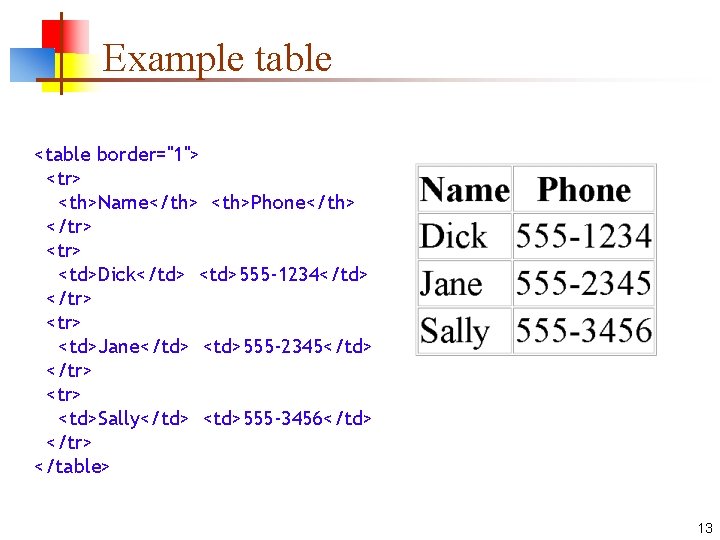

Example table <table border="1"> <tr> <th>Name</th> <th>Phone</th> </tr> <td>Dick</td> <td>555 -1234</td> </tr> <td>Jane</td> <td>555 -2345</td> </tr> <td>Sally</td> <td>555 -3456</td> </tr> </table> 13
Entities n n n Certain characters, such as <, have special meaning in HTML To put these characters into HTML without any special meaning, we have to use entities Here are some of the most common entities: n n n n < represents < > represents > & represents & ' represents ' " represents " represents a “nonbreaking space”--one that HTML does not treat as whitespace Hence, to display if (x < 0) return "negative"; you need to write if (x < 0) return " negative" ; 14
Applets in HTML n n To put an applet into an HTML page, you use the <applet> tag, which has three required attributes, code (the class file) and width and height (in pixels) Example: n n <applet code="My. Applet. class" width=150 height=100> </applet> If your applet contains several classes, you should jar them up; in this case you also need the archive attribute: n <applet code="My. Applet. class" archive="My. Applet. jar" width=150 height=100> </applet> 15

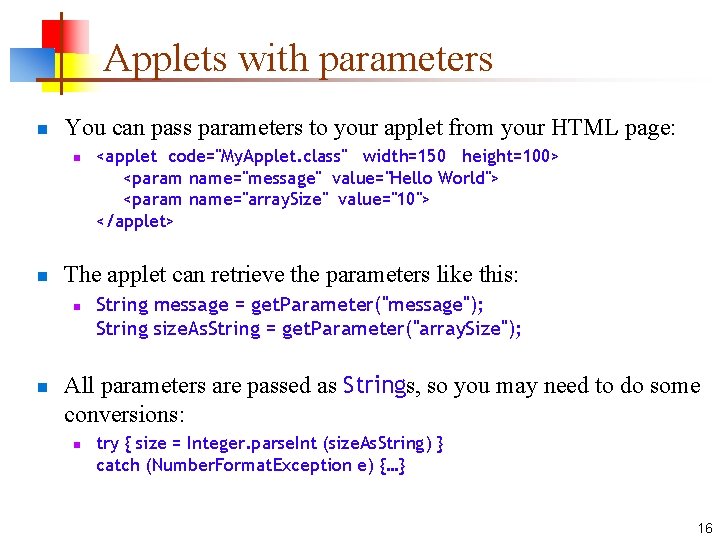

Applets with parameters n You can pass parameters to your applet from your HTML page: n n The applet can retrieve the parameters like this: n n <applet code="My. Applet. class" width=150 height=100> <param name="message" value="Hello World"> <param name="array. Size" value="10"> </applet> String message = get. Parameter("message"); String size. As. String = get. Parameter("array. Size"); All parameters are passed as Strings, so you may need to do some conversions: n try { size = Integer. parse. Int (size. As. String) } catch (Number. Format. Exception e) {…} 16
The rest of HTML n HTML is a large markup language, with a lot of options n n n None of it is really complicated I’ve covered only enough to get you started You should study one or more of the tutorials Your browser’s View > Source command (or similar) is a great way to see how things are done in HTML sometimes has other things mixed in (such as forms, DHTML, and Java. Script), so if it doesn’t look like HTML, it probably isn’t 17
The End 18
