HTML An Introduction 2004 D J Foreman 1

Language Structure u Tag based – 3 types Paired tags l Unpaired tags l

Formatting u Browser does the formatting (ignores any formatting you may have in your

Tag Structure u< tagname u Attributes attributes > (or options): attribute_name = "value" l

Paired Tags u Require the < and > symbols u Specific spelling u Ending

Unpaired Tags u No ending tag u Apply to a single object u Examples:

Special Tags u Represent specific ASCII symbols, like: µ micro ® ® registered

Tag Uses u Page identification <html> l <head> l <title> l <meta> l u

Basic Web Page Structure u Identification area u Body Text to be formatted l

Basic Web Page Structure -2 u Method l to 'connect' pages URLs – Universal

Example <html> <head> <!-- This is an html comment -> <title> my first webpage</title>

Beginning tags <body bgcolor="red" link="orange" alink="black" vlink="green" > <basefont size='3'> u Alink: activated during

BGColor u Specified in <body> tag u May be a color name (see book)

Base 16 numbering u 8 bits per byte u Each bit is a power

Base 16 numbering - 2 u u u But remembering all those bits is

Base 16 numbering -3 u So we "invent" new symbols: 10, 11, 12, 13,

Creating a Webpage - First Steps u Open NOTEPAD u Type the text u

Creating a Webpage Common Errors u u Test your page from someone else's signon

Web Server Error Messages 415 SERVICE_UNAVAILABLE 400 BAD_REQUEST 500 INTERNAL_SERVER_ERROR 401 UNAUTHORIZED 501 NOT_IMPLEMENTED

More about basic tags u <body> l attributes: bgcolor, background u <font> l attributes:

The Anchor Tag u points to another page on this server or to a

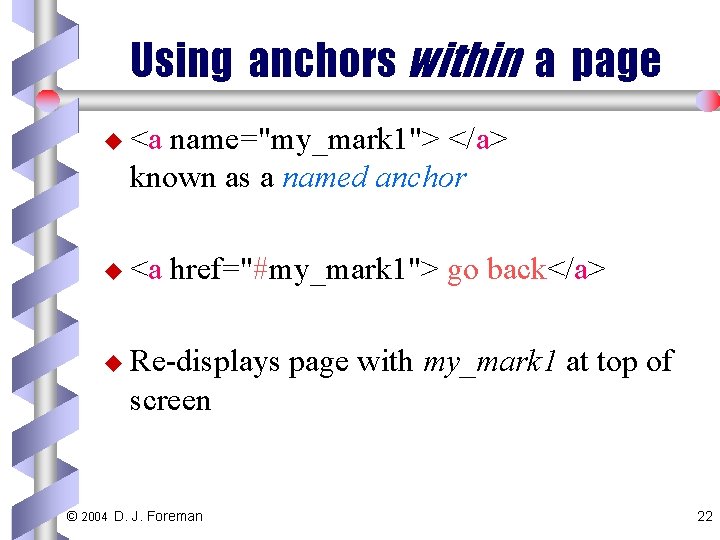

Using anchors within a page u <a name="my_mark 1"> </a> known as a named

The <img> Tag u Allows an image to be in-line with the text (no

<IMG align=…> u left/right page alignment of image u top, texttop, middle, etc align

Ordered Lists <ol> <li> list item another yet another </ol> A list item may

Nested Ordered Lists <ol> ordered list 1 <li> list item <ol> <li> item 1

Unordered Lists <ul> <li> list item another yet another </ul> © 2004 D. J.

Nested Unordered Lists <ul> <li> <li> </ul> <li> list item <ul> list item another

Mixed Nested Lists <ul> <li>unordered list item <li> <ol> <li> ordered list item another

Dictionary (glossary) Lists <dl> <dt>dog <dd>a 4 legged animal that barks <dt>cat <dd>a 4

Standards u HTML 4. 0 – many formatting elements (like "align", <b>) are "deprecated"

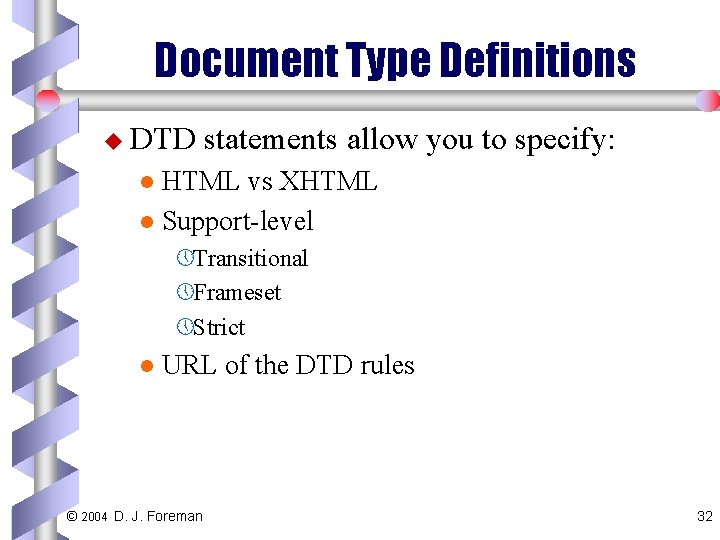

Document Type Definitions u DTD statements allow you to specify: HTML vs XHTML l

HTML and XHTML Levels u Transitional l but all tags must have endings u

Doctype Syntax for all HTML types u Identifies rules for handling the document u

For HTML Documents u HTML transitional (or loose): <!DOCTYPE HTML PUBLIC " //W 3

For XHTML Documents u XHTML transitional: l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML

Unpaired Tags in Xhtml (and how to handle them) u All tags have endings

Slides: 37

Download presentation

Formatting u Browser does the formatting (ignores any formatting you may have in your input) u Tags specify the formatting to be applied u Whitespace u Data is ignored unless inside quotes entry is NOT wysiwyg © 2004 D. J. Foreman 3

Tag Structure u< tagname u Attributes attributes > (or options): attribute_name = "value" l Can be in any order, for example: l » Or » 4

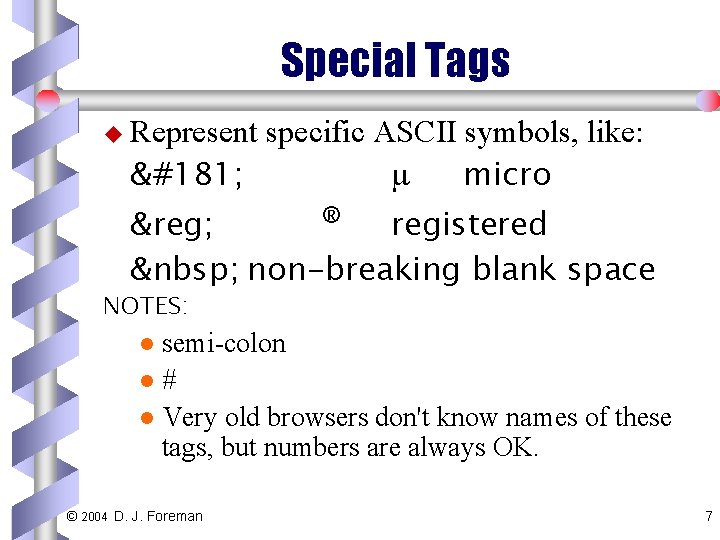

Special Tags u Represent specific ASCII symbols, like: µ micro ® ® registered non-breaking blank space NOTES: semi-colon l# l Very old browsers don't know names of these tags, but numbers are always OK. l © 2004 D. J. Foreman 7

Basic Web Page Structure -2 u Method l to 'connect' pages URLs – Universal Resource Locators (or Uniform Resource Locators) » e. g. : http: //domain/directory/filename. html l Tags create connections » <a> (for anything 'clickable') » <img> (for inline images) » <embed> (for inline sounds) © 2004 D. J. Foreman 10

Beginning tags <body bgcolor="red" link="orange" alink="black" vlink="green" > <basefont size='3'> u Alink: activated during this session u Vlink: previously visited links u Link: unvisited links © 2004 D. J. Foreman 12

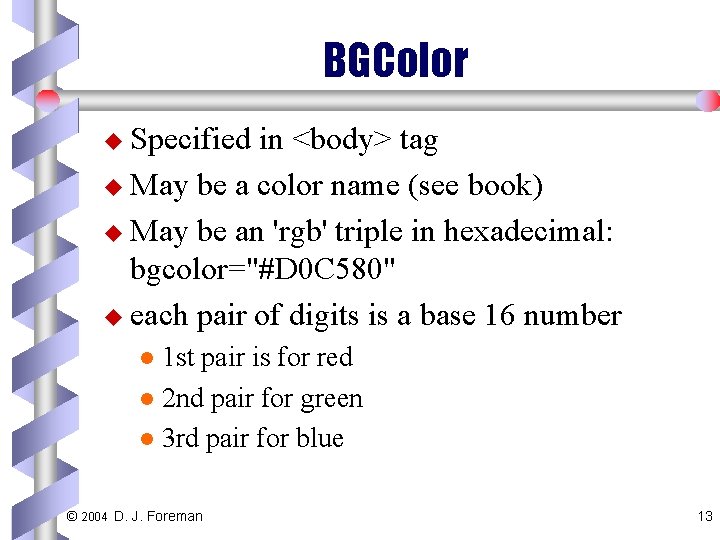

BGColor u Specified in <body> tag u May be a color name (see book) u May be an 'rgb' triple in hexadecimal: bgcolor="#D 0 C 580" u each pair of digits is a base 16 number 1 st pair is for red l 2 nd pair for green l 3 rd pair for blue l © 2004 D. J. Foreman 13

Base 16 numbering u 8 bits per byte u Each bit is a power of 2 higher u Counting RIGHT TO LEFT, we have: l 128, 64, 32, 16, 8, 4, 2, 1 as the decimal values for the bit positions. u So 0 0 1 is l 32 + 1 = 33 (decimal) l © 2004 D. J. Foreman 14

Base 16 numbering - 2 u u u But remembering all those bits is hard We have a shorthand: hexadecimal In decimal, we number our columns: 1, 100 In hexadecimal we number: 1, 16, 256 So in one column, we can count to 15 (one less than our number system's base) But we don't have symbols for 10 -15 © 2004 D. J. Foreman 15

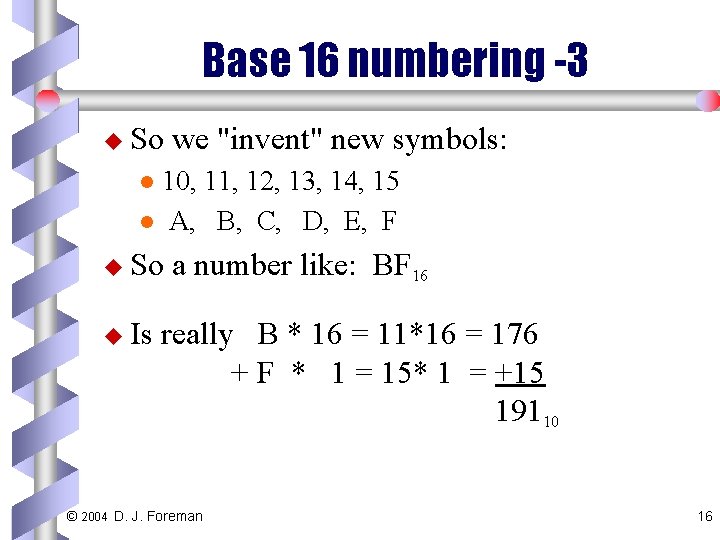

Base 16 numbering -3 u So we "invent" new symbols: 10, 11, 12, 13, 14, 15 l A, B, C, D, E, F l u So u Is a number like: BF 16 really B * 16 = 11*16 = 176 + F * 1 = 15* 1 = +15 19110 © 2004 D. J. Foreman 16

Creating a Webpage - First Steps u Open NOTEPAD u Type the text u Save with an extension of htm or html l (may need to remove an added '. txt') u Open browser click on: File/Open l enter disk address of file l u Might need ftp to put file on server u Test it using browser © 2004 D. J. Foreman 17

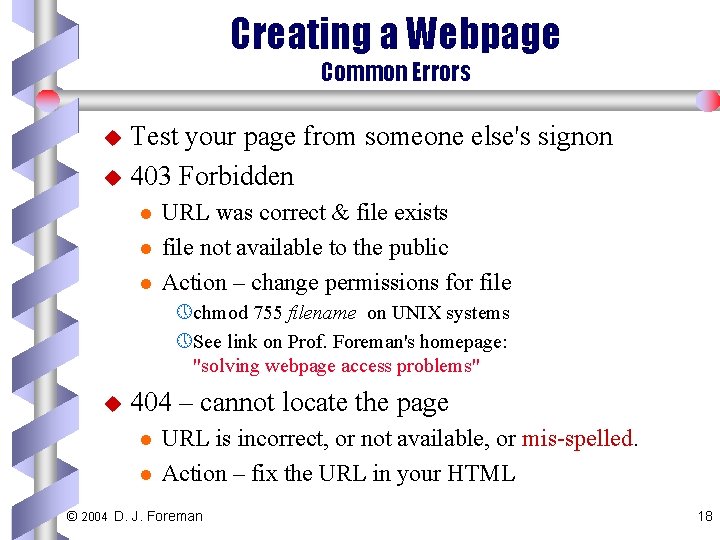

Creating a Webpage Common Errors u u Test your page from someone else's signon 403 Forbidden l l l URL was correct & file exists file not available to the public Action – change permissions for file » chmod 755 filename on UNIX systems » See link on Prof. Foreman's homepage: "solving webpage access problems" u 404 – cannot locate the page l l URL is incorrect, or not available, or mis-spelled. Action – fix the URL in your HTML © 2004 D. J. Foreman 18

Web Server Error Messages 415 SERVICE_UNAVAILABLE 400 BAD_REQUEST 500 INTERNAL_SERVER_ERROR 401 UNAUTHORIZED 501 NOT_IMPLEMENTED 403 FORBIDDEN 502 BAD_GATEWAY 404 NOT_FOUND 503 SERVICE_UNAVAILABLE 405 METHOD_NOT_ALLOWED 506 VARIANT_ALSO_VARIES 408 REQUEST_TIME_OUT 410 GONE 411 LENGTH_REQUIRED 412 PRECONDITION_FAILED 413 REQUEST_ENTITY_TOO_LARGE 414 REQUEST_URI_TOO_LARGE © 2004 D. J. Foreman 19

More about basic tags u <body> l attributes: bgcolor, background u l attributes: size, color, face u l alignment u headings: <h 1> … <h 6> u u © 2004 D. J. Foreman 20

The Anchor Tag u points to another page on this server or to a page on a different server <a href="…"> click here </a> u point to an image somewhere <a href="XYZ. JPG"> click me </a> u connect via a "click-able" in-line image <a href="…"> <img src=". . . "> </a> © 2004 D. J. Foreman 21

The <img> Tag u Allows an image to be in-line with the text (no click required to see image) This is the body of my text with more text afterward. Example: . . my text <img src="afile. jpg"> with more text afterward. © 2004 D. J. Foreman 23

Nested Ordered Lists <ol> ordered list 1 <li> list item <ol> <li> item 1 <li>item 2</ol> yet another </ol> Note: I do not do the formatting myself. The browser will do it for me © 2004 D. J. Foreman 26

Standards u HTML 4. 0 – many formatting elements (like "align", ) are "deprecated" u HTML should be for text organization u CSS for element formatting & layout u XML – identifies CONTENT l XML tags like: <street_address> <check_number> u HTML was re-defined using XML giving XHTML © 2004 D. J. Foreman 31

HTML and XHTML Levels u Transitional l but all tags must have endings u Frameset u Strict l – allows deprecated tags - as above + frames – no deprecated tags OR frames use CSS with layers to get the same effects © 2004 D. J. Foreman 33

Doctype Syntax for all HTML types u Identifies rules for handling the document u <!DOCTYPE html -ruletype rule_loc> u NOTE: ruletype preceded by a "-" u rule_loc specifies the URL for the "document type definition" file © 2004 D. J. Foreman 34

For HTML Documents u HTML transitional (or loose): <!DOCTYPE HTML PUBLIC " //W 3 C//DTD HTML 4. 01 Transitional//EN" "http: //www. w 3. org/TR/html 4/loose. dtd"> u HTML frameset: <!DOCTYPE HTML PUBLIC " //W 3 C//DTD HTML 4. 01 Frameset//EN" "http: //www. w 3. org/TR/html 4/frameset. dtd"> u HTML strict: <!DOCTYPE HTML PUBLIC " //W 3 C//DTD HTML 4. 01//EN" "http: //www. w 3. org/TR/html 4/strict. dtd"> © 2004 D. J. Foreman 35

For XHTML Documents u XHTML transitional: l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Transitional//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -transitional. dtd"> u XHTML frameset: l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Frameset//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -frameset. dtd"> u XHTML strict: l <!DOCTYPE html PUBLIC "-//W 3 C//DTD XHTML 1. 0 Strict//EN" "http: //www. w 3. org/TR/xhtml 1/DTD/xhtml 1 -strict. dtd"> © 2004 D. J. Foreman 36

Unpaired Tags in Xhtml (and how to handle them) u All tags have endings u Examples (with formal XHTML endings): <hr> l <img> l l <hr /> <img /> Note the space before the "/" More info at www. w 3. org © 2004 D. J. Foreman 37
