HRS System By Dominic Babineau Engineer Jamesway Incubator
HRS System By Dominic Babineau, Engineer Jamesway Incubator Company Inc.

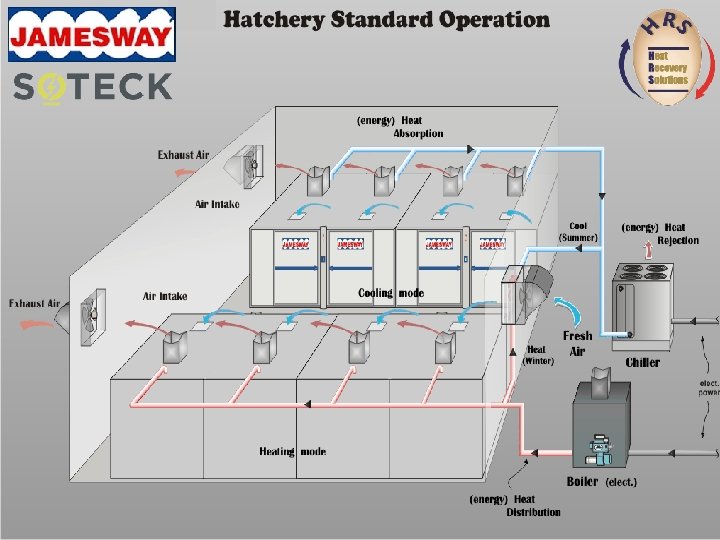

What is the HRS system? • Centralise cooling/heating and ventilation system • Reliable and secure system for hatchery operation • Redundancy for chiller, boiler, pump and HVAC • No chance to not having cooling or heating (Full backup)

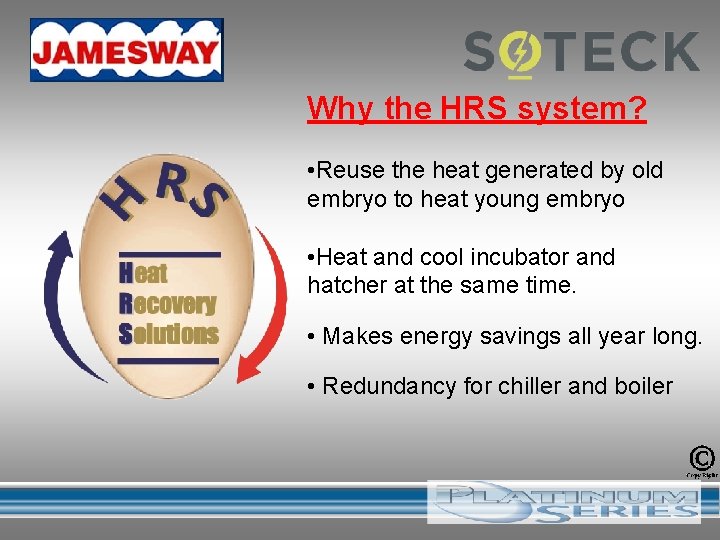

Why the HRS system? • Reuse the heat generated by old embryo to heat young embryo • Heat and cool incubator and hatcher at the same time. • Makes energy savings all year long. • Redundancy for chiller and boiler

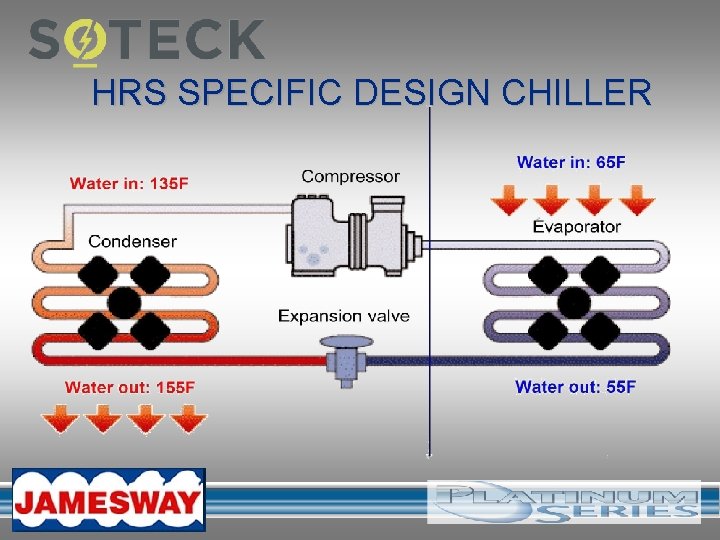

HRS SPECIFIC DESIGN CHILLER
HRS System • Multiple compressor system • Fully independent compressor • Scroll compressor • Same unit as install into the Bill Gates home
HRS System • Backup pump already install and ready to run • Low RPM speed pump • Bearing instead of bushing
HRS System • Easy maintenance • Less footprint • Easy access • VFD for pressure control and longer life

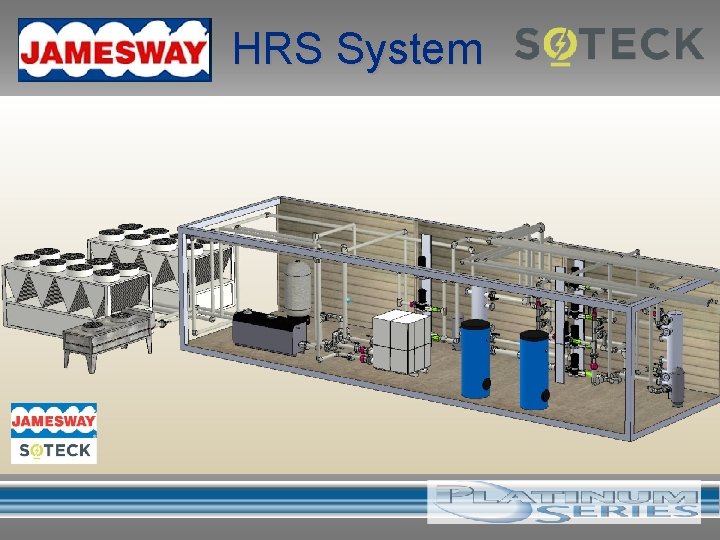

HRS System

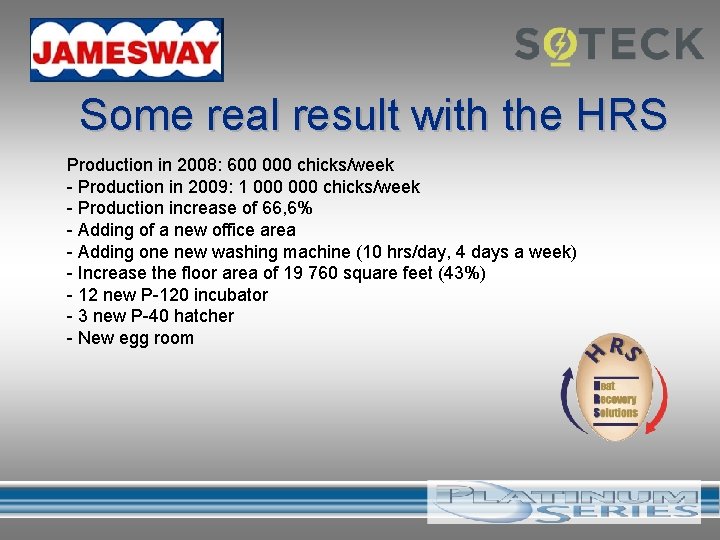

Some real result with the HRS Production in 2008: 600 000 chicks/week - Production in 2009: 1 000 chicks/week - Production increase of 66, 6% - Adding of a new office area - Adding one new washing machine (10 hrs/day, 4 days a week) - Increase the floor area of 19 760 square feet (43%) - 12 new P-120 incubator - 3 new P-40 hatcher - New egg room

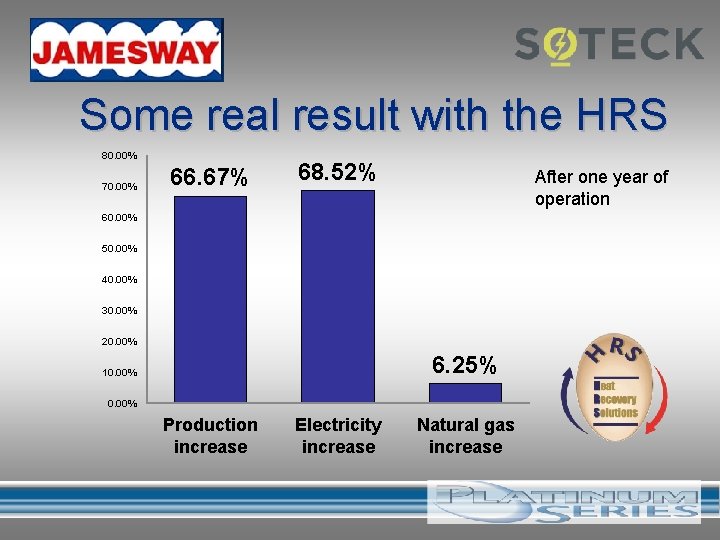

Some real result with the HRS 80. 00% 70. 00% 66. 67% 68. 52% After one year of operation 60. 00% 50. 00% 40. 00% 30. 00% 20. 00% 6. 25% 10. 00% Production increase Electricity increase Natural gas increase

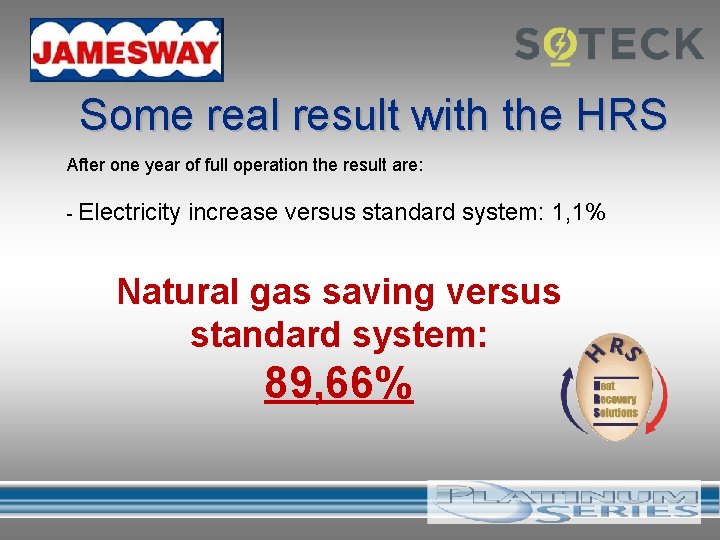

Some real result with the HRS After one year of full operation the result are: - Electricity increase versus standard system: 1, 1% Natural gas saving versus standard system: 89, 66%

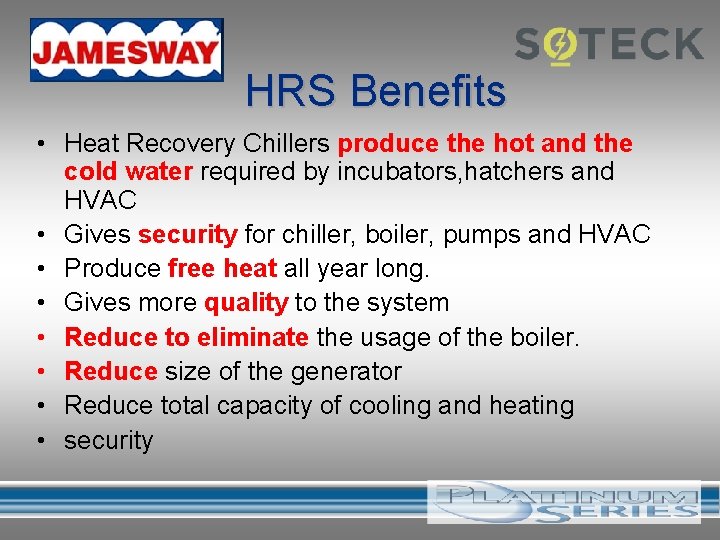

HRS Benefits • Heat Recovery Chillers produce the hot and the cold water required by incubators, hatchers and HVAC • Gives security for chiller, boiler, pumps and HVAC • Produce free heat all year long. • Gives more quality to the system • Reduce to eliminate the usage of the boiler. • Reduce size of the generator • Reduce total capacity of cooling and heating • security

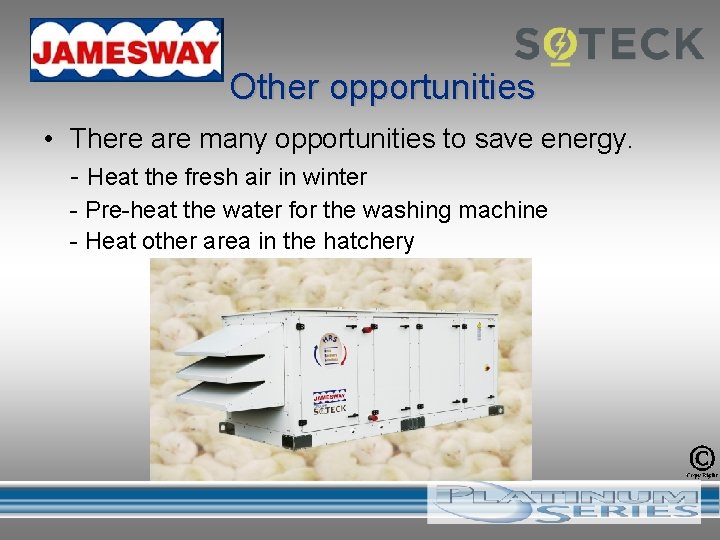

Other opportunities • There are many opportunities to save energy. - Heat the fresh air in winter - Pre-heat the water for the washing machine - Heat other area in the hatchery
HRS for better chicks at better cost
