Pro. Curve 2520 -Po. E and 2520 G-Po. E Switch Series • Target customers: − Designed for Small and Medium Businesses • Target environments and deployments: − Entry to Mid-Level Vo. IP, Video, and Wireless solutions requiring Po. E − LAN edge • Benefits: − Energy efficient design and software features to reduce power consumption − Quiet operation and flexible deployment options − Cost-effective − Easy to deploy, no need for advanced IT staff − Increased network uptime 2 HP Pro. Curve Confidential

Pro. Curve SMB Portfolio Overview 2910 al/2910 al-Po. E: • High performance gigabit access switch • Four optional 10 -Gigabit ports (CX 4 and/or SFP+) • IEEE 802. 3 af/802. 3 at functionality (Po. E/Po. E+) • Layer 2 switching with static and RIP IP routing • Lifetime Warranty, s. Flow, ACLs and rate limiting Functionality 2610/2610 -PWR: • Access layer 10/100 switch • Static IP routes enable routing between VLANs • Robust and granular security and Qo. S policies • Redundancy with RPS support 2910 al-Po. E 2910 al 2610 -PWR 2610 2520 G-Po. E 2520 G/2520: • Managed layer 2 Po. E switch family • 8 or 24 10/100 or Gigabit ports • Ability to prioritize traffic using Qo. S for reliable Vo. IP deployments • Quiet operation and small form-factor for open space deployment 2510 G/2510: • Managed layer 2 feature set • 24 or 48 10/100 or Gigabit ports • Dual-personality ports for copper or fiber connectivity • Quiet operation for open space deployment 1810 G 1700 1810 G/1700: • Plug and play connectivity • Basic network configuration capabilities • Excellent migration from unmanaged switches • Silent operation for open space deployment Price/Performance HP Pro. Curve Confidential Lite Layer 3 Managed 2810: • Managed Layer 2 feature set with 24 or 48 Gig ports • s. Flow, source port filtering, enhanced security • Redundancy with RPS support • Four SFP ports for fiber connectivity • More robust/granular Qo. S 2810 2510 G 2510 3 …Intelligent Edge Switches Layer 2 Managed Layer 2 Web Managed

Pro. Curve Po. E Switch Families 4 Intelligent Edge (8200/5400/3500) Traditional Edge (2910 al/2610) Small Business (2520) Channel Mostly Consultative and Transactional Mostly Transactional Convergence Application Support Enterprise and mid-market IP Telephony, business critical camera surveillance, large scale video applications. Hosting platform for Pro. Curve ONE. Enterprise IP Telephony, large scale camera surveillance, mid range video applications. Po. E+ enables PTZ cameras. IP Telephony (may be hosted), “passive” video surveillance, basic video applications Mobility Application Support WESM/RP model mix with standalone AP, dynamic and advanced identity based configuration. Powering of access points and basic user based configuration. Po. E+ enables 802. 11 n Aps Powering of access points Network configuration Flexible, granular and robust settings for Qo. S and policy mgmt. Unified core to edge. Require flexibility, but not advanced “bells and whistles” Plug-n-play, static/default configuration IT staff sophistication Knowledgeable IT staff with maximum flexibility to customize solutions Knowledgeable IT staff Small to no IT staff Company size Mid-Market and Enterprise Small business networks (< 250 employees) HP Pro. Curve Confidential

Product Overview (Hardware) 2520 -8 -Po. E - 8 10/100 -T ports + 2 shared 10/1000 -T SFP ports for fiber connectivity* • 2520 G-8 -Po. E - 8 10/1000 -T ports + 2 shared 10/1000 -T SFP ports for fiber connectivity* • • Small form-factor and fan-less operation reduces noise level; ideal for use in open space Wall or Rack Mountable Kensington Lock slot for physical security Management console on front for easy accessibility External Power supply Up to 7. 5 W of Po. E (Class 2) on 8 ports (67 W total power budget) 2520 -24 -Po. E - 24 10/100 -T ports + 2 10/1000 -T ports + 2 shared 10/1000 -T or SFP ports for fiber connectivity* • 2520 G-24 -Po. E - 20 10/1000 -T ports + 4 shared 10/1000 -T or SFP ports for fiber connectivity* • • • Wall or Rack Mountable Variable Speed Fans provide optimal noise level, energy efficiency and cooling for reliable operation Management console on front for easy accessibility Internal Power Supply Up to 7. 5 W of Po. E (Class 2) on 24 ports (195 W total power budget) Industry leading lifetime warranty* with next-day advance replacement. Free software updates and phone support 5 HP Pro. Curve Confidential

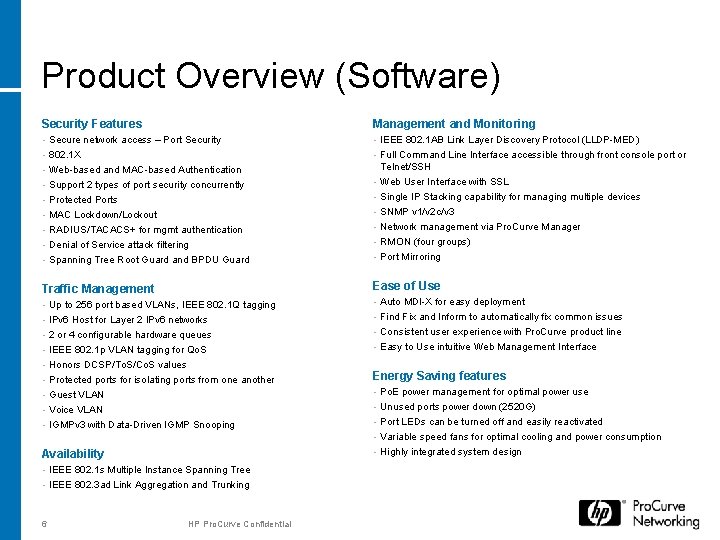

Product Overview (Software) Security Features Management and Monitoring • Secure network access – Port Security • IEEE 802. 1 AB Link Layer Discovery Protocol (LLDP-MED) • 802. 1 X • Full Command Line Interface accessible through front console port or • Web-based and MAC-based Authentication Telnet/SSH Web User Interface with SSL Single IP Stacking capability for managing multiple devices SNMP v 1/v 2 c/v 3 Network management via Pro. Curve Manager • Support 2 types of port security concurrently • • Protected Ports • • MAC Lockdown/Lockout • • RADIUS/TACACS+ for mgmt authentication • • Denial of Service attack filtering • RMON (four groups) • Spanning Tree Root Guard and BPDU Guard • Port Mirroring Traffic Management Ease of Use • Up to 256 port based VLANs, IEEE 802. 1 Q tagging • Auto MDI-X for easy deployment • IPv 6 Host for Layer 2 IPv 6 networks • Find Fix and Inform to automatically fix common issues • 2 or 4 configurable hardware queues • Consistent user experience with Pro. Curve product line • IEEE 802. 1 p VLAN tagging for Qo. S • Easy to Use intuitive Web Management Interface • Honors DCSP/To. S/Co. S values • Protected ports for isolating ports from one another Energy Saving features • Guest VLAN • Po. E power management for optimal power use • Voice VLAN • Unused ports power down (2520 G) • IGMPv 3 with Data-Driven IGMP Snooping • Port LEDs can be turned off and easily reactivated • Variable speed fans for optimal cooling and power consumption • Highly integrated system design Availability • IEEE 802. 1 s Multiple Instance Spanning Tree • IEEE 802. 3 ad Link Aggregation and Trunking 6 HP Pro. Curve Confidential

Ease of Use and Deployment • Interactive Web User Interface allows easy initial set up, configuration and monitoring of your network. • Easy deployment of network devices with no need for separate power supply for the IP Phone, Wireless AP, or Video Camera. • Flexible deployment options with compact footprint, quiet operations for open space, and multiple mounting options. • Plug and play out of the box, requires no configuration to achieve basic connectivity • Console port on front of unit for easy accessibility and simple menu driven initial set up • DHCP ready for easy initial configuration in your pre-existing network. 7 HP Pro. Curve Confidential

Security Segment Network Traffic to prevent communication between devices on the same network • Prevent specified and unknown users and/or devices from accessing the network • Physical security with support for Kensington Locks (8 -port) • Automatically protect network against denial of service attacks • 8 HP Pro. Curve Confidential

Reliability • Prioritize voice/video traffic through your network to ensure call and video quality are maintained regardless of network load. • Increased reliability using Po. E to power devices, use a battery backup with the switch and all IP Phones, APs, and cameras will stay on in a power outage. • No need to worry about power bricks getting knocked out of the outlets • Ability to improve network uptime with redundant links and the prevention of network loops • Peace of mind with products backed by the HP Pro. Curve lifetime warranty* 9 HP Pro. Curve Confidential

Scalability • Network Segmentation with VLAN support allows for multiple virtual networks with a single switch • Common command line interface with enterprise products allow for central management and configuration • Easily configure multiple switches through a single switch interface • IPv 6 management support for next generation networks • Supported by Pro. Curve Manager and Pro. Curve Manager Plus, as well as many SNMP network management tools 10 HP Pro. Curve Confidential

Energy Efficiency and Environment Product Design • • • 11 Power-efficient cooling with low noise − Fanless 8 -port, Variable Speed fan 24 -port. When network devices are off, ports are powered down (2520 G) LEDs can be turned off when not needed to conserve energy Platform design with minimal components Dynamic Po. E power negotiation ensures optimal power usage HP Pro. Curve Confidential

Energy Efficiency and Environment Process Use of recyclable packaging materials • Reduction of documentation shipped with the switch • Compliance with Restriction of Hazardous Substances (Ro. HS) directives • HP Trade-in and recycling programs available (check with local contact for details) • 12 HP Pro. Curve Confidential

Pro. Curve Switch 2520/2520 G-Po. E Series Competitive Comparisons • • 13 Cisco Small Business Pro ESW 5 x 0 Po. E Cisco Catalyst 2960 LAN Lite Po. E Cisco Catalyst Express 5 x 0 Po. E Cisco Small Business (SRW) D-Link DGS/DES Po. E Netgear Smart Switch Po. E 3 Com 4210 Po. E 3 Com Baseline Plus Po. E HP Pro. Curve Confidential

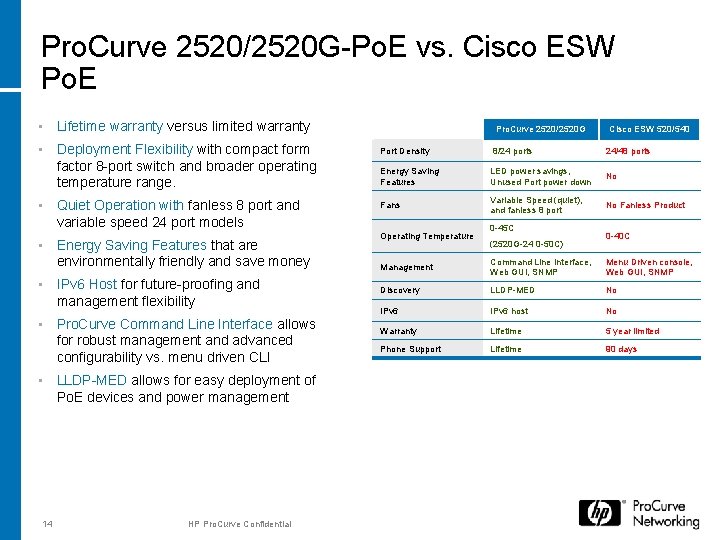

Pro. Curve 2520/2520 G-Po. E vs. Cisco ESW Po. E • Lifetime warranty versus limited warranty • Deployment Flexibility with compact form factor 8 -port switch and broader operating temperature range. • • • 14 Quiet Operation with fanless 8 port and variable speed 24 port models Energy Saving Features that are environmentally friendly and save money IPv 6 Host for future-proofing and management flexibility Pro. Curve Command Line Interface allows for robust management and advanced configurability vs. menu driven CLI LLDP-MED allows for easy deployment of Po. E devices and power management HP Pro. Curve Confidential Pro. Curve 2520/2520 G Cisco ESW 520/540 Port Density 8/24 ports 24/48 ports Energy Saving Features LED power savings, Unused Port power down No Fans Variable Speed (quiet), and fanless 8 port No Fanless Product Operating Temperature 0 -45 C (2520 G-24 0 -50 C) 0 -40 C Management Command Line Interface, Web GUI, SNMP Menu Driven console, Web GUI, SNMP Discovery LLDP-MED No IPv 6 host No Warranty Lifetime 5 year limited Phone Support Lifetime 90 days

Pro. Curve 2520/2520 G-Po. E vs. Cisco Catalyst 2960 LAN Lite Po. E • • Lifetime warranty versus limited lifetime warranty (5 -year fans and power supplies) Deployment Flexibility with compact form factor 8 -port switch and choice of Fast Ethernet or Gigabit • Quiet Operation with fanless 8 port and variable speed 24 port models • More ports with 2 extra Gigabit uplinks for servers, aggregation or redundancy (2520 -24 -Po. E) • Energy Saving Features that are environmentally friendly and save money • IPv 6 Host for future-proofing and management flexibility • LLDP-MED allows for easy discovery and configuration of Po. E devices and power management vs proprietary CDP protocol 15 HP Pro. Curve Confidential Pro. Curve 2520/2520 G Cisco Catalyst 2960 LAN Lite Port Density 8/24 ports 24/48 ports Speed Available in Fast Ethernet or Gigabit Fast Ethernet only Uplinks 2 dual personality + 2 Gigabit copper (2520 -24) 2 dual personality (8 -port models) 4 shared dual personality (2520 G-24) 2 dual personality Energy Saving Features LED power savings, Unused Port power down, N/A Variable Speed Fans Variable Speed (quiet), and fanless 8 port No Fanless Product Denial of Service Attack Filtering Yes N/A Discovery LLDP-MED CDP/LLDP IPv 6 host N/A Warranty Lifetime Limited Lifetime Phone Support Lifetime Add on Service

Pro. Curve 2520/2520 G-Po. E vs. Cisco Catalyst Express Po. E • Lifetime warranty versus limited lifetime warranty (5 -year fans and power supplies) • Energy Saving Features that are environmentally friendly and save money • • • 16 Pro. Curve 2520/2520 G Cisco Catalyst Express 500/520 Speed Available in Fast Ethernet or Gigabit Fast Ethernet only Uplinks 2 dual personality + 2 Gigabit copper (2520 -24) 2 dual personality (8 -port models) 4 shared dual personality (2520 G-24) Energy Saving Features LED power savings, Unused Port power down N/A Management Command Line Interface, Web GUI, SNMP IPv 6 Host for future-proofing and management flexibility Discovery LLDP-MED Proprietary CDP IPv 6 host N/A Pro. Curve Command Line Interface allows for robust management and advanced configurability via telnet/SSH or console port on front of unit Warranty Lifetime Limited Lifetime Phone Support Lifetime 90 days Deployment Flexibility with choice of Fast Ethernet or Gigabit More ports with 2 extra Gigabit uplinks for servers, aggregation or redundancy on the 2520 -24 -Po. E and 1 extra Gigabit uplink on the 2520 -8 -Po. E LLDP-MED allows for easy discovery and configuration of Po. E devices and power management vs proprietary CDP protocol HP Pro. Curve Confidential 1 dual personality (8 port) 2 dual personality (24 port)

Pro. Curve 2520/2520 G-Po. E vs. Cisco Small Business SRW (Linksys) • Lifetime warranty w/advance replacement versus 5 year return to factory limited warranty • Deployment Flexibility with broader operating temperature range • Enterprise class quality vs rebranded Linksys products. Linksys is sold to consumers. • • 17 Energy Saving Features that are environmentally friendly and save money IPv 6 Host for future-proofing and management flexibility LLDP-MED allows for easy discovery and configuration of Po. E devices and power management Pro. Curve Command Line Interface allows for robust management and advanced configurability vs. menu driven CLI HP Pro. Curve Confidential Pro. Curve 2520/2520 G Energy Saving Features LED power savings, Unused Port power down, Cisco Small Business SRW (Linksys) N/A Variable Speed Fans Denial of Service Attack Filtering Yes N/A Discovery LLDP-MED N/A Fans Variable Speed (quiet), and fanless 8 port No Fanless Product Management Command Line Interface, Web GUI, SNMP Menu Driven console, Web GUI, SNMP 0 -45 C 0 -40 C (8 –port) (2520 G-24 0 -50 C) 0 -45 C (24 -port) Warranty Lifetime 5 year limited Phone Support Lifetime 12 months Operating Temperature

Pro. Curve 2520/2520 G-Po. E vs. D-Link DES/DGS Po. E • • • Lifetime warranty versus limited lifetime warranty (5 -year fans and power supplies) Energy Saving Features that are environmentally friendly and save money Extra port on 8 -port model for gigabit connectivity • IPv 6 Host for future-proofing and management flexibility • Pro. Curve Command Line Interface allows for robust management and advanced configurability • LLDP-MED allows for easy discovery and configuration of Po. E devices and power management 18 HP Pro. Curve Confidential Pro. Curve 2520/2520 G D-Link DES/DGS Energy Saving Features LED power savings, Unused Port power down N/A Management Command Line Interface, Web GUI, SNMP Basic CLI, Web GUI, SNMP Discovery LLDP-MED N/A IPv 6 host N/A Warranty Lifetime Limited Lifetime

Pro. Curve 2520/2520 G-Po. E vs. Netgear Smart Switch • Lifetime warranty versus limited lifetime warranty • Energy Saving Features that are environmentally friendly and save money • • • 19 Deployment Flexibility with compact form factor 8 -port switch. IPv 6 Host for future-proofing and management flexibility Pro. Curve Command Line Interface allows for robust management and advanced configurability vs. Web Managed Switch HP Pro. Curve Confidential Pro. Curve 2520/2520 G Netgear Smart Switch Speed Available in Fast Ethernet or Gigabit Fast Ethernet only Port Density 8/24 ports 24/48 ports Energy Saving Features LED power savings, Unused Port power down N/A Management Command Line Interface, Web GUI, SNMP only IPv 6 host N/A Warranty Lifetime Limited Lifetime

Pro. Curve 2520/2520 G-Po. E vs. 3 Com Baseline Plus/Office. Connect • Lifetime warranty versus 3 year warranty • Energy Saving Features that are environmentally friendly and save money • • 20 Pro. Curve 2520/2520 G 3 com Baseline Plus/Office. Connect More ports with 2 extra Gigabit uplinks for servers, aggregation or redundancy on the 2520 -24 -Po. E and 1 extra Gigabit uplink on the 2520 -8 -Po. E vs 3 Com Uplinks 2 dual personality + 2 Gigabit copper (2520 -24) 2 dual personality (8 -port models) 4 shared dual personality (2520 G-24) Energy Saving Features LED power savings, Unused Port power down N/A IPv 6 Host for future-proofing and management flexibility Management Command Line Interface, Web GUI, SNMP Limited CLI, Web GUI, SNMP Discovery LLDP-MED N/A IPv 6 host N/A Warranty Lifetime 3 years Phone Support Lifetime 90 days Pro. Curve Command Line Interface allows for robust management and advanced configurability vs. limited “compact” CLI LLDP-MED allows for easy discovery and configuration of Po. E devices and power management HP Pro. Curve Confidential 1 dual personality (8 port FE ) 2 dual personality (24 port FE)

Pro. Curve 2520/2520 G-Po. E vs. 3 Com 4210 • • 21 Lifetime warranty versus limited lifetime warranty Energy Saving Features that are environmentally friendly and save money Deployment Flexibility with choice of Fast Ethernet or Gigabit models. 8 port has much small footprint vs 3 Com. More ports with 2 extra Gigabit uplinks for servers, aggregation or redundancy on the 2520 -24 -Po. E and 1 extra dual personality Gigabit uplink on the 2520 -8 -Po. E HP Pro. Curve Confidential Pro. Curve 2520/2520 G 3 Com 4210 Speed Available in Fast Ethernet or Gigabit Fast Ethernet only Uplinks 2 dual personality + 2 Gigabit copper (2520 -24) 2 dual personality (8 -port models) 4 shared dual personality (2520 G-24) Energy Saving Features LED power savings, Unused Port power down N/A Warranty Lifetime Limited Lifetime Phone Support Lifetime 90 days 1 dual personality (8 port) 2 dual personality (24 port)

Pro. Curve 2520/2520 G Switch Deployment Model 22 HP Pro. Curve Confidential

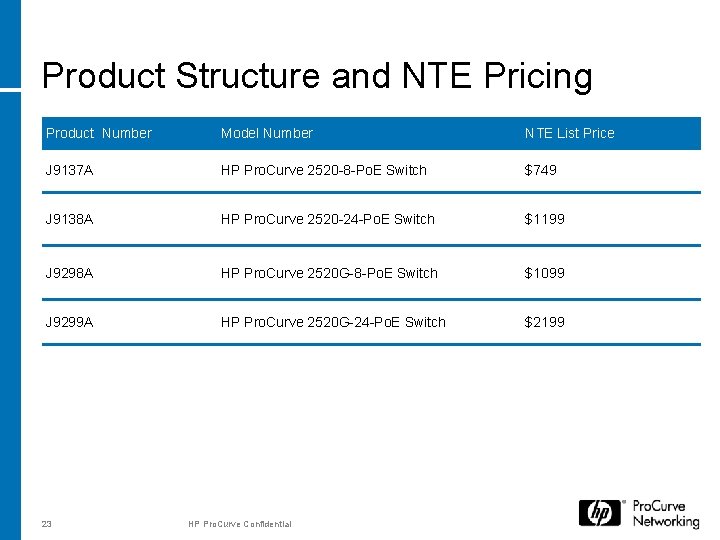

Product Structure and NTE Pricing Product Number Model Number NTE List Price J 9137 A HP Pro. Curve 2520 -8 -Po. E Switch $749 J 9138 A HP Pro. Curve 2520 -24 -Po. E Switch $1199 J 9298 A HP Pro. Curve 2520 G-8 -Po. E Switch $1099 J 9299 A HP Pro. Curve 2520 G-24 -Po. E Switch $2199 23 HP Pro. Curve Confidential

HP Pro. Curve 2520/2520 G Switch Series Backup © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Pro. Curve Po. E Switch Feature Matrix BPDU port protection Intelligent Edge (8200/5400/3500) Yes Traditional Edge (2910 al/2610) Yes Small Business (2520) Yes Command Authorization Yes Yes Denial Service Attack Filtering No No Yes Friendly port names Yes Feature OSPF Routes Intelligent Edge (8200/5400/3500) 10 K Traditional Edge (2910 al/2610) No Small Business (2520) No Classifier-based Qo. S Yes No No Detection of Malicious Attacks Yes No No Yes DHCP protection Yes No Feature GARP Yes Yes Distributed Trunking - Server to Switch Yes No No IGMP - Data Driven Yes Yes Dynamic ARP Protection Yes No IPv 6 Host Yes Yes Fan Redundancy Yes No No Jumbo Frames Yes Yes ICMP Throttle Yes No No LED on-off No No Yes IP Lockdown Yes No LLDP Yes Yes IP VLANs 2 K 256 No LLDP VOIP Auto cfg Yes Yes IPv 6 ACLs Yes No No LLDP-MED Yes Yes L 4 Prioritization Y Y No Loop Detection Yes Yes Local Proxy ARP Yes No MAC lockout Yes Yes Meshing Yes No No MAC only/lockdown Yes Yes MLD snooping Yes No MSTP (802. 1 s) Yes Yes NBAD / Virus Throttle Yes No No PC attached to Phone Auth Yes Yes OSPF Yes No No Po. E Yes, Po. E+ Yes PIM-D Yes No No Port inactivity (Sleep Mode) No No Yes PIM-S Yes No No Port Mirroring Yes Yes Port Based Yes No Port Trunking/LACP Yes Yes Protocol VLAN Yes No Protected Ports No No Yes Q-in-Q Yes No No RADIUS (Mgmt access) Yes Yes RADIUS based named VLAN Yes No RMON Yes Yes Redundant POE Pwr Yes No Secure Copy Yes Yes Redundant System PS Yes No Single IP Stacking Yes Yes Remote Intelligent (via ACL) Mirroring Yes No No SNMPv 3 Yes Yes Remote Web. Auth portal Yes No No Spanning Tree Root protection Yes Yes Replaceable Fan Tray Yes No No SSH (Mgmt access) Yes Yes Replaceable Power Supplies Yes No SSL (Mgmt access) Yes Yes RIP Yes, 10 K routes Yes, 2 K routes No Support negotiated power via LLDP/MED Yes Yes RL Max Outbound Yes No No TACACS+ (Mgmt access) Mac Auth (RADIUS based) / per port Web Auth Yes Yes RL Max Inbound Yes No No Yes Y/2 RL Minimum Outbnd / Queue Yes No No Yes Y/2 Route / L 3 Yes No No Queue service Strict, WFQ WRR Secure Credential Yes No No 802. 1 p Policy Map, Set, Honor Yes Strict, WFQ or WRR (2610) Policy Map, Set, Honor/Set s. Flow Yes No DSCP/Co. S Policy Map, Set, Honor Source-port filtering Yes No MAC Address table size 64 K 8 k 8 K Static Routes 256 64 No Maximum # of VLANs 2 K 256 UDLD Yes No Queues (#) 8 8 4 USB Auto-run Yes No 802. 1 X Users per port 32 8 2 User-based ACLs (IDM) Y Y No Accept OA Blade Yes No No VLAN Based ACLs Yes No No ACL/ACEs / switch 3 K 512 No VRRP Yes No No

2520 -Po. E & 2520 G-Po. E addition to 25 xx Series 2520 -Po. E & 2520 G-Po. E complement the existing 2510 & 2510 G switch series with Po. E: • 2520 -Po. E provides the following additional functionality: Pro. Curve Switch 2510 G-24 20 10/1000 ports plus 4 dual personality ports for up to 4 Gigabit fiber or 100 -FX uplinks − IPv 6 Host Support − Denial of Service attack filtering − Energy Saving features (Led-off, variable speed fan-24 p, port power down-Gi. G) Pro. Curve Switch 2510 -24 24 10/100, plus two, dual-personality uplink ports providing either 10/1000 or fiber connectivity Fanless operation reduces noise level; ideal for use in open space − 8 -port form factor (2520 -8 -Po. E & 2520 G -8 -Po. E) • Ease of deployment with shallow depth on 24 port • LLDP-MED for advanced device discovery and configuration Pro. Curve Switch 2510 G-48 44 10/1000 ports plus 4 dual personality ports for up to 4 Gigabit fiber or 100 -FX uplinks Pro. Curve Switch 2510 -48 48 10/100, plus four Gigabit uplink ports: two 10/1000 and two open mini-GBIC slots for fiber connectivity 26 HP Pro. Curve Confidential
