HP Operations Orchestration Whats new in HP OO

HP Operations Orchestration What’s new in HP OO 7. 20. 01 Devon Kim Sanjay Puri Matt Sousley Optimize the business outcome of IT © 2008 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice

Agenda Virtualization Overview OO 7. 20. 01 Content Drilldown Demo 2 HP Restricted. For HP and Partner Internal Use.

Overview of HP OO 7. 20. 01 • Content-only • Primary release focus: Virtualization − VMware Virtual Infrastructure − Microsoft Hyper-V − Citrix Xen. Server − Generic Virtualization • One additional Integration − Project and Portfolio Management (PPM) 3 HP Restricted. For HP and Partner Internal Use.

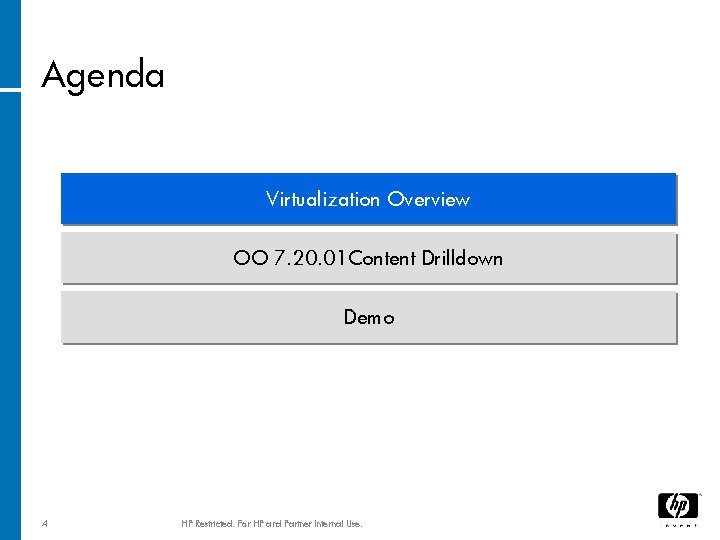

Agenda Virtualization Overview OO 7. 20. 01 Content Drilldown Demo 4 HP Restricted. For HP and Partner Internal Use.

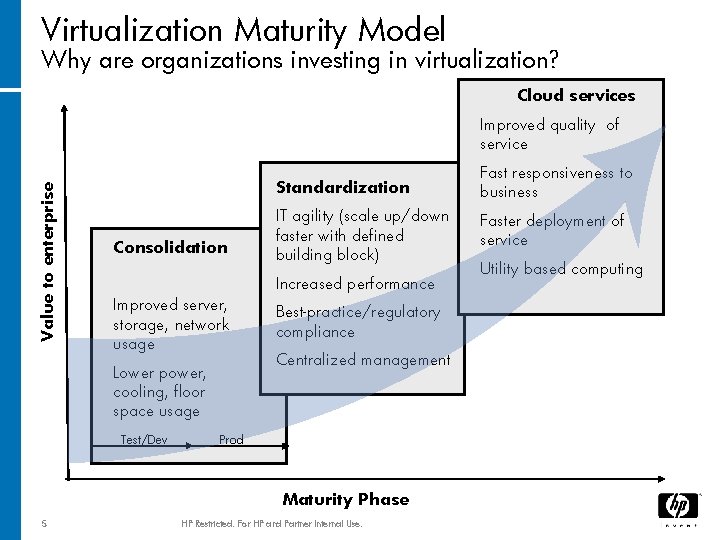

Virtualization Maturity Model Why are organizations investing in virtualization? Cloud services Value to enterprise Improved quality of service Consolidation Standardization Fast responsiveness to business IT agility (scale up/down faster with defined building block) Faster deployment of service Increased performance Improved server, storage, network usage Lower power, cooling, floor space usage Test/Dev Best-practice/regulatory compliance Centralized management Prod Maturity Phase 5 HP Restricted. For HP and Partner Internal Use. Utility based computing

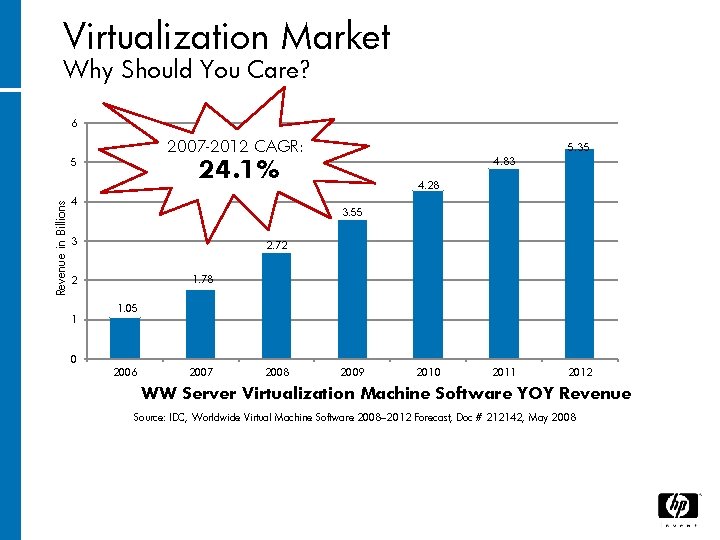

Virtualization Market Why Should You Care? 6 2007 -2012 CAGR: 24. 1% Revenue in Billions 5 4 4. 28 2. 72 1. 78 2 0 4. 83 3. 55 3 1 5. 35 1. 05 2006 2007 2008 2009 2010 2011 2012 WW Server Virtualization Machine Software YOY Revenue 8. 5% 15. 8% Source: IDC, Worldwide Virtual Machine Software 2008– 2012 Forecast, Doc # 212142, May 2008 13. 4%

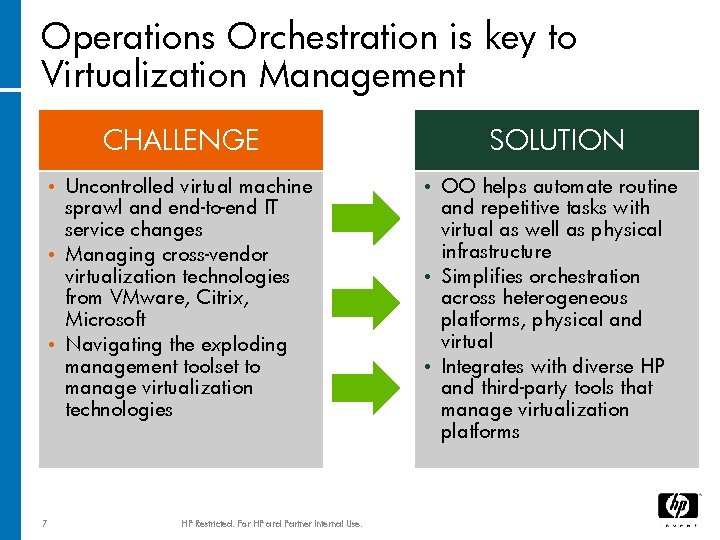

Operations Orchestration is key to Virtualization Management CHALLENGE Uncontrolled virtual machine sprawl and end-to-end IT service changes • Managing cross-vendor virtualization technologies from VMware, Citrix, Microsoft • Navigating the exploding management toolset to manage virtualization technologies • 7 HP Restricted. For HP and Partner Internal Use. SOLUTION OO helps automate routine and repetitive tasks with virtual as well as physical infrastructure • Simplifies orchestration across heterogeneous platforms, physical and virtual • Integrates with diverse HP and third-party tools that manage virtualization platforms •

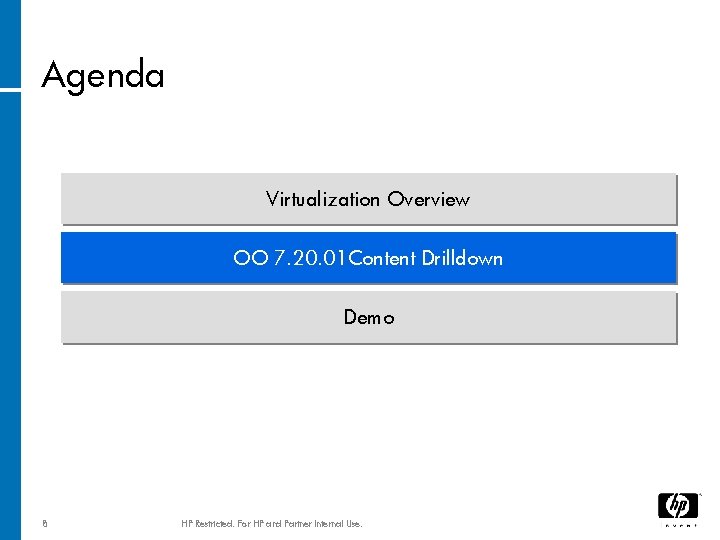

Agenda Virtualization Overview OO 7. 20. 01 Content Drilldown Demo 8 HP Restricted. For HP and Partner Internal Use.

VMware Virtual Infrastructure - Overview Versions supported • VMware Infrastructure 2, 3 • VMware ESX 2. 5, 3. 0, 3. 5 • VMware Virtual Center 2. 0+ Interface / API Used • SOAP webservice Deployment Requirements • JRAS • VMWare web service installed (default installation-includ 9 HP Restricted. For HP and Partner Internal Use.

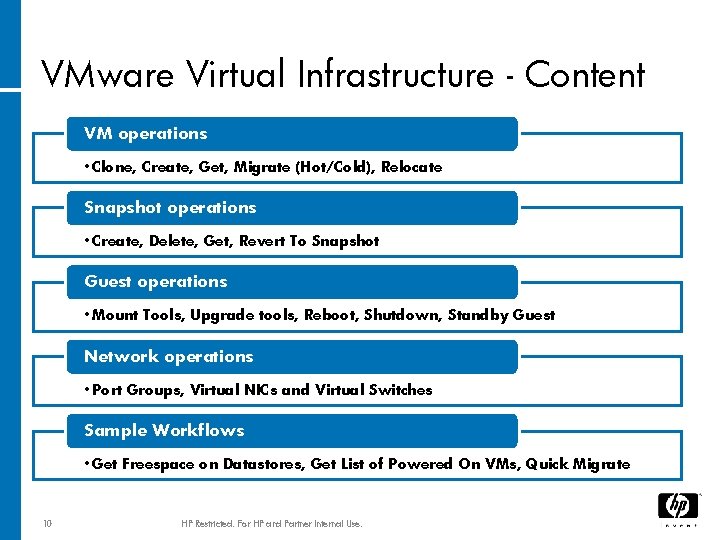

VMware Virtual Infrastructure - Content VM operations • Clone, Create, Get, Migrate (Hot/Cold), Relocate Snapshot operations • Create, Delete, Get, Revert To Snapshot Guest operations • Mount Tools, Upgrade tools, Reboot, Shutdown, Standby Guest Network operations • Port Groups, Virtual NICs and Virtual Switches Sample Workflows • Get Freespace on Datastores, Get List of Powered On VMs, Quick Migrate 10 HP Restricted. For HP and Partner Internal Use.

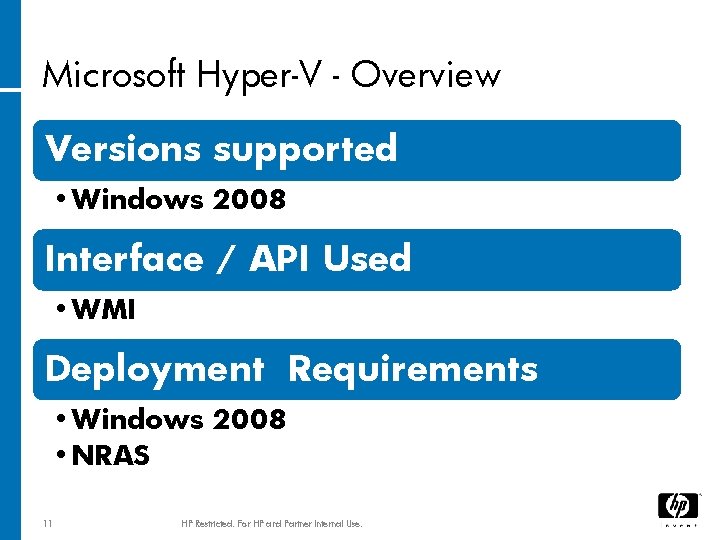

Microsoft Hyper-V - Overview Versions supported • Windows 2008 Interface / API Used • WMI Deployment Requirements • Windows 2008 • NRAS 11 HP Restricted. For HP and Partner Internal Use.

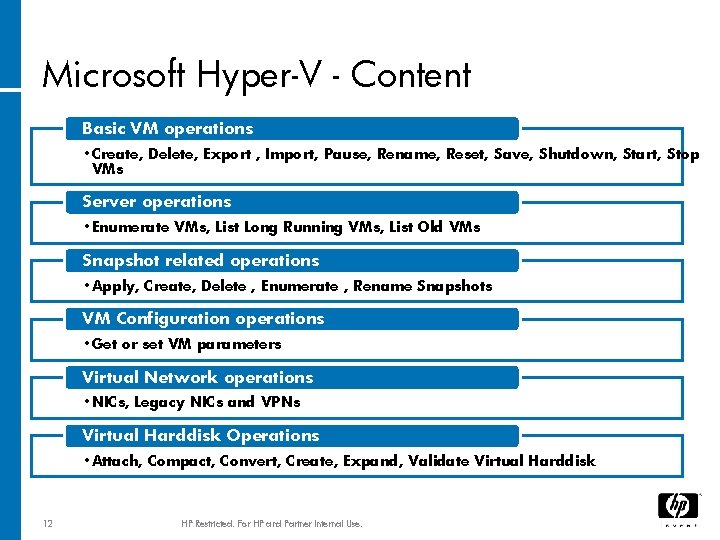

Microsoft Hyper-V - Content Basic VM operations • Create, Delete, Export , Import, Pause, Rename, Reset, Save, Shutdown, Start, Stop VMs Server operations • Enumerate VMs, List Long Running VMs, List Old VMs Snapshot related operations • Apply, Create, Delete , Enumerate , Rename Snapshots VM Configuration operations • Get or set VM parameters Virtual Network operations • NICs, Legacy NICs and VPNs Virtual Harddisk Operations • Attach, Compact, Convert, Create, Expand, Validate Virtual Harddisk 12 HP Restricted. For HP and Partner Internal Use.

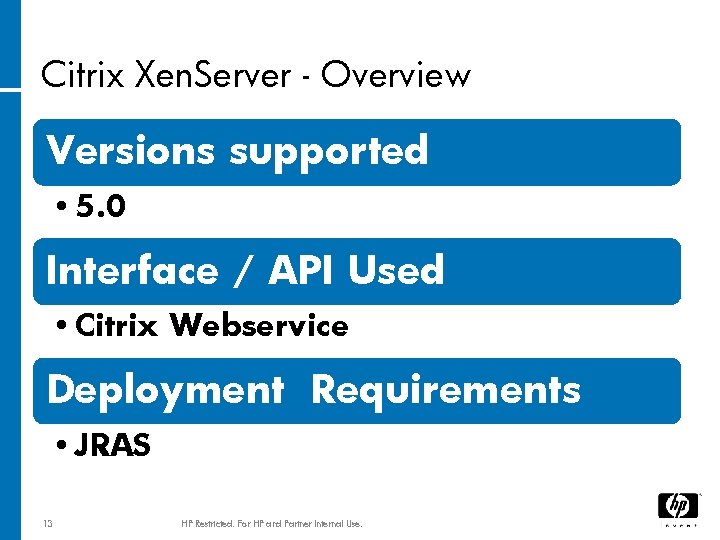

Citrix Xen. Server - Overview Versions supported • 5. 0 Interface / API Used • Citrix Webservice Deployment Requirements • JRAS 13 HP Restricted. For HP and Partner Internal Use.

Citrix Xen. Server Basic VM operations • Pause, Resume, Suspend, Unpause, Reboot, Shutdown, Start VMs Advanced operations • Migrate, Clone, Copy, Destroy, Find, Install VMs Create VM Snapshot Networking Operations • Create, Destroy, Find Virtual Networks Storage operations • Storage Repositories, Virtual Block Devices and Virtual Disk Images Sample Workflows • Check for Task Success, Create VM from Configured Template, Find List of VMs, Setup Network Devices for VM 14 HP Restricted. For HP and Partner Internal Use.

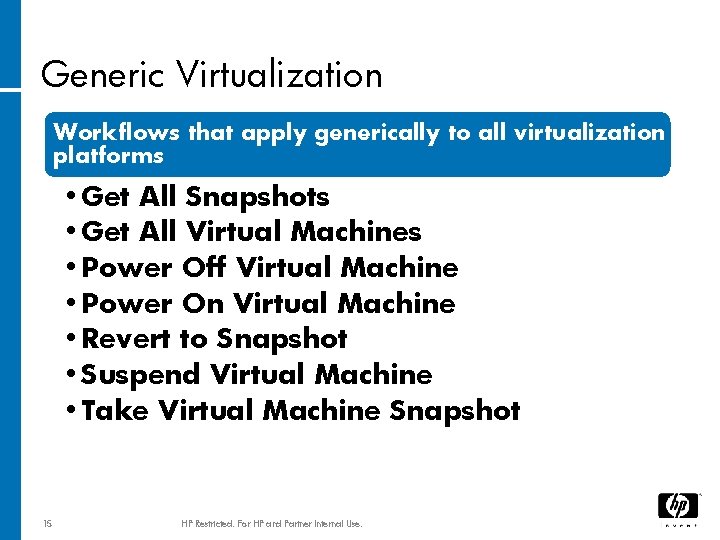

Generic Virtualization Workflows that apply generically to all virtualization platforms • Get All Snapshots • Get All Virtual Machines • Power Off Virtual Machine • Power On Virtual Machine • Revert to Snapshot • Suspend Virtual Machine • Take Virtual Machine Snapshot 15 HP Restricted. For HP and Partner Internal Use.

HP Operations Orchestration vs. HP Server Automation • HP OO and HP SA are complementary; single toolset to manage physical and virtual servers • There are deep integrations between HP OO and HP SA • Only overlap in virtualization functionality is in provisioning capabilities • Server Automation is the enterprise repository for server change and configuration information 16 HP Restricted. For HP and Partner Internal Use.

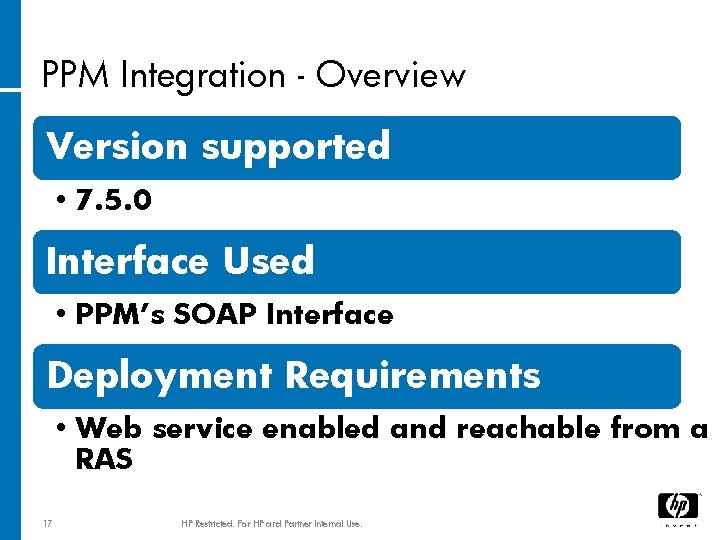

PPM Integration - Overview Version supported • 7. 5. 0 Interface Used • PPM’s SOAP Interface Deployment Requirements • Web service enabled and reachable from a RAS 17 HP Restricted. For HP and Partner Internal Use.

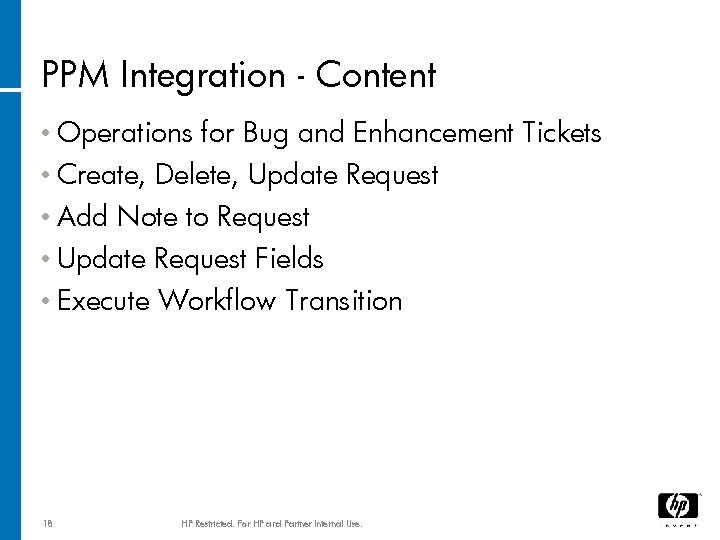

PPM Integration - Content • Operations • Create, for Bug and Enhancement Tickets Delete, Update Request • Add Note to Request • Update Request Fields • Execute Workflow Transition 18 HP Restricted. For HP and Partner Internal Use.

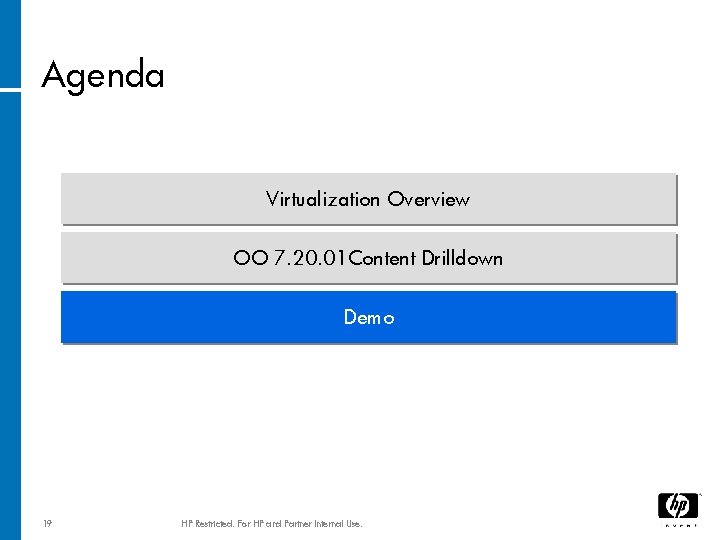

Agenda Virtualization Overview OO 7. 20. 01 Content Drilldown Demo 19 HP Restricted. For HP and Partner Internal Use.

Q&A 20 HP Restricted. For HP and Partner Internal Use.
