Topics • Vorstellung des Blade-Konzeptes − “Wanderung” durch eine BL 860 c • BL 870 c • Benutzung von c-Class Blade-Systemn − Hardware-Konfiguration − Firmware Updates − Software-Installation/Konfiguration/Wartung 10/30/2020 2
Warum Blades? • Hohe Kosten für IT-Infrastruktur • Anschaffungs-/Betriebskosten • Unflexible IT-Infrastruktur • “Trägkeit” der IT-Infrastruktur • Platzersparnis – mehr Compute Power auf gleichem Raum als durch Verwendung von racked Servers • Kabel-Management/weniger Verkabelung 10/30/2020 3
Warum Blades? • Power/Kühlung - Kostenreduzierung • System Management – mehr Konsistenz • Flexibilität – leichte Anpassungen • Weniger Ersatzteile = Blade-Systeme als kostengünstiger Ersatz vieler einzelner Server 10/30/2020 4
c 7000 Enclosure • 10 U Form Factor • passt in 19” Rack, 32” Tiefe • Kapazität − 8 full-height oder 16 half-height Blade Slots − 8 Switch Module (SWM) Slots − 2 On-board Administrator (OA) Slots − 6 Power Supplies (hot pluggable) − 10 Hyperjet Lüfter 10/30/2020 5
c 7000 Enclosure Half-Height Blade Server • 16 pro Enclosure Full-Height Blade Server • 8 pro Enclosure 10 U Power Supplies • Onboard Administrator • 10/30/2020 Einfache Konfiguration und höhere Effizienz HP Insight Display, vereinfachtes Setup 6
c 7000 Enclosure – voll redundant Active Cool fans Interconnect bays Onboard Administrator Power management 10/30/2020 7
c 3000 Enclosure • 6 U Form Factor • Neue Midplane und Power Supplies • Kapazität − 4 full-height oder 8 half-height Blade Slots − 6 Power Supplies (hot pluggable) − 6 Lüfter − 4 Interconnect bays − 1 Onboard Administrator (OA), 2. optional − DVD 10/30/2020 8
c 3000 Enclosure 10/30/2020 9
Interconnect/Switch Modules (SWM) • 4 Slots für SWMs auf Backplane • Row 0 ausschließlich für integrierte NICs − 2 NICs/Blade, jeweils 2 Ports (max. 32) − 16 Ports/SWM • Drei Typen (heute) − Pass-thru − Vendor Switch − Virtual Connect 10/30/2020 10
Virtual Connect • Network und Fibre Channel SWMs plus Virtual Connect Manager (VCM) − VCM auf Network SWM in Bay 1 oder 2 (VC erfordert mindestens 1 Network VC Switch) − 2 Network Switches für Netzwerk-Redundanz und VCM Failover − VCM “Domain” beschreibt VC Environment • Blade-Profile • Netzwerk • SAN • VCM: kein Overhead im Network/FC Traffic! 10/30/2020 11
HP Virtual Connect Ethernet Modul Mid. Plane 16 x 1 Gb Ethernet–Connects to one NIC in each HH blade server bay 1 x 10 Gb–Cross-link between adjacent VC-Enet modules Mgmt Interfaces to Onboard Administrator (Enet & I 2 C) 2 x 10 Gb Ethernet (CX 4) Usable as data center links or as stacking links. Recessed module reset button Port Number & Status Indicators Indicates whether a data center link (green), stacking link (amber), or highlighted port (blue). 10/30/2020 8 x 1 Gb Ethernet (RJ 45) Usable as data center links or as stacking links. ‘Next’ button (unused in initial release firmware) 12
BL 860 c • Management-Logik − Management Processor (MP) − USB 2. 0 Controller − ATI RN 50 Graphik-Chip − 10/100 MB LAN (intern) − Serial/USB/Video (SUV) Connector − i. LO 2 Interface − v. Media Support − Virtual keyboard/video/mouse (v. KVM) support 10/30/2020 13
BL 860 c Server Blade • 2 Processor Sockets − Single or Dual-core Itanium Processor − 1. 4 GHz/12 MB cache − 1. 6 GHz/18 MB cache • 12 DIMM slots − DDR 2 in 512 MB to 4 GB modules − Configured in pairs or quads, 1 GB to 48 GB • Fast Core or Integrated IO − LSI 1068 Serial Attach SCSI (SAS) controller (2 Drives) • One channel for each on-board SAS drive • Drives are Hot Plug − 2 Broadcom BC 5704 S Gigabit Ethernet controllers • 2 -port controller • Both are routed to the Interconnect Module in Row 0 • 3 PCI Express (PCIe) Mezzanine card slots − Slot 1 is a Type I slot (x 4) − Slots 2 and 3 are Type II slots (x 8) 10/30/2020 14
BL 870 c Server Blade • 4 Processor Sockets − Single or Dual-core Itanium Processor − 1. 42 GHz/12 MB cache − 1. 6 GHz /18 MB cache − 1. 6 GHz /24 MB cache • 24 DIMM slots − DDR 2 in 512 MB to 4 GB modules − Configured in pairs or quads, 4 GB to 96 GB • Fast Core or Integrated IO − LSI 1068 Serial Attach SCSI controller (4 SAS Drives) − Up to 4 Gigabit Ethernet controllers • 3 PCI Express (PCIe) Mezzanine card slots − Slot 1 is a Type I slot (x 4) − Slots 2 and 3 are Type II slots (x 8) 10/30/2020 16
SB 40 c Storage Blade • Direct Attach Storage • Smart Array Raid Controller • Unterstützt bis zu 6 SAS Drives • Verbindung zu Processor Blade mit PCIe Passthru Mezzanine Card 10/30/2020 17
Ultrium 448 c Tape Blade • LTO Ultrium 2 • 400 GB Kapazität • Erfordert PCIe Pass-thru Modul 10/30/2020 19
PCI Sidecar • IO Blade für PCIx oder PCIe “stand-up” Module − eigene “backplane” mit 2 Slots • ausschließlich für 3 rd Party Module - keine Module von HP! 10/30/2020 20
BL 860 c Mezzanine Cards • Type I cards − Max. 15 W Power − x 4 or x 8 data lanes − passen in Type I or Type II Slots • Type II cards − Max. 25 W Power − Nur x 8 Type II Slots • 4 GB Fibre Channel − Compatible with Integrity Server FC • PCIe pass-thru − Supports Storage Blade SB 40 c • Expect to see others…NIC, Raid, FC … 10/30/2020 21
On-board Administrator (OA)… • Verwaltet alle Enclosure-bezogenen Items: Temperatur, Power, Switch Modules, Blades • 2 Slots in Backplane • Interfaces − HTML-basierte GUI via https − CLI Interface via RS-232 (Local connector), SSH, oder Telnet • Management-Protokolle − SNMP (heute) − IPMI via i. LO über lokalen 10/100 MBit Link 10/30/2020 22
…On-board Administrator (OA) • Power-On Control für Server Blades • Dynamische Regelung von Power/Kühlung • Enclosure Profile – einmalig aufgesetzt − Real time monitoring data • Firmware Updates • SWM Console Interface 10/30/2020 23
c 7000 Interconnect Model (Half-Height Server Blade) N PCIe x 4 PCIe x 8 NIC 2 1 4 X Mezz-1 3 X 2 1 Mezz-2 Inter. Bay 1 N Inter. Bay 3 Up to 160 Gb/s per direction. N Inter. Bay 5 4 3 2 1 Half-Height Server Blade N (N= 1 …. 16) N Inter. Bay 7 Inter. Bay 2 N Inter. Bay 4 N Inter. Bay 6 N Inter. Bay 8 16 Lanes per connector Up to 10 Gb/s per lane 10/30/2020 N Inter. Bay 1 Inter. Bay 3 Inter. Bay 5 Inter. Bay 7 Inter. Bay 2 Inter. Bay 4 Inter. Bay 6 Inter. Bay 8 24
c 7000 Interconnect Model (Full-Height Server Blade) PCIe x 4 PCIe x 8 NIC Mezz-1 Mezz-2 NIC Mezz-3 2 1 4 3 2 1 Inter. Bay 2 N+8 Up to 320 Gb/s per direction. 2 1 Inter. Bay 3 Inter. Bay 4 Inter. Bay 5 Inter. Bay 6 Inter. Bay 7 Inter. Bay 8 4 3 2 1 Full-Height Server Blade N (N= 1 …. 8) 10/30/2020 N 32 Lanes per FH Inter. Bay 1 Inter. Bay 3 Inter. Bay 5 Inter. Bay 7 Inter. Bay 2 Inter. Bay 4 Inter. Bay 6 Inter. Bay 8 25
c-Class Power/Airflow • Power Supplies − Minimum 2 Supplies (Slots 1+4) − weitere Supplies = Redundanz • Lüfter − Minimum 4 Lüfter − weitere Lüfter = Redundanz • Nach Einschalten (Standby Power): OA führt Startup Script aus − fragt nach Power Redundancy Scheme − OA informiert über potentielle Unterbestückung von Power Supplies und/oder Lüftern 10/30/2020 26
Zugriff auf Enclosure • On-board Administrator − OA Display zeigt IP-Adresse − Browse zu i. LO − TELNET zu CLI − Serielle Verbindung − OA name/password − Setup von IP, name/password, etc. • Interconnect Modules − Lokaler CLI − Browse via OA 10/30/2020 27
Zugriff auf Management Processor • TELNET zu Management Processor (MP) auf jedem Server Blade − Traditionelle Methode des Konsolen-Zugriffs • Browse zu MP • “SUV”-Kabel für seriell/USB/VGA-Verbindung zu jedem Server Blade • Login-Informationen auf Label am Gerät • Virtual KVM (v. KVM) 10/30/2020 28
Zugriff auf Management Console 10/30/2020 29
Check Firmware! • Zuerst Update des OA • Interconnect Modules • Server Blades − Baseboard Management Controller (BMC) − Management Processor (MP) − System Firmware (SFW) − Integrated IO (FRU EEPROMs, etc. ) − Mezzanine Cards • Storage Blades 10/30/2020 30
Open. VMS und Blades • c-Class Support ab 06/2007 − V 8. 3 plus Update/Patch Kits − SB 40 c (07/2007) − Virtual Connect (09/2007) • Zusätzliche Features in V 8. 3 -1 H 1 (11/2007) − Provisioning − Web Based Enterprise Management (WBEM Providers) − v. Media − Montvale − c 3000 Enclosure 10/30/2020 31
Open. VMS und Blades • Mögliche Szenarien: − Mehrere Blades in einem Enclosure − Verschiedene Betriebssysteme im Enclosure − Mehrere Open. VMS Nodes im Enclosure • Installation von Open. VMS: − Traditionell per PCSI Product Install − HP Systems Insight Manager (HPSIM) 10/30/2020 32

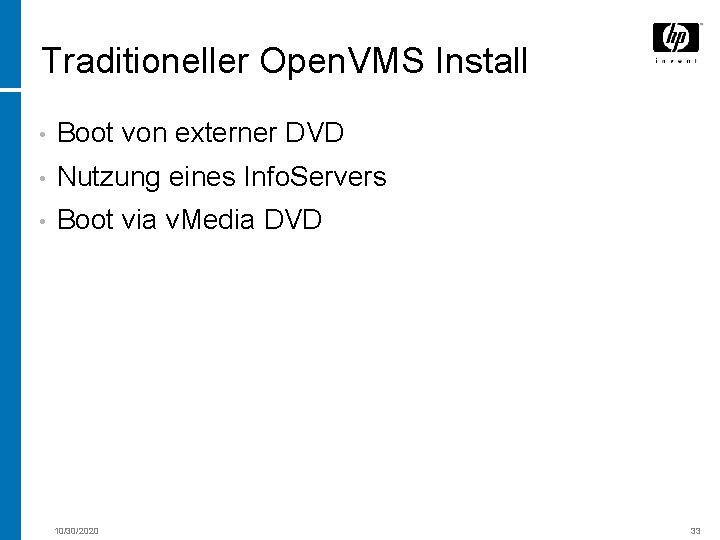

Traditioneller Open. VMS Install • Boot von externer DVD • Nutzung eines Info. Servers • Boot via v. Media DVD 10/30/2020 33
HP SIM • zentrales Management Tool für Blade Systems − unabhängig vom Betriebssystem − Installation, Upgrade, Monitoring − Einheitliches “Look and Feel” − Inventory, fault, and configuration management • Läuft auf HP-UX, Windows und Linux • SSL, SSH Support • Remote Execution von Commands, Scripts • Erweiterbarkeit durch Plug-Ins 10/30/2020 34
Ein Blade System unter HP SIM 10/30/2020 35
