HP 1910 Switch Series Advanced smart managed gigabit switching for small businesses © 2011 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. © Copyright 2012 Hewlett-Packard Development Company, The information contained herein is subject to change without notice

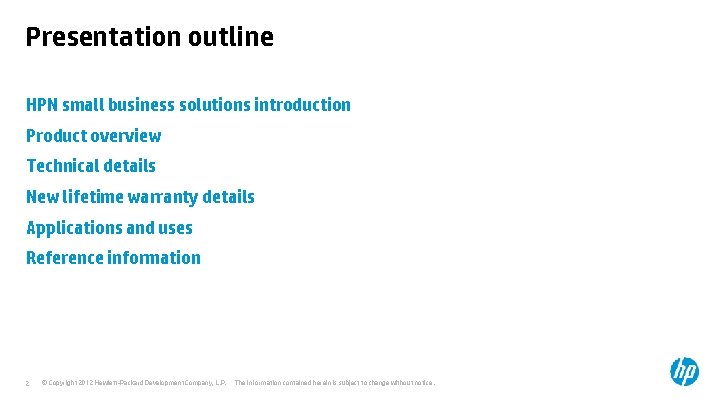

Presentation outline HPN small business solutions introduction Product overview Technical details New lifetime warranty details Applications and uses Reference information 2 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP Networking small business solutions introduction © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP Networking Small Business Series Optimized for sites from 2 to 100 networked users Breadth of networking technologies: • Unmanaged “plug-and-play” switches • Smart managed web-configurable switches • Independent wireless access points and related wireless solutions The best of Pro. Curve and 3 Com small business portfolios Smooth progression to enterprise HP Networking solutions when the time comes 4 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

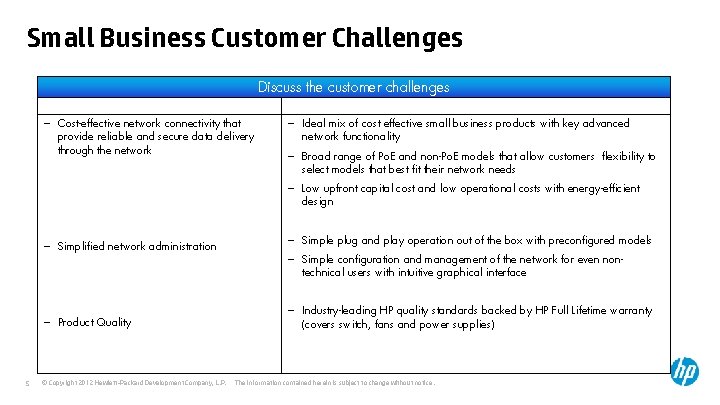

Small Business Customer Challenges Discuss the customer challenges Challenges HP 1910 Switch Series Solution – Cost-effective network connectivity that provide reliable and secure data delivery through the network – Ideal mix of cost effective small business products with key advanced network functionality – Broad range of Po. E and non-Po. E models that allow customers flexibility to select models that best fit their network needs – Low upfront capital cost and low operational costs with energy-efficient design – Simplified network administration – Product Quality 5 © Copyright 2012 Hewlett-Packard Development Company, L. P. – Simple plug and play operation out of the box with preconfigured models – Simple configuration and management of the network for even nontechnical users with intuitive graphical interface – Industry-leading HP quality standards backed by HP Full Lifetime warranty (covers switch, fans and power supplies) The information contained herein is subject to change without notice.

HP Addressing common small business needs Small business customers demand ease of use 6 © Copyright 2012 Hewlett-Packard Development Company, L. P. Networks play a major role in today’s businesses which increases the need for security and reliability The information contained herein is subject to change without notice. Flexibility is a key attribute when discussing deployment options

HP Networking Small Business Series Value-driven solutions for small businesses Unmanaged Smart managed Wired 7 Gig adv. 1910 Series 8, 16, 24 and 48 -port Gig switches Static routing; Po. E and HPo. E Gig basic 1810 Series 8 and 24 -port Gig web managed switches 8 -port is fanless & can be powered via Po. E 1810 Series 8 and 24 -port 10/100 switches Web managed FE basic Small office Presentation focus 1905 Series 24, 24+2, 48 -port 10/100 ACLs; Po. E and non-Po. E FE adv. Small business Wireless 1410 Series 8, 16 and 24 -port Gig switches; 8, 16, 24+2 FE switches. Desktop / wall / rack mounting options 1405 Small Office Series 5, 8, & 16 -port Gig & FE switches © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. M 220 Wireless single radio dual band 802. 11 n Access Point With clustering technology M 200 Wireless single radio dual band 802. 11 n Access Point

HP Networking Small And Medium Business Switches IT staff Requirements 8 Small office unmanaged (1405) Small business unmanaged (1410) Small business smart managed entry level (1700/1810) Small business smart managed advanced (19 xx) Small-medium business fully managed enterprise class (2510) No IT Staff No IT staff No IT Staff Sometimes dedicated IT resource or staff Likely dedicated IT resource or staff Unmanaged Layer 2 only Desktop / Rackmount Key Features: – 802. 1 p Qo. S – 802. 3 x Flow control Smart Web Managed Layer 2 only Tabletop / Rackmount Key Features: – Intuitive Web interface – VLANs – Link aggregation – Broadcast storm control Smart Web Managed Layer 2 / L 3 static routes Flexible Mounting Key Features: – Intuitive Web interface – VLANs – IPv 6 – Link aggregation – ACLs – 802. 1 X network login Fully Managed Layer 2 Key Features: – Command Line Interface (CLI) – SNMP – IEEE 802. 1 s Multiple Spanning Tree Base Feature Set Unmanaged Layer 2 only Desktop models Ports Offered 5/8/16 ports 8, 16, 24 or 24+2 G ports 8, 24 or 48 ports 8, 8 Po. E, 24 Po. E or 48 ports 24 or 48 ports Fiber Connectivity N/A 24 and 48 port model All models Presentation focus © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP 1910 Switch Series Product overview © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

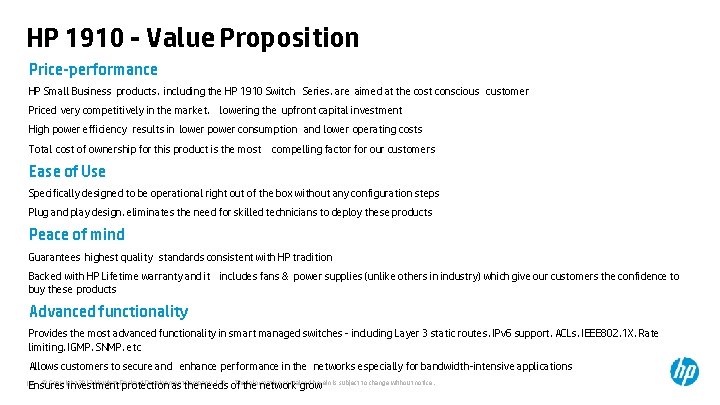

HP 1910 - Value Proposition Price-performance HP Small Business products, including the HP 1910 Switch Series, are aimed at the cost conscious customer Priced very competitively in the market, lowering the upfront capital investment High power efficiency results in lower power consumption and lower operating costs Total cost of ownership for this product is the most compelling factor for our customers Ease of Use Specifically designed to be operational right out of the box without any configuration steps Plug and play design, eliminates the need for skilled technicians to deploy these products Peace of mind Guarantees highest quality standards consistent with HP tradition Backed with HP Lifetime warranty and it includes fans & power supplies (unlike others in industry) which give our customers the confidence to buy these products Advanced functionality Provides the most advanced functionality in smart managed switches - including Layer 3 static routes, IPv 6 support, ACLs, IEEE 802. 1 X, Rate limiting, IGMP, SNMP, etc Allows customers to secure and enhance performance in the networks especially for bandwidth-intensive applications © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. 10 Ensures investment protection as the needs of the network grow

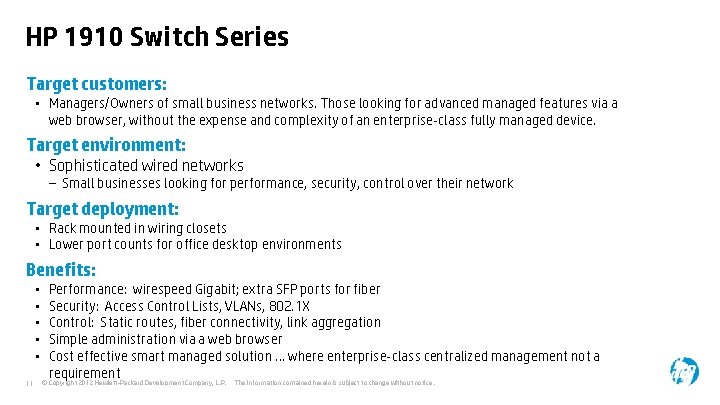

HP 1910 Switch Series Target customers: • Managers/Owners of small business networks. Those looking for advanced managed features via a web browser, without the expense and complexity of an enterprise-class fully managed device. Target environment: • Sophisticated wired networks – Small businesses looking for performance, security, control over their network Target deployment: • Rack mounted in wiring closets • Lower port counts for office desktop environments Benefits: • • • 11 Performance: wirespeed Gigabit; extra SFP ports for fiber Security: Access Control Lists, VLANs, 802. 1 X Control: Static routes, fiber connectivity, link aggregation Simple administration via a web browser Cost effective smart managed solution … where enterprise-class centralized management not a requirement © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

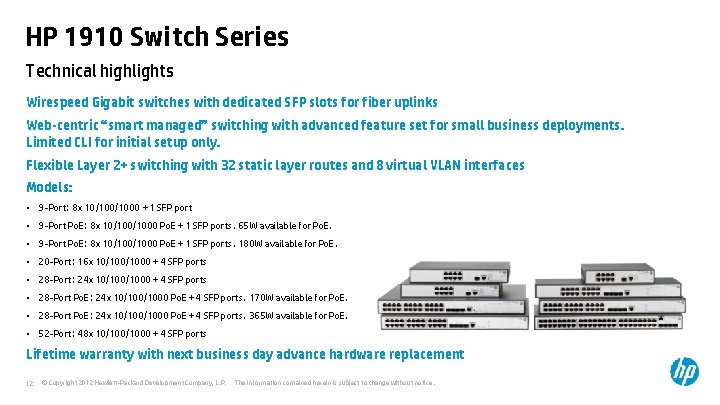

HP 1910 Switch Series Technical highlights Wirespeed Gigabit switches with dedicated SFP slots for fiber uplinks Web-centric “smart managed” switching with advanced feature set for small business deployments. Limited CLI for initial setup only. Flexible Layer 2+ switching with 32 static layer routes and 8 virtual VLAN interfaces Models: • 9 -Port: 8 x 10/1000 + 1 SFP port • 9 -Port Po. E: 8 x 10/1000 Po. E + 1 SFP ports. 65 W available for Po. E. • 9 -Port Po. E: 8 x 10/1000 Po. E + 1 SFP ports. 180 W available for Po. E. • 20 -Port: 16 x 10/1000 + 4 SFP ports • 28 -Port: 24 x 10/1000 + 4 SFP ports • 28 -Port Po. E: 24 x 10/1000 Po. E + 4 SFP ports. 170 W available for Po. E. • 28 -Port Po. E: 24 x 10/1000 Po. E + 4 SFP ports. 365 W available for Po. E. • 52 -Port: 48 x 10/1000 + 4 SFP ports Lifetime warranty with next business day advance hardware replacement 12 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

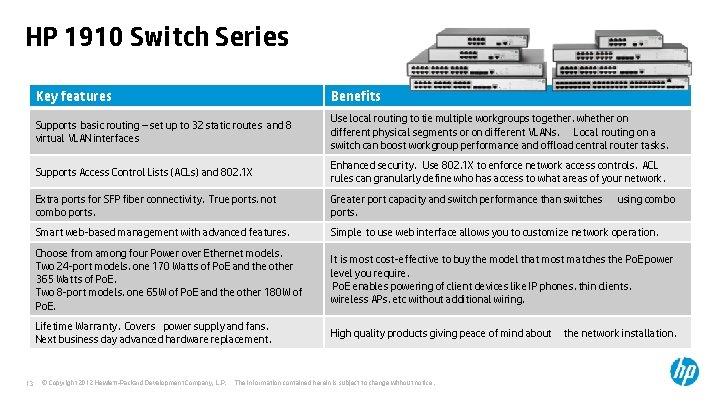

HP 1910 Switch Series 13 Key features Benefits Supports basic routing – set up to 32 static routes and 8 virtual VLAN interfaces Use local routing to tie multiple workgroups together, whether on different physical segments or on different VLANs. Local routing on a switch can boost workgroup performance and offload central router tasks. Supports Access Control Lists (ACLs) and 802. 1 X Enhanced security. Use 802. 1 X to enforce network access controls. ACL rules can granularly define who has access to what areas of your network. Extra ports for SFP fiber connectivity. True ports, not combo ports. Greater port capacity and switch performance than switches ports. Smart web-based management with advanced features. Simple to use web interface allows you to customize network operation. Choose from among four Power over Ethernet models. Two 24 -port models, one 170 Watts of Po. E and the other 365 Watts of Po. E. Two 8 -port models, one 65 W of Po. E and the other 180 W of Po. E. It is most cost-effective to buy the model that most matches the Po. E power level you require. Po. E enables powering of client devices like IP phones, thin clients, wireless APs, etc without additional wiring. Lifetime Warranty. Covers power supply and fans. Next business day advanced hardware replacement. High quality products giving peace of mind about © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. using combo the network installation.

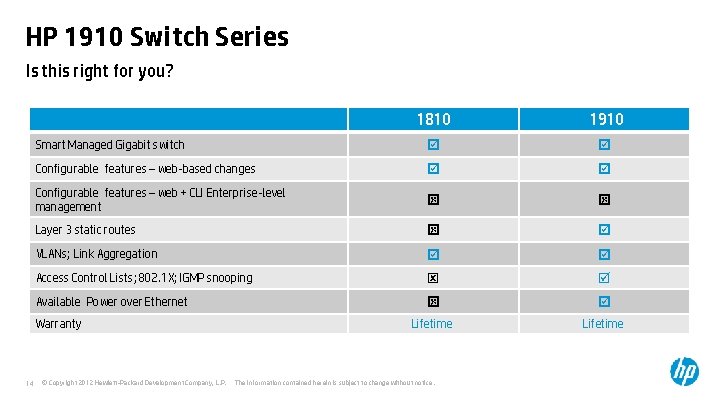

HP 1910 Switch Series Is this right for you? 1810 1910 Smart Managed Gigabit switch Configurable features – web-based changes Configurable features – web + CLI Enterprise-level management Layer 3 static routes VLANs; Link Aggregation Access Control Lists; 802. 1 X; IGMP snooping Available Power over Ethernet Lifetime Warranty 14 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

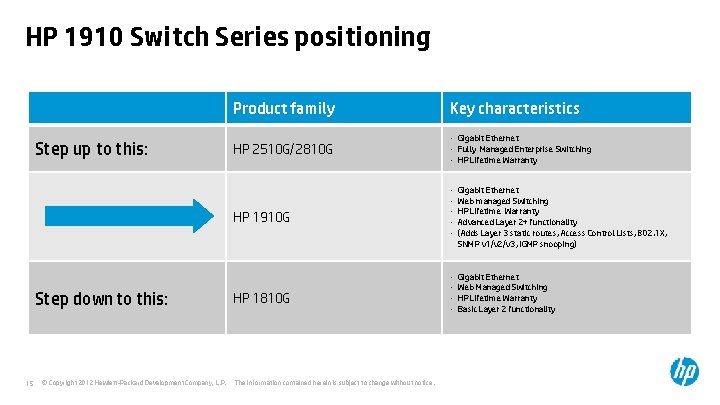

HP 1910 Switch Series positioning Step up to this: Product family Key characteristics HP 2510 G/2810 G • Gigabit Ethernet • Fully Managed Enterprise Switching • HP Lifetime Warranty HP 1910 G Step down to this: 15 © Copyright 2012 Hewlett-Packard Development Company, L. P. HP 1810 G The information contained herein is subject to change without notice. • • • Gigabit Ethernet Web managed Switching HP Lifetime Warranty Advanced Layer 2+ functionality (Adds Layer 3 static routes, Access Control Lists, 802. 1 X, SNMP v 1/v 2/v 3, IGMP snooping) • • Gigabit Ethernet Web Managed Switching HP Lifetime Warranty Basic Layer 2 functionality

HP 1910 Switch Series Technical details © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

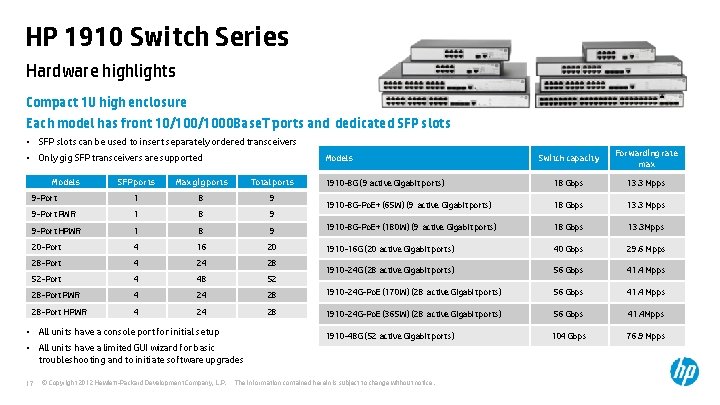

HP 1910 Switch Series Hardware highlights Compact 1 U high enclosure Each model has front 10/1000 Base. T ports and dedicated SFP slots • SFP slots can be used to insert separately ordered transceivers • Only gig SFP transceivers are supported Models Switch capacity Forwarding rate max 1910 -8 G (9 active Gigabit ports) 18 Gbps 13. 3 Mpps 1910 -8 G-Po. E+ (65 W) (9 active Gigabit ports) 18 Gbps 13. 3 Mpps Models SFP ports Max gig ports Total ports 9 -Port 1 8 9 9 -Port PWR 1 8 9 9 -Port HPWR 1 8 9 1910 -8 G-Po. E+ (180 W) (9 active Gigabit ports) 18 Gbps 13. 3 Mpps 20 -Port 4 16 20 1910 -16 G (20 active Gigabit ports) 40 Gbps 29. 6 Mpps 28 -Port 4 24 28 52 -Port 4 48 52 1910 -24 G (28 active Gigabit ports) 56 Gbps 41. 4 Mpps 28 -Port PWR 4 24 28 1910 -24 G-Po. E (170 W) (28 active Gigabit ports) 56 Gbps 41. 4 Mpps 28 -Port HPWR 4 24 28 1910 -24 G-Po. E (365 W) (28 active Gigabit ports) 56 Gbps 41. 4 Mpps 1910 -48 G (52 active Gigabit ports) 104 Gbps 76. 9 Mpps • All units have a console port for initial setup • All units have a limited GUI wizard for basic troubleshooting and to initiate software upgrades 17 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

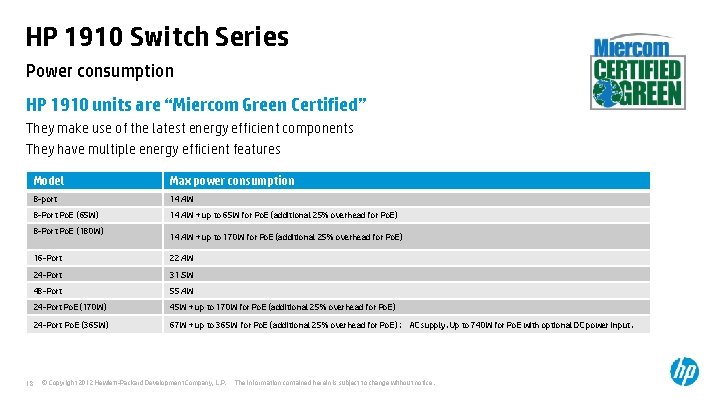

HP 1910 Switch Series Power consumption HP 1910 units are “Miercom Green Certified” They make use of the latest energy efficient components They have multiple energy efficient features Model Max power consumption 8 -port 14. 4 W 8 -Port Po. E (65 W) 14. 4 W + up to 65 W for Po. E (additional 25% overhead for Po. E) 8 -Port Po. E (180 W) 18 14. 4 W + up to 170 W for Po. E (additional 25% overhead for Po. E) 16 -Port 22. 4 W 24 -Port 31. 5 W 48 -Port 55. 4 W 24 -Port Po. E (170 W) 45 W + up to 170 W for Po. E (additional 25% overhead for Po. E) 24 -Port Po. E (365 W) 67 W + up to 365 W for Po. E (additional 25% overhead for Po. E) : AC supply. Up to 740 W for Po. E with optional DC power input. © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

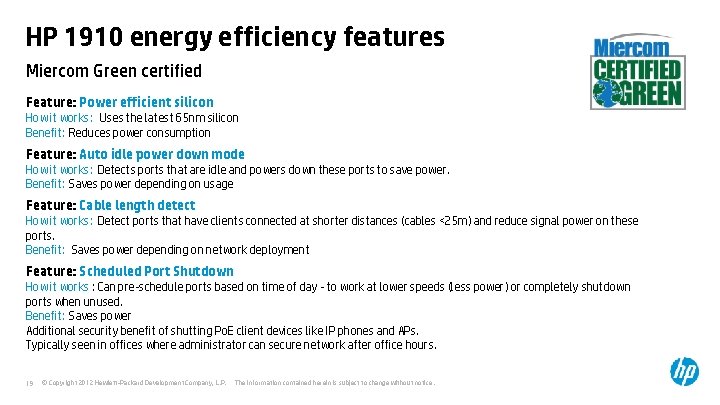

HP 1910 energy efficiency features Miercom Green certified Feature: Power efficient silicon How it works: Uses the latest 65 nm silicon Benefit: Reduces power consumption Feature: Auto idle power down mode How it works: Detects ports that are idle and powers down these ports to save power. Benefit: Saves power depending on usage Feature: Cable length detect How it works: Detect ports that have clients connected at shorter distances (cables <25 m) and reduce signal power on these ports. Benefit: Saves power depending on network deployment Feature: Scheduled Port Shutdown How it works : Can pre-schedule ports based on time of day - to work at lower speeds (less power) or completely shutdown ports when unused. Benefit: Saves power Additional security benefit of shutting Po. E client devices like IP phones and APs. Typically seen in offices where administrator can secure network after office hours. 19 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

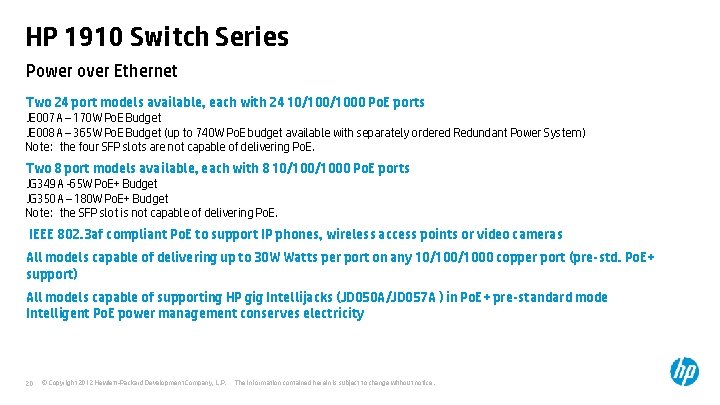

HP 1910 Switch Series Power over Ethernet Two 24 port models available, each with 24 10/1000 Po. E ports JE 007 A – 170 W Po. E Budget JE 008 A – 365 W Po. E Budget (up to 740 W Po. E budget available with separately ordered Redundant Power System) Note: the four SFP slots are not capable of delivering Po. E. Two 8 port models available, each with 8 10/1000 Po. E ports JG 349 A -65 W Po. E+ Budget JG 350 A – 180 W Po. E+ Budget Note: the SFP slot is not capable of delivering Po. E. IEEE 802. 3 af compliant Po. E to support IP phones, wireless access points or video cameras All models capable of delivering up to 30 W Watts per port on any 10/1000 copper port (pre-std. Po. E+ support) All models capable of supporting HP gig Intellijacks (JD 050 A/JD 057 A ) in Po. E+ pre-standard mode Intelligent Po. E power management conserves electricity 20 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

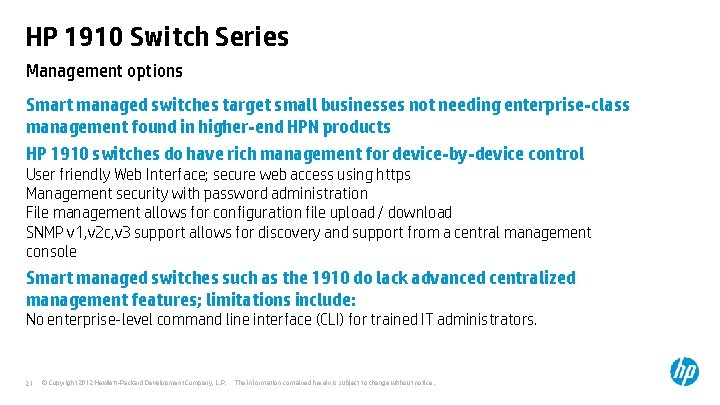

HP 1910 Switch Series Management options Smart managed switches target small businesses not needing enterprise-class management found in higher-end HPN products HP 1910 switches do have rich management for device-by-device control User friendly Web Interface; secure web access using https Management security with password administration File management allows for configuration file upload / download SNMP v 1, v 2 c, v 3 support allows for discovery and support from a central management console Smart managed switches such as the 1910 do lack advanced centralized management features; limitations include: No enterprise-level command line interface (CLI) for trained IT administrators. 21 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

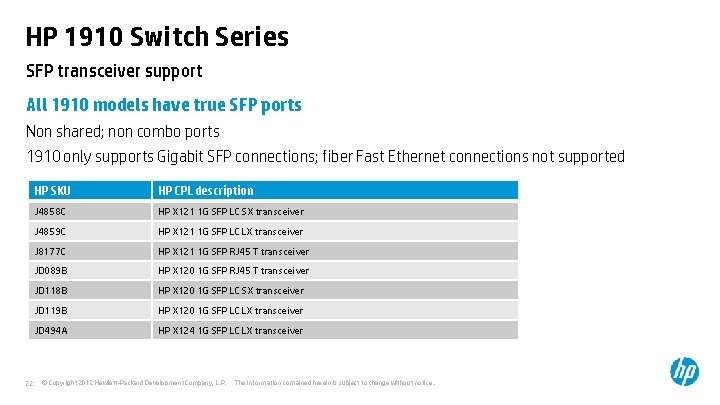

HP 1910 Switch Series SFP transceiver support All 1910 models have true SFP ports Non shared; non combo ports 1910 only supports Gigabit SFP connections; fiber Fast Ethernet connections not supported 22 HP SKU HP CPL description J 4858 C HP X 121 1 G SFP LC SX transceiver J 4859 C HP X 121 1 G SFP LC LX transceiver J 8177 C HP X 121 1 G SFP RJ 45 T transceiver JD 089 B HP X 120 1 G SFP RJ 45 T transceiver JD 118 B HP X 120 1 G SFP LC SX transceiver JD 119 B HP X 120 1 G SFP LC LX transceiver JD 494 A HP X 124 1 G SFP LC LX transceiver © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP 1910 Switch Series New Lifetime Warranty Details © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

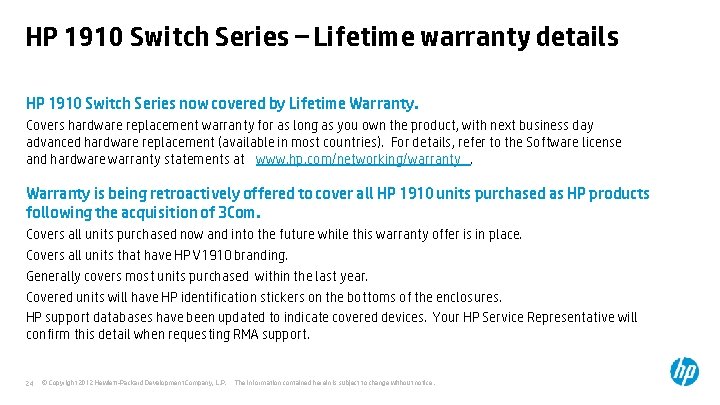

HP 1910 Switch Series – Lifetime warranty details HP 1910 Switch Series now covered by Lifetime Warranty. Covers hardware replacement warranty for as long as you own the product, with next business day advanced hardware replacement (available in most countries). For details, refer to the Software license and hardware warranty statements at www. hp. com/networking/warranty. Warranty is being retroactively offered to cover all HP 1910 units purchased as HP products following the acquisition of 3 Com. Covers all units purchased now and into the future while this warranty offer is in place. Covers all units that have HP V 1910 branding. Generally covers most units purchased within the last year. Covered units will have HP identification stickers on the bottoms of the enclosures. HP support databases have been updated to indicate covered devices. Your HP Service Representative will confirm this detail when requesting RMA support. 24 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP 1910 Switch Series Applications and uses © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

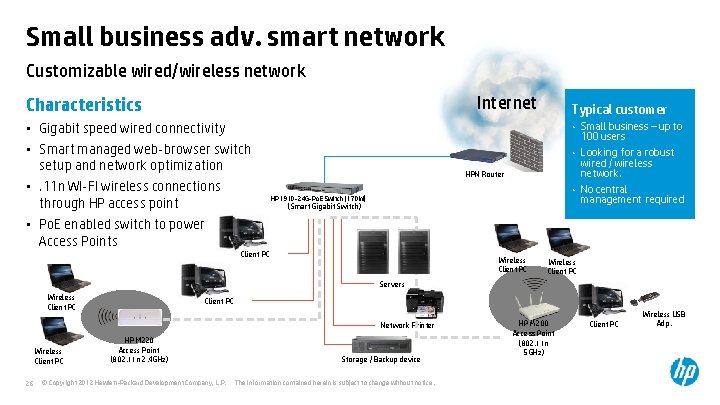

Small business adv. smart network Customizable wired/wireless network Internet Characteristics • Gigabit speed wired connectivity • Smart managed web-browser switch setup and network optimization • . 11 n WI-FI wireless connections through HP access point • Po. E enabled switch to power Access Points Typical customer • Small business – up to 100 users • Looking for a robust wired / wireless network. • No central management required HPN Router HP 1910 -24 G-Po. E Switch (170 W) (Smart Gigabit Switch) Client PC Wireless Client PC Servers Wireless Client PC Network Printer Wireless Client PC 26 HP M 220 Access Point (802. 11 n 2. 4 GHz) © Copyright 2012 Hewlett-Packard Development Company, L. P. Storage / Backup device The information contained herein is subject to change without notice. HP M 200 Access Point (802. 11 n 5 GHz) Client PC Wireless USB Adp.

HP 1910 Switch Series Reference information © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

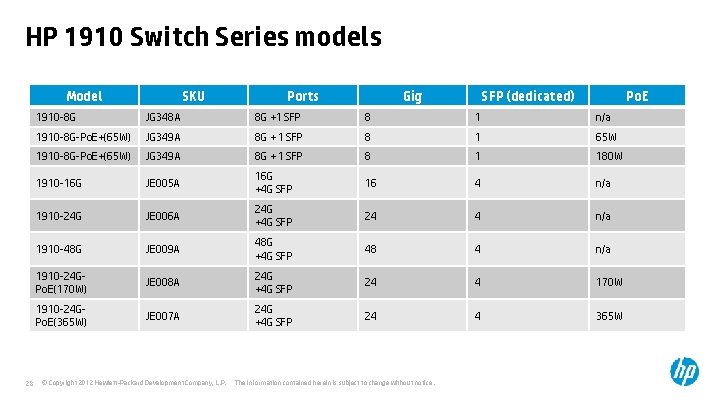

HP 1910 Switch Series models Model 28 SKU Ports Gig SFP (dedicated) Po. E 1910 -8 G JG 348 A 8 G +1 SFP 8 1 n/a 1910 -8 G-Po. E+(65 W) JG 349 A 8 G + 1 SFP 8 1 65 W 1910 -8 G-Po. E+(65 W) JG 349 A 8 G + 1 SFP 8 1 180 W 1910 -16 G JE 005 A 16 G +4 G SFP 16 4 n/a 1910 -24 G JE 006 A 24 G +4 G SFP 24 4 n/a 1910 -48 G JE 009 A 48 G +4 G SFP 48 4 n/a 1910 -24 GPo. E(170 W) JE 008 A 24 G +4 G SFP 24 4 170 W 1910 -24 GPo. E(365 W) JE 007 A 24 G +4 G SFP 24 4 365 W © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

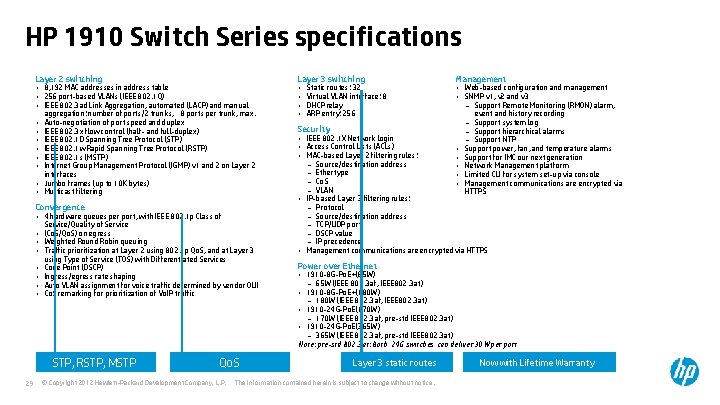

HP 1910 Switch Series specifications Layer 2 switching • 8, 192 MAC addresses in address table • 256 port-based VLANs (IEEE 802. 1 Q) • IEEE 802. 3 ad Link Aggregation, automated (LACP) and manual aggregation: number of ports/2 trunks, 8 ports per trunk, max. Auto-negotiation of port speed and duplex IEEE 802. 3 x flow control (half- and full-duplex) IEEE 802. 1 D Spanning Tree Protocol (STP) IEEE 802. 1 w Rapid Spanning Tree Protocol (RSTP) IEEE 802. 1 s (MSTP) Internet Group Management Protocol (IGMP) v 1 and 2 on Layer 2 interfaces • Jumbo frames (up to 10 K bytes) • Multicast filtering • • • Convergence • 4 hardware queues per port, with IEEE 802. 1 p Class of Service/Quality of Service • (Co. S/Qo. S) on egress • Weighted Round Robin queuing • Traffic prioritization at Layer 2 using 802. 1 p Qo. S, and at Layer 3 • • using Type of Service (TOS) with Differentiated Services Code Point (DSCP) Ingress/egress rate shaping Auto VLAN assignment for voice traffic determined by vendor OUI Co. S remarking for prioritization of Vo. IP traffic Layer 3 switching • • Static routes: 32 Virtual VLAN interface: 8 DHCP relay ARP entry: 256 Security Management • Web-based configuration and management • SNMP v 1, v 2 and v 3 – Support Remote Monitoring (RMON) alarm, event and history recording – Support system log – Support hierarchical alarms – Support NTP • IEEE 802. 1 X Network login • Access Control Lists (ACLs) • Support power, fan, and temperature alarms • MAC-based Layer 2 filtering rules: • Support for IMC our next generation – Source/destination address • Network Management platform – Ethertype • Limited CLI for system set-up via console – Co. S • Management communications are encrypted via – VLAN HTTPS • IP-based Layer 3 filtering rules: – Protocol – Source/destination address – TCP/UDP port – DSCP value – IP precedence • Management communications are encrypted via HTTPS Power over Ethernet • 1910 -8 G-Po. E+(65 W) – 65 W (IEEE 802. 3 af, IEEE 802. 3 at) • 1910 -8 G-Po. E+(180 W) – 180 W (IEEE 802. 3 af, IEEE 802. 3 at) • 1910 -24 G-Po. E(170 W) – 170 W (IEEE 802. 3 af, pre-std IEEE 802. 3 at) • 1910 -24 G-Po. E(365 W) – 365 W (IEEE 802. 3 af, pre-std IEEE 802. 3 at) Note: pre-std 802. 3 at: Both 24 G switches can deliver 30 W per port STP, RSTP, MSTP 29 Qo. S © Copyright 2012 Hewlett-Packard Development Company, L. P. Layer 3 static routes The information contained herein is subject to change without notice. Now with Lifetime Warranty

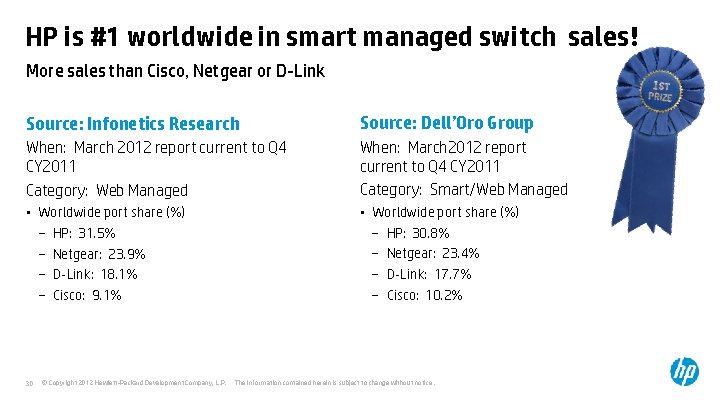

HP is #1 worldwide in smart managed switch sales! More sales than Cisco, Netgear or D-Link Source: Infonetics Research Source: Dell’Oro Group When: March 2012 report current to Q 4 CY 2011 Category: Web Managed When: March 2012 report current to Q 4 CY 2011 Category: Smart/Web Managed • Worldwide port share (%) − HP: 31. 5% − Netgear: 23. 9% − D-Link: 18. 1% − Cisco: 9. 1% • Worldwide port share (%) − HP: 30. 8% − Netgear: 23. 4% − D-Link: 17. 7% − Cisco: 10. 2% 30 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

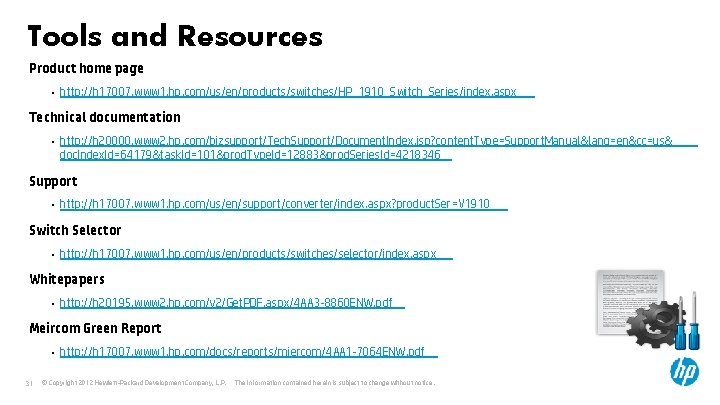

Tools and Resources Product home page • http: //h 17007. www 1. hp. com/us/en/products/switches/HP_1910_Switch_Series/index. aspx Technical documentation • http: //h 20000. www 2. hp. com/bizsupport/Tech. Support/Document. Index. jsp? content. Type=Support. Manual&lang=en&cc=us& doc. Index. Id=64179&task. Id=101&prod. Type. Id=12883&prod. Series. Id=4218346 Support • http: //h 17007. www 1. hp. com/us/en/support/converter/index. aspx? product. Ser=V 1910 Switch Selector • http: //h 17007. www 1. hp. com/us/en/products/switches/selector/index. aspx Whitepapers • http: //h 20195. www 2. hp. com/v 2/Get. PDF. aspx/4 AA 3 -8860 ENW. pdf Meircom Green Report • http: //h 17007. www 1. hp. com/docs/reports/miercom/4 AA 1 -7064 ENW. pdf 31 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

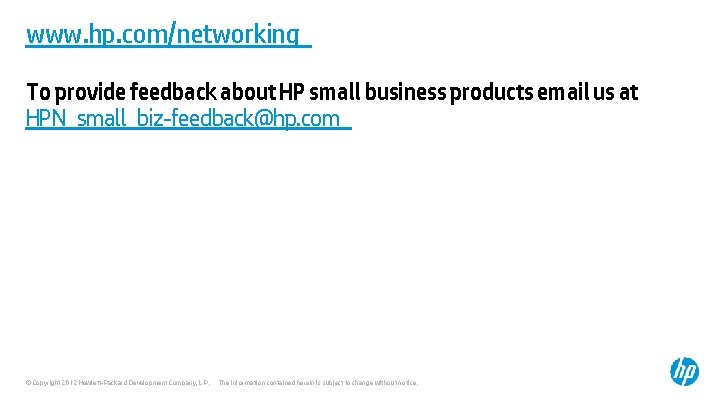

www. hp. com/networking To provide feedback about HP small business products email us at HPN_small_biz-feedback@hp. com © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Thank you © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Executive summary slides © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

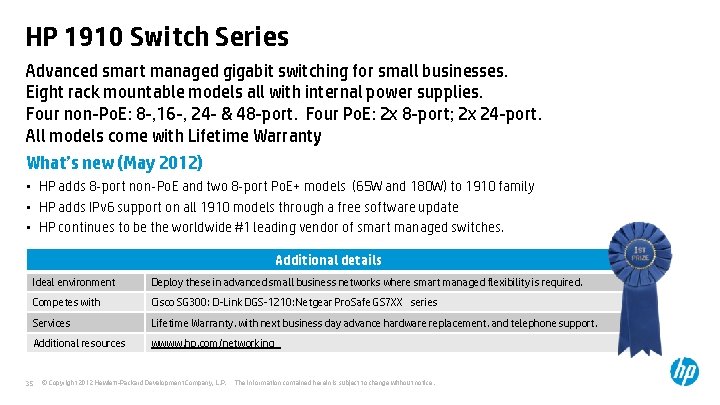

HP 1910 Switch Series Advanced smart managed gigabit switching for small businesses. Eight rack mountable models all with internal power supplies. Four non-Po. E: 8 -, 16 -, 24 - & 48 -port. Four Po. E: 2 x 8 -port; 2 x 24 -port. All models come with Lifetime Warranty What’s new (May 2012) • HP adds 8 -port non-Po. E and two 8 -port Po. E+ models (65 W and 180 W) to 1910 family • HP adds IPv 6 support on all 1910 models through a free software update • HP continues to be the worldwide #1 leading vendor of smart managed switches. Additional details Ideal environment Deploy these in advanced small business networks where smart managed flexibility is required. Competes with Cisco SG 300; D-Link DGS-1210; Netgear Pro. Safe GS 7 XX series Services Lifetime Warranty, with next business day advance hardware replacement, and telephone support. Additional resources wwww. hp. com/networking 35 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

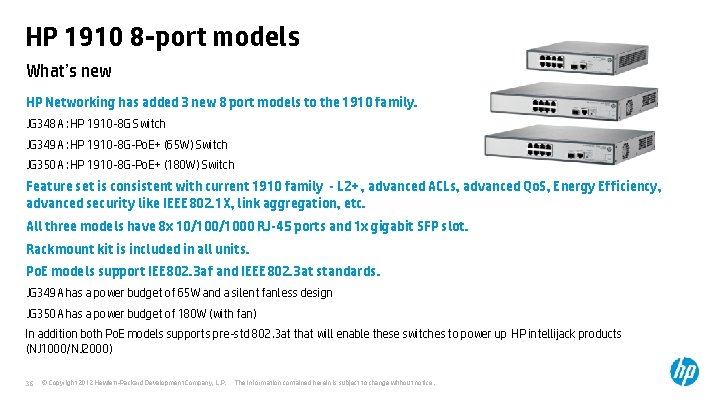

HP 1910 8 -port models What’s new HP Networking has added 3 new 8 port models to the 1910 family. JG 348 A : HP 1910 -8 G Switch JG 349 A : HP 1910 -8 G-Po. E+ (65 W) Switch JG 350 A : HP 1910 -8 G-Po. E+ (180 W) Switch Feature set is consistent with current 1910 family - L 2+ , advanced ACLs, advanced Qo. S, Energy Efficiency, advanced security like IEEE 802. 1 X, link aggregation, etc. All three models have 8 x 10/1000 RJ-45 ports and 1 x gigabit SFP slot. Rackmount kit is included in all units. Po. E models support IEE 802. 3 af and IEEE 802. 3 at standards. JG 349 A has a power budget of 65 W and a silent fanless design JG 350 A has a power budget of 180 W (with fan) In addition both Po. E models supports pre-std 802. 3 at that will enable these switches to power up HP intellijack products (NJ 1000/NJ 2000) 36 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

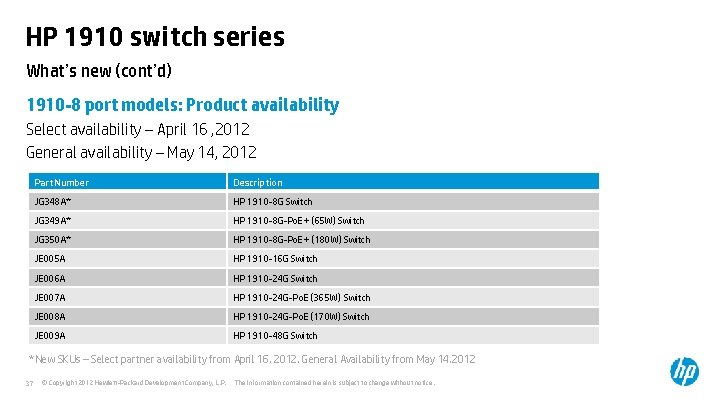

HP 1910 switch series What’s new (cont’d) 1910 -8 port models: Product availability Select availability – April 16 , 2012 General availability – May 14, 2012 Part Number Description JG 348 A* HP 1910 -8 G Switch JG 349 A* HP 1910 -8 G-Po. E+ (65 W) Switch JG 350 A* HP 1910 -8 G-Po. E+ (180 W) Switch JE 005 A HP 1910 -16 G Switch JE 006 A HP 1910 -24 G Switch JE 007 A HP 1910 -24 G-Po. E (365 W) Switch JE 008 A HP 1910 -24 G-Po. E (170 W) Switch JE 009 A HP 1910 -48 G Switch * New SKUs – Select partner availability from April 16, 2012. General Availability from May 14, 2012 37 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

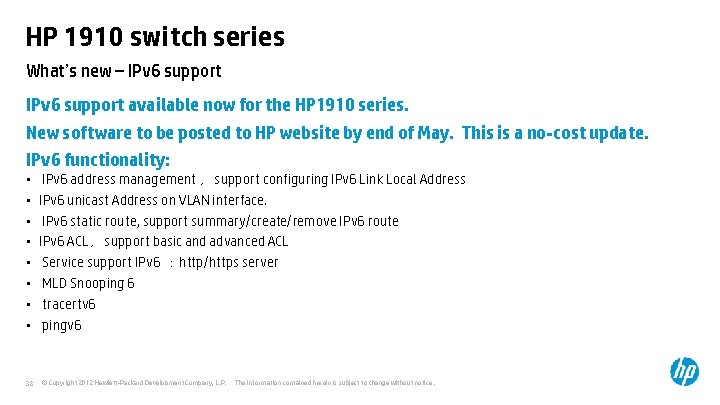

HP 1910 switch series What’s new – IPv 6 support available now for the HP 1910 series. New software to be posted to HP website by end of May. This is a no-cost update. IPv 6 functionality: • • 38 IPv 6 address management ，support configuring IPv 6 Link Local Address IPv 6 unicast Address on VLAN interface. IPv 6 static route, support summary/create/remove IPv 6 route IPv 6 ACL ，support basic and advanced ACL Service support IPv 6 ：http/https server MLD Snooping 6 tracertv 6 pingv 6 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.
