How to write a technical paper Subtitle So

How to write a technical paper Subtitle: So this conference is approaching and I have my data, now what do I do? Steven W. Van Sciver Professor Mechanical Engineering Department ME Seminar 2007

Why Publish? • “Research is complete only when the results are shared with the scientific community” (first sentence of Chapter 1, Publication Manual of the American Psychological Association) • “Scientific journals are the repository of the accumulated knowledge in a field”. If you don’t get it out, no one will notice. • Internal reports, theses, etc. are not considered to be peer reviewed and thus are less suitable or widely distributed publications • “A literature built of meticulously prepared, carefully reviewed contributions fosters the growth of a field” • To become famous ME Seminar 2007

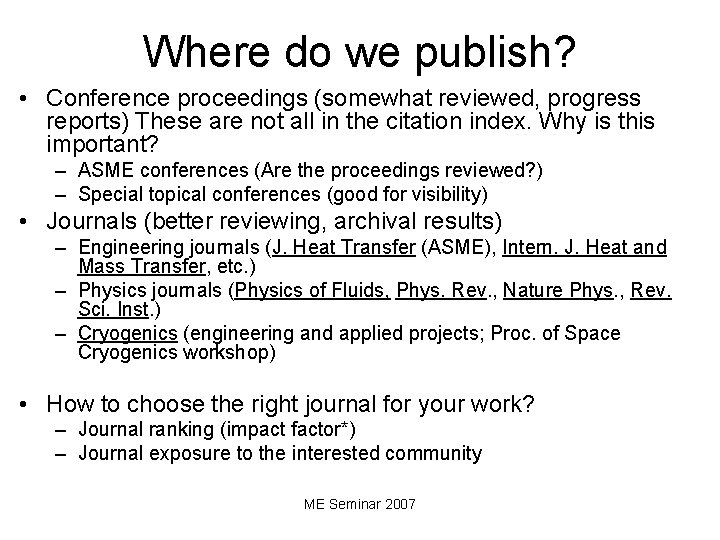

Where do we publish? • Conference proceedings (somewhat reviewed, progress reports) These are not all in the citation index. Why is this important? – ASME conferences (Are the proceedings reviewed? ) – Special topical conferences (good for visibility) • Journals (better reviewing, archival results) – Engineering journals (J. Heat Transfer (ASME), Intern. J. Heat and Mass Transfer, etc. ) – Physics journals (Physics of Fluids, Phys. Rev. , Nature Phys. , Rev. Sci. Inst. ) – Cryogenics (engineering and applied projects; Proc. of Space Cryogenics workshop) • How to choose the right journal for your work? – Journal ranking (impact factor*) – Journal exposure to the interested community ME Seminar 2007

Journal Impact factor • Why is this important? • How is it calculated? • As defined by the Thomson Scientific corporation, "journal impact factor" is the average number of times that all of a journal's articles published in the two years previous to a chosen year (ex: 2004 -2005) have been cited in that chosen year (ex: 2006). • Most prestigious journals have high impact factors: e. g. Nature (27), Science (22) • Engineering journals generally do not have high impact factors (Cryogenics ~ 1) • Playing the game… (downloading, citing yourself…) ME Seminar 2007

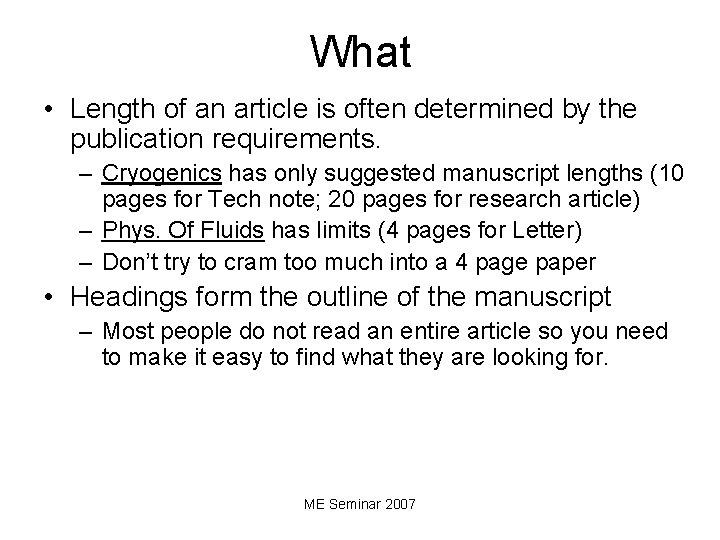

What • Length of an article is often determined by the publication requirements. – Cryogenics has only suggested manuscript lengths (10 pages for Tech note; 20 pages for research article) – Phys. Of Fluids has limits (4 pages for Letter) – Don’t try to cram too much into a 4 page paper • Headings form the outline of the manuscript – Most people do not read an entire article so you need to make it easy to find what they are looking for. ME Seminar 2007

Tone & Style “This is not classic literature” – Use direct declarative sentence structure. Avoid lengthy and indirect sentences. (example) “Having acquired the components and assembled them in the laboratory, the system was built. ” “The system was built and assembled using components from industry. ” – Use professional, non-combative language: “Van Sciver, et al did not consider…” is OK “Van Sciver, et al totally overlooked (or are out of their mind)…” is not. – Keep in mind your audience. Most readers are interested in the What, Why and How of your work. Don’t make it hard to find. – Don’t weigh your paper down with minutia. – Don’t repeat yourself; don’t… ME Seminar 2007

Formatting • Most journals have on-line format instructions. Some cases include a manuscript template – Sure way to annoy a conference paper referee; do a poor job of laying out your paper – Many conference proceedings are going to do a format check before the technical editor even sees the manuscript • MS word is acceptable for Elsevier journals, but others (Springer) expect publications to be submitted in Latex format • Initial submission format often not critical since most articles are sent back to author for revision. • Pay particular attention to reference format which is different depending on journal ME Seminar 2007

Parts of a Manuscript • Title: “. . should summarize the main idea of the paper simply and with style”. Should be ~ 10 to 12 words. Inverse relationship between title length and significance of article: – “Theory of Superconductivity” by Bardeen, Cooper and Schrieffer – “ 3 -D Numerical Analysis for Heat Transfer from a Flat Plate in a Duct with Contractions Filled with Pressurized He II” • Authorship: This is a topic that causes some concern. Generally, co-authorship should be limited to those who have materially contributed to the research and preparation of the manuscript. Subtle issue. ME Seminar 2007

The Abstract • “. . a brief, comprehensive summary of the contents of the article. ” “. . can be the most important paragraph in the article. ” • Abstracts are published separately from articles in online indices, so make it clear. • An abstract should be – Accurate: should reflect the content of the paper. – Self-contained: avoid abbreviations, acronyms, define unique terms. Avoid references or equations. Summarize conclusions. – Concise and specific: Be as brief as possible, yet convey the information. 5% of article or 500 words at most – Compare abstract content to outline of paper. (Reference 1) • Examples of good and bad abstracts ME Seminar 2007

Thermal conductivity of subcooled liquid hydrogen T. Charignona, D. Celika, A. Hemmatia, b and S. W. Van Scivera, b a NHMFL, National High Magnetic Field Laboratory, Florida State University, 1800 E Paul Dirac Drive, Tallahassee, FL 32310, USA b Department of Mechanical Engineering, FAMU-FSU College of Engineering Tallahassee, FL 32310, USA Abstract Here we present thermal conductivity measurements of subcooled equilibrium liquid hydrogen in the temperature range from 15 to 23 K and under pressures up to 1 MPa. The measurements have been done in a horizontal, guarded, flat-plates calorimeter. One dimensional heat transfer between the hot and the cold plates of the calorimeter is achieved by surrounding the calorimeter plates with two thermal guards. Capacitance measured between the calorimeter plates gives a precise and accurate gap value for the test cell. A two-stage Gifford-Mc. Mahon cryocooler provides the cooling power to the calorimeter. The absolute temperatures are monitored using platinum resistance thermometers calibrated against the saturated vapor-pressure line of equilibrium hydrogen. Results reported in this paper are compared to data published earlier. The density dependence of thermal conductivity is expected to be especially useful for subcooled hydrogen transport properties. Keywords: Hydrogen; Thermal conductivity; Calorimeters ME Seminar 2007

Design and Testing of a 2 K Superfluid Helium Heat Station W. R. Hicks, E. F. Daly, J. Preble, M. Wiseman, C. Rode, JLab Three transitional cryomodules (SL 21, FEL 03, Renascence) have been constructed as part of an energy upgrade effort at Thomas Jefferson National Accelerator Facility (JLab). Each transitional cryomodule contains eight superconducting radio-frequency (SRF) cavities. Within the vacuum vessel, waveguides transmit up to 13 k. W of RF power to the superconducting niobium cavities. The waveguides also provide thermal transition between the room temperature ceramic RF window and the niobium fundamental power coupler (FPC), a 300 K temperature gradient across ~20 cm! The thermal performance of the waveguides is determined in part by the placement of heat stations and bellows. The original 13 k. W waveguide design incorporated a single 60 K heat station and two bellows resulting in a total heat load (static + dynamic) to the FPC of ~3 W per waveguide. To minimize this heat load and stabilize the FPC temperatures, a 2 K superfluid helium heat station design was incorporated into the second transitional cryomodule, FEL 03, installed in the JLab Free Electron Laser (FEL). The designed heat station is capable of removing up to 1. 12 W, with a bath temperature of 2. 05 K, while remaining sub-lambda. This paper describes the design, analysis and testing of the heat station. ME Seminar 2007

Introduction/Background/Literature Discussion • • Introduction usually contains background information Avoid repeating the contents of the Abstract Is needed to place your work in context. Most citations occur here. Avoid critical statements (see above). Keep in mind that most potential referees are authors of similar work. • Typically should not exceed about 25% of total length. • Often the Introduction is the most difficult section to write. Probably not the best section to start writing this section first. ME Seminar 2007

Experiment or Analysis discussion • Describe the apparatus and method used to obtain the data. – Avoid too much detail (part numbers, model numbers, unnecessary dimensions) – Experimental schematic is more valuable than a photo of the outside of the apparatus • Reference to other similar experiments: – “this apparatus, which was originally developed for liquid oxygen viscosity measurements, was modified…” – “our design is similar to that of Diller 6, et al…” • Describe the data collection and analysis. – If appropriate include error discussion, but keep it brief! – A possible sentence might be: “We recorded data over a range of temperatures between 1. 7 and 2. 1 K and pressures to 1 MPa. ” • Present only that necessary to understand the experiment, but be complete. • It’s is OK to repeat some things published elsewhere if it helps the reader avoid looking up another reference. • This is often the easiest section to write and thus might be a good place to start ME Seminar 2007

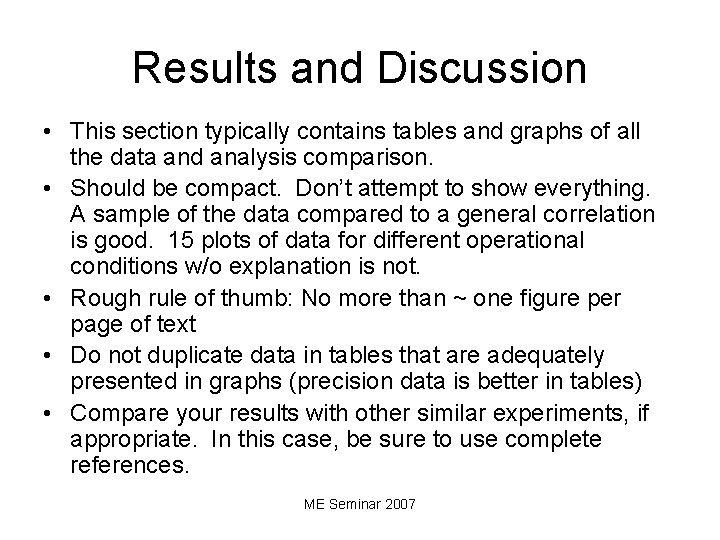

Results and Discussion • This section typically contains tables and graphs of all the data and analysis comparison. • Should be compact. Don’t attempt to show everything. A sample of the data compared to a general correlation is good. 15 plots of data for different operational conditions w/o explanation is not. • Rough rule of thumb: No more than ~ one figure per page of text • Do not duplicate data in tables that are adequately presented in graphs (precision data is better in tables) • Compare your results with other similar experiments, if appropriate. In this case, be sure to use complete references. ME Seminar 2007

Summary/Conclusion • Keep this section short! • State the most important findings and how your work has advanced the field. • Possibly comment on what additional work would be beneficial or is planned. ME Seminar 2007

Other Stuff • Acknowledgment: indicate thanks to those who have helped with the work, but are not co-authors. List funding source: – Thanks to Scott Maier for technical assistance; SVS acknowledges helpful suggestions from Dr. S. Fuzier – Work supported by the US Department of Energy under grant DE -FG-02 -96 ER-40952 – This research has been supported by NASA through the Research Initiative for Florida Universities under the grant NAG 3 -2751 • References: In order cited in the paper. Be complete here. This is how citation indices are constructed. Worst thing is to overlook an important reference from one of the referees. Formats depend on journals. ME Seminar 2007

Writing your manuscript • Choose your time for writing so that there are few interruptions (examples) • Set aside a block of time (min ~ 2 to 3 hours) preferably every day so that you maintain continuity • Make an outline: with annotations and references. Build the text within the outline • Set a goal for each time period. e. g. finish a section. • Keep your effort up until you produce a draft. • If writing a Ph. D dissertation remember the “P” stands for “perseverance” ME Seminar 2007

Strategy to getting started • Make that annotated outline • Possible approach #1: collect data and decide on graphics, equations. Build the outline around the data to be displayed. • Conference paper approach: prepare the talk first and use the Power Point as the outline of your paper. Give the talk and flesh out your logic, discussion that you can later write. • Proof read often • Have a colleague proof read what you have written, particularly if English is not your native language ME Seminar 2007

Time • “is a wasting…” • Don’t wait to the last minute, so get started now. • . . and don’t stop until you have a first draft • No one said this would be easy, but it IS important ME Seminar 2007

References 1. 2. 3. 4. 5. 6. 7. Publication Manual of the American Psychological Association AIP Style Manual How to Write & Publish a Scientific Paper, Robert A. Day Advice to New Faculty Members, Robert Boice The Visual Display of Quantitative Information, E. Tufte How to write a scientific paper : http: //www. scidev. net/ms/howdoi/index. cfm? pageid=60 How to submit a paper to a scientific journal http: //www. scidev. net/ms/howdoi/index. cfm? pageid=61 ME Seminar 2007
