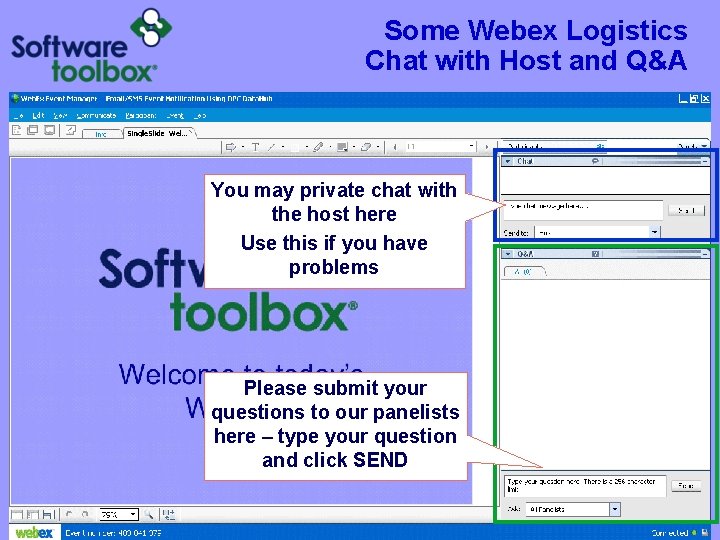

Some Webex Logistics Chat with Host and Q&A You may private chat with the host here Use this if you have problems Please submit your questions to our panelists here – type your question and click SEND

Some Webex Logistics Chat with Host and Q&A While we are sharing applications, the toolbar shown below appears in the bottom right corner of your screen. You can access Chat with Host and the Q&A with Presenters Panels by clicking on the icons as shown. Private Chat with Host Q&A with Panelists

How to Move and Manipulate OPC Data Agenda – 45 Minutes u Overview of OPC Data Transfer u Live Demonstration u Examples of what can be done u Questions & Answers u Use the Web-Ex Q&A at any time

Moving OPC Data u Moving data between Systems OPC Gateway Server

Manipulating OPC Data u Modifying Transferred OPC Data OPC Gateway Server

How to Move and Manipulate OPC Data u Live Demonstration u Transfer data u u on Change on Poll Cycle on Trigger Item transformation

Use Examples u Simple data exchange between control systems - Server - When the value changes pass it to the other server OPC tag = OPC Tag Server

Use Examples u Data Exchange and manipulation between systems When the value changes perform a function on the value and pass it to the other server Server - OPC tag = F(OPC Tag) Server

Use Examples u Triggered Data exchange between control Systems When the value changes on a specified tag, pass all group values to the other server Server - - OPC tag = F(OPC Tag) Or OPC tag = OPC Tag Server

Use Examples u Timed Data exchange between control Systems On a specified Poll interval, pass all group values to the other server - Server - OPC tag = F(OPC Tag) Or OPC tag = OPC Tag Server

Use Examples u Data exchange between HMI systems In. Touch HMI Pass data on value change between systems - TOP Server In. Touch to OPC Driver OPC tag = F(OPC Tag) Or OPC tag = OPC Tag RSView GE Proficy i. Fix

Use Examples u Redundant OPC Server connections Server 1 On a specified Poll interval, pass all group values to the other server - - Server 2 Server 1 OPC tag = F(OPC Tag) Or OPC tag = OPC Tag Server 2

Product Selection Exchange type Link. Master OPC Gateway OPC Data. Hub Simple data exchange (Supports Yes Yes Yes Data Exchange and manipulation Yes (script) Triggered or Polled exchange Yes (script) different datatypes) Exchange between HMI systems (as OPC Servers) Exchange between OPC Clients Yes Exchange over different Networks – No DCOM Yes Redundancy Support Yes With additional software Only using Tunneling

What Tools are Needed? u u u Linkmaster Universal OPC Data Bridge u US$995. 00 u http: //www. toolboxopc. com/linkmaster OPC Gateway u US$995. 00 u http: //www. nordyn. com/Main/Products/GW/GW_Overview. htm OPC Data. Hub u u US$995. 00 http: //www. softwaretoolbox. com/opcdatahub

Contact Information & Other Learning Opportunities u Questions later? u Colin Winchester u u u Kevin Rutherford u krutherford@softwaretoolbox. com www. softwaretoolbox. com/opcgateways Other learning opportunities u Visit www. softwaretoolbox. com/webinars u u cwinchester@softwaretoolbox. com 888 -665 -3678 or 704 -849 -2773
