How to Make Covalent Bonds Covalent Bonds l

How to Make Covalent Bonds

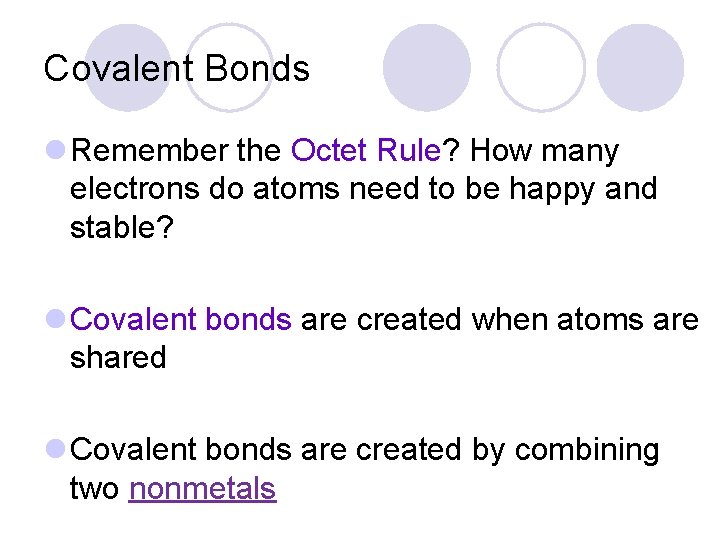

Covalent Bonds l Remember the Octet Rule? How many electrons do atoms need to be happy and stable? l Covalent bonds are created when atoms are shared l Covalent bonds are created by combining two nonmetals

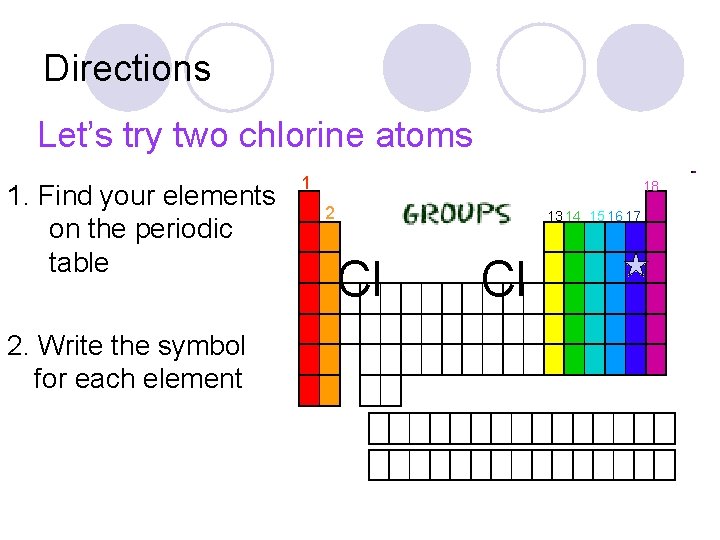

Directions Let’s try two chlorine atoms 1. Find your elements on the periodic table 2. Write the symbol for each element 1 18 2 13 14 15 16 17 Cl Cl

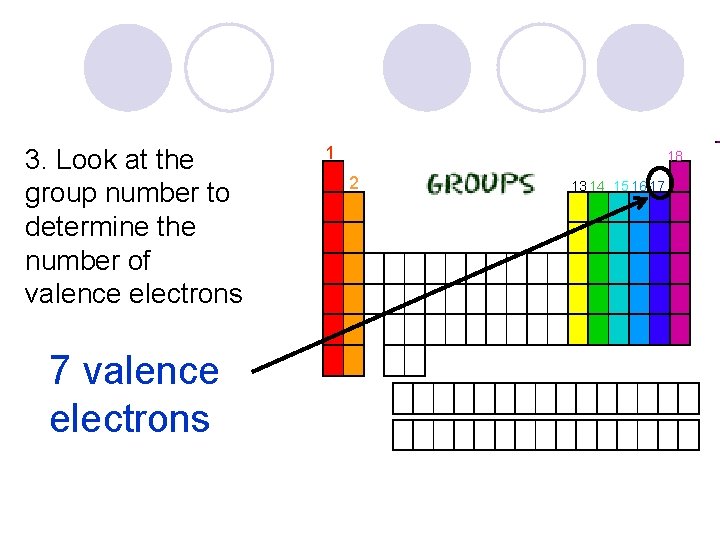

3. Look at the group number to determine the number of valence electrons 7 valence electrons 1 18 2 13 14 15 16 17

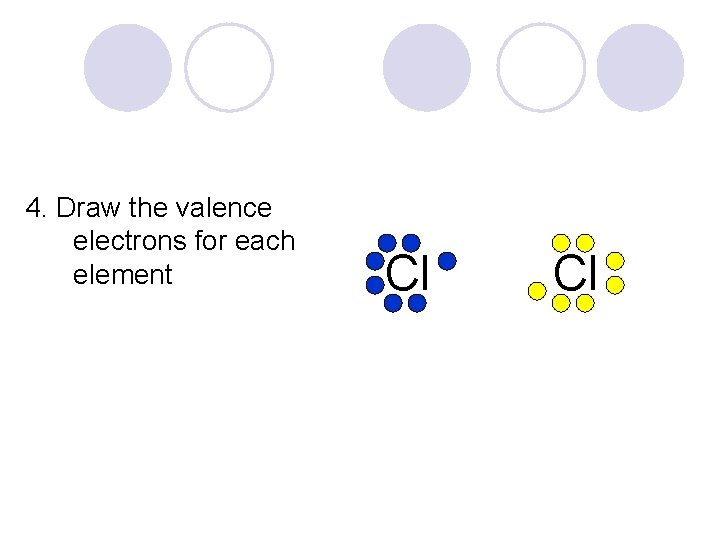

4. Draw the valence electrons for each element Cl Cl

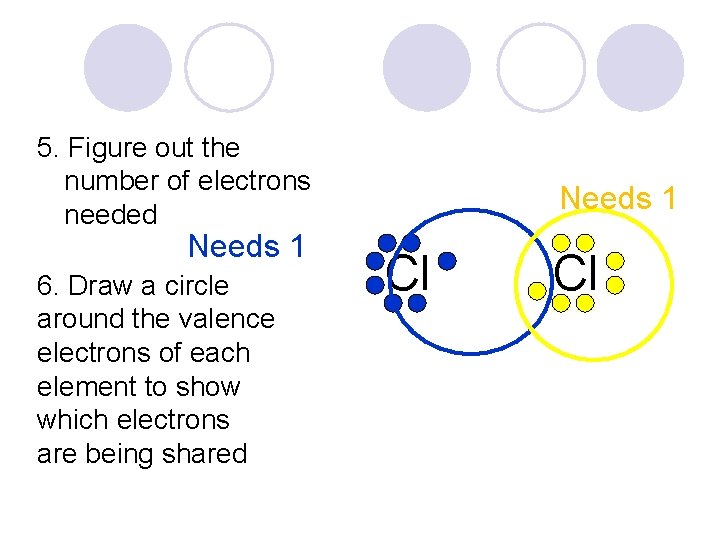

5. Figure out the number of electrons needed Needs 1 6. Draw a circle around the valence electrons of each element to show which electrons are being shared Needs 1 Cl Cl

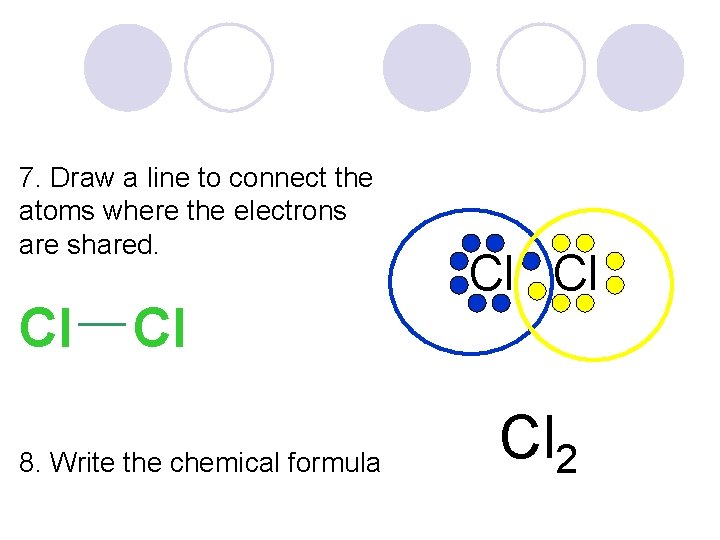

7. Draw a line to connect the atoms where the electrons are shared. Cl Cl 8. Write the chemical formula Cl Cl Cl 2

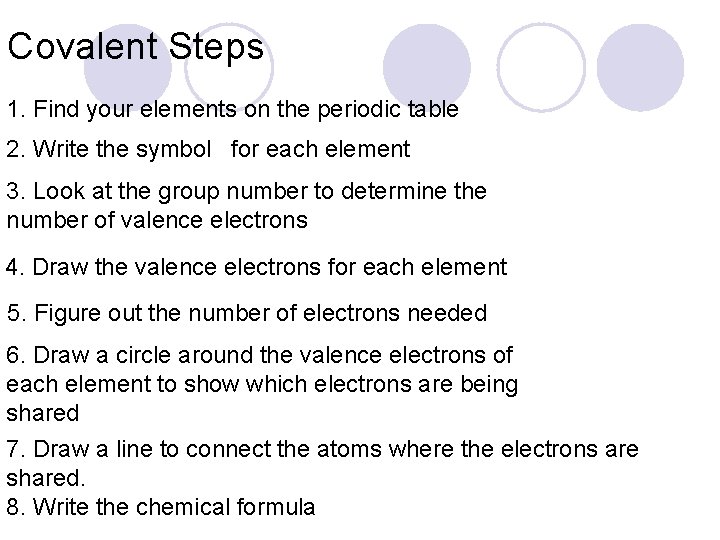

Covalent Steps 1. Find your elements on the periodic table 2. Write the symbol for each element 3. Look at the group number to determine the number of valence electrons 4. Draw the valence electrons for each element 5. Figure out the number of electrons needed 6. Draw a circle around the valence electrons of each element to show which electrons are being shared 7. Draw a line to connect the atoms where the electrons are shared. 8. Write the chemical formula

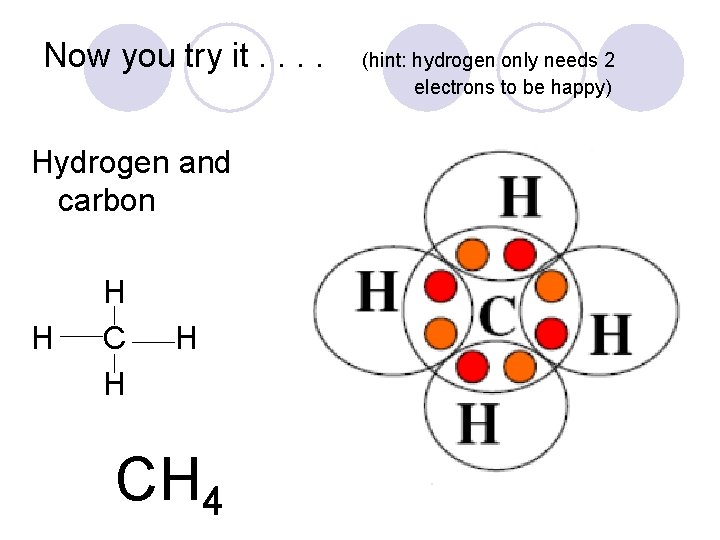

Now you try it. . Hydrogen and carbon H H CH 4 (hint: hydrogen only needs 2 electrons to be happy)

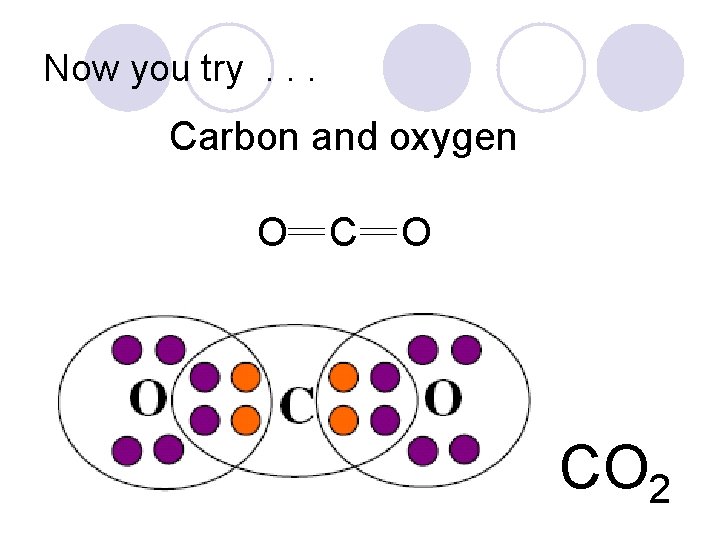

Now you try. . . Carbon and oxygen O CO 2

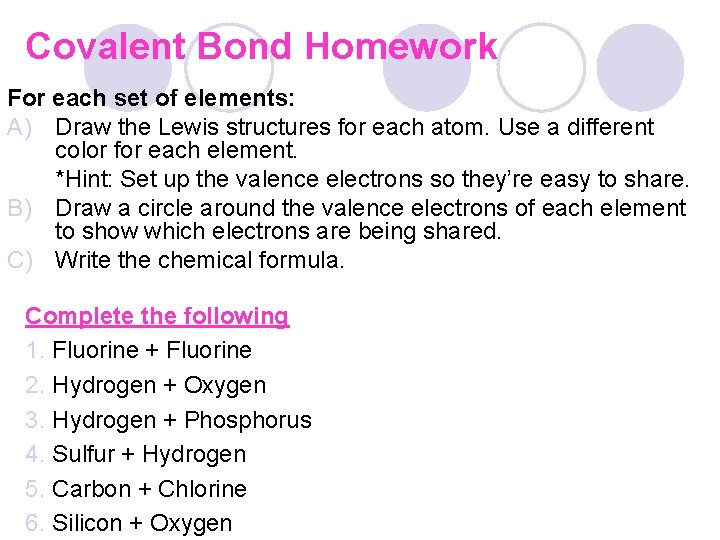

Covalent Bond Homework For each set of elements: A) Draw the Lewis structures for each atom. Use a different color for each element. *Hint: Set up the valence electrons so they’re easy to share. B) Draw a circle around the valence electrons of each element to show which electrons are being shared. C) Write the chemical formula. Complete the following 1. Fluorine + Fluorine 2. Hydrogen + Oxygen 3. Hydrogen + Phosphorus 4. Sulfur + Hydrogen 5. Carbon + Chlorine 6. Silicon + Oxygen

Videos of Lewis Structures l Bozeman science l Steps to Drawing Electron Dot Diagrams

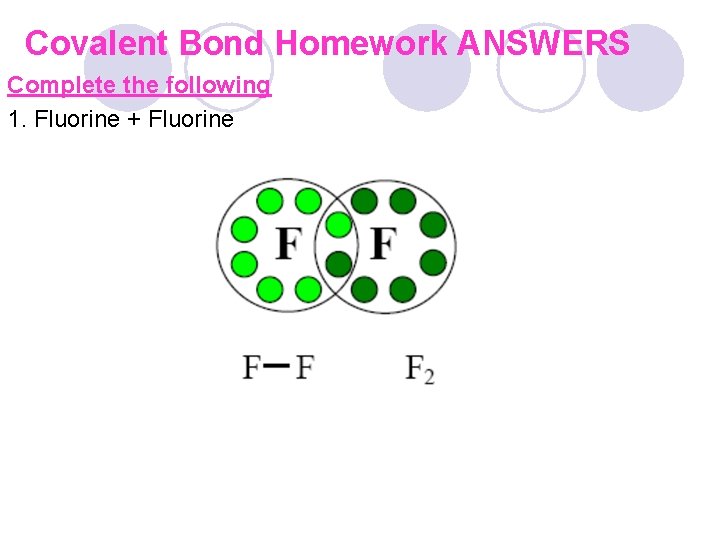

Covalent Bond Homework ANSWERS Complete the following 1. Fluorine + Fluorine

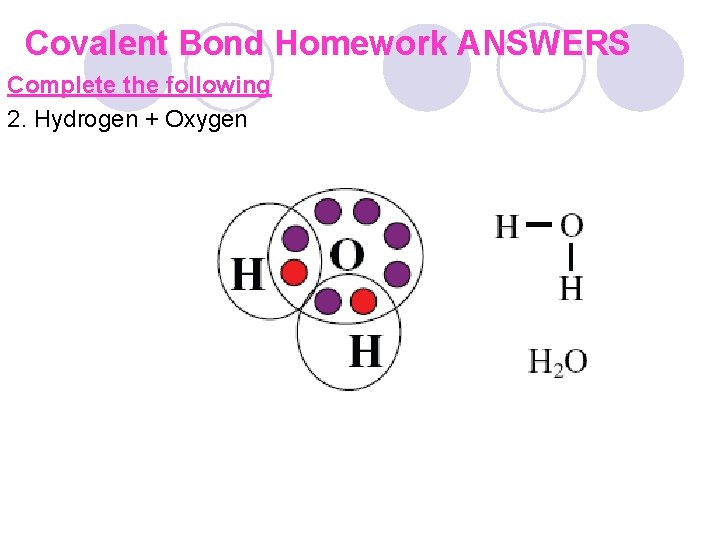

Covalent Bond Homework ANSWERS Complete the following 2. Hydrogen + Oxygen

Covalent Bond Homework ANSWERS Complete the following 3. Hydrogen + Phosphorus

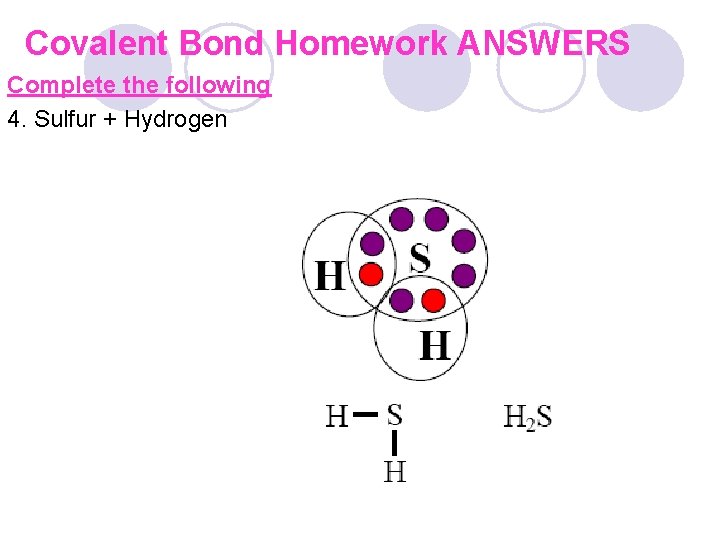

Covalent Bond Homework ANSWERS Complete the following 4. Sulfur + Hydrogen

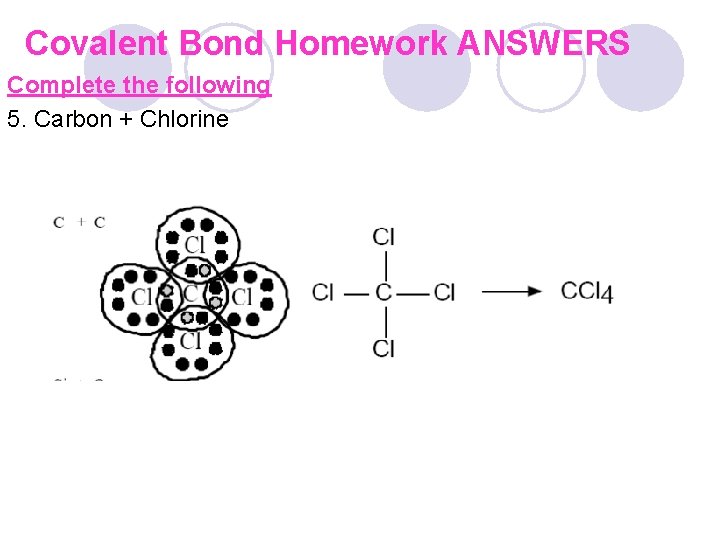

Covalent Bond Homework ANSWERS Complete the following 5. Carbon + Chlorine

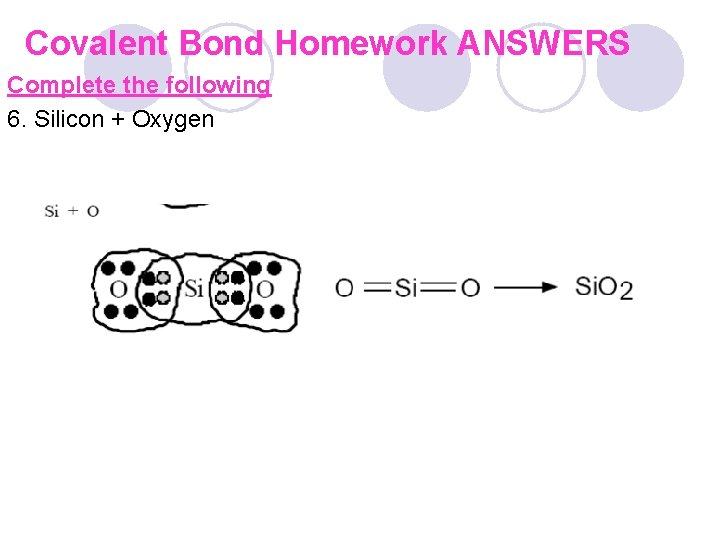

Covalent Bond Homework ANSWERS Complete the following 6. Silicon + Oxygen
