How to live with low/intermittent bandwidth/connectivity Krithi Ramamritham IIT Bombay krithi@cse. iitb. ernet. in

Web Content • Web sites have traditionally served static content • But, dynamic content generation has come into vogue – generated on the fly by running dynamic scripts, e. g. , Active Server Pages (ASP), Java Server Pages (JSP), Servlets – allows generation of different content for the same request 2

Dynamic Web Pages… Navigation Component Ad Component Web Page Headline Component Personalized Component A News content site 3

Generic Architecture mobile hosts End-hosts Network wired hosts sensors servers Data sources 4

Coherency of Dynamic Data • Strong coherency – The client and source always in sync with each other – Strong coherency is expensive! • Relax strong coherency: - coherency – Time domain: t - coherency • The client is never out of sync with the source by more than t time units • eg: Traffic data not stale by more than a minute – Value domain: v - coherency • The difference in the data values at the client and the source bounded by v at all times • eg: Only interested in temperature changes larger than 1 degree 5

Generic Architecture mobile host End-hosts Network wired host Proxies /caches sensors servers Data sources 6

The Push Approach Proxy Server Push User Push • Proxy registers the data item of interest and the coherency requirement with the server • Server pushes interesting changes + Achieves Strong Consistency + Keeps network overhead minimum -- Poor Scalability (has to maintain state and has to keep connections open) -- Low Resiliency 7

The Pull Approach Proxy Server Pull User Push Proxy Pulls after Time to Live (TTL) Time To next Refresh (TTR / TNR) + Can be implemented using the HTTP protocol + Stateless and hence is generally scalable with respect to state space and computation – Weak cache consistency – Heavy polling for stringent coherence requirement or highly dynamic data – Network overheads higher than for Push 8

Typical End-to-end Web Site Architecture Web Server Cluster Users Application Server Cluster Data . . 9

WS vs. AS • Web servers – Do well defined and quantifiable local work • e. g. , processing HTTP headers, serving static content • Application servers – Run multi-layer programs • e. g. , scripts involving calls to backends 10

Inside the Application Layer 3 -tier model PRESENTATION ADDT’L SERVICES BUSINESS LOGIC • Commerce • Content Mgt. • Personalization DATA CONNECTOR Databases • JSP • ASP • Servlets • COM+ • EJB HT ML Ob jec ts Ro w. S et • JDBC • ODBC Legacy Systems 11

Inside the Application Layer… PRESENTATION Code Block(s) . . . 2. Servlet contacts CMS ADDT’L SERVICES • Commerce • Content Mgt. • Personalization 3. CMS requests data 4. DBMS calls storage system Databases BUSINESS LOGIC DATA CONNECTOR Legacy Systems 1. JSP invokes a Servlet Code Block(s) . . . • JDBC • ODBC 12

Performance and Scalability Issues • Computationally-intensive logic executed at multiple tiers • Cross-tier communication • Object instantiation and cleanup processing • External I/O calls • Database connection pool latencies • Content conversion and formatting 13

Optimizing the Application Layer Traditional Means • Optimize each tier independently: – Presentation-level caches built inside application server processes – Main memory database employed over persistent DBMS – Persistent object storage techniques employed inside content management systems … and so on PRESENTATION ADDT’L SERVICES BUSINESS LOGIC DATA CONNECTOR • JSP • ASP Local cache and optimization code • Servlets • COM+ • EJB • JDBC • ODBC 14

Query result caching • Many application server products offer this feature -- mitigates only local database access latency -- only a subset of query results may be reused in page generation -- page fragments may not all be from databases 15

Middle tier database caching • Caching database tables in main memory Oracle 9 i Cache Main-memory databases, e. g. , Times. Ten -- mitigates only database access latency -- caching at table granularity results in poor cache utilization -- main-memory databases are difficult to integrate and maintain and can be expensive 16

Page Level Caching • Dynamically generated HTML pages are cached + Can completely offload work from web/app server – Low reusability for highly personalized web pages – URL may not uniquely identify a page -- increasing the risk of delivering incorrect pages – Often introduces excessive invalidations -- e. g. , even if a single element on the page changes 17

Optimizing the Application Layer Issues • Traditional techniques impact specific components within the application, but not the entire application – No mitigation of component-to-component interaction latencies – Different synchronization and invalidation policies risk data integrity – Each optimization scheme consumes programmer time for development and maintenance 18

Key ideas • Re-use program results to eliminate redundant work • Facilitate single-point, architecture-wide optimization Apply to both programmatic objects and result fragments 19

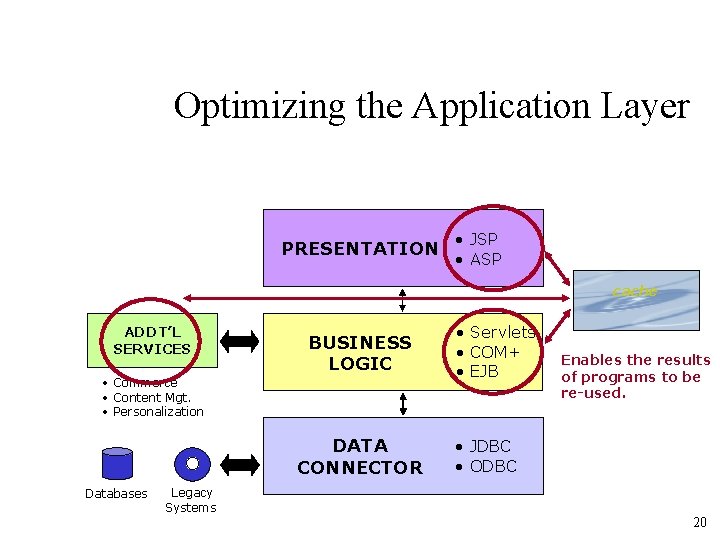

Optimizing the Application Layer PRESENTATION • JSP • ASP cache ADDT’L SERVICES BUSINESS LOGIC • Commerce • Content Mgt. • Personalization DATA CONNECTOR Databases • Servlets • COM+ • EJB Enables the results of programs to be re-used. • JDBC • ODBC Legacy Systems 20

Usually…. PRESENTATION Code Block(s) . . . 2. Servlet contacts CMS ADDT’L SERVICES • Commerce • Content Mgt. • Personalization 3. CMS requests data 4. DBMS calls storage system Databases BUSINESS LOGIC DATA CONNECTOR Code Block(s) . . . 1. JSP invokes a Servlet • JDBC • ODBC Legacy Systems Plus, at each step there are communication delays and logic processing delays 21

Novel Solution… Appl. Programming Interface PRESENTATION BUSINESS LOGIC DATA CONNECTOR Chutney tags Code Block(s) . . . Can store any program output, but is most commonly an HTML fragment or a Programmatic Object. Real-time storage engine Function Parameter(s) Result Code Block(s) . . . • JDBC • ODBC Tags trigger calls to the storage engine. When the Result of a Function with a specific Parameter set is already known (and up-todate), the work normally necessary to produce that Result is bypassed. 22

Code Blocks Perform Work Page generation script Code block Write to Out Code block Application logic Database calls Write to Out . . . HTML formatting . . . 23

Code Blocks <-> Components Page generation script Web Page Code block Ad Component Code block Write to Out . . . Certain components can be cached Navigation Component Write to Out Headline Component Personalized Component (Example: News content site) 24

DCA: Our Solution Page generation script Code block Request Start tag Code Block Output Code block Database calls Work bypassed Application logic Dynamic Content Accelerator HTML formatting End tag . . . 25

DCA in a Typical End-to-end Web Site Architecture • A single instance of the DCA serves a rack of application servers • Application servers communicate with DCA through a lightweight API Web Server Cluster Users Application Server Cluster Data Dynamic Content Accelerator 26

Cache Management • A critical aspect of any caching solution • DCA supports novel cache management strategies: – Prediction-based cache replacement – Observation-based cache invalidation 27

Cache Replacement • Prediction-based replacement ⁻ fragments having lowest probability of access replaced ⁻ Least-Likely-to-be-Used (LLU) Site Graph News Sports – Access probabilities based on: • Current user navigational patterns over site graph (in the form of clickstreams) • Historical user navigational patterns over site graph (in the form of association rules) Hockey Schedules Scores Players Teams (News, Sports, Hockey) Schedules = 20% (News, Sports, Hockey) Players = 15% LLU (News, Sports, Hockey) Teams = 10% (News, Sports, Hockey) Scores = 55% 28

Cache Invalidation • DCA supports common cache invalidation techniques: – Time-based: Each cache element assigned a TTL – Event-based: Updates to the database send an invalidation message to the cache – On demand: Manual invalidation of selected elements • DCA supports additional invalidation techniques…. 29

Cache Invalidation… • Other invalidation techniques supported: – Observation-based • User-initiated updates are observed in scripts; each such update sends an invalidation message to the cache • Most appropriate for auction sites, online trading sites • Invalidation does not require communication with the databases – Keyword-based: • Elements can be associated with keywords; e. g. , a retailer may wish to invalidate all “seasonal” items – Regular expression-based: • Elements can be invalidated based on regular expression matching 30

Performance Study… Test Site – Fictitious online retail site, allows browsing of product catalog – Pages generated using JSP scripts – Site content stored in Oracle database – Database schema based on Dublin Core Metadata Open Standard – Contains 200, 000 products and 44, 000 categories – Each page consists of 3 components, each involving a database call 31

Performance Study… Test Setup – Content Database Server: Oracle 8. 1. 6 – Web/Application Server: Web. Logic 6. 0 running on cluster of 2 machines – Server machines: have 1 GB RAM, dual P III-933 Mhz processors run Windows 2 K Advanced Server 32

Testing Methodology. . . • Baseline Parameters: – Cache Size, i. e. , percentage of fragments that fit into cache: 75% – Cache replacement policy: LLU • User load is varied by sending requests from client machines running Radview’s Web. Load • Simulated users navigate site according to Zipf 80 -20 distribution (i. e. , 80% of users follow 20% of navigation links) 33

Performance Impact 80% faster response times through existing application infrastructure Source: Fortune 100 client results 34

Chutney Throughput Impact 250% increase in transaction rates Source: Fortune 100 client results 35

Alternative: CDNs Sources Repositories e. g. , Akamai Content Distribution Networks Push Based Core Infrastructure Clients 36

Conclusion • Increased use of dynamic page generation technologies => increases load on application servers => serious performance and scalability problems for e-business sites • DCA (Dynamic Content Acceleration) => significantly reduces the load on the server side infrastructure, allows e-business sites to scale => significantly outperforms existing middle tier caching solutions 37

IIT Bombay’s a. AQUA Community Forum Farmers get information and get their questions answered -- In the local context -- In their local language Capitalizes on existing human and infrastructural resources: Agri-extension center – KVK, Baramati NGO – Vigyan Ashram, Pabal Government – MCIT www. a. AQUA. org

Access over low bandwidth: Resource Optimization Resource constraints Low/unpredictable bandwidth => disconnected operation/access Exploit caching prefetching (through prediction of future needs) Profiling by user type, location =>offline a. AQUA Data characteristics Static data – text, images – land records, photos can be cached/hoarded Dynamic data – weather/price information cached info need to be refreshed carefully Continuous media – Vo. IP, video data 39
