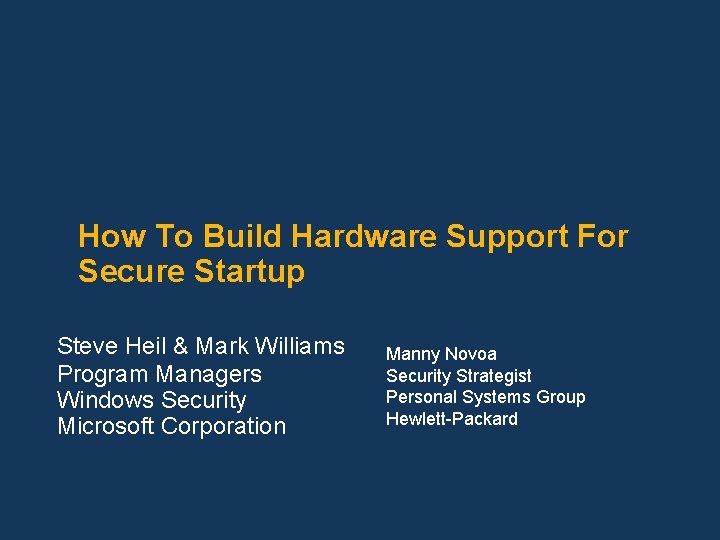

How To Build Hardware Support For Secure Startup Steve Heil & Mark Williams Program Managers Windows Security Microsoft Corporation Manny Novoa Security Strategist Personal Systems Group Hewlett-Packard

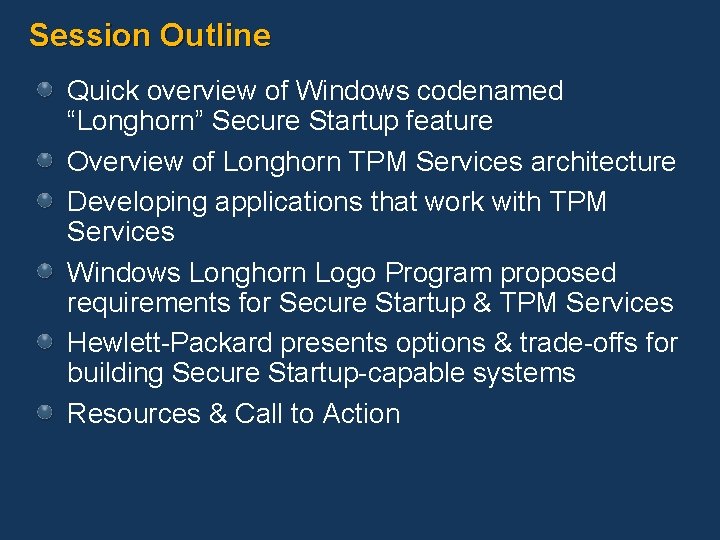

Session Outline Quick overview of Windows codenamed “Longhorn” Secure Startup feature Overview of Longhorn TPM Services architecture Developing applications that work with TPM Services Windows Longhorn Logo Program proposed requirements for Secure Startup & TPM Services Hewlett-Packard presents options & trade-offs for building Secure Startup-capable systems Resources & Call to Action

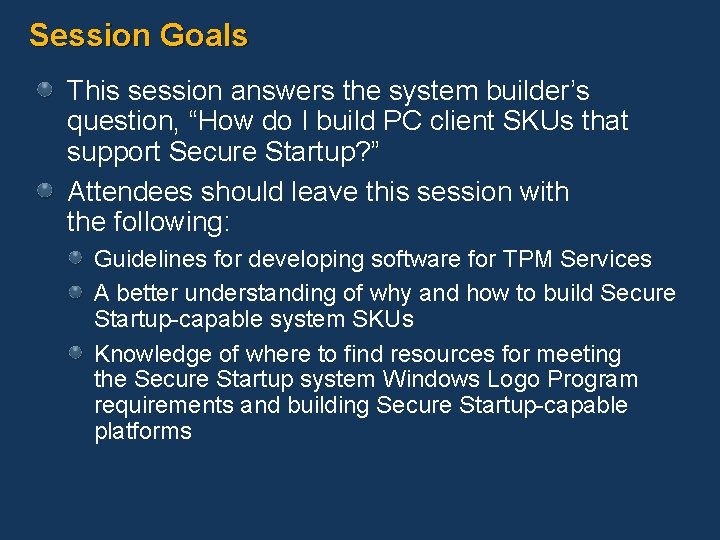

Session Goals This session answers the system builder’s question, “How do I build PC client SKUs that support Secure Startup? ” Attendees should leave this session with the following: Guidelines for developing software for TPM Services A better understanding of why and how to build Secure Startup-capable system SKUs Knowledge of where to find resources for meeting the Secure Startup system Windows Logo Program requirements and building Secure Startup-capable platforms

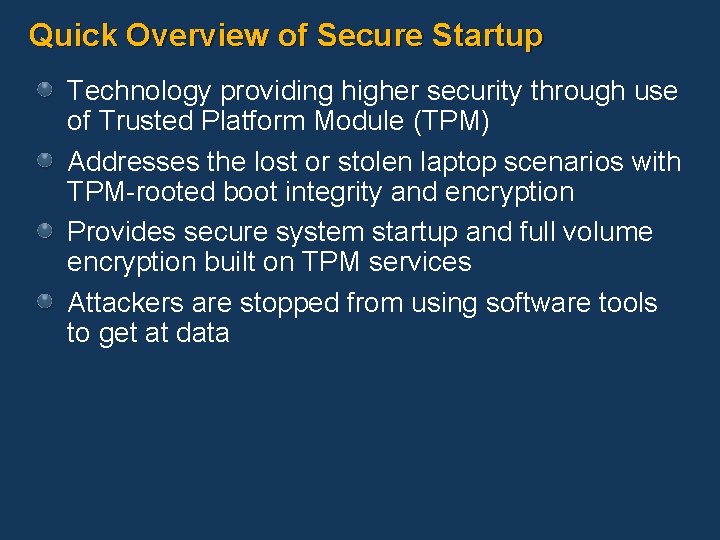

Quick Overview of Secure Startup Technology providing higher security through use of Trusted Platform Module (TPM) Addresses the lost or stolen laptop scenarios with TPM-rooted boot integrity and encryption Provides secure system startup and full volume encryption built on TPM services Attackers are stopped from using software tools to get at data

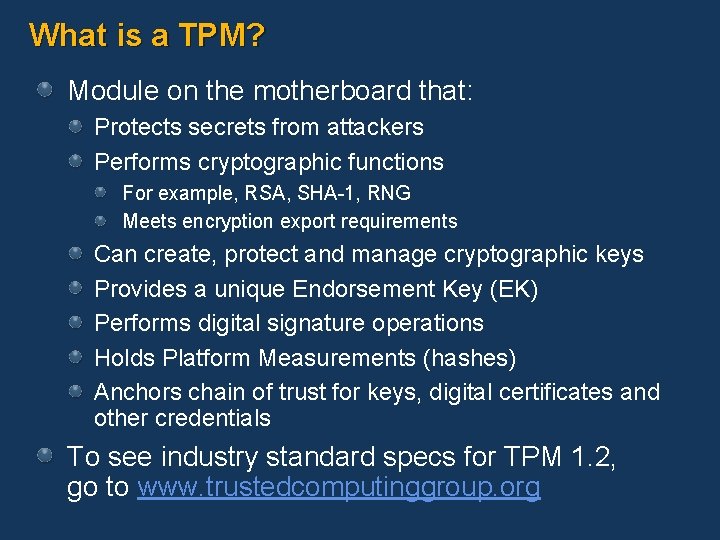

What is a TPM? Module on the motherboard that: Protects secrets from attackers Performs cryptographic functions For example, RSA, SHA-1, RNG Meets encryption export requirements Can create, protect and manage cryptographic keys Provides a unique Endorsement Key (EK) Performs digital signature operations Holds Platform Measurements (hashes) Anchors chain of trust for keys, digital certificates and other credentials To see industry standard specs for TPM 1. 2, go to www. trustedcomputinggroup. org

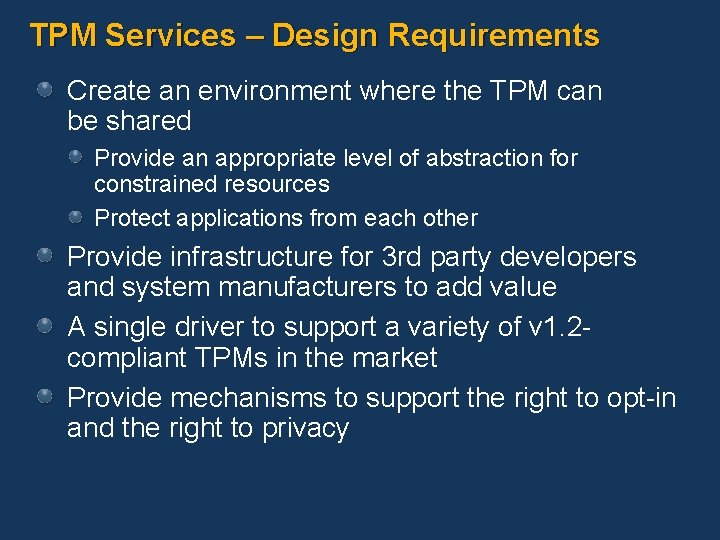

TPM Services – Design Requirements Create an environment where the TPM can be shared Provide an appropriate level of abstraction for constrained resources Protect applications from each other Provide infrastructure for 3 rd party developers and system manufacturers to add value A single driver to support a variety of v 1. 2 compliant TPMs in the market Provide mechanisms to support the right to opt-in and the right to privacy

TPM Services Architecture Simplified * = TCG Software Stack

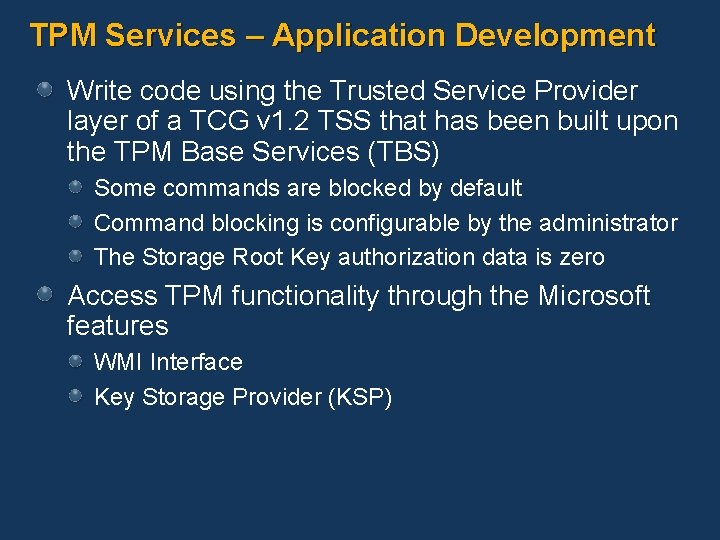

TPM Services – Application Development Write code using the Trusted Service Provider layer of a TCG v 1. 2 TSS that has been built upon the TPM Base Services (TBS) Some commands are blocked by default Command blocking is configurable by the administrator The Storage Root Key authorization data is zero Access TPM functionality through the Microsoft features WMI Interface Key Storage Provider (KSP)

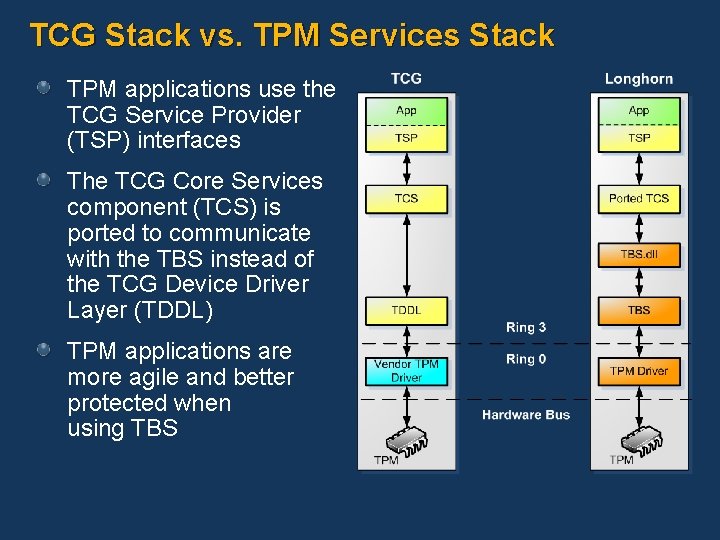

TCG Stack vs. TPM Services Stack TPM applications use the TCG Service Provider (TSP) interfaces The TCG Core Services component (TCS) is ported to communicate with the TBS instead of the TCG Device Driver Layer (TDDL) TPM applications are more agile and better protected when using TBS

Introducing… Mark Williams Program Manager Windows Security Microsoft Corporation

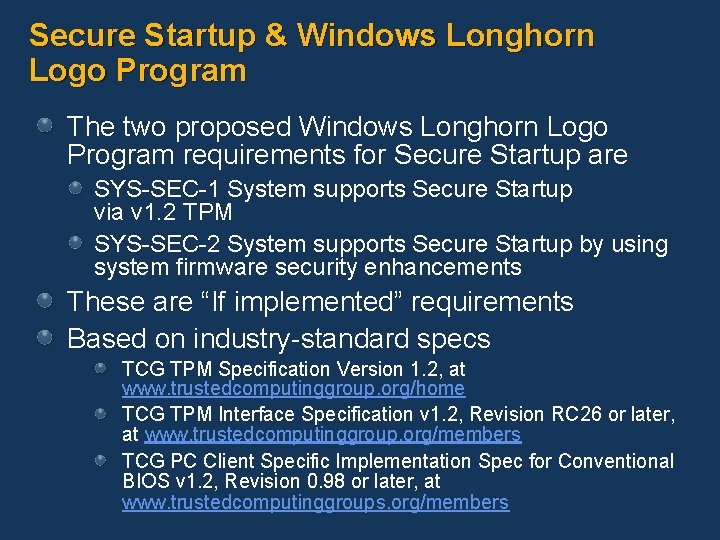

Secure Startup & Windows Longhorn Logo Program The two proposed Windows Longhorn Logo Program requirements for Secure Startup are SYS-SEC-1 System supports Secure Startup via v 1. 2 TPM SYS-SEC-2 System supports Secure Startup by using system firmware security enhancements These are “If implemented” requirements Based on industry-standard specs TCG TPM Specification Version 1. 2, at www. trustedcomputinggroup. org/home TCG TPM Interface Specification v 1. 2, Revision RC 26 or later, at www. trustedcomputinggroup. org/members TCG PC Client Specific Implementation Spec for Conventional BIOS v 1. 2, Revision 0. 98 or later, at www. trustedcomputinggroups. org/members

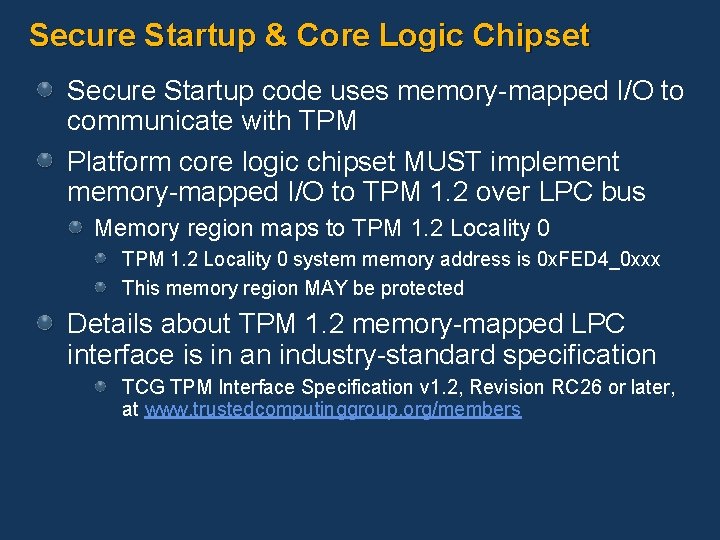

Secure Startup & Core Logic Chipset Secure Startup code uses memory-mapped I/O to communicate with TPM Platform core logic chipset MUST implement memory-mapped I/O to TPM 1. 2 over LPC bus Memory region maps to TPM 1. 2 Locality 0 system memory address is 0 x. FED 4_0 xxx This memory region MAY be protected Details about TPM 1. 2 memory-mapped LPC interface is in an industry-standard specification TCG TPM Interface Specification v 1. 2, Revision RC 26 or later, at www. trustedcomputinggroup. org/members

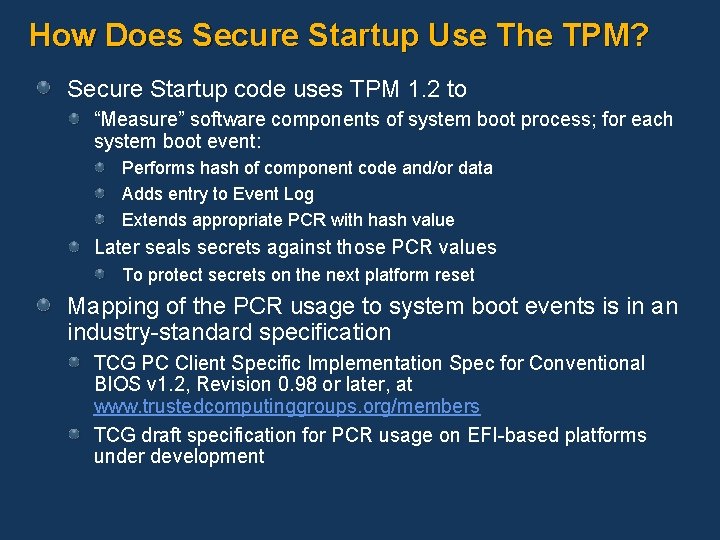

How Does Secure Startup Use The TPM? Secure Startup code uses TPM 1. 2 to “Measure” software components of system boot process; for each system boot event: Performs hash of component code and/or data Adds entry to Event Log Extends appropriate PCR with hash value Later seals secrets against those PCR values To protect secrets on the next platform reset Mapping of the PCR usage to system boot events is in an industry-standard specification TCG PC Client Specific Implementation Spec for Conventional BIOS v 1. 2, Revision 0. 98 or later, at www. trustedcomputinggroups. org/members TCG draft specification for PCR usage on EFI-based platforms under development

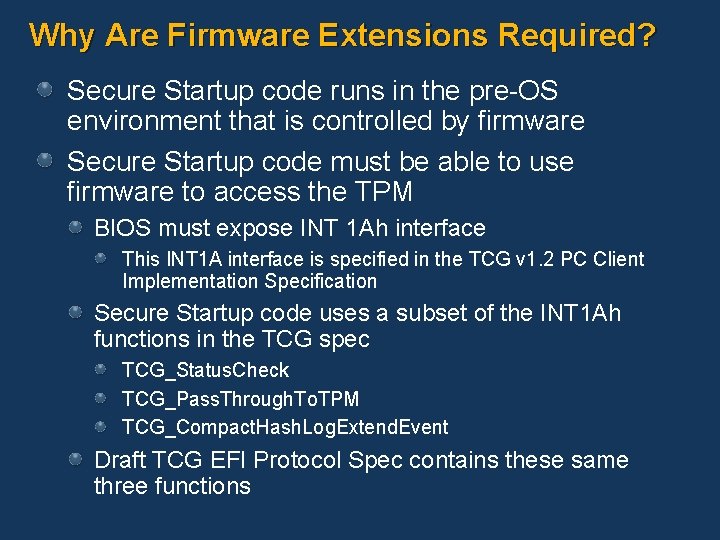

Why Are Firmware Extensions Required? Secure Startup code runs in the pre-OS environment that is controlled by firmware Secure Startup code must be able to use firmware to access the TPM BIOS must expose INT 1 Ah interface This INT 1 A interface is specified in the TCG v 1. 2 PC Client Implementation Specification Secure Startup code uses a subset of the INT 1 Ah functions in the TCG spec TCG_Status. Check TCG_Pass. Through. To. TPM TCG_Compact. Hash. Log. Extend. Event Draft TCG EFI Protocol Spec contains these same three functions

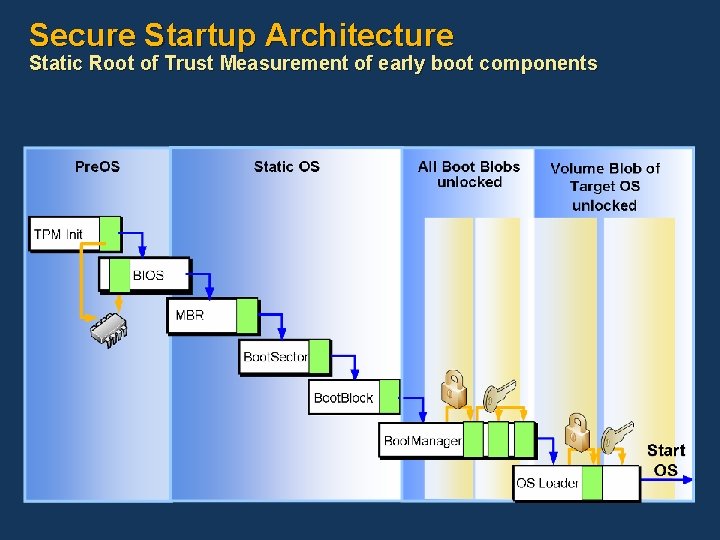

Secure Startup Architecture Static Root of Trust Measurement of early boot components

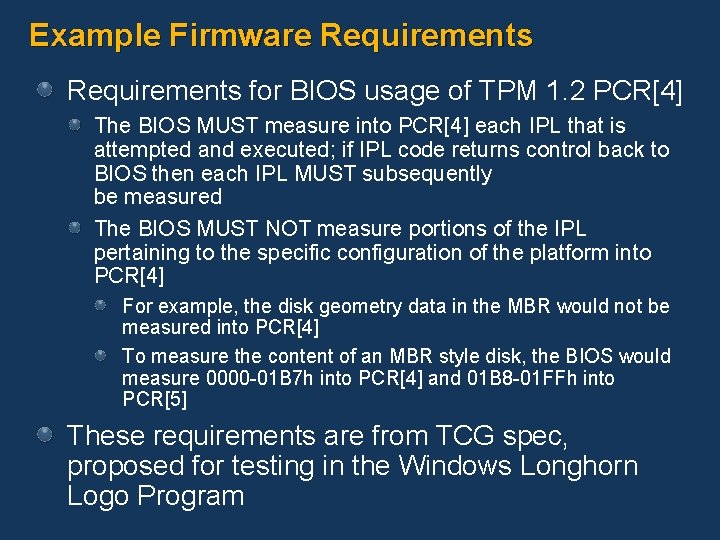

Example Firmware Requirements for BIOS usage of TPM 1. 2 PCR[4] The BIOS MUST measure into PCR[4] each IPL that is attempted and executed; if IPL code returns control back to BIOS then each IPL MUST subsequently be measured The BIOS MUST NOT measure portions of the IPL pertaining to the specific configuration of the platform into PCR[4] For example, the disk geometry data in the MBR would not be measured into PCR[4] To measure the content of an MBR style disk, the BIOS would measure 0000 -01 B 7 h into PCR[4] and 01 B 8 -01 FFh into PCR[5] These requirements are from TCG spec, proposed for testing in the Windows Longhorn Logo Program

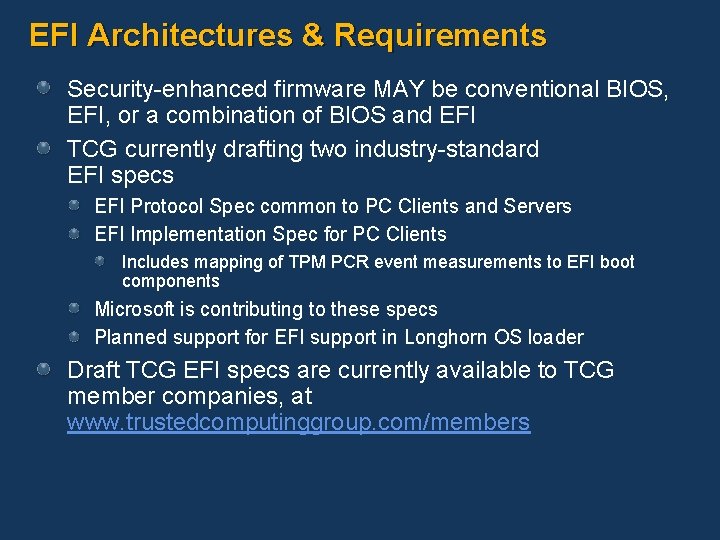

EFI Architectures & Requirements Security-enhanced firmware MAY be conventional BIOS, EFI, or a combination of BIOS and EFI TCG currently drafting two industry-standard EFI specs EFI Protocol Spec common to PC Clients and Servers EFI Implementation Spec for PC Clients Includes mapping of TPM PCR event measurements to EFI boot components Microsoft is contributing to these specs Planned support for EFI support in Longhorn OS loader Draft TCG EFI specs are currently available to TCG member companies, at www. trustedcomputinggroup. com/members

Building a Secure Startup System After system builder has: Chosen a TPM 1. 2 vendor Committed a BIOS team to working on the extensions What else is needed? Build a TCG-defined “Host Platform” which includes Motherboard Host processor(s) TPM Immutable part of firmware called the Static Core Root of Trust for Measurement (S-CRTM) Other devices that connect directly to the CPU and interact directly with the CPU

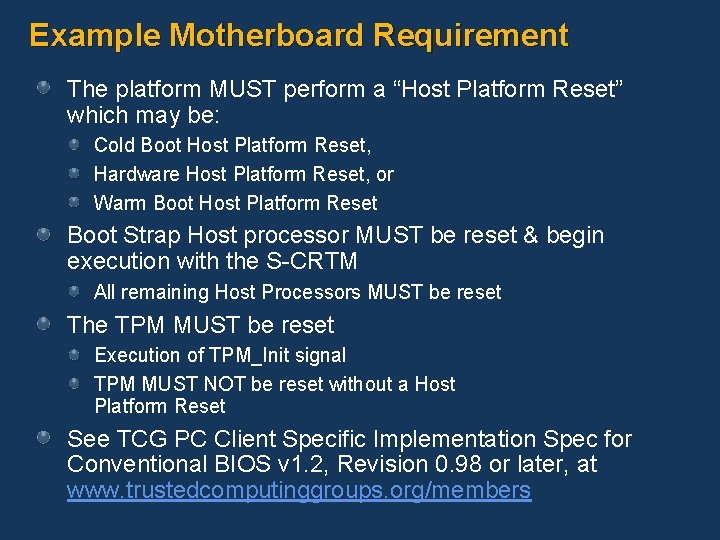

Example Motherboard Requirement The platform MUST perform a “Host Platform Reset” which may be: Cold Boot Host Platform Reset, Hardware Host Platform Reset, or Warm Boot Host Platform Reset Boot Strap Host processor MUST be reset & begin execution with the S-CRTM All remaining Host Processors MUST be reset The TPM MUST be reset Execution of TPM_Init signal TPM MUST NOT be reset without a Host Platform Reset See TCG PC Client Specific Implementation Spec for Conventional BIOS v 1. 2, Revision 0. 98 or later, at www. trustedcomputinggroups. org/members

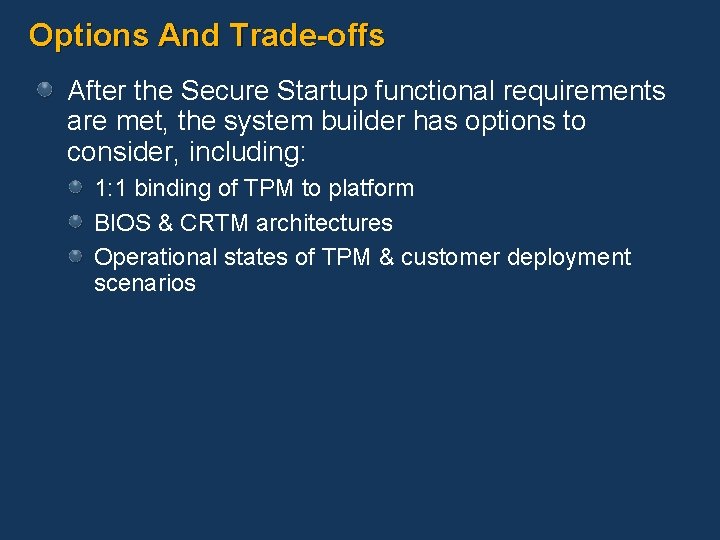

Options And Trade-offs After the Secure Startup functional requirements are met, the system builder has options to consider, including: 1: 1 binding of TPM to platform BIOS & CRTM architectures Operational states of TPM & customer deployment scenarios

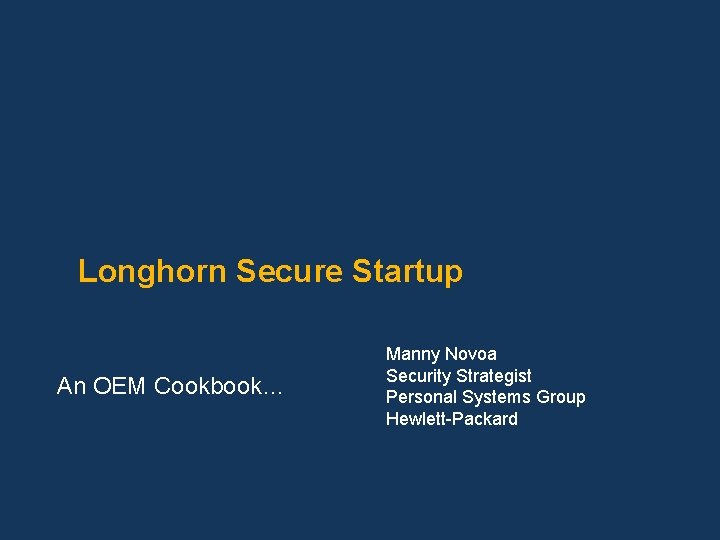

Longhorn Secure Startup An OEM Cookbook… Manny Novoa Security Strategist Personal Systems Group Hewlett-Packard

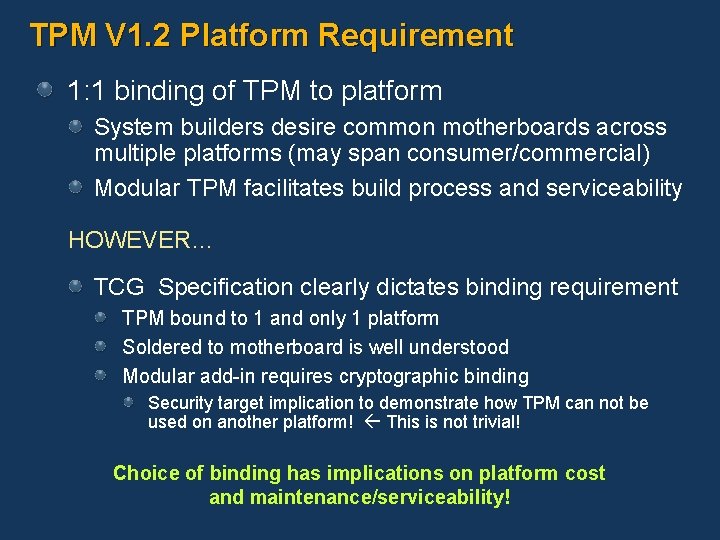

TPM V 1. 2 Platform Requirement 1: 1 binding of TPM to platform System builders desire common motherboards across multiple platforms (may span consumer/commercial) Modular TPM facilitates build process and serviceability HOWEVER… TCG Specification clearly dictates binding requirement TPM bound to 1 and only 1 platform Soldered to motherboard is well understood Modular add-in requires cryptographic binding Security target implication to demonstrate how TPM can not be used on another platform! This is not trivial! Choice of binding has implications on platform cost and maintenance/serviceability!

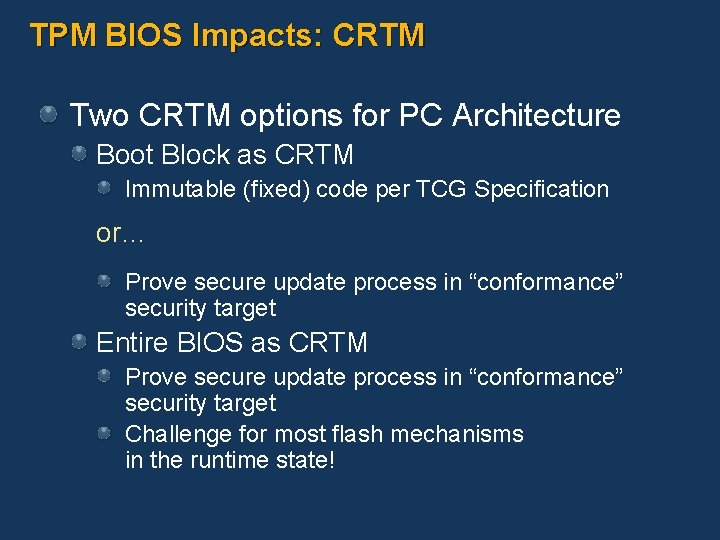

TPM BIOS Impacts: CRTM Two CRTM options for PC Architecture Boot Block as CRTM Immutable (fixed) code per TCG Specification or… Prove secure update process in “conformance” security target Entire BIOS as CRTM Prove secure update process in “conformance” security target Challenge for most flash mechanisms in the runtime state!

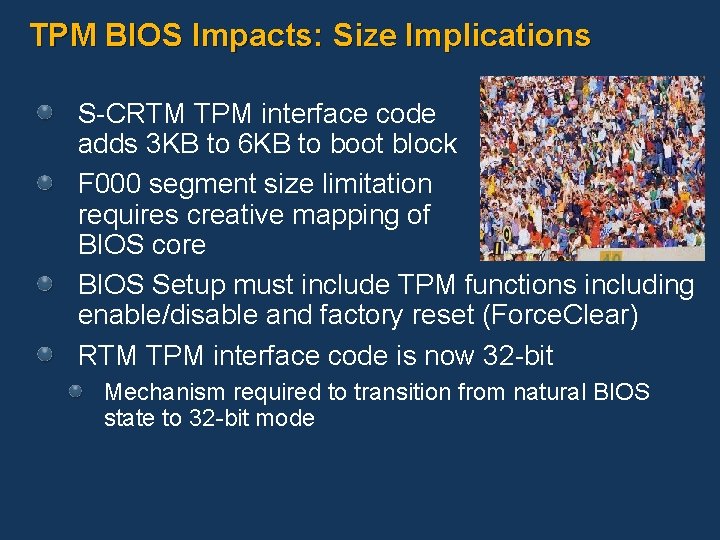

TPM BIOS Impacts: Size Implications S-CRTM TPM interface code adds 3 KB to 6 KB to boot block F 000 segment size limitation requires creative mapping of BIOS core BIOS Setup must include TPM functions including enable/disable and factory reset (Force. Clear) RTM TPM interface code is now 32 -bit Mechanism required to transition from natural BIOS state to 32 -bit mode

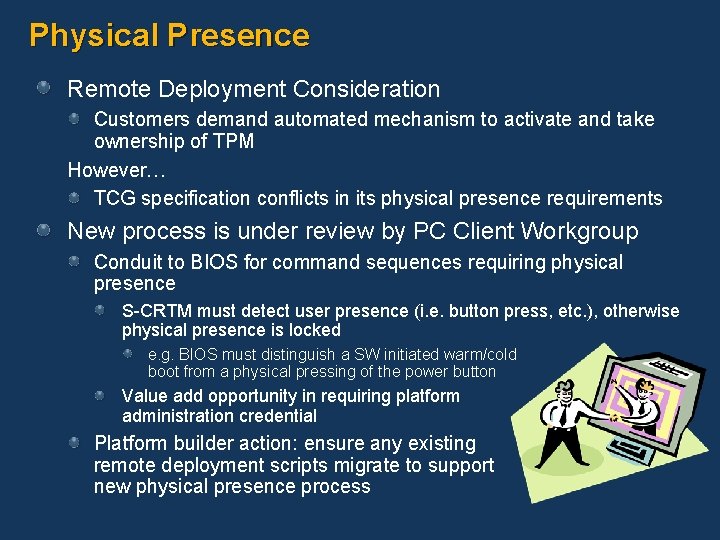

Physical Presence Remote Deployment Consideration Customers demand automated mechanism to activate and take ownership of TPM However… TCG specification conflicts in its physical presence requirements New process is under review by PC Client Workgroup Conduit to BIOS for command sequences requiring physical presence S-CRTM must detect user presence (i. e. button press, etc. ), otherwise physical presence is locked e. g. BIOS must distinguish a SW initiated warm/cold boot from a physical pressing of the power button Value add opportunity in requiring platform administration credential Platform builder action: ensure any existing remote deployment scripts migrate to support new physical presence process

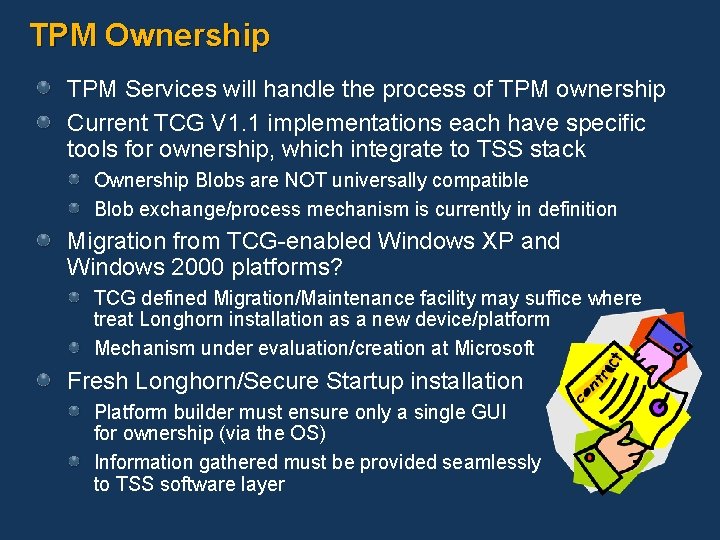

TPM Ownership TPM Services will handle the process of TPM ownership Current TCG V 1. 1 implementations each have specific tools for ownership, which integrate to TSS stack Ownership Blobs are NOT universally compatible Blob exchange/process mechanism is currently in definition Migration from TCG-enabled Windows XP and Windows 2000 platforms? TCG defined Migration/Maintenance facility may suffice where treat Longhorn installation as a new device/platform Mechanism under evaluation/creation at Microsoft Fresh Longhorn/Secure Startup installation Platform builder must ensure only a single GUI for ownership (via the OS) Information gathered must be provided seamlessly to TSS software layer

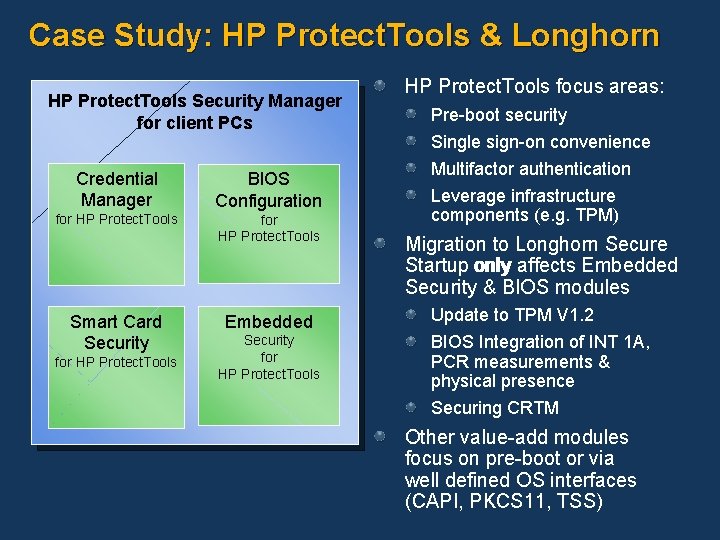

Case Study: HP Protect. Tools & Longhorn HP Protect. Tools Security Manager for client PCs Credential Manager BIOS Configuration for HP Protect. Tools Smart Card Security for HP Protect. Tools Embedded Security for HP Protect. Tools focus areas: Pre-boot security Single sign-on convenience Multifactor authentication Leverage infrastructure components (e. g. TPM) Migration to Longhorn Secure Startup only affects Embedded Security & BIOS modules Update to TPM V 1. 2 BIOS Integration of INT 1 A, PCR measurements & physical presence Securing CRTM Other value-add modules focus on pre-boot or via well defined OS interfaces (CAPI, PKCS 11, TSS)

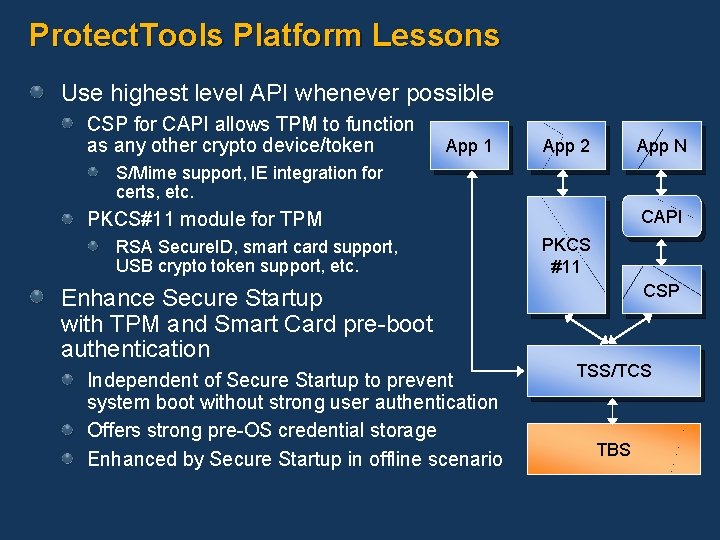

Protect. Tools Platform Lessons Use highest level API whenever possible CSP for CAPI allows TPM to function as any other crypto device/token App 1 App 2 App N S/Mime support, IE integration for certs, etc. CAPI PKCS#11 module for TPM RSA Secure. ID, smart card support, USB crypto token support, etc. Enhance Secure Startup with TPM and Smart Card pre-boot authentication Independent of Secure Startup to prevent system boot without strong user authentication Offers strong pre-OS credential storage Enhanced by Secure Startup in offline scenario PKCS #11 CSP TSS/TCS TBS

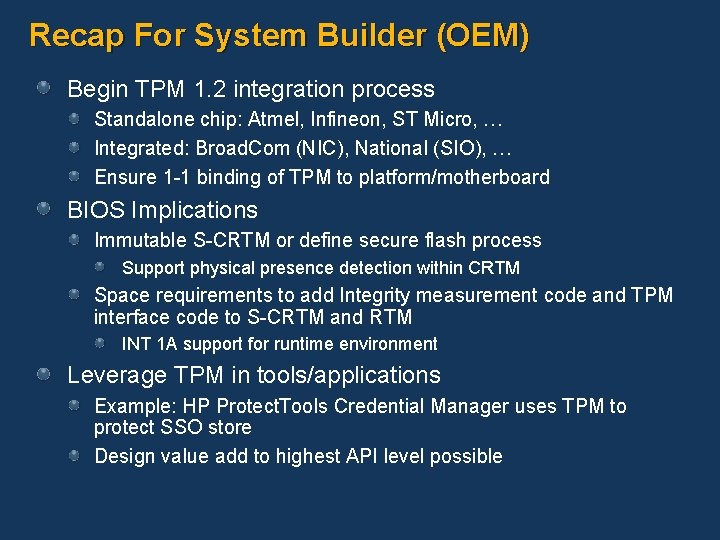

Recap For System Builder (OEM) Begin TPM 1. 2 integration process Standalone chip: Atmel, Infineon, ST Micro, … Integrated: Broad. Com (NIC), National (SIO), … Ensure 1 -1 binding of TPM to platform/motherboard BIOS Implications Immutable S-CRTM or define secure flash process Support physical presence detection within CRTM Space requirements to add Integrity measurement code and TPM interface code to S-CRTM and RTM INT 1 A support for runtime environment Leverage TPM in tools/applications Example: HP Protect. Tools Credential Manager uses TPM to protect SSO store Design value add to highest API level possible

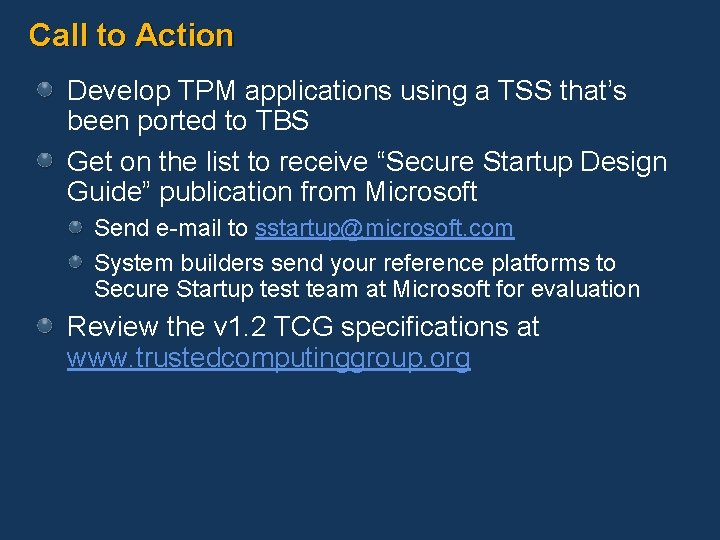

Call to Action Develop TPM applications using a TSS that’s been ported to TBS Get on the list to receive “Secure Startup Design Guide” publication from Microsoft Send e-mail to sstartup@microsoft. com System builders send your reference platforms to Secure Startup test team at Microsoft for evaluation Review the v 1. 2 TCG specifications at www. trustedcomputinggroup. org

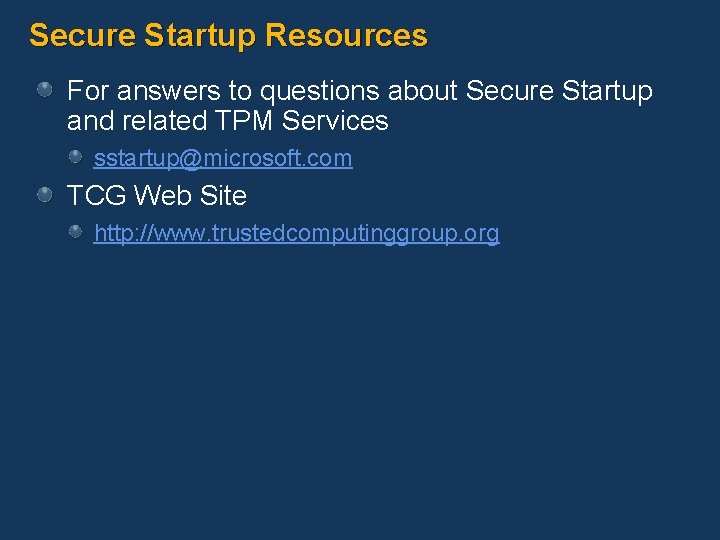

Secure Startup Resources For answers to questions about Secure Startup and related TPM Services sstartup@microsoft. com TCG Web Site http: //www. trustedcomputinggroup. org

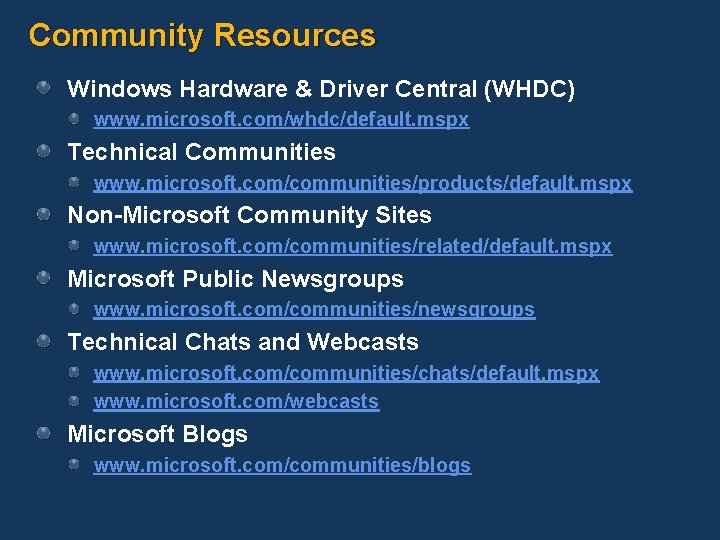

Community Resources Windows Hardware & Driver Central (WHDC) www. microsoft. com/whdc/default. mspx Technical Communities www. microsoft. com/communities/products/default. mspx Non-Microsoft Community Sites www. microsoft. com/communities/related/default. mspx Microsoft Public Newsgroups www. microsoft. com/communities/newsgroups Technical Chats and Webcasts www. microsoft. com/communities/chats/default. mspx www. microsoft. com/webcasts Microsoft Blogs www. microsoft. com/communities/blogs
