How to Build an Embedded Asterisk IPPBX rowetel

How to Build an Embedded Asterisk IP-PBX rowetel. com/ucasterisk

Contents • • Free Telephony Project Why Embedded Asterisk Motivation Open Hardware Hacking Credits Products Demo

Free Telephony Project 1 many people working in open software we are working in open hardware professional telephony hardware designs that we give away to improve the world a little

Free Telephony Project 2 designs can be copied modified, re-used without restriction we encourage cloning of our products trend: functionality shifting from hardware to (free) software trend: total system costs constantly dropping

Free Telephony Project 3 falling hardware costs are a good thing (especially for the developing world) so rather than protecting IP we leverage these trends by giving away free hardware designs and encouraging cloning!

Why Free Telephony Project? • Hardware designs are free as in speech • Use FOSS and Open Hardware to drive system costs to $0 • Lower the cost of telephony for everyone on the planet • A phone call should be a human right, not a privilege

Why Embedded Asterisk • • Small size (DSL router) Low power 3 W (battery, solar)! No moving parts (fans or disks) Quiet Reliability (parts count, connectors) Low cost (few hundred $) Just plain cool!

IP-PBX and Asterisk • A open source PABX (PBX) that can route calls between the PSTN and VOIP • Usual FOSS advantages – low cost and open • VOIP experiencing massive growth • Primary sponsor Digium but many contributors • Hence alternatives such as Free. Switch, Call. Weaver, etc

Introduction • Typical installation x 86 PC plus PCI card to connect to the telephone lines/telephones. • Paradigm shift away from x 86/PCI cards • History: Embedded = IP-only and no DSP (Echo cancellation and codecs not possible) • Analog Devices Blackfin Processor has challenged this paradigm!

Blackfin Processor • A powerful DSP (1 GMAC) • AND runs u. Clinux • Breaks the two processor (host/DSP) paradigm • Low cost ($5 - $15 each) • Well supported by vendor and community • Open hardware and software

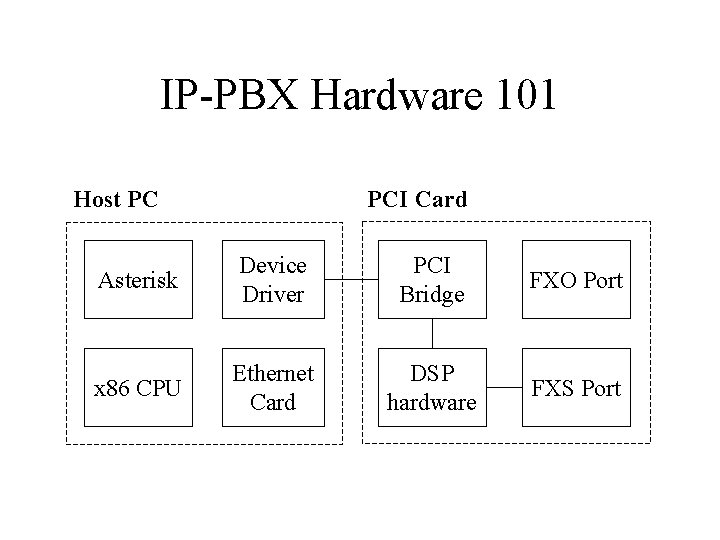

IP-PBX Hardware 101 Host PC PCI Card Asterisk Device Driver PCI Bridge FXO Port x 86 CPU Ethernet Card DSP hardware FXS Port

IP-PBX Hardware 101 Embedded PBX Asterisk Blackfin CPU FXO Port DSP software Device Driver FXS Port

IP-PBX Hardware 101 • Many redundant parts removed Lower cost Smaller size Lower power Enhanced reliability • Don’t need “hardware” DSP – Blackfin CPU is a DSP

Challenges • Complex development environment – Cross compiler & tool-chain – Customized kernel and apps • • Learning Curve Low memory ~64 MB u. Clinux (offset by partial MMU) Care and feeding of the cache

Motivation 1 • Various motivations across the people and companies involved in the project. • Obvious business potential in a $200 IPPBX with multiple ports. • Enabler for service models. • My motivation is Social & Geeky rather than Business.

Motivation 2 • I like building stuff • Would like to use my hardware/DSP skills to improve the world a little • Open software like Linux and Asterisk has been a great thing for the World. • Craig Newmark (Craigslist) : Nerd values “Get yourself comfortable, then do something fun to change the world a little”

Open Hardware 1 reference designs that anyone is free to copy, re -use, modify CAD files, prototypes differences from open software atoms cost more than bits you need a factory

Open Hardware 2 many advantages over closed development similar to open software many eyes low bug count dramatic reduction in R&D cost and time

Open Hardware 3 normal hardware costs include 70% overhead exciting new business models, e. g. OLPC dramatic price reductions local manufacture customisation, localisation, e. g. solar, wireless

How to Hack Telephony Hardware in Linux • Schematic Entry (gschem) • PCB Design (PCB) • Verilog HDL (Icarus)

Design Process Flow Design Schematics (gschem) Design PCBs (PCB) Write Verilog Code (Icarus) Assemble Prototype Hardware Debug and Test Hardware Port Asterisk to Blackfin (gcc) Integrate and Test system

gschem Schematic Entry

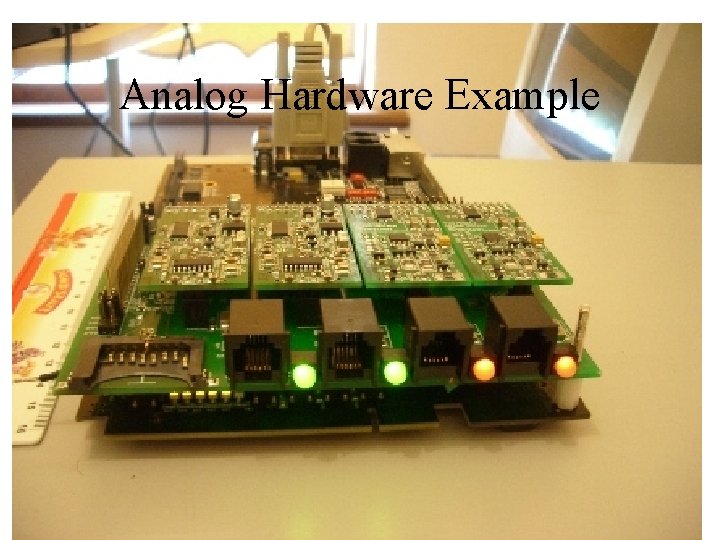

Analog Hardware Example

Hardware Hacking is Getting Easier!! • • Build sophisticated surface mount circuits. Order strange parts on-line e. g. Digikey Prototype PCB costs dropping Stereo Microscope + soldering tools < $500 Open hardware designs Free CAD tools Help from on-line communities

Credits In no particular order: • Atcom (China) for putting the IP 04 into mass production • Astfin team for developing build system, PRI and BRI-ISDN hardware • Analog Devices for Blackfin and great u. Clinux support • Linux and Asterisk communities • Many others who contributed (e. g. drivers, software fixes)

Open Hardware IP-PBX Products • • IP 04 4 -port Analog IP-PBX (production) IP 08 8 -port Analog IP-PBX (prototype) E 1/T 1 PRI-Appliance (prototype) BRI-Appliance (prototype)

Case Study - IP 04 Switches analog and Vo. IP calls fanless, low power (5 W), rugged, compact open hardware and software easy to customise, e. g. simple UI potential for very low cost ($100), compared to $2, 000 retail for similar products stable but not feature complete (CID, GUI)

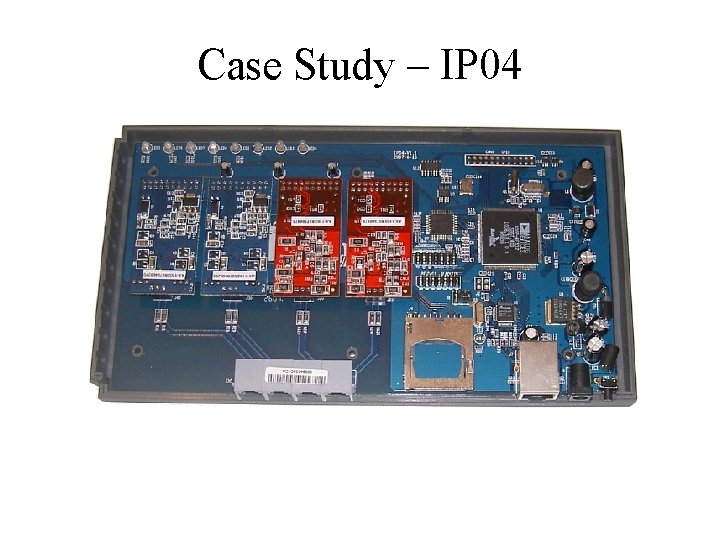

Case Study – IP 04

PRI Appliance (Astfin Team)

BRI Appliance (Astfin team)

Demo • • • Boot from a Battery Make a phone call telnet in GUI NAND flash

Questions? For more information rowetel. com/ucasterisk

Notes demo? Maybe ask Mike, Idea: battery powered, or photo of Alberto's mini. PC to compare. New GUI? Hook up battery in front of them and boot? Telnet in? intro some sticky new ideas and geeky experiences
