How PCR works Cold Spring Harbor Animation Animated

How PCR works Cold Spring Harbor Animation Animated. GIF files Blackboard

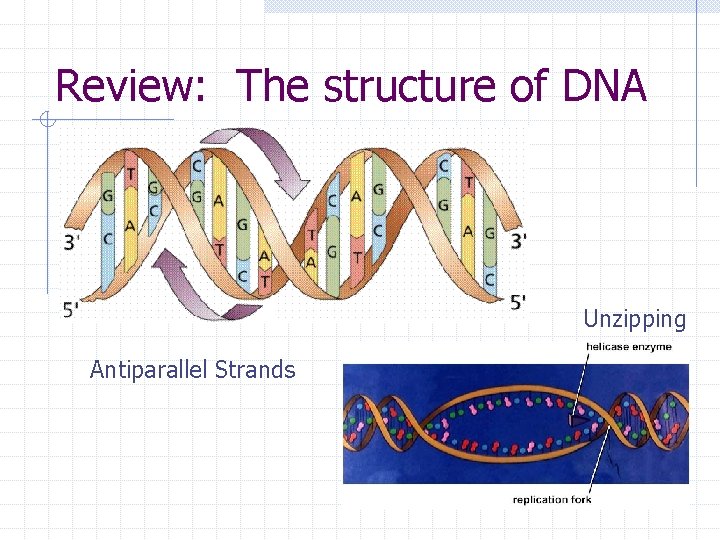

Review: The structure of DNA Unzipping Antiparallel Strands

How PCR works Cold Spring Harbor Animation PCR. EXE

How PCR works Animated. GIF #1

How PCR works Animated. GIF #2

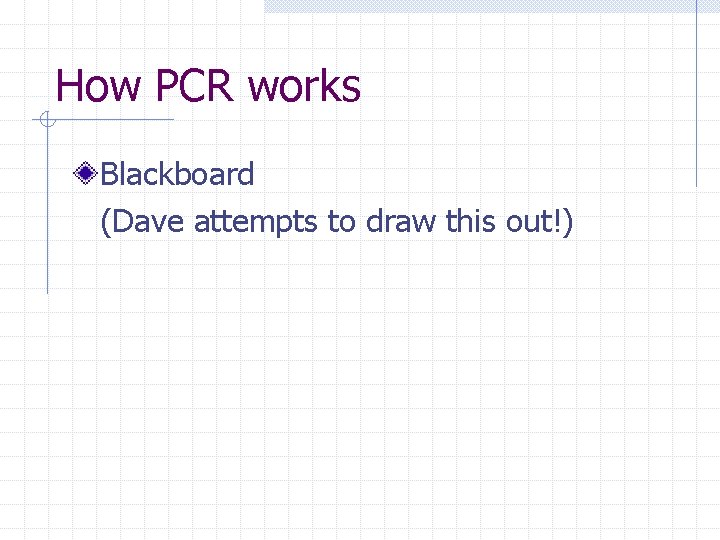

How PCR works Blackboard (Dave attempts to draw this out!)

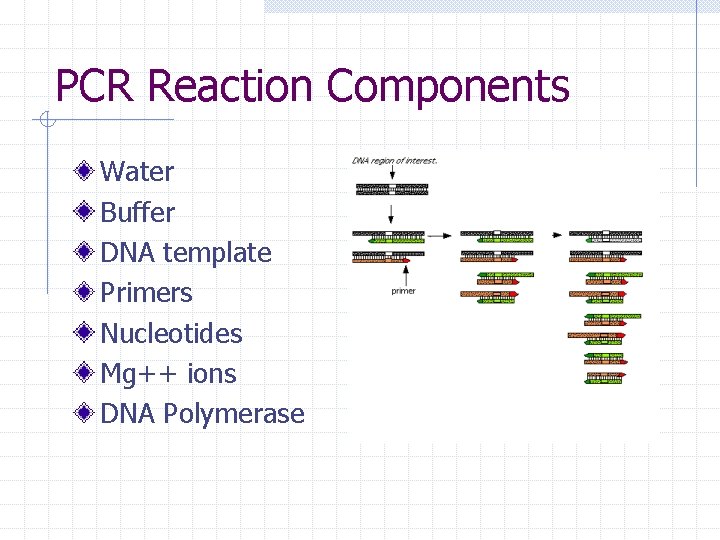

PCR Reaction Components Water Buffer DNA template Primers Nucleotides Mg++ ions DNA Polymerase

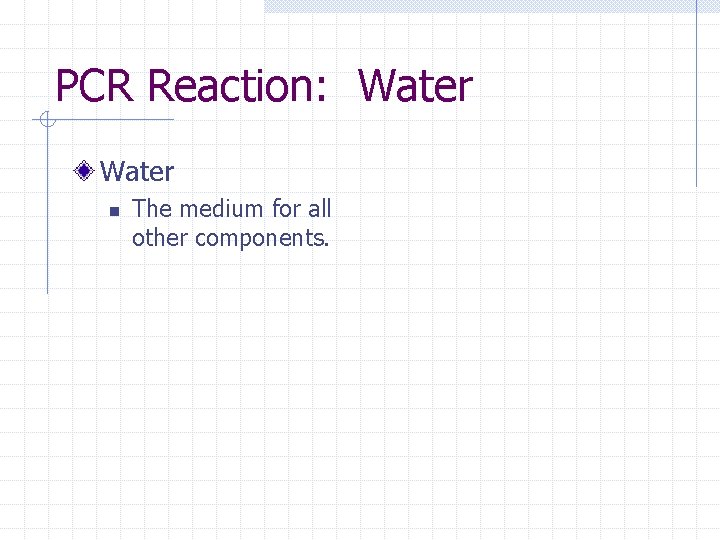

PCR Reaction: Water n The medium for all other components.

PCR Reaction: Buffer Water Buffer n n Stabilizes the DNA polymerase, DNA, and nucleotides 500 m. M KCl 100 m. M Tris-HCl, p. H 8. 3 Triton X-100 or Tween

PCR Reaction: Template DNA Water Buffer DNA template n n Contains region to be amplified Any DNA desired Purity not required Should be free of polymerase inhibitors

PCR Reaction: Primers Water Buffer DNA template Primers n n n Specific for ends of amplified region Forward and Reverse Annealing temps should be known w Depends on primer length, GC content, etc. n n Length 15 -30 nt Conc 0. 1 – 1. 0 u. M (p. Mol/ul)

PCR Reaction: Nucleotides Water Buffer DNA template Primers Nucleotides n n n Added to the growing chain Activated NTP’s d. ATP, d. GTP, d. CTP, d. TTP Stored at 10 m. M, p. H 7. 0 Add to 20 -200 u. M in assay

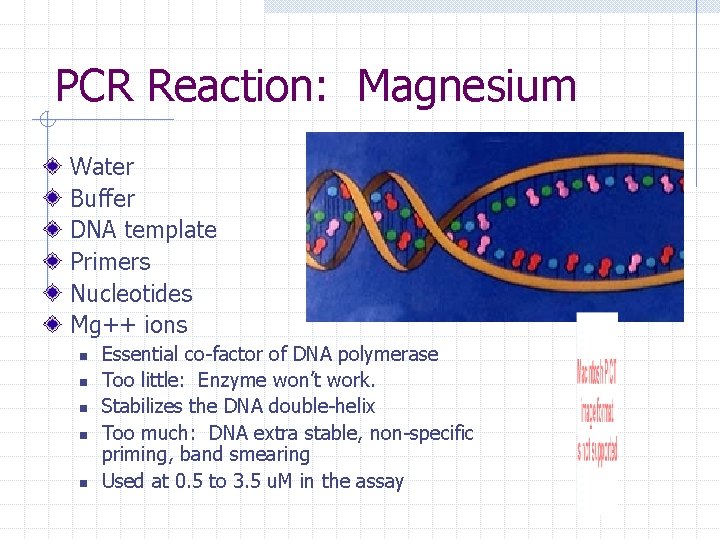

PCR Reaction: Magnesium Water Buffer DNA template Primers Nucleotides Mg++ ions n n n Essential co-factor of DNA polymerase Too little: Enzyme won’t work. Stabilizes the DNA double-helix Too much: DNA extra stable, non-specific priming, band smearing Used at 0. 5 to 3. 5 u. M in the assay

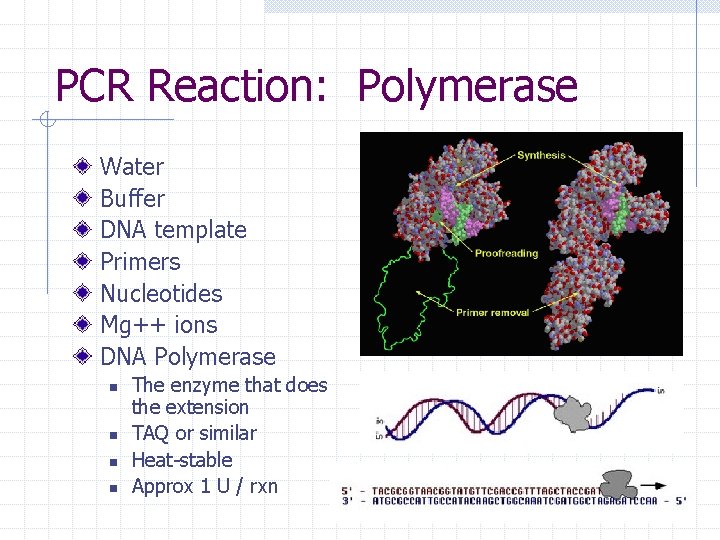

PCR Reaction: Polymerase Water Buffer DNA template Primers Nucleotides Mg++ ions DNA Polymerase n n The enzyme that does the extension TAQ or similar Heat-stable Approx 1 U / rxn

PCR Reaction Components Water Buffer DNA template Primers Nucleotides Mg++ ions DNA Polymerase

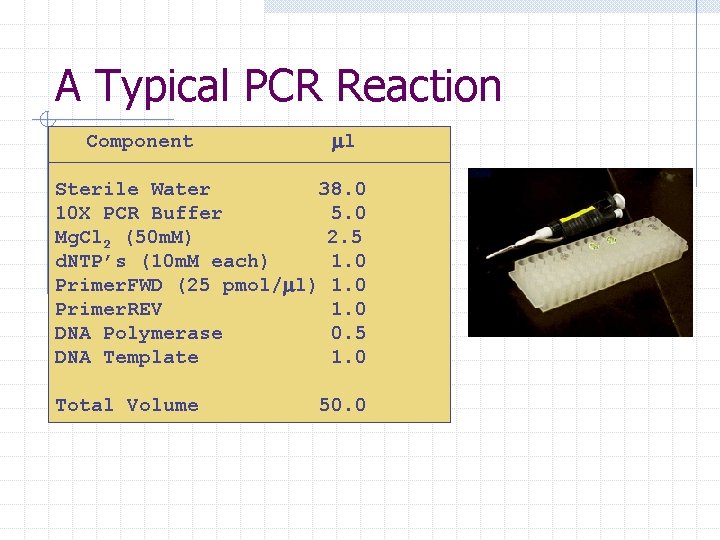

A Typical PCR Reaction Component ml Sterile Water 38. 0 10 X PCR Buffer 5. 0 Mg. Cl 2 (50 m. M) 2. 5 d. NTP’s (10 m. M each) 1. 0 Primer. FWD (25 pmol/ml) 1. 0 Primer. REV 1. 0 DNA Polymerase 0. 5 DNA Template 1. 0 Total Volume 50. 0

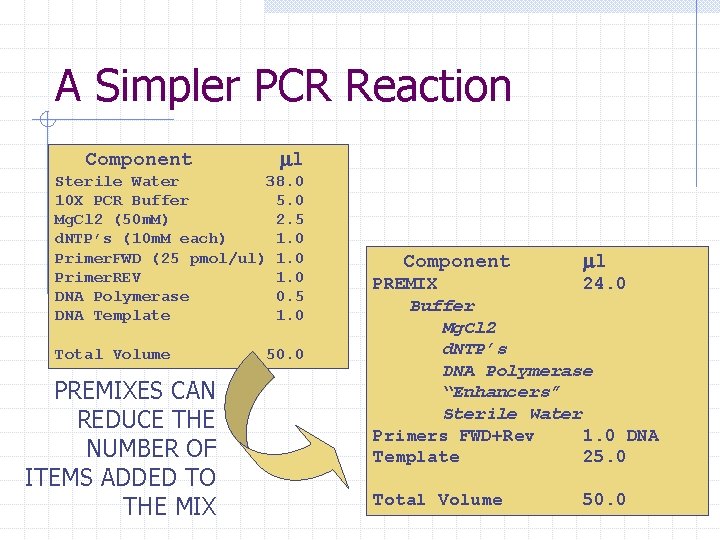

A Simpler PCR Reaction Component ml Sterile Water 38. 0 10 X PCR Buffer 5. 0 Mg. Cl 2 (50 m. M) 2. 5 d. NTP’s (10 m. M each) 1. 0 Primer. FWD (25 pmol/ul) 1. 0 Primer. REV 1. 0 DNA Polymerase 0. 5 DNA Template 1. 0 Total Volume PREMIXES CAN REDUCE THE NUMBER OF ITEMS ADDED TO THE MIX 50. 0 Component ml PREMIX 24. 0 Buffer Mg. Cl 2 d. NTP’s DNA Polymerase “Enhancers” Sterile Water Primers FWD+Rev 1. 0 DNA Template 25. 0 Total Volume 50. 0

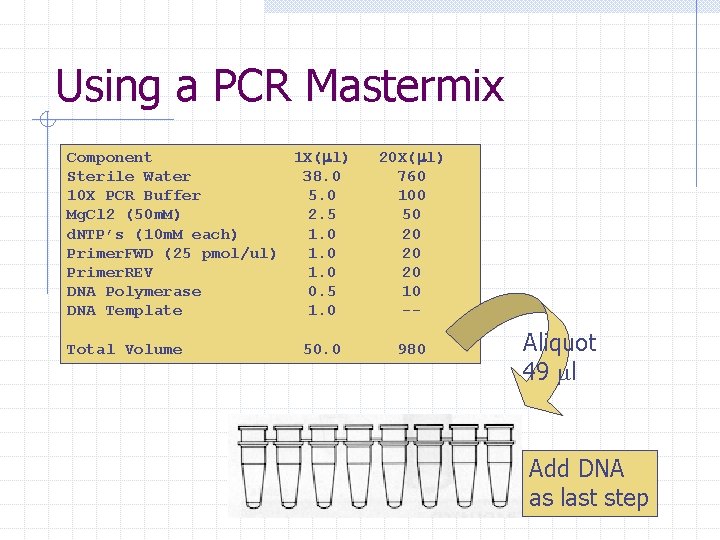

Using a PCR Mastermix Component 1 X(ml) Sterile Water 38. 0 10 X PCR Buffer 5. 0 Mg. Cl 2 (50 m. M) 2. 5 d. NTP’s (10 m. M each) 1. 0 Primer. FWD (25 pmol/ul) 1. 0 Primer. REV 1. 0 DNA Polymerase 0. 5 DNA Template 1. 0 Total Volume 50. 0 20 X(ml) 760 100 50 20 20 20 10 -980 Aliquot 49 ml Add DNA as last step

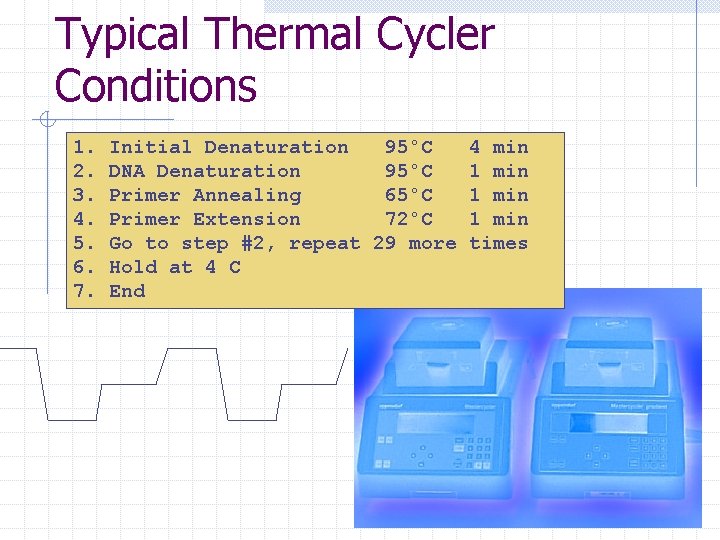

Typical Thermal Cycler Conditions 1. 2. 3. 4. 5. 6. 7. Initial Denaturation 95°C DNA Denaturation 95°C Primer Annealing 65°C Primer Extension 72°C Go to step #2, repeat 29 more Hold at 4 C End 4 min 1 min times

Finally: Some Mis-Uses (malas aplicaciones) of PCR Since PCR is extremely sensitive, it is highly prone to giving “false positive” results. Forensic and medical applications use strict protocols to minimize chance of errors. Universities, working without standardized protocols, have frequently made incredible “discoveries”, only to find out later that it was all due to PCR artifacts. Ancient DNA GM Crops

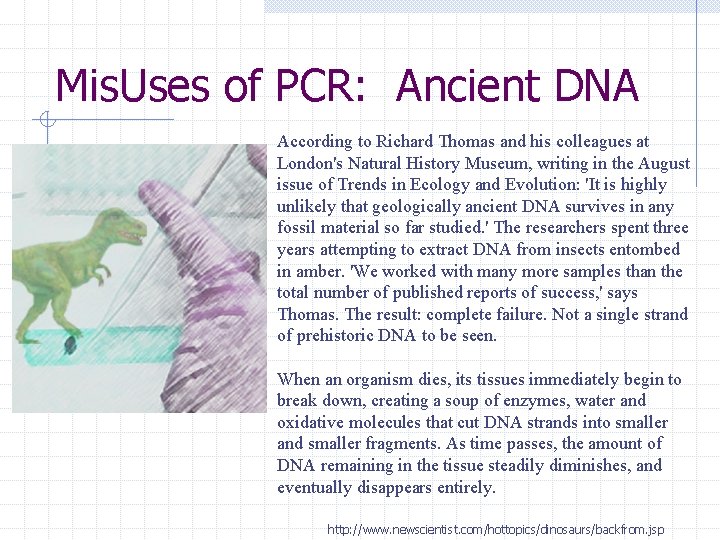

Mis. Uses of PCR: Ancient DNA According to Richard Thomas and his colleagues at London's Natural History Museum, writing in the August issue of Trends in Ecology and Evolution: 'It is highly unlikely that geologically ancient DNA survives in any fossil material so far studied. ' The researchers spent three years attempting to extract DNA from insects entombed in amber. 'We worked with many more samples than the total number of published reports of success, ' says Thomas. The result: complete failure. Not a single strand of prehistoric DNA to be seen. When an organism dies, its tissues immediately begin to break down, creating a soup of enzymes, water and oxidative molecules that cut DNA strands into smaller and smaller fragments. As time passes, the amount of DNA remaining in the tissue steadily diminishes, and eventually disappears entirely. http: //www. newscientist. com/hottopics/dinosaurs/backfrom. jsp

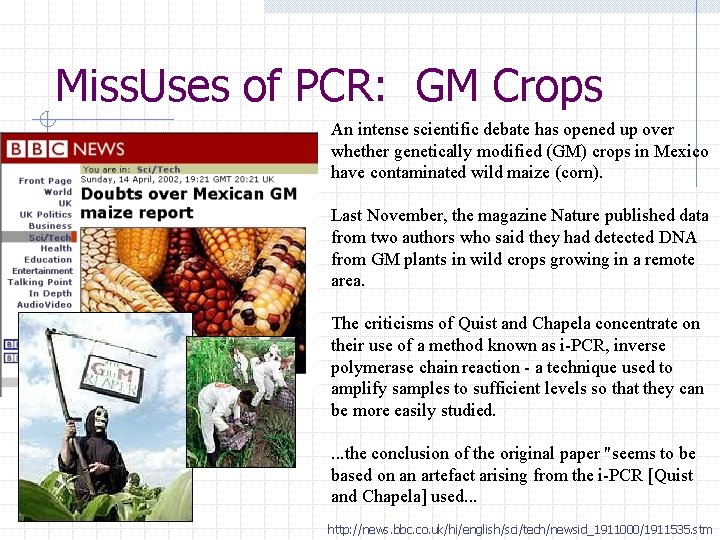

Miss. Uses of PCR: GM Crops An intense scientific debate has opened up over whether genetically modified (GM) crops in Mexico have contaminated wild maize (corn). Last November, the magazine Nature published data from two authors who said they had detected DNA from GM plants in wild crops growing in a remote area. The criticisms of Quist and Chapela concentrate on their use of a method known as i-PCR, inverse polymerase chain reaction - a technique used to amplify samples to sufficient levels so that they can be more easily studied. . the conclusion of the original paper "seems to be based on an artefact arising from the i-PCR [Quist and Chapela] used. . . http: //news. bbc. co. uk/hi/english/sci/tech/newsid_1911000/1911535. stm

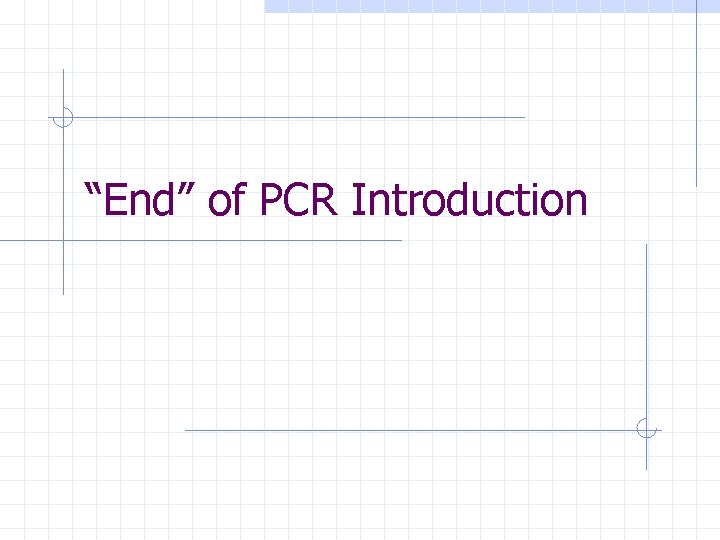

“End” of PCR Introduction
