House Construction Learning Standard 5 Construction Technologies Construction

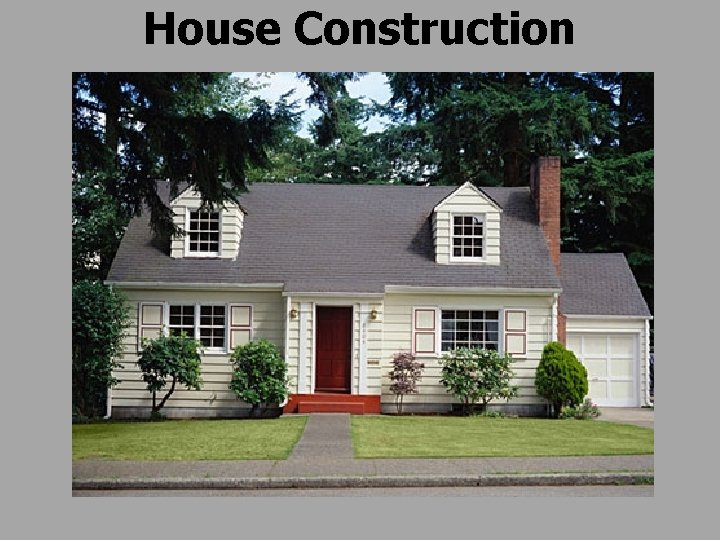

House Construction

Learning Standard 5. Construction Technologies Construction technology involves building structures in order to contain, shelter, manufacture, transport, communicate, and provide recreation. 5. 1 Describe and explain parts of a structure, e. g. , foundation, flooring, decking, wall, roofing systems.

Learning Objectives At the conclusion of lesson students will be able to: 1. Explain why a building structure needs a solid foundation 2. Describe & explain the parts of the floor system in a building 3. Describe & explain the parts of a wall system in a building 4. Describe & explain the parts of a roofing system in an building 5. Explain how each of these systems work together to provide shelter for people

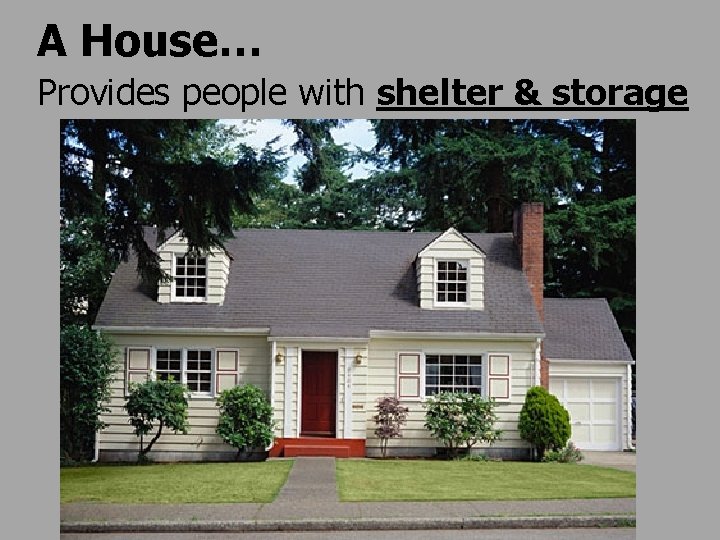

A House… Provides people with shelter & storage

Foundation The part of the building that rests on the ground and supports the upper structure Without a solid foundation the building cannot be constructed properly it will be unstable

Once the foundation is finished the rest of the house can be built

Floor System

Center Beam Installed in the middle of the house to help the foundation support the upper structure The Center Beam can be made of wood or steel

Floor Joists Center Beam Series of evenly spaced boards that run from the front of the house to the back. They work with the Center Beam to support the floor

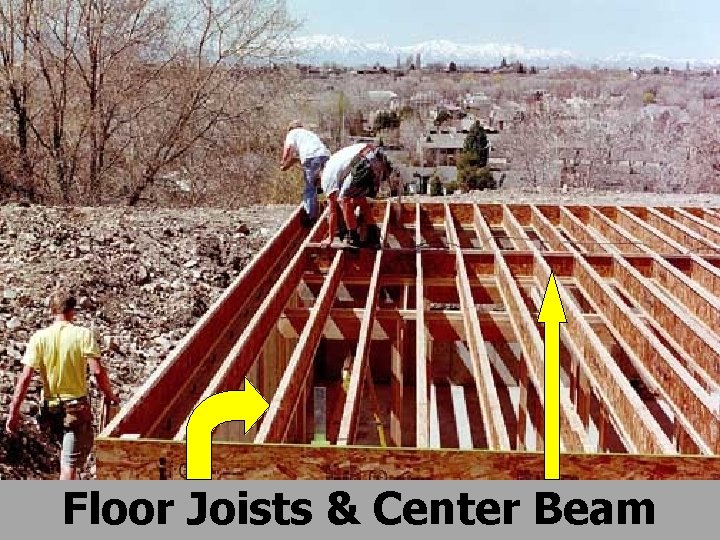

Floor Joists & Center Beam

Subfloor • The first layer of flooring • Nailed to the Floor Joists • Usually made from plywood or particleboard

Wall System

Wall Studs Series of evenly spaced pieces of lumber, (usually 2 x 4’s) that are used for the framework of walls

Sheathing • Nailed to wall framework • Encloses structure on the outside • Made of plywood or particleboard

Walls being put in place

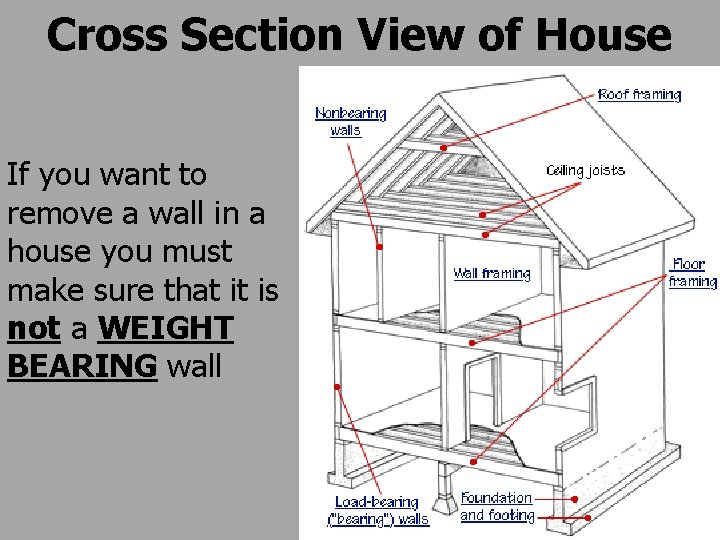

Cross Section View of House If you want to remove a wall in a house you must make sure that it is not a WEIGHT BEARING wall

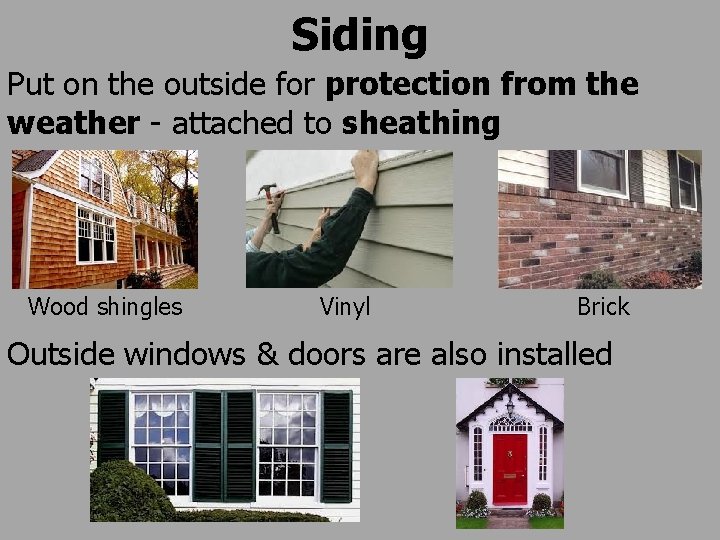

Siding Put on the outside for protection from the weather - attached to sheathing Wood shingles Vinyl Brick Outside windows & doors are also installed

Roof System

Roof • Keeps weather (precipitation) out • Stabilizes the walls

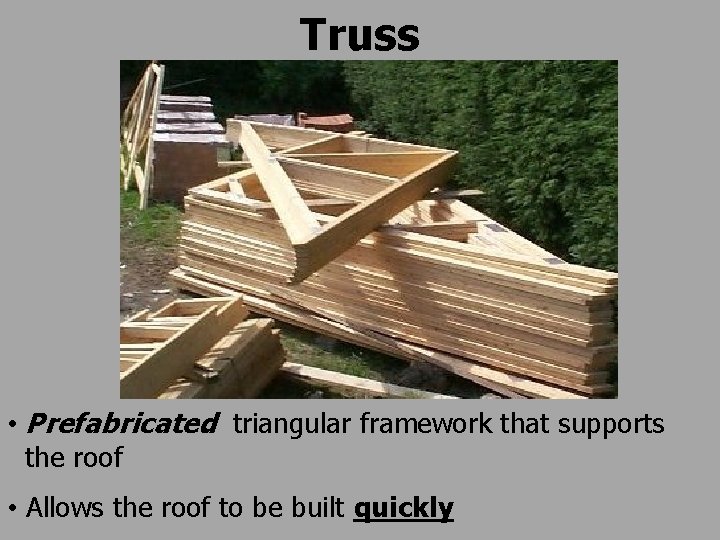

Truss • Prefabricated triangular framework that supports the roof • Allows the roof to be built quickly

Roof Decking Sheets of lumber (usually plywood) nailed to the outside of the roof trusses

Roof Shingles • Nailed to the roof decking • Installed from bottom to top • Weatherproofs the roof

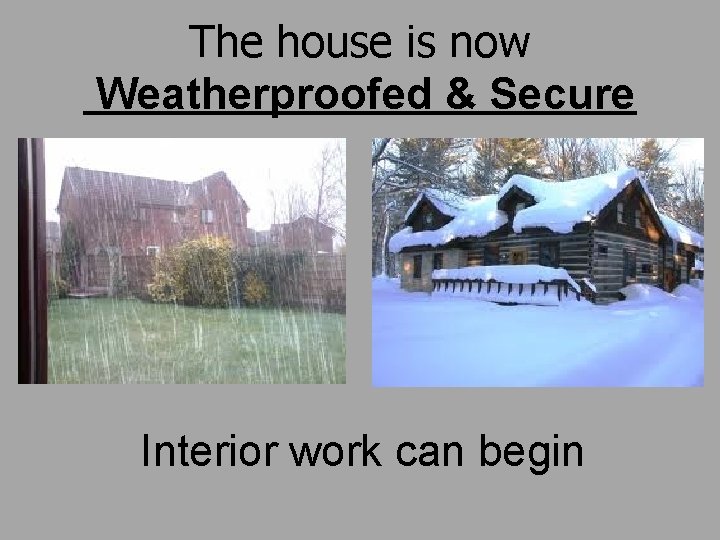

The house is now Weatherproofed & Secure Interior work can begin

Insulation Material used to keep heat or cold from leaving or entering a building Most popular form is fiberglass Rolls made to fit between floor joists, ceiling joists and wall studs

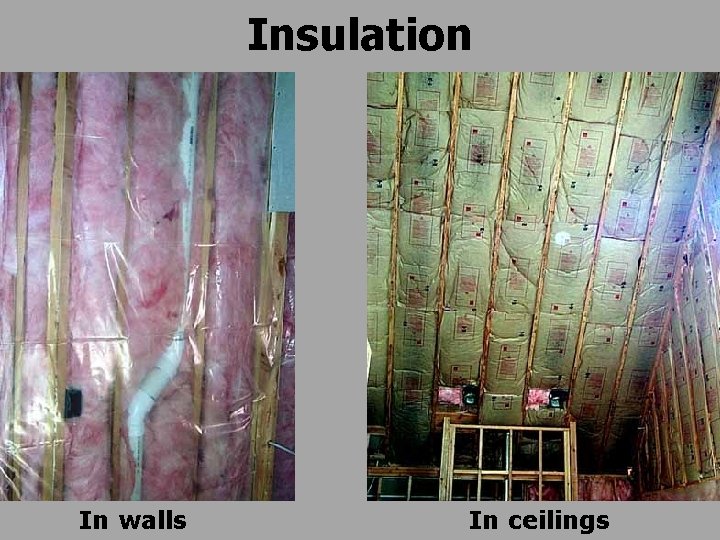

Insulation In walls In ceilings

Inside Wall Covering Drywall: Inside covering of walls and ceilings, made from plaster and sturdy paper (commonly referred to as Sheetrock)

Inside Wall Covering Sheets are screwed to the walls and ceilings - cracks & screws are covered with tape & joint compound

Inside Wall Covering Walls may then be painted or covered with paneling or wallpaper Light fixtures & switches can also be installed

Interior Flooring: Usually the last to be completed so that it will not be damaged while other work is being done Can be wood, stone, tile or carpeting
