Hospital Healthcare Facilities Copyright National Air Filtration Association

Hospital & Healthcare Facilities Copyright National Air Filtration Association 2006 Rev. 2

Estimated Deaths – Hospital Acquired Infections 90, 000 per year And Costs $4. 5 Billion Per Year Copyright National Air Filtration Association 2006 Rev. 2

Airborne Contaminants Found In Healthcare Facilities That are transmitted through the airborne infectious droplet route Copyright National Air Filtration Association 2006 Rev. 2

Bacteria/Virus/Fungi l Bacteria – one-cell organisms that multiple by cell division l Virus – multiply by entering a host cell, using the cell’s DNA to manufacture clones of themselves l Fungi – multiply through the formation of spores that separate from the parent Copyright National Air Filtration Association 2006 Rev. 2

Sources of Contaminants in Healthcare Environment Copyright National Air Filtration Association 2006 Rev. 2

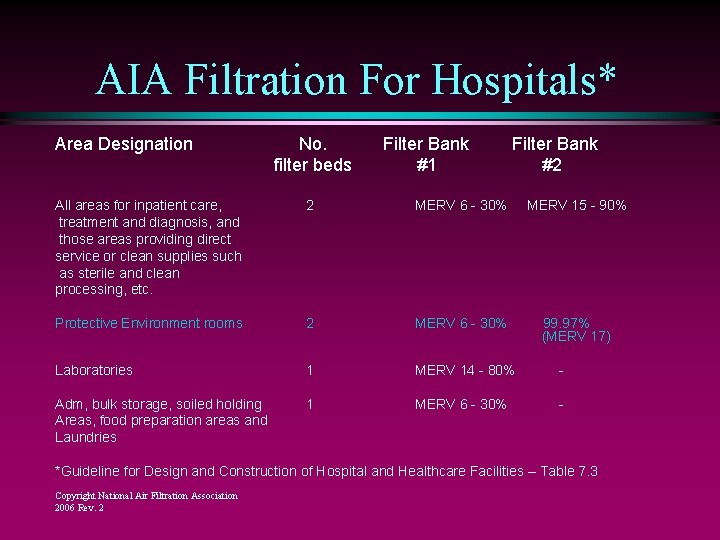

AIA Filtration For Hospitals* Area Designation No. filter beds Filter Bank #1 Filter Bank #2 All areas for inpatient care, treatment and diagnosis, and those areas providing direct service or clean supplies such as sterile and clean processing, etc. 2 MERV 6 - 30% MERV 15 - 90% Protective Environment rooms 2 MERV 6 - 30% 99. 97% (MERV 17) Laboratories 1 MERV 14 - 80% - Adm, bulk storage, soiled holding Areas, food preparation areas and Laundries 1 MERV 6 - 30% - *Guideline for Design and Construction of Hospital and Healthcare Facilities – Table 7. 3 Copyright National Air Filtration Association 2006 Rev. 2

Mini-pleat V-Cell Copyright National Air Filtration Association 2006 Rev. 2

History of HEPA Filters High Efficiency Particulate Air filter Copyright National Air Filtration Association 2006 Rev. 2

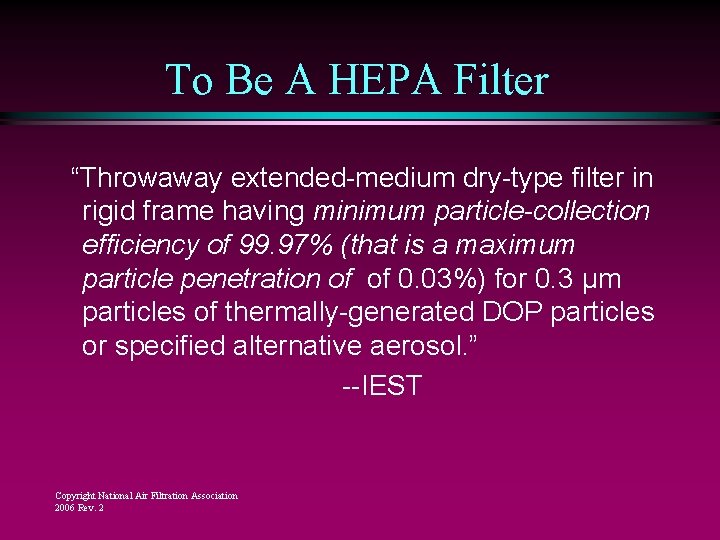

To Be A HEPA Filter “Throwaway extended-medium dry-type filter in rigid frame having minimum particle-collection efficiency of 99. 97% (that is a maximum particle penetration of of 0. 03%) for 0. 3 µm particles of thermally-generated DOP particles or specified alternative aerosol. ” --IEST Copyright National Air Filtration Association 2006 Rev. 2

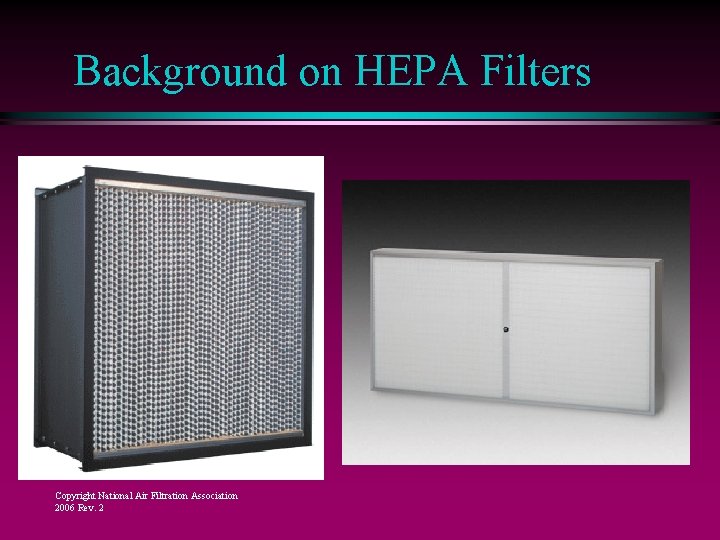

Background on HEPA Filters Copyright National Air Filtration Association 2006 Rev. 2

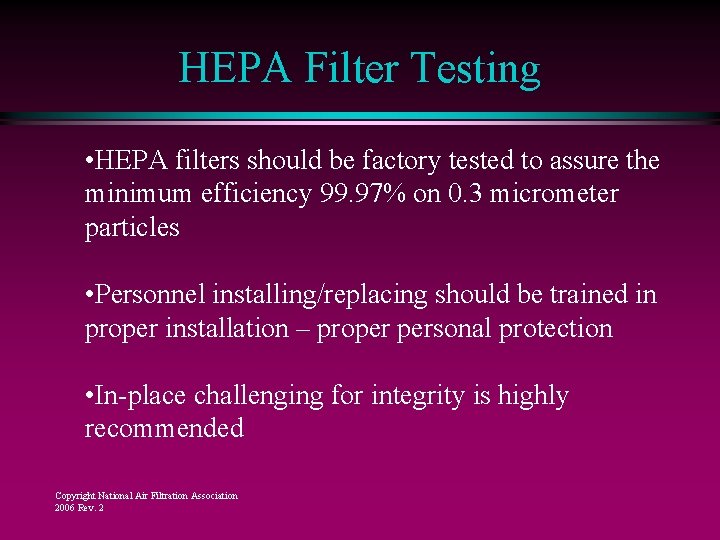

HEPA Filter Testing • HEPA filters should be factory tested to assure the minimum efficiency 99. 97% on 0. 3 micrometer particles • Personnel installing/replacing should be trained in proper installation – proper personal protection • In-place challenging for integrity is highly recommended Copyright National Air Filtration Association 2006 Rev. 2

2 Years in Service Copyright National Air Filtration Association 2006 Rev. 2

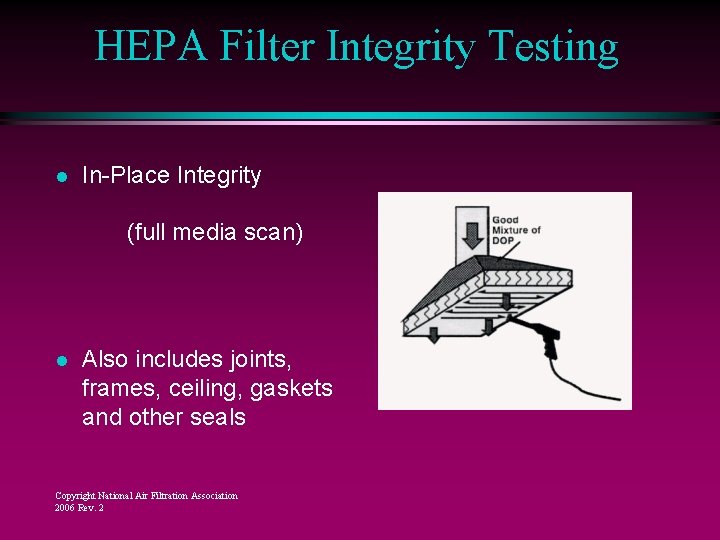

HEPA Filter Integrity Testing l In-Place Integrity (full media scan) l Also includes joints, frames, ceiling, gaskets and other seals Copyright National Air Filtration Association 2006 Rev. 2

Biological Safety Cabinets Copyright National Air Filtration Association 2006 Rev. 2

Ultraviolet Germicidal Irradiation Copyright National Air Filtration Association 2006 Rev. 2

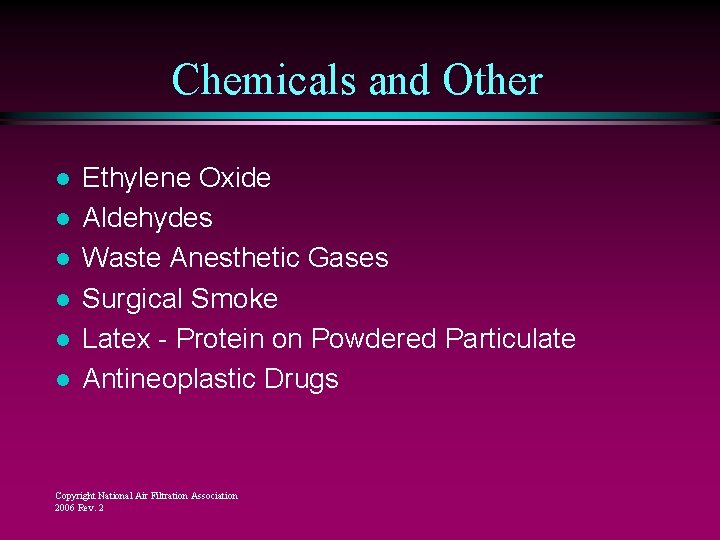

Chemicals and Other l l l Ethylene Oxide Aldehydes Waste Anesthetic Gases Surgical Smoke Latex - Protein on Powdered Particulate Antineoplastic Drugs Copyright National Air Filtration Association 2006 Rev. 2

Gaseous Contaminant Removal Principle Methods l Physical – Adsorption n l Activated carbons Chemical Chemisorption Chemically treated activated carbons n Potassium permanganate impregnated media n Copyright National Air Filtration Association 2006 Rev. 2

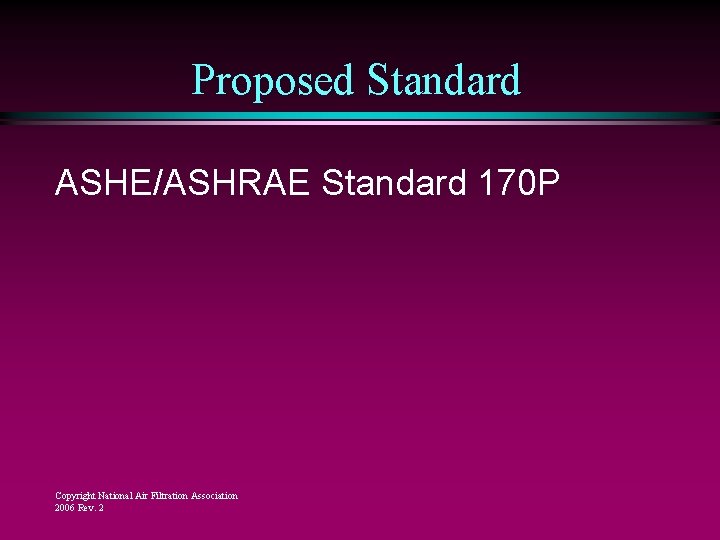

Proposed Standard ASHE/ASHRAE Standard 170 P Copyright National Air Filtration Association 2006 Rev. 2

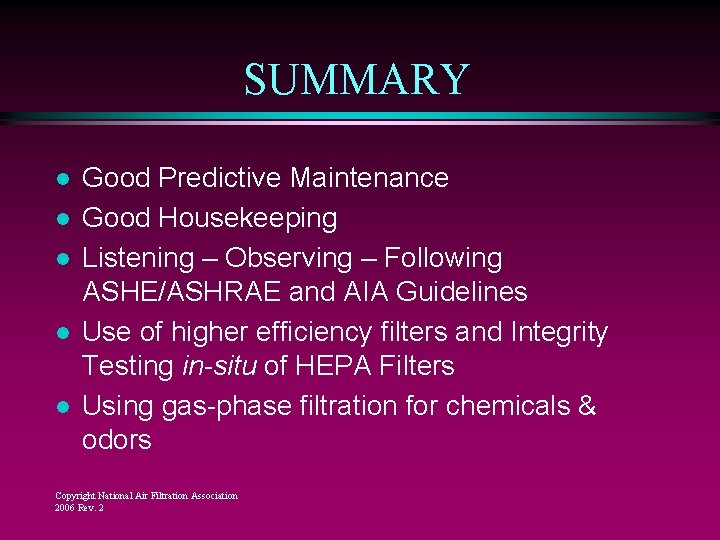

SUMMARY l l l Good Predictive Maintenance Good Housekeeping Listening – Observing – Following ASHE/ASHRAE and AIA Guidelines Use of higher efficiency filters and Integrity Testing in-situ of HEPA Filters Using gas-phase filtration for chemicals & odors Copyright National Air Filtration Association 2006 Rev. 2

Cleaner Air = Safer Environment Copyright National Air Filtration Association 2006 Rev. 2
