HORIZONTAL UNDERGROUND PERSONNEL TRANSPORT FCC workshop Potential collaboration

HORIZONTAL UNDERGROUND PERSONNEL TRANSPORT FCC workshop – Potential collaboration projects with FIML 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 1

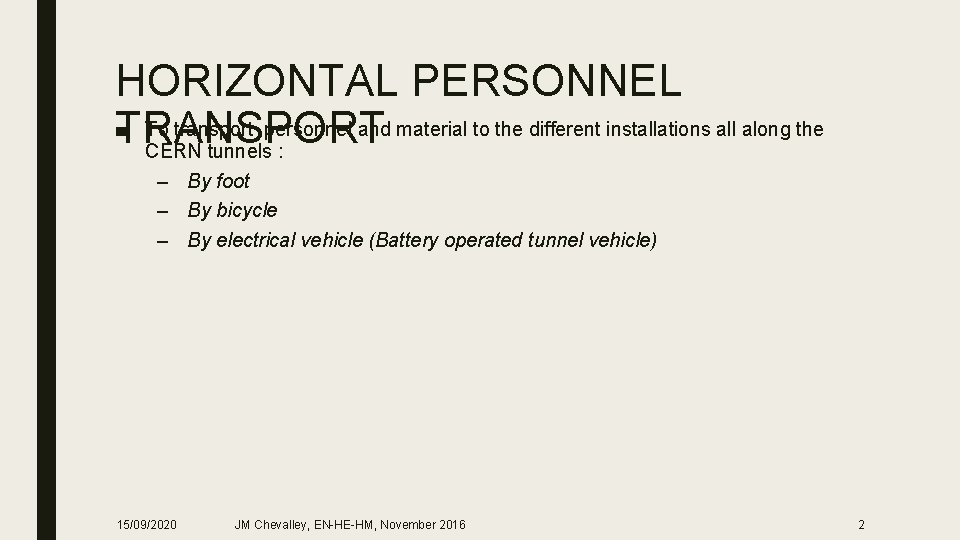

HORIZONTAL PERSONNEL ■ To transport personnel and material to the different installations all along the TRANSPORT CERN tunnels : – By foot – By bicycle – By electrical vehicle (Battery operated tunnel vehicle) 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 2

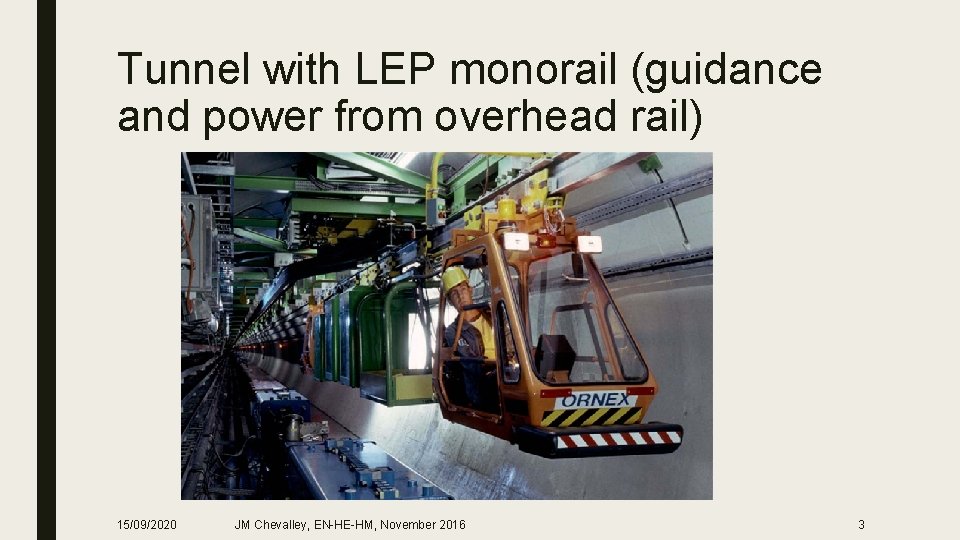

Tunnel with LEP monorail (guidance and power from overhead rail) 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 3

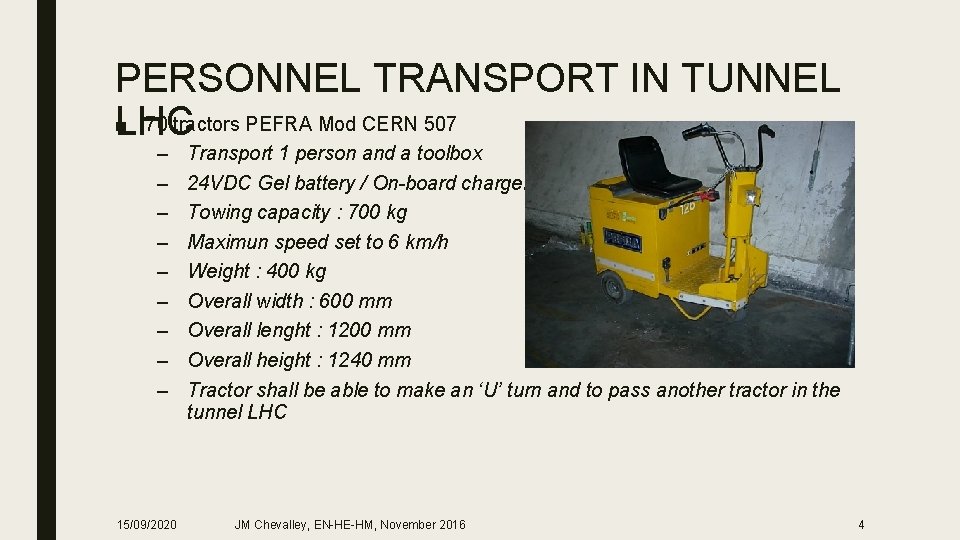

PERSONNEL TRANSPORT IN TUNNEL ■ 70 tractors PEFRA Mod CERN 507 LHC – – – – – 15/09/2020 Transport 1 person and a toolbox 24 VDC Gel battery / On-board charger Towing capacity : 700 kg Maximun speed set to 6 km/h Weight : 400 kg Overall width : 600 mm Overall lenght : 1200 mm Overall height : 1240 mm Tractor shall be able to make an ‘U’ turn and to pass another tractor in the tunnel LHC JM Chevalley, EN-HE-HM, November 2016 4

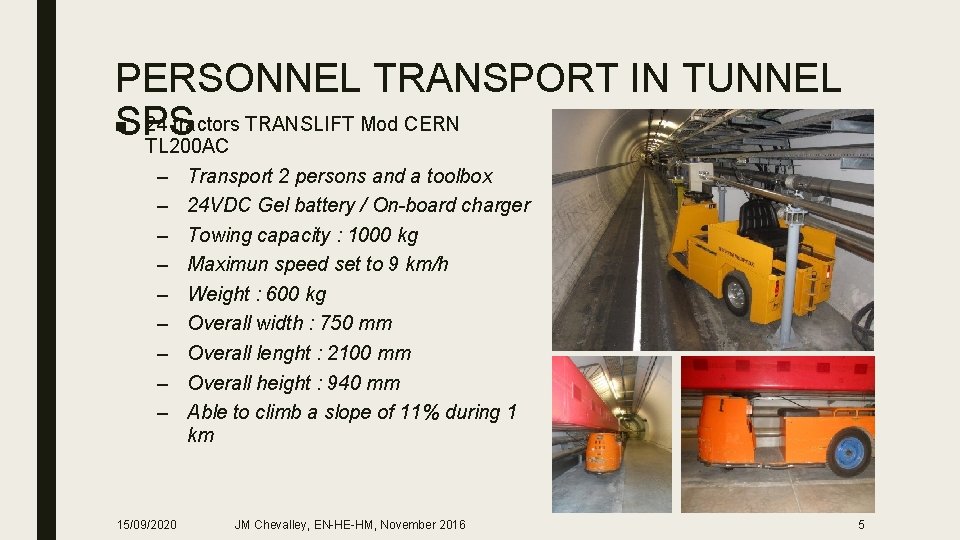

PERSONNEL TRANSPORT IN TUNNEL ■ 24 tractors TRANSLIFT Mod CERN SPS TL 200 AC – – – – – 15/09/2020 Transport 2 persons and a toolbox 24 VDC Gel battery / On-board charger Towing capacity : 1000 kg Maximun speed set to 9 km/h Weight : 600 kg Overall width : 750 mm Overall lenght : 2100 mm Overall height : 940 mm Able to climb a slope of 11% during 1 km JM Chevalley, EN-HE-HM, November 2016 5

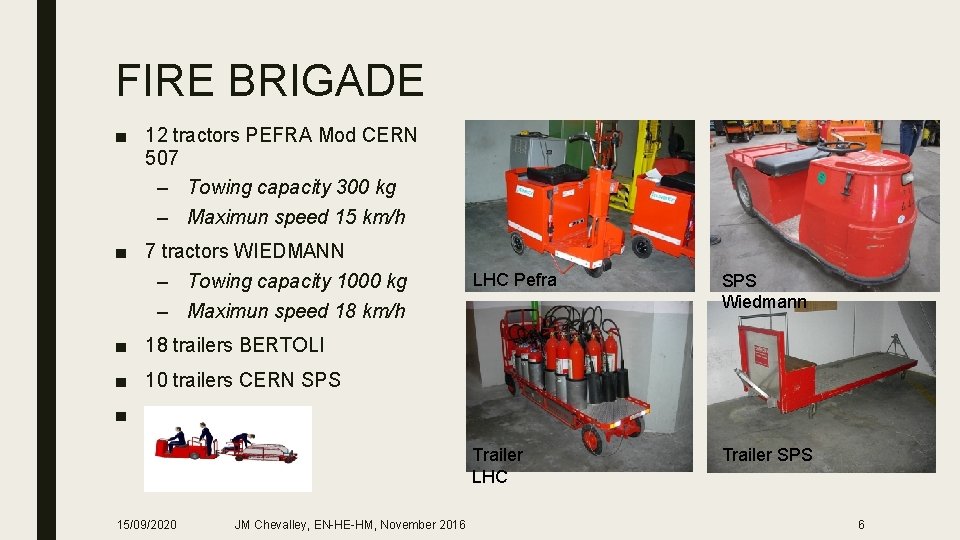

FIRE BRIGADE ■ 12 tractors PEFRA Mod CERN 507 – Towing capacity 300 kg – Maximun speed 15 km/h ■ 7 tractors WIEDMANN – Towing capacity 1000 kg – Maximun speed 18 km/h LHC Pefra SPS Wiedmann Trailer LHC Trailer SPS ■ 18 trailers BERTOLI ■ 10 trailers CERN SPS ■ New project 2017 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 6

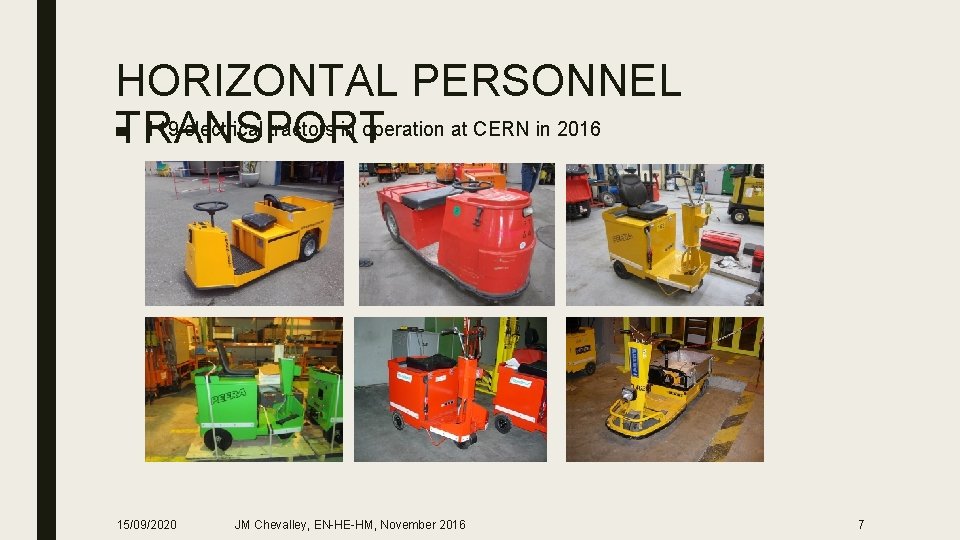

HORIZONTAL PERSONNEL ■ 119 electrical tractors in operation at CERN in 2016 TRANSPORT 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 7

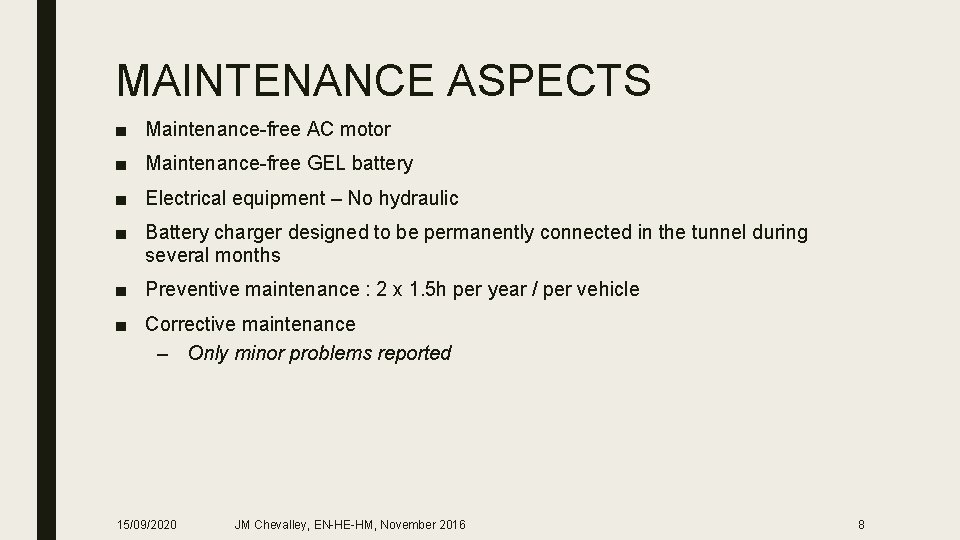

MAINTENANCE ASPECTS ■ Maintenance-free AC motor ■ Maintenance-free GEL battery ■ Electrical equipment – No hydraulic ■ Battery charger designed to be permanently connected in the tunnel during several months ■ Preventive maintenance : 2 x 1. 5 h per year / per vehicle ■ Corrective maintenance – Only minor problems reported 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 8

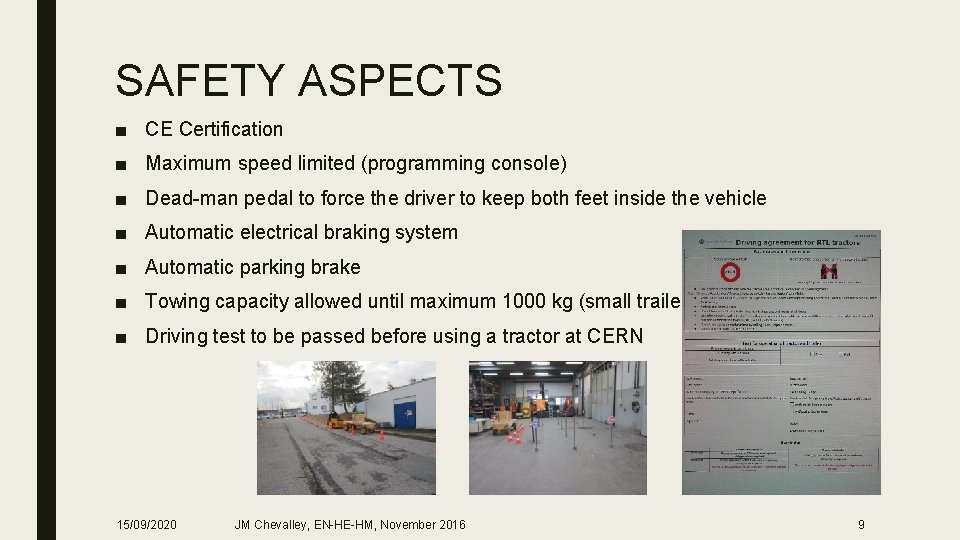

SAFETY ASPECTS ■ CE Certification ■ Maximum speed limited (programming console) ■ Dead-man pedal to force the driver to keep both feet inside the vehicle ■ Automatic electrical braking system ■ Automatic parking brake ■ Towing capacity allowed until maximum 1000 kg (small trailer) ■ Driving test to be passed before using a tractor at CERN 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 9

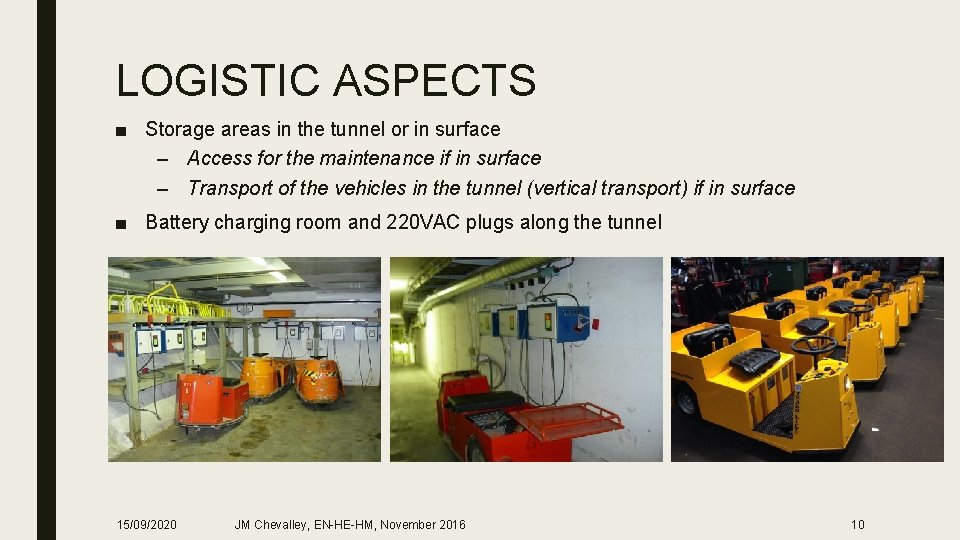

LOGISTIC ASPECTS ■ Storage areas in the tunnel or in surface – Access for the maintenance if in surface – Transport of the vehicles in the tunnel (vertical transport) if in surface ■ Battery charging room and 220 VAC plugs along the tunnel 15/09/2020 JM Chevalley, EN-HE-HM, November 2016 10
