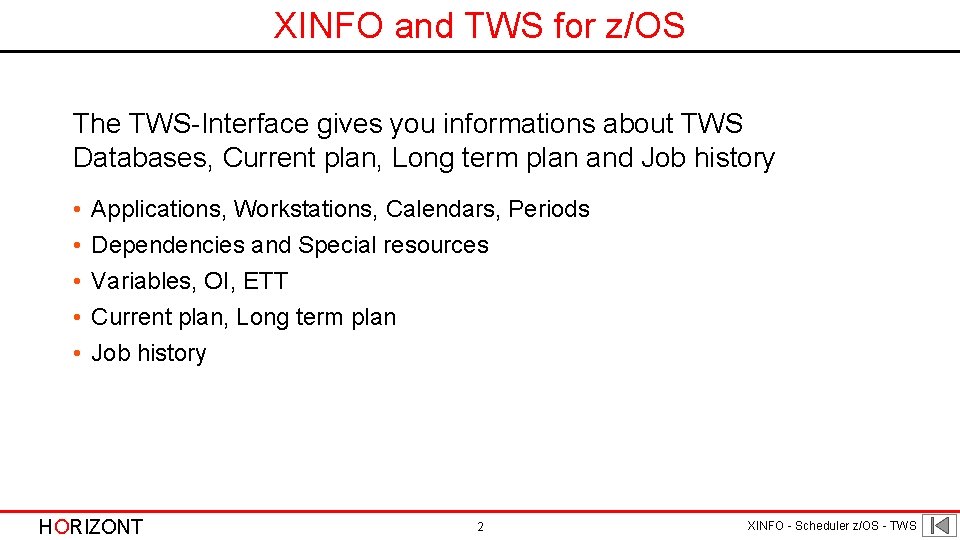

XINFO and TWS for z/OS The TWS-Interface gives you informations about TWS Databases, Current plan, Long term plan and Job history • • • Applications, Workstations, Calendars, Periods Dependencies and Special resources Variables, OI, ETT Current plan, Long term plan Job history HORIZONT 2 XINFO - Scheduler z/OS - TWS

Preamble This presentation gives a comprehensive overview of XINFO´s Scheduler z/OS for TWS. This button can be used to jump to specific slides in this presentation. Which Applications … HORIZONT 3 Click on this symbol to jump to the overview slide XINFO - Scheduler z/OS - TWS

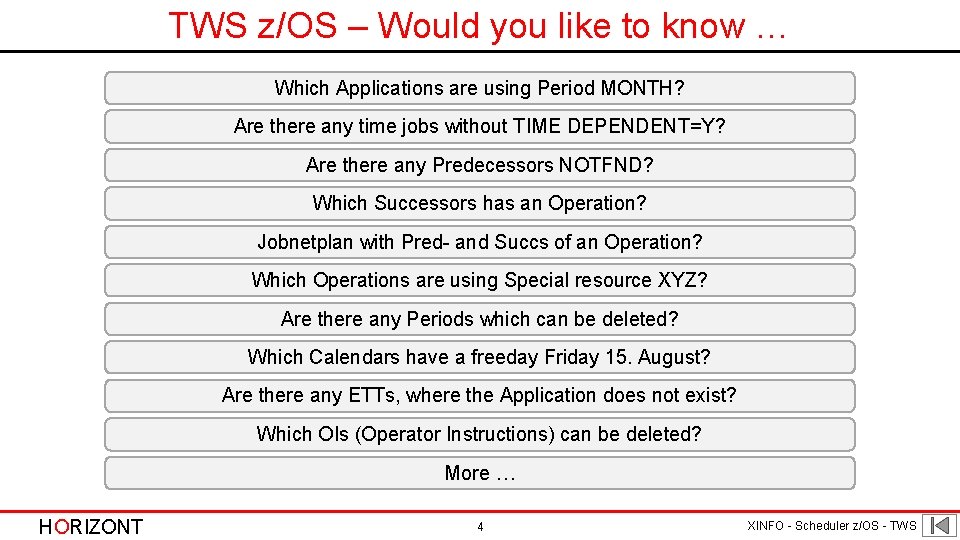

TWS z/OS – Would you like to know … Which Applications are using Period MONTH? Are there any time jobs without TIME DEPENDENT=Y? Are there any Predecessors NOTFND? Which Successors has an Operation? Jobnetplan with Pred- and Succs of an Operation? Which Operations are using Special resource XYZ? Are there any Periods which can be deleted? Which Calendars have a freeday Friday 15. August? Are there any ETTs, where the Application does not exist? Which OIs (Operator Instructions) can be deleted? More … HORIZONT 4 XINFO - Scheduler z/OS - TWS

TWS z/OS – Would you like to know … Are there any manual modifications in the LTP? Which Operations are planned between 01: 00 and 02: 00? Which Operations did abend last July? Generate Batchloader statements HORIZONT 5 XINFO - Scheduler z/OS - TWS

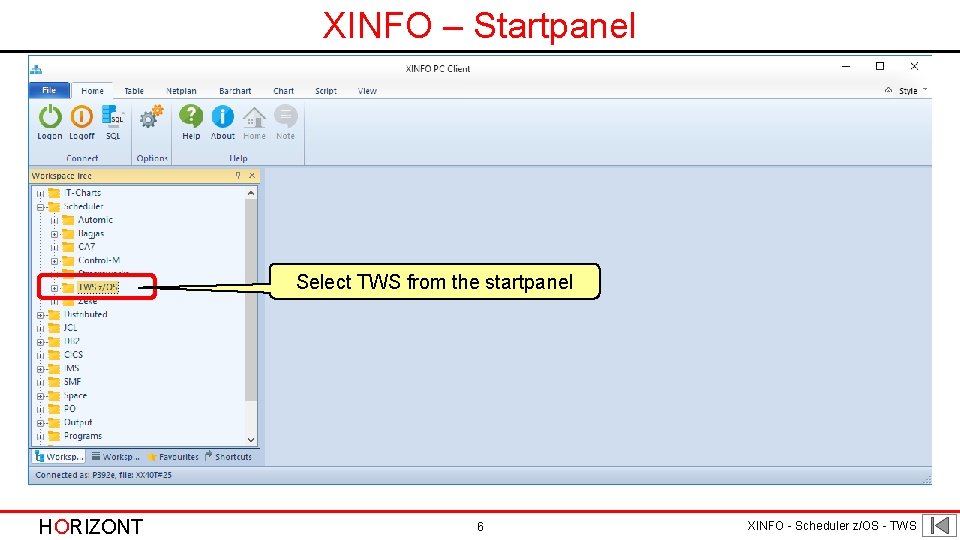

XINFO – Startpanel Select TWS from the startpanel HORIZONT 6 XINFO - Scheduler z/OS - TWS

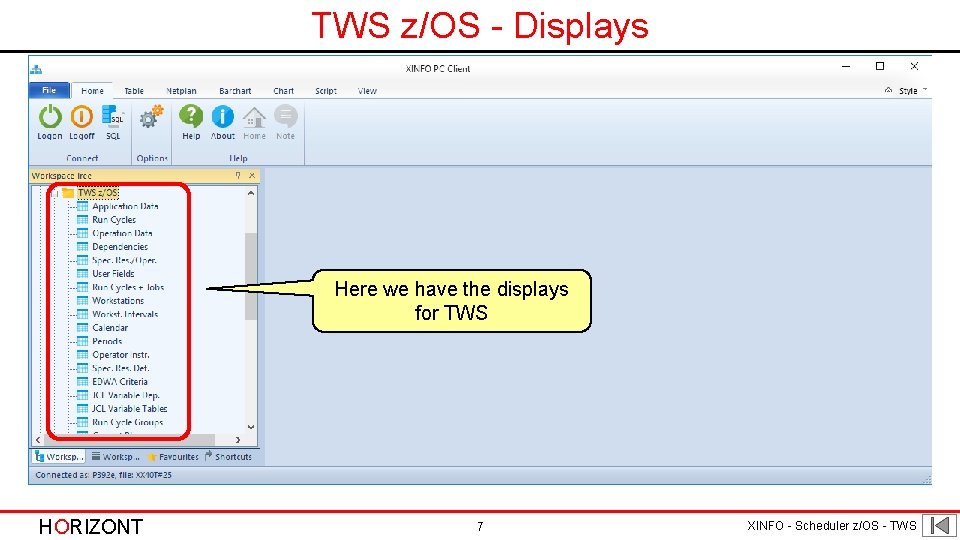

TWS z/OS - Displays Here we have the displays for TWS HORIZONT 7 XINFO - Scheduler z/OS - TWS

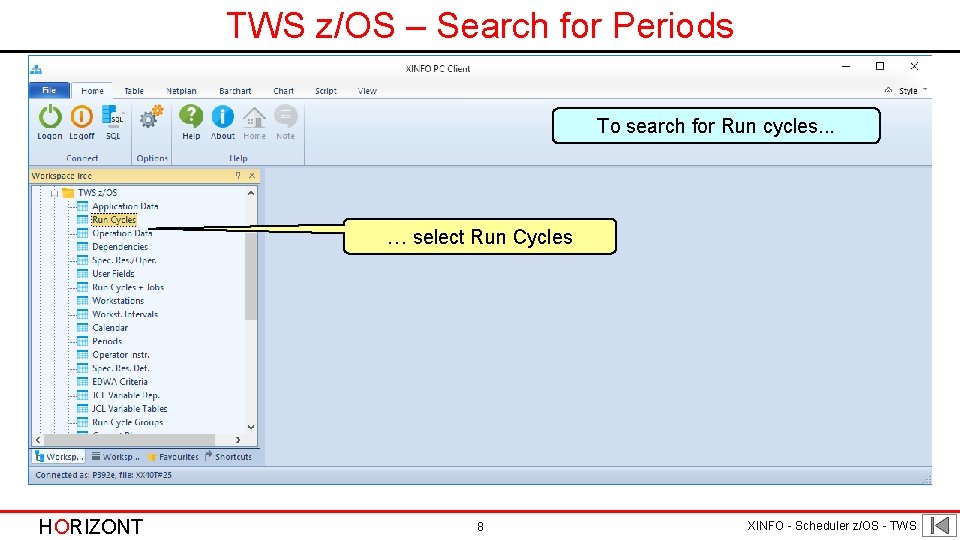

TWS z/OS – Search for Periods To search for Run cycles. . . … select Run Cycles HORIZONT 8 XINFO - Scheduler z/OS - TWS

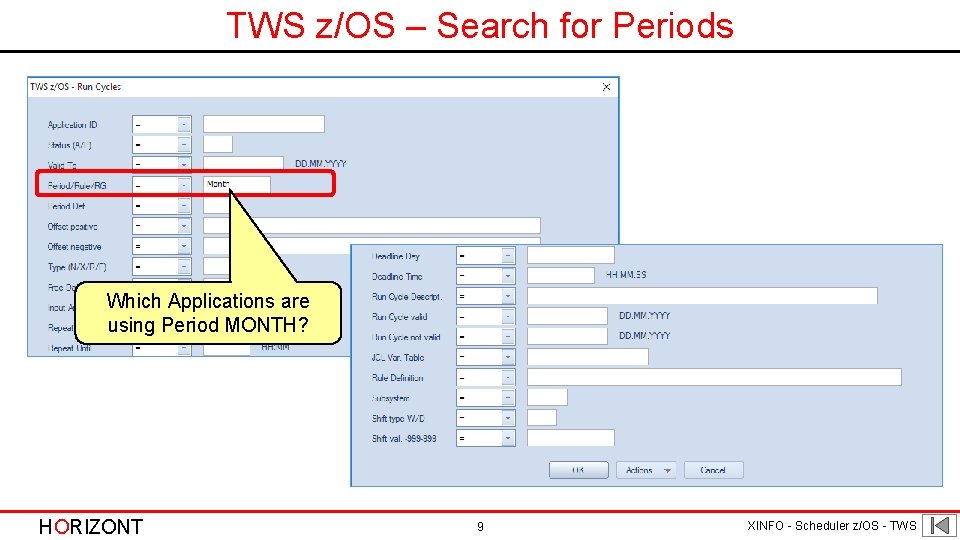

TWS z/OS – Search for Periods Which Applications are using Period MONTH? HORIZONT 9 XINFO - Scheduler z/OS - TWS

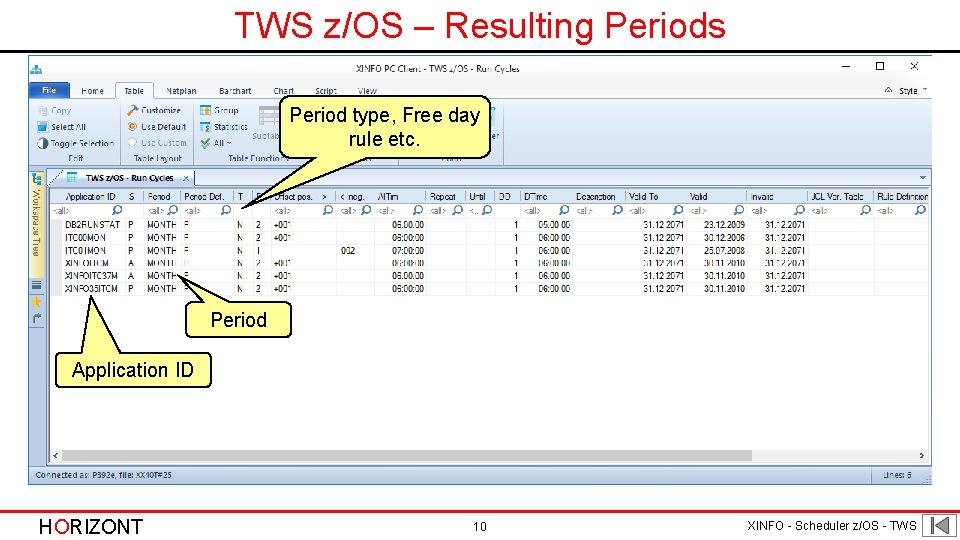

TWS z/OS – Resulting Periods Period type, Free day rule etc. Period Application ID HORIZONT 10 XINFO - Scheduler z/OS - TWS

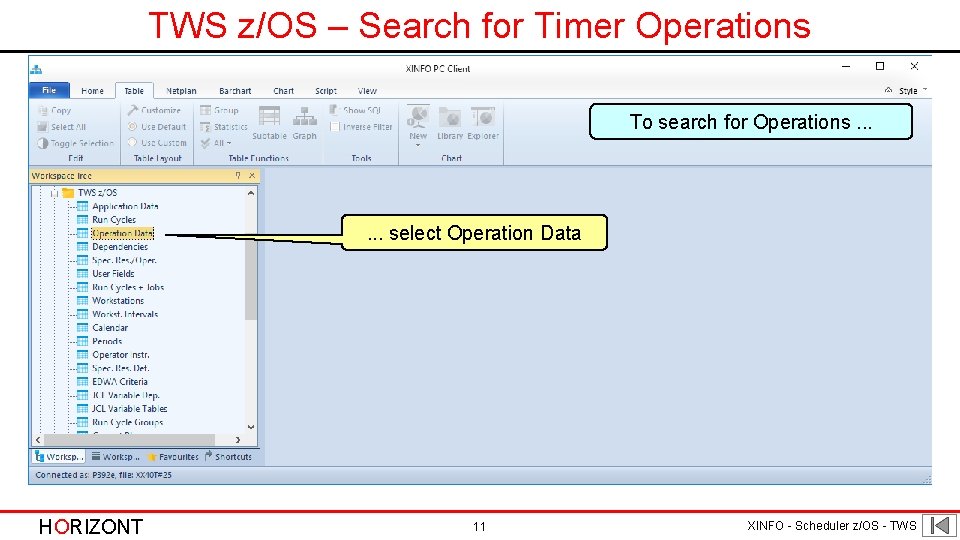

TWS z/OS – Search for Timer Operations To search for Operations. . . select Operation Data HORIZONT 11 XINFO - Scheduler z/OS - TWS

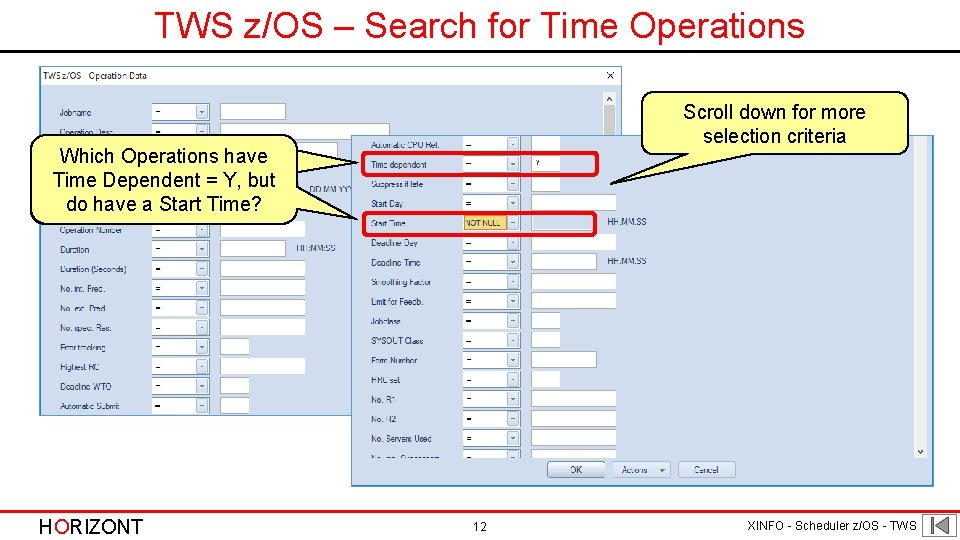

TWS z/OS – Search for Time Operations Scroll down for more selection criteria Which Operations have Time Dependent = Y, but do have a Start Time? HORIZONT 12 XINFO - Scheduler z/OS - TWS

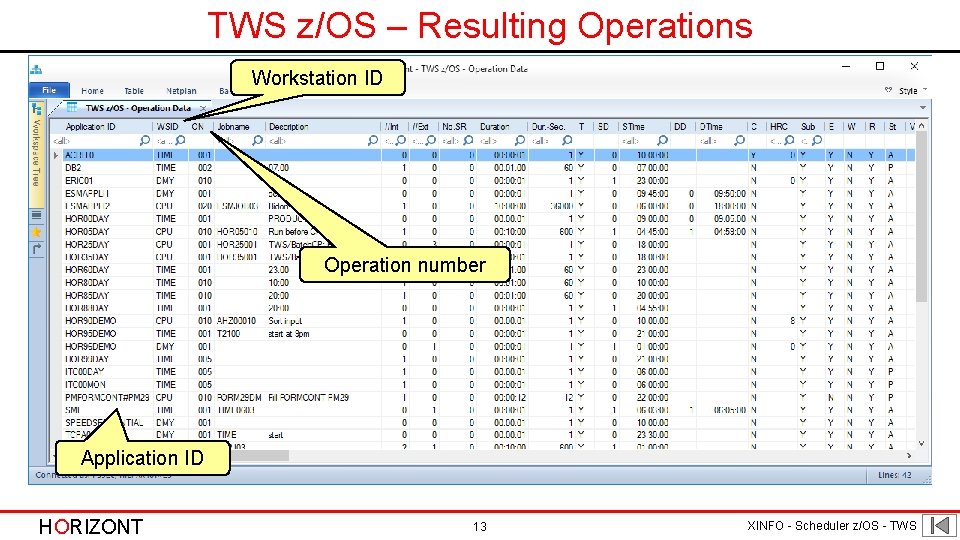

TWS z/OS – Resulting Operations Workstation ID Operation number Application ID HORIZONT 13 XINFO - Scheduler z/OS - TWS

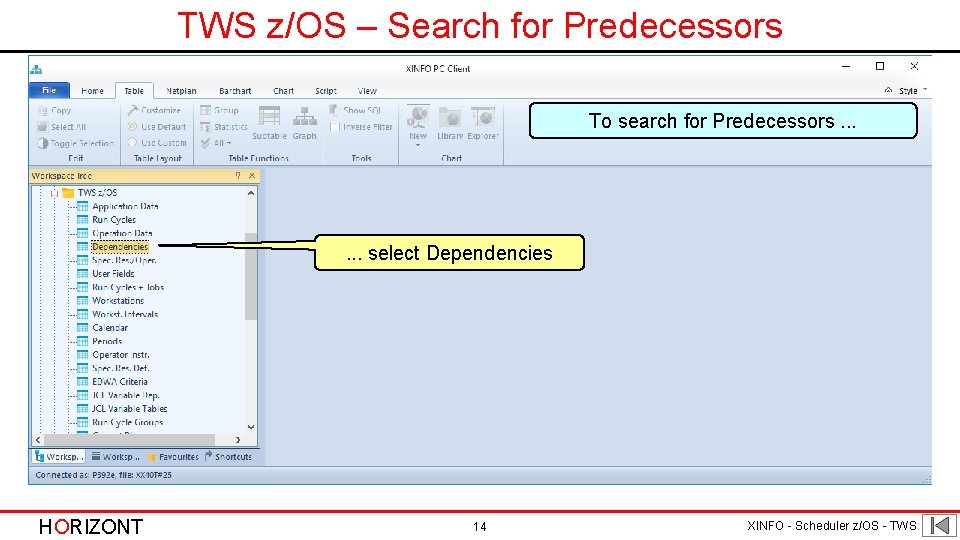

TWS z/OS – Search for Predecessors To search for Predecessors. . . select Dependencies HORIZONT 14 XINFO - Scheduler z/OS - TWS

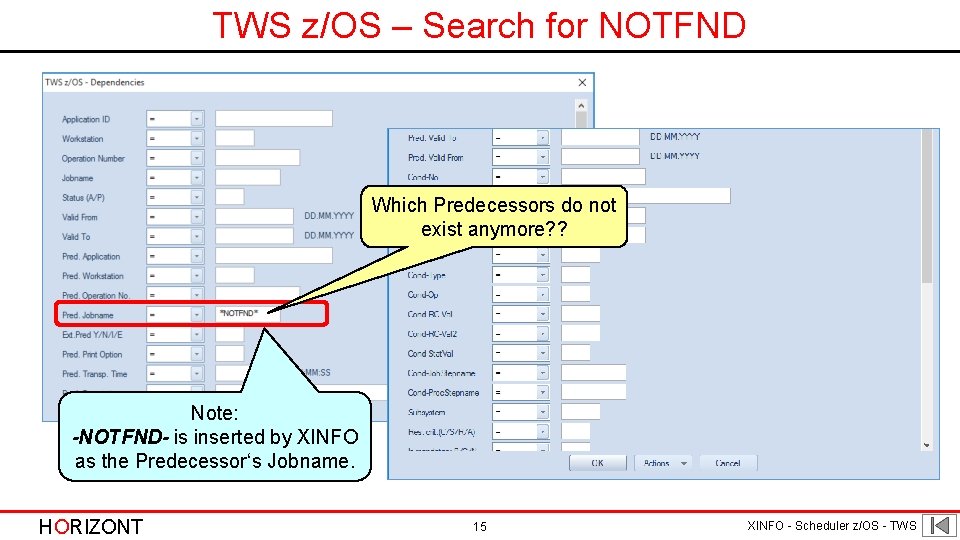

TWS z/OS – Search for NOTFND Which Predecessors do not exist anymore? ? Note: -NOTFND- is inserted by XINFO as the Predecessor‘s Jobname. HORIZONT 15 XINFO - Scheduler z/OS - TWS

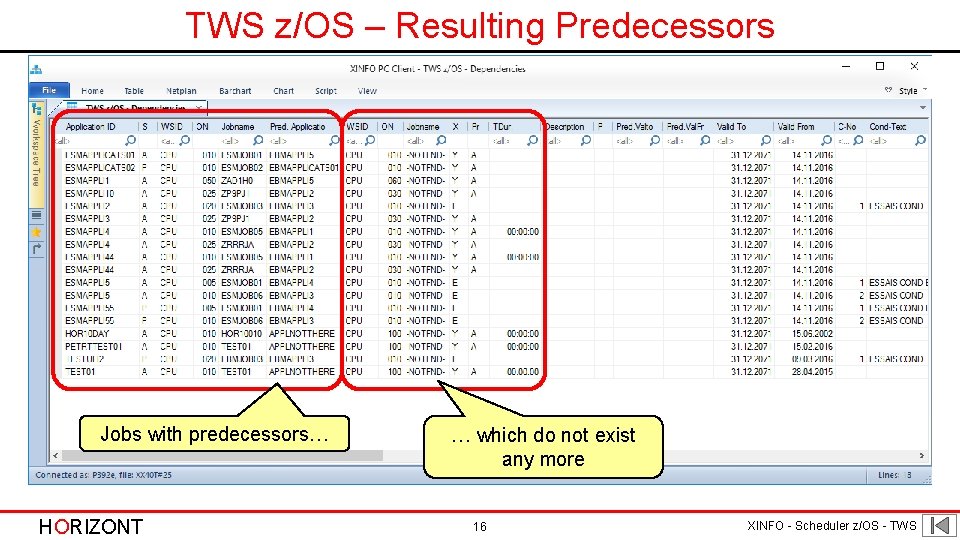

TWS z/OS – Resulting Predecessors Jobs with predecessors… HORIZONT … which do not exist any more 16 XINFO - Scheduler z/OS - TWS

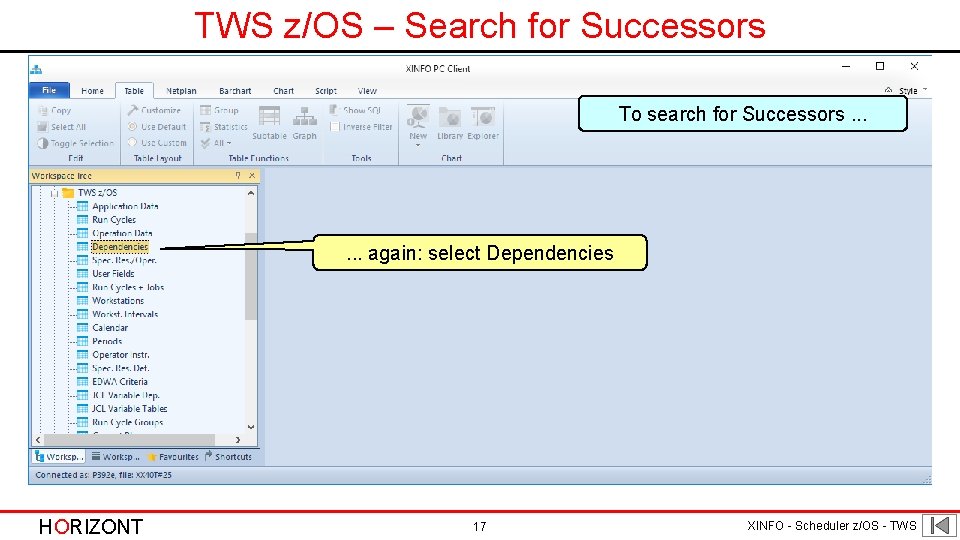

TWS z/OS – Search for Successors To search for Successors. . . again: select Dependencies HORIZONT 17 XINFO - Scheduler z/OS - TWS

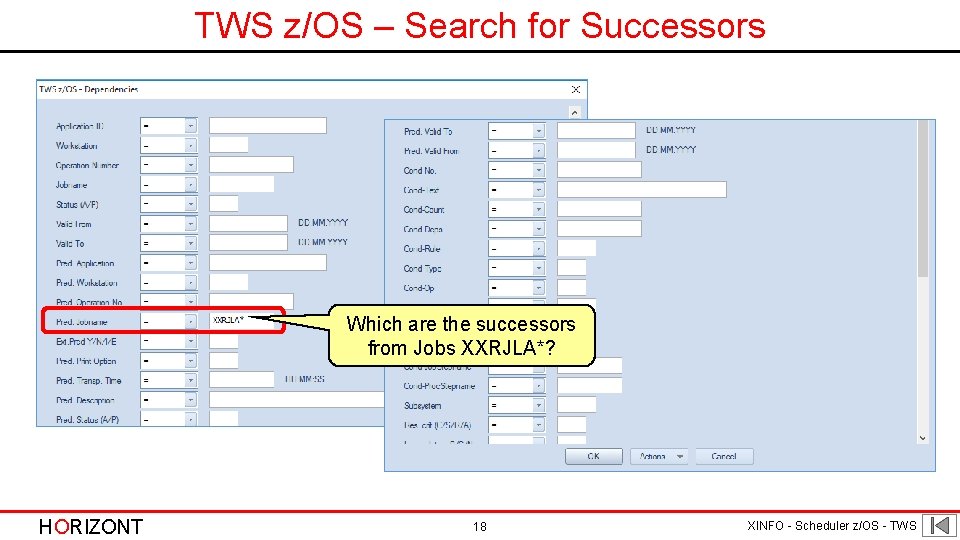

TWS z/OS – Search for Successors Which are the successors from Jobs XXRJLA*? HORIZONT 18 XINFO - Scheduler z/OS - TWS

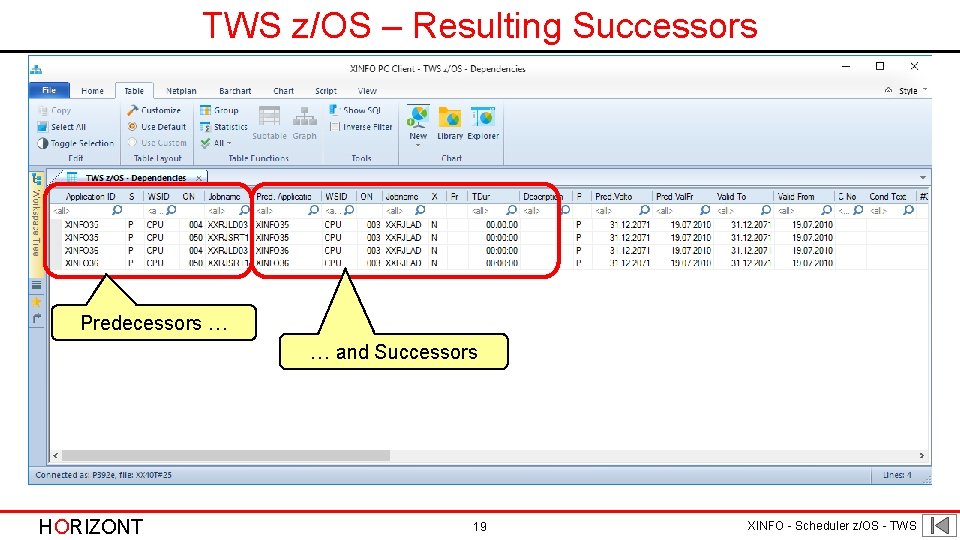

TWS z/OS – Resulting Successors Predecessors … … and Successors HORIZONT 19 XINFO - Scheduler z/OS - TWS

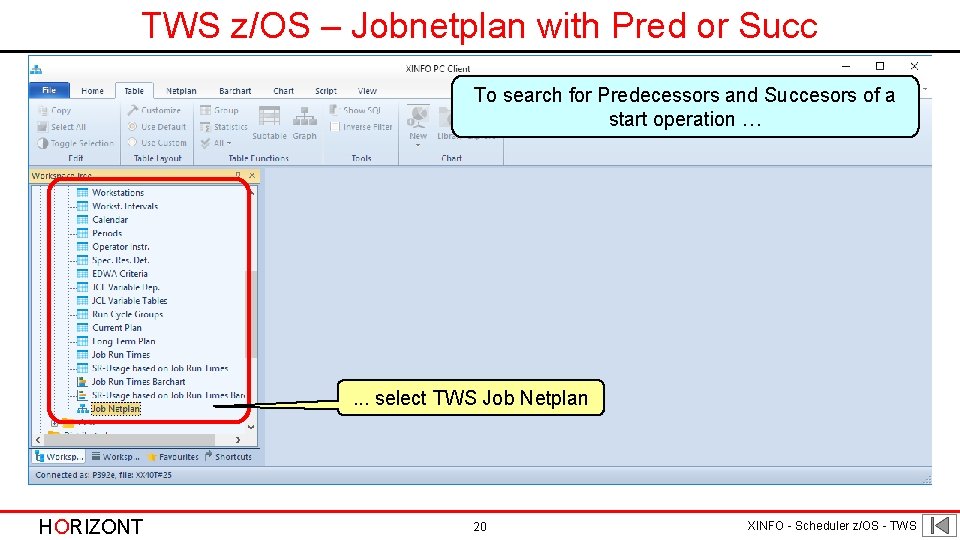

TWS z/OS – Jobnetplan with Pred or Succ To search for Predecessors and Succesors of a start operation … . . . select TWS Job Netplan HORIZONT 20 XINFO - Scheduler z/OS - TWS

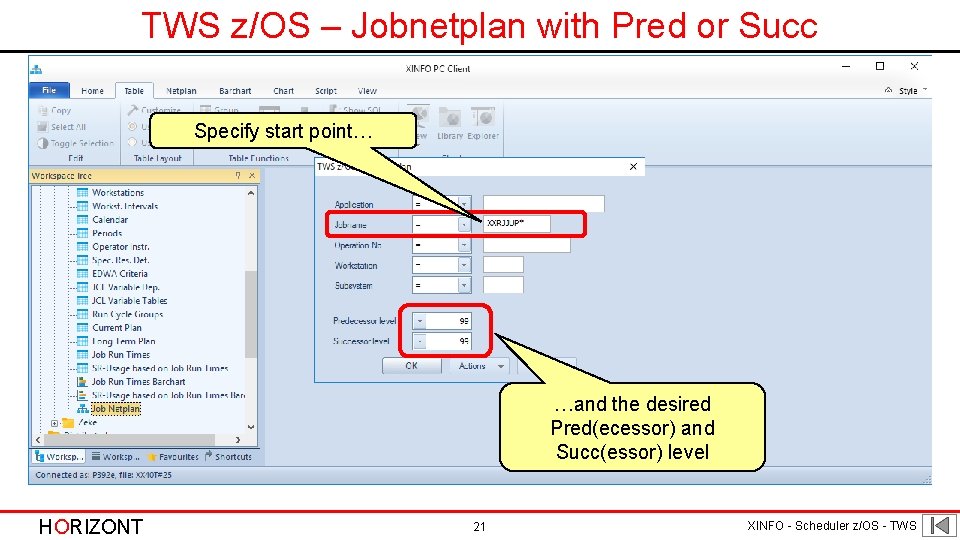

TWS z/OS – Jobnetplan with Pred or Succ Specify start point… …and the desired Pred(ecessor) and Succ(essor) level HORIZONT 21 XINFO - Scheduler z/OS - TWS

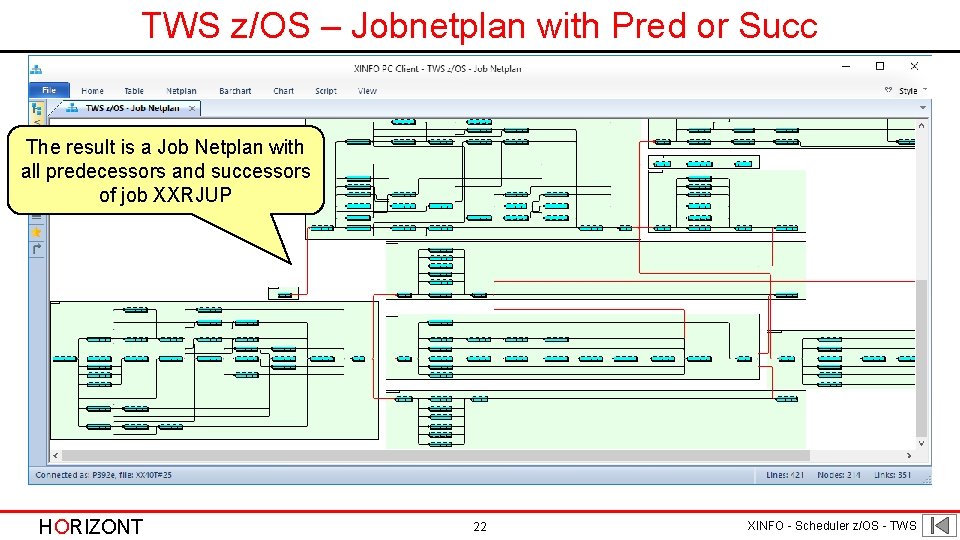

TWS z/OS – Jobnetplan with Pred or Succ The result is a Job Netplan with all predecessors and successors of job XXRJUP HORIZONT 22 XINFO - Scheduler z/OS - TWS

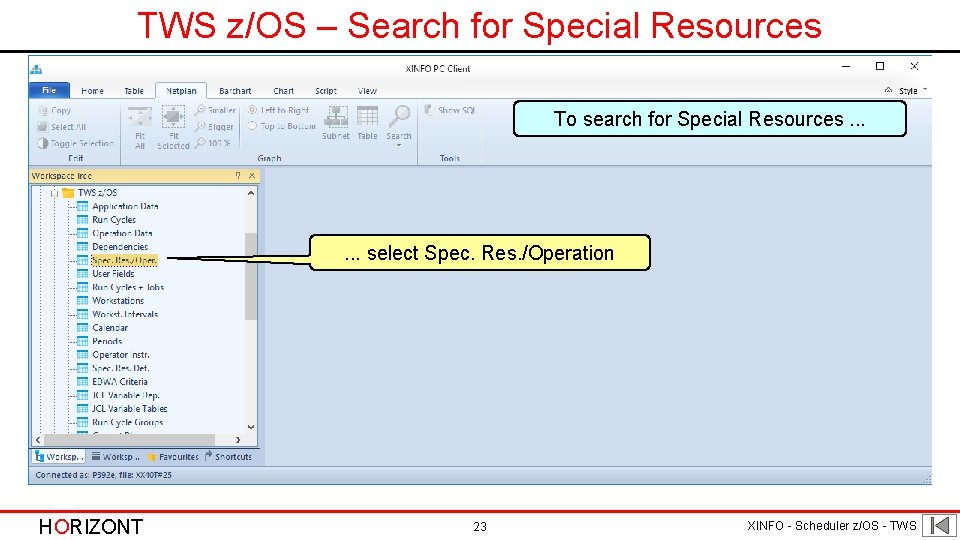

TWS z/OS – Search for Special Resources To search for Special Resources. . . select Spec. Res. /Operation HORIZONT 23 XINFO - Scheduler z/OS - TWS

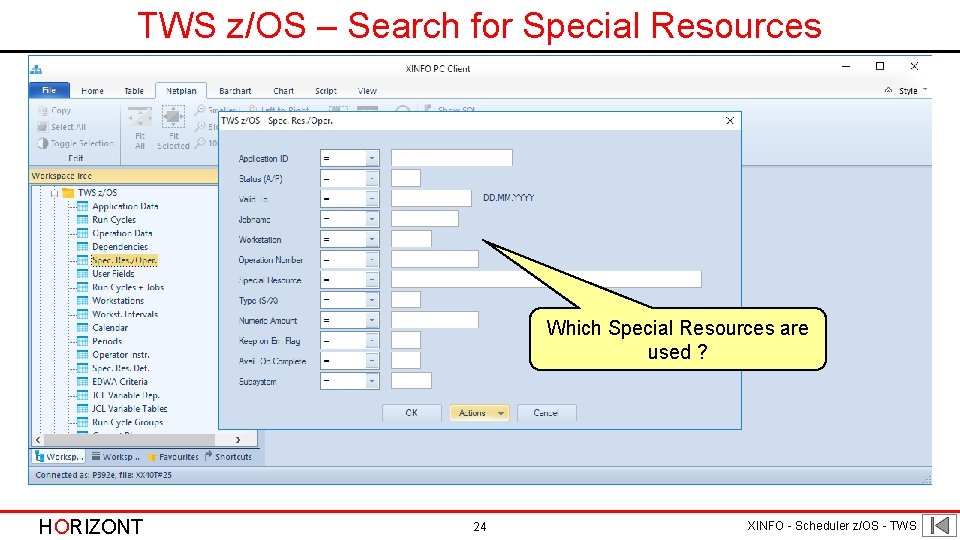

TWS z/OS – Search for Special Resources Which Special Resources are used ? HORIZONT 24 XINFO - Scheduler z/OS - TWS

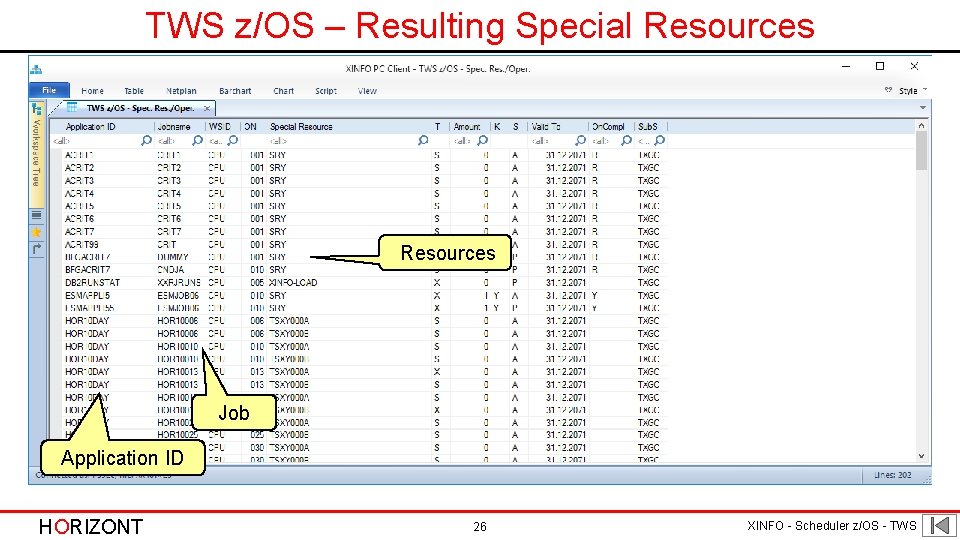

TWS z/OS – Resulting Special Resources Job Application ID HORIZONT 26 XINFO - Scheduler z/OS - TWS

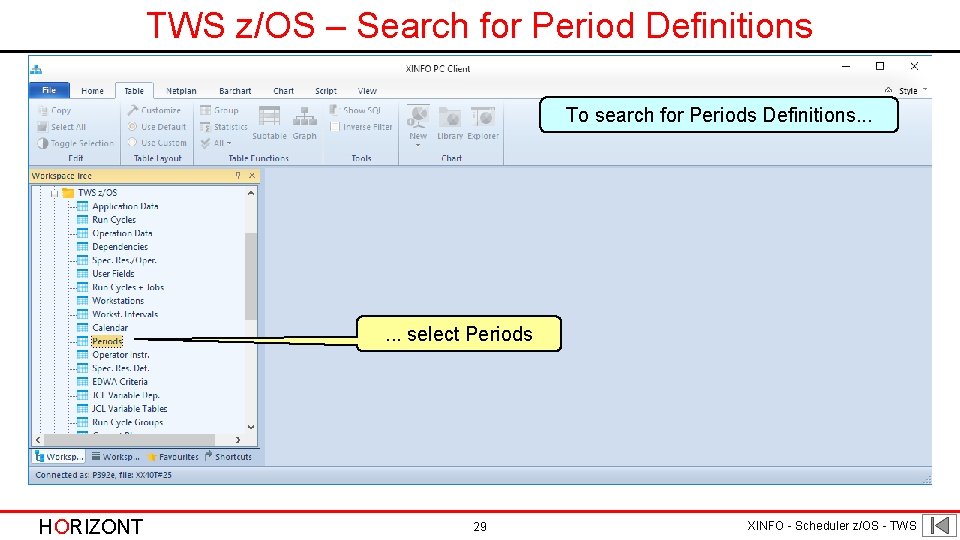

TWS z/OS – Search for Period Definitions To search for Periods Definitions. . . select Periods HORIZONT 29 XINFO - Scheduler z/OS - TWS

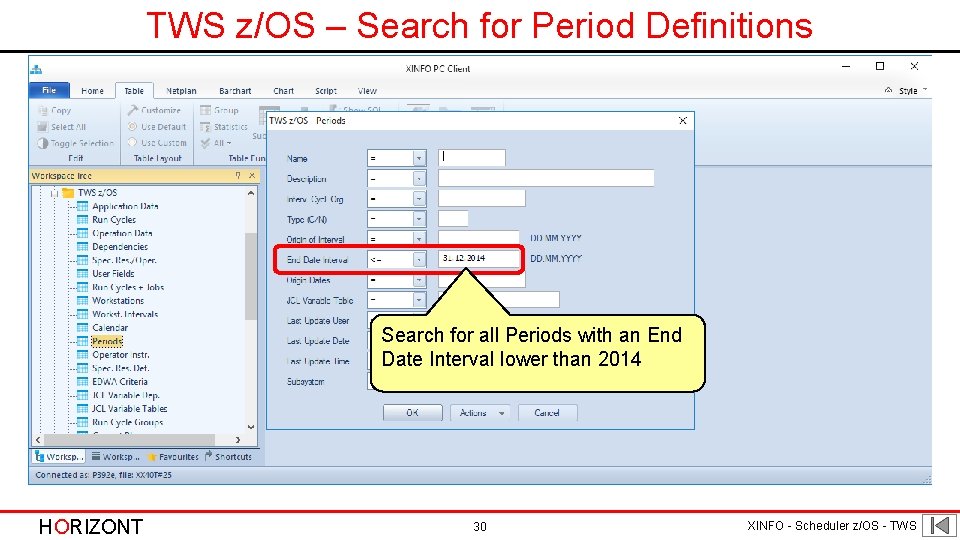

TWS z/OS – Search for Period Definitions Search for all Periods with an End Date Interval lower than 2014 HORIZONT 30 XINFO - Scheduler z/OS - TWS

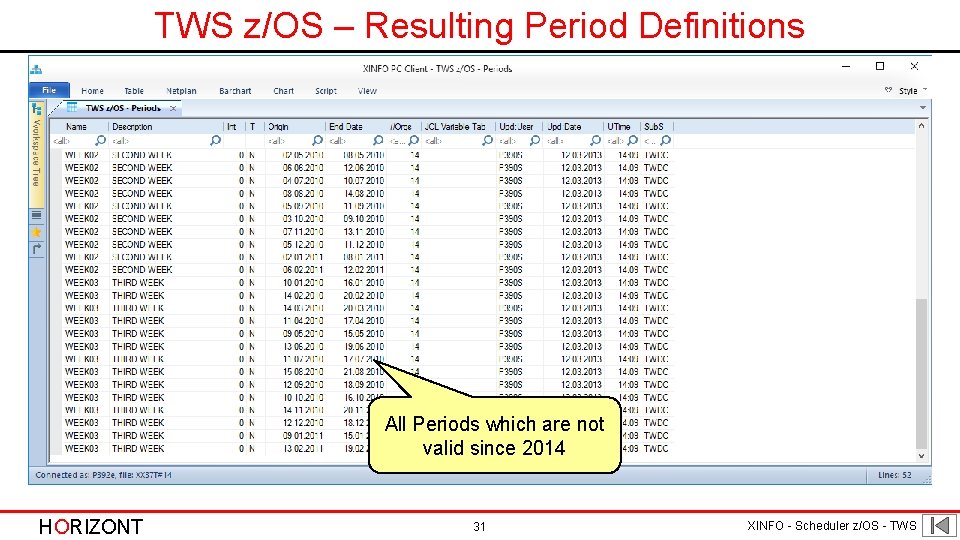

TWS z/OS – Resulting Period Definitions All Periods which are not valid since 2014 HORIZONT 31 XINFO - Scheduler z/OS - TWS

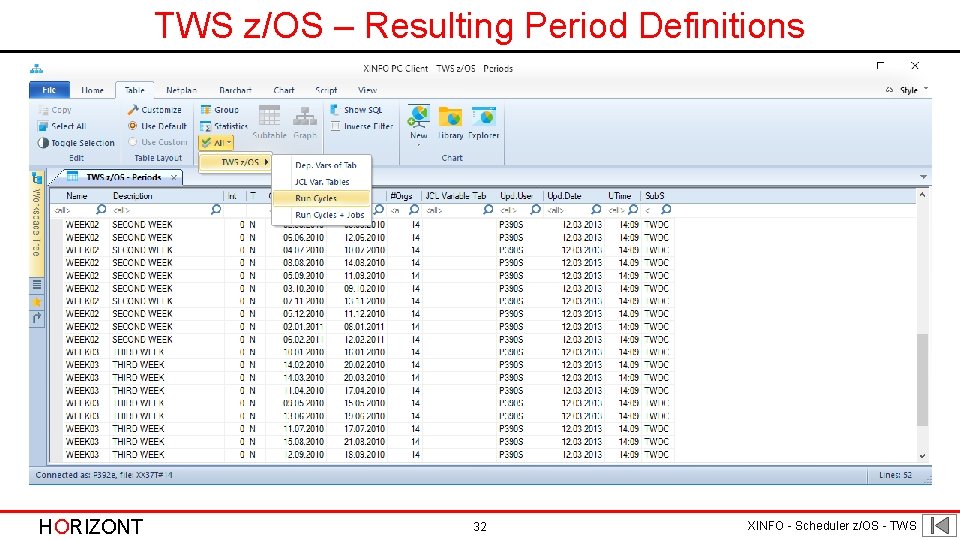

TWS z/OS – Resulting Period Definitions Are there any Applications using these Periods? Use the "All" command to get the result… HORIZONT 32 XINFO - Scheduler z/OS - TWS

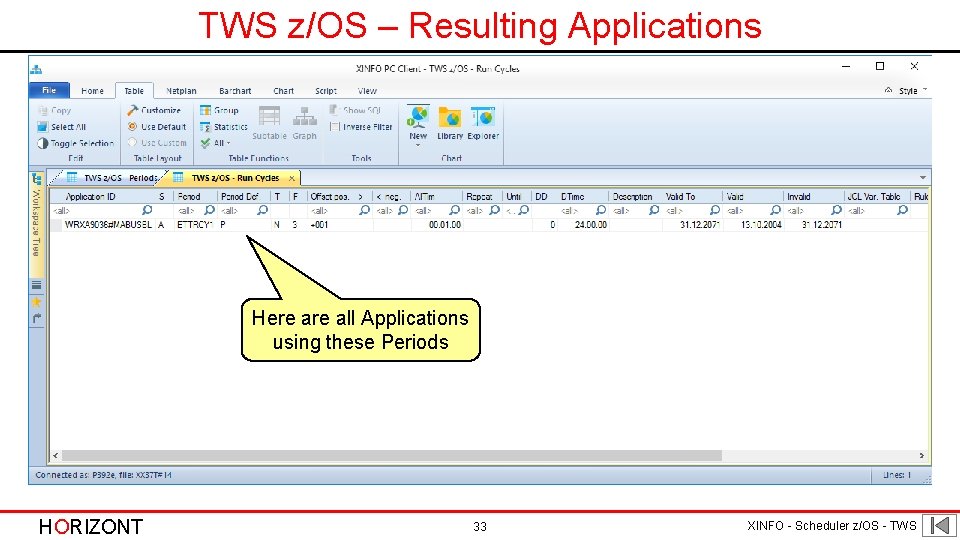

TWS z/OS – Resulting Applications Here all Applications using these Periods HORIZONT 33 XINFO - Scheduler z/OS - TWS

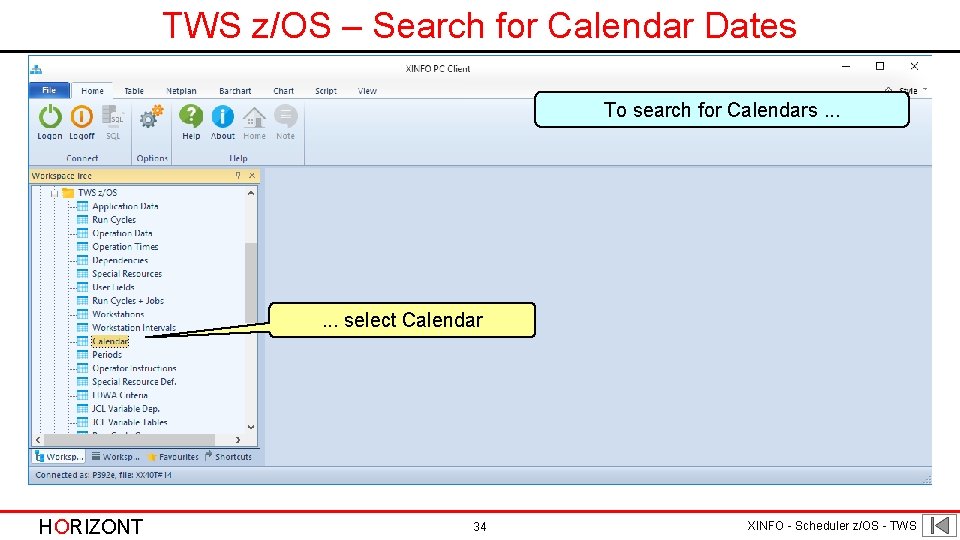

TWS z/OS – Search for Calendar Dates To search for Calendars. . . select Calendar HORIZONT 34 XINFO - Scheduler z/OS - TWS

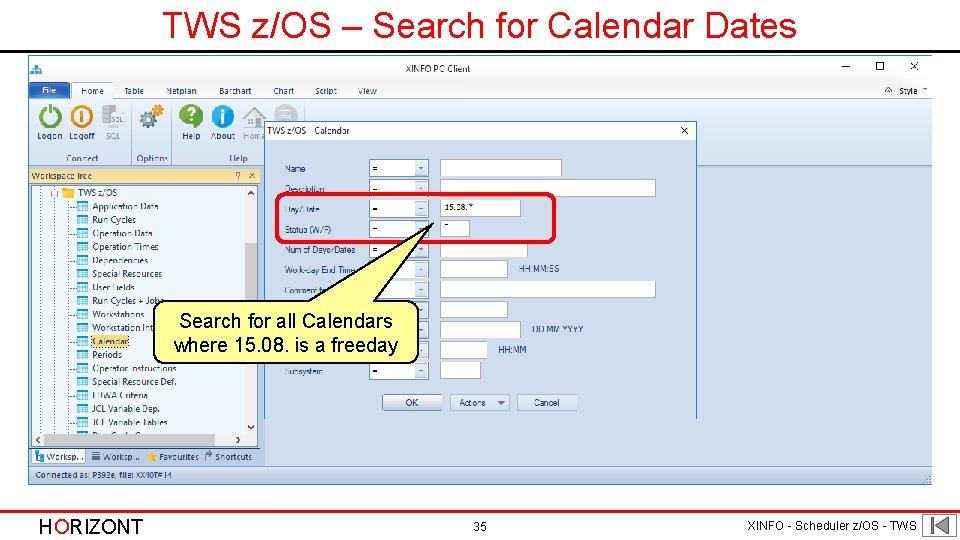

TWS z/OS – Search for Calendar Dates Search for all Calendars where 15. 08. is a freeday HORIZONT 35 XINFO - Scheduler z/OS - TWS

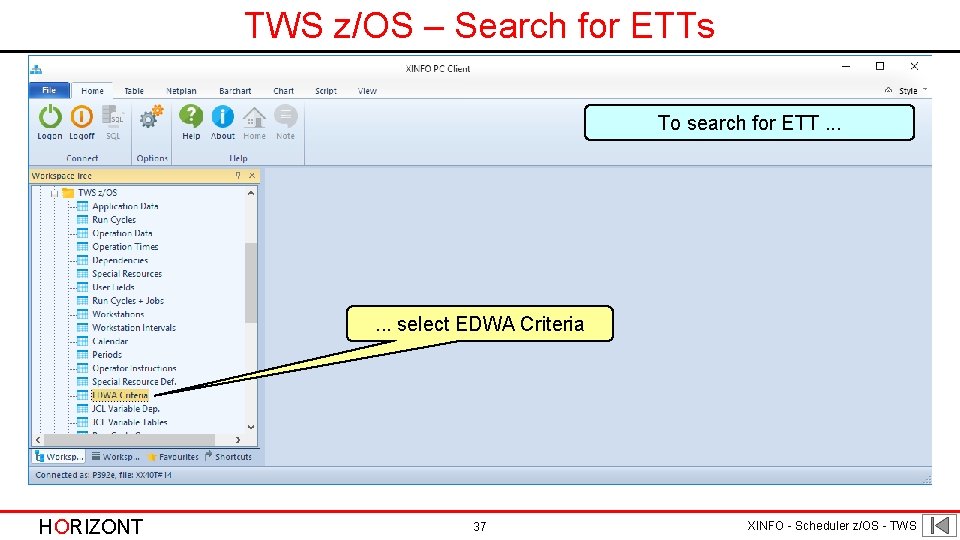

TWS z/OS – Search for ETTs To search for ETT. . . select EDWA Criteria HORIZONT 37 XINFO - Scheduler z/OS - TWS

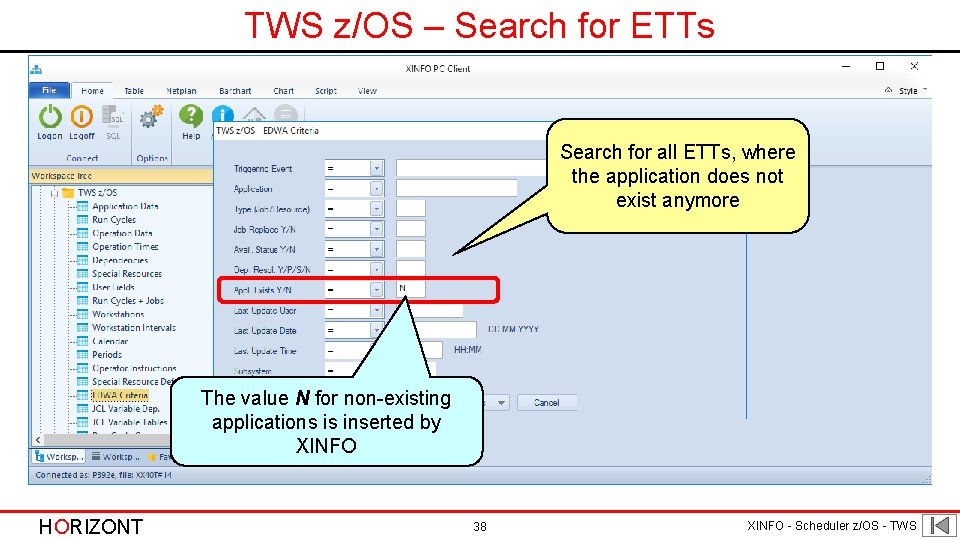

TWS z/OS – Search for ETTs Search for all ETTs, where the application does not exist anymore The value N for non-existing applications is inserted by XINFO HORIZONT 38 XINFO - Scheduler z/OS - TWS

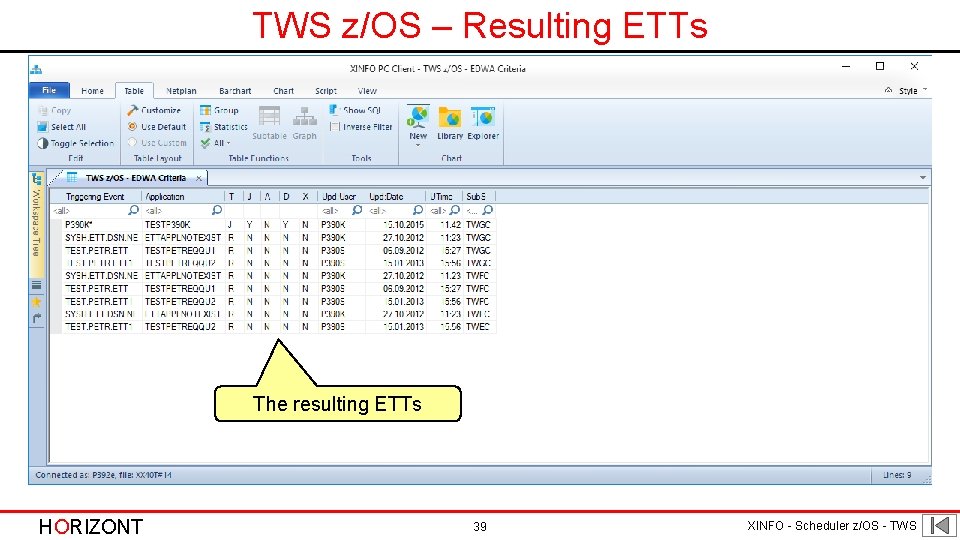

TWS z/OS – Resulting ETTs The resulting ETTs HORIZONT 39 XINFO - Scheduler z/OS - TWS

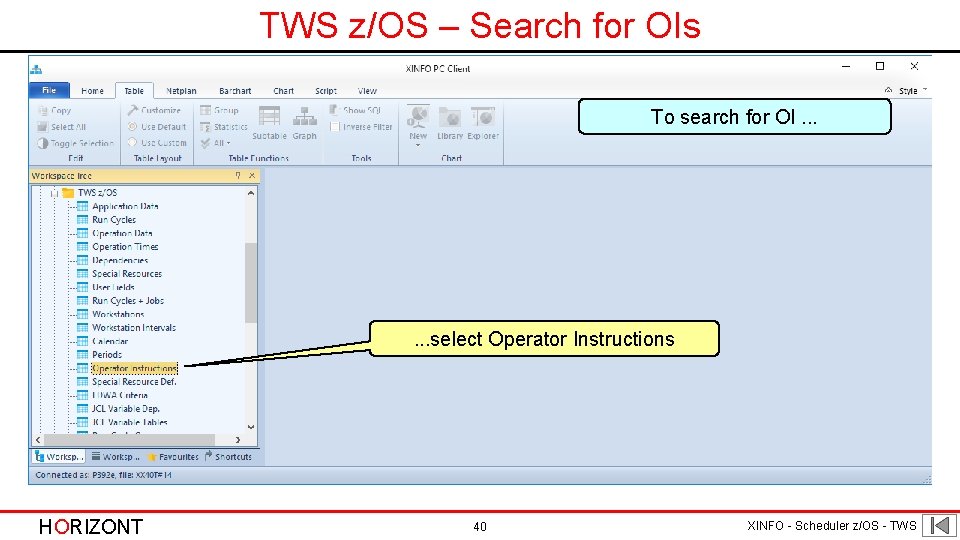

TWS z/OS – Search for OIs To search for OI. . . select Operator Instructions HORIZONT 40 XINFO - Scheduler z/OS - TWS

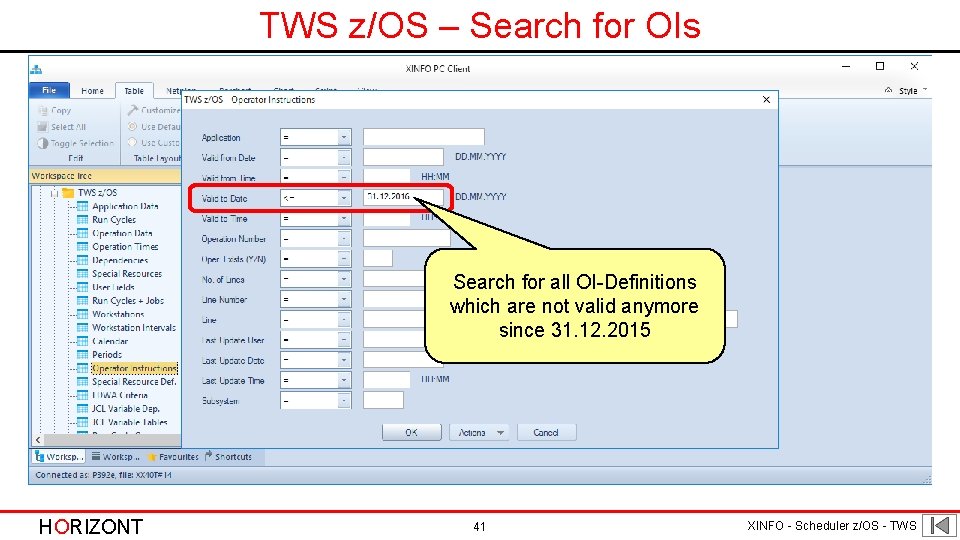

TWS z/OS – Search for OIs Search for all OI-Definitions which are not valid anymore since 31. 12. 2015 HORIZONT 41 XINFO - Scheduler z/OS - TWS

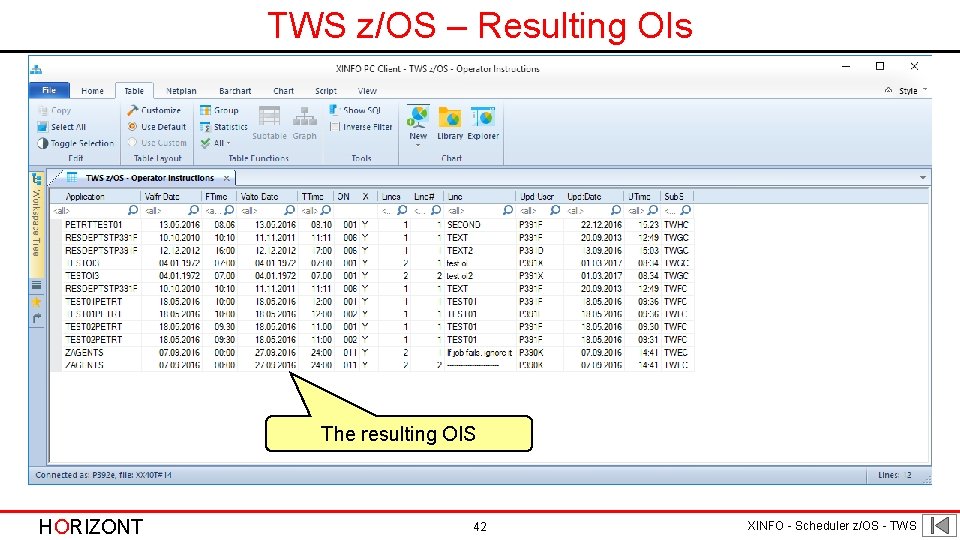

TWS z/OS – Resulting OIs The resulting OIS HORIZONT 42 XINFO - Scheduler z/OS - TWS

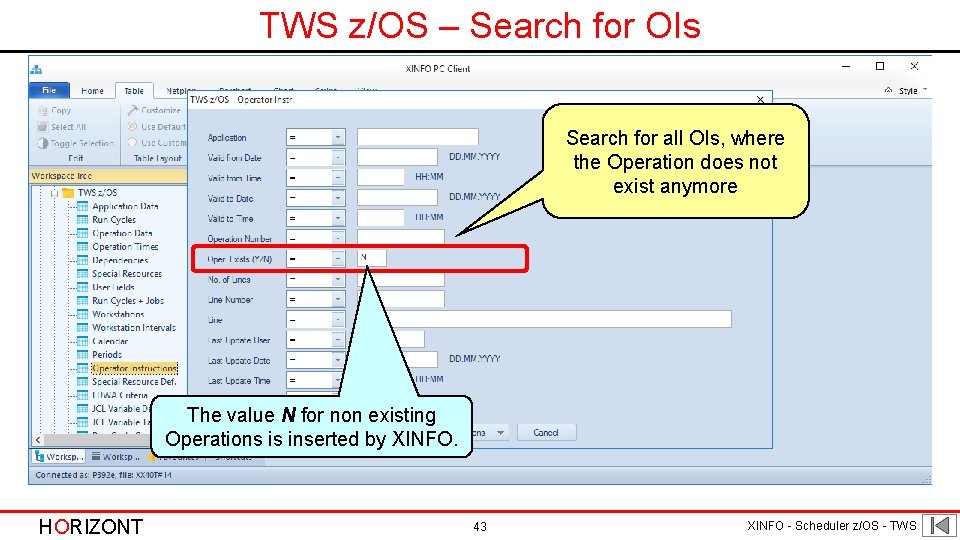

TWS z/OS – Search for OIs Search for all OIs, where the Operation does not exist anymore The value N for non existing Operations is inserted by XINFO. HORIZONT 43 XINFO - Scheduler z/OS - TWS

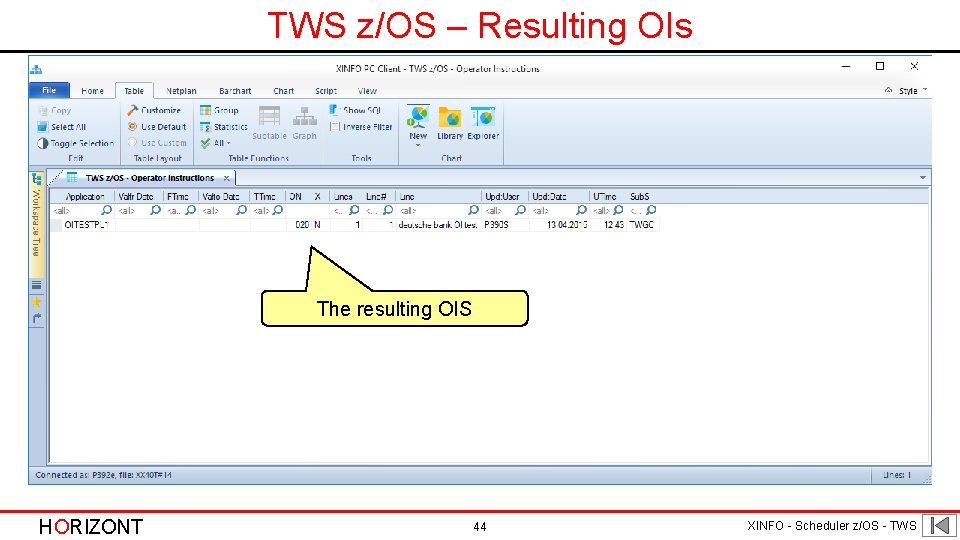

TWS z/OS – Resulting OIs The resulting OIS HORIZONT 44 XINFO - Scheduler z/OS - TWS

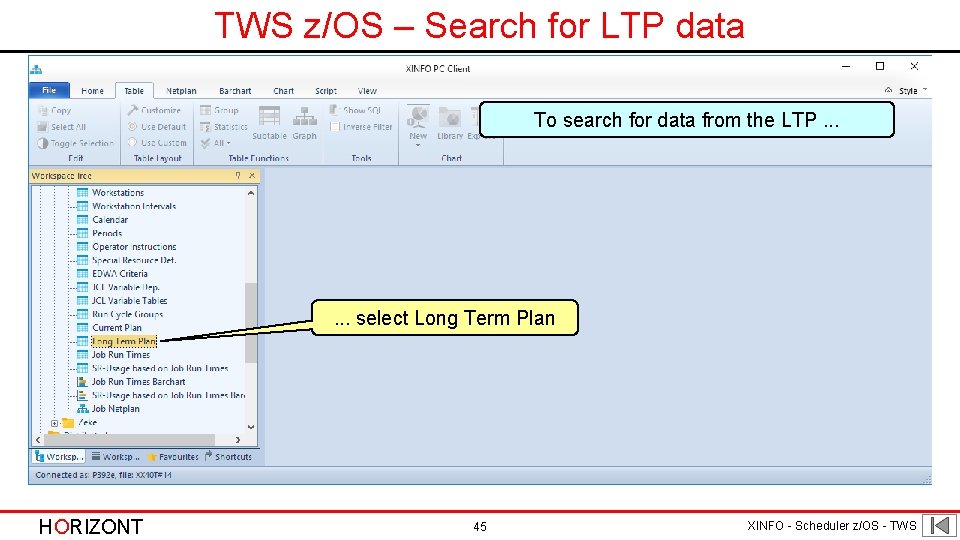

TWS z/OS – Search for LTP data To search for data from the LTP. . . select Long Term Plan HORIZONT 45 XINFO - Scheduler z/OS - TWS

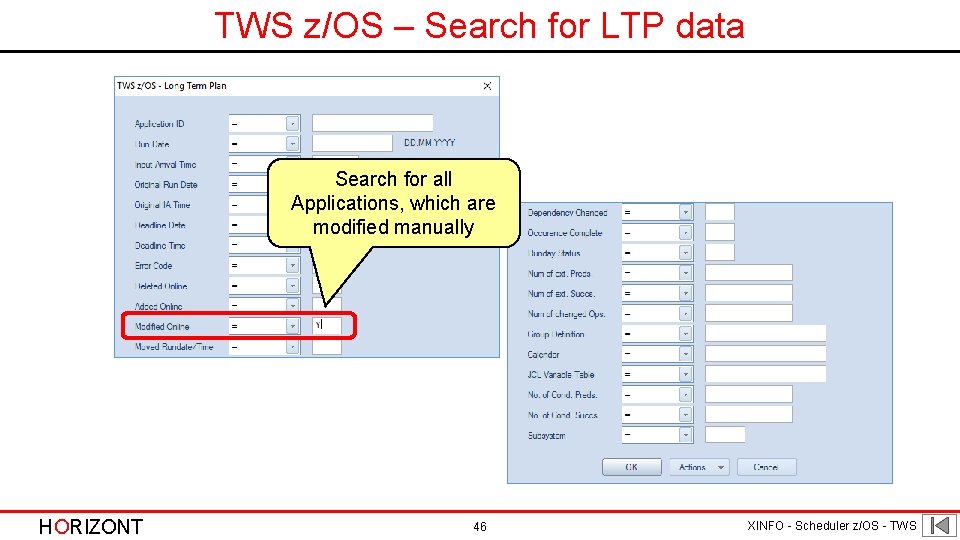

TWS z/OS – Search for LTP data Search for all Applications, which are modified manually HORIZONT 46 XINFO - Scheduler z/OS - TWS

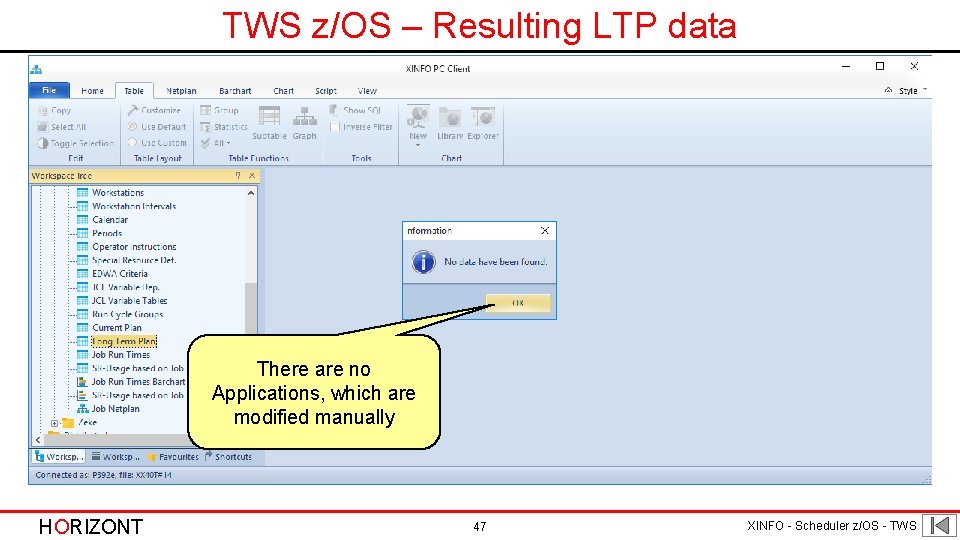

TWS z/OS – Resulting LTP data There are no Applications, which are modified manually HORIZONT 47 XINFO - Scheduler z/OS - TWS

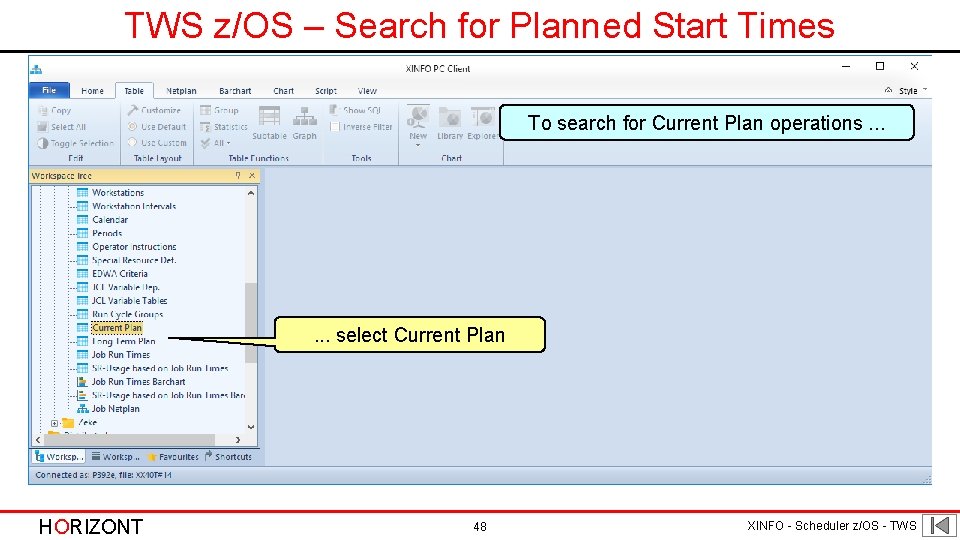

TWS z/OS – Search for Planned Start Times To search for Current Plan operations. . . select Current Plan HORIZONT 48 XINFO - Scheduler z/OS - TWS

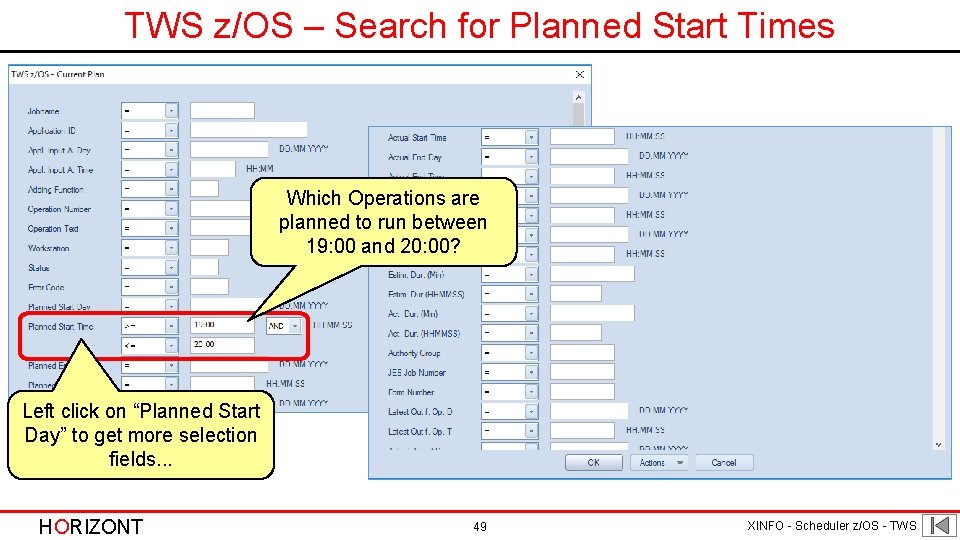

TWS z/OS – Search for Planned Start Times Which Operations are planned to run between 19: 00 and 20: 00? Left click on “Planned Start Day” to get more selection fields. . . HORIZONT 49 XINFO - Scheduler z/OS - TWS

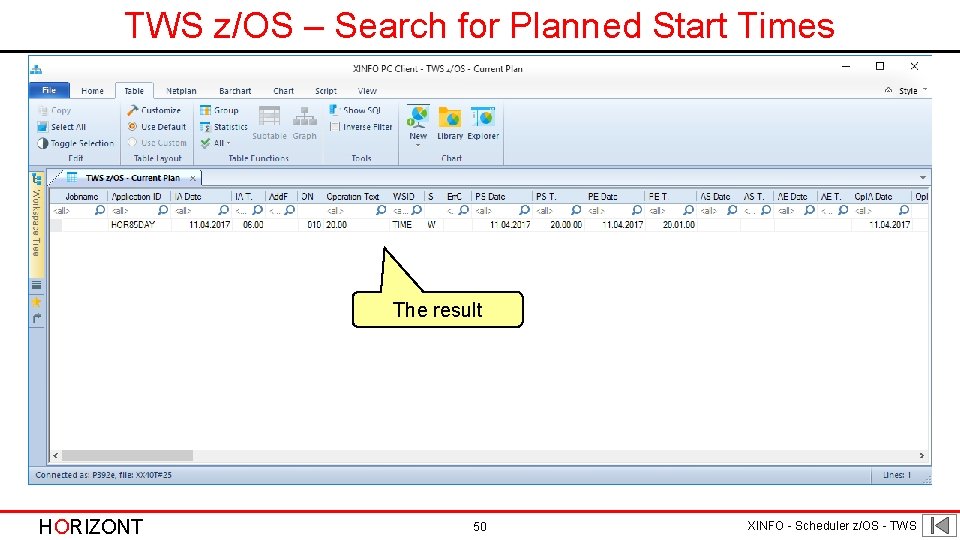

TWS z/OS – Search for Planned Start Times The result HORIZONT 50 XINFO - Scheduler z/OS - TWS

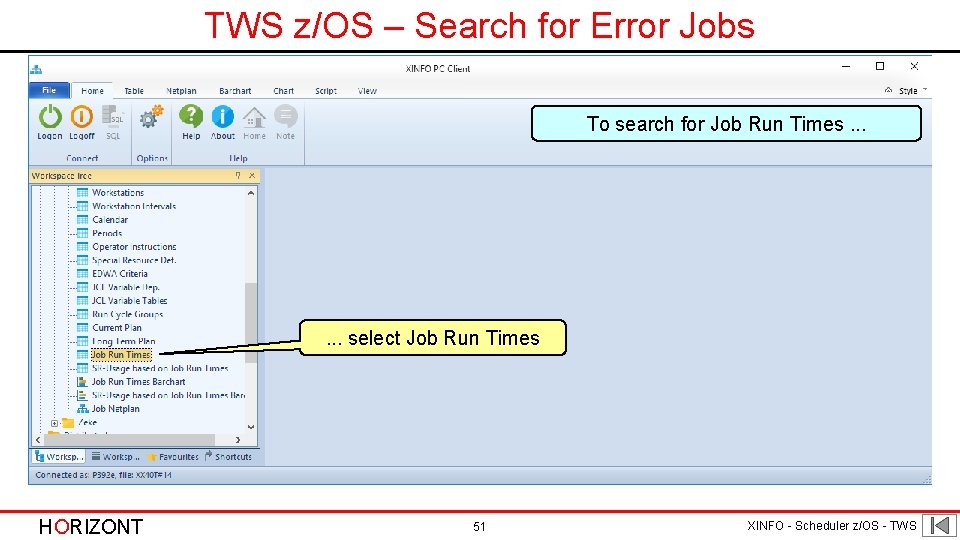

TWS z/OS – Search for Error Jobs To search for Job Run Times. . . select Job Run Times HORIZONT 51 XINFO - Scheduler z/OS - TWS

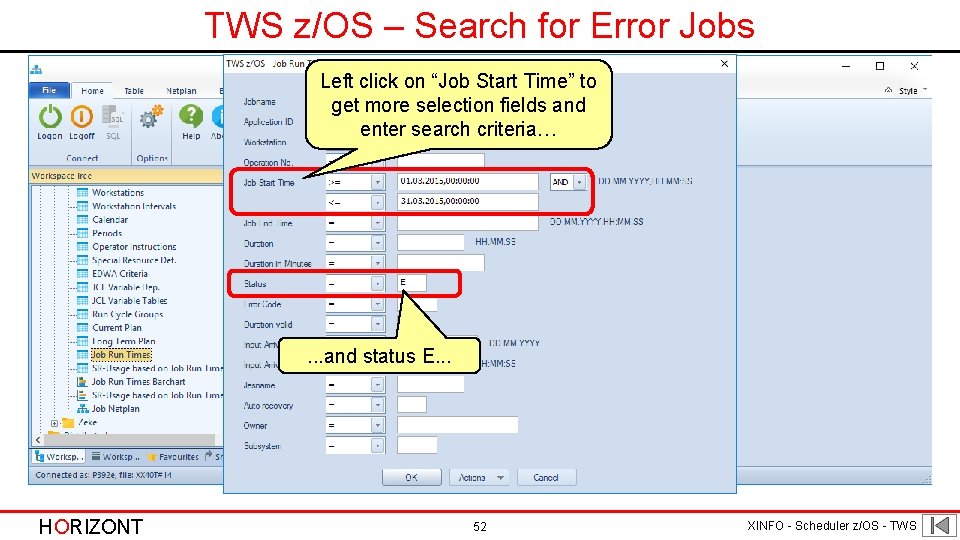

TWS z/OS – Search for Error Jobs Left click on “Job Start Time” to get more selection fields and enter search criteria… . . . and status E. . . HORIZONT 52 XINFO - Scheduler z/OS - TWS

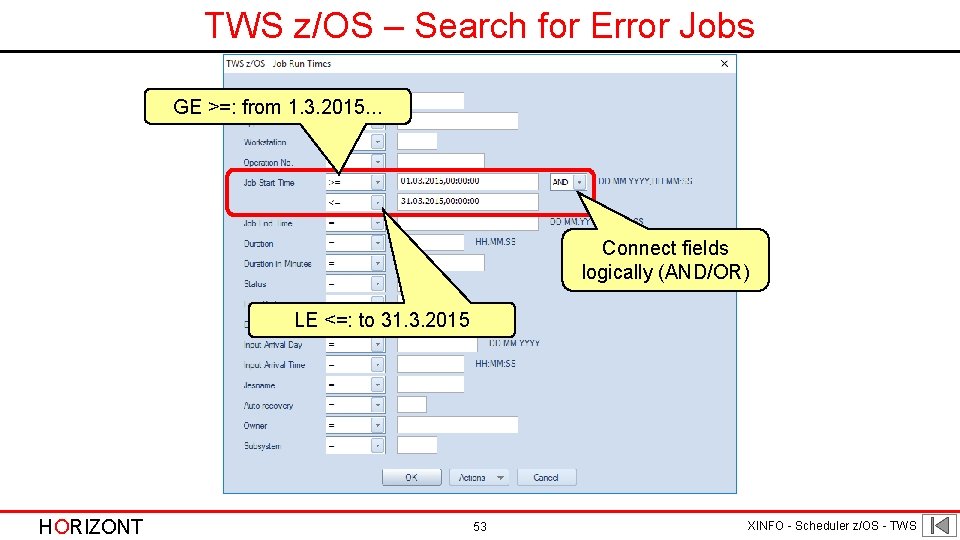

TWS z/OS – Search for Error Jobs GE >=: from 1. 3. 2015. . . Connect fields logically (AND/OR) LE <=: to 31. 3. 2015 HORIZONT 53 XINFO - Scheduler z/OS - TWS

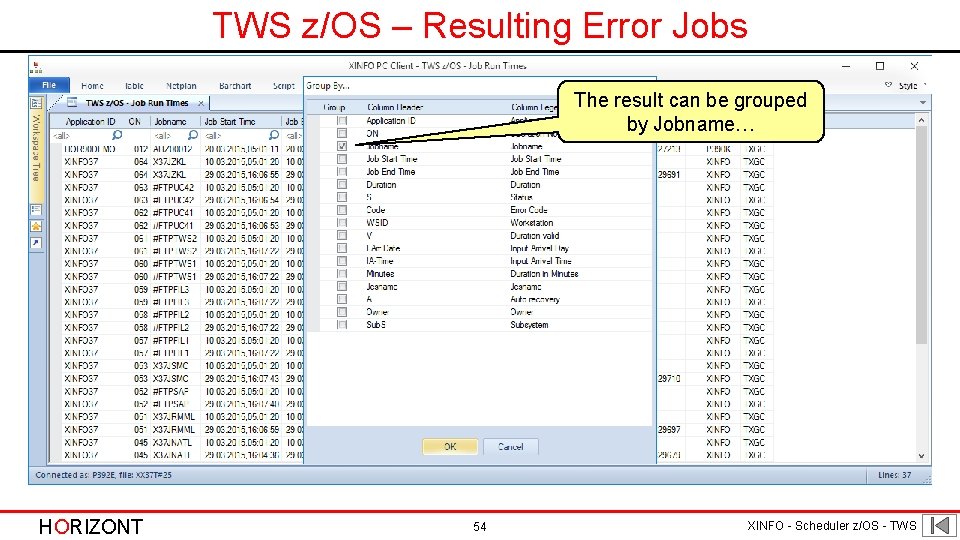

TWS z/OS – Resulting Error Jobs The result can be grouped by Jobname… HORIZONT 54 XINFO - Scheduler z/OS - TWS

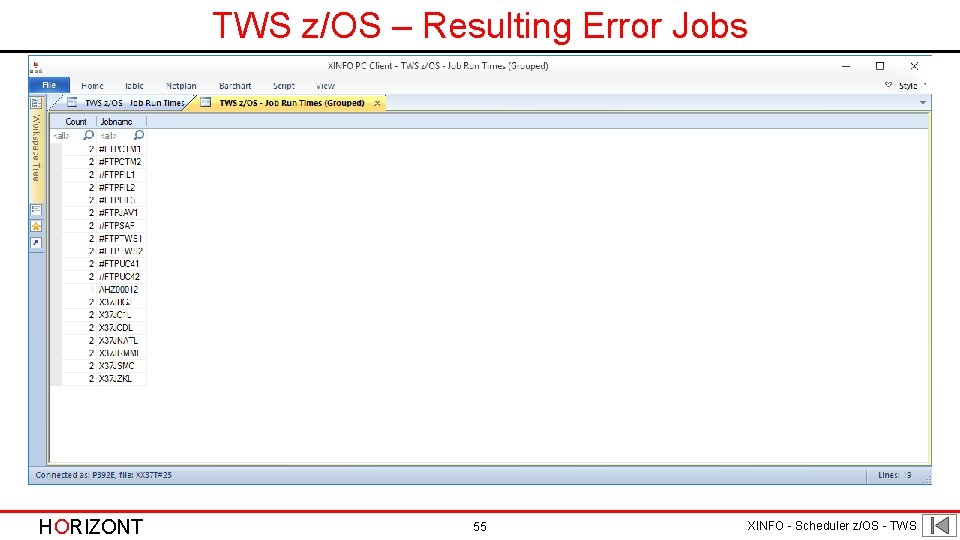

TWS z/OS – Resulting Error Jobs HORIZONT 55 XINFO - Scheduler z/OS - TWS

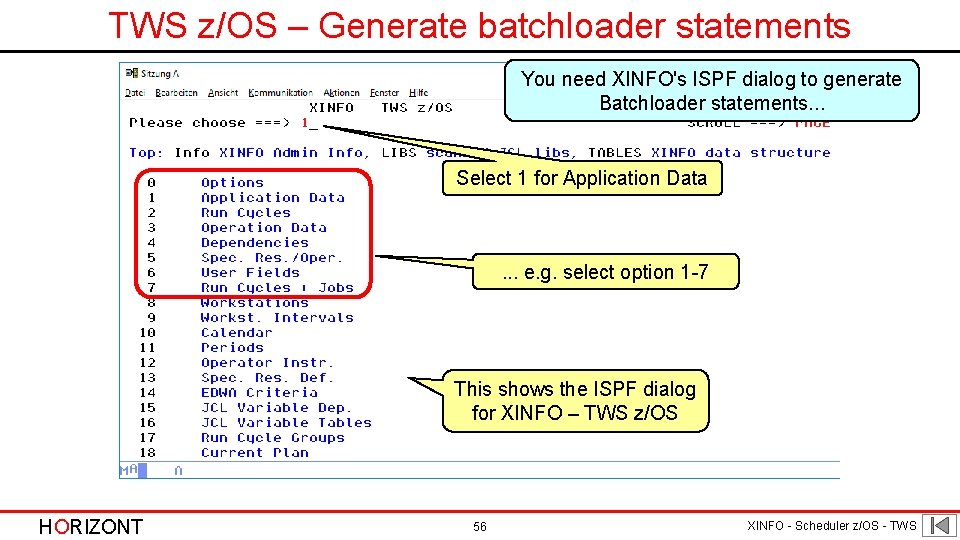

TWS z/OS – Generate batchloader statements You need XINFO's ISPF dialog to generate Batchloader statements. . . Select 1 for Application Data . . . e. g. select option 1 -7 This shows the ISPF dialog for XINFO – TWS z/OS HORIZONT 56 XINFO - Scheduler z/OS - TWS

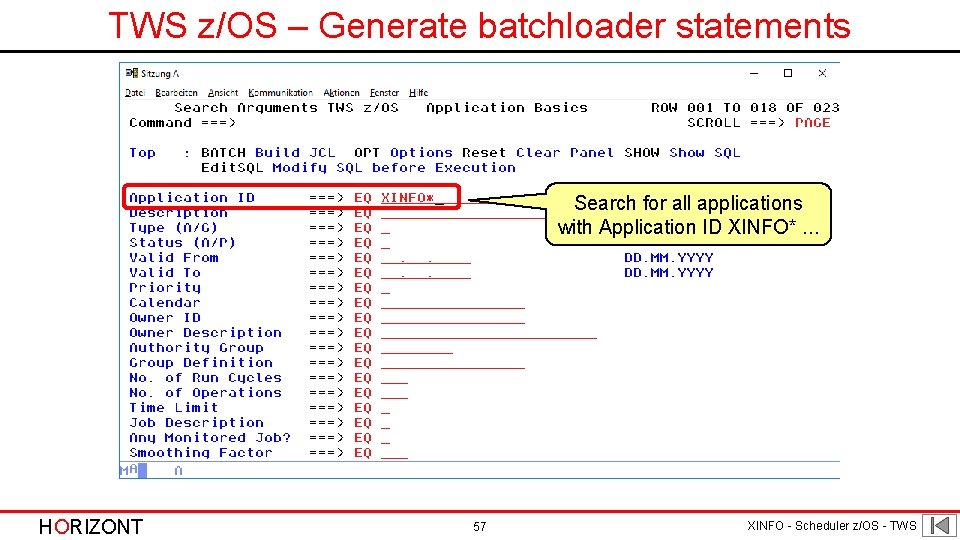

TWS z/OS – Generate batchloader statements Search for all applications with Application ID XINFO*. . . HORIZONT 57 XINFO - Scheduler z/OS - TWS

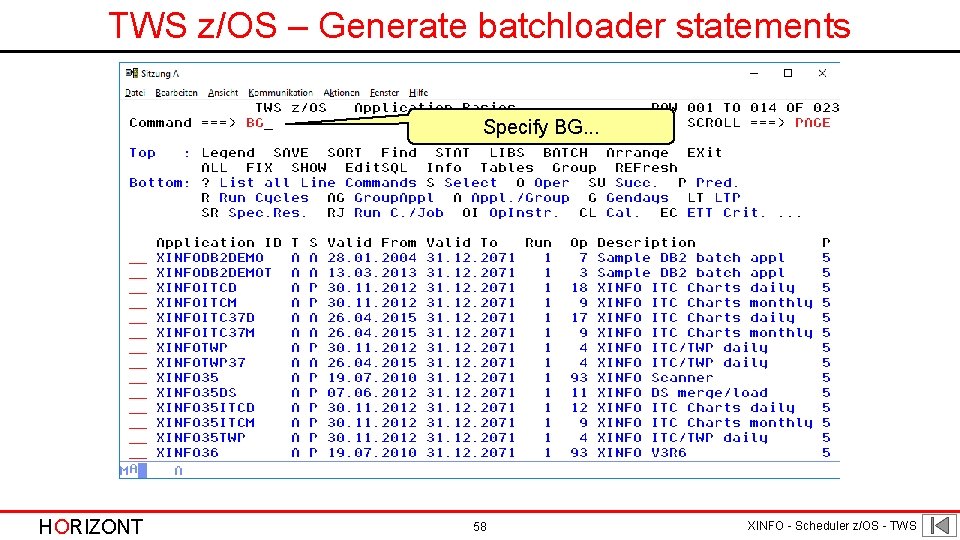

TWS z/OS – Generate batchloader statements Specify BG. . . HORIZONT 58 XINFO - Scheduler z/OS - TWS

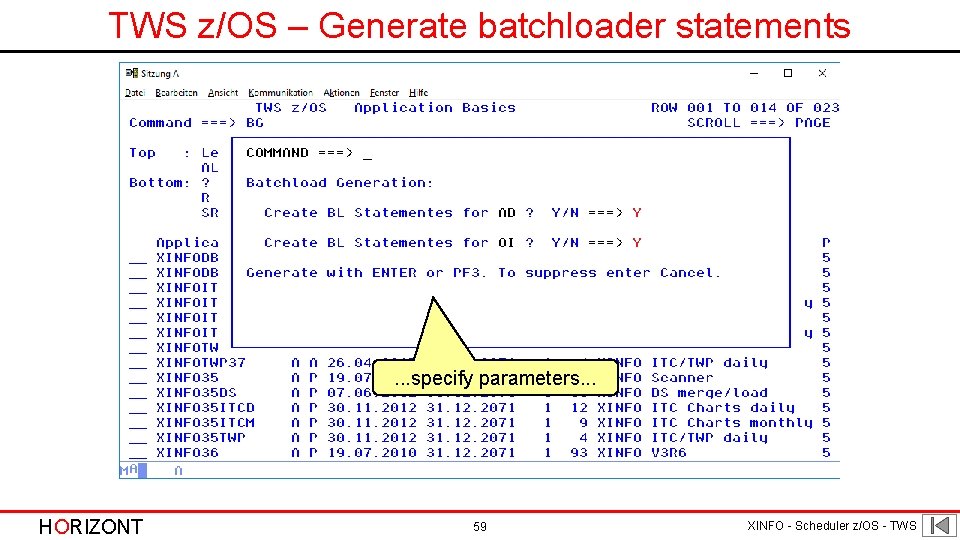

TWS z/OS – Generate batchloader statements . . . specify parameters. . . HORIZONT 59 XINFO - Scheduler z/OS - TWS

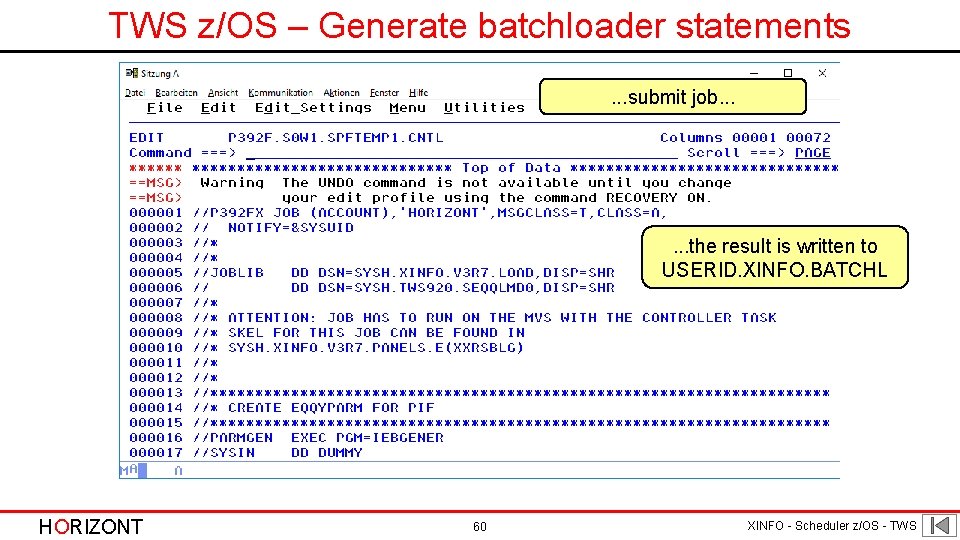

TWS z/OS – Generate batchloader statements. . . submit job. . . the result is written to USERID. XINFO. BATCHL HORIZONT 60 XINFO - Scheduler z/OS - TWS

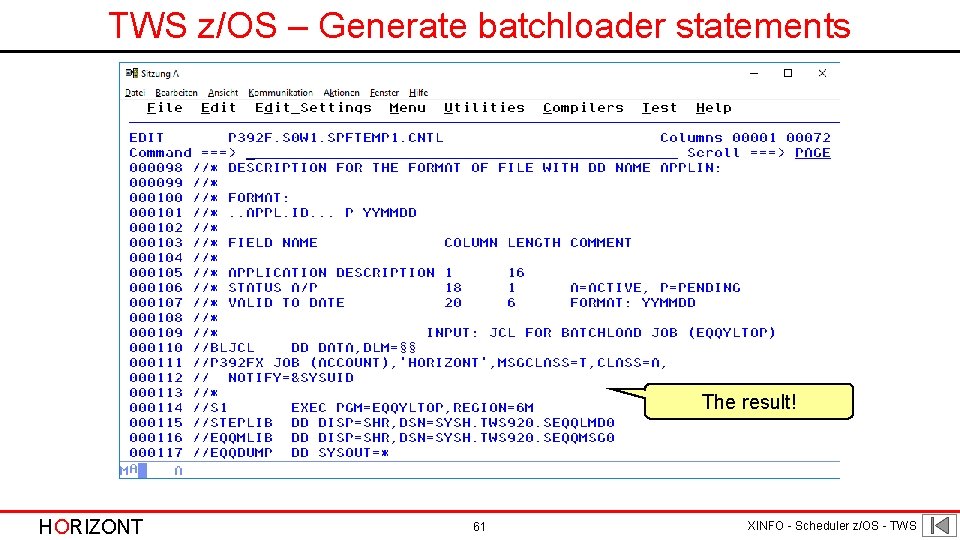

TWS z/OS – Generate batchloader statements The result! HORIZONT 61 XINFO - Scheduler z/OS - TWS

HORIZONT Many thanks for your attention! HORIZONT 62 XINFO - Scheduler z/OS - TWS
