Homework 10 1 Worksheet Quantum Numbers 2 Assign

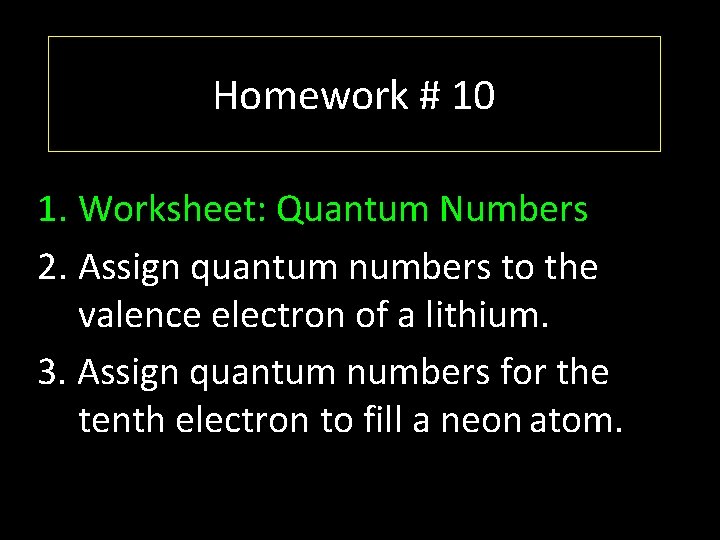

Homework # 10 1. Worksheet: Quantum Numbers 2. Assign quantum numbers to the valence electron of a lithium. 3. Assign quantum numbers for the tenth electron to fill a neon atom.

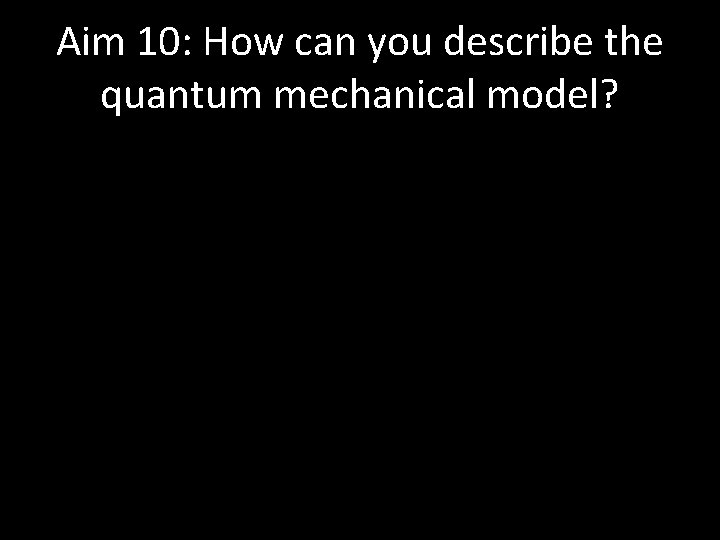

Aim 10: How can you describe the quantum mechanical model?

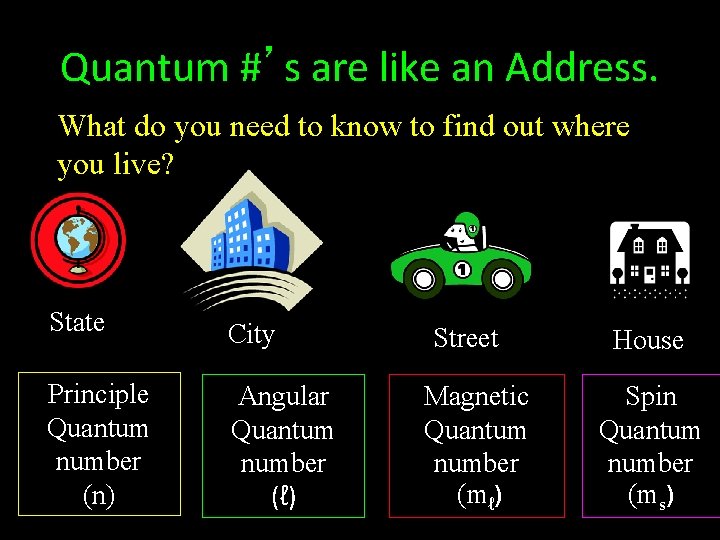

Quantum #’s are like an Address. What do you need to know to find out where you live? State City Principle Quantum number (n) Angular Quantum number (ℓ) Street Magnetic Quantum number (mℓ) House Spin Quantum number (ms)

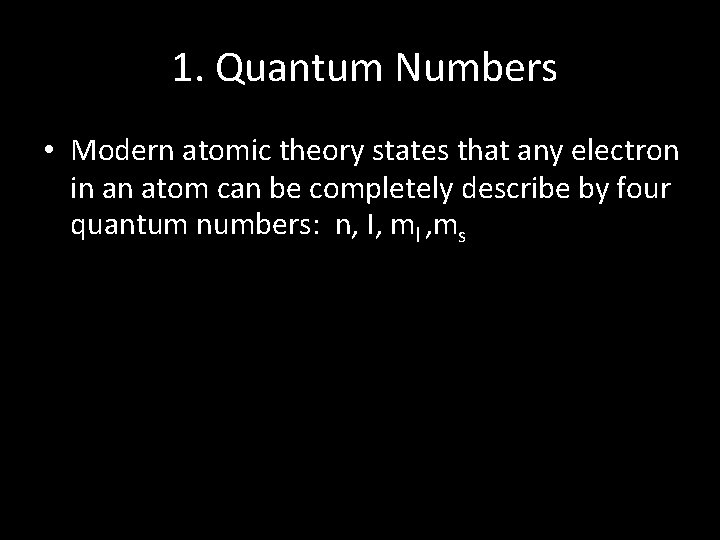

1. Quantum Numbers • Modern atomic theory states that any electron in an atom can be completely describe by four quantum numbers: n, l, ml , ms

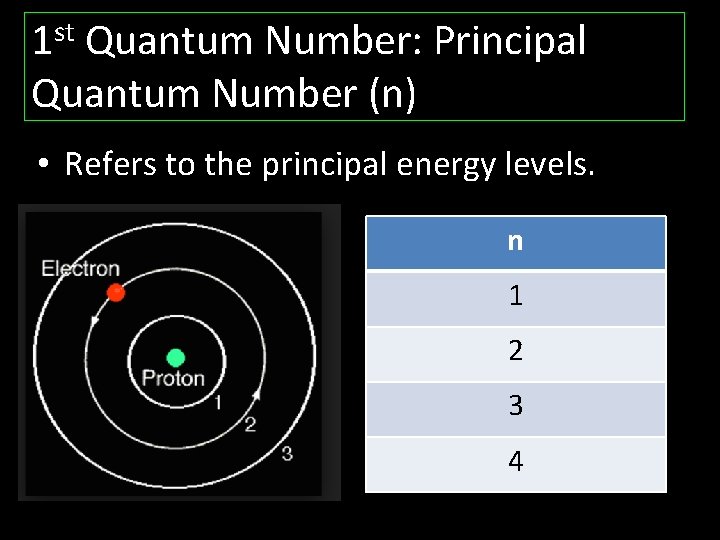

1 st Quantum Number: Principal Quantum Number (n) • Refers to the principal energy levels. n 1 2 3 4

2 nd Quantum Number: Azimuthal or Angular Momentum Quantum Number (ℓ)

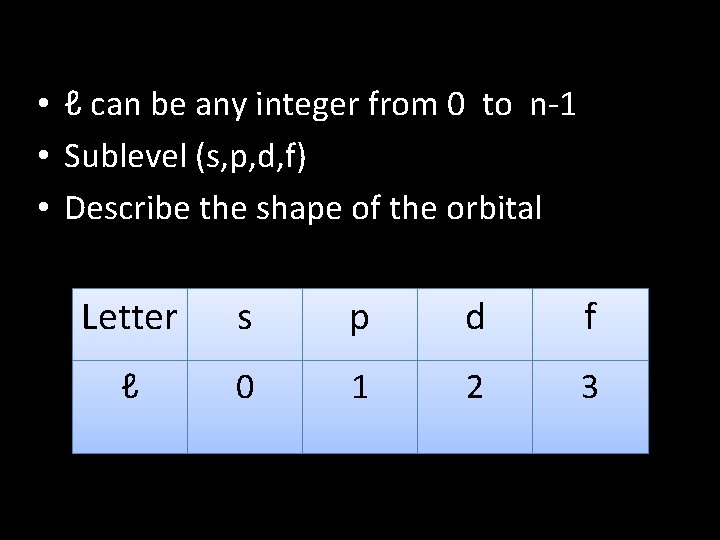

• ℓ can be any integer from 0 to n-1 • Sublevel (s, p, d, f) • Describe the shape of the orbital Letter s p d f ℓ 0 1 2 3

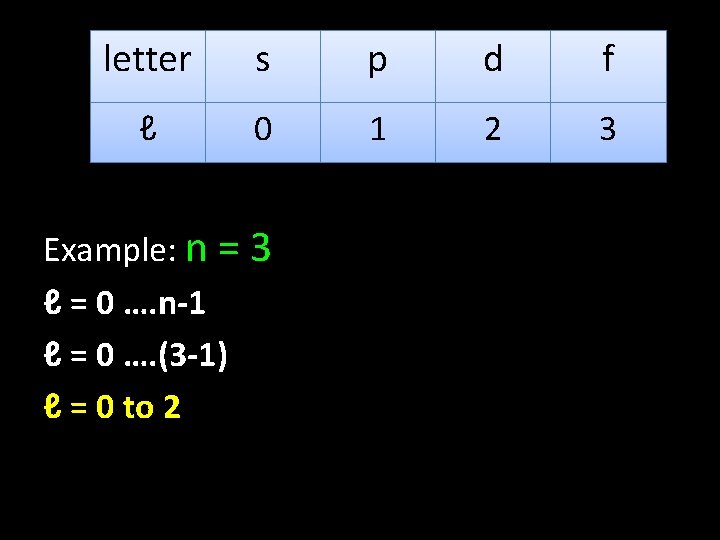

letter s p d f ℓ 0 1 2 3 Example: n = 3 ℓ = 0 …. n-1 ℓ = 0 …. (3 -1) ℓ = 0 to 2

S, P, D, F s: Sharp p: Principal d: Diffuse f: Fundamental The s, p, d, and f stand for "sharp, " "principal, " "diffuse, " and "fundamental, " respectively, and are so named because they categorize the spectral lines generated by those types of orbitals: Electron configuration

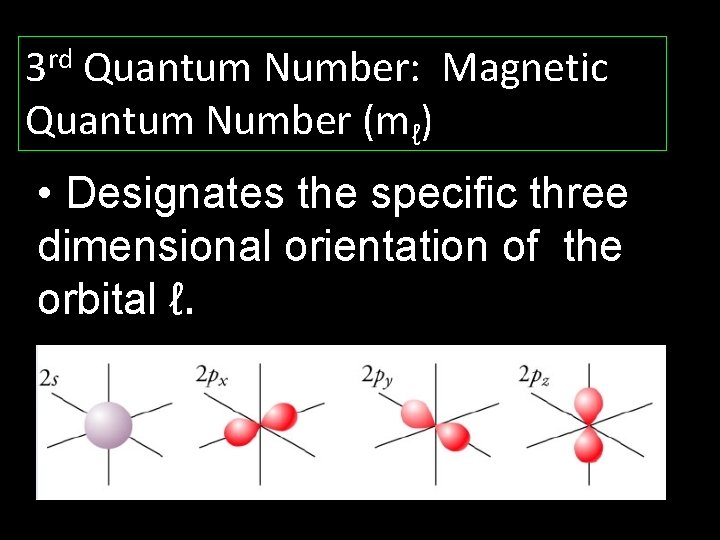

3 rd Quantum Number: Magnetic Quantum Number (mℓ) • Designates the specific three dimensional orientation of the orbital ℓ.

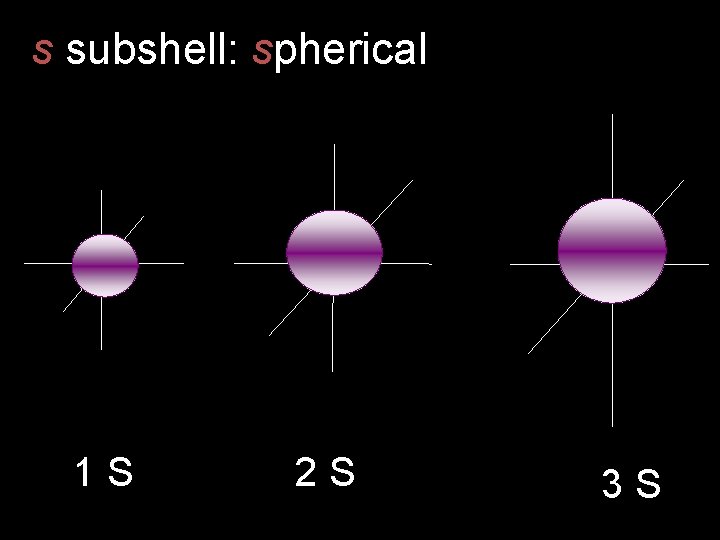

s subshell: spherical 1 S 2 S 3 S

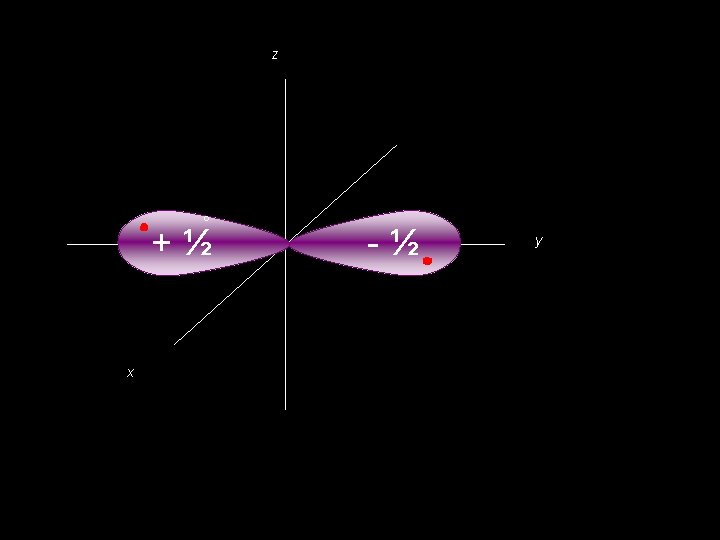

p subshell : dumbbell shape 3 orbitals z x y z

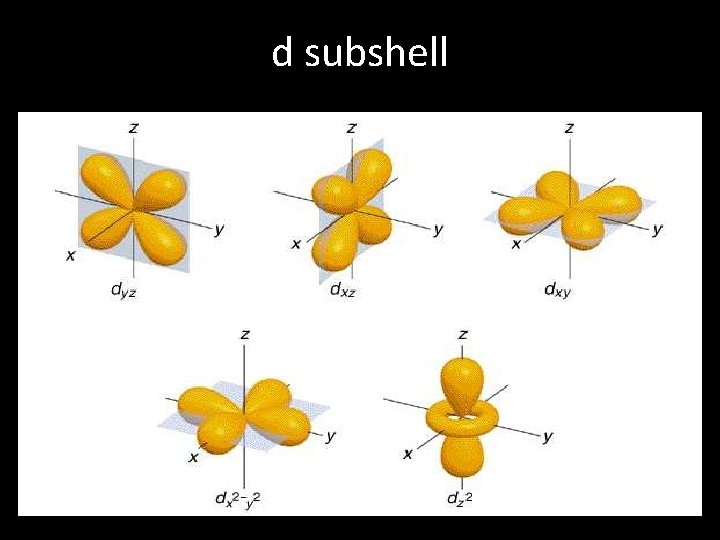

d subshell

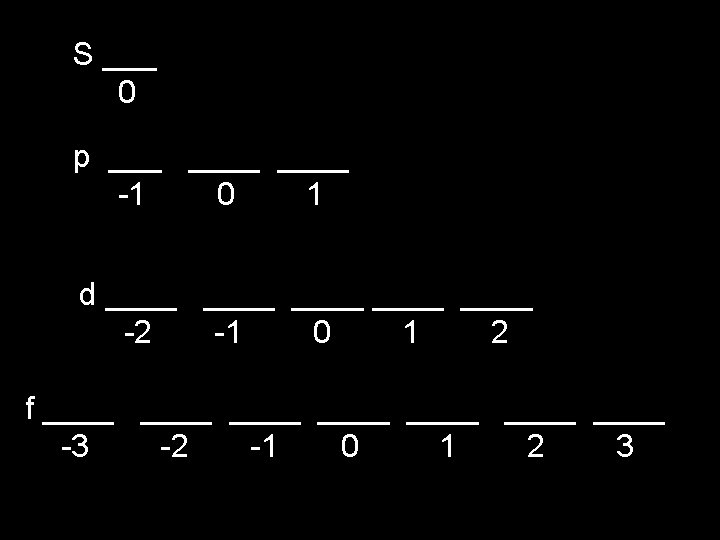

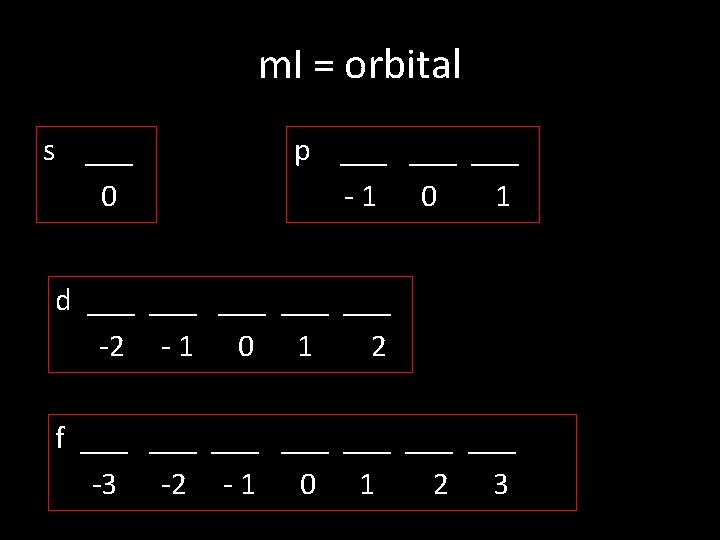

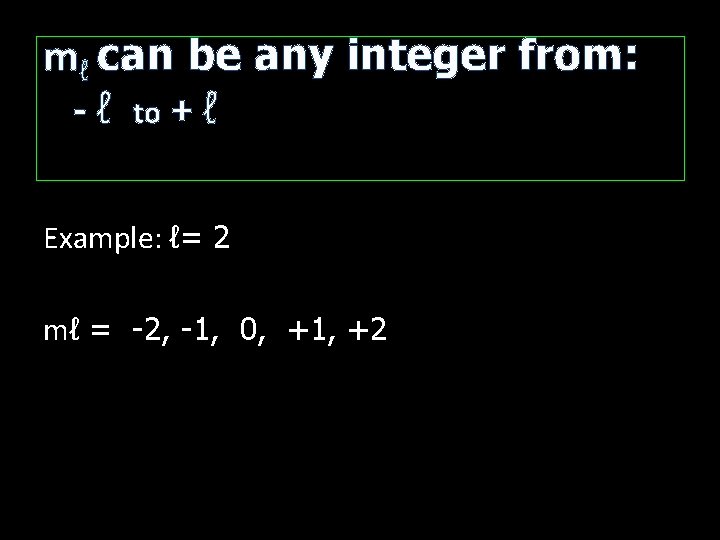

mℓ can be any integer from: - ℓ to + ℓ Example: ℓ= 2 mℓ = -2, -1, 0, +1, +2

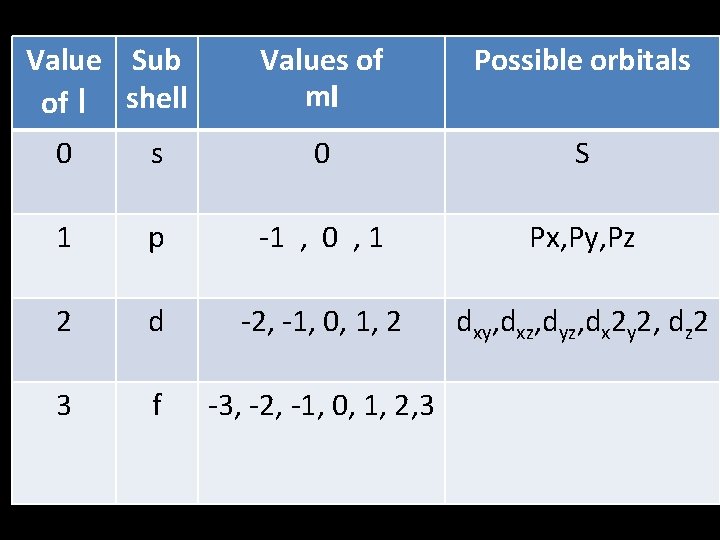

Value Sub of l shell Values of ml Possible orbitals 0 S 1 p -1 , 0 , 1 Px, Py, Pz 2 d -2, -1, 0, 1, 2 dxy, dxz, dyz, dx 2 y 2, dz 2 3 f -3, -2, -1, 0, 1, 2, 3

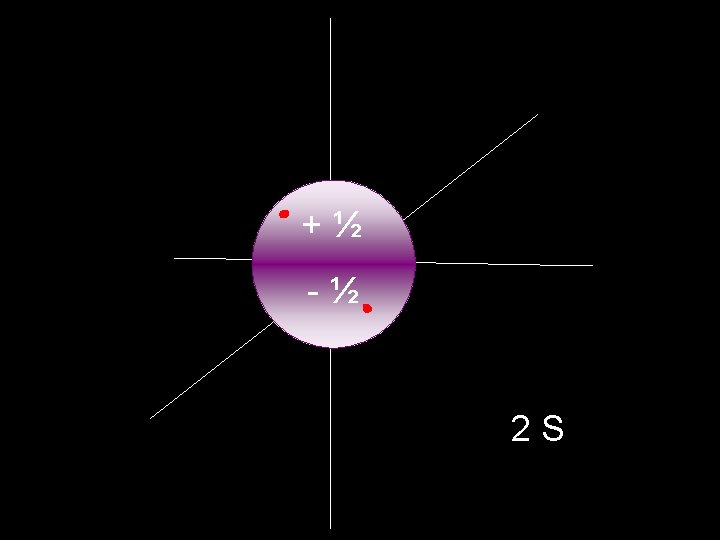

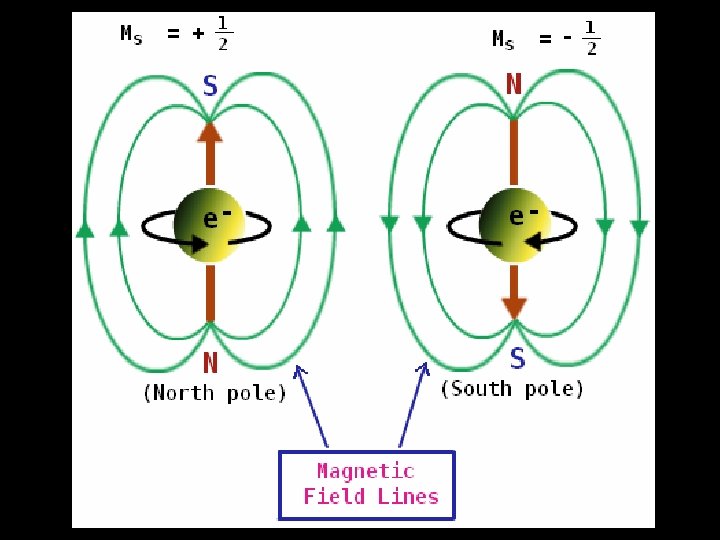

th 4 Quantum Number: Spin Quantum Number (ms ) • the spin of the electron. • Electrons in the same orbital must have opposite spins. The value of ms = 1 + 2 or 1 2

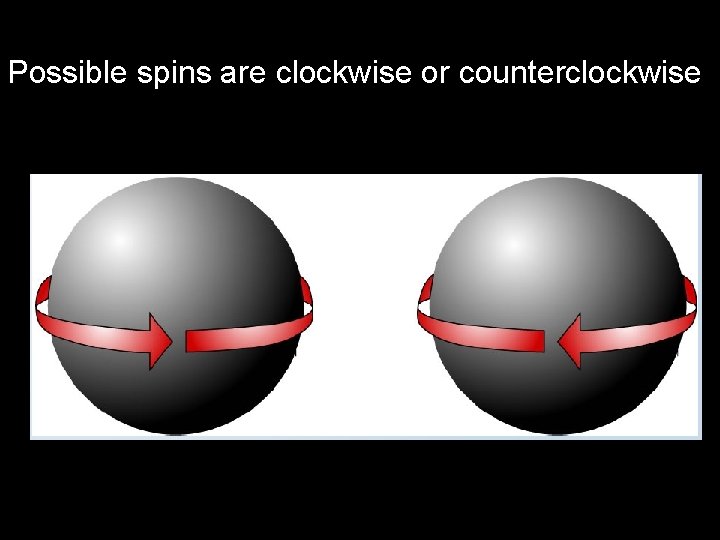

Possible spins are clockwise or counterclockwise

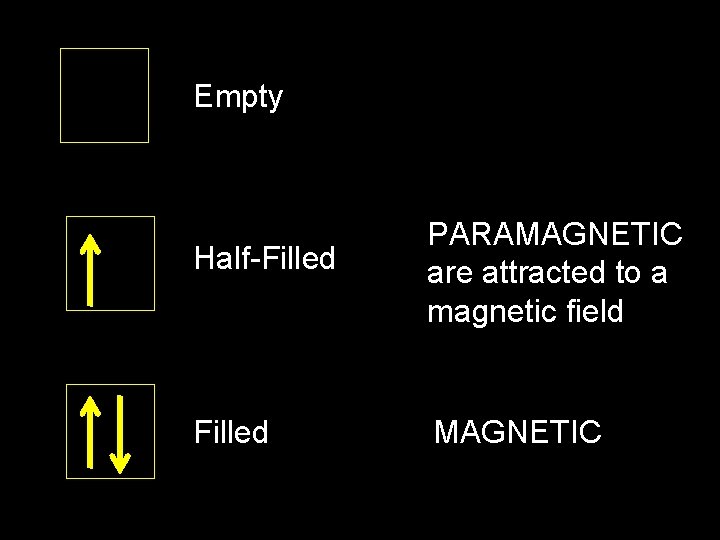

Empty Half-Filled PARAMAGNETIC are attracted to a magnetic field Filled MAGNETIC

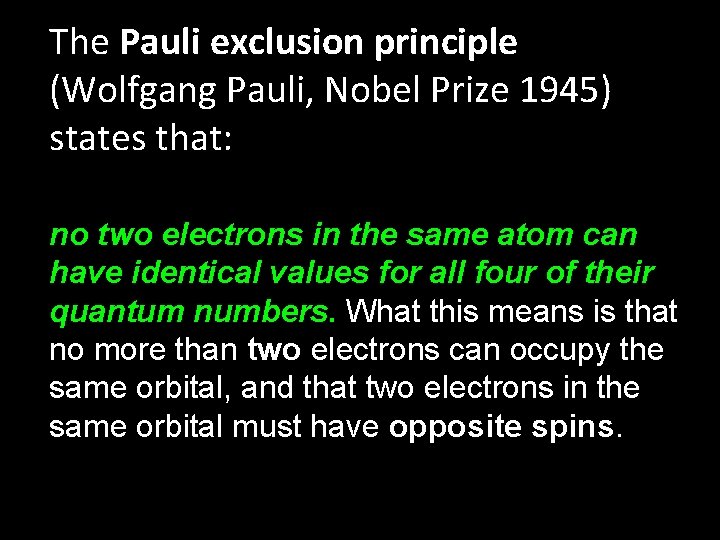

The Pauli exclusion principle (Wolfgang Pauli, Nobel Prize 1945) states that: no two electrons in the same atom can have identical values for all four of their quantum numbers. What this means is that no more than two electrons can occupy the same orbital, and that two electrons in the same orbital must have opposite spins.

Summary

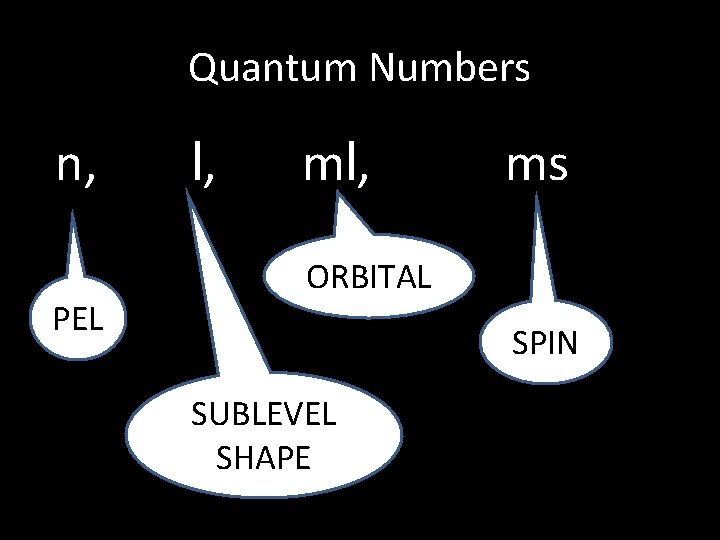

Quantum Numbers n, PEL l, ms ORBITAL SPIN SUBLEVEL SHAPE

l = SUBLEVEL (s, p, d, f) S=0 P=1 d=2 F=3

ms = +1/2, -1/2 • Spin!

TEST YOUR UNDERSTANDING

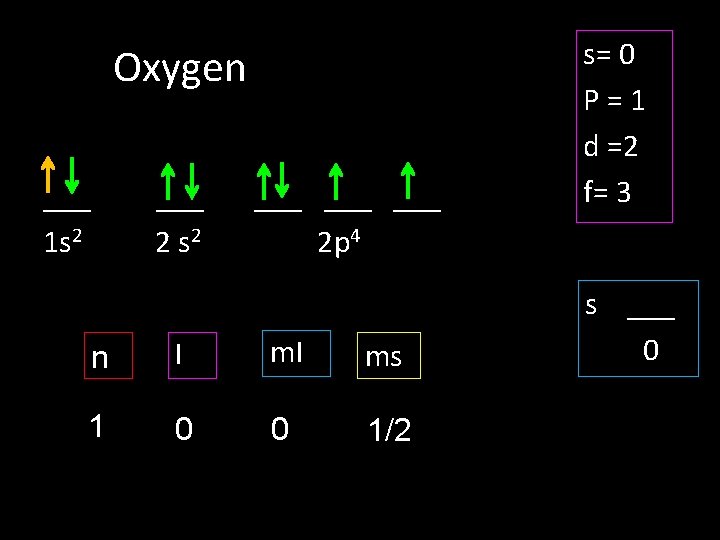

Oxygen ___ 1 s 2 ___ 2 s 2 ___ ___ 2 p 4 n l ml ms 1 0 0 1/2 s= 0 P=1 d =2 f= 3 s ___ 0

Oxygen ___ 1 s ___ 2 s ___ ___ 2 p n l ml ms 1 0 0 - 1/2 s= 0 P=1 d =2 f= 3 s ___ 0

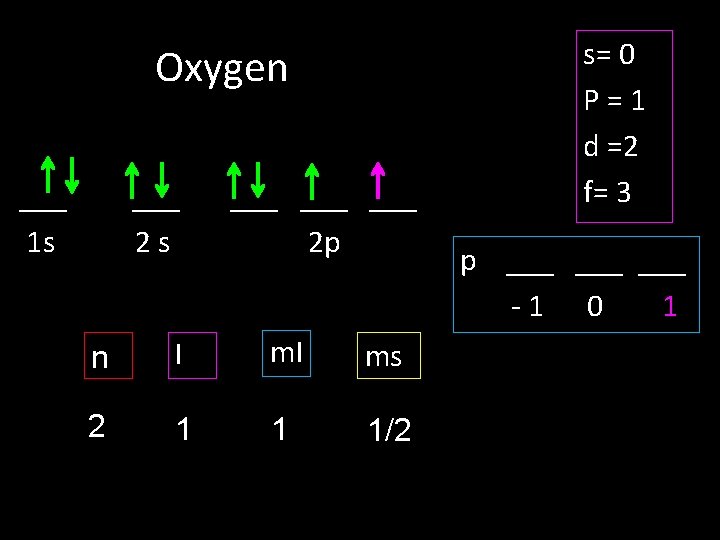

Oxygen ___ 1 s ___ 2 s ___ ___ 2 p n l ml ms 2 1 1 1/2 s= 0 P=1 d =2 f= 3 p ___ ___ -1 0 1

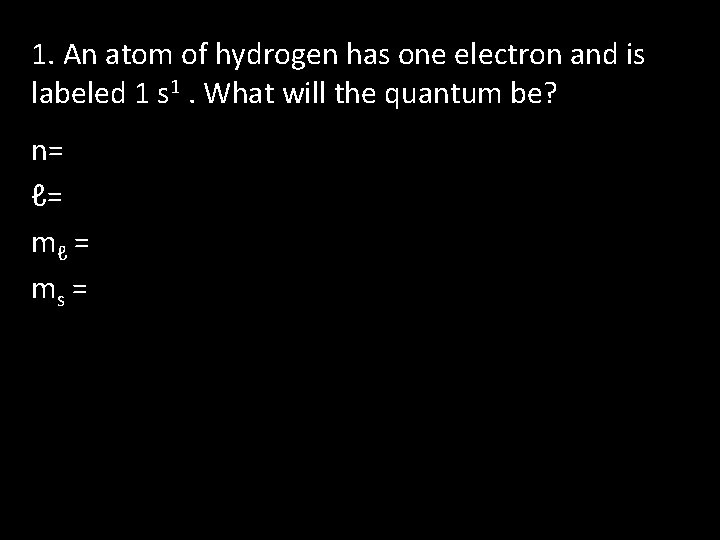

1. An atom of hydrogen has one electron and is labeled 1 s 1. What will the quantum be? n= ℓ= mℓ = ms =

1 st: Principal Quantum Number (n) 1 1 s Answer: n= 1

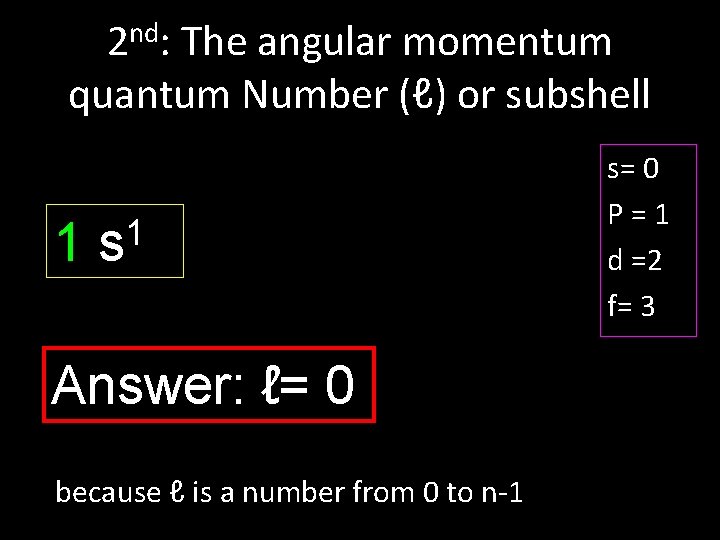

2 nd: The angular momentum quantum Number (ℓ) or subshell 1 1 s Answer: ℓ= 0 because ℓ is a number from 0 to n-1 s= 0 P=1 d =2 f= 3

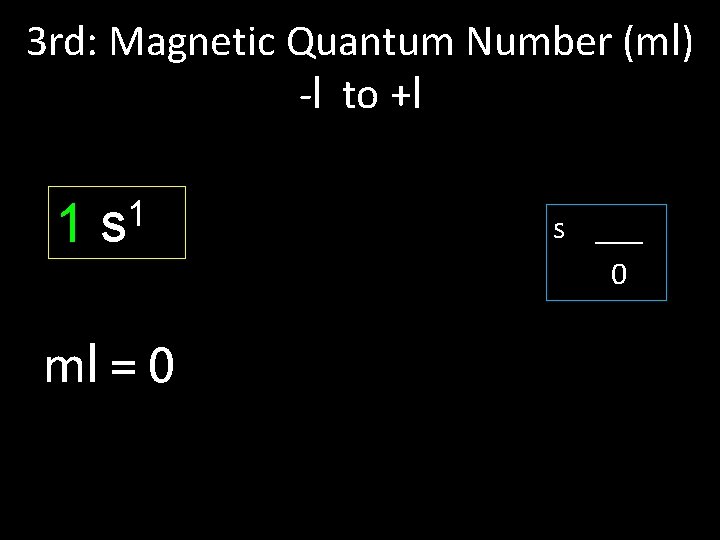

3 rd: Magnetic Quantum Number (ml) -l to +l 1 1 s ml = 0 s ___ 0

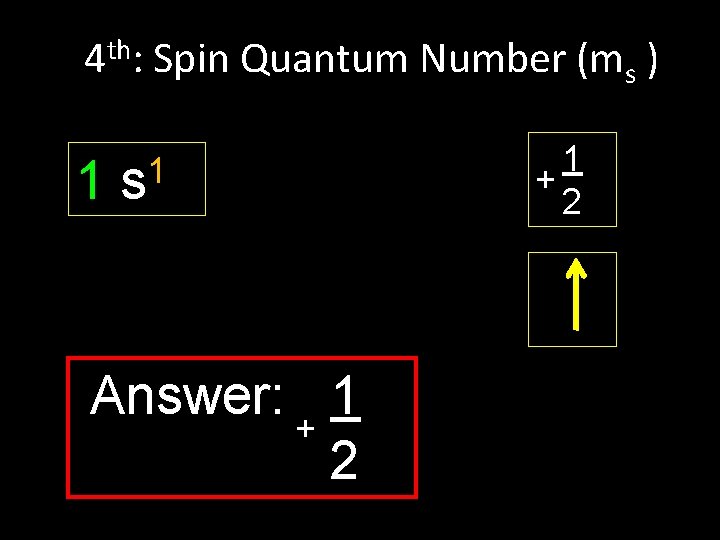

4 th: Spin Quantum Number (ms ) 1 1 s Answer: + 1 2 1 + 2

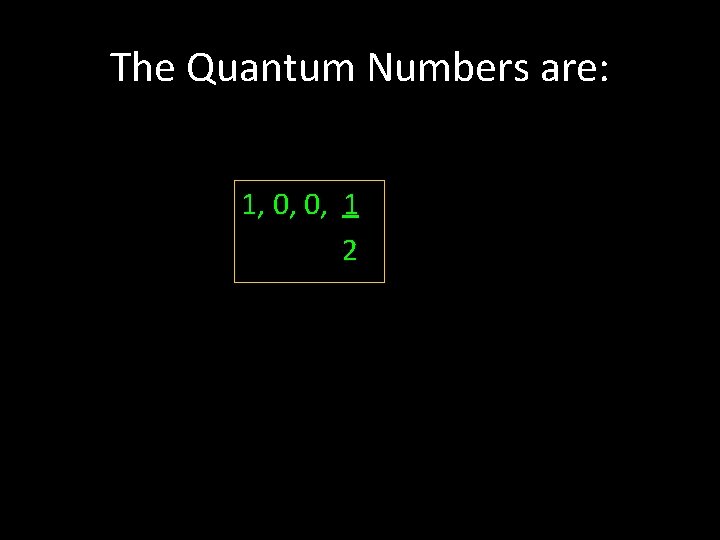

The Quantum Numbers are: 1, 0, 0, 1 2

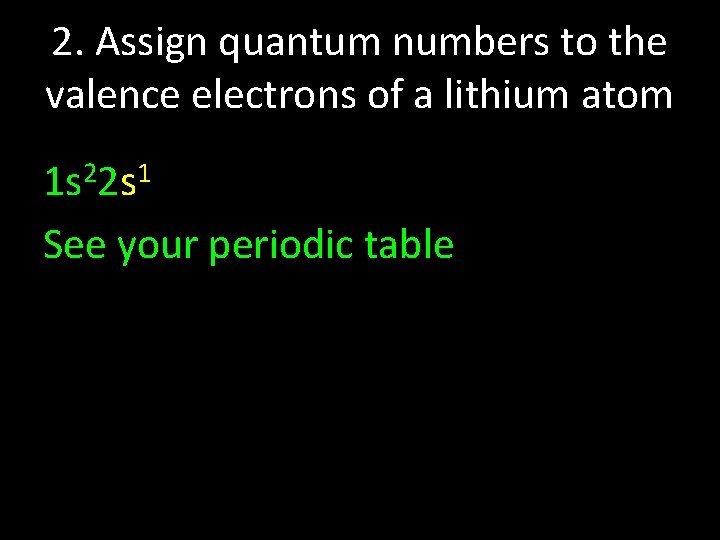

2. Assign quantum numbers to the valence electrons of a lithium atom 1 s 22 s 1 See your periodic table

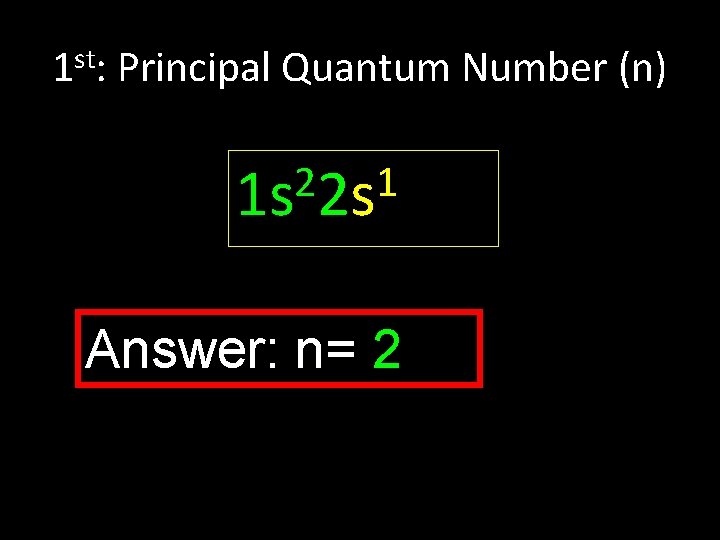

1 st: Principal Quantum Number (n) 2 1 1 s 2 s Answer: n= 2

2 nd: The angular momentum quantum Number (ℓ) or subshell 2 1 1 s 2 s Answer: ℓ= 0 s= 0 P=1 d =2 f= 3

3 rd: Magnetic Quantum Number (ml) -l to +l s ___ 2 1 1 s 2 s 0 ml = 0 , because the value of l is 0

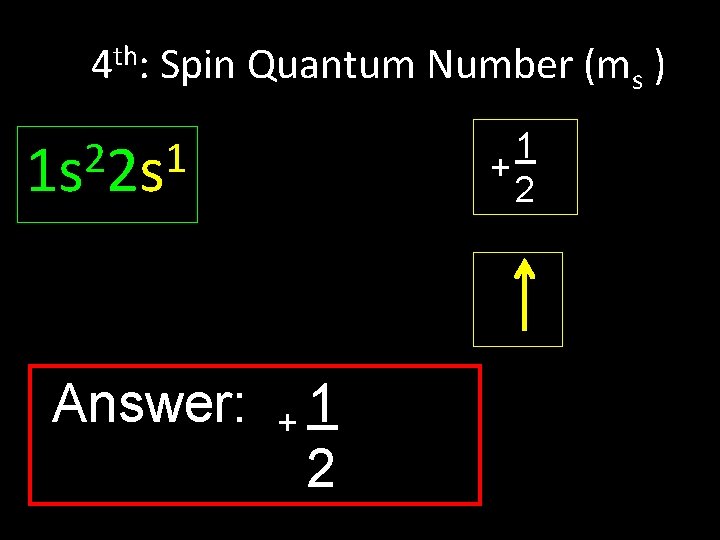

4 th: Spin Quantum Number (ms ) 1 + 2 2 1 1 s 2 s Answer: +1 2

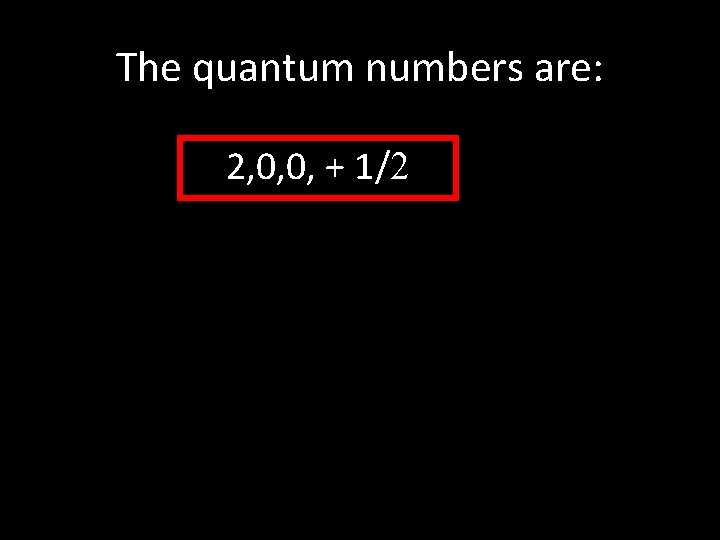

The quantum numbers are: 2, 0, 0, + 1/2

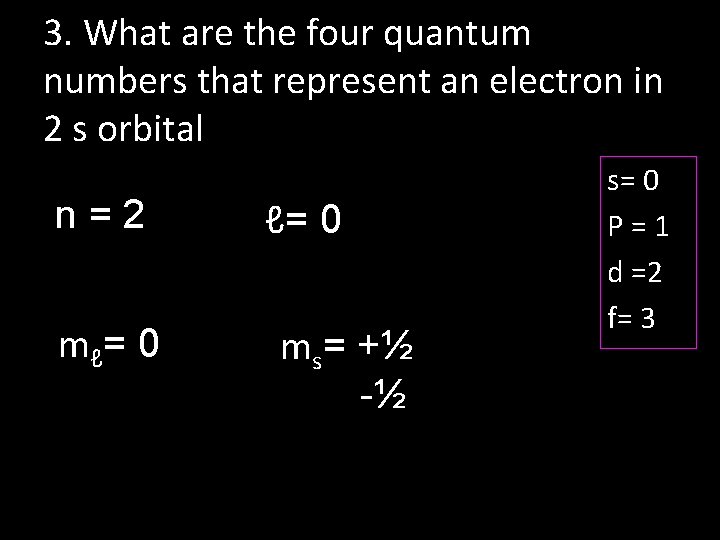

3. What are the four quantum numbers that represent an electron in 2 s orbital n=2 m ℓ= 0 ms= +½ -½ s= 0 P=1 d =2 f= 3

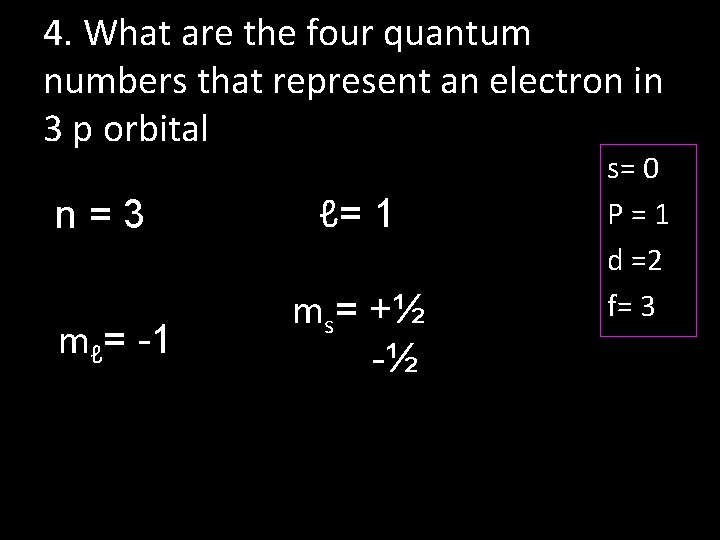

4. What are the four quantum numbers that represent an electron in 3 p orbital n=3 mℓ= -1 ℓ= 1 ms= +½ -½ s= 0 P=1 d =2 f= 3

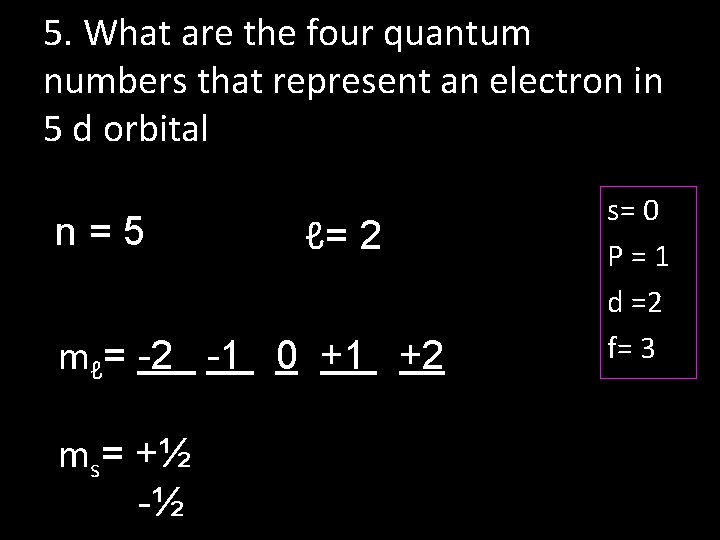

5. What are the four quantum numbers that represent an electron in 5 d orbital n=5 ℓ= 2 mℓ= -2 -1 0 +1 +2 ms= +½ -½ s= 0 P=1 d =2 f= 3

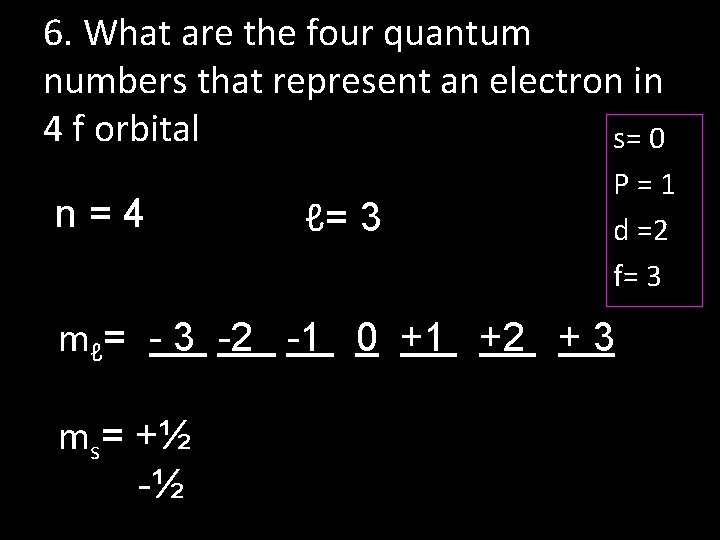

6. What are the four quantum numbers that represent an electron in 4 f orbital s= 0 n=4 ℓ= 3 P=1 d =2 f= 3 mℓ= - 3 -2 -1 0 +1 +2 + 3 ms= +½ -½

7. Where is an electron with the quantum numbers: n=4 mℓ = 0 ℓ=2 ms = +½ 4 d s= 0 P=1 d =2 f= 3

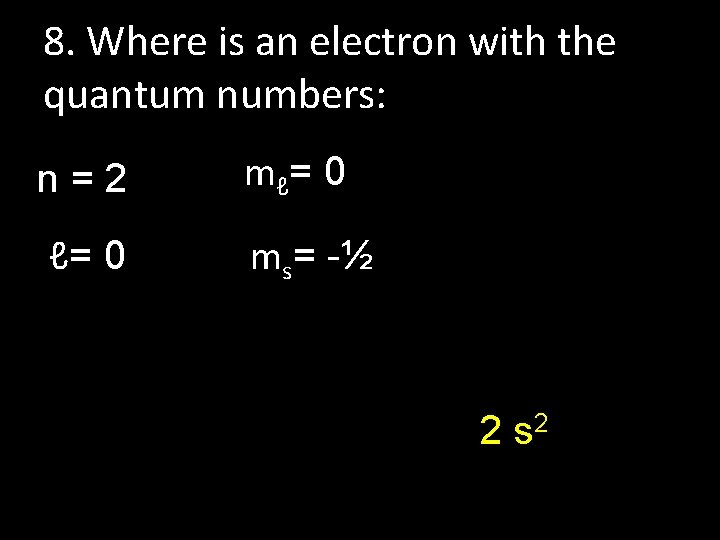

8. Where is an electron with the quantum numbers: n=2 m ℓ= 0 ms= -½ 2 s 2

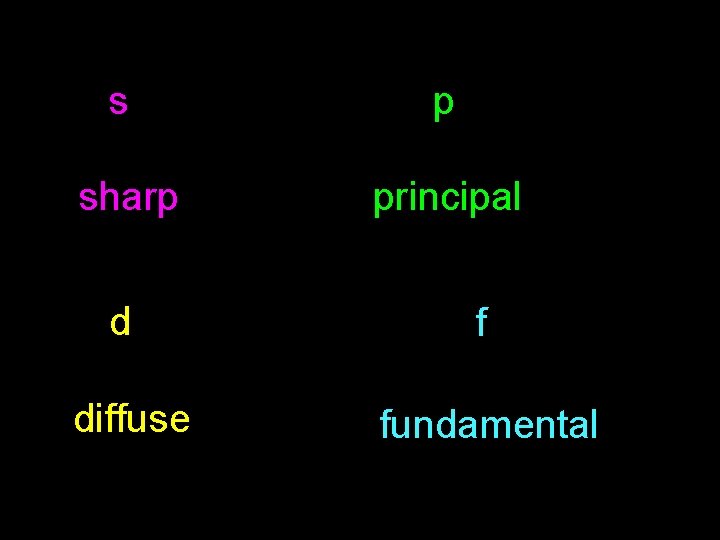

s p sharp principal d f diffuse fundamental

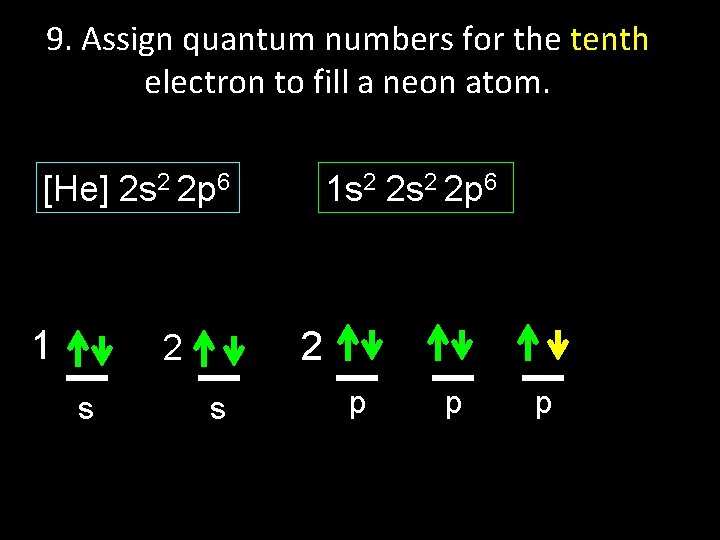

9. Assign quantum numbers for the tenth electron to fill a neon atom. [He] 2 s 2 2 p 6 1 2 2 s 1 s 2 2 p 6 s p p p

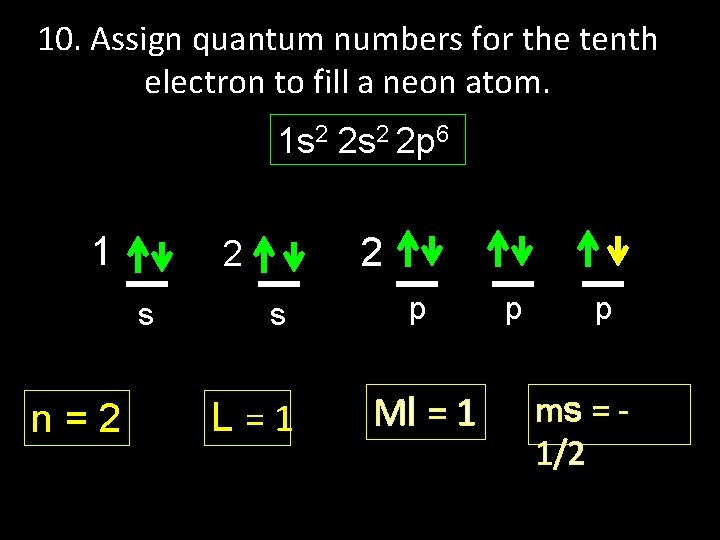

10. Assign quantum numbers for the tenth electron to fill a neon atom. 1 s 2 2 p 6 1 s n=2 2 2 s L=1 p Ml = 1 p p ms = 1/2

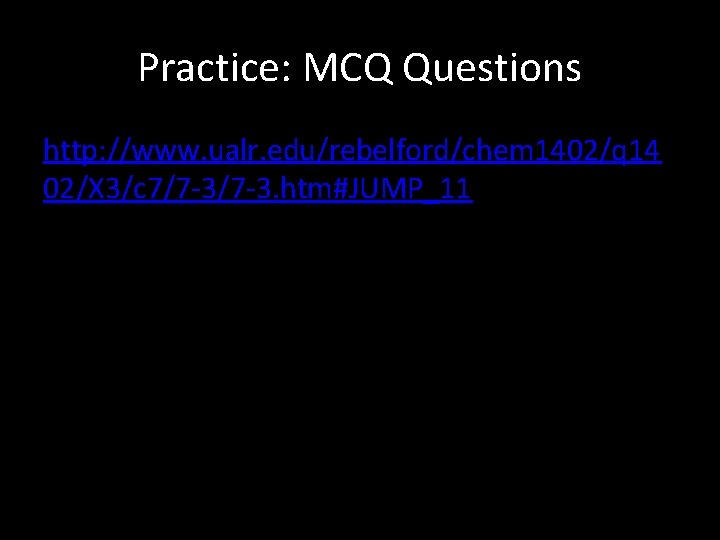

Practice: MCQ Questions http: //www. ualr. edu/rebelford/chem 1402/q 14 02/X 3/c 7/7 -3. htm#JUMP_11

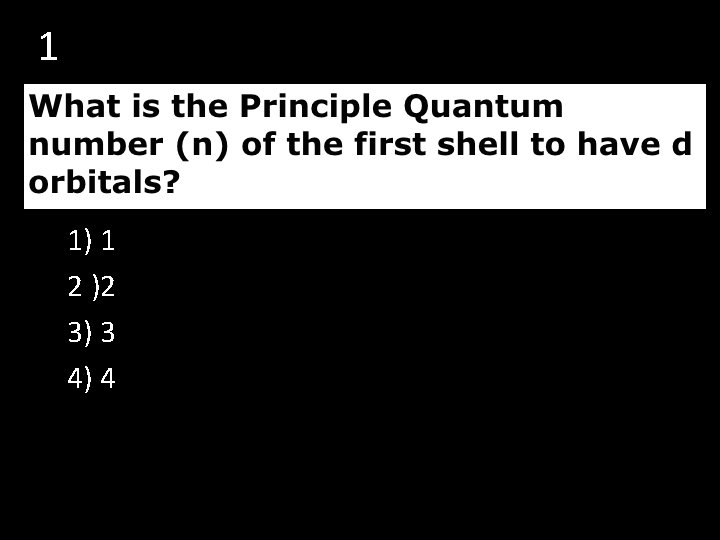

1 1) 1 2 )2 3) 3 4) 4

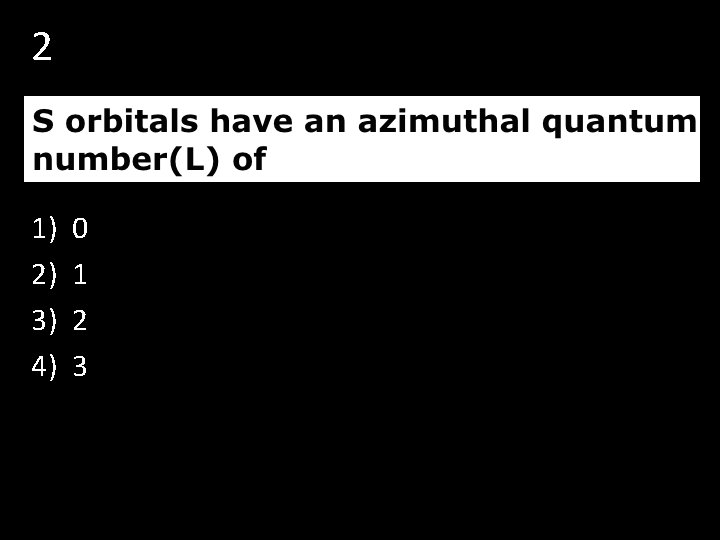

2 1) 2) 3) 4) 0 1 2 3

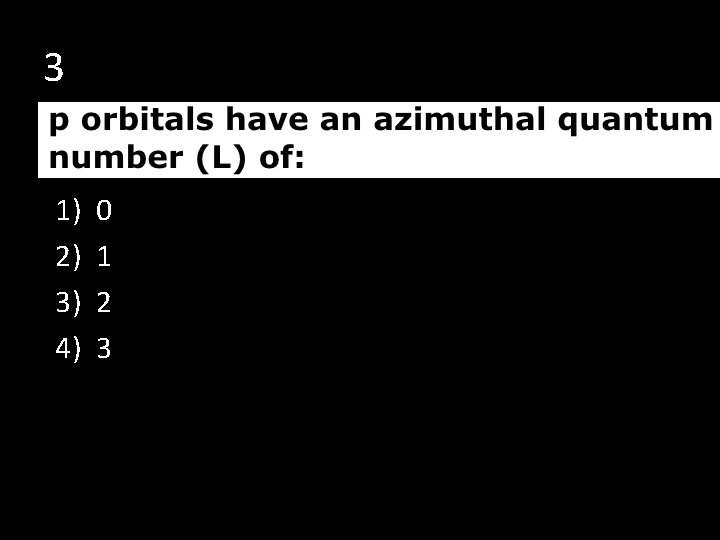

3 1) 2) 3) 4) 0 1 2 3

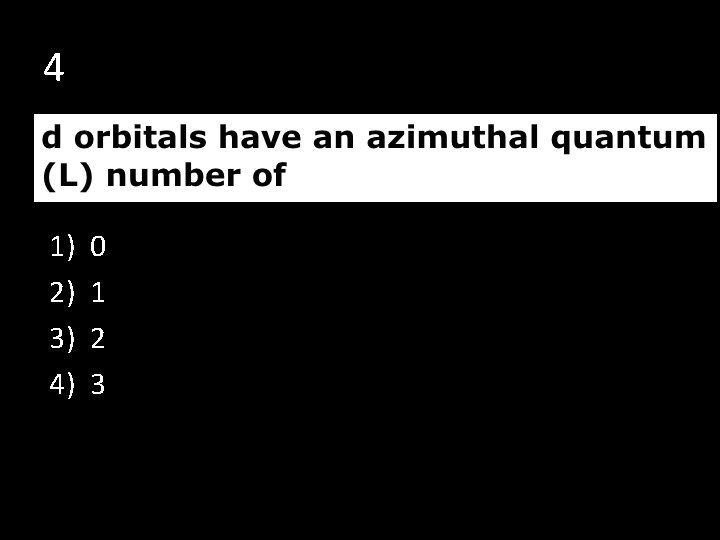

4 1) 2) 3) 4) 0 1 2 3

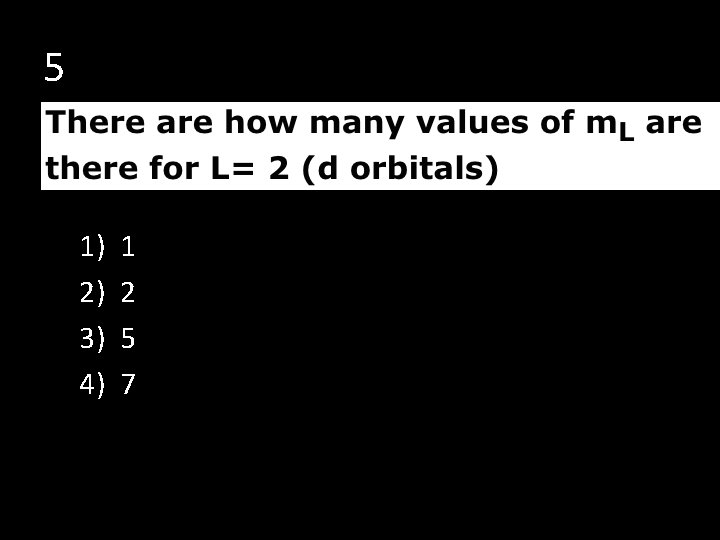

5 1) 2) 3) 4) 1 2 5 7

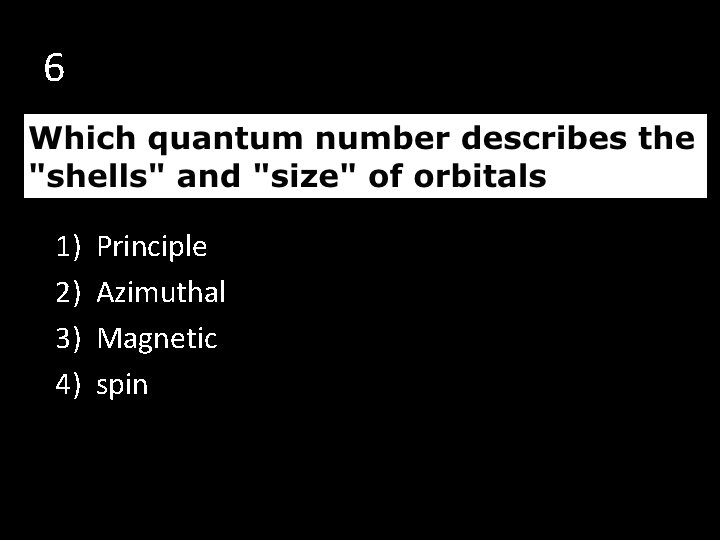

6 1) 2) 3) 4) Principle Azimuthal Magnetic spin

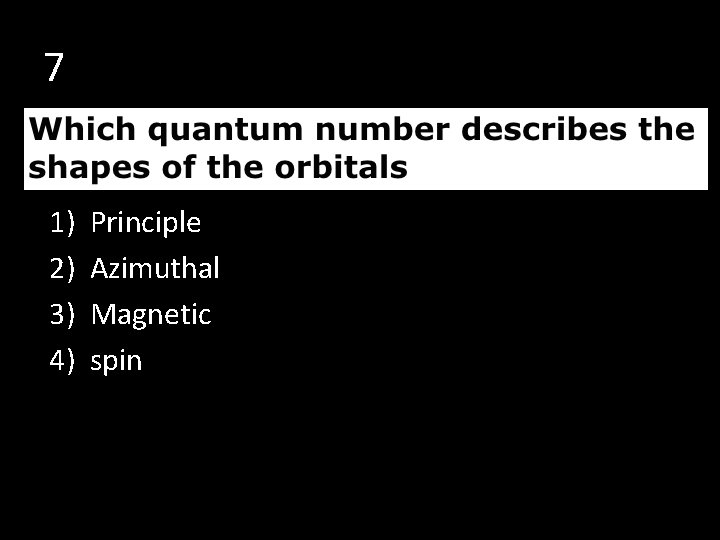

7 1) 2) 3) 4) Principle Azimuthal Magnetic spin

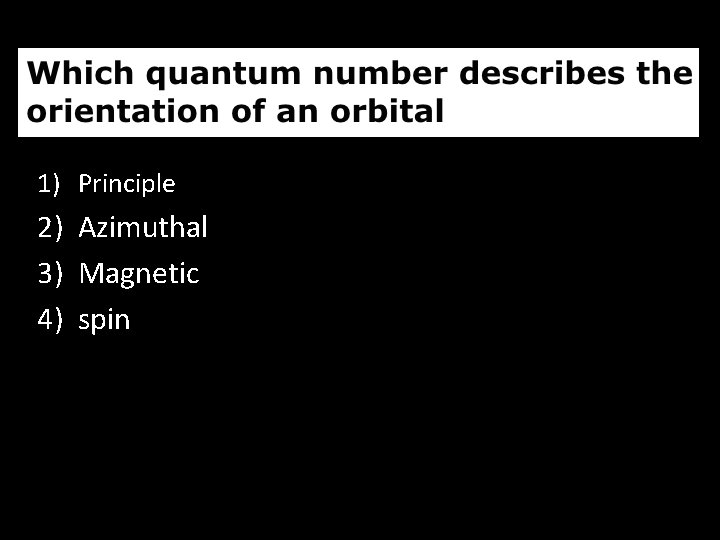

1) Principle 2) Azimuthal 3) Magnetic 4) spin

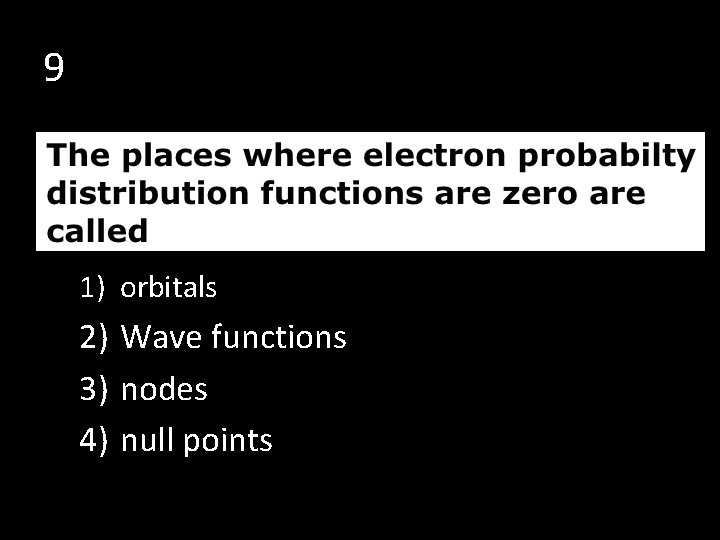

9 1) orbitals 2) Wave functions 3) nodes 4) null points

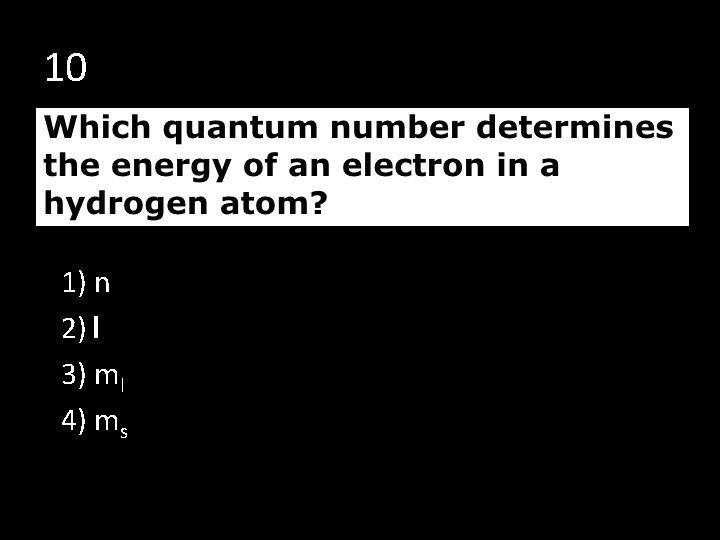

10 1) n 2) l 3) ml 4) ms

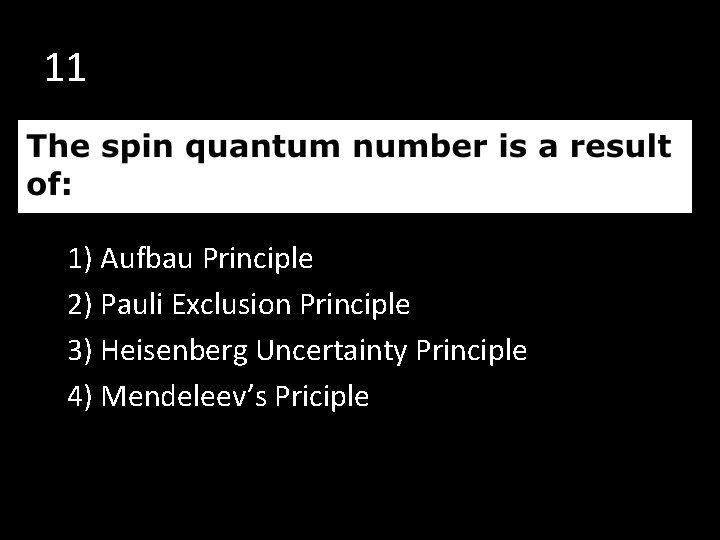

11 1) Aufbau Principle 2) Pauli Exclusion Principle 3) Heisenberg Uncertainty Principle 4) Mendeleev’s Priciple

END OF THE SHOW !!!

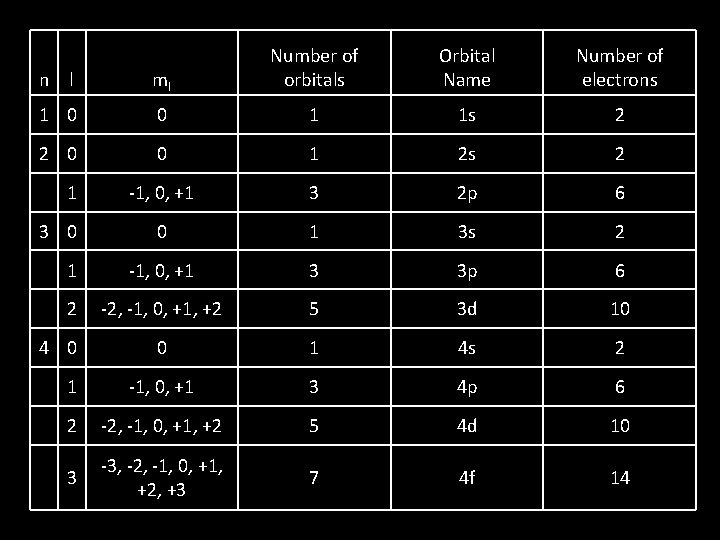

l ml Number of orbitals 1 0 0 1 1 s 2 2 0 0 1 2 s 2 -1, 0, +1 3 2 p 6 0 1 3 s 2 1 -1, 0, +1 3 3 p 6 2 -2, -1, 0, +1, +2 5 3 d 10 0 1 4 s 2 1 -1, 0, +1 3 4 p 6 2 -2, -1, 0, +1, +2 5 4 d 10 3 -3, -2, -1, 0, +1, +2, +3 7 4 f 14 n 1 3 0 4 0 Orbital Name Number of electrons
