Holo. Trak Ô Omni-Directional Reader Family n This line of Omni-Directional Bar Code Readers provides a revolutionary product for the bar code market place. IS 8500 IS 8400 n This line provides extraordinary reading capability with prices 1/3 to 1/2 that of other Omni-Directional Readers. IS 8530 IS 8300 Metrologic Instruments Inc.

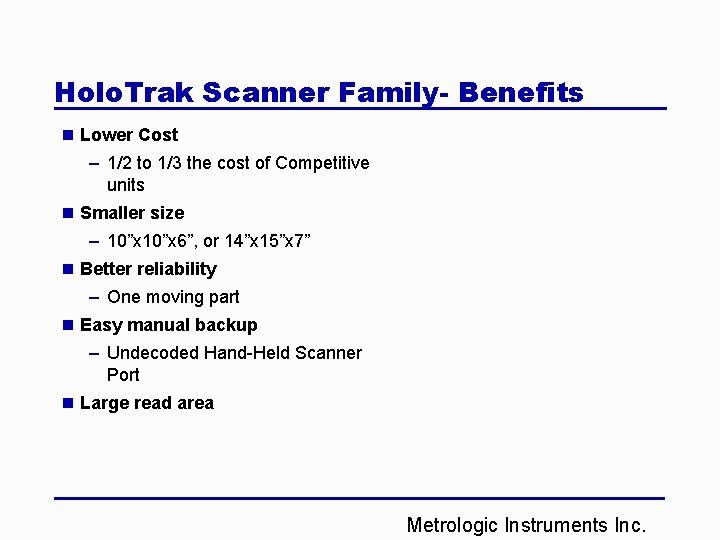

Holo. Trak Scanner Family- Benefits n Lower Cost – 1/2 to 1/3 the cost of Competitive units n Smaller size – 10”x 6”, or 14”x 15”x 7” n Better reliability – One moving part n Easy manual backup – Undecoded Hand-Held Scanner Port n Large read area Metrologic Instruments Inc.
Metrologic’s Holographic Technology n The price and performance is possible due to Holographic Technology, specifically the use of holographic lenses to focus the lasers. n The only moving part is the spinning disk with the lenses. n As each lens passes each laser, it focuses the beam to the proper focal length. n This results in low cost, small size and great reliability. Metrologic Instruments Inc.

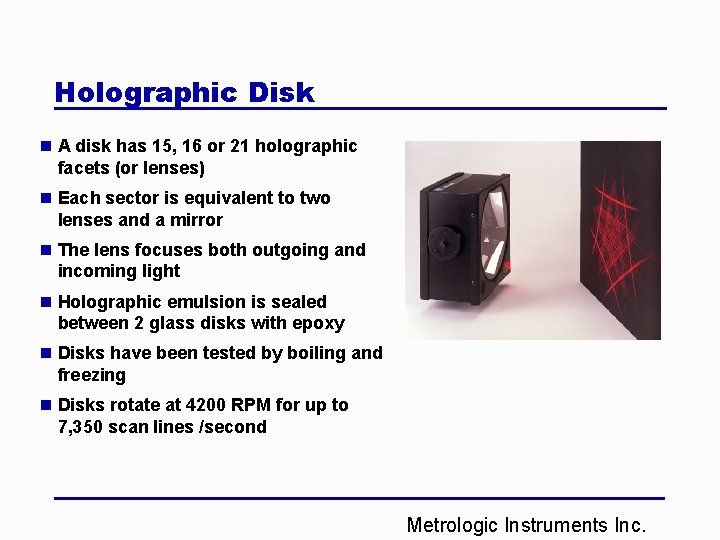

Holographic Disk n A disk has 15, 16 or 21 holographic facets (or lenses) n Each sector is equivalent to two lenses and a mirror n The lens focuses both outgoing and incoming light n Holographic emulsion is sealed between 2 glass disks with epoxy n Disks have been tested by boiling and freezing n Disks rotate at 4200 RPM for up to 7, 350 scan lines /second Metrologic Instruments Inc.
Holographic Scanning Laser diode Rotating Holodisc Facets (1) Focus Photodetector (3) Receive reflective light (2) Scan Bar Code Metrologic Instruments Inc.
Why Holo. Trak? n 3, 4 or 5 “Focal Lengths” n Each Holo. Trak has a complete scan pattern with its scan lines focused for that level IS 8000 Series n The overlapping read areas of the focal lengths provide the large read volumes and consistent read width Metrologic Instruments Inc.
Holo. Trak Products n Standard Scanners* n Special Scanners* n Interface Boxes n Cables n Holo. Trak Configuration Software n Renewal Parts *Scanners include power supply and mounting bracket Metrologic Instruments Inc.
IS 8500 -1 L n 5 VLD’s n 80 line omni-directional pattern n Aggressive 5, 600 scan lines/sec. n 40” DOF and 22” scan width with 17 mil codes n Accuracy: codes down to 13 mil at belt speeds up to 300 ft/min n 25 - 35 mil maximum bar width n Bar code aspect ratios up to 2. 51: 1 (W: H) 20 line scan pattern in each focal plane, repeated 4 times. Metrologic Instruments Inc.
IS 8300 -1 L n 5 VLD’s n 75 line omni-directional pattern n Aggressive 5, 250 scan lines/sec. n 20” DOF and 12” scan width with 8 mil codes n Accuracy: codes down to 8 mil at belt speeds up to 300 ft/min n 20 mil maximum bar width n Bar code aspect ratios up to 2. 51: 1(W: H) 15 line scan pattern in each focal plane, repeated 5 times. Metrologic Instruments Inc.
IS 8530 -1 L n 5 VLD’s n 105 line omni-directional pattern n Aggressive 5, 250 scan lines/sec. n 20” DOF and 12” scan width with 8 mil codes n Accuracy: codes down to 8 mil at belt speeds up to 300 ft/min n 20 mil maximum bar width n Bar code aspect ratios up to 2. 51: 1(W: H) 35 line scan pattern in each focal plane, repeated 3 times. Metrologic Instruments Inc.
IS 8400 -1 L n 3 VLD’s n Intended for hand-held scanner replacement n 48 line omni-directional pattern n 3, 360 scan lines/sec n 36” DOF and 22” scan width with 25 mil codes n Accuracy: codes down to 13 mil at belt speeds less than 100 ft/min n 25 - 30 mil maximum bar width n Aspect ratios up to 1. 51: 1 (W: H) 12 line scan pattern in each focal plane, repeated 4 times. Metrologic Instruments Inc.
Holo. Trak Target Applications n Package sortation/distribution n Overhead scanning – Truck loading / unloading – Vehicle scanning n Tire Tracking n Paper roll scanning n Baggage / cargo handling n Hand held scanner replacment – reduces amount of time to scan a label (move product or walk under reader) – can increase productivity and reduce cost Metrologic Instruments Inc.

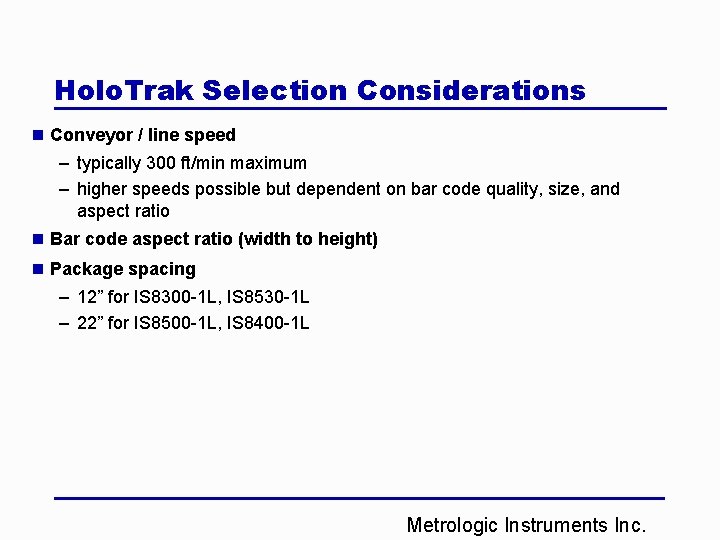

Holo. Trak Selection Considerations n Conveyor / line speed – typically 300 ft/min maximum – higher speeds possible but dependent on bar code quality, size, and aspect ratio n Bar code aspect ratio (width to height) n Package spacing – 12” for IS 8300 -1 L, IS 8530 -1 L – 22” for IS 8500 -1 L, IS 8400 -1 L Metrologic Instruments Inc.
Holo. Trak Selector Guide Bar Code Aspect Ratio 1. 5: 1 to 2. 5: 1 Under 1. 5: 1 Minimum Bar Code Width 8 - 13 mil Belt Speed Under 200 -300 fpm 200 fpm IS 8300 -1 L IS 8530 -1 L 13 - 50 mil 8 - 13 mil Belt Speed Under 100 -300 fpm 100 fpm IS 8400 -1 L IS 8500 -1 L IS 8300 -1 L IS 8530 -1 L Belt Speed Under 200 -300 fpm 200 fpm IS 8500 -1 L IS 8530 -1 L Is 8530 -1 L 13 - 50 mil Belt Speed Under 300 fpm IS 8500 -1 L IS 8300 -1 L IS 8530 -1 L Metrologic Instruments Inc.

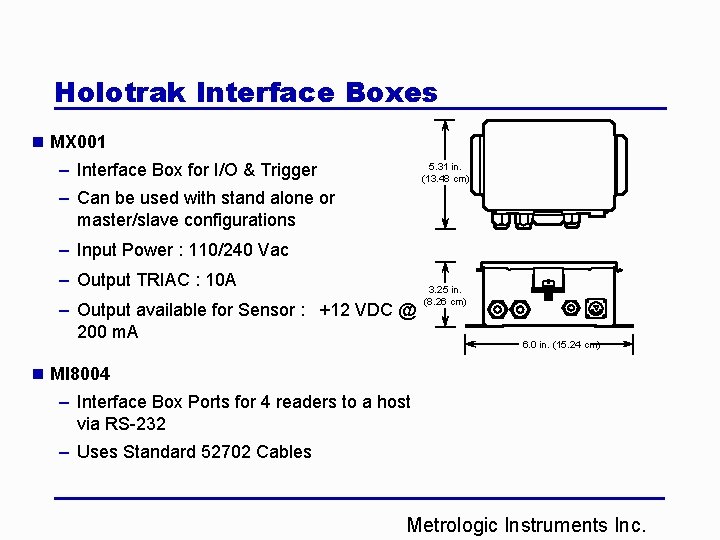

Holotrak Interface Boxes n MX 001 – Interface Box for I/O & Trigger 5. 31 in. (13. 48 cm) – Can be used with stand alone or master/slave configurations – Input Power : 110/240 Vac – Output TRIAC : 10 A – Output available for Sensor : +12 VDC @ 200 m. A 3. 25 in. (8. 26 cm) 6. 0 in. (15. 24 cm) n MI 8004 – Interface Box Ports for 4 readers to a host via RS-232 – Uses Standard 52702 Cables Metrologic Instruments Inc.
Holo. Trak Communications Cables n 52707 – Holotrak Configuration Cable (RS-232) – 8 Feet – 25 Pin Female (Scanner connection) to 9 Pin Female (Host connection) n 52703 – Holo. Trak terminated Cable for Host Communications (RS 232) – 20 Feet – 25 Pin Female (Scanner connection) to 9 Pin Female (Host connection) Metrologic Instruments Inc.
Holo. Trak Interconnection Cables n 52707 – Reader to I/O Interface Box Cable n 52708 – Master. Scanner to Slave Scanner Cable n 52709 – Master Scanner to Slave Scanner and I/O Interface Box Cable Metrologic Instruments Inc.
Holoset Configuration Software n 45713 – DOS based program – Configures readers – Upload current configurations from readers – Saves configurations to file – Download saved configurations to readers Metrologic Instruments Inc.
Holo. Trak Spare Parts n 45524 – Top Cover/Window for IS 8300 -1 L n 45523 – Top Cover/ Window for IS 8400 -1 L, IS 8500 -1 L n 45615 – Mounting Bracket for IS 8300 -1 L n 45616 – Mounting Bracket for IS 8400 -1 L, IS 8500 -1 L n 45947 - 120 VAC n 45946 - 220 VAC n 45949 - 240 VAC – Power Supply for LH Series Readers Metrologic Instruments Inc.
Holo. Trak and I/O Interface Box To Host running 2376 Programming Software Holo. Trak Scanner MX 001 52702 or 52703 RS-232 52708 I/O Interface Box IS 8000 Series Power Supply Metrologic Instruments Inc.
Holo. Trak Master/Slave Configuration To Host running 2376 Programming Software Holo. Trak Scanner Master IS 800 Series 52702 or 52703 RS-232 Holo. Trak Scanner Slave IS 8000 Series 52707 Power Supply Metrologic Instruments Inc.
Holo. Trak Master/Slave Configuration with I/O Interface Box To Host running 2376 Programming Software Holo. Trak Scanner Master IS 8000 Series 52702 or 52703 MX 0001 I/O Interface Box RS-232 Holo. Trak Scanner Slave IS 8000 Series 52709 Power Supply Metrologic Instruments Inc.
4 Holo. Trak Scanners with Multiplexer Box To Host running 2376 Programming Software 52702 or 52703 Multiplexer Box RS-232 MI 8004 52702 Holo. Tr ak IS 8000 Series Holo. Trak IS 8000 Series Metrologic Instruments Inc.

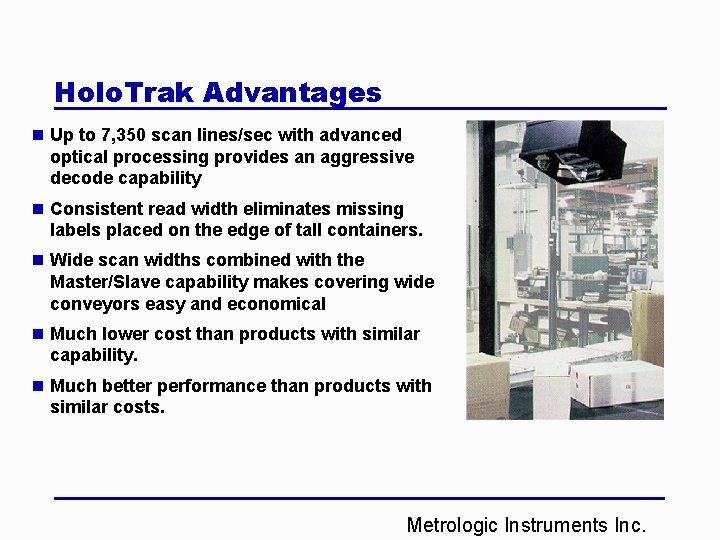

Holo. Trak Advantages n Up to 7, 350 scan lines/sec with advanced optical processing provides an aggressive decode capability n Consistent read width eliminates missing labels placed on the edge of tall containers. n Wide scan widths combined with the Master/Slave capability makes covering wide conveyors easy and economical n Much lower cost than products with similar capability. n Much better performance than products with similar costs. Metrologic Instruments Inc.
