HOERBIGER Press brake systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 3

HOERBIGER Press brake Systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 4

HOERBIGER Press brake systems Covering all requirements from mid to high end CNC machines e. Pr. AX® max e. Pr. AX®control High End AKB April 2017 e AMB + APB (PLM) anc Mid Range rm rfo Pe e. Pr. AX®basic Low Range Division Hydraulics – BU Machinery Sales 5

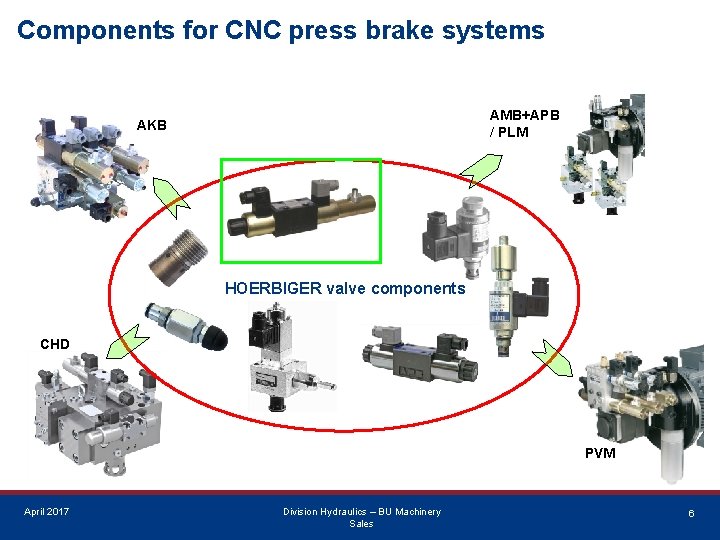

Components for CNC press brake systems AMB+APB / PLM AKB HOERBIGER valve components CHD PVM April 2017 Division Hydraulics – BU Machinery Sales 6

HOERBIGER Press brake systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 7

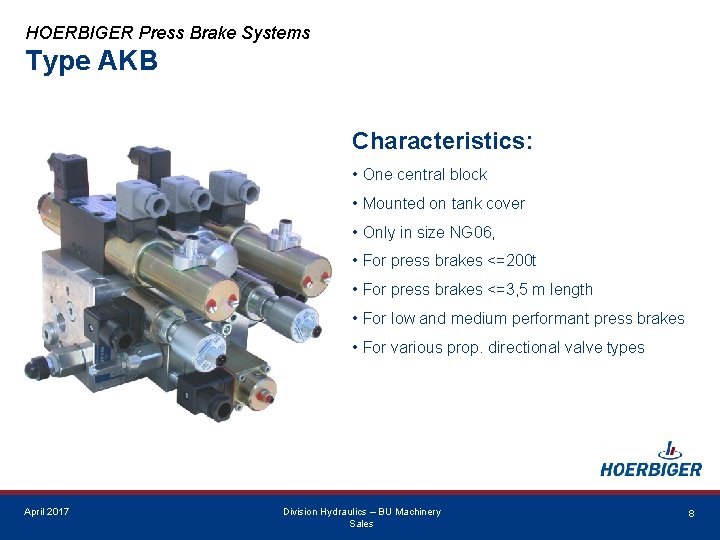

HOERBIGER Press Brake Systems Type AKB Characteristics: • One central block • Mounted on tank cover • Only in size NG 06, • For press brakes <=200 t • For press brakes <=3, 5 m length • For low and medium performant press brakes • For various prop. directional valve types 2 April 2017 Division Hydraulics – BU Machinery Sales 8

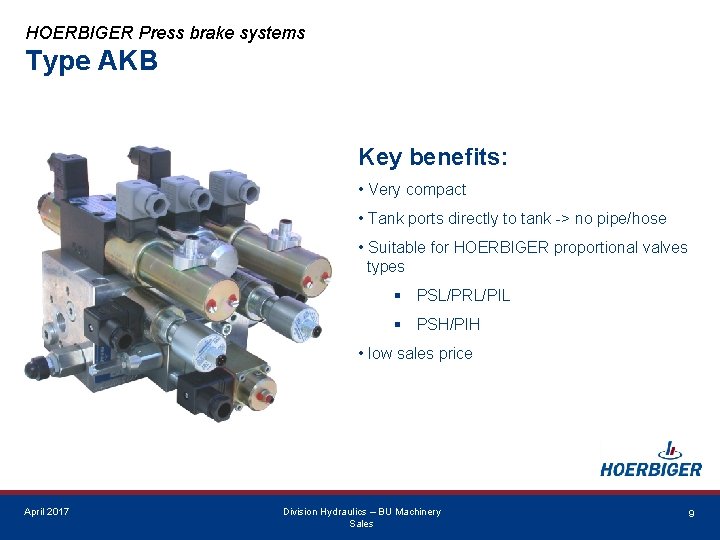

HOERBIGER Press brake systems Type AKB Key benefits: • Very compact • Tank ports directly to tank -> no pipe/hose • Suitable for HOERBIGER proportional valves types § PSL/PRL/PIL § PSH/PIH • low sales price 2 April 2017 Division Hydraulics – BU Machinery Sales 9

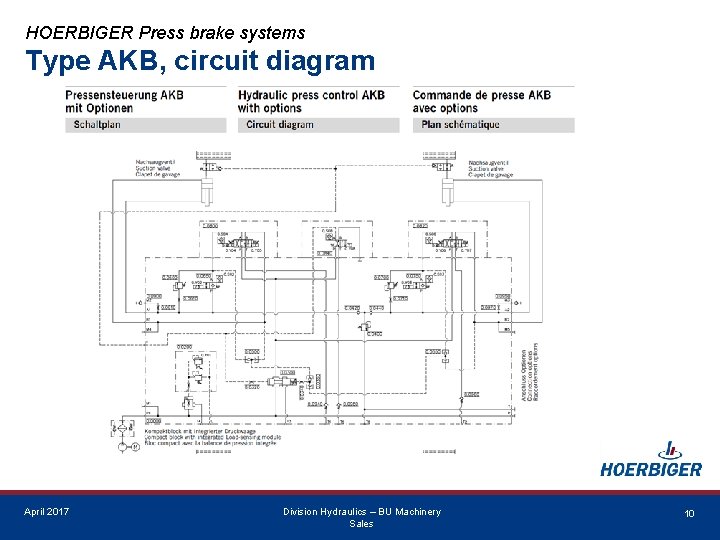

HOERBIGER Press brake systems Type AKB, circuit diagram 2 April 2017 Division Hydraulics – BU Machinery Sales 10

HOERBIGER Press brake systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 11

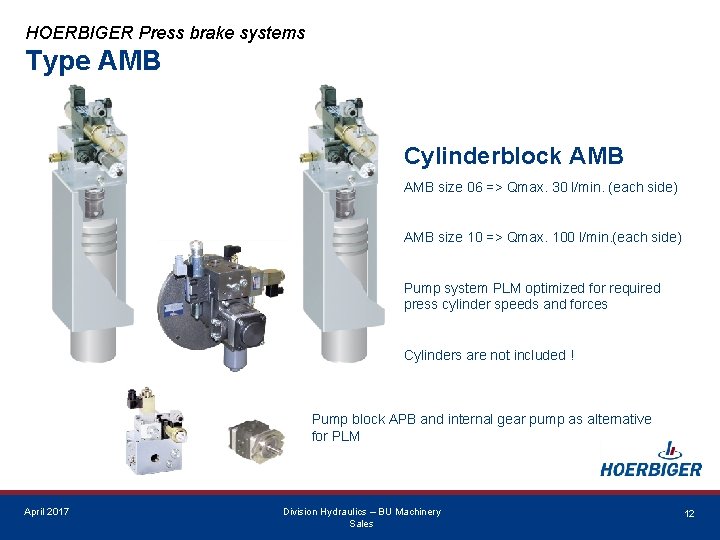

HOERBIGER Press brake systems Type AMB Cylinderblock AMB size 06 => Qmax. 30 l/min. (each side) AMB size 10 => Qmax. 100 l/min. (each side) Pump system PLM optimized for required press cylinder speeds and forces Cylinders are not included ! Pump block APB and internal gear pump as alternative for PLM 2 April 2017 Division Hydraulics – BU Machinery Sales 12

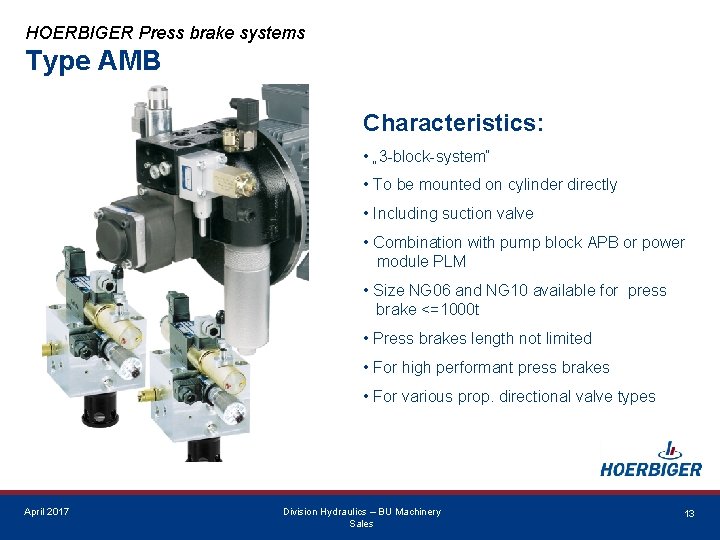

HOERBIGER Press brake systems Type AMB Characteristics: • „ 3 -block-system“ • To be mounted on cylinder directly • Including suction valve • Combination with pump block APB or power module PLM • Size NG 06 and NG 10 available for press brake <=1000 t • Press brakes length not limited • For high performant press brakes • For various prop. directional valve types 2 April 2017 Division Hydraulics – BU Machinery Sales 13

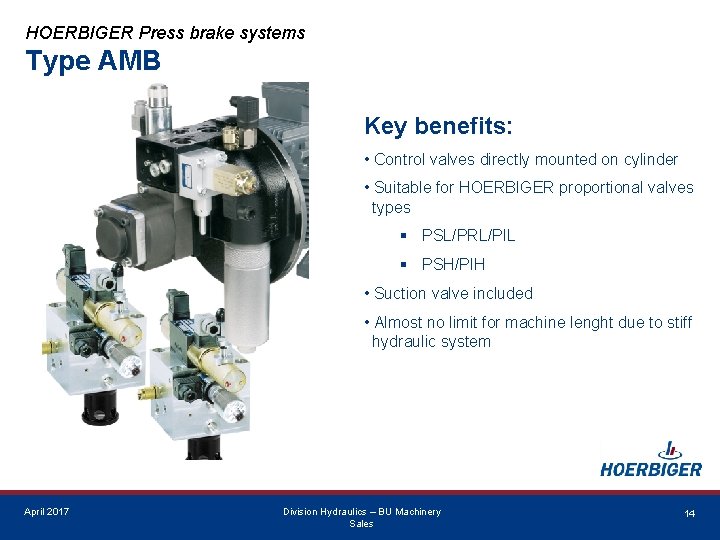

HOERBIGER Press brake systems Type AMB Key benefits: • Control valves directly mounted on cylinder • Suitable for HOERBIGER proportional valves types § PSL/PRL/PIL § PSH/PIH • Suction valve included • Almost no limit for machine lenght due to stiff hydraulic system 2 April 2017 Division Hydraulics – BU Machinery Sales 14

HOERBIGER Press brake systems Type AMB, circuit diagram 2 April 2017 Division Hydraulics – BU Machinery Sales 15

HOERBIGER Press brake systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 16

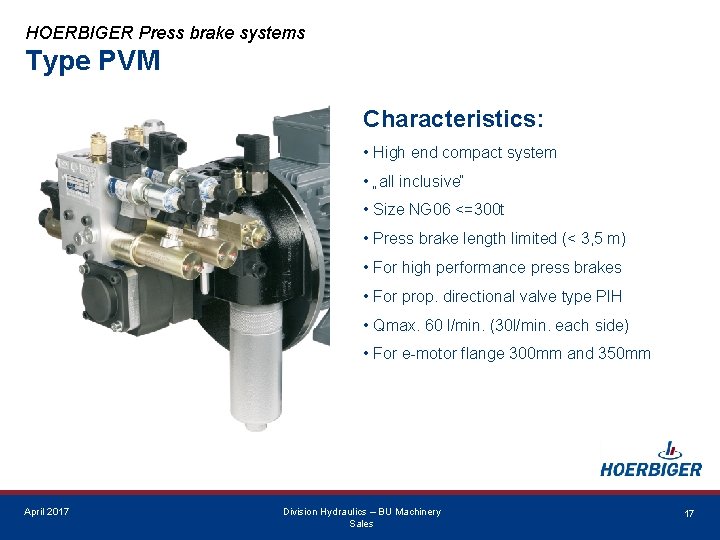

HOERBIGER Press brake systems Type PVM Characteristics: • High end compact system • „all inclusive“ • Size NG 06 <=300 t • Press brake length limited (< 3, 5 m) • For high performance press brakes • For prop. directional valve type PIH • Qmax. 60 l/min. (30 l/min. each side) • For e-motor flange 300 mm and 350 mm 2 April 2017 Division Hydraulics – BU Machinery Sales 17

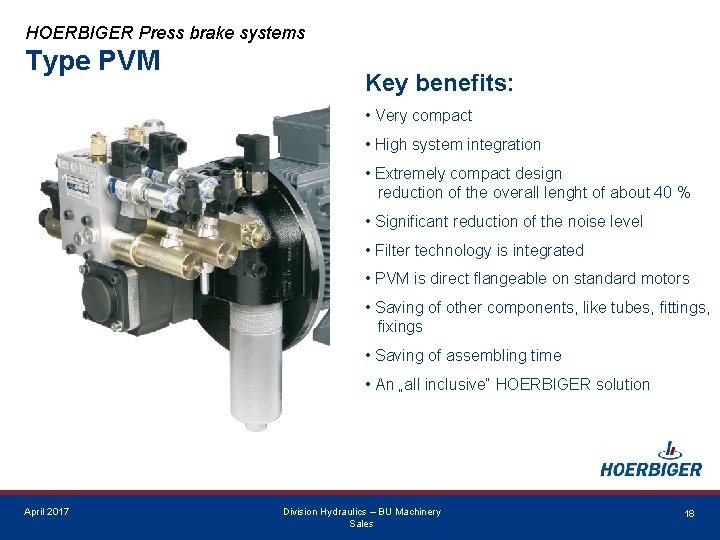

HOERBIGER Press brake systems Type PVM Key benefits: • Very compact • High system integration • Extremely compact design reduction of the overall lenght of about 40 % • Significant reduction of the noise level • Filter technology is integrated • PVM is direct flangeable on standard motors • Saving of other components, like tubes, fittings, fixings • Saving of assembling time • An „all inclusive“ HOERBIGER solution 2 April 2017 Division Hydraulics – BU Machinery Sales 18

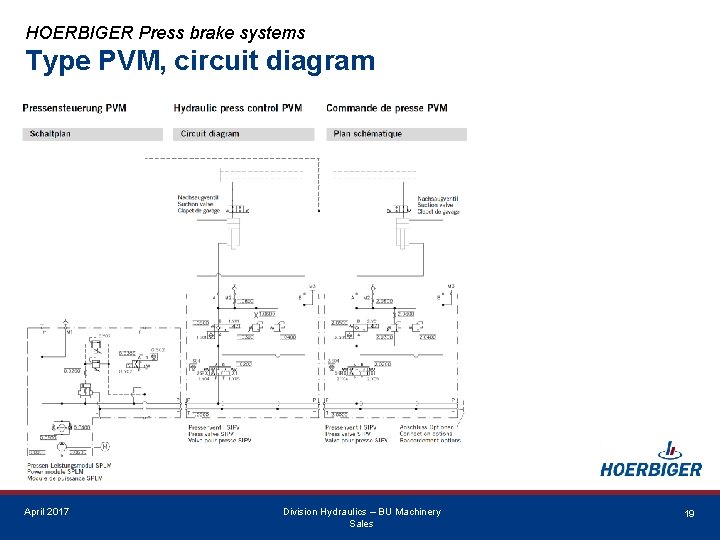

HOERBIGER Press brake systems Type PVM, circuit diagram 2 April 2017 Division Hydraulics – BU Machinery Sales 19

HOERBIGER Press brake systems Content Portfolio HOERBIGER Press Brake Systems CNC-Press Brake System AKB CNC-Press Brake System AMB CNC-Press Brake System PVM CNC-Press Brake System e. Pr. AX® family April 2017 Division Hydraulics – BU Machinery Sales 20

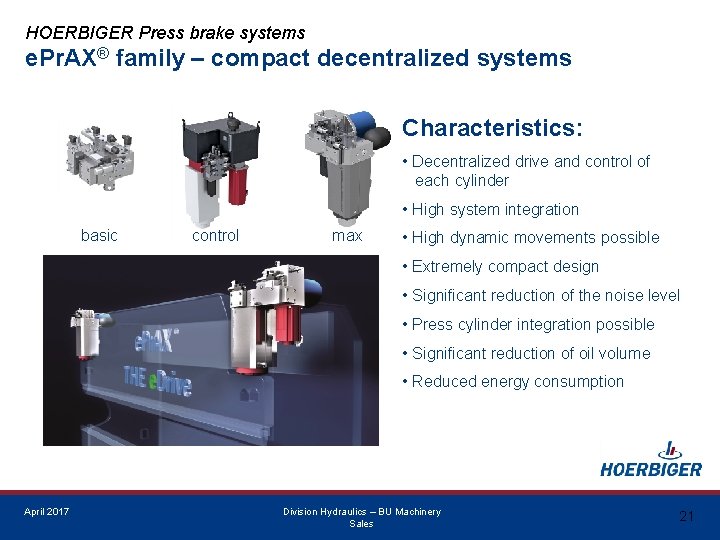

HOERBIGER Press brake systems e. Pr. AX® family – compact decentralized systems Characteristics: • Decentralized drive and control of each cylinder • High system integration basic control max • High dynamic movements possible • Extremely compact design • Significant reduction of the noise level • Press cylinder integration possible • Significant reduction of oil volume • Reduced energy consumption April 2017 Division Hydraulics – BU Machinery Sales 21

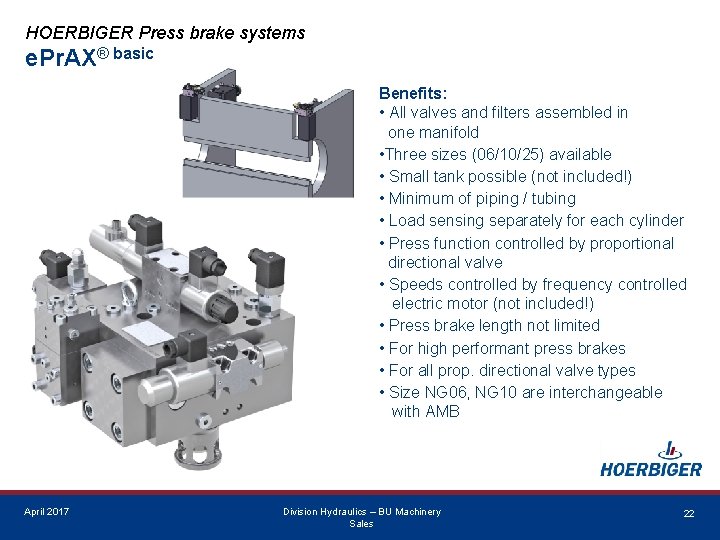

HOERBIGER Press brake systems e. Pr. AX® basic Benefits: • All valves and filters assembled in one manifold • Three sizes (06/10/25) available • Small tank possible (not included!) • Minimum of piping / tubing • Load sensing separately for each cylinder • Press function controlled by proportional directional valve • Speeds controlled by frequency controlled electric motor (not included!) • Press brake length not limited • For high performant press brakes • For all prop. directional valve types • Size NG 06, NG 10 are interchangeable with AMB 2 April 2017 Division Hydraulics – BU Machinery Sales 22

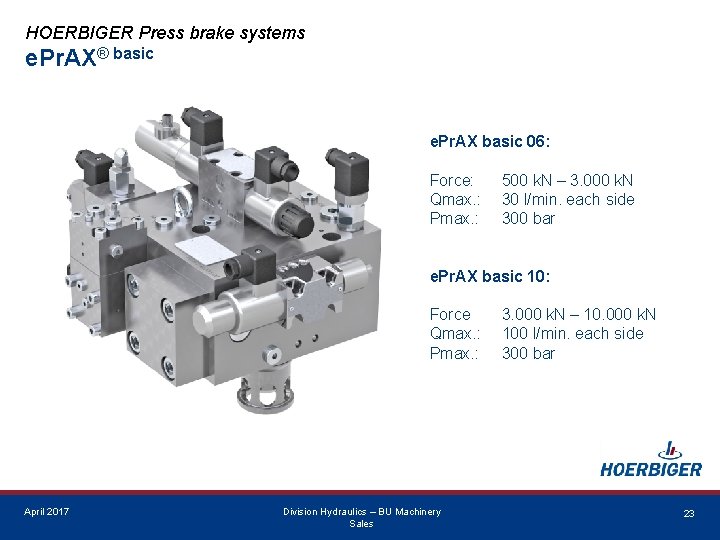

HOERBIGER Press brake systems e. Pr. AX® basic e. Pr. AX basic 06: Force: Qmax. : Pmax. : 500 k. N – 3. 000 k. N 30 l/min. each side 300 bar e. Pr. AX basic 10: Force Qmax. : Pmax. : April 2017 Division Hydraulics – BU Machinery Sales 3. 000 k. N – 10. 000 k. N 100 l/min. each side 300 bar 23

HOERBIGER Press brake systems e. Pr. AX® basic 25: 10. 000 k. N – 30. 000 k. N Qmax. : 2 x 200 l/min. Pmax. : 300 bar April 2017 Division Hydraulics – BU Machinery Sales 24

HOERBIGER Press brake systems e. Pr. AX® basic , circuit diagram size 06 April 2017 Division Hydraulics BU Machinery HOERBIGER Press–Brake Systems Sales 25

HOERBIGER Press brake systems e. Pr. AX® basic , circuit diagram size 10 April 2017 Division Hydraulics BU Machinery HOERBIGER Press–Brake Systems Sales 26

HOERBIGER Press brake systems e. Pr. AX® basic , circuit diagram size 25 April 2017 Division Hydraulics BU Machinery HOERBIGER Press–Brake Systems Sales 27

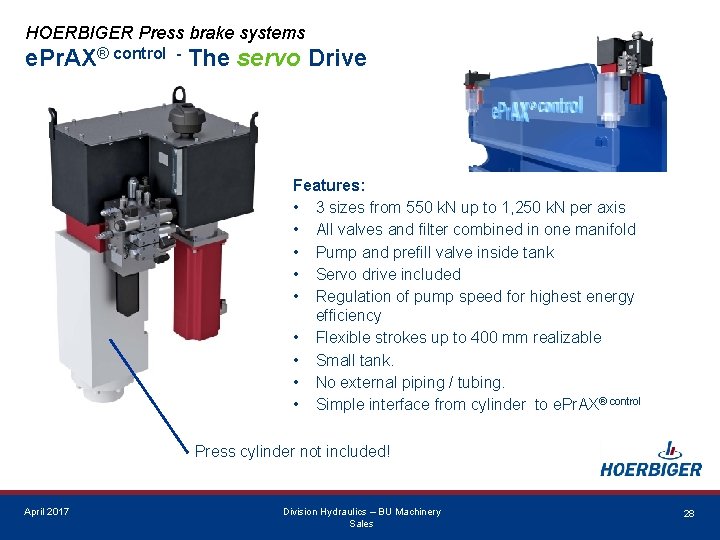

HOERBIGER Press brake systems e. Pr. AX® control - The servo Drive Features: • 3 sizes from 550 k. N up to 1, 250 k. N per axis • All valves and filter combined in one manifold • Pump and prefill valve inside tank • Servo drive included • Regulation of pump speed for highest energy efficiency • Flexible strokes up to 400 mm realizable • Small tank. • No external piping / tubing. • Simple interface from cylinder to e. Pr. AX® control Press cylinder not included! April 2017 Division Hydraulics – BU Machinery Sales 28

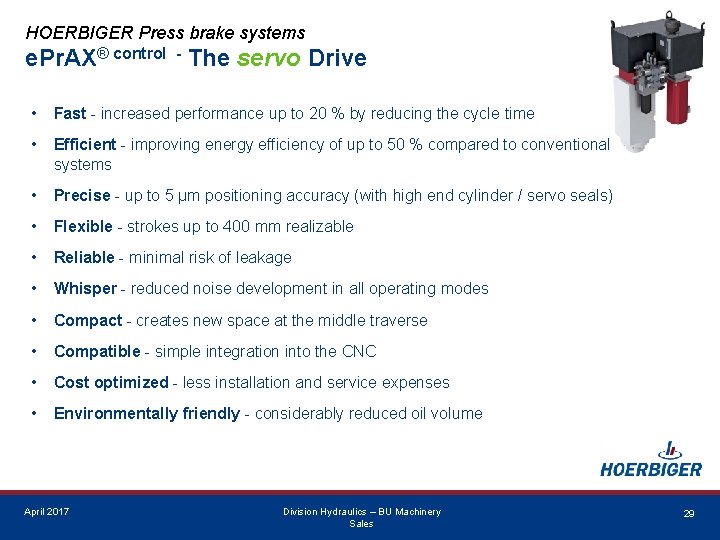

HOERBIGER Press brake systems e. Pr. AX® control - The servo Drive • Fast - increased performance up to 20 % by reducing the cycle time • Efficient - improving energy efficiency of up to 50 % compared to conventional systems • Precise - up to 5 µm positioning accuracy (with high end cylinder / servo seals) • Flexible - strokes up to 400 mm realizable • Reliable - minimal risk of leakage • Whisper - reduced noise development in all operating modes • Compact - creates new space at the middle traverse • Compatible - simple integration into the CNC • Cost optimized - less installation and service expenses • Environmentally friendly - considerably reduced oil volume April 2017 Division Hydraulics – BU Machinery Sales 29

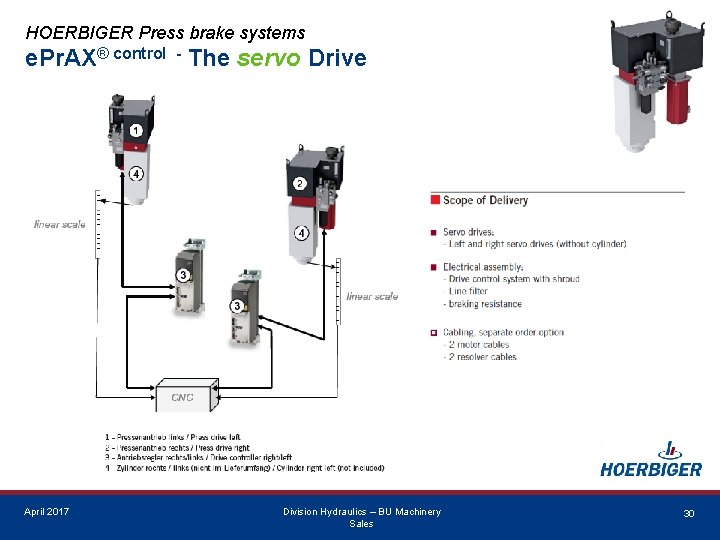

HOERBIGER Press brake systems e. Pr. AX® control - The servo Drive April 2017 Division Hydraulics – BU Machinery Sales 30

HOERBIGER Press brake systems e. Pr. AX® control - The servo Drive, simplified circuit diagram Prefill valve Servo motor High retaining valves Switching valve Internal gear pump Pressure filter April 2017 Division Hydraulics – BU Machinery Sales 31

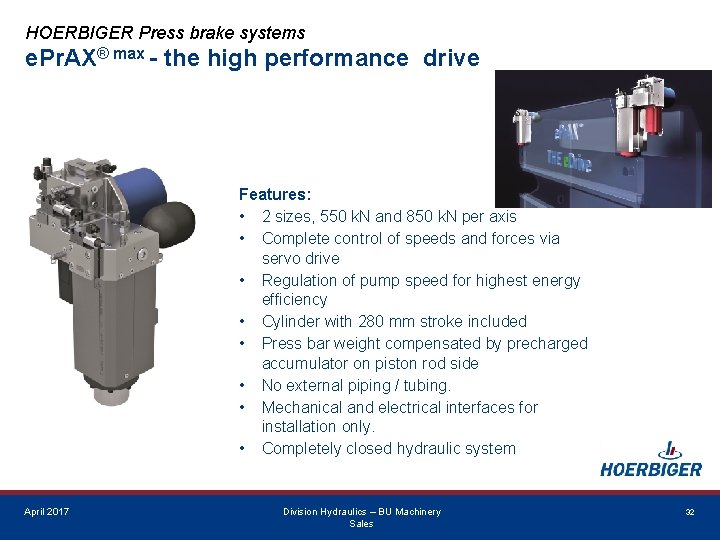

HOERBIGER Press brake systems e. Pr. AX® max - the high performance drive Features: • 2 sizes, 550 k. N and 850 k. N per axis • Complete control of speeds and forces via servo drive • Regulation of pump speed for highest energy efficiency • Cylinder with 280 mm stroke included • Press bar weight compensated by precharged accumulator on piston rod side • No external piping / tubing. • Mechanical and electrical interfaces for installation only. • Completely closed hydraulic system April 2017 Division Hydraulics – BU Machinery Sales 32

HOERBIGER Press brake systems e. Pr. AX® max - unique press brake drive approach Circuit diagramm e. Pr. AX 15 left side April 2017 right side Division Hydraulics – BU Machinery Sales 33

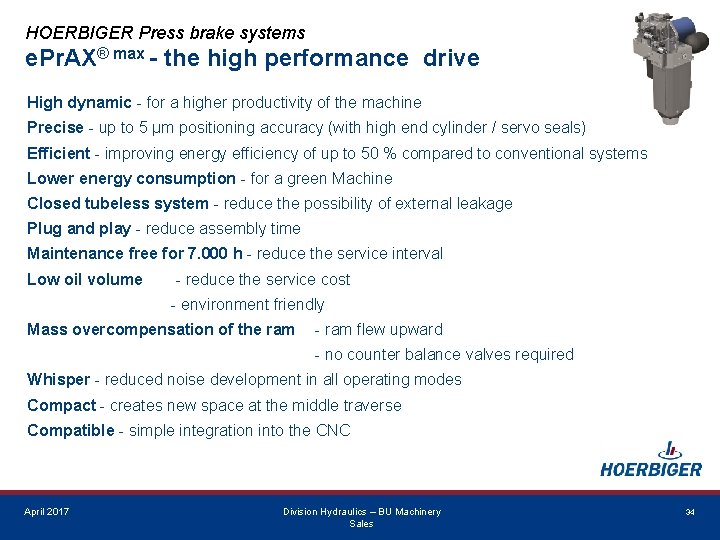

HOERBIGER Press brake systems e. Pr. AX® max - the high performance drive High dynamic - for a higher productivity of the machine Precise - up to 5 µm positioning accuracy (with high end cylinder / servo seals) Efficient - improving energy efficiency of up to 50 % compared to conventional systems Lower energy consumption - for a green Machine Closed tubeless system - reduce the possibility of external leakage Plug and play - reduce assembly time Maintenance free for 7. 000 h - reduce the service interval Low oil volume - reduce the service cost - environment friendly Mass overcompensation of the ram - ram flew upward - no counter balance valves required Whisper - reduced noise development in all operating modes Compact - creates new space at the middle traverse Compatible - simple integration into the CNC April 2017 Division Hydraulics – BU Machinery Sales 34

HOERBIGER Press brake systems e. Pr. AX® max - Reduce cycle time, increase productivity Reduction of cycle time at same speeds (fast approach speed 230 mm/s; working speed 10 mm/s) by shorter ramps and minimized holding times. % ed Sav April 2017 Division Hydraulics – BU Machinery Sales 30 o t up 35

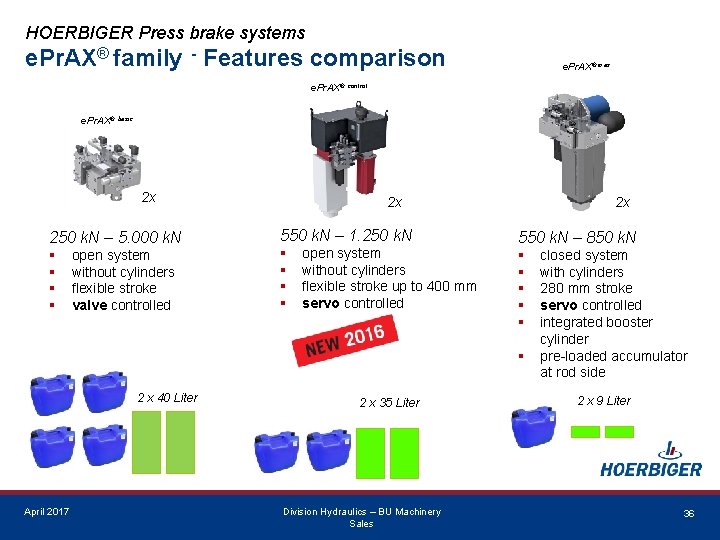

HOERBIGER Press brake systems e. Pr. AX® family - Features comparison e. Pr. AX® max e. Pr. AX® control e. Pr. AX® basic 2 x 250 k. N – 5. 000 k. N § § open system without cylinders flexible stroke valve controlled 2 x 2 x 550 k. N – 1. 250 k. N § § open system without cylinders flexible stroke up to 400 mm servo controlled 550 k. N – 850 k. N § § § 2 x 40 Liter April 2017 2 x 35 Liter Division Hydraulics – BU Machinery Sales closed system with cylinders 280 mm stroke servo controlled integrated booster cylinder pre-loaded accumulator at rod side 2 x 9 Liter 36

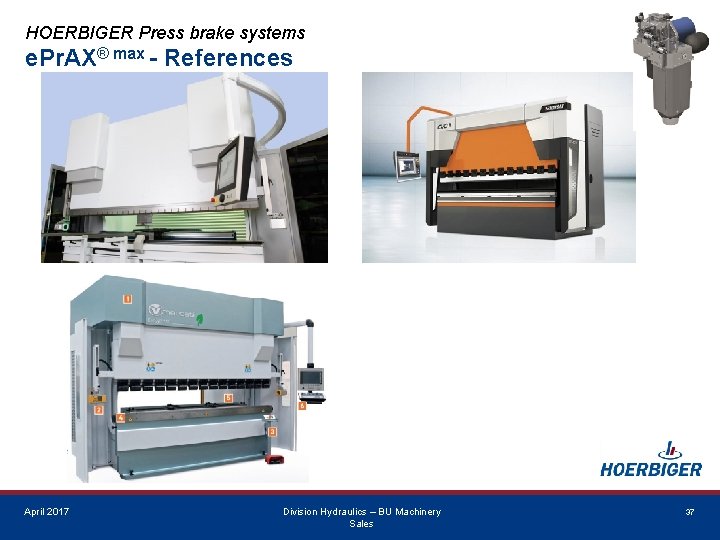

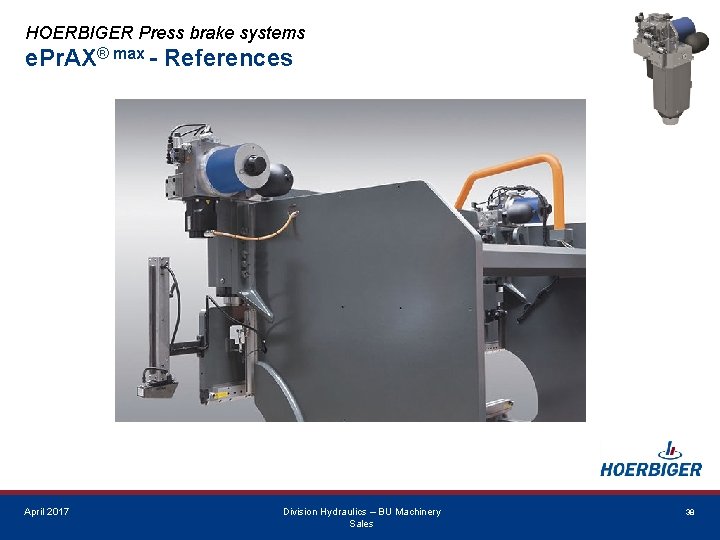

HOERBIGER Press brake systems e. Pr. AX® max - References April 2017 Division Hydraulics – BU Machinery Sales 37

HOERBIGER Press brake systems e. Pr. AX® max - References April 2017 Division Hydraulics – BU Machinery Sales 38
