HMI Overview ROCKWELL 各种人机接口满足现场监控严格要求 Rockwell Automation Internal

HMI Overview 格价 s t c u d o r IP O E Panel. View+, Versaview, RAC 6000 Industrial Computers, Panel. View RSView, RSTools 1000 e, 1400 e Panel. View 550, 600, 900, Redi. PANEL, 1000, 1400 Dataliner, DTAM Plus, Micro. View Traditional devices 功 Rockwell Automation Internal 能

HMI Overview Rockwell Automation Internal

Panel. View Standard • 经济的图形监控产品 –PV 300, PV 550, PV 600, PV 900, PV 1000, PV 1400 –单色 或彩色 –触摸屏和按键 –平面 和 CRT • 共有的强大功能 • 统一的组态软件Panel. Builder 32 2711 -ND 3 • 标准的通讯方式 Rockwell Automation Internal

Panel. View 300 Micro • 3. 2” LCD 120 X 64 pixels • 240 K 应用内存 • 实时时钟 • 1. 4” 实际安装深度 • Panel. Builder 32 组态 Rockwell Automation Internal

Panel. View 300 • 3 英寸LCD 图形显示 • 128 X 64 点阵 • 8 功能键 • 数字键 • Panel. Builder 组态环境 • RS 232 (DF 1), RS 232 (DH 485), DH 485 and Device. Net • 24 VDC 电源 Rockwell Automation Internal

Panel. View 550 Touch-Only Rockwell Automation Internal

Panel. View 600 Touch-Only Rockwell Automation Internal

Panel. View 1400 Color • 14” CRT (SGVA) – 800 x 600 图形点阵 –极佳的视角, 亮度, 对比度 • 薄膜按键或触摸屏 – 21 功能键 – 384 触摸单元 Rockwell Automation Internal

Panel. View 标准环境参数 • 等级 –NEMA Type 12, 13, 4 X (室内), IP 54, IP 65 • Certifications –UL & CSA or CUL –CE Mark –Class 1 Div 2 (平面 终端) • 0 -55 o. C (32 -131 o. F) • 85 - 264 V AC, except PV 550 T, PV 600 T, and PV 300 • 18 -30 VDC, except PV 1400 Rockwell Automation Internal

Panel. View 灵活的通讯方式 • DH-485 (2711 -xxx 2, xxx 3) • RS-232/DH-485 Protocol (2711 -xxx 5, xxx 9) • Remote I/O (2711 -xxx 1) • DH+TM (2711 -xxx 8) • Device. Net. TM (2711 -xxx 10) • Control. Net. TM (2711 -xxx 15) • Unscheduled Messaging • Scheduled Messaging • Ether. Net (2711 -xxx 20) • DF 1 (2711 -xxx 16) • Profibus (2711 -xxx 12) • Modbus (2711 -xxx 14) Rockwell Automation Internal

ATA 内存卡可以传送应用程序到Panel. View 或从 Panel. View 存 程序到内存卡。Panel. View 300 Micro 不支持内存卡。 对于Panel. View 终端的firmware 3. 0 (或更高) ，如果计算 机具有ATA 卡的驱动程序，支持下列内存卡： · 4 M flash ATA card (Catalog No. 2711 -NM 24) · 8 M flash ATA card (Catalog No. 2711 -NM 28) · 16 M flash ATA card (Catalog No. 2711 -NM 216) 对于所有 Panel. View终端如果计算机具有 Data. Book TMB 240或TMB 250 卡的驱动程序 支持下列内存卡： · 256 K flash memory card (Catalog No. 2711 -NM 11) · 1 M flash memory card (Catalog No. 2711 -NM 12) · 2 M flash memory card (Catalog No. 2711 -NM 13) Rockwell Automation Internal

ATA 内存卡 · 4 M flash memory card (Catalog No. 2711 -NM 14) · 10 M flash memory card (Catalog No. 2711 -NM 15) 内存卡同时也可以放置多个字体文件， Panel. View运行时 放有字体文件的内存卡必须插在Panel. View上。为了固定 牢靠，必须配Memory Card Retainer(Catalog No. 2711 NMCC, -NMCD，-NMCE) 除了PV 300 Micro 和 PV 1400外 Memory Card Retainer 随Panel. View 终端带来。 Rockwell Automation Internal

浮点支持 • 直接访问PLC或SLC浮点数文件 • 巨大的数值范围 – (-99, 997, 952 to +999, 995, 904) Rockwell Automation Internal

Panel. Builder 32 Rockwell Automation Internal

Panel. Builder 32 • Panel. Builder 32 是 32位WINDOWS 组态 具 • Panel. Builder 32 订货号为 2711 -ND 3 • 支持所有标准Panel. View Rockwell Automation Internal

Panel. Builder 适用性 • 支持全系列标准PV产品 Panel. View 550/550 T Panel. View 600 Color Panel. View 900 Color Panel. View 1000 Gray Scale Panel. View 1000 Color or Panel. View 1400 Color Rockwell Automation Internal

CD内容 • Panel. Builder 32 CD 包括 –Panel. Builder 32 (PB 32) –Panel. Builder (for users of Windows 3. 1) –Documentation in PDF format –RSLinx 2. 1 –Make 3 1/2 inch disk utility (For PB 32) –Panel. View Terminal Firmware –Demonstration Files –Adobe Acrobat Reader Rockwell Automation Internal

标准PV上传下载功能 • Direct RS 232 via Built in, Native Drivers • Direct RS 232 via RSLinx • Direct Network via RSLinx –DH+, Control. Net, or Device. Net • Pass-Through –DH+ to Channel 0 or RI/O SN module (SLC 504) –DH+ to RI/O (PLC-5) –Ethernet to Channel 0 or RIO SN module (SLC 505) –Ethernet to Device. Net SDN on SLC 505 –Ethernet to RI/O on PLC-5 E • ATA PC memory Card • Control. Logix Gateway –Ethernet to Control. Net, Device. Net, or RI/O –Control. Net to Device. Net or RI/O Rockwell Automation Internal

Panel. View “e” 1400 e & 1000 e Rockwell Automation Internal

Panel. View “e”增强通讯 • DH+ & RIO in all terminals（通讯） –Add Control. Net or Modbus in the field • 软件上增强： 2711 E-ND 1 Rockwell Automation Internal

Panel. View 定货(网络) • DH-485 (2711 -xxx 2, xxx 3) • RS-232/DH-485 Protocol (2711 -xxx 5, xxx 9) • Remote I/O (2711 -xxx 1) • DH+TM (2711 -xxx 8) • Device. Net. TM (2711 -xxx 10) • Control. Net. TM (2711 -xxx 15) • Unscheduled Messaging • Scheduled Messaging • Ether. Net (2711 -xxx 20) • DF 1 (2711 -xxx 16) • Profibus (2711 -xxx 12) • Modbus (2711 -xxx 14) Rockwell Automation Internal

Panel. View 订货(尺寸) • PV 300 Micro 2711 -M 3 Axx • PV 300 2711 -K 3 Axx • PV 550 2711 -x 5 xxxx • PV 600 2711 -x 6 xxxx • PV 900 2711 -x 9 xxxx • PV 1000 2711 -x 10 xxxx • PV 1400 2711 -x 14 xxxx Rockwell Automation Internal

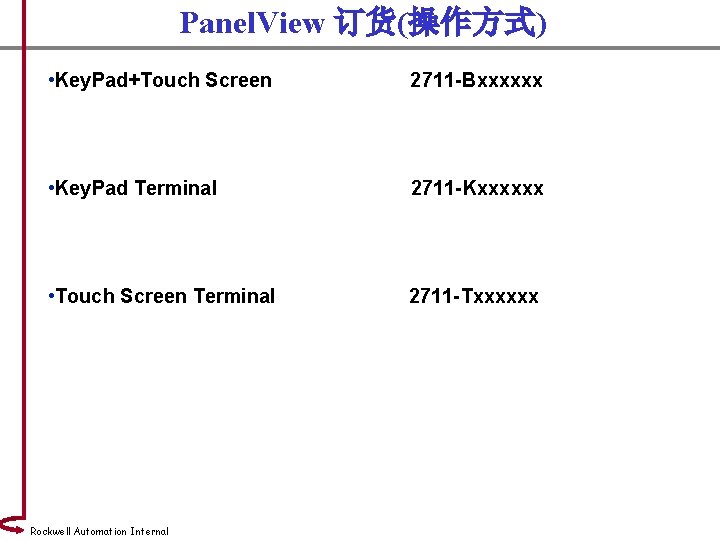

Panel. View 订货(操作方式) • Key. Pad+Touch Screen 2711 -Bxxxxxx • Key. Pad Terminal 2711 -Kxxxxxx • Touch Screen Terminal 2711 -Txxxxxx Rockwell Automation Internal

Panel. View Plus 以下部件由Panel. View Plus随机配套，无需另买： Microsoft Windows CE License Agreement RSView Machine Edition Runtime DC power terminal block Mounting clips (up to 8) Installation guide 标准组件构成： Panel. View Plus 终端由灵活的组态、安装、升级部件 组成： Communication Module Logic Module Display Module Rockwell Automation Internal

Panel. View Plus Base Configured Unit 由以下两部分组成： Display Module (700, 1000, 1250, 1500) with Keypad, Touch or Keypad & Touch Input Logic Module 包括 24 V dc input (18… 32 V dc) SDRAM and Flash memory (various sizes) Rockwell Automation Internal

Panel. View Plus 10/100 Base. T 以太网卡 用来文件传送、打印、控制器通讯的RS-232串口 2 USB口用来接鼠标、键盘或打印机 Compact Flash Card Slot for Type I/II Compact Flash cards 电池支持的实时时钟 Rockwell Automation Internal

Panel. View Plus Communication Modules 可以增加一个通讯模块来增强通讯能力，可以支持以下 通讯方式：DH+/DH 485/Remote I/O Communication Modules 可以很方便地安装在 Logic Module 的上面。 Rockwell Automation Internal

Panel. View Plus Remote AC Power Supply Logic Module 提供 DC 电源输入。 为了可以使用AC 电源, 要求一个导轨安装的 AC 到 DC的电源模块。 Display Modules Panel. View Plus 采用 TFT 技术，提供键盘、触摸或键盘和 触摸一起的屏。尺寸大小有如下： 700 (6. 5 inch) 1000 (10. 4 inch) 1250 (12. 1 inch) 1500 (15 inch) Rockwell Automation Internal

Panel. View Plus 型号说明： 2711 -NC 14：RS-232 操作/编程电缆 (9 -pin D-Shell to 9 pin D-Shell), 10 m。 Rockwell Automation Internal

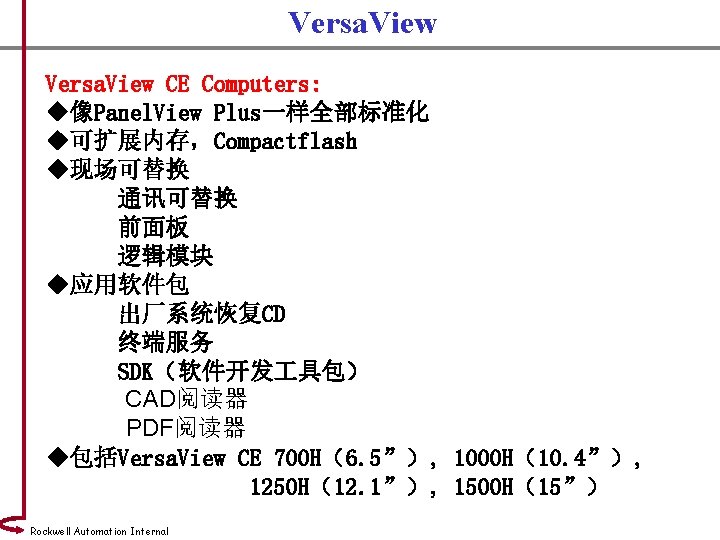

Versa. View CE Computers; Versa. View Compact Display Computers; Versa. View Non-Display Computers; Versa. View Workstation Computers; Versa. View Flat Monitor Displays; Rockwell Automation Internal

Versa. View Rockwell Automation Internal

Versa. View Rockwell Automation Internal

Versa. View Rockwell Automation Internal

Versa. View(Versa. View Non-Display Computers) Rockwell Automation Internal

Versa. View(Versa. View Workstation Computers) 适合苛刻应用要求的高性能机器 Rockwell Automation Internal

Versa. View(Versa. View Workstation Computers) Rockwell Automation Internal

Versa. View Rockwell Automation Internal

Versa. View Rockwell Automation Internal

控机 基本名词 • Passive Backplane • Active Motherboard • ISA Slots • PCI Slots • Shared Slots Rockwell Automation Internal

控机家族 集成平面显示的 控机 6180 6181紧凑型 控机 Rockwell Automation Internal 6182 Win. CE Computer 用Panel. View Plus代替 6155台式 控机

控机-6182 • Windows CE 操作环境 • 可选集成RSView 32 Machine Edition • 集成显示器 • 可选STN, TFT显示方式 • 分辨率可达 800 X 600 • 1 PCI Slot • 最多 64 M Flash. ROM Rockwell Automation Internal

控机-6181 • Windows 95/98 NT 4. 0 Capable Platform • Intelligent Operator Interface Device – RSView 32 or RAD • Robust PC Control & HMI Platform – Soft. Logix & RSView – 2 slots for I/O & communication cards – Embedded diagnostics – Will offer bundled systems, similar to 6180 Rockwell Automation Internal

控机-6183 • 集成RA 软件及硬件的控制平台 • 可选Control. PAK, Soft. Logix用于现场控制 • 可选Ether. Net, Control. Net, DH+ Device. Net用于现场网络通讯 • 可选各种集成显示方式 • 集成RSView 32 Runtime • 可集成RSLogix编程软件 Rockwell Automation Internal

控机 使用ICB选择 控机 Rockwell Automation Internal
