HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// GOT 1000 Series Soft. GOT-GOT Link Function for GT 15 and GT 16 series Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

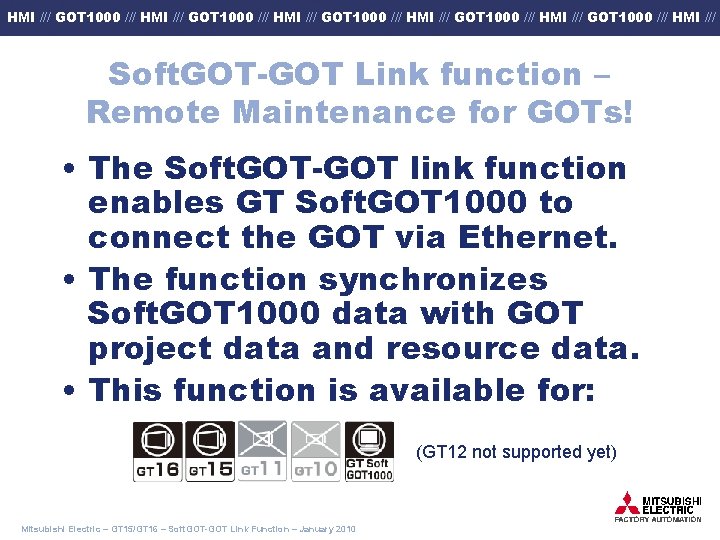

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Soft. GOT-GOT Link function – Remote Maintenance for GOTs! • The Soft. GOT-GOT link function enables GT Soft. GOT 1000 to connect the GOT via Ethernet. • The function synchronizes Soft. GOT 1000 data with GOT project data and resource data. • This function is available for: (GT 12 not supported yet) Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// System overview Interlock operations with GOT and Soft. GOT ⇒ Prevent unexpected behaviors!! Up to 99 GOTs can be monitored on a single PC Worksite Ethernet HUB GT 15/ GT 16 HUB Office Operation interlock Data auto upload Soft. GOT Serial/BUS/ Ethernet QPLC Automatically upload the project data from connected GOTs ⇒ No need to create the project data for Soft. GOT!! Note! FX PLCs will be supported in one of the next development steps (no schedule yet) Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Configuration (Connection Type) 1) QBUS/serial connection between GOT and PLC Soft. GOT reads/writes devices in a PLC via GOT. (Ethernet Transparent Function) Worksite Ethernet GT 15/GT 16 Read/write devices via GOT Office Soft. GOT RS 232/ RS 422/ QBUS QPLC Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Configuration (Connection Type) 2) Ethernet connection between GOT and PLC Soft. GOT reads/writes devices in a PLC by directly connecting to the PLC via Ethernet, not via GOT. Worksite Office GT 15/GT 16 Soft. GOT RS 232/ RS 422/ QBUS Read/write devices by directly connecting to PLC QPLC Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Features • Project data auto acquisition function Soft. GOT automatically acquires GOT screen data (project data). There is no need to create the project data for Soft. GOT. Data Auto Acquisition Function • Alarm data auto acquisition function Soft. GOT automatically acquires the alarm data of GOT. Alarms that are already restored before connecting to Soft. GOT can also be viewed. In both functions, the data stored in Soft. GOT will be updated every time the Soft. GOT is started up. Operation Interlock • Operating authority Either one of Soft. GOT or GOT can be operable to prevent the simultaneous operation from both sides that may cause unexpected behaviors. • Operating authority (only GOT side) A mode to make only GOT operable. Until this mode is cancelled on a GOT, Soft. GOT is not operable. Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Operation Interlock – Operating Authority Interlock operations with Soft. GOT and GOT to prevent simultaneous operation on both sides. GT 15/ GT 16 Worksite Operation interlock Office × Operable (with operating authority) QPLC Operation is prohibited on the GOT that had operating authority before. Move operating authority × Not operable (no operating authority) Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010 Soft. GOT Not operable (without operating authority) Obtain operating authority on the operating authority acquisition screen Operable (with operating authority)

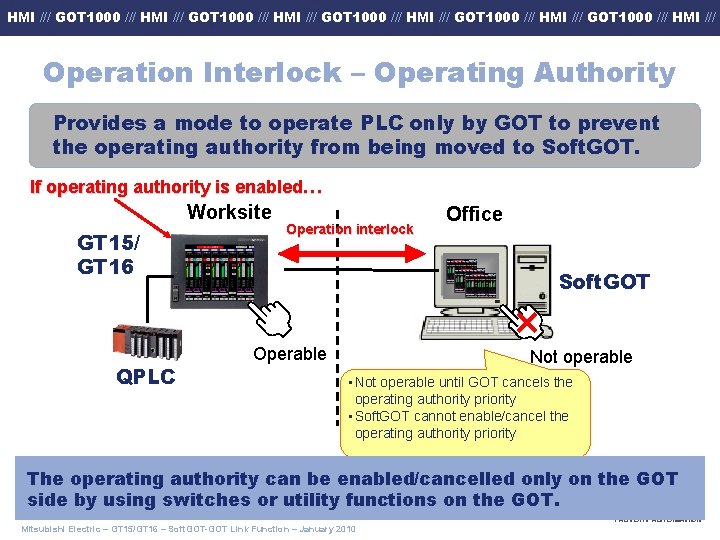

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Operation Interlock – Operating Authority Provides a mode to operate PLC only by GOT to prevent the operating authority from being moved to Soft. GOT. If operating authority is enabled… Worksite GT 15/ GT 16 QPLC Operation interlock Office Soft. GOT × Operable Not operable • Not operable until GOT cancels the operating authority priority • Soft. GOT cannot enable/cancel the operating authority priority The operating authority can be enabled/cancelled only on the GOT side by using switches or utility functions on the GOT. Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Required Hardware • All GT 15 models plus GT 15 -J 71 E 71100 Ethernet module • All GT 16 models using integrated Ethernet port • Any Q CPU (only Q!) Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Required Software • GT Works 3 V 1. 10 L with – GT Designer 3 V 1. 10 L – Soft. GOT 1000 3. 10 L Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// OS Installation -> GT 15/GT 16 • Transfer extended OS into GOT! Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// GT Designer 3 Project Settings Decide how to use the Soft. GOT: 1. GOT and Soft. GOT should always show the same screen: Use PLC Register (D) as Screen switching device! 2. Soft. GOT should act as separate HMI showing different screens as GOT: Use GOT Register (GD) as Screen switching device! Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Soft. GOT settings • Start Soft. GOT 1000 and open Communication settings QCPU serial or QBUS connection Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010 QCPU Ethernet connection

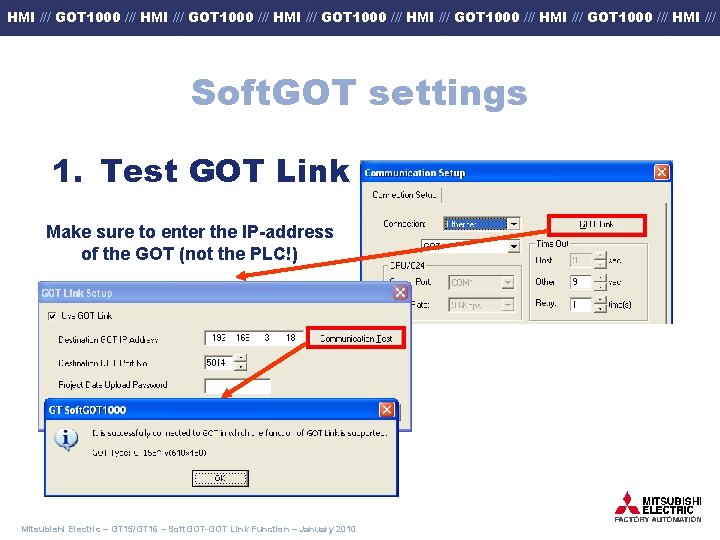

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Soft. GOT settings 1. Test GOT Link Make sure to enter the IP-address of the GOT (not the PLC!) Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Soft. GOT settings 2. Start Monitor 3. Soft. GOT will work for 2 h without dongle! 4. GOT project will be uploaded to Soft. GOT automatically! 5. Monitoring will start Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Good to know! Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

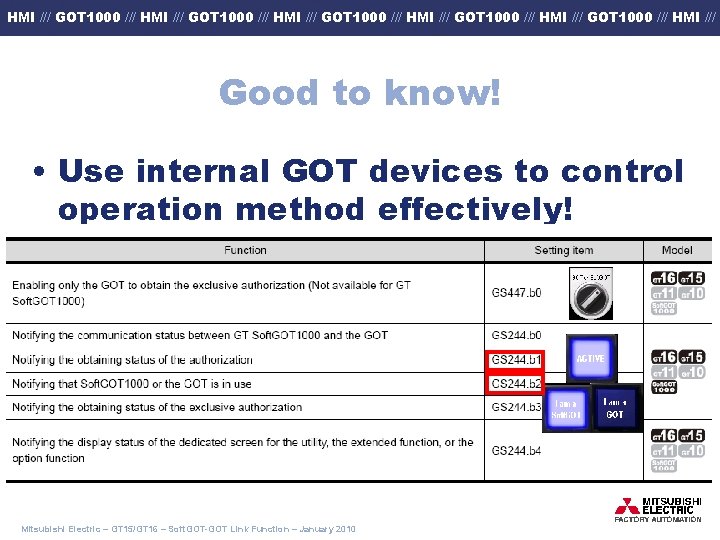

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Good to know! • Use internal GOT devices to control operation method effectively! Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// Manual references Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010

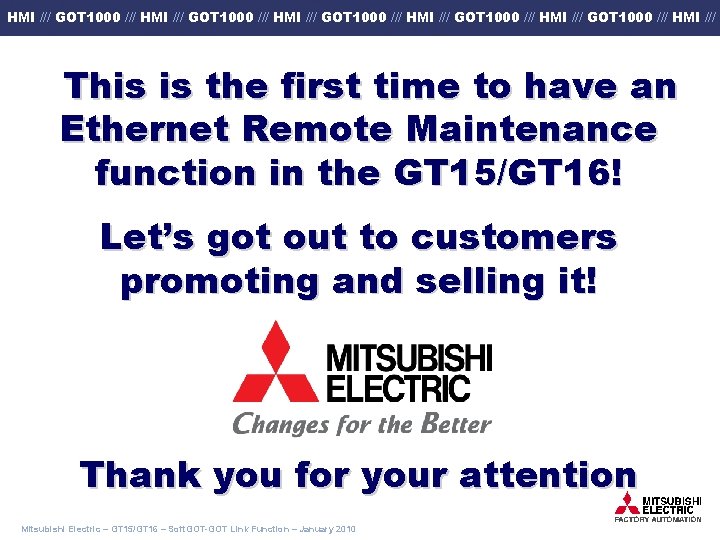

HMI /// GOT 1000 /// HMI /// GOT 1000 /// HMI /// This is the first time to have an Ethernet Remote Maintenance function in the GT 15/GT 16! Let’s got out to customers promoting and selling it! Thank you for your attention Mitsubishi Electric – GT 15/GT 16 – Soft. GOT-GOT Link Function – January 2010
