Hiten G. Parekh hitenparekh@everestind. com Head - Everest Solar +91 98215 78910
India Rooftop Solar Mission Target Rooftop Solar Power 40, 000 MW Roof Area 4. 5 billion sq. ft. Solar Mission 70% of capacity from New construction (~$ 30 Bn) Optimized Solar Ready Roofs Vital
Why Solar Ready Roofs are Vital • Direction and Slope of the Roof with favorable for Solar Power Generation. • Design of the roof and Plant • Avoiding Shadow of any Big/ large chimney or equipment in concept or design phase itself • Walkways • Safety during installation • Less Installation time
Study Case – Large Manufacturing Industry 210 ft North Central Ridge Line Roof Layout 570 ft Available Area: 120, 000 sq. ft, Available for Solar: 37, 800 sq. ft. only 315 KW against 1200 KW Takeaways: 70% rooftop area wasted because of improper planning of the building; Loss of 23 Cr Rs. in potential savings.

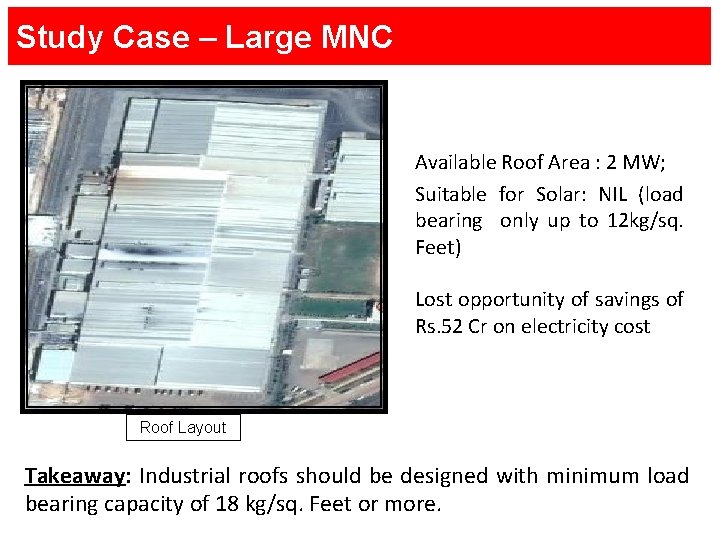

Study Case – Large MNC Available Roof Area : 2 MW; Suitable for Solar: NIL (load bearing only up to 12 kg/sq. Feet) Lost opportunity of savings of Rs. 52 Cr on electricity cost Roof Layout Takeaway: Industrial roofs should be designed with minimum load bearing capacity of 18 kg/sq. Feet or more.
Case Study: Virtual Roofs – Metro Cities face challenge of ROOF area & installed with Utility Equipments. High grid tariff’s Rs. 8 ~ 11 / Unit (Variable Tariff only) Takeaway: Virtual Roofs / Superstructures may offer viability on Solarising Terraces in Metro Cities over Buildings Image Courtesy: Rely. On Solar
New Approach – Solar Roofs Central Ridge Line North Solar Ready Roof Payback tenure: 5 Yrs Capex: Rs. 25 Cr Solar Ready Roof Net Savings: 117 Cr 480 m Capacity 5000 KW 136 m Roof Layout Takeaway: Designing Solar ready roofs at pre-construction project stage optimizes solarization possibilities for the industry.
New Roofs optimized for Solar Power Durability Safety Exhaust Provisions for O&M New Optimize d Roofs Optimu m Angle Ease of Installation Leakage Proof
Industry wins with Solar ready Roofs Low Installation Costs Reduced Solar gestation period Benefits Safe and durable roof Leakage Prevention
