Hitachi Data Systems SAN 20211018 2003 Hitachi Data
- Slides: 55
Hitachi Data Systems �� SAN智能存� 解决方案研�会 2021/10/18 © 2003 Hitachi Data Systems
议程 • HDS 公司介绍 • HDS Lightning 9900 V系列 • Q&A © 2003 Hitachi Data Systems 2021/10/18 2
高端磁盘阵列市场份额 Hitachi Lightning EMC Symmetrix IBM Shark Q 1 Q 2 Q 3 CY 00 © 2003 Hitachi Data Systems Q 4 Q 1 Q 2 Q 3 CY 01 Q 4 Q 1 Q 2 Q 3 Q 4 CY 02 From:Source: UBS Warburg, Lehman Brothers, Gartner Group, Soundview Technology, Sanford Bernstein 2021/10/18 4

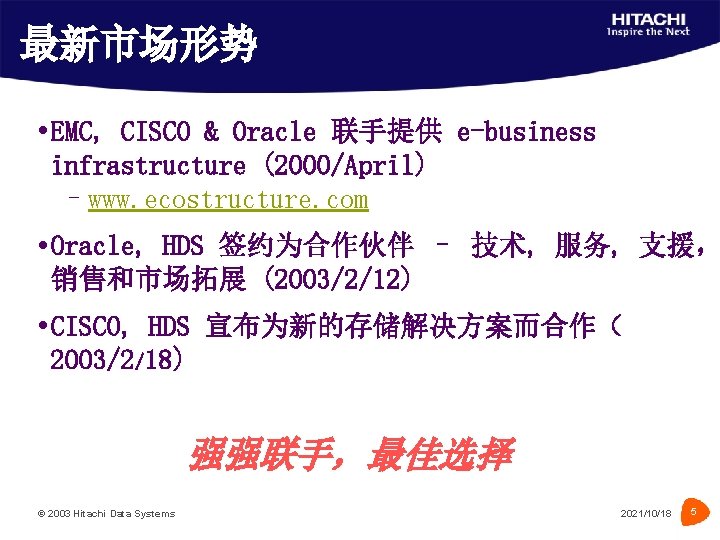

最新市场形势 EMC, CISCO & Oracle 联手提供 e-business infrastructure (2000/April) –www. ecostructure. com Oracle, HDS 签约为合作伙伴 – 技术, 服务, 支援, 销售和市场拓展 (2003/2/12) CISCO, HDS 宣布为新的存储解决方案而合作( 2003/2/18) 强强联手,最佳选择 © 2003 Hitachi Data Systems 2021/10/18 5

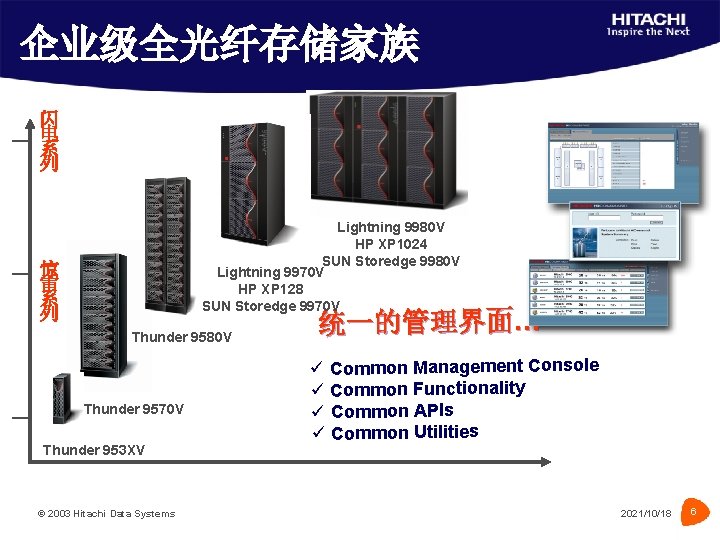

企业级全光纤存储家族 闪 电 系 列 Lightning 9980 V HP XP 1024 SUN Storedge 9980 V Lightning 9970 V HP XP 128 SUN Storedge 9970 V 惊 雷 系 列 Thunder 9580 V Thunder 9570 V Thunder 953 XV © 2003 Hitachi Data Systems 统一的管理界面… ü Common Management Console ü Common Functionality ü Common APIs ü Common Utilities 2021/10/18 6
Lightning 9900 V Series 硬件 2021/10/18 © 2003 Hitachi Data Systems

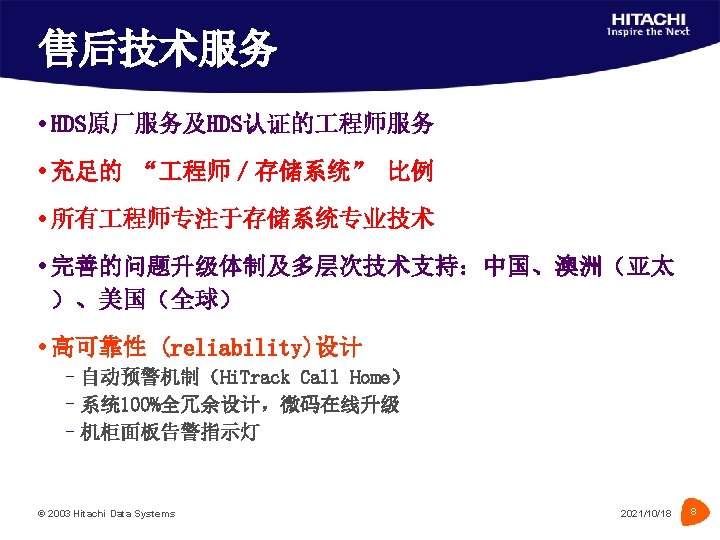

9900 V内部结构图 Shared Memory 4 CHIP pairs FC , FICON and ESCON Crossbar Switch 4 ACP pairs Up to 1024 Drives 36& 73&144 GB, 10 k 15 k RPM Disks Write Mirrored Cache © 2003 Hitachi Data Systems 2021/10/18 13
前端设计(CHIP) ESCON 17. 5 MB/sec FICON 200 MB/sec FC 200 MB/sec 每块物理板 上有4颗CPU 独有的虚拟 端口技术 最大可配置 4对物理板 可以支持32/64个物理端口(2 Gb/sec) © 2003 Hitachi Data Systems 2021/10/18 14

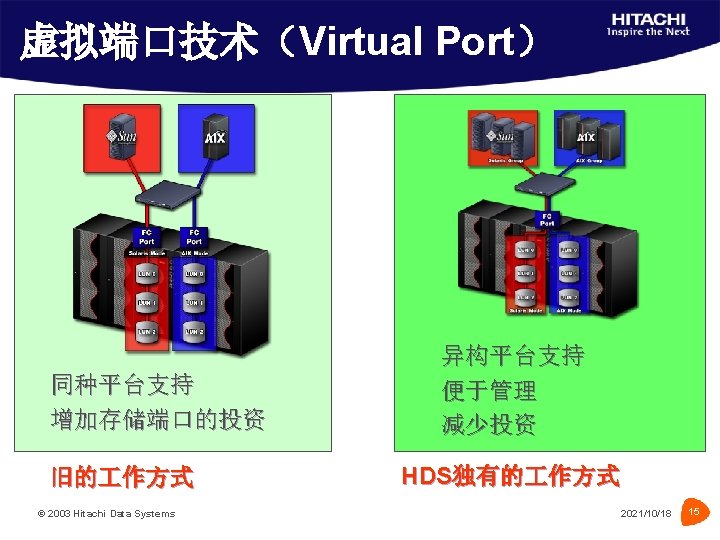

后端设计(ACP) (4 D + 4 D) or (7 D + 1 P) ACP Pair 2 RAID 计算 双活动光纤端口的盘 包:高性能、高可用 性 盘包类型: 36 GB 15, 000 RPM 72 GB 10, 000 RPM 72 GB 15, 000 RPM 146 GB 10, 000 RPM 专利芯片 每对ACP提供 8条 FC-AL光纤环 ACP Pair 1 (2 D + 2 D) or (3 D + 1 P) RAID 计算 专利芯片 © 2003 Hitachi Data Systems 2021/10/18 16

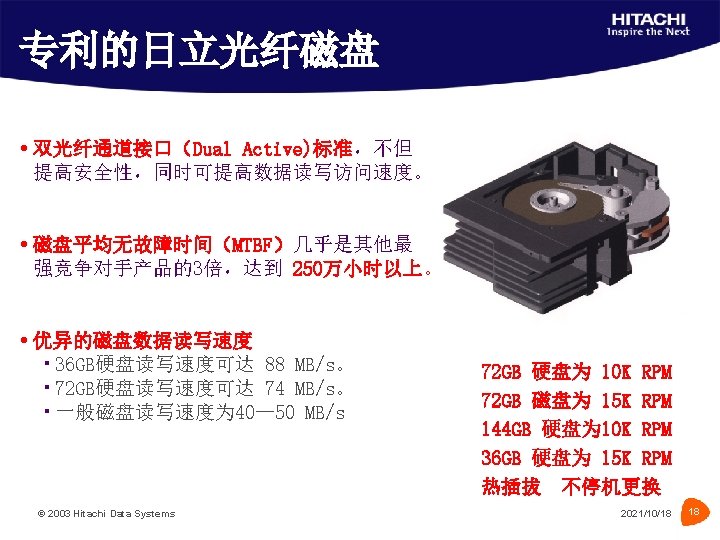

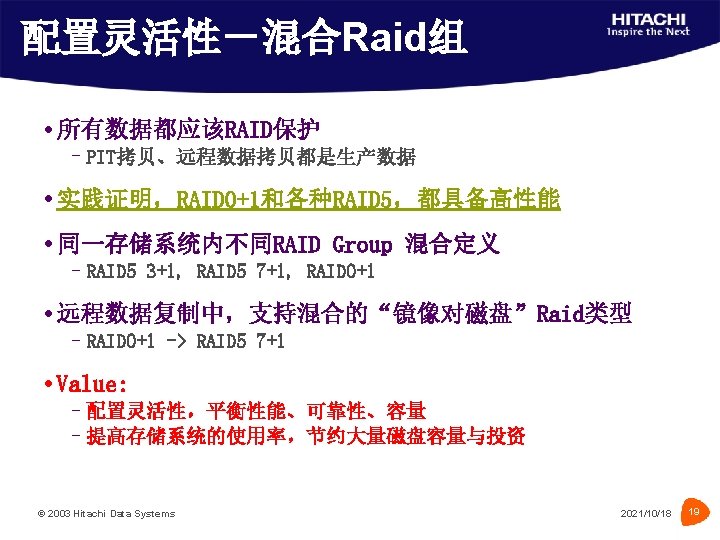

Hi-Star体系结构 A C P Control Memory P A I R Control Memory Cache A C P P A I R A C P Cache Side CSW CSW Processor Side Channel P A I R Channel 接主机群或光纤交换机 © 2003 Hitachi Data Systems 2021/10/18 20

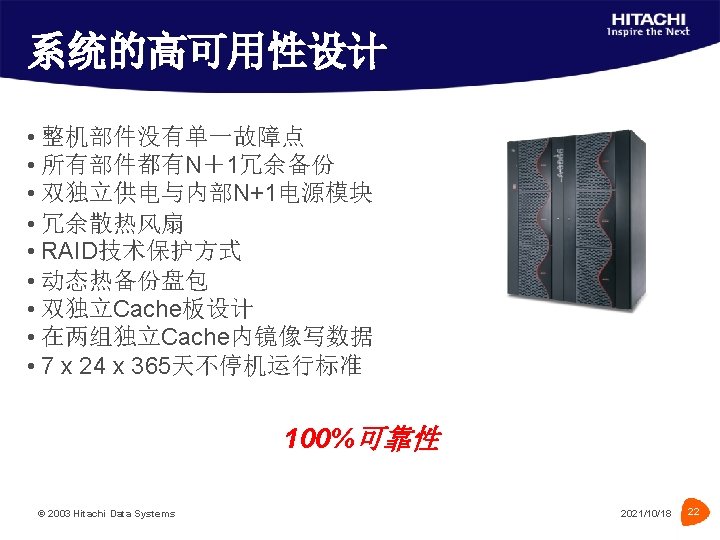

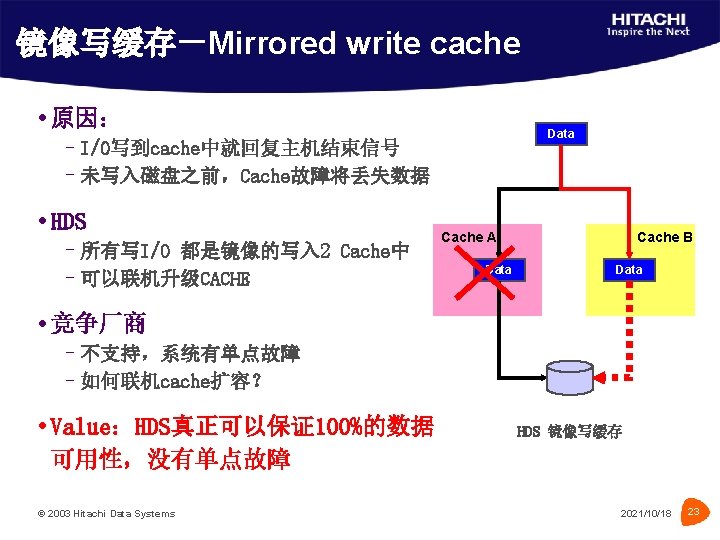

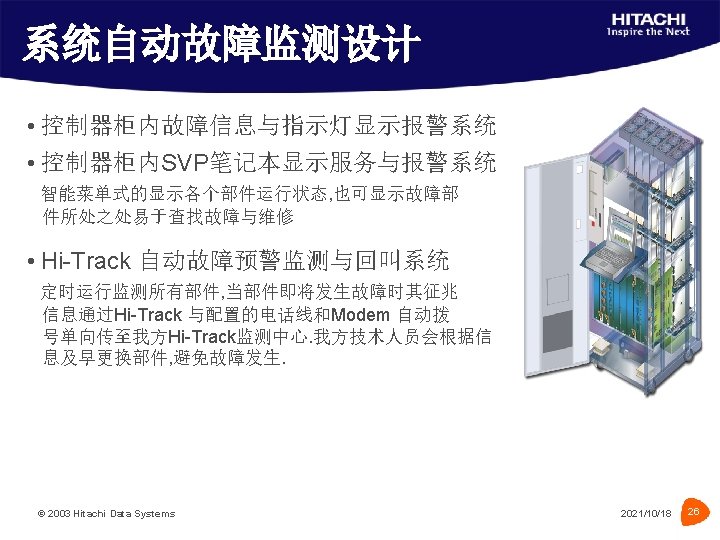

广泛的连接性 – IBM S/390 (Mainframe) – IBM AIX – HP-UX – SUN Solaris – Windows NT & Windows 2000 – Sequent - DYNIX/ptx – Compaq Tru 64 – Compaq Open. VMS – SGI IRIX – Novell Net. Ware – Red. Hat Linux © 2003 Hitachi Data Systems 2021/10/18 27
Lightning 9900 V Series 软件 2021/10/18 © 2003 Hitachi Data Systems

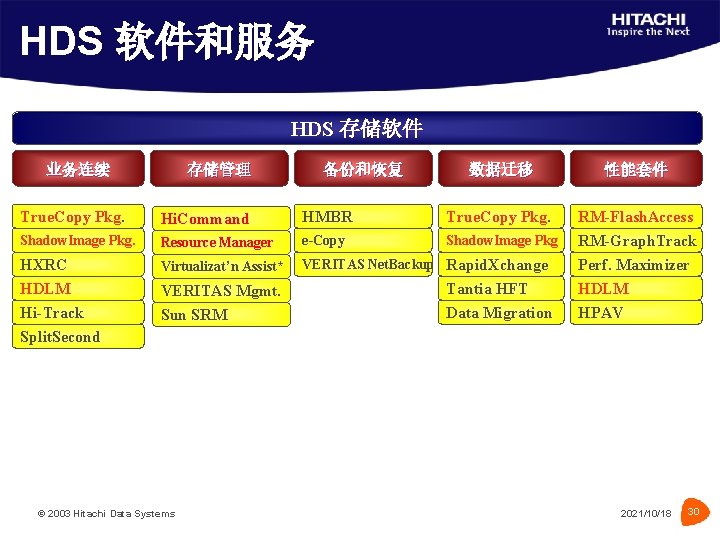

HDS 软件和服务 HDS 存储软件 业务连续 存储管理 备份和恢复 数据迁移 性能套件 RM-Flash. Access RM-Graph. Track True. Copy Pkg. Hi. Command HMBR True. Copy Pkg. Shadow. Image Pkg. Resource Manager e-Copy Shadow. Image Pkg HXRC HDLM Hi-Track Split. Second Virtualizat’n Assist* VERITAS Net. Backup Rapid. Xchange VERITAS Mgmt. Sun SRM © 2003 Hitachi Data Systems Tantia HFT Data Migration Perf. Maximizer HDLM HPAV 2021/10/18 30
基于SAN的管理软件——HSSM • 应用(Oracle, Exchange Server) • 主机 • 光纤交换机 • 磁盘阵列 © 2003 Hitachi Data Systems 2021/10/18 31
Resource Manager © 2003 Hitachi Data Systems 2021/10/18 32

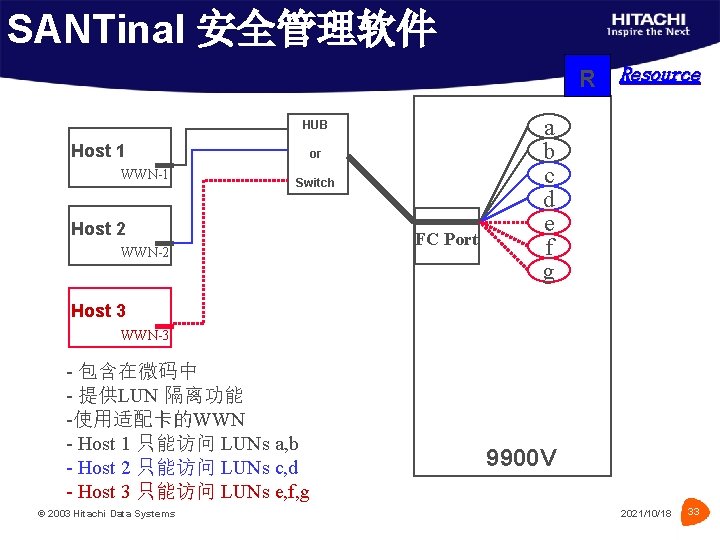

SANTinal 安全管理软件 R Resource HUB Host 1 WWN-1 or Switch Host 2 WWN-2 FC Port a b c d e f g Host 3 WWN-3 - 包含在微码中 - 提供LUN 隔离功能 -使用适配卡的WWN - Host 1 只能访问 LUNs a, b - Host 2 只能访问 LUNs c, d - Host 3 只能访问 LUNs e, f, g © 2003 Hitachi Data Systems 9900 V 2021/10/18 33
高性能软件 Flash. Access 缓存常驻软件 Hitachi Graph-Track™ – Basic Performance Monitoring HDS Cruise. Control Priority Access © 2003 Hitachi Data Systems 2021/10/18 34
高性能软件 Performance Monitor Cruise Control Priority Access © 2003 Hitachi Data Systems 2021/10/18 36

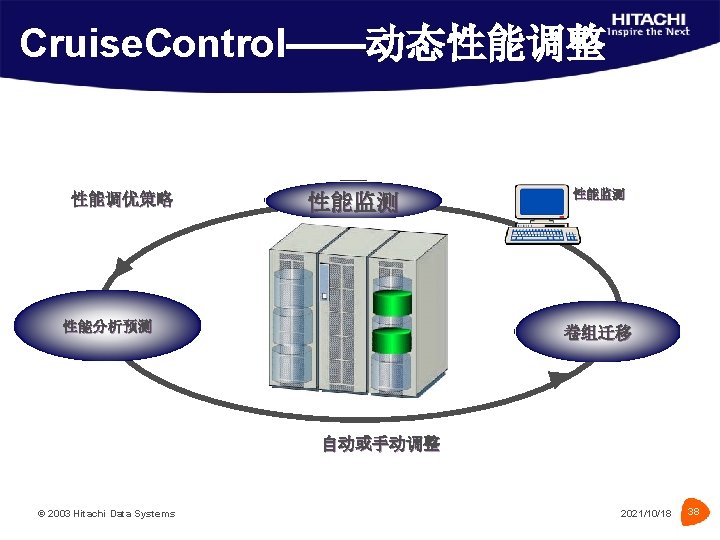

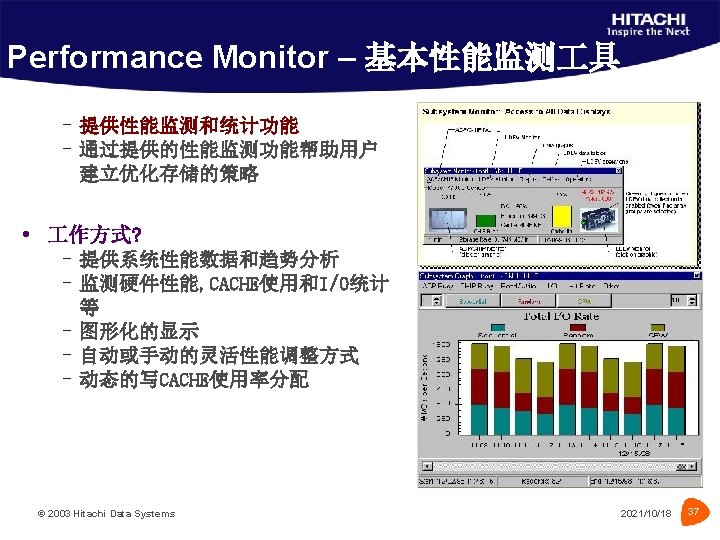

Priority Access Resource Conflict Control “On” Enterprise DB Development test Enterprise DB Application has performance degradation due to workload of Development test application (520 IOPS to 220 IOPS) PPC On Recovery Target Prioritized “Enterprise DB application” Throughput 58% improvement Set service levels at required IOPS or MB/s Quick control (A few minutes) Non-Prioritized “Development test application” Time © 2003 Hitachi Data Systems 10 2021/10/18 39
业务连续性软件 Shadow. Image Continuity Package – 本地镜像软件 Shadow. Image Flash. Copy 扩展 True. Copy – 远程复制软件 True. Copy 同步方式软件 True. Copy 异步方式软件 Nano. Copy™ 扩展 Dynamic Link Manager – 通道平衡负载和故障接管软件 © 2003 Hitachi Data Systems 2021/10/18 40

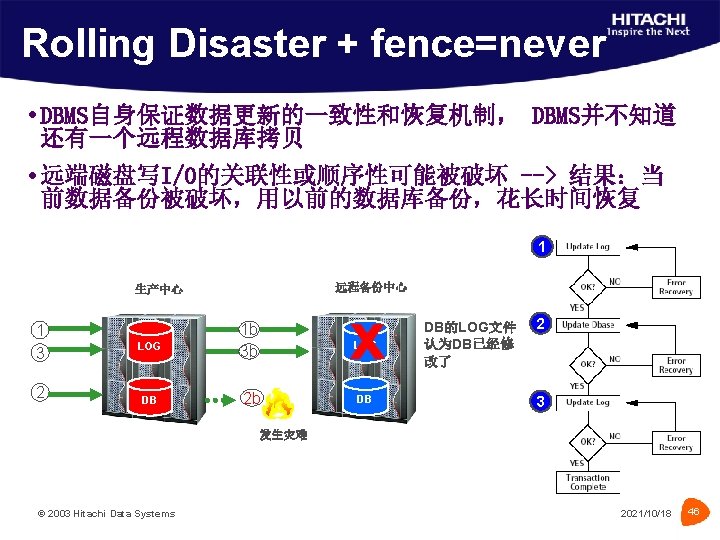

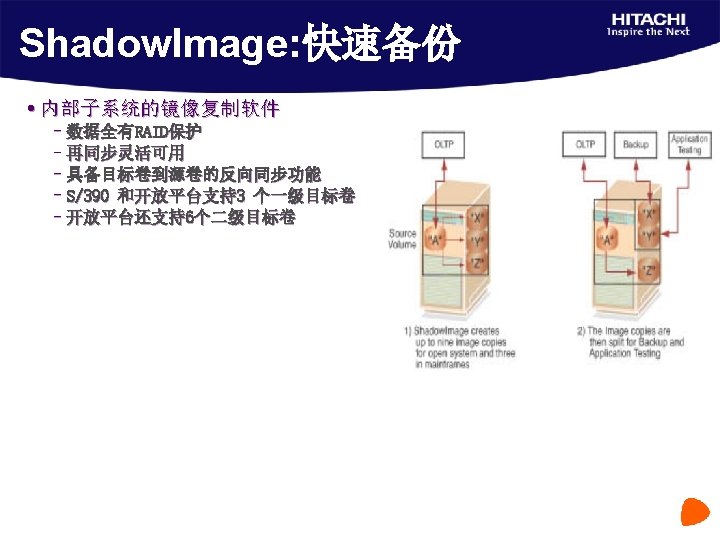

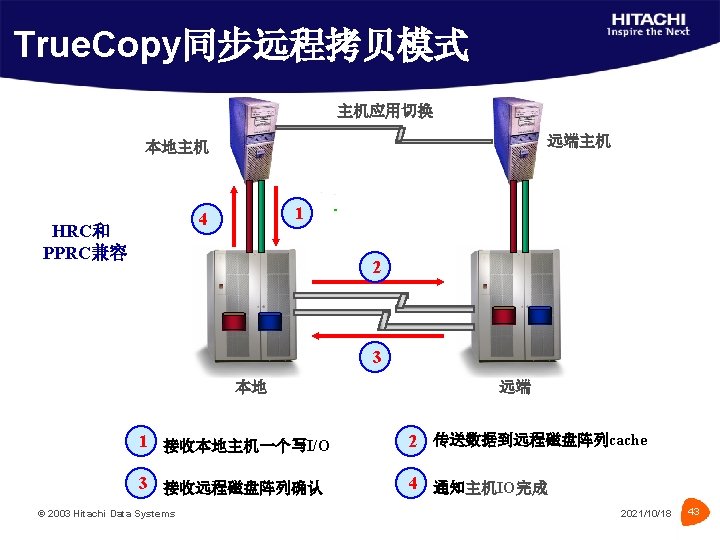

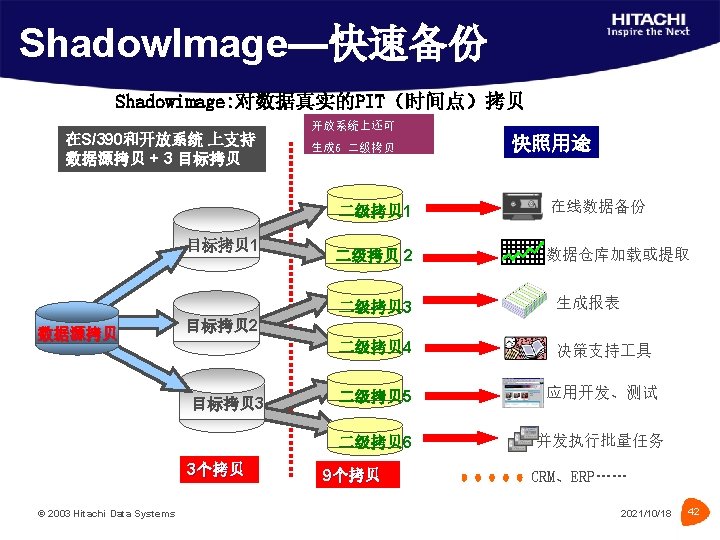

Rolling Disaster The Rolling Disaster. . . (IBM, 4/8/94) “Except in a total disaster, (explosion, earthquake, ) you should NEVER expect your entire system to fail at the same moment. Failures will be intermittent and gradual, and the disaster will actually occur over many seconds, even minutes This is the Rolling Disaster”. © 2003 Hitachi Data Systems 2021/10/18 45

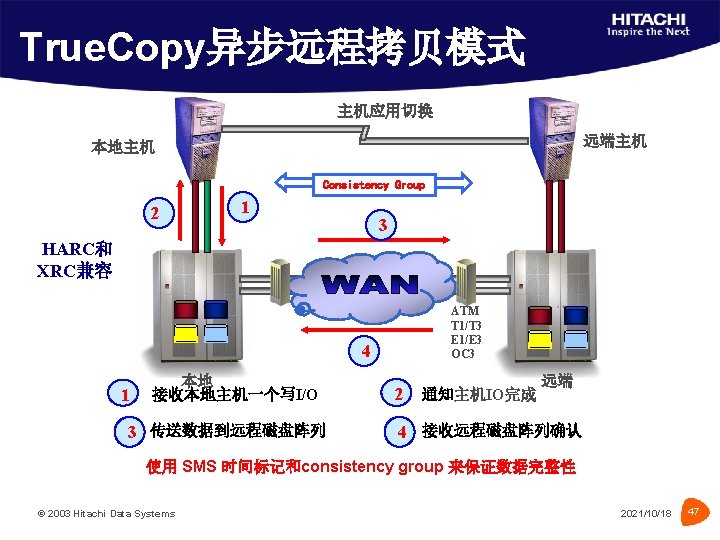

备份备灾拷贝( True. Copy ) – 异步方式 Asynchronous 方式 –S/390 ( XRC compatible ) –UNIX, Win NT/2000, Novell平台 –无距离限制 –T 1/T 3 , E 1/E 3, ATM 协议 over channel extenders –Timestamp 时间戳+ Consistency Groups 分组时序号 保证数据完整性 © 2003 Hitachi Data Systems 2021/10/18 48

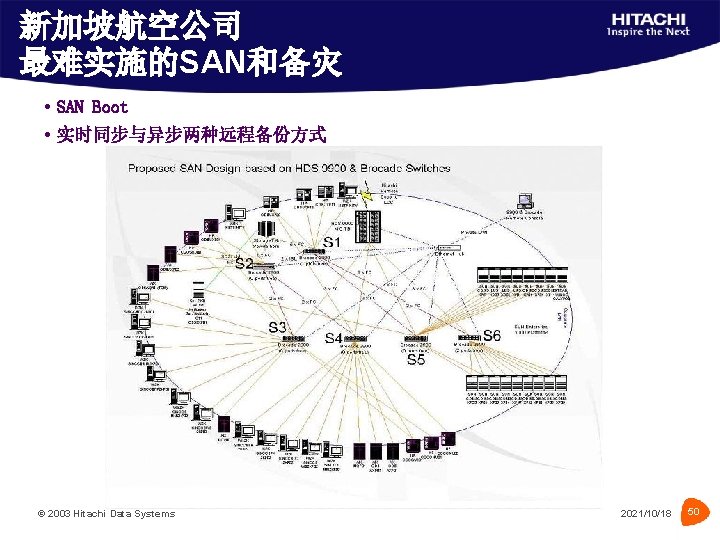

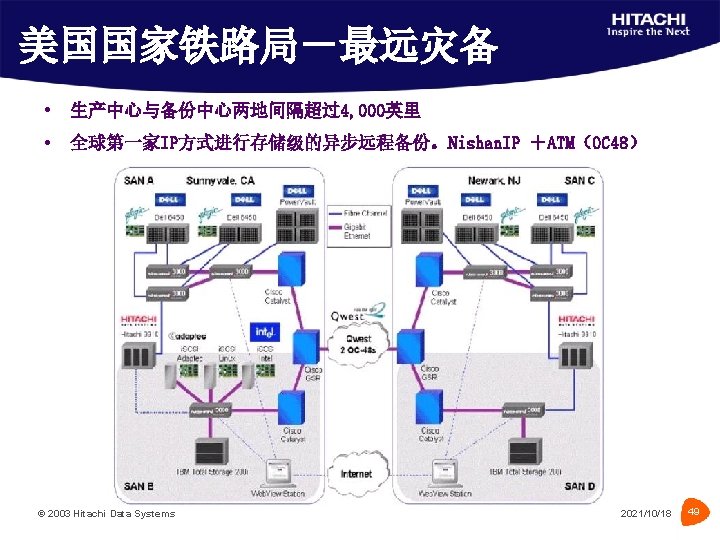

铁道部全国客票系统 Nishan 3300 Mc. Data 4500 Nishan 3300 8 x E 1 IP Router HDS 9970 V True. Copy 异步方式 20 KM 西客站 客票中心机房 © 2003 Hitachi Data Systems Mc. Data 4500 IP Router HDS 9970 V 铁科院 信息中心 2021/10/18 53
招商集团 Nishan 3300 Brocade 3800 IP Router HDS 9970 V Nishan 3300 2 x E 1 True. Copy Brocade 3800 IP Router HDS 9970 V 异步方式 蛇口 © 2003 Hitachi Data Systems 香港 2021/10/18 54
谢 谢 ! 2021/10/18 © 2003 Hitachi Data Systems
