Hit l What can I learn l How

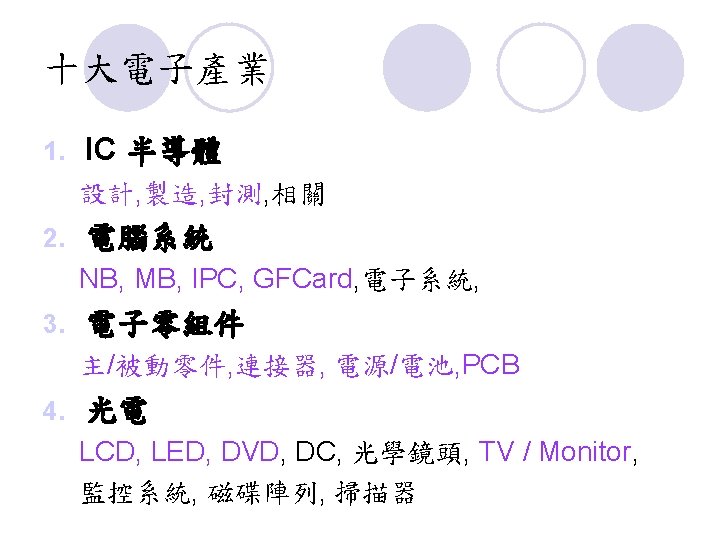

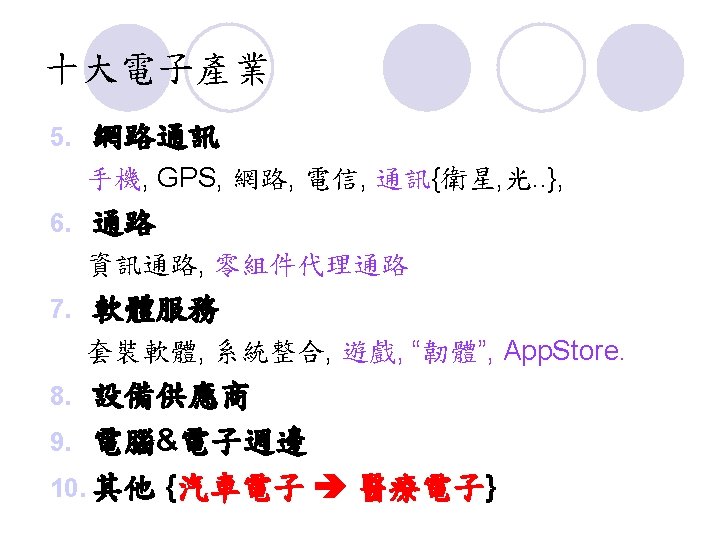

Hit l What can I learn ? ? l How can I do ? l Map of Electronics Industry l Future Electronics Technical of 2010 l Goal Of career l Personal Business Plan

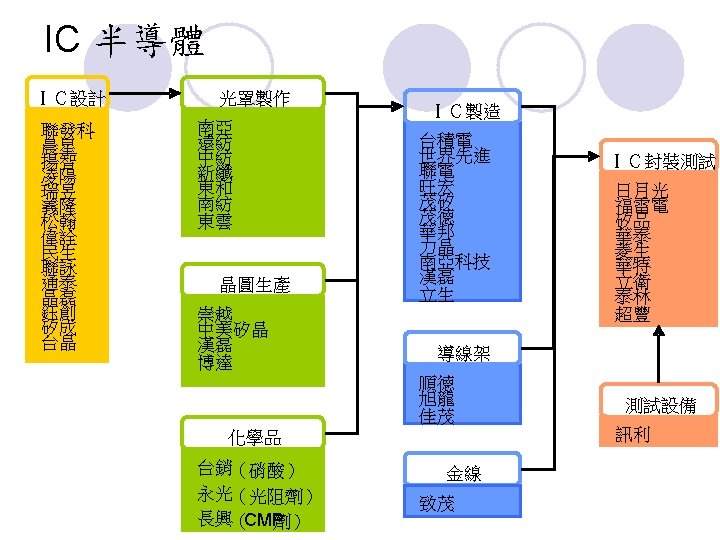

IC半導體 _ example as DRAM

IC設計 _ 流程 l l l 規格制定（Specification） 行為描述（Behavior） RTL（Register Transfer Level）設計 邏輯（Logic）設計 電路（Circuit）設計 佈局（Layout）

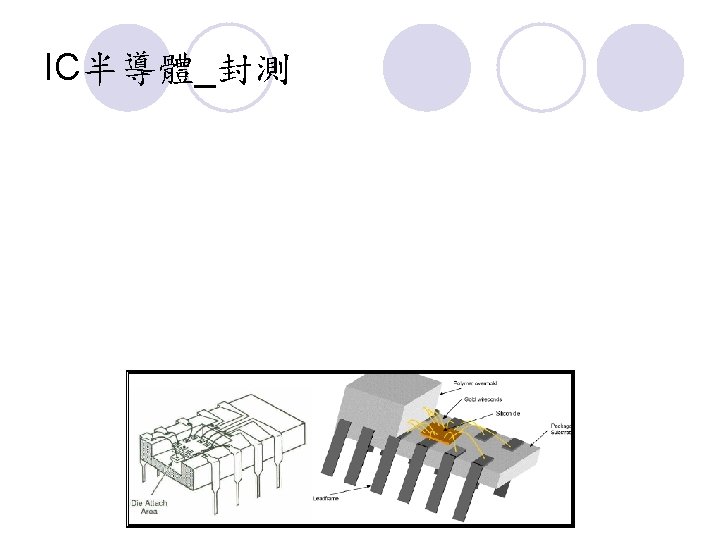

IC半導體_封測 IC Chip Au Wire Over Molded Chip Via Cu Traces Solder Ball Laminate Substrate

IC半導體_封測_Die Attach IC黏晶: Lead frame 導線架 Glue dispensing 點 膠 Die attach 晶粒黏著 Wafer 晶 圓 Glue Type Curing 烘 烤 W/B

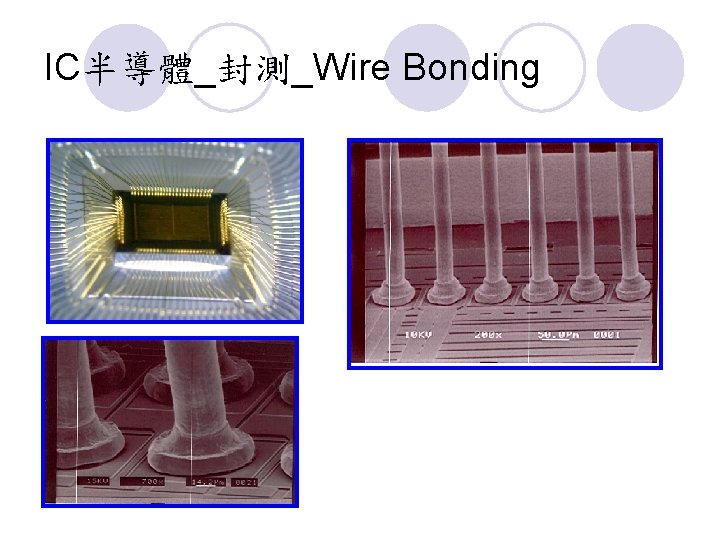

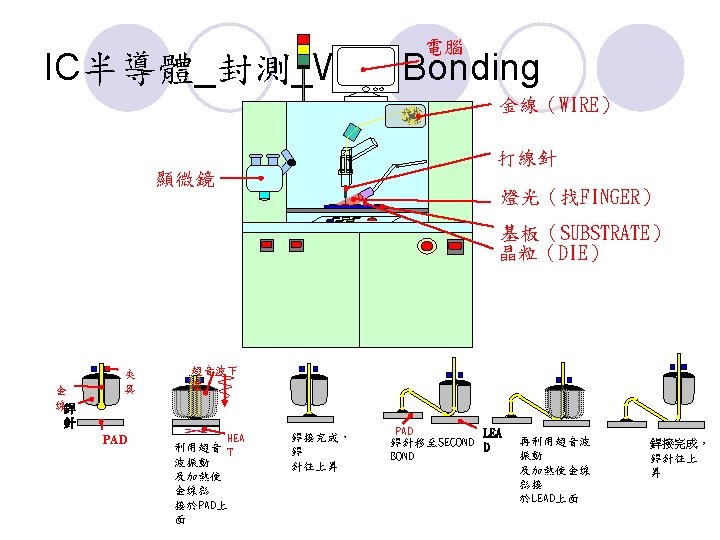

IC半導體_封測_Wire Bonding

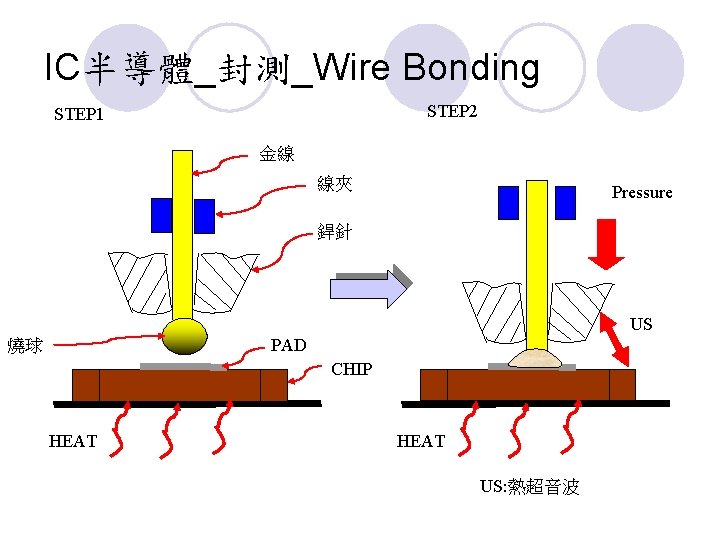

IC半導體_封測_Wire Bonding STEP 2 STEP 1 金線 線夾 Pressure 銲針 US PAD 燒球 CHIP HEAT US: 熱超音波

IC半導體_封測_Wire Bonding STEP 3 Looping

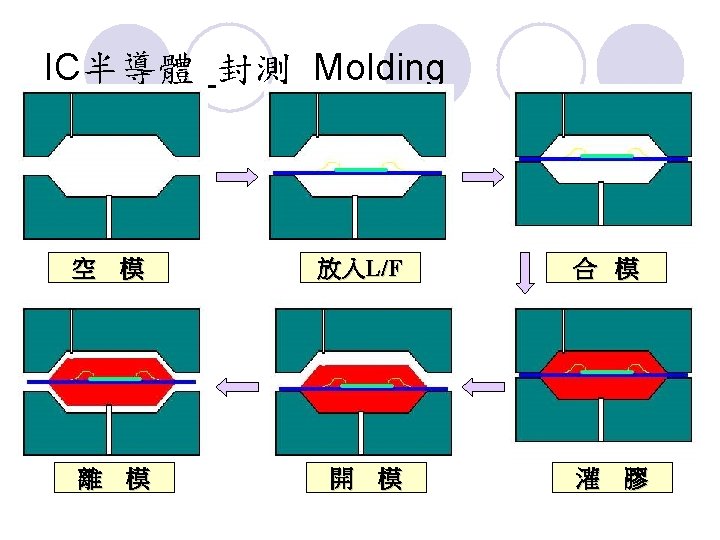

IC半導體_封測_Molding

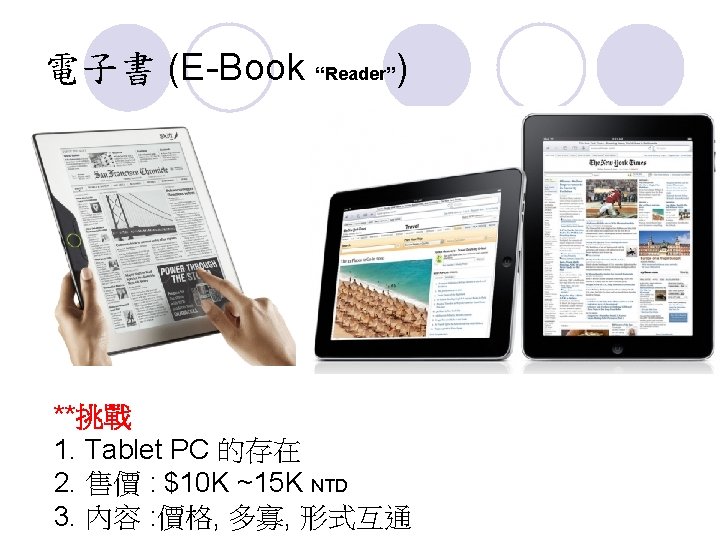

電子書 (E-Book “Reader”) 0. 36吋, 300克, E-ink_600 x 800, 16 bits gray, 4 Hrs=>5 days life, Amazon-e. Book, 50 K-Aud , 240 K sets {1 st chap trial}

Android v. s. i. Phone v. s. others Video !!

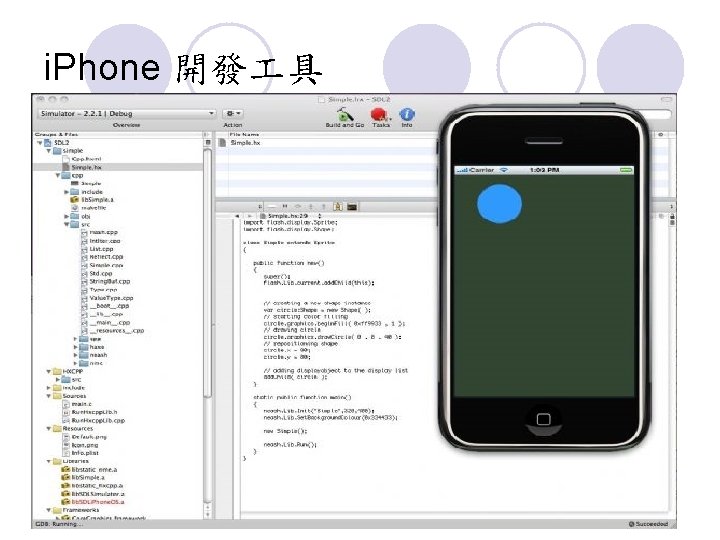

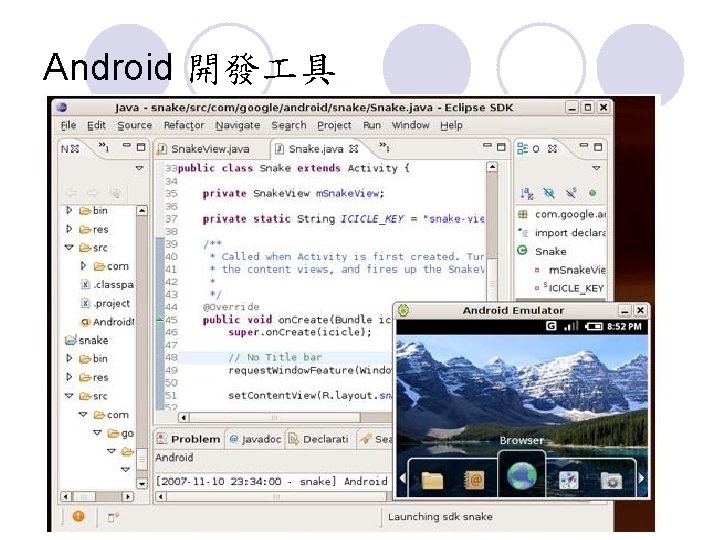

Android 開發 具

電子醫療器材_Euro Definition

電子醫療器材_ Risk comparison

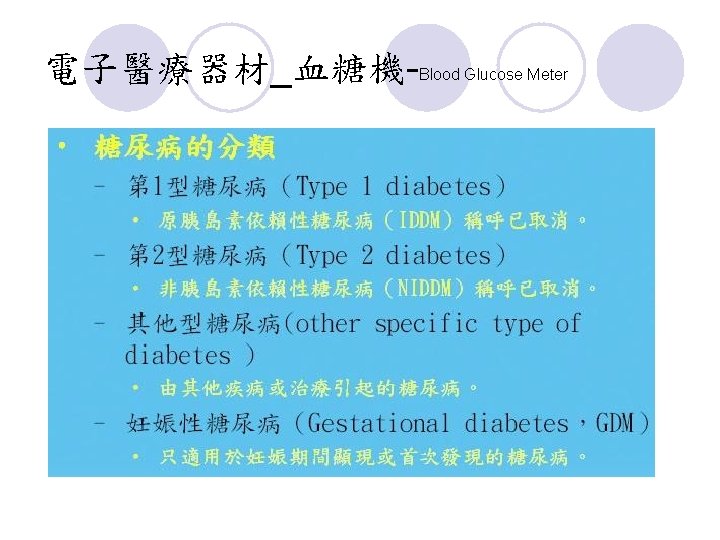

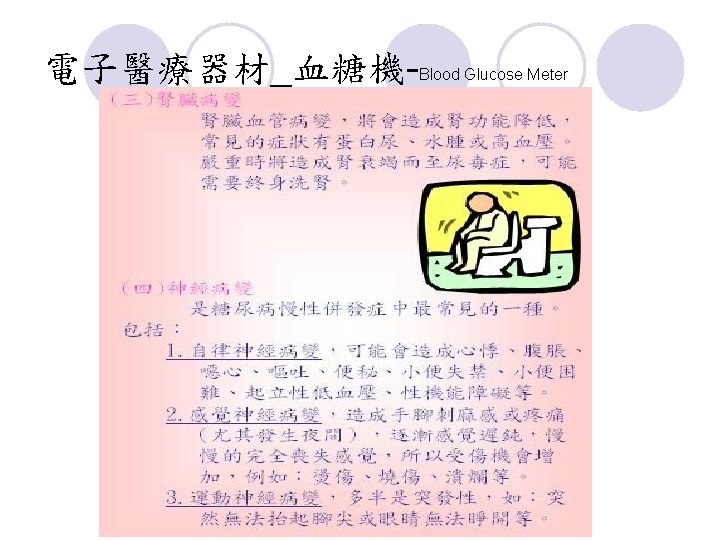

電子醫療器材_血糖機-Blood Glucose Meter

電子醫療器材_血糖機-Blood Glucose Meter

電子醫療器材_血糖機-Blood Glucose Meter

電子醫療器材_血糖機-Blood Glucose Meter

電子醫療器材_血糖機-Blood Glucose Meter

電子醫療器材_血糖機-Blood Glucose Meter Video !!

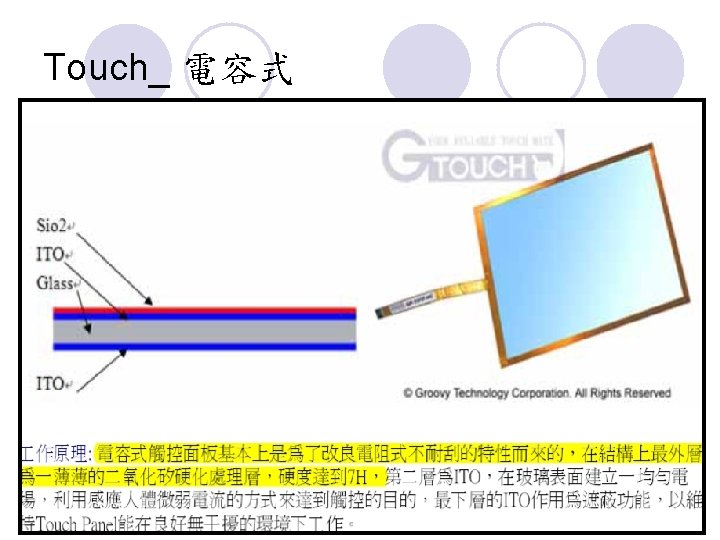

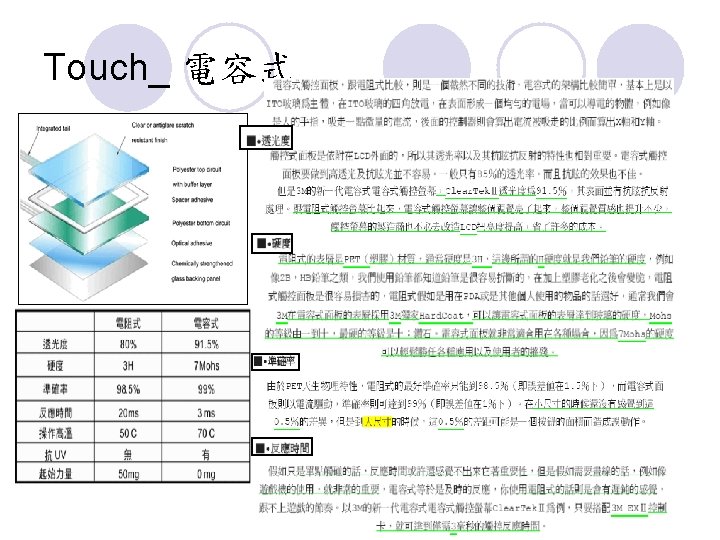

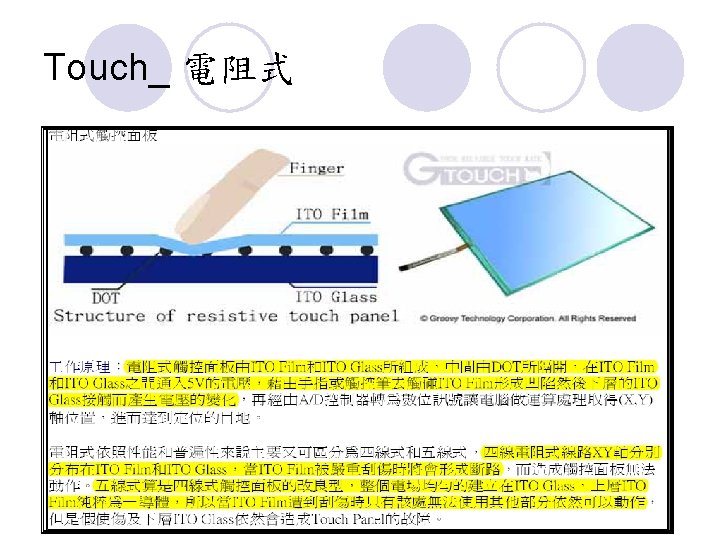

Touch Types

Touch_ Sonic Wave

Touch_ IR type

Touch _ Surface Computer Video !!

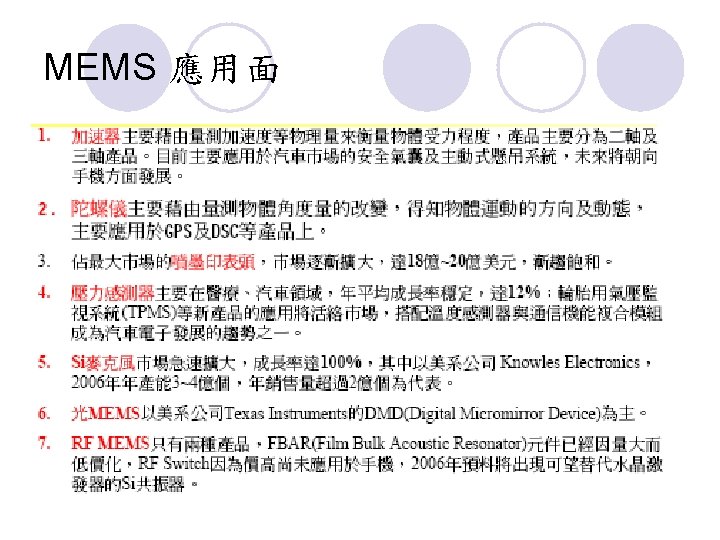

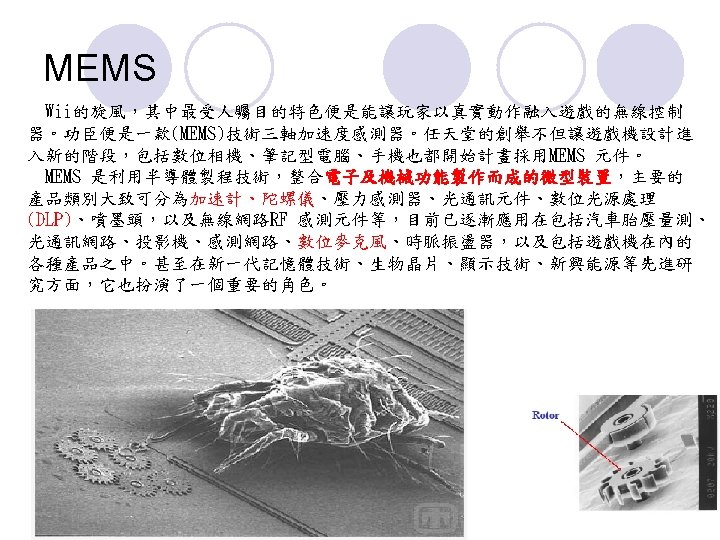

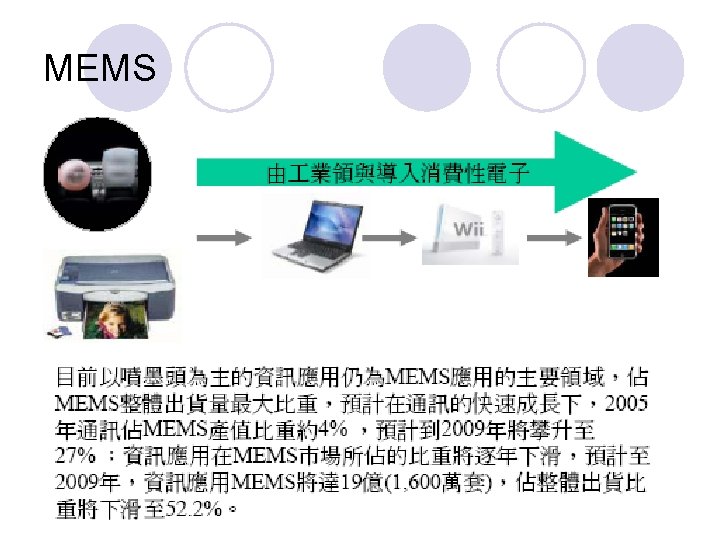

MEMS

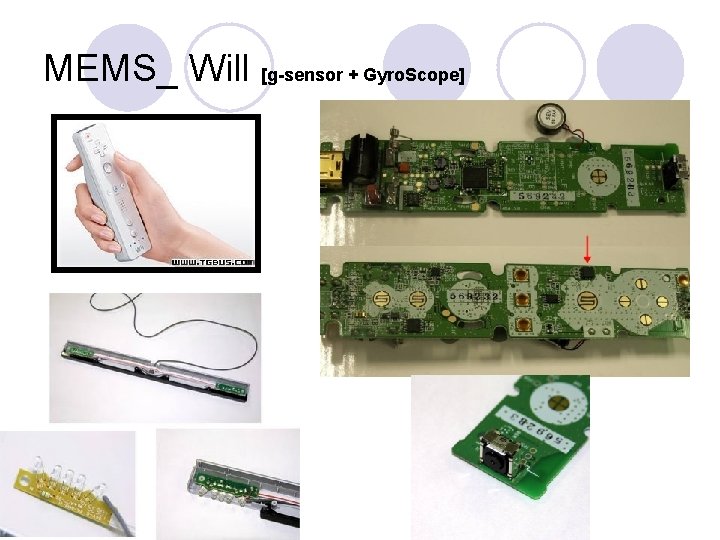

MEMS_ Will [g-sensor + Gyro. Scope]

MEMS _ G-sensor App HDD Air. Bag

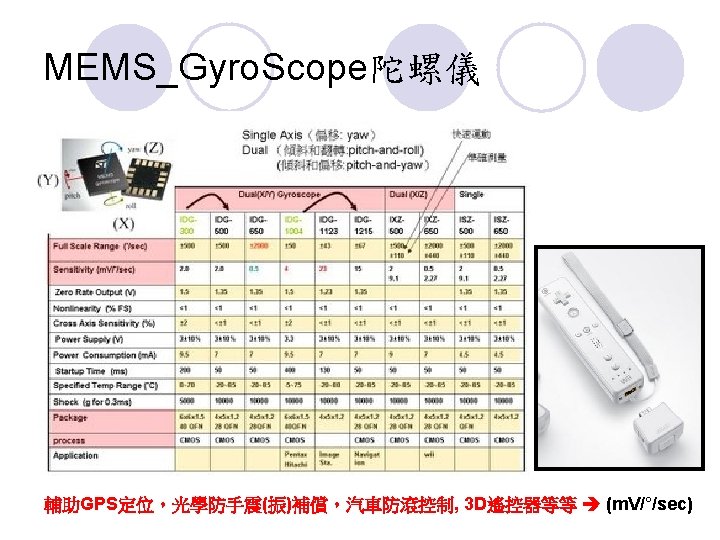

MEMS_Gyro. Scope陀螺儀

MEMS_ Microphone

MEMS_ DLP - DMD (Digital Light Processing ) 0. 1 M mirrors / chip (Digital Micromirror Device)

MEMS 特性

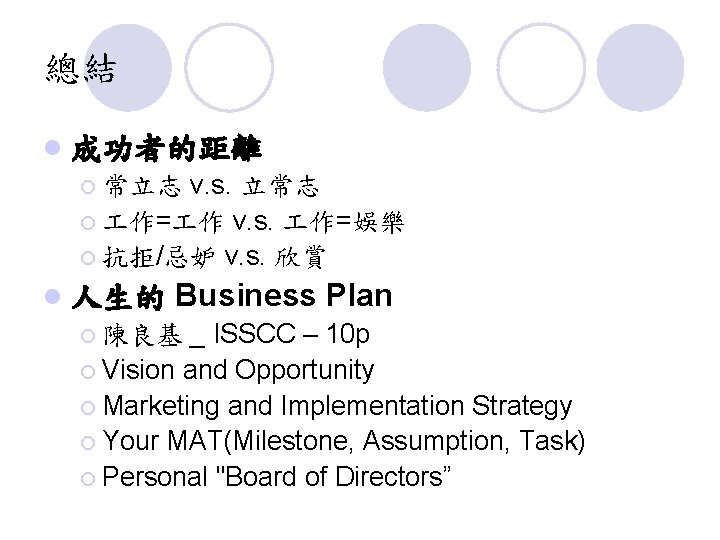

總結 l 成功者的距離 ¡ 常立志 v. s. 立常志 ¡ 作= 作 v. s. 作=娛樂 ¡ 抗拒/忌妒 v. s. 欣賞 l 人生的 Business Plan ¡ 陳良基 _ ISSCC – 10 p ¡ Vision and Opportunity ¡ Marketing and Implementation Strategy ¡ Your MAT(Milestone, Assumption, Task) ¡ Personal "Board of Directors”

Backup The entrepreneurial process is at its core concerned with "the pursuit of opportunity without regard to the resources already under control. " This process is as applicable to your career as it is to starting a company. The goal of this assignment is to identify where you want to be and how you will get there. Do not worry about your current resources. Think entrepreneurially! Your personal business plan should include a long-term vision statement, the "external" opportunities that exist, your "internal" (personal) strengths, and a strategy for yourself and your life over the next two to three years after leaving NTU. 1. Vision and Opportunity What are your goals after you leave NTU? What is your purpose, your values and your mission? List the 3 key questions that guide your choices. What is the market and opportunity that align with your goals? Don't restrict yourself to matters of career or work; think more broadly about your opportunities to make a difference. 2. Marketing and Implementation Strategy Create your market positioning statement. This may be directed at a hypothetical employer, industry, organization, or the world at large. What compelling value will you offer to your employers and society? How will you differentiate from other NTU students? 3. Your MAT(Milestone, Assumption, Task) What are the key milestones and checkpoints in your plan? How will you measure/determine if you have successfully attained these milestones? How do you define success? Develop contingency and risk mitigation strategies. 4. Personal "Board of Directors" If you could assemble any 3 people to advise and mentor you who would they be? They may be alive or dead, family or world leaders, friends or strangers. Why would you choose each? Is it their wisdom, their accomplishments, their words, their creativity, their character, their heroic deeds…?
