History of Vacuum Research Corporation (VRC) traces its history back almost 60 years. VRC was one of the pioneer companies in the high vacuum industry when we introduced our vacuum gate valves in 1953 and our product development efforts have never stopped. Many of the products we offer today such as our active Pirani gauge and full opening Throttle. Master™ valve are truly state of the art technology and more importantly everything we ship is state of the art in quality and reliability. VRC’s key personnel possess over 125 years of vacuum industry experience. Allow us to help you enable your vacuum process.

VRC Milestones 1953 Aluminum gate valve production began in northern California. Virtually every part was made by permanent mold casting. 1987 Valve manufacturing operations moved to Pittsburgh, PA. 1988 Vacuum gauge production begins in Newport News, VA. 1995 Start of redesign of valve product line to replace castings with extrusions to eliminate real and virtual leaks due to casting porosity.

VRC Milestones 2005 Elimination of castings is complete and no valve shipped in 2005 was in the product line 1995. 2006 Added Solid Works to Auto-CAD. VRC can now provide 3 -D STEP file models of all valves to system designers. 2007 Introduced the 50 m. Torr to 1000 Torr Diaphragm Manometer. 2008 Introduced the 10 -5 Torr to 1000 Torr Super Wide Range Diaphragm Manometer.

VRC Milestones 2009 An article appearing in Vacuum Technology & Coating acknowledges the superior aluminum welding capabilities of Vacuum Research Corporation. 2009 Introduction of our Active Pirani Gauge that can replace any Pirani or Thermocouple gauge.

Vacuum Research Corporation What You Need to Get the Job Done.

Vacuum Valves Proven designs to meet your needs.

Five Minute Rebuild Valves Have your system back up and running in 5 minutes without removing your valve.

Bonnet Style, Rotary Actuated Gate Valves Available Sizes: 2”/ISO-63 to 20”/ISO-500 Long life rotary actuator Locks in full open and full close Removable bonnet section for ease of maintenance ANSI, ISO, JIS or custom flanges

End Operated Gate Valves Low cost, simple linear actuated valves will give years of trouble free service. Available with ANSI, ISO, JIS and custom flanges

Large Angle Valves Available Sizes: 2”/ISO-63 to 24”/ISO -630 Available with ANSI, ISO, JIS and custom flanges.

Rectangular Port Valves Custom port dimensions and flanges to meet your unique requirements.

Throttlemaster Control Valve Control you system pressure by using this valve as a three position valve or by modulating the gate with the use of a PID controller.

Dust & Dirt Valves Designed to minimize breakdowns due to dusty and dirty applications. The protective ring helps to keep debris out of your valve so that you stay up and running.

Small Angle Valves NW-16 -as well as CF and tube end Available in Stainless Steel or Aluminum, Pneumatic or Manual, with position indicators and with optional gauge tube ports.

Vacuum Fittings Hoses, clamps and other fittings needed to put your system together.

Vacuum and Pressure Gauges

Wide Range Diaphragm Gauge Range: 1 m. Torr to 1500 Torr, also available calibrated in mbar & pascal. Available with two or four adjustable set points, analog outputs including 0 -10 V and -20 m. A. 4

Diaphragm Manometer Available Ranges: 0. 5 to 1500 Torr, 30 inches Hg to 150 PSIG and. 1 to 20, . 1 to 200 and 1 to 1000 PSIG Also available calibrated in mbar & Pascal

Pirani Gauges Available Ranges: . 01 to 100 m. Torr, 1 to 2000 m. Torr and. 01 to 20 Torr Display unit only or Dual Set Point Controllers. Analog outputs or optional 0 -10 V or -20 m. A outputs 4

Big Digit Display Easy to read Big Digit Displays and Dual Set Point Controllers are available in the following ranges: 1 to 1500 Torr or 30 in Hg to 150 PSIG. 1 to 2000 m. Torr and. 01 to 20 Torr NEMA 12 Enclosure

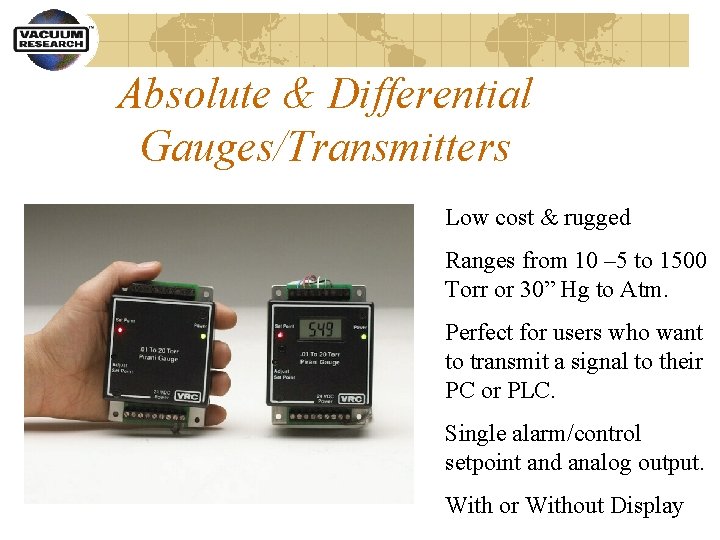

Absolute & Differential Gauges/Transmitters Low cost & rugged Ranges from 10 – 5 to 1500 Torr or 30” Hg to Atm. Perfect for users who want to transmit a signal to their PC or PLC. Single alarm/control setpoint and analog output. With or Without Display

Portable Battery Powered Gauge Available Ranges: Diaphragm, 1 to 1500 Torr or 30” Hg to 200 PSIG Pirani, 1 to 2000 m. Torr or. 01 to 20 Torr Rugged Digital Display Long Life Battery

Dual Range Gauges Two gauges in one 1/8 DIN enclosure. Available Ranges: 1 to 2000 m. Torr and 1 to 1500 Torr Mix and match ranges to suit your needs.

Low Cost & Portable Gauges Available Ranges: . 01 to 50 Torr 1 to 1500 Torr Atm to 30” Hg Available with optional handle & bumper pads.
