SIKE! HISTORY OF ASTRONOMY

Early Astronomy Ancient Greeks Astronomy is the science that studies the universe. It includes the observation and interpretation of celestial bodies and phenomena. The Greeks used philosophical arguments to explain natural phenomena. The Greeks also used some observational data.

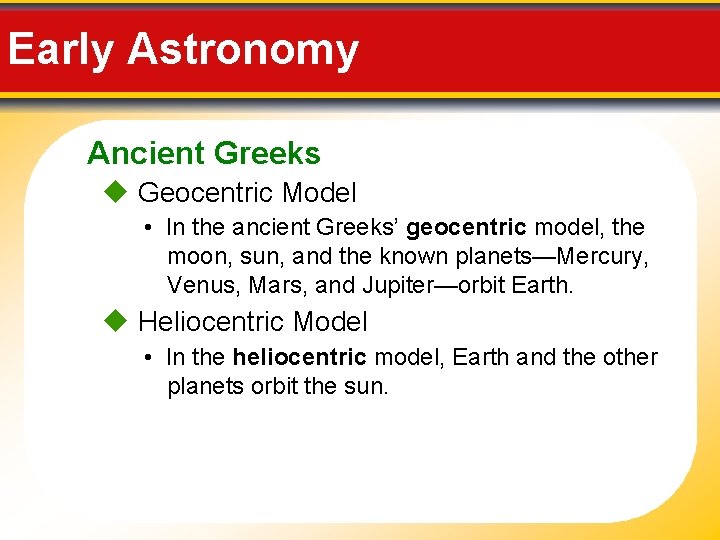

Early Astronomy Ancient Greeks Geocentric Model • In the ancient Greeks’ geocentric model, the moon, sun, and the known planets—Mercury, Venus, Mars, and Jupiter—orbit Earth. Heliocentric Model • In the heliocentric model, Earth and the other planets orbit the sun.

Geocentric and Heliocentric Models

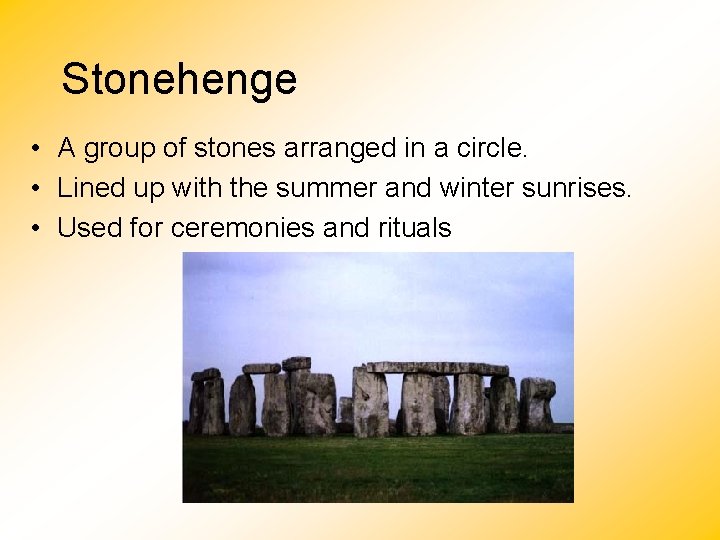

Stonehenge • A group of stones arranged in a circle. • Lined up with the summer and winter sunrises. • Used for ceremonies and rituals

Babylonians • Tracked the positions of the planets and moons • Created first calendar

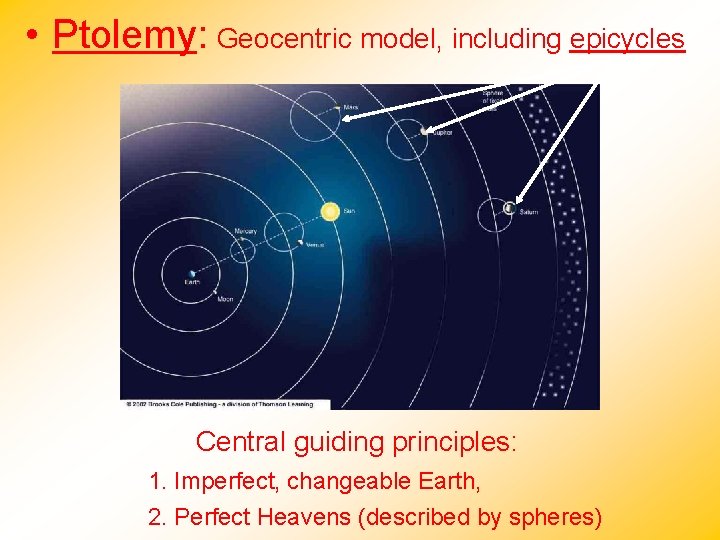

• Ptolemy: Geocentric model, including epicycles Central guiding principles: 1. Imperfect, changeable Earth, 2. Perfect Heavens (described by spheres)

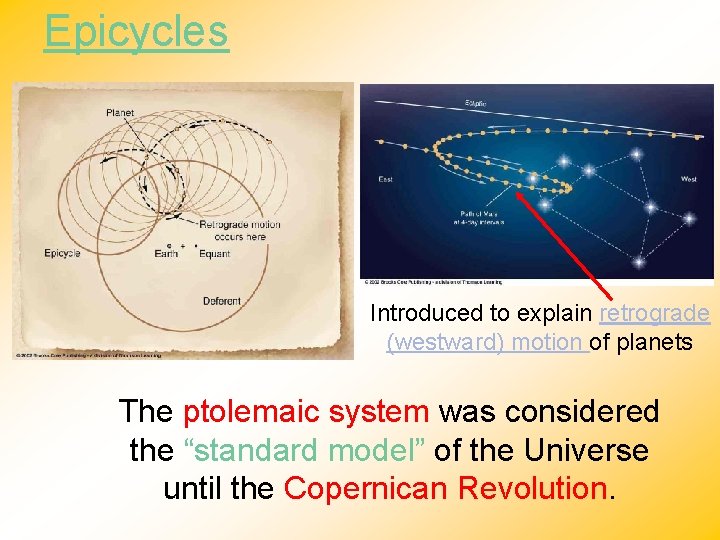

Epicycles Introduced to explain retrograde (westward) motion of planets The ptolemaic system was considered the “standard model” of the Universe until the Copernican Revolution.

Epicycles

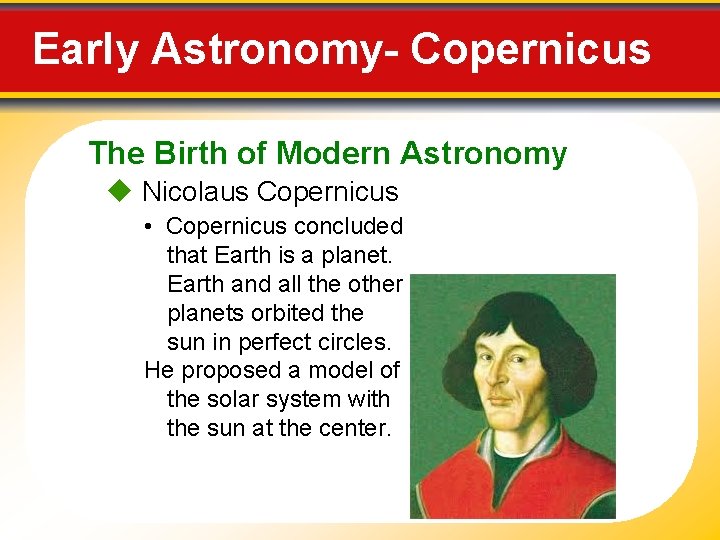

Early Astronomy- Copernicus The Birth of Modern Astronomy Nicolaus Copernicus • Copernicus concluded that Earth is a planet. Earth and all the other planets orbited the sun in perfect circles. He proposed a model of the solar system with the sun at the center.

Early Astronomy- Brahe The Birth of Modern Astronomy Tycho Brahe • Tycho Brahe designed and built instruments to measure the locations of the heavenly bodies. Brahe’s observations, especially of Mars, were far more precise than any made previously.

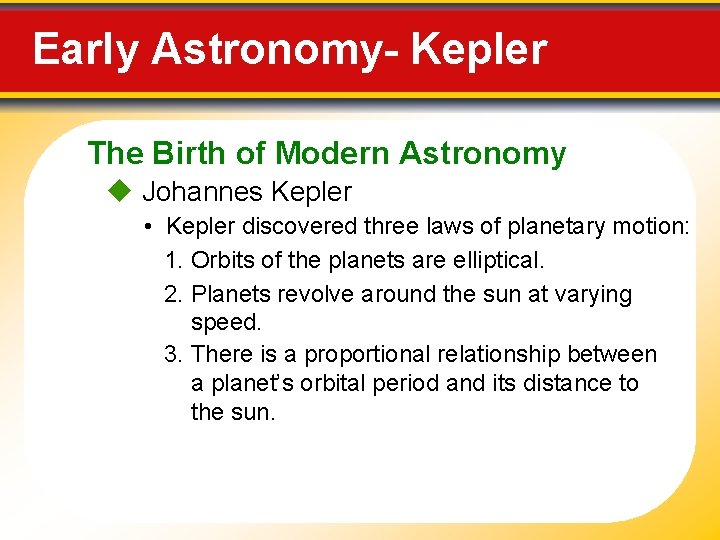

Early Astronomy- Kepler The Birth of Modern Astronomy Johannes Kepler • Kepler discovered three laws of planetary motion: 1. Orbits of the planets are elliptical. 2. Planets revolve around the sun at varying speed. 3. There is a proportional relationship between a planet’s orbital period and its distance to the sun.

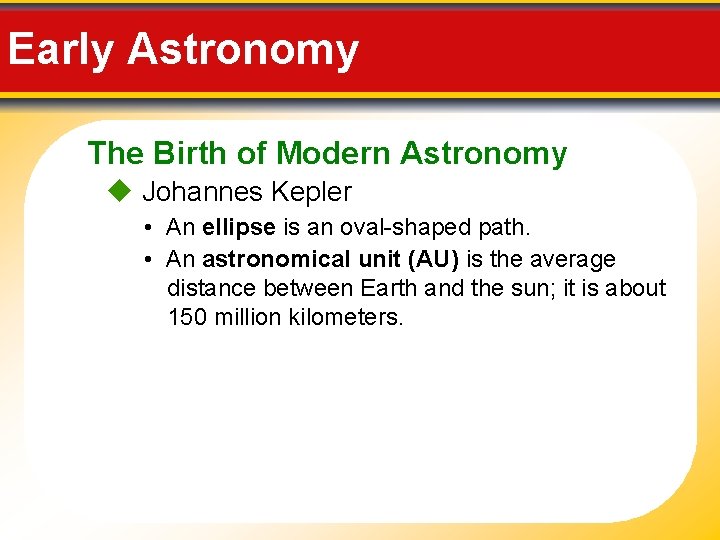

Early Astronomy The Birth of Modern Astronomy Johannes Kepler • An ellipse is an oval-shaped path. • An astronomical unit (AU) is the average distance between Earth and the sun; it is about 150 million kilometers.

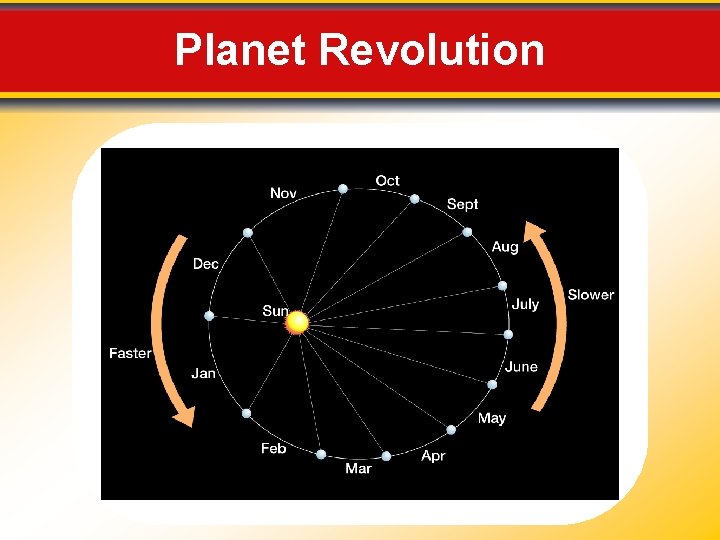

Planet Revolution

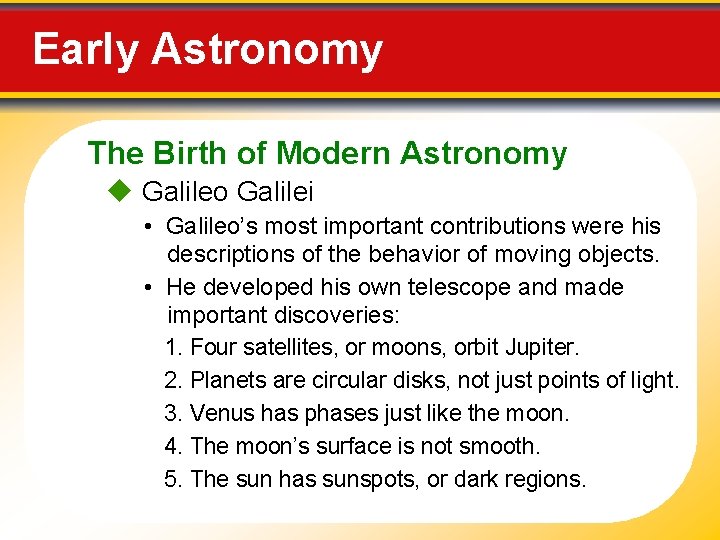

Early Astronomy The Birth of Modern Astronomy Galileo Galilei • Galileo’s most important contributions were his descriptions of the behavior of moving objects. • He developed his own telescope and made important discoveries: 1. Four satellites, or moons, orbit Jupiter. 2. Planets are circular disks, not just points of light. 3. Venus has phases just like the moon. 4. The moon’s surface is not smooth. 5. The sun has sunspots, or dark regions.

The Solar System Model Evolves

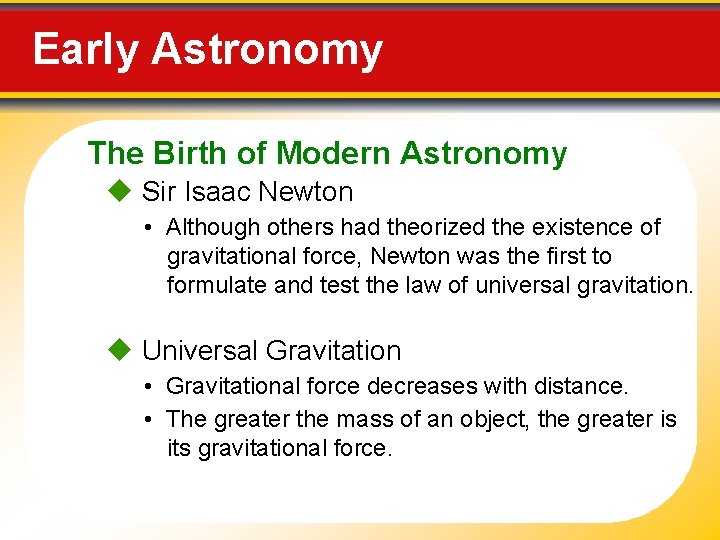

Early Astronomy The Birth of Modern Astronomy Sir Isaac Newton • Although others had theorized the existence of gravitational force, Newton was the first to formulate and test the law of universal gravitation. Universal Gravitation • Gravitational force decreases with distance. • The greater the mass of an object, the greater is its gravitational force.

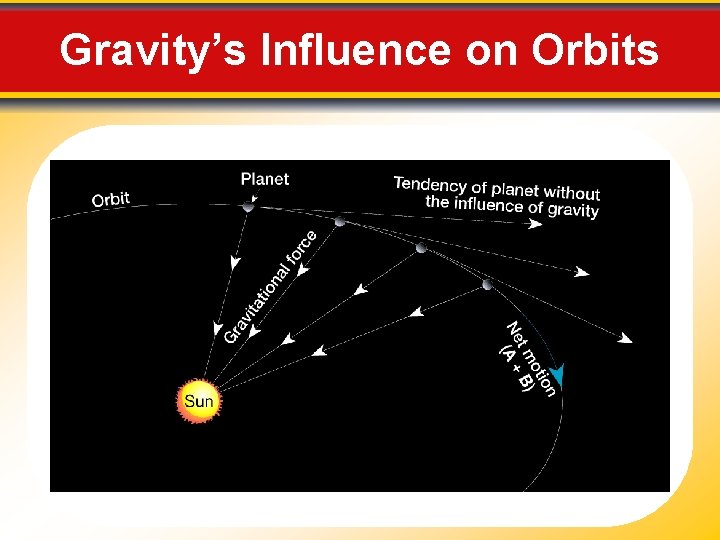

Gravity’s Influence on Orbits

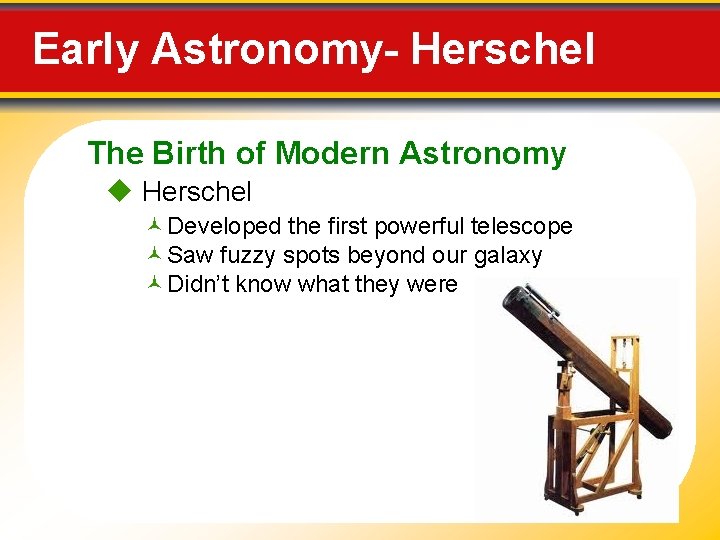

Early Astronomy- Herschel The Birth of Modern Astronomy Herschel © Developed the first powerful telescope © Saw fuzzy spots beyond our galaxy © Didn’t know what they were

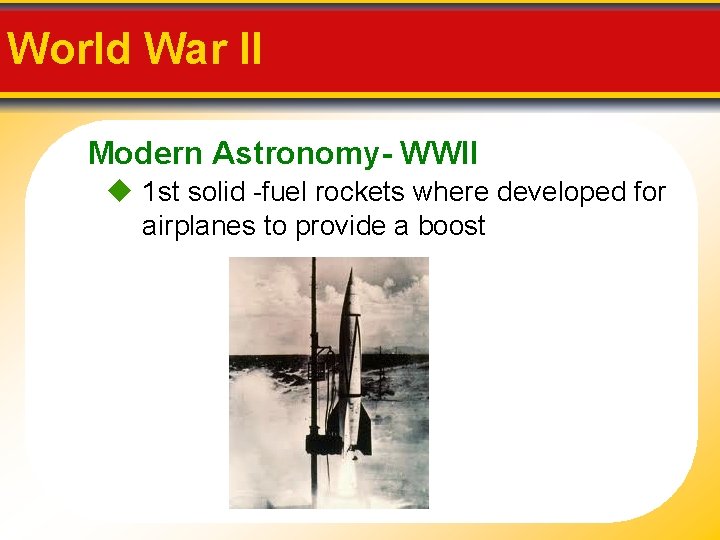

World War II Modern Astronomy- WWII 1 st solid -fuel rockets where developed for airplanes to provide a boost

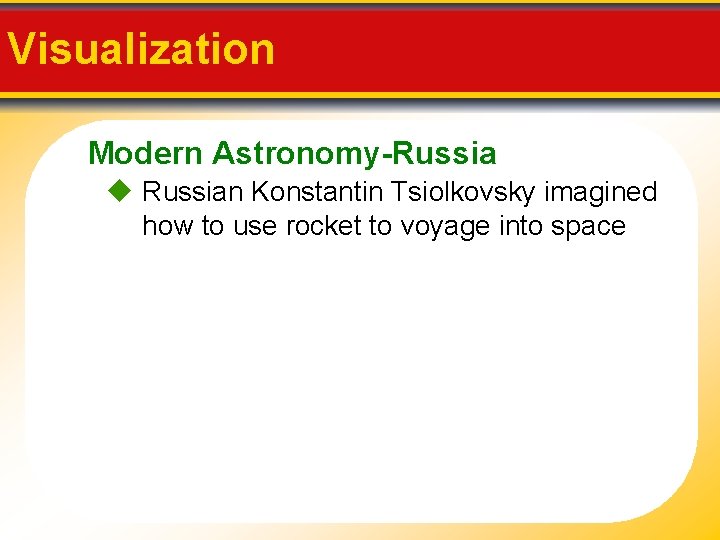

Visualization Modern Astronomy-Russia Russian Konstantin Tsiolkovsky imagined how to use rocket to voyage into space

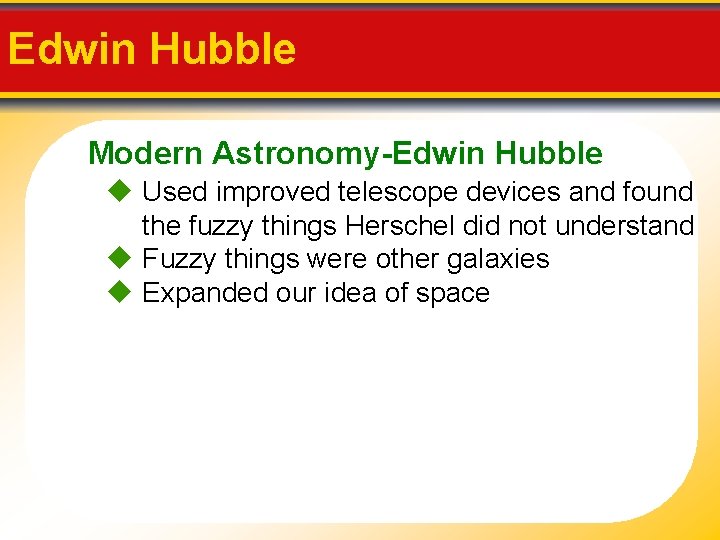

Edwin Hubble Modern Astronomy-Edwin Hubble Used improved telescope devices and found the fuzzy things Herschel did not understand Fuzzy things were other galaxies Expanded our idea of space

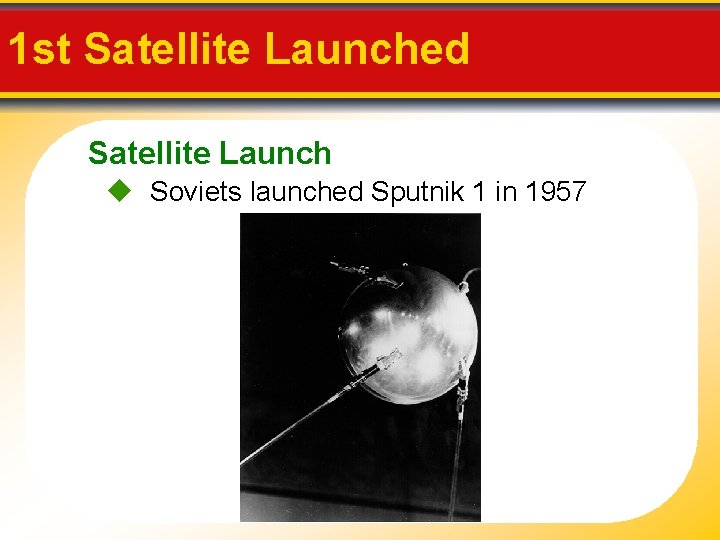

1 st Satellite Launched Satellite Launch Soviets launched Sputnik 1 in 1957

1 st Space Traveler 1 st Astronaut A dog named Laika, survived several days on Sputnik 2 - 1957 Died of heat exhaustion after temperatures rose

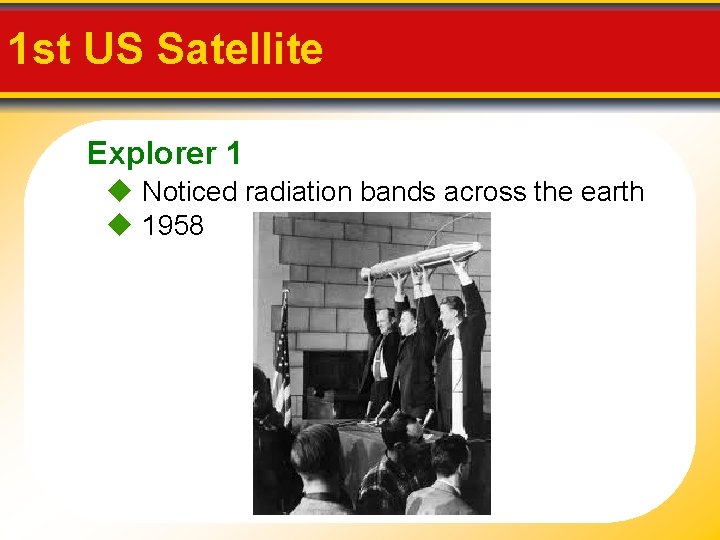

1 st US Satellite Explorer 1 Noticed radiation bands across the earth 1958

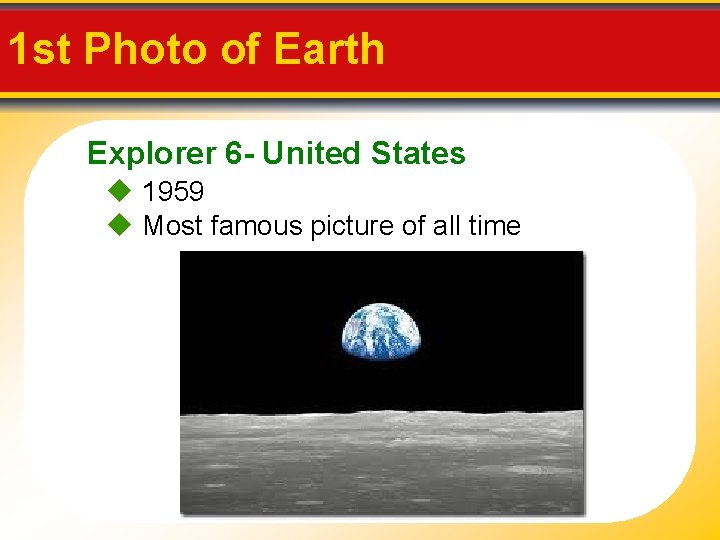

1 st Photo of Earth Explorer 6 - United States 1959 Most famous picture of all time

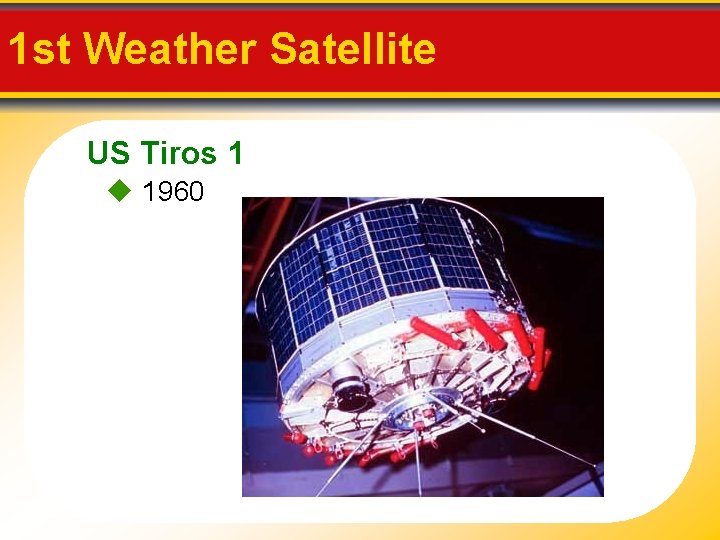

1 st Weather Satellite US Tiros 1 1960

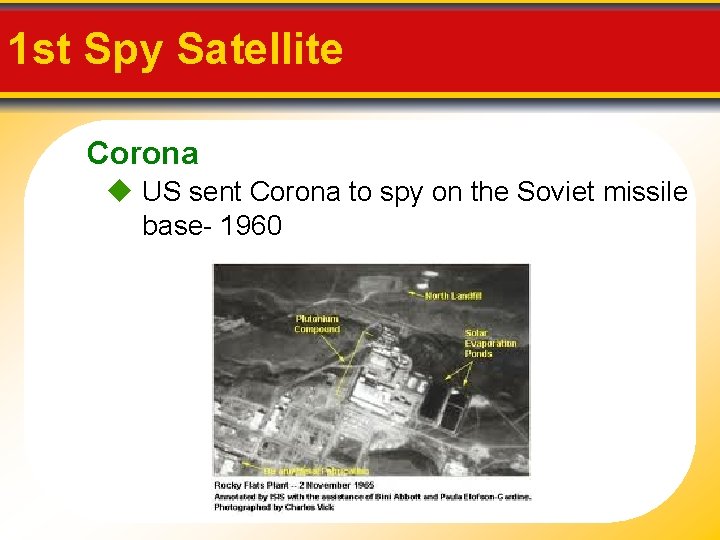

1 st Spy Satellite Corona US sent Corona to spy on the Soviet missile base- 1960

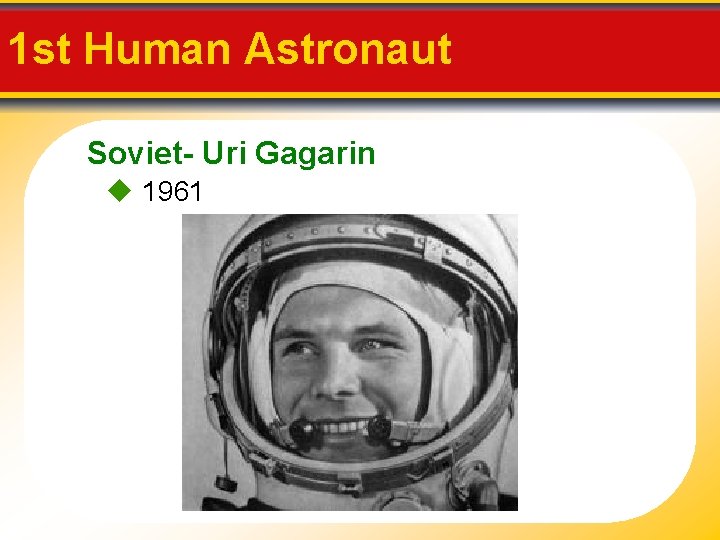

1 st Human Astronaut Soviet- Uri Gagarin 1961

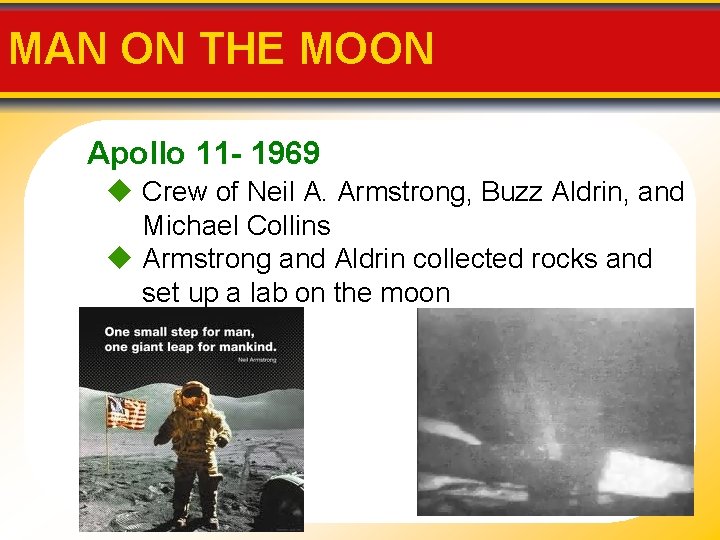

MAN ON THE MOON Apollo 11 - 1969 Crew of Neil A. Armstrong, Buzz Aldrin, and Michael Collins Armstrong and Aldrin collected rocks and set up a lab on the moon

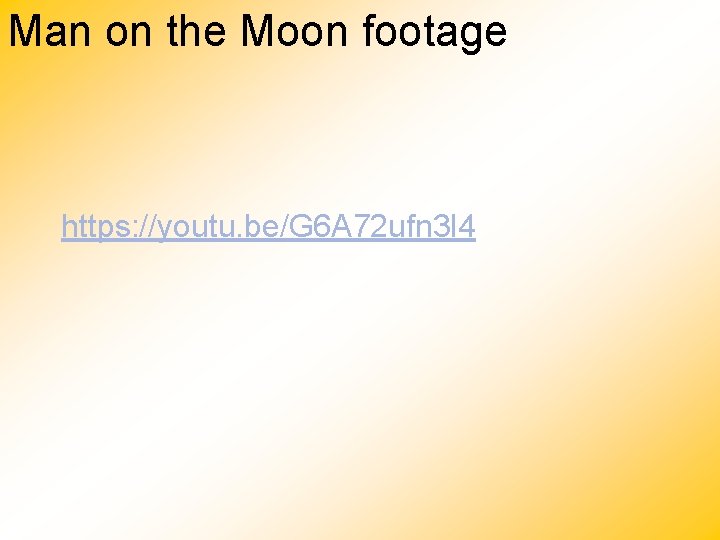

Man on the Moon footage https: //youtu. be/G 6 A 72 ufn 3 l 4

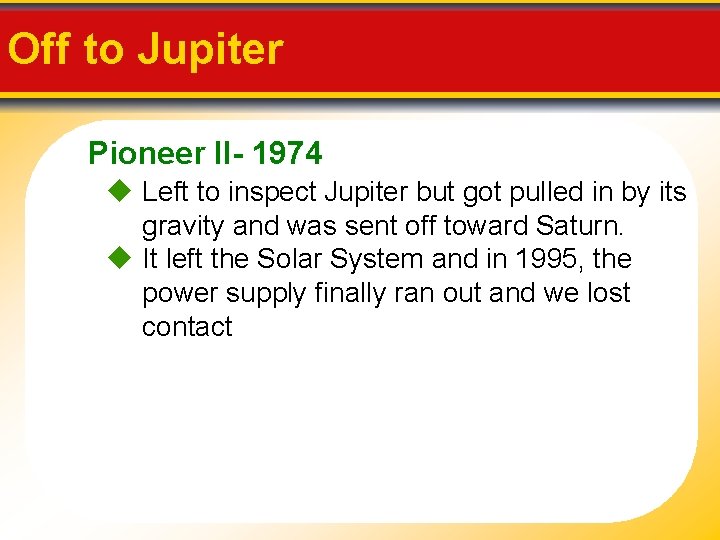

Off to Jupiter Pioneer II- 1974 Left to inspect Jupiter but got pulled in by its gravity and was sent off toward Saturn. It left the Solar System and in 1995, the power supply finally ran out and we lost contact

1 st Woman Astronaut Sally K. Ride Rode on the Challenger from the US in 1983

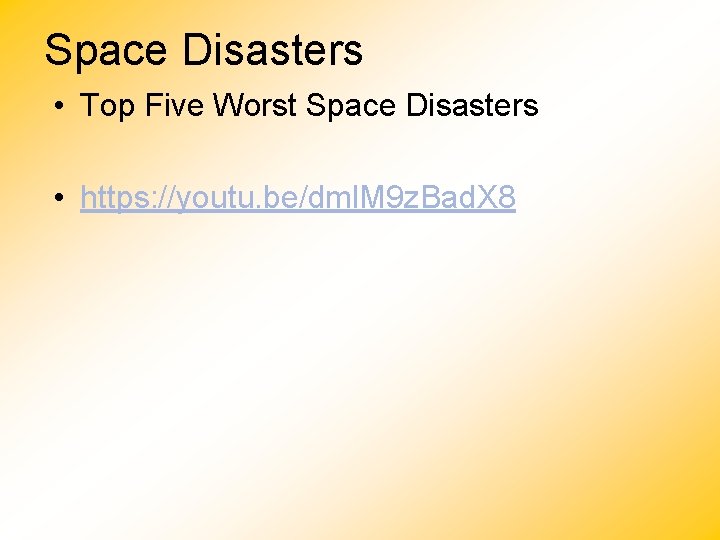

Space Disasters • Top Five Worst Space Disasters • https: //youtu. be/dml. M 9 z. Bad. X 8

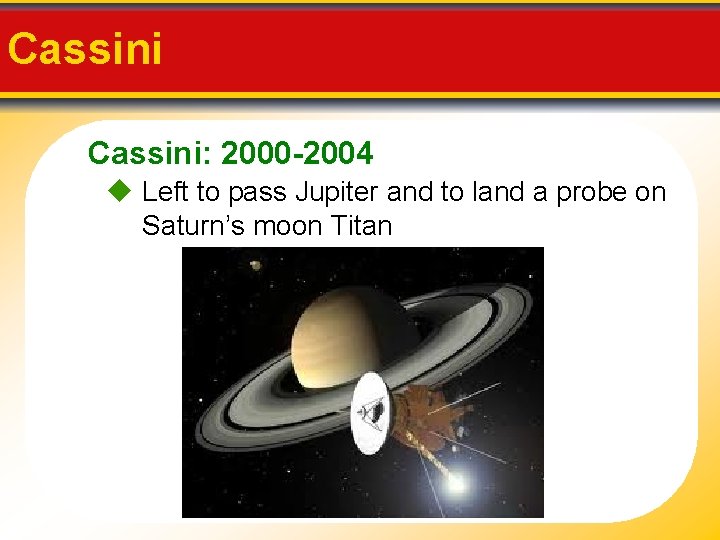

Cassini: 2000 -2004 Left to pass Jupiter and to land a probe on Saturn’s moon Titan

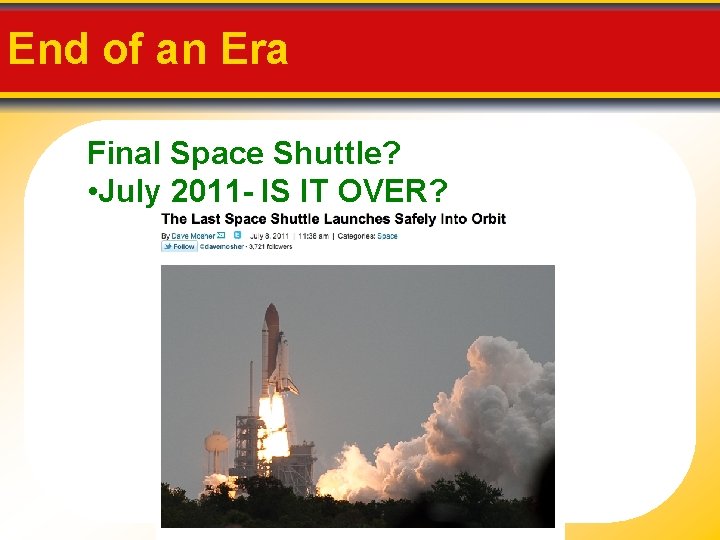

End of an Era Final Space Shuttle? • July 2011 - IS IT OVER?

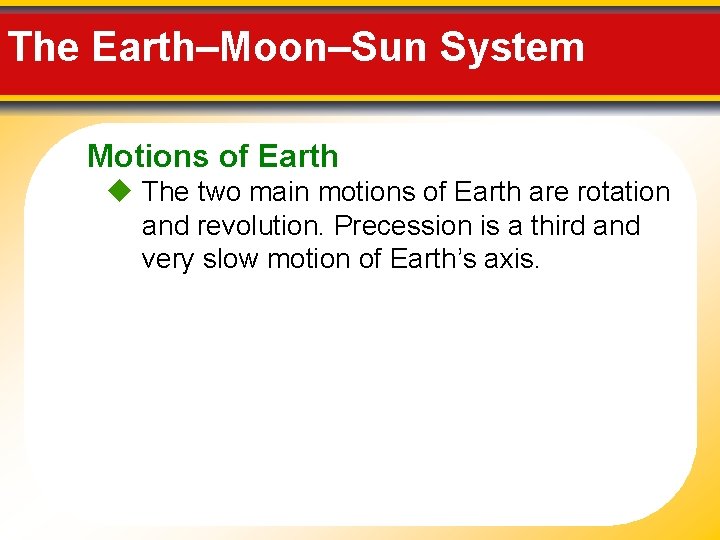

The Earth–Moon–Sun System Motions of Earth The two main motions of Earth are rotation and revolution. Precession is a third and very slow motion of Earth’s axis.

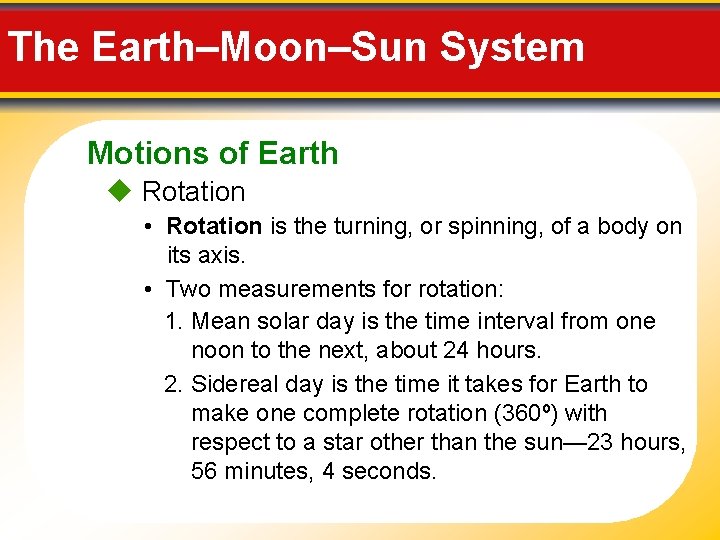

The Earth–Moon–Sun System Motions of Earth Rotation • Rotation is the turning, or spinning, of a body on its axis. • Two measurements for rotation: 1. Mean solar day is the time interval from one noon to the next, about 24 hours. 2. Sidereal day is the time it takes for Earth to make one complete rotation (360º) with respect to a star other than the sun— 23 hours, 56 minutes, 4 seconds.

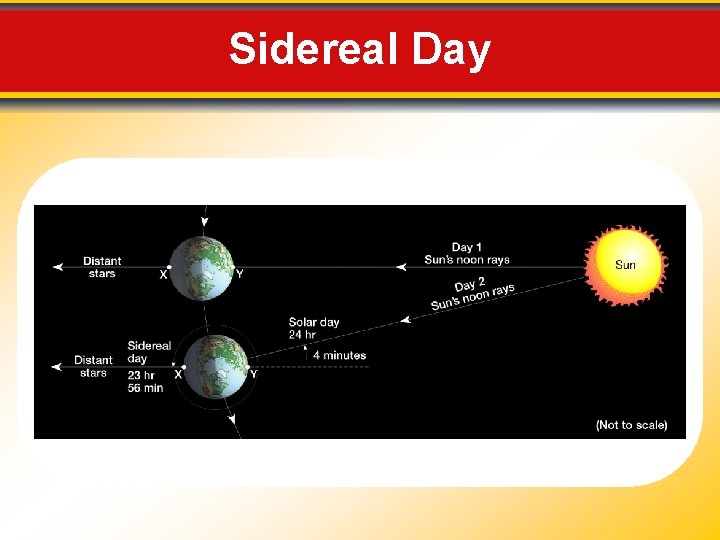

Sidereal Day

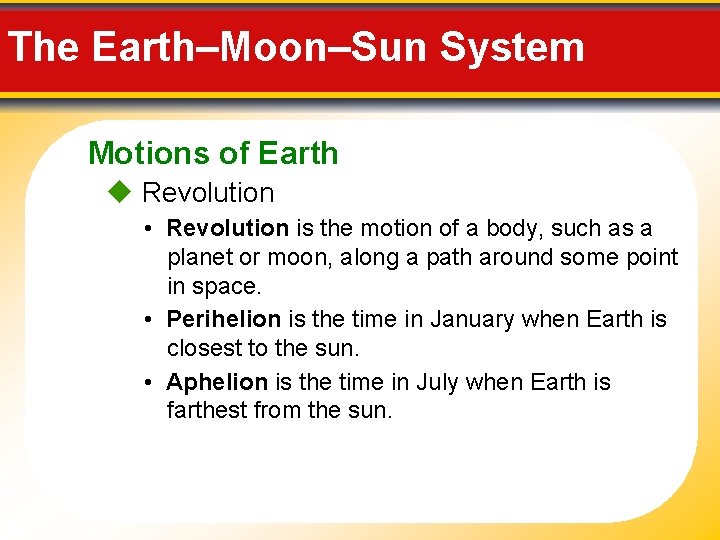

The Earth–Moon–Sun System Motions of Earth Revolution • Revolution is the motion of a body, such as a planet or moon, along a path around some point in space. • Perihelion is the time in January when Earth is closest to the sun. • Aphelion is the time in July when Earth is farthest from the sun.

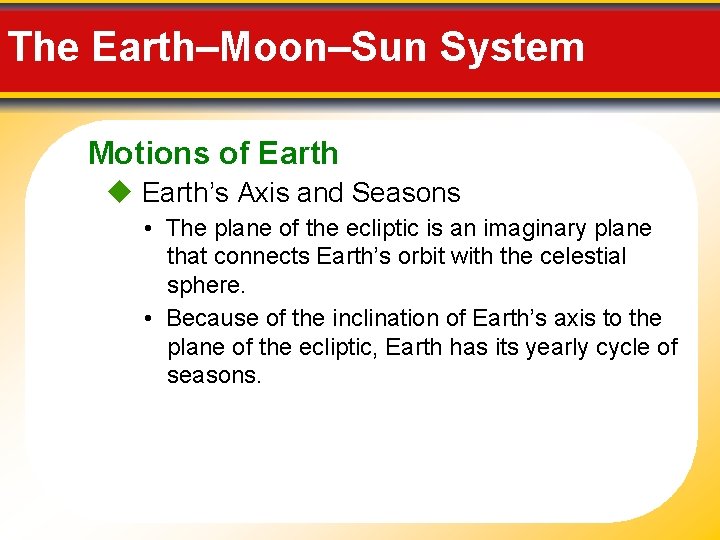

The Earth–Moon–Sun System Motions of Earth’s Axis and Seasons • The plane of the ecliptic is an imaginary plane that connects Earth’s orbit with the celestial sphere. • Because of the inclination of Earth’s axis to the plane of the ecliptic, Earth has its yearly cycle of seasons.

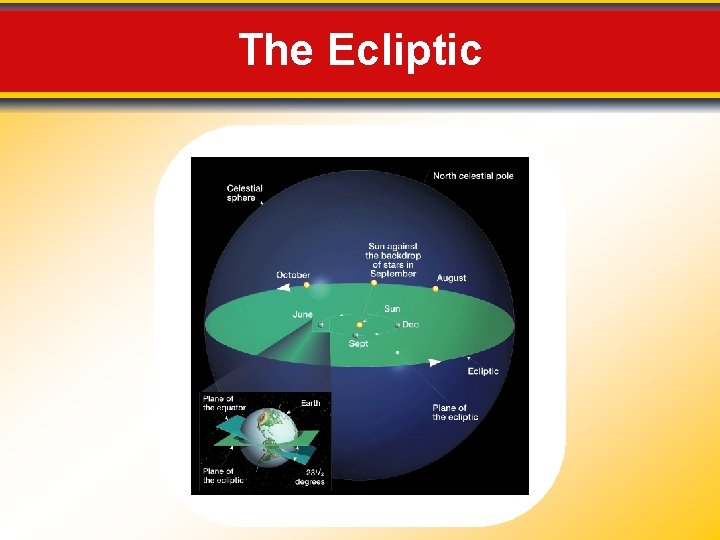

The Ecliptic

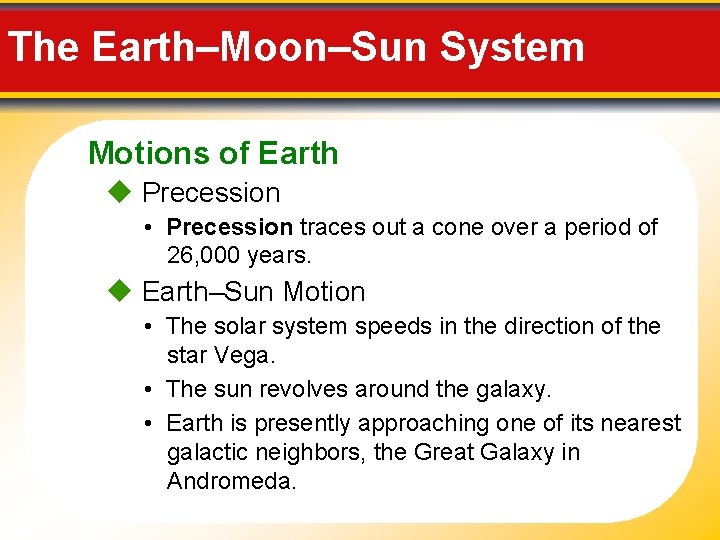

The Earth–Moon–Sun System Motions of Earth Precession • Precession traces out a cone over a period of 26, 000 years. Earth–Sun Motion • The solar system speeds in the direction of the star Vega. • The sun revolves around the galaxy. • Earth is presently approaching one of its nearest galactic neighbors, the Great Galaxy in Andromeda.

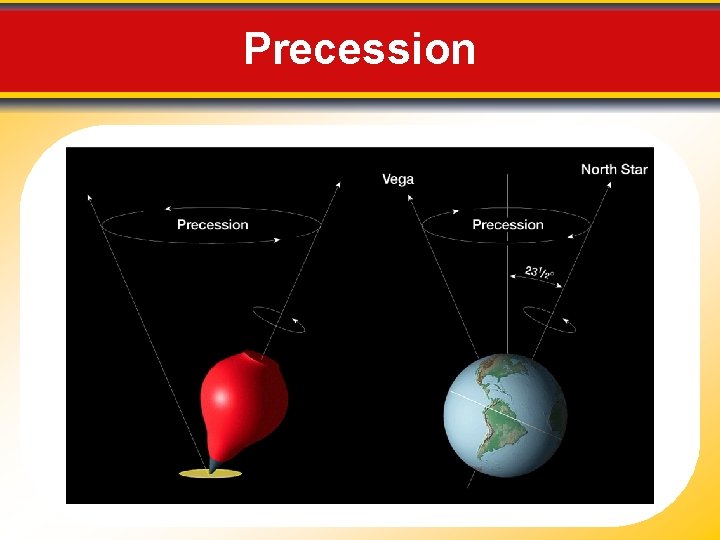

Precession

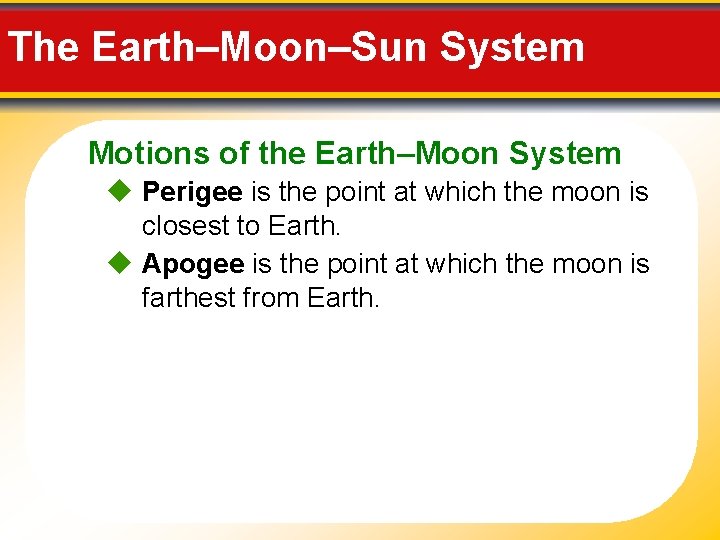

The Earth–Moon–Sun System Motions of the Earth–Moon System Perigee is the point at which the moon is closest to Earth. Apogee is the point at which the moon is farthest from Earth.

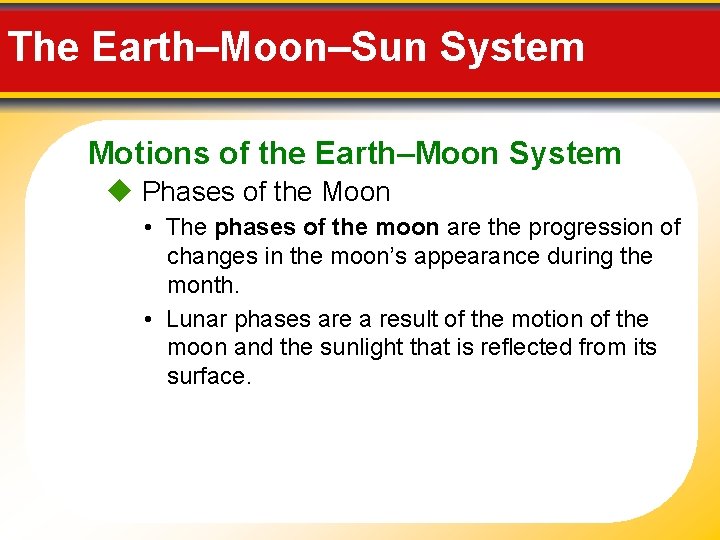

The Earth–Moon–Sun System Motions of the Earth–Moon System Phases of the Moon • The phases of the moon are the progression of changes in the moon’s appearance during the month. • Lunar phases are a result of the motion of the moon and the sunlight that is reflected from its surface.

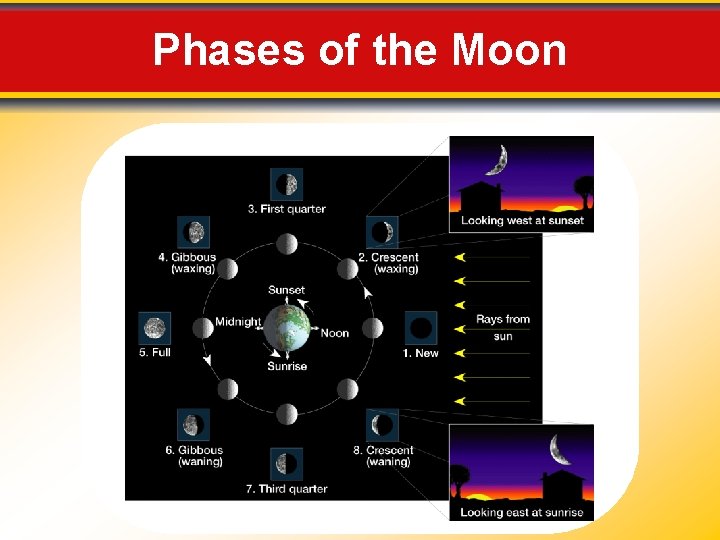

Phases of the Moon

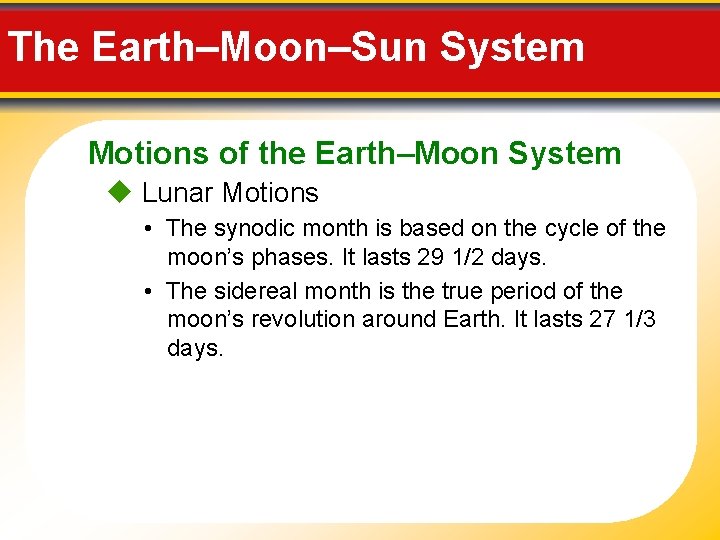

The Earth–Moon–Sun System Motions of the Earth–Moon System Lunar Motions • The synodic month is based on the cycle of the moon’s phases. It lasts 29 1/2 days. • The sidereal month is the true period of the moon’s revolution around Earth. It lasts 27 1/3 days.

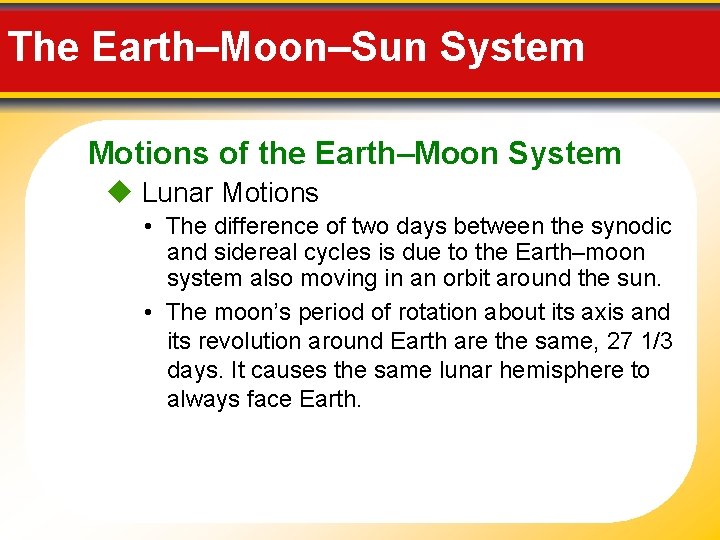

The Earth–Moon–Sun System Motions of the Earth–Moon System Lunar Motions • The difference of two days between the synodic and sidereal cycles is due to the Earth–moon system also moving in an orbit around the sun. • The moon’s period of rotation about its axis and its revolution around Earth are the same, 27 1/3 days. It causes the same lunar hemisphere to always face Earth.

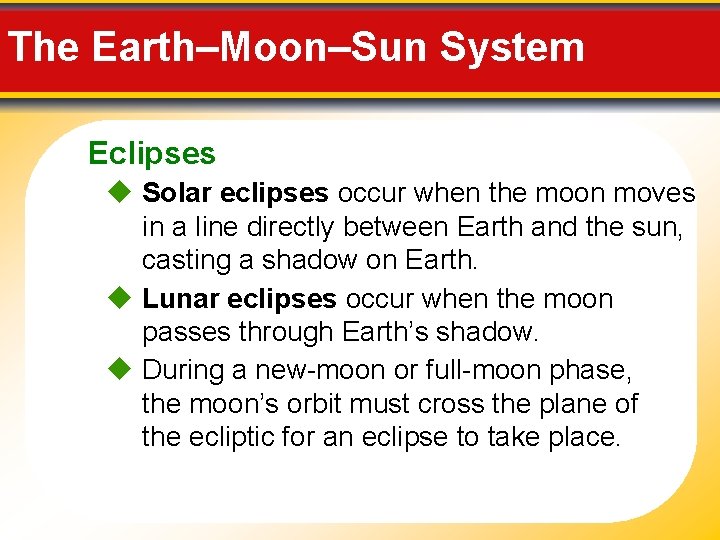

The Earth–Moon–Sun System Eclipses Solar eclipses occur when the moon moves in a line directly between Earth and the sun, casting a shadow on Earth. Lunar eclipses occur when the moon passes through Earth’s shadow. During a new-moon or full-moon phase, the moon’s orbit must cross the plane of the ecliptic for an eclipse to take place.

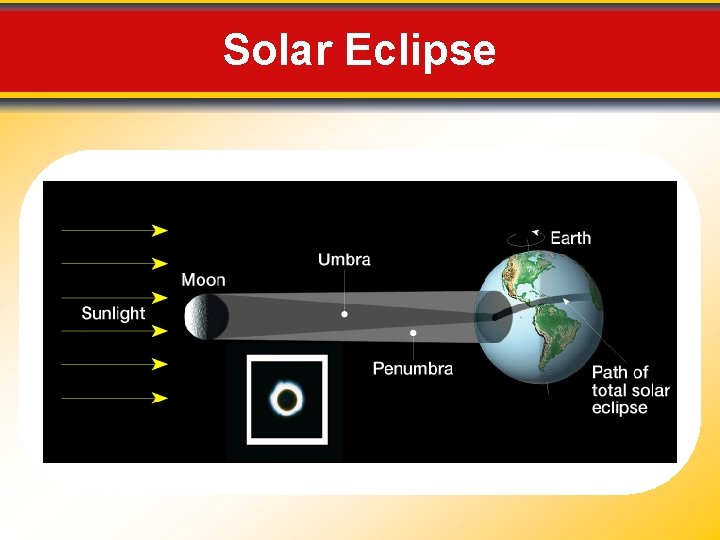

Solar Eclipse

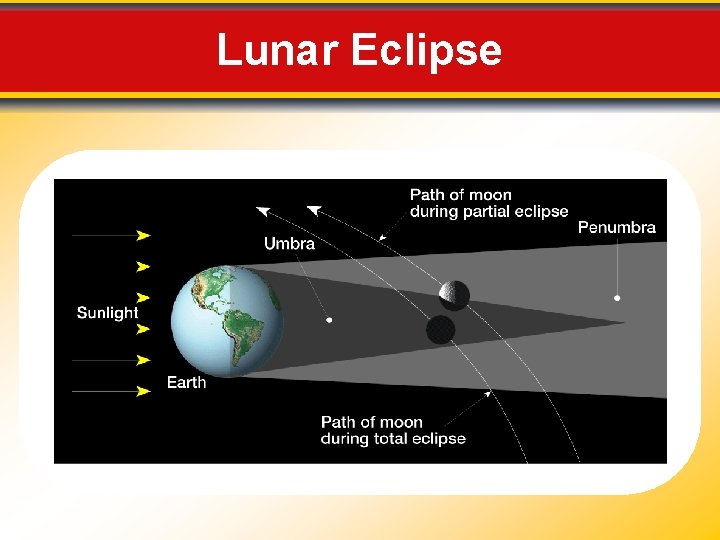

Lunar Eclipse

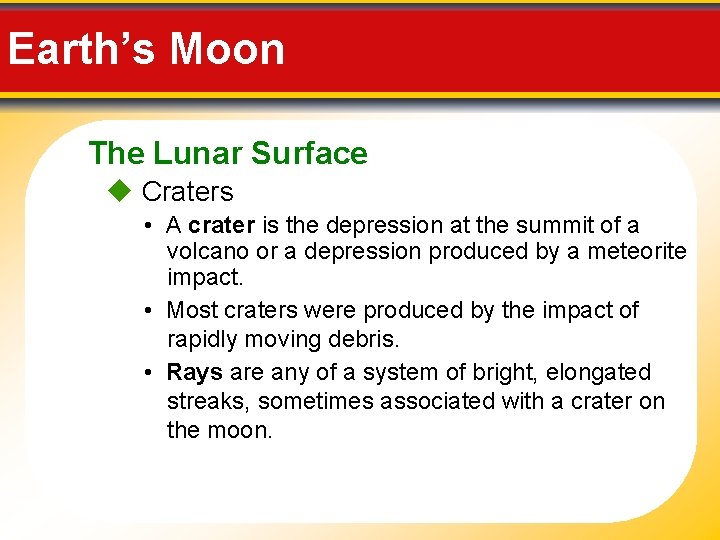

Earth’s Moon The Lunar Surface Craters • A crater is the depression at the summit of a volcano or a depression produced by a meteorite impact. • Most craters were produced by the impact of rapidly moving debris. • Rays are any of a system of bright, elongated streaks, sometimes associated with a crater on the moon.

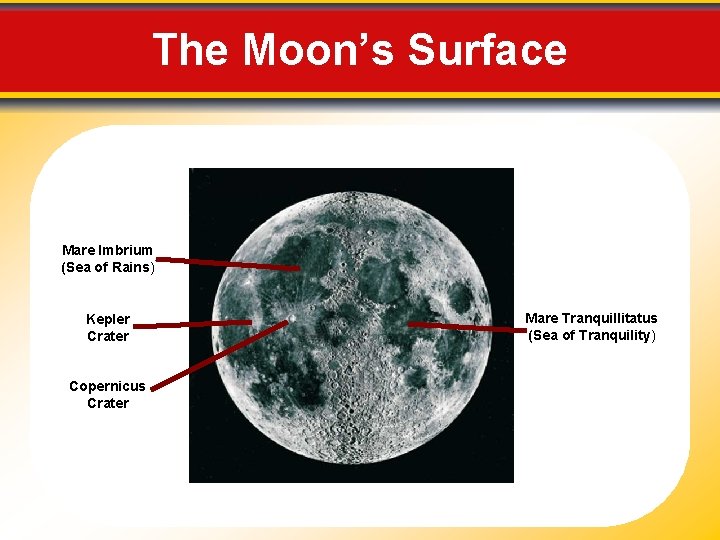

The Moon’s Surface Mare Imbrium (Sea of Rains) Kepler Crater Copernicus Crater Mare Tranquillitatus (Sea of Tranquility)

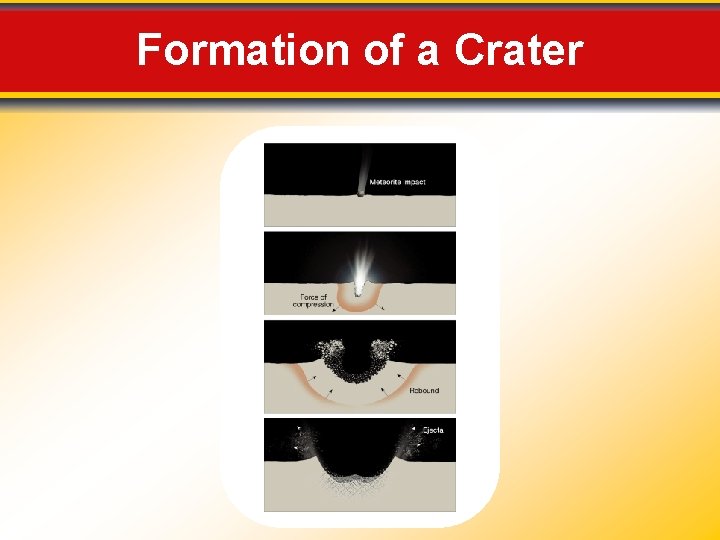

Formation of a Crater

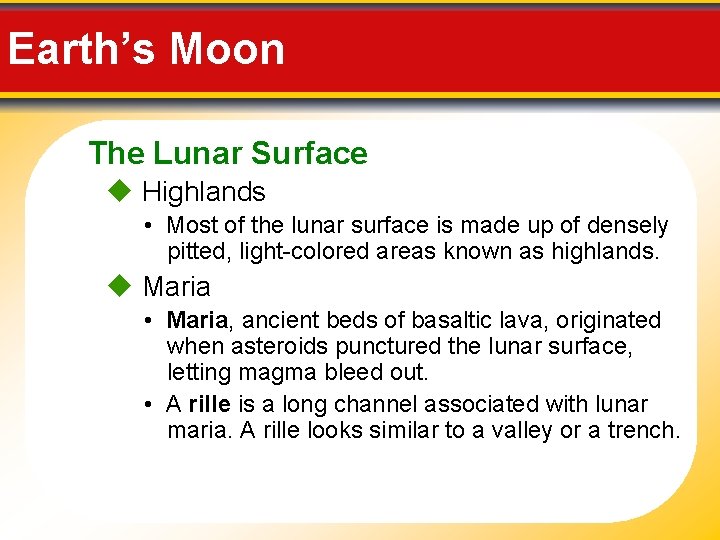

Earth’s Moon The Lunar Surface Highlands • Most of the lunar surface is made up of densely pitted, light-colored areas known as highlands. Maria • Maria, ancient beds of basaltic lava, originated when asteroids punctured the lunar surface, letting magma bleed out. • A rille is a long channel associated with lunar maria. A rille looks similar to a valley or a trench.

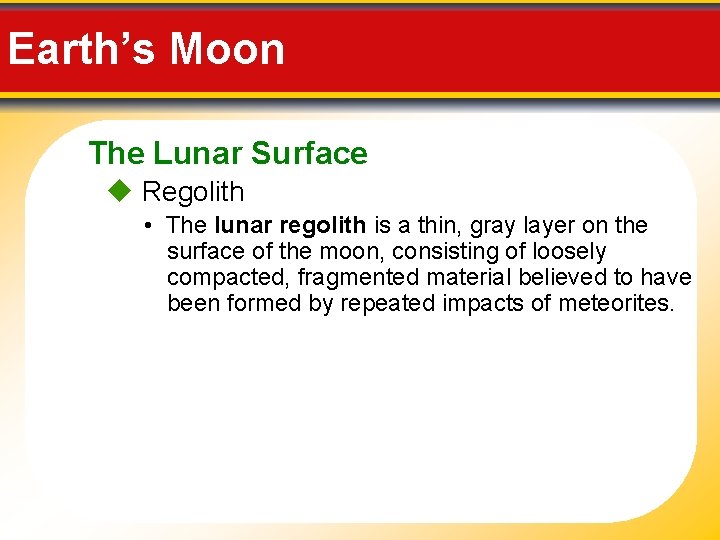

Earth’s Moon The Lunar Surface Regolith • The lunar regolith is a thin, gray layer on the surface of the moon, consisting of loosely compacted, fragmented material believed to have been formed by repeated impacts of meteorites.

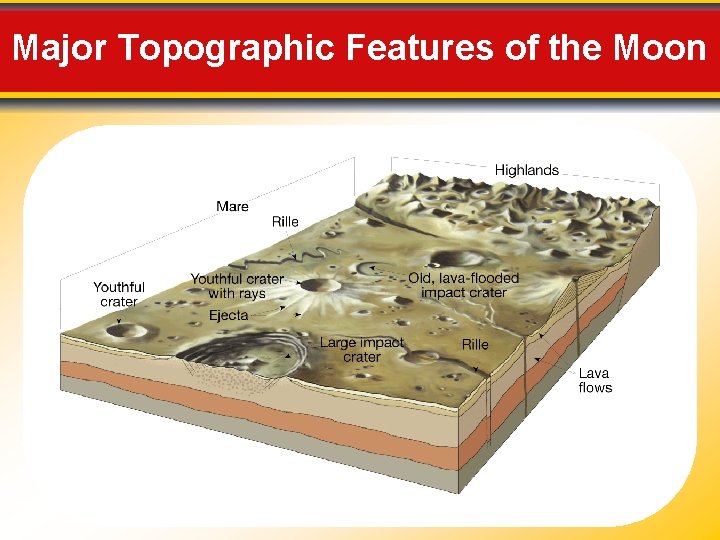

Major Topographic Features of the Moon

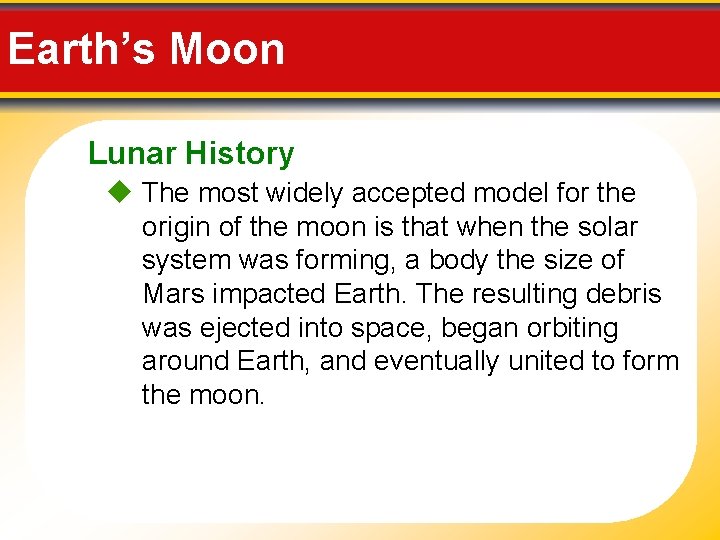

Earth’s Moon Lunar History The most widely accepted model for the origin of the moon is that when the solar system was forming, a body the size of Mars impacted Earth. The resulting debris was ejected into space, began orbiting around Earth, and eventually united to form the moon.

Formation of Earth’s Moon

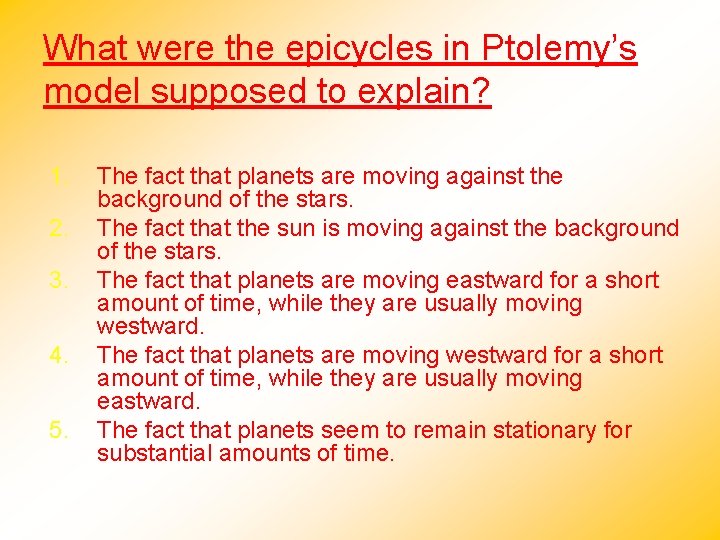

What were the epicycles in Ptolemy’s model supposed to explain? 1. 2. 3. 4. 5. The fact that planets are moving against the background of the stars. The fact that the sun is moving against the background of the stars. The fact that planets are moving eastward for a short amount of time, while they are usually moving westward. The fact that planets are moving westward for a short amount of time, while they are usually moving eastward. The fact that planets seem to remain stationary for substantial amounts of time.

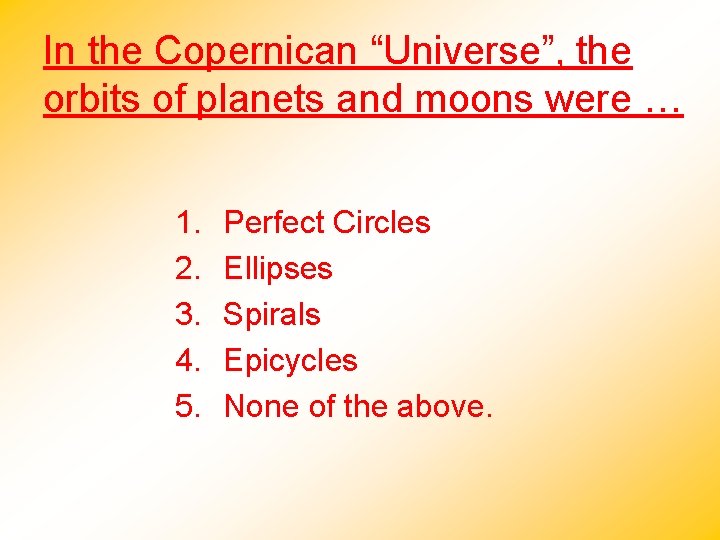

In the Copernican “Universe”, the orbits of planets and moons were … 1. 2. 3. 4. 5. Perfect Circles Ellipses Spirals Epicycles None of the above.

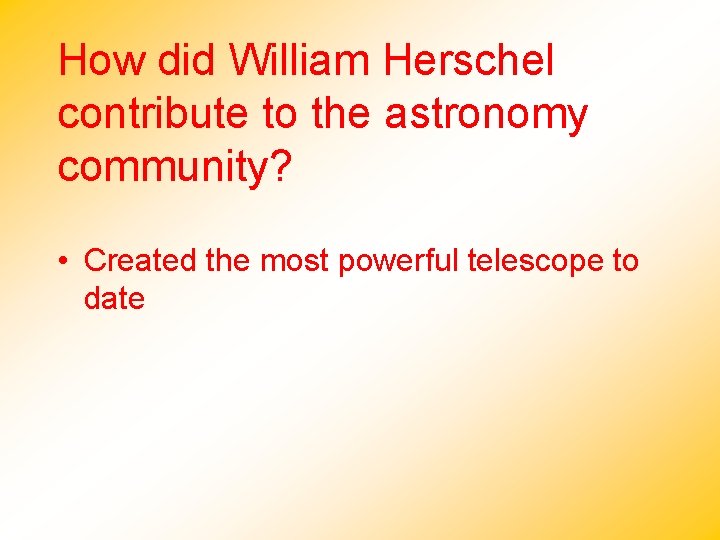

How did William Herschel contribute to the astronomy community? • Created the most powerful telescope to date

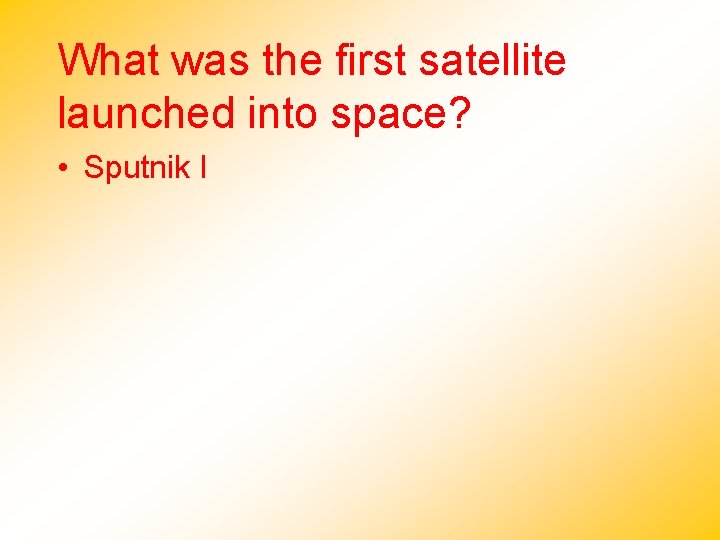

What was the first satellite launched into space? • Sputnik I

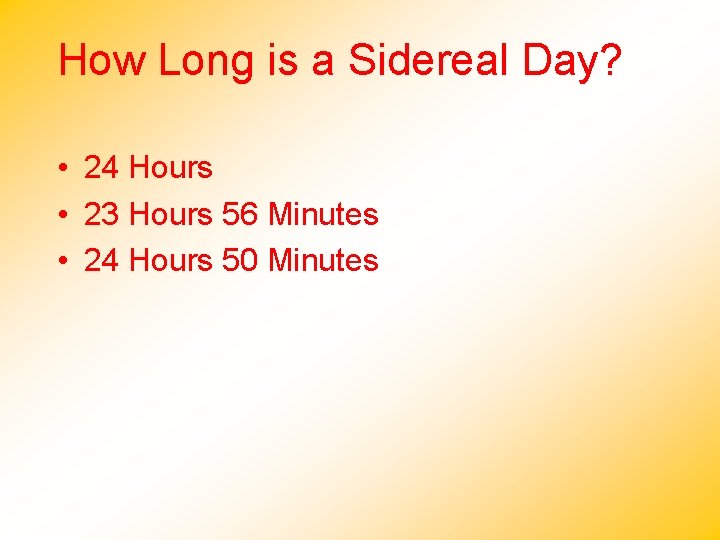

How Long is a Sidereal Day? • 24 Hours • 23 Hours 56 Minutes • 24 Hours 50 Minutes

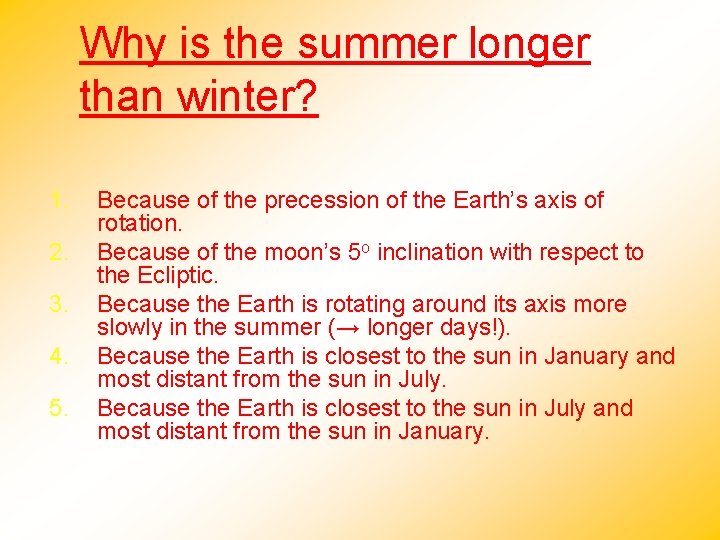

Why is the summer longer than winter? 1. 2. 3. 4. 5. Because of the precession of the Earth’s axis of rotation. Because of the moon’s 5 o inclination with respect to the Ecliptic. Because the Earth is rotating around its axis more slowly in the summer (→ longer days!). Because the Earth is closest to the sun in January and most distant from the sun in July. Because the Earth is closest to the sun in July and most distant from the sun in January.

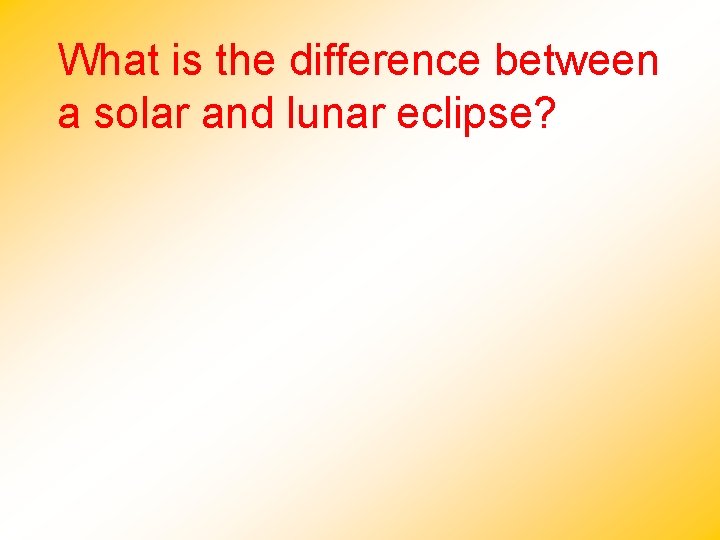

What is the difference between a solar and lunar eclipse?

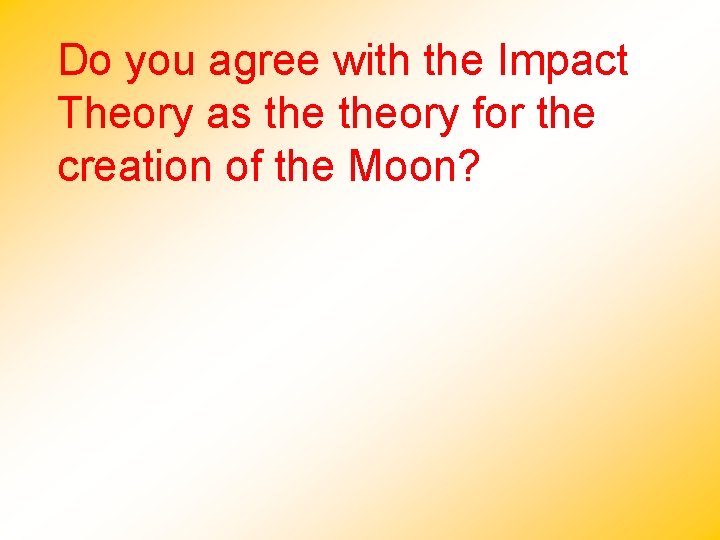

Do you agree with the Impact Theory as theory for the creation of the Moon?
