CONTENTS Ø Introduction Ø 4 -Bit Microprocessors Ø 8 -Bit Microprocessors Ø 16 -Bit Microprocessors Ø 32 -Bit Microprocessors Ø 64 -Bit Microprocessors 2 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTRODUCTION Ø Fairchild Semiconductors (founded in 1957) invented the first IC in 1959. Ø In 1968, Robert Noyce, Gordan Moore, Andrew Grove resigned from Fairchild Semiconductors. Ø They founded their own company Intel (Integrated Electronics). Ø Intel grown from 3 man start-up in 1968 to industrial giant by 1981. Ø It had 20, 000 employees and $188 million revenue. www. eazynotes. com 3 Gursharan Singh Tatla mailme@gursharansingh. in

4 -BIT MICROPROCESSORS 4 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 4004 Ø Introduced in 1971. Ø It was the first microprocessor by Intel. Ø It was a 4 -bit µP. Ø Its clock speed was 740 KHz. Ø It had 2, 300 transistors. Ø It could execute around 60, 000 instructions per second. 5 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

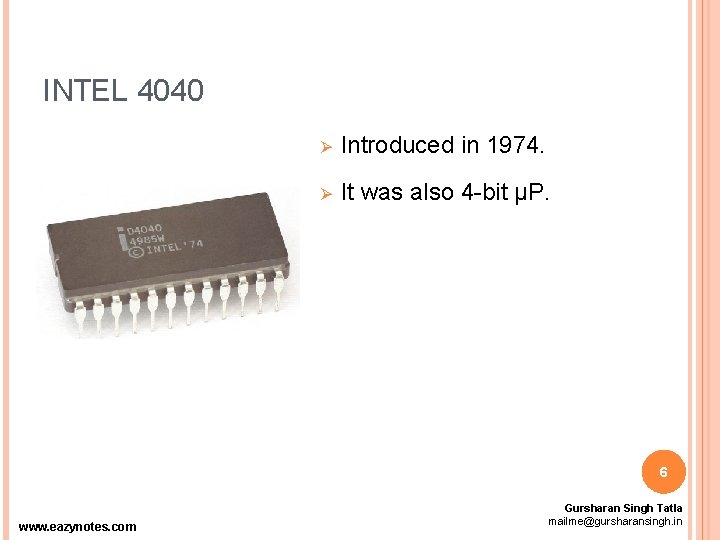

INTEL 4040 Ø Introduced in 1974. Ø It was also 4 -bit µP. 6 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

8 -BIT MICROPROCESSORS 7 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 8008 Ø Introduced in 1972. Ø It was first 8 -bit µP. Ø Its clock speed was 500 KHz. Ø Could execute 50, 000 instructions per second. 8 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 8080 www. eazynotes. com Ø Introduced in 1974. Ø It was also 8 -bit µP. Ø Its clock speed was 2 MHz. Ø It had 6, 000 transistors. Ø Was 10 times faster than 8008. Ø Could execute 5, 000 instructions per second. 9 Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 8085 www. eazynotes. com Ø Introduced in 1976. Ø It was also 8 -bit µP. Ø Its clock speed was 3 MHz. Ø Its data bus is 8 -bit and address bus is 16 -bit. Ø It had 6, 500 transistors. Ø Could execute 7, 69, 230 instructions per second. Ø It could access 64 KB of memory. Ø It had 246 instructions. Ø Over 100 million copies were sold. 10 Gursharan Singh Tatla mailme@gursharansingh. in

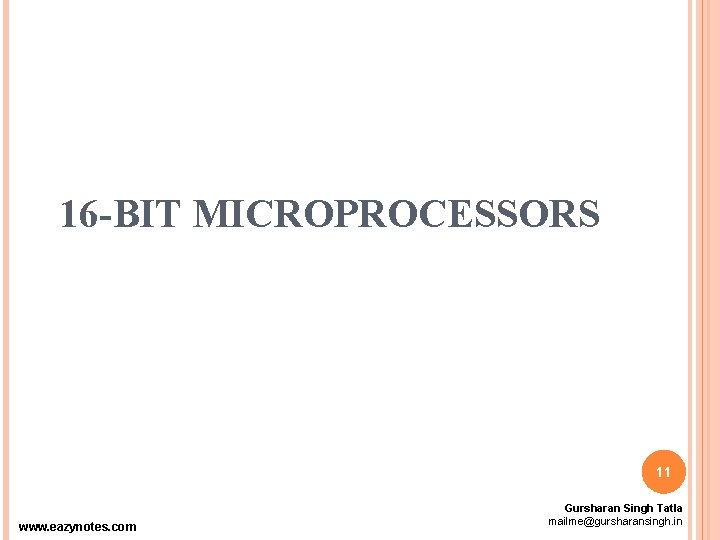

16 -BIT MICROPROCESSORS 11 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 8086 www. eazynotes. com Ø Introduced in 1978. Ø It was first 16 -bit µP. Ø Its clock speed is 4. 77 MHz, 8 MHz and 10 MHz, depending on the version. Ø Its data bus is 16 -bit and address bus is 20 -bit. Ø It had 29, 000 transistors. Ø Could execute 2. 5 million instructions per second. Ø It could access 1 MB of memory. Ø It had 22, 000 instructions. Ø It had Multiply and Divide instructions. 12 Gursharan Singh Tatla mailme@gursharansingh. in

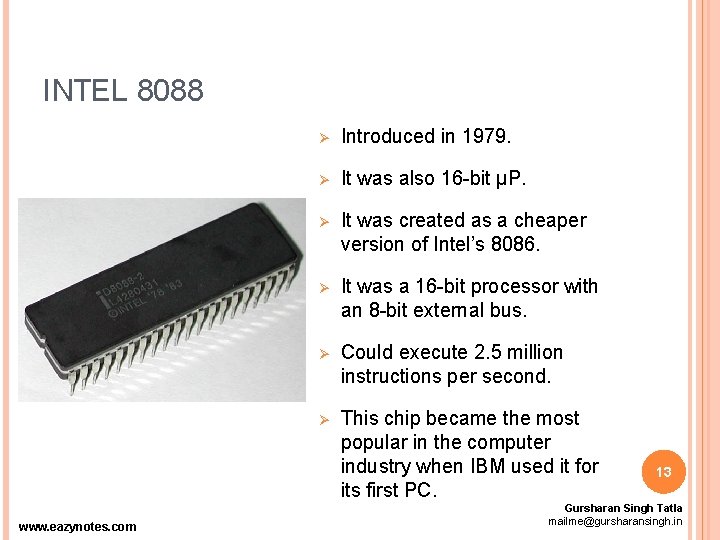

INTEL 8088 www. eazynotes. com Ø Introduced in 1979. Ø It was also 16 -bit µP. Ø It was created as a cheaper version of Intel’s 8086. Ø It was a 16 -bit processor with an 8 -bit external bus. Ø Could execute 2. 5 million instructions per second. Ø This chip became the most popular in the computer industry when IBM used it for its first PC. 13 Gursharan Singh Tatla mailme@gursharansingh. in

INTEL 80186 & 80188 www. eazynotes. com Ø Introduced in 1982. Ø They were 16 -bit µPs. Ø Clock speed was 6 MHz. Ø 80188 was a cheaper version of 80186 with an 8 bit external data bus. Ø They had additional components like: Ø Interrupt Controller Ø Clock Generator Ø Local Bus Controller Ø Counters 14 Gursharan Singh Tatla mailme@gursharansingh. in

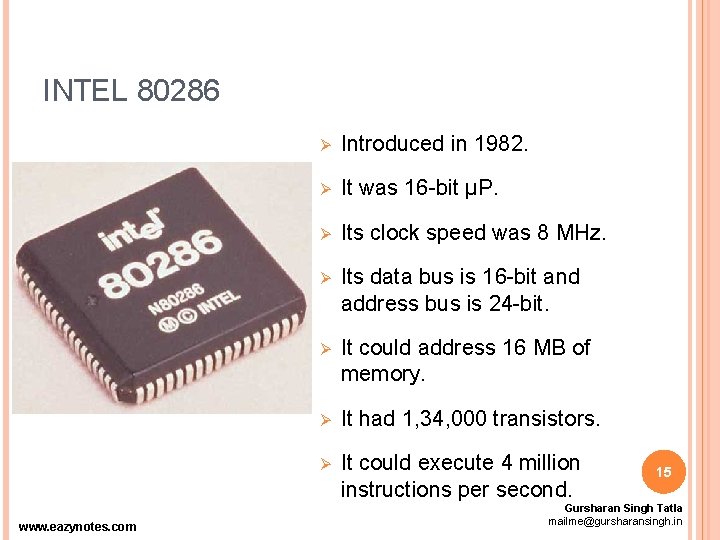

INTEL 80286 www. eazynotes. com Ø Introduced in 1982. Ø It was 16 -bit µP. Ø Its clock speed was 8 MHz. Ø Its data bus is 16 -bit and address bus is 24 -bit. Ø It could address 16 MB of memory. Ø It had 1, 34, 000 transistors. Ø It could execute 4 million instructions per second. 15 Gursharan Singh Tatla mailme@gursharansingh. in

32 -BIT MICROPROCESSORS 16 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

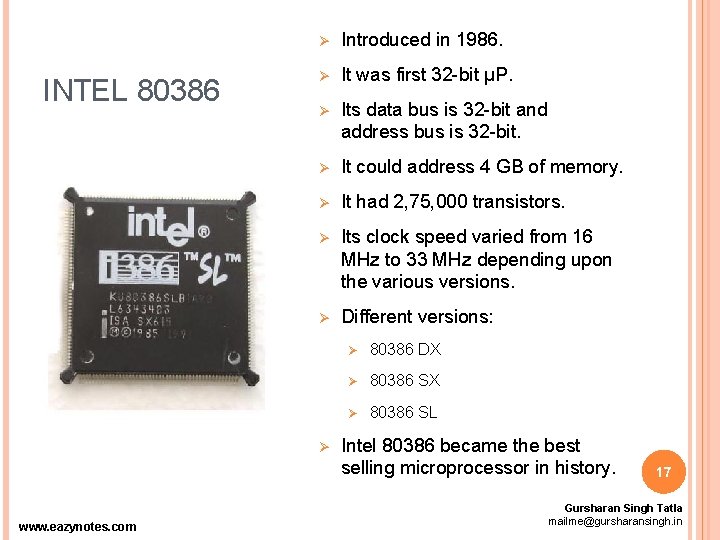

INTEL 80386 Ø Introduced in 1986. Ø It was first 32 -bit µP. Ø Its data bus is 32 -bit and address bus is 32 -bit. Ø It could address 4 GB of memory. Ø It had 2, 75, 000 transistors. Ø Its clock speed varied from 16 MHz to 33 MHz depending upon the various versions. Ø Different versions: Ø www. eazynotes. com Ø 80386 DX Ø 80386 SL Intel 80386 became the best selling microprocessor in history. 17 Gursharan Singh Tatla mailme@gursharansingh. in

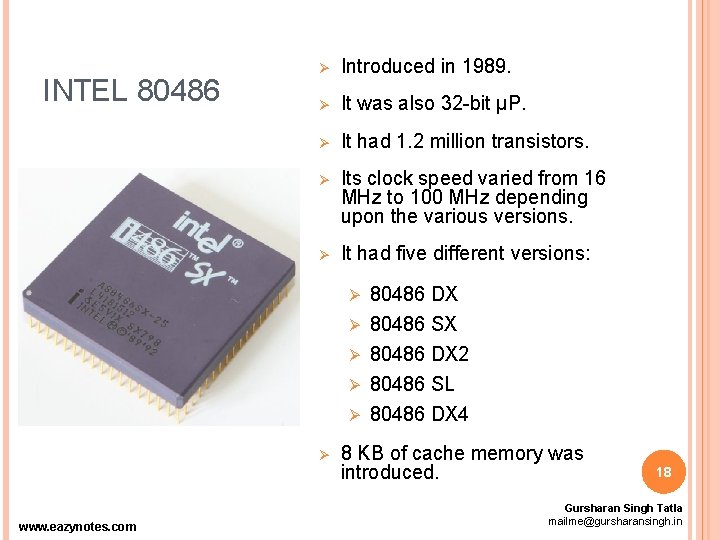

INTEL 80486 Ø Introduced in 1989. Ø It was also 32 -bit µP. Ø It had 1. 2 million transistors. Ø Its clock speed varied from 16 MHz to 100 MHz depending upon the various versions. Ø It had five different versions: Ø Ø Ø www. eazynotes. com 80486 DX 80486 SX 80486 DX 2 80486 SL 80486 DX 4 8 KB of cache memory was introduced. 18 Gursharan Singh Tatla mailme@gursharansingh. in

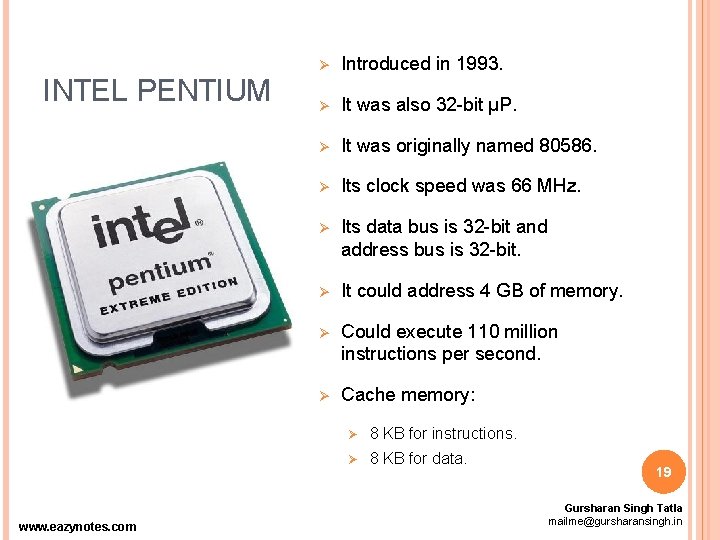

INTEL PENTIUM www. eazynotes. com Ø Introduced in 1993. Ø It was also 32 -bit µP. Ø It was originally named 80586. Ø Its clock speed was 66 MHz. Ø Its data bus is 32 -bit and address bus is 32 -bit. Ø It could address 4 GB of memory. Ø Could execute 110 million instructions per second. Ø Cache memory: Ø 8 KB for instructions. Ø 8 KB for data. 19 Gursharan Singh Tatla mailme@gursharansingh. in

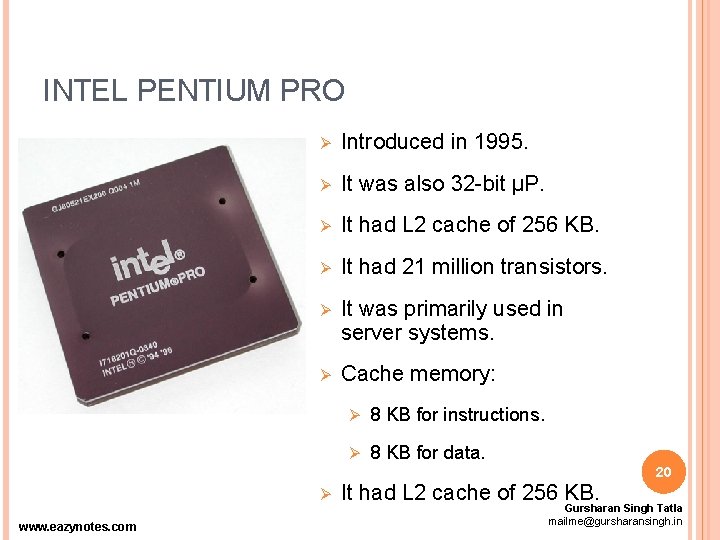

INTEL PENTIUM PRO Ø Introduced in 1995. Ø It was also 32 -bit µP. Ø It had L 2 cache of 256 KB. Ø It had 21 million transistors. Ø It was primarily used in server systems. Ø Cache memory: Ø 8 KB for instructions. Ø 8 KB for data. 20 Ø www. eazynotes. com It had L 2 cache of 256 KB. Gursharan Singh Tatla mailme@gursharansingh. in

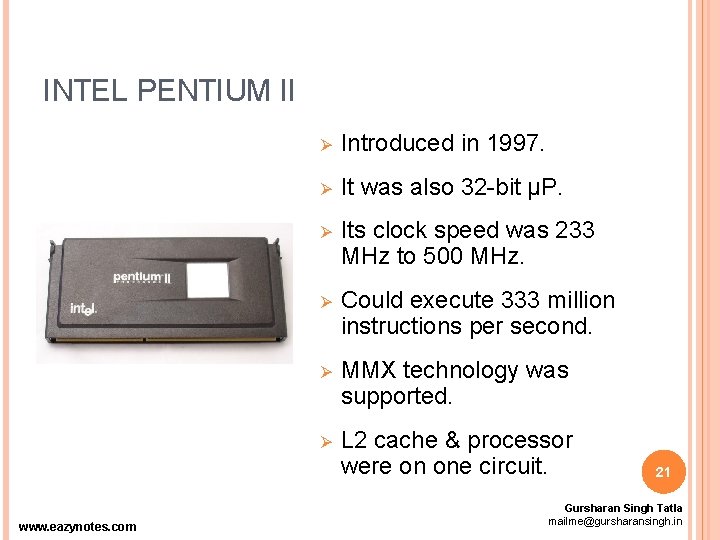

INTEL PENTIUM II www. eazynotes. com Ø Introduced in 1997. Ø It was also 32 -bit µP. Ø Its clock speed was 233 MHz to 500 MHz. Ø Could execute 333 million instructions per second. Ø MMX technology was supported. Ø L 2 cache & processor were on one circuit. 21 Gursharan Singh Tatla mailme@gursharansingh. in

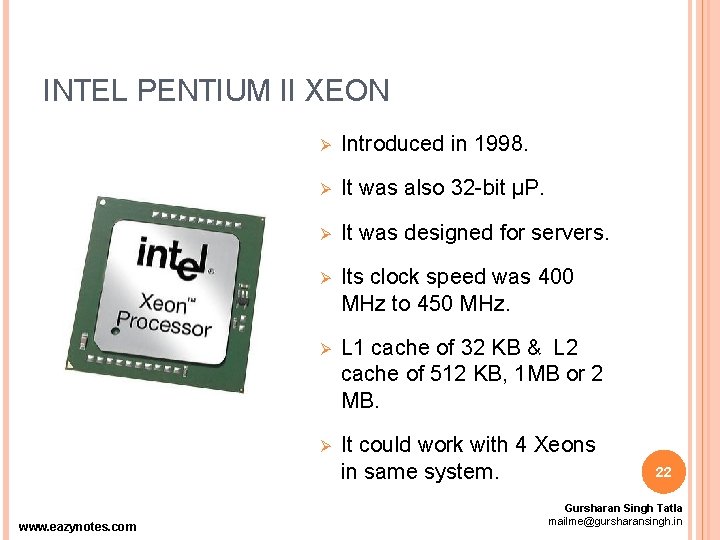

INTEL PENTIUM II XEON www. eazynotes. com Ø Introduced in 1998. Ø It was also 32 -bit µP. Ø It was designed for servers. Ø Its clock speed was 400 MHz to 450 MHz. Ø L 1 cache of 32 KB & L 2 cache of 512 KB, 1 MB or 2 MB. Ø It could work with 4 Xeons in same system. 22 Gursharan Singh Tatla mailme@gursharansingh. in

INTEL PENTIUM III Ø Introduced in 1999. Ø It was also 32 -bit µP. Ø Its clock speed varied from 500 MHz to 1. 4 GHz. Ø It had 9. 5 million transistors. 23 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL PENTIUM IV www. eazynotes. com Ø Introduced in 2000. Ø It was also 32 -bit µP. Ø Its clock speed was from 1. 3 GHz to 3. 8 GHz. Ø L 1 cache was of 32 KB & L 2 cache of 256 KB. Ø It had 42 million transistors. Ø All internal connections were made from aluminium to copper. 24 Gursharan Singh Tatla mailme@gursharansingh. in

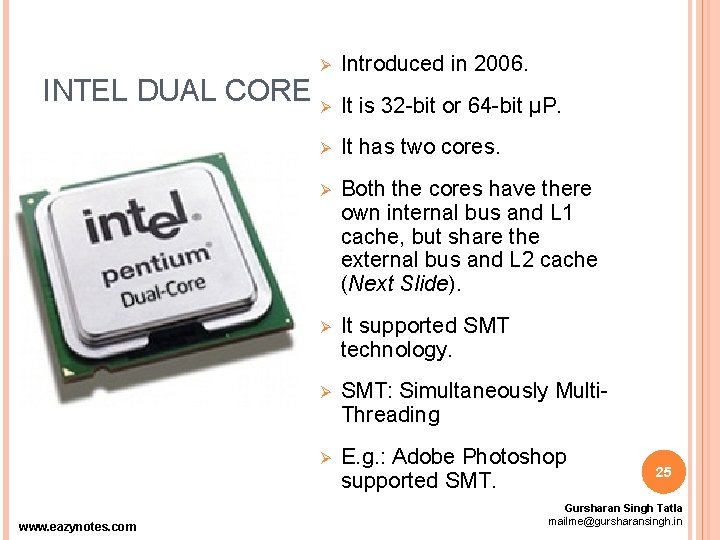

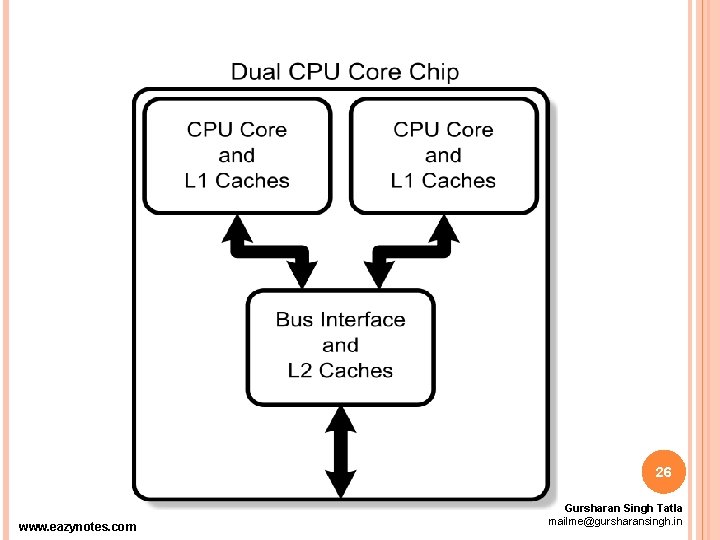

Ø Introduced in 2006. Ø It has two cores. Ø Both the cores have there own internal bus and L 1 cache, but share the external bus and L 2 cache (Next Slide). Ø It supported SMT technology. Ø SMT: Simultaneously Multi. Threading Ø E. g. : Adobe Photoshop supported SMT. INTEL DUAL CORE Ø It is 32 -bit or 64 -bit µP. www. eazynotes. com 25 Gursharan Singh Tatla mailme@gursharansingh. in

26 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

64 -BIT MICROPROCESSORS 27 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

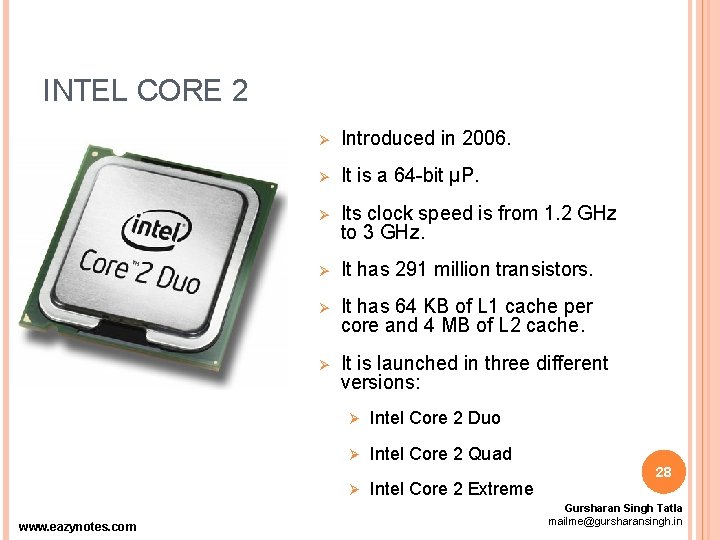

INTEL CORE 2 Ø Introduced in 2006. Ø It is a 64 -bit µP. Ø Its clock speed is from 1. 2 GHz to 3 GHz. Ø It has 291 million transistors. Ø It has 64 KB of L 1 cache per core and 4 MB of L 2 cache. Ø It is launched in three different versions: Ø Intel Core 2 Duo Ø Intel Core 2 Quad Ø www. eazynotes. com Intel Core 2 Extreme 28 Gursharan Singh Tatla mailme@gursharansingh. in

INTEL CORE I 7 Ø Introduced in 2008. Ø It is a 64 -bit µP. Ø It has 4 physical cores. Ø Its clock speed is from 2. 66 GHz to 3. 33 GHz. Ø It has 781 million transistors. Ø It has 64 KB of L 1 cache per core, 256 KB of L 2 cache and 8 MB of L 3 cache. 29 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

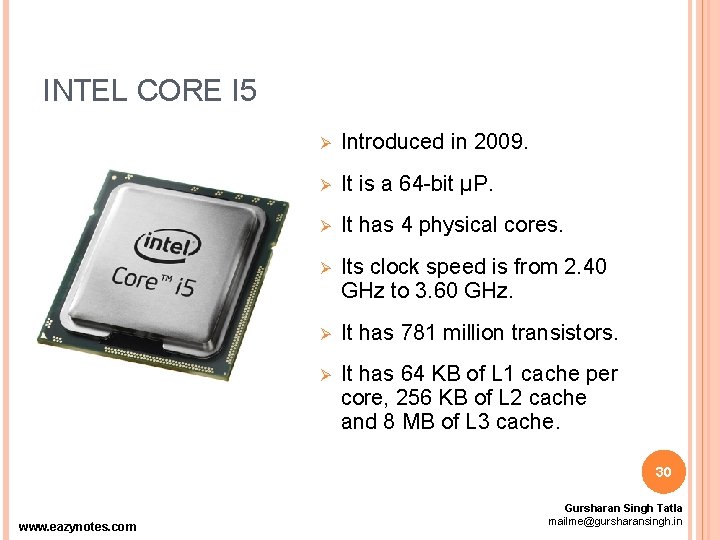

INTEL CORE I 5 Ø Introduced in 2009. Ø It is a 64 -bit µP. Ø It has 4 physical cores. Ø Its clock speed is from 2. 40 GHz to 3. 60 GHz. Ø It has 781 million transistors. Ø It has 64 KB of L 1 cache per core, 256 KB of L 2 cache and 8 MB of L 3 cache. 30 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in

INTEL CORE I 3 Ø Introduced in 2010. Ø It is a 64 -bit µP. Ø It has 2 physical cores. Ø Its clock speed is from 2. 93 GHz to 3. 33 GHz. Ø It has 781 million transistors. Ø It has 64 KB of L 1 cache per core, 512 KB of L 2 cache and 4 MB of L 3 cache. 31 www. eazynotes. com Gursharan Singh Tatla mailme@gursharansingh. in
