History of Atomic Theory Democritus c 450 BCE

History of Atomic Theory

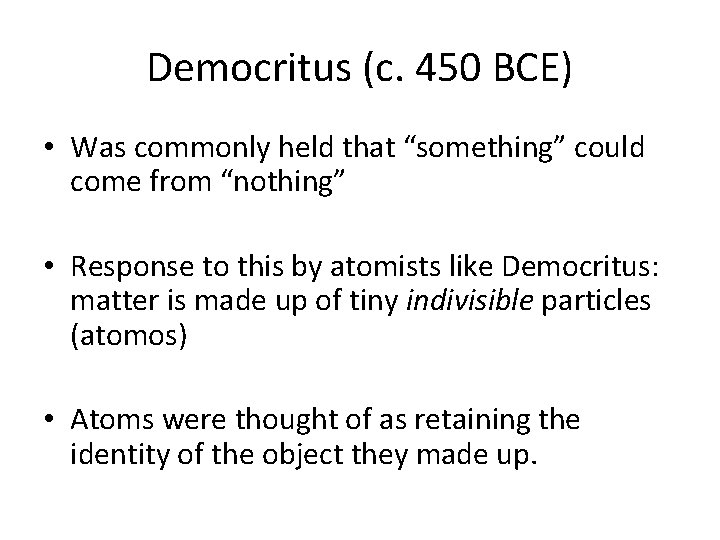

Democritus (c. 450 BCE) • Was commonly held that “something” could come from “nothing” • Response to this by atomists like Democritus: matter is made up of tiny indivisible particles (atomos) • Atoms were thought of as retaining the identity of the object they made up.

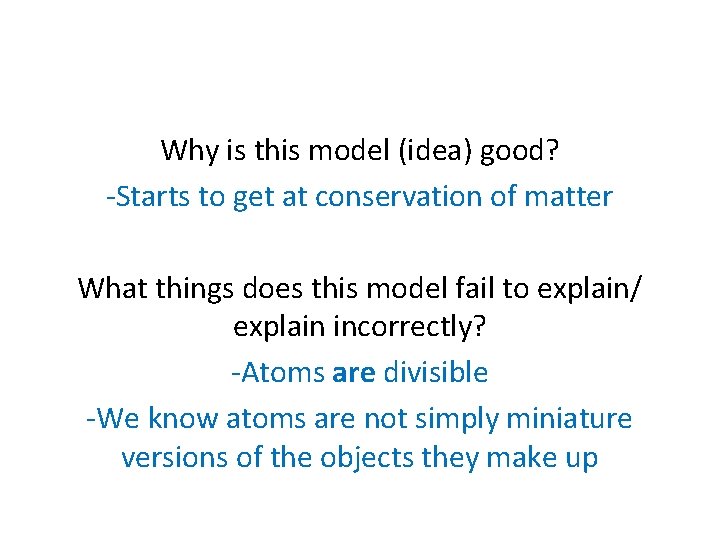

Why is this model (idea) good? -Starts to get at conservation of matter What things does this model fail to explain/ explain incorrectly? -Atoms are divisible -We know atoms are not simply miniature versions of the objects they make up

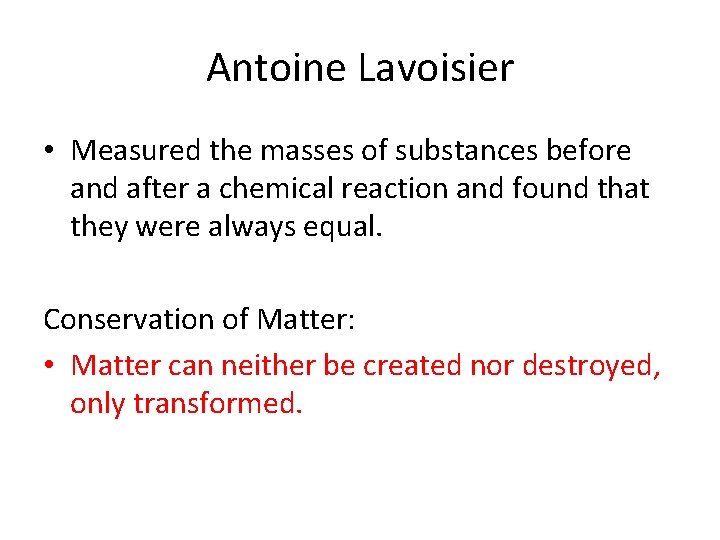

Antoine Lavoisier • Measured the masses of substances before and after a chemical reaction and found that they were always equal. Conservation of Matter: • Matter can neither be created nor destroyed, only transformed.

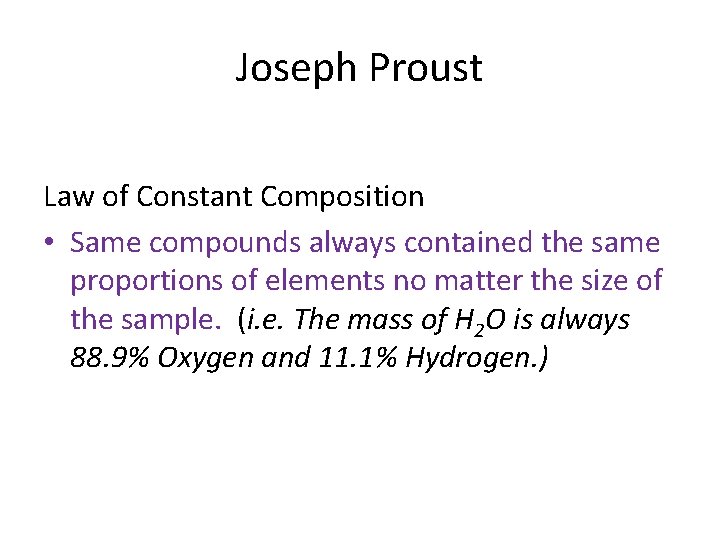

Joseph Proust Law of Constant Composition • Same compounds always contained the same proportions of elements no matter the size of the sample. (i. e. The mass of H 2 O is always 88. 9% Oxygen and 11. 1% Hydrogen. )

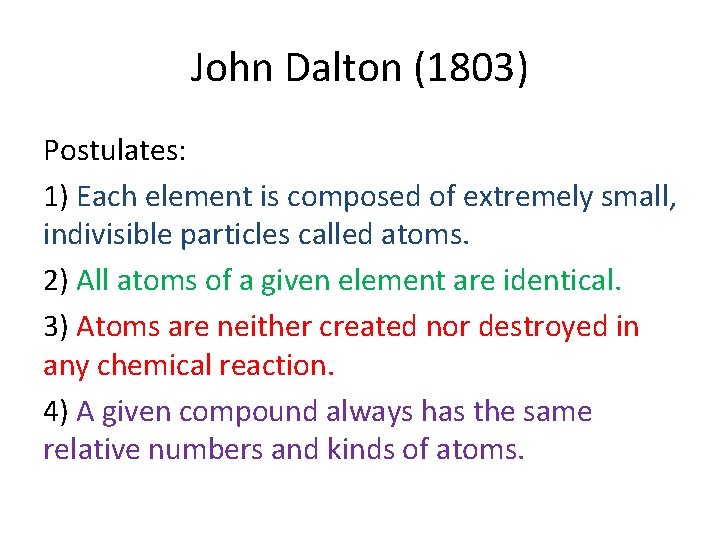

John Dalton (1803) Postulates: 1) Each element is composed of extremely small, indivisible particles called atoms. 2) All atoms of a given element are identical. 3) Atoms are neither created nor destroyed in any chemical reaction. 4) A given compound always has the same relative numbers and kinds of atoms.

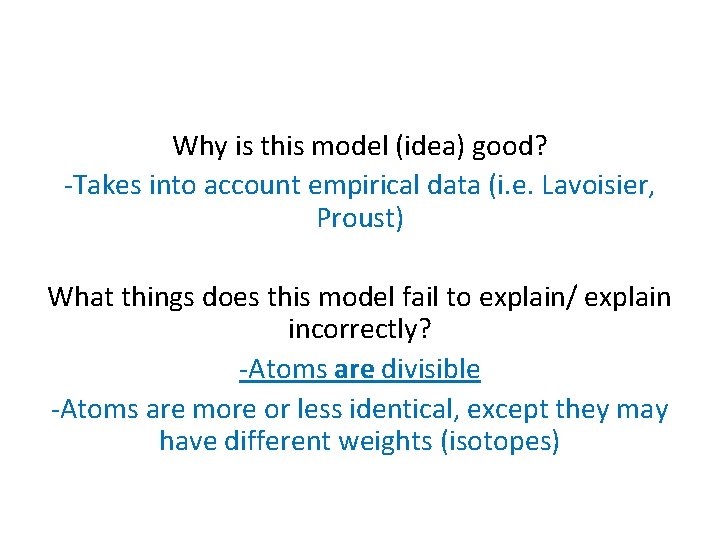

Why is this model (idea) good? -Takes into account empirical data (i. e. Lavoisier, Proust) What things does this model fail to explain/ explain incorrectly? -Atoms are divisible -Atoms are more or less identical, except they may have different weights (isotopes)

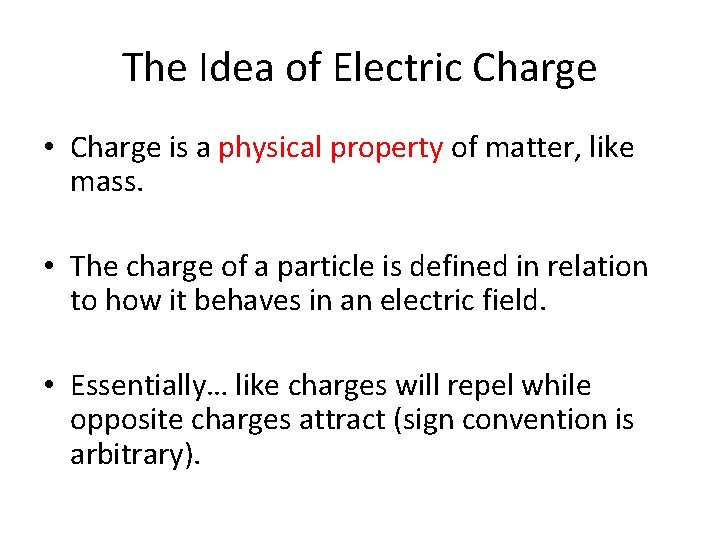

The Idea of Electric Charge • Charge is a physical property of matter, like mass. • The charge of a particle is defined in relation to how it behaves in an electric field. • Essentially… like charges will repel while opposite charges attract (sign convention is arbitrary).

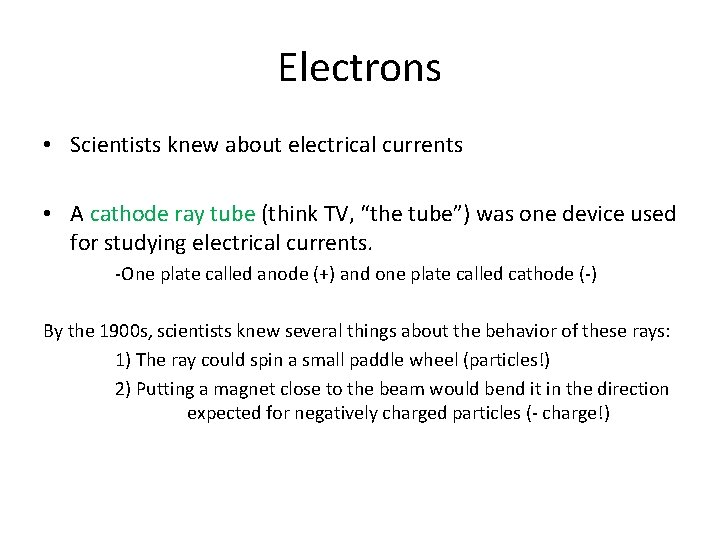

Electrons • Scientists knew about electrical currents • A cathode ray tube (think TV, “the tube”) was one device used for studying electrical currents. -One plate called anode (+) and one plate called cathode (-) By the 1900 s, scientists knew several things about the behavior of these rays: 1) The ray could spin a small paddle wheel (particles!) 2) Putting a magnet close to the beam would bend it in the direction expected for negatively charged particles (- charge!)

Thomson Activity

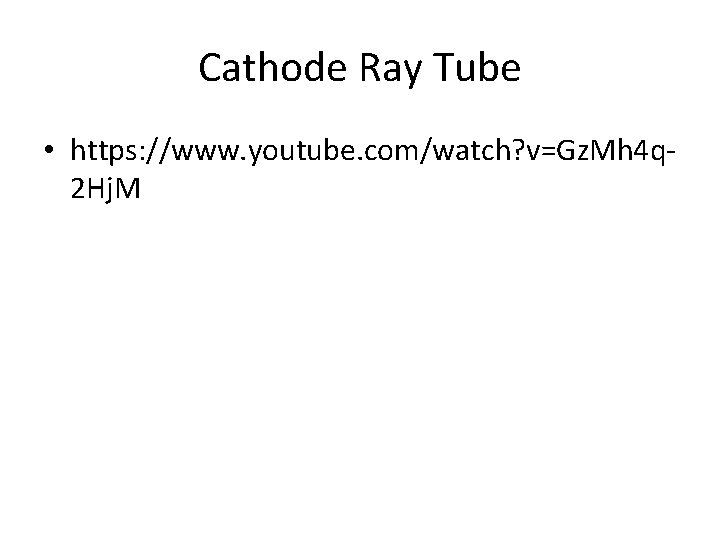

Cathode Ray Tube • https: //www. youtube. com/watch? v=Gz. Mh 4 q 2 Hj. M

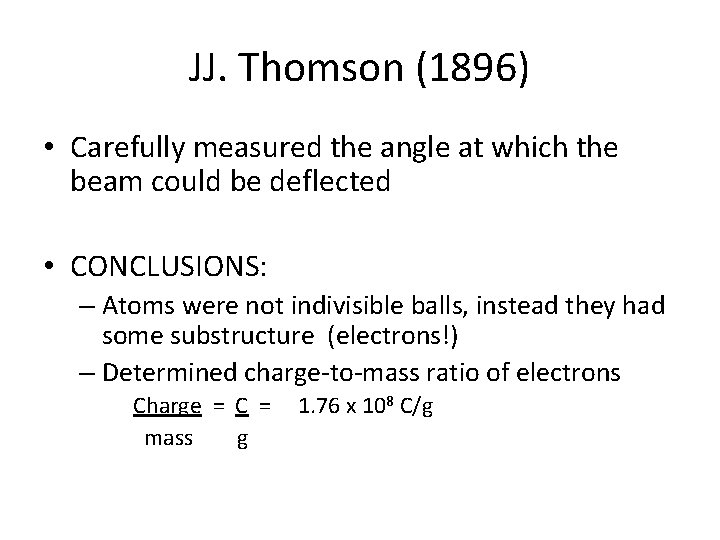

JJ. Thomson (1896) • Carefully measured the angle at which the beam could be deflected • CONCLUSIONS: – Atoms were not indivisible balls, instead they had some substructure (electrons!) – Determined charge-to-mass ratio of electrons Charge = C = mass g 1. 76 x 108 C/g

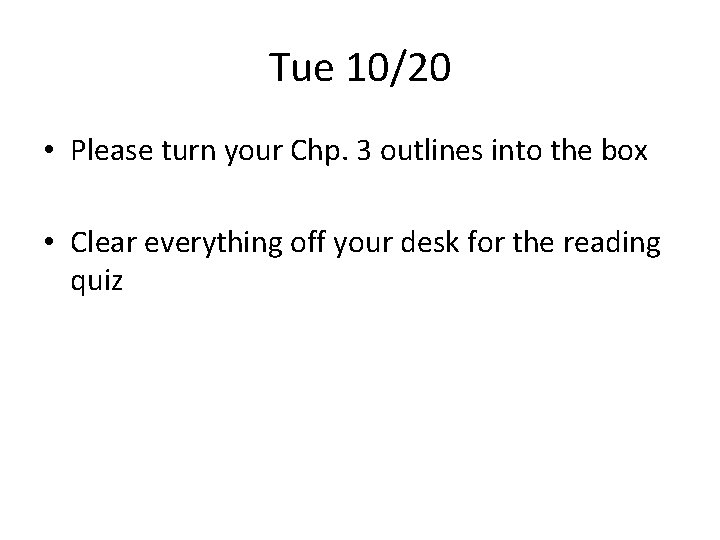

Tue 10/20 • Please turn your Chp. 3 outlines into the box • Clear everything off your desk for the reading quiz

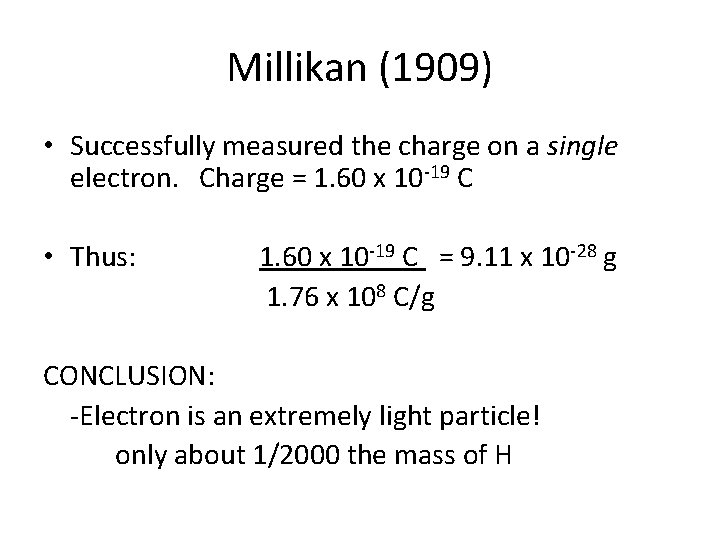

Millikan (1909) • Successfully measured the charge on a single electron. Charge = 1. 60 x 10 -19 C • Thus: 1. 60 x 10 -19 C = 9. 11 x 10 -28 g 1. 76 x 108 C/g CONCLUSION: -Electron is an extremely light particle! only about 1/2000 the mass of H

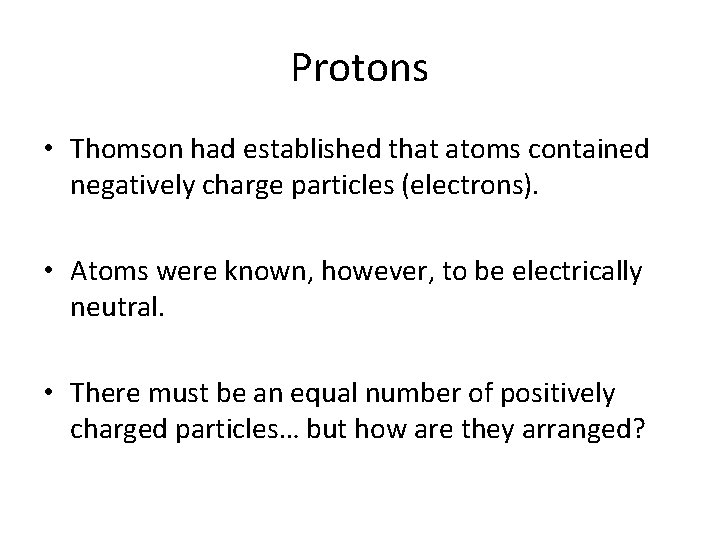

Protons • Thomson had established that atoms contained negatively charge particles (electrons). • Atoms were known, however, to be electrically neutral. • There must be an equal number of positively charged particles… but how are they arranged?

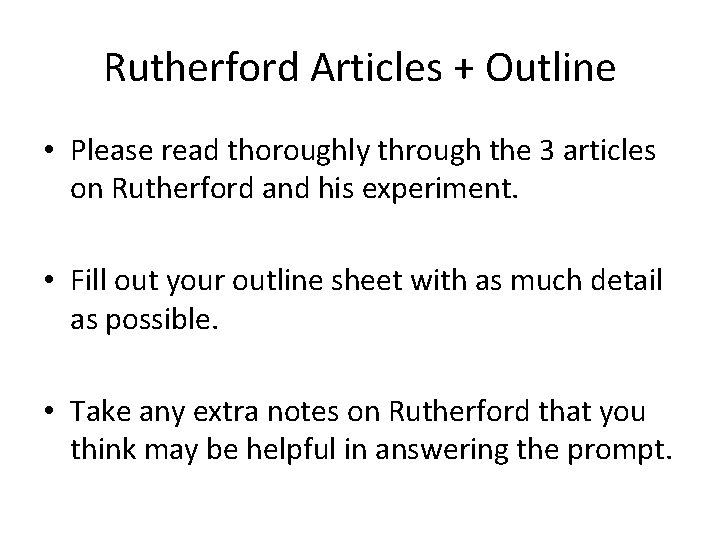

Rutherford Articles + Outline • Please read thoroughly through the 3 articles on Rutherford and his experiment. • Fill out your outline sheet with as much detail as possible. • Take any extra notes on Rutherford that you think may be helpful in answering the prompt.

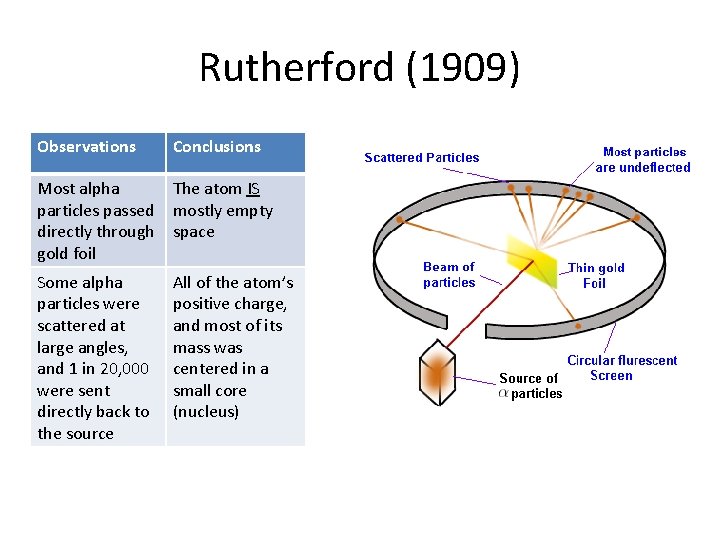

Rutherford (1909) Observations Conclusions Most alpha particles passed directly through gold foil The atom IS mostly empty space Some alpha particles were scattered at large angles, and 1 in 20, 000 were sent directly back to the source All of the atom’s positive charge, and most of its mass was centered in a small core (nucleus)

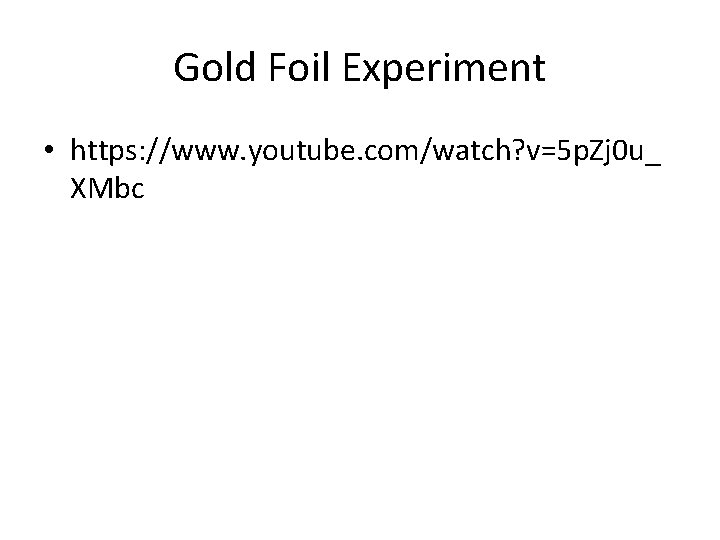

Gold Foil Experiment • https: //www. youtube. com/watch? v=5 p. Zj 0 u_ XMbc

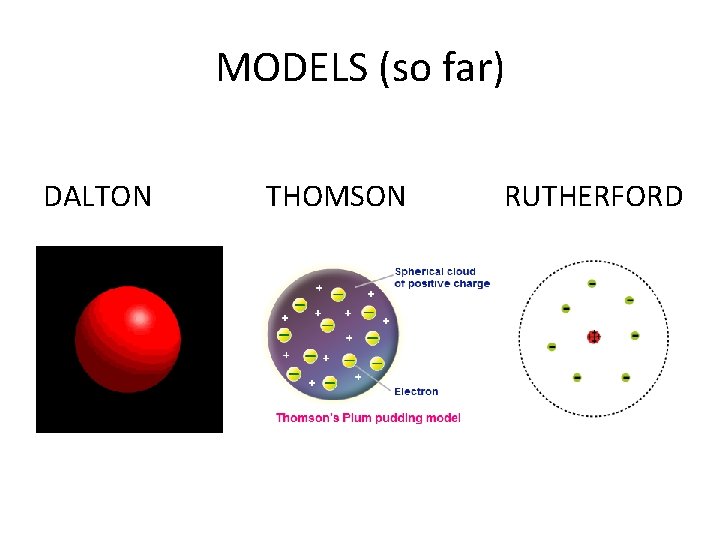

MODELS (so far) DALTON THOMSON RUTHERFORD
