Highway Design and Traffic Control for Hurricane Evacuation Aspects of Current Design Plans Brian Wolshon Dept. of Civil and Env. Engineering LSU HURRICANE CENTER Addressing Hurricanes and Other Hazards and Their Impacts On the Natural, Built and Human Environments

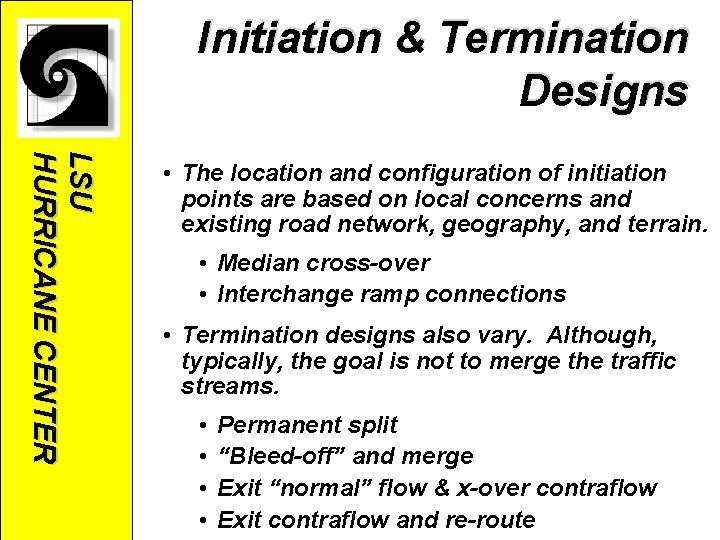

Initiation & Termination Designs LSU HURRICANE CENTER • The location and configuration of initiation points are based on local concerns and existing road network, geography, and terrain. • Median cross-over • Interchange ramp connections • Termination designs also vary. Although, typically, the goal is not to merge the traffic streams. • • Permanent split “Bleed-off” and merge Exit “normal” flow & x-over contraflow Exit contraflow and re-route

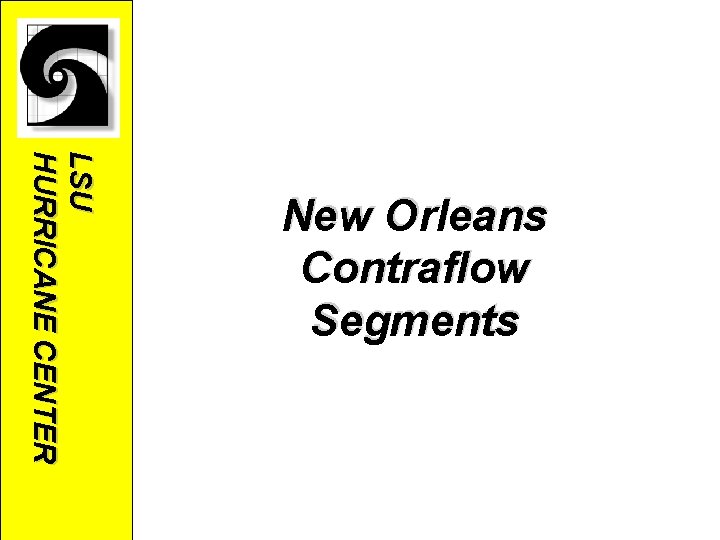

LSU HURRICANE CENTER New Orleans Contraflow Segments

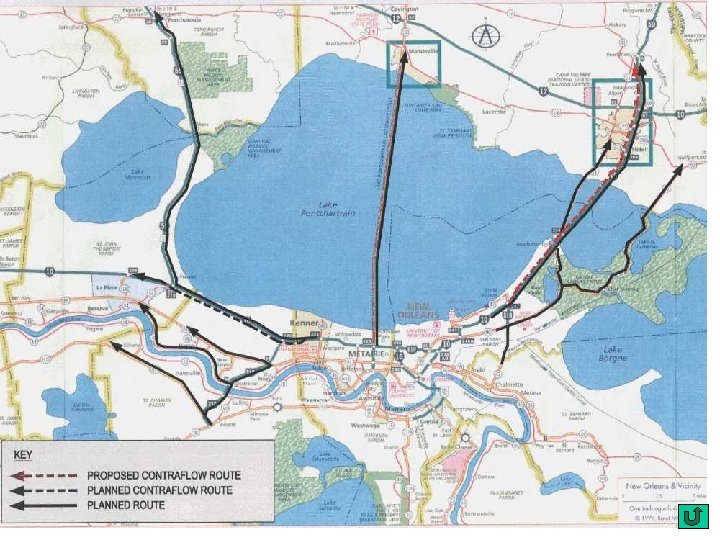

New Orleans Evacuation Routes

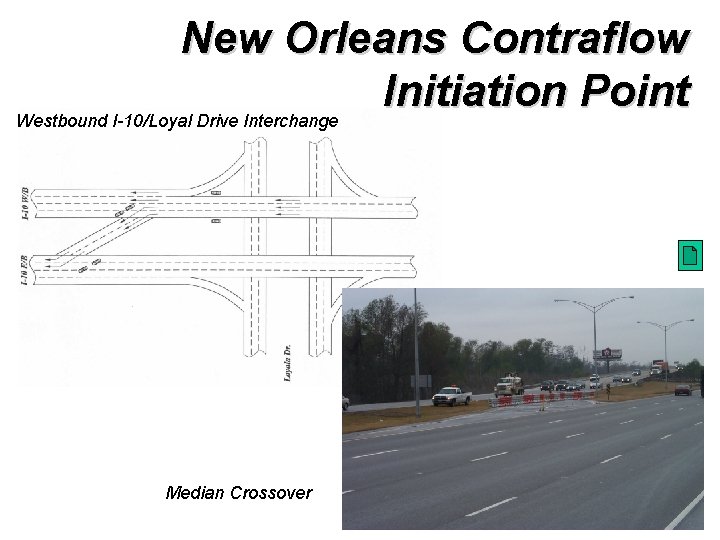

New Orleans Contraflow Initiation Point Westbound I-10/Loyal Drive Interchange Median Crossover

New Orleans Contraflow Termination Point Westbound I-10/I-55 Drive Interchange Median Crossover

LSU HURRICANE CENTER Other Contraflow Initiation Points

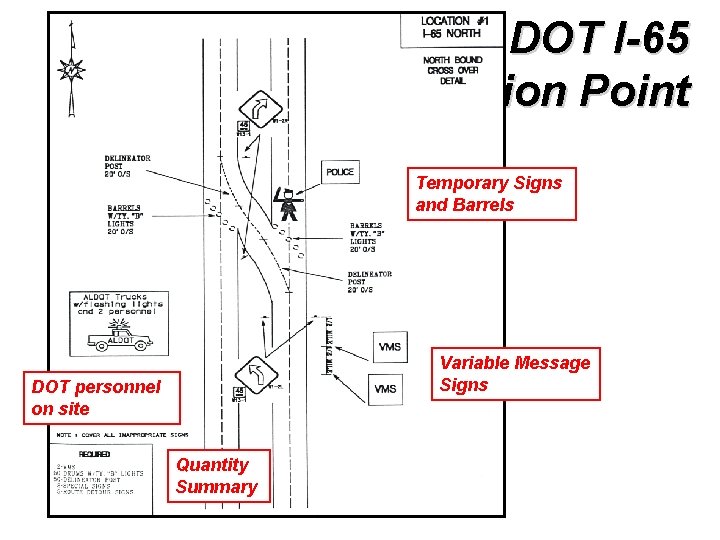

Alabama DOT I-65 Initiation Point Temporary Signs and Barrels Variable Message Signs DOT personnel on site Quantity Summary

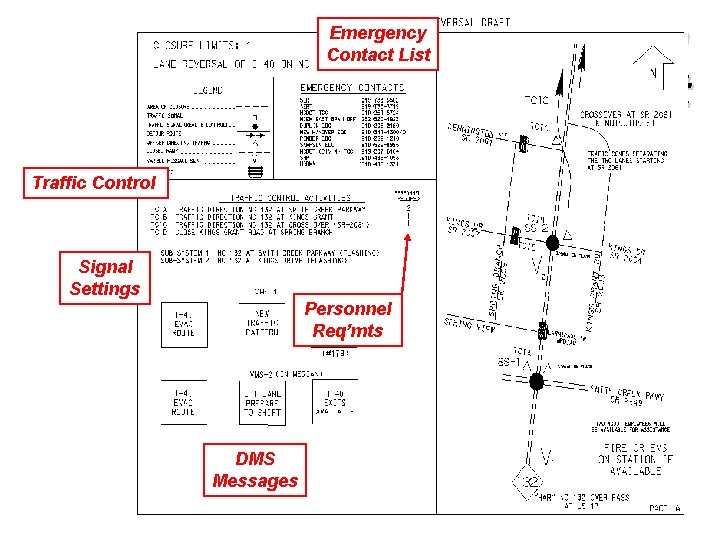

NCDOT I-40 Initiation Point Emergency Contact List Traffic Control Signal Settings Personnel Req’mts DMS Messages

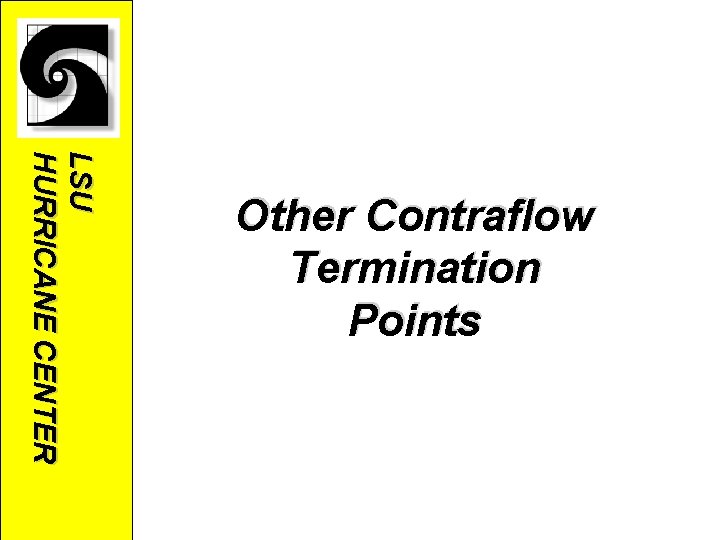

LSU HURRICANE CENTER Other Contraflow Termination Points

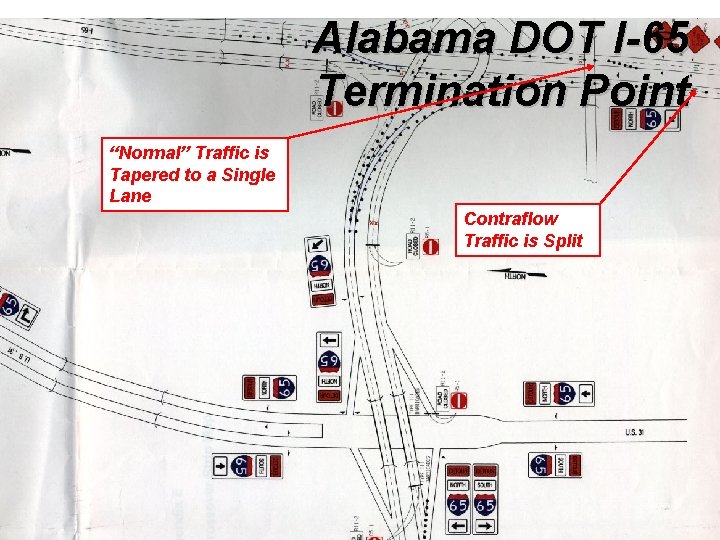

Alabama DOT I-65 Termination Point “Normal” Traffic is Tapered to a Single Lane Contraflow Traffic is Split

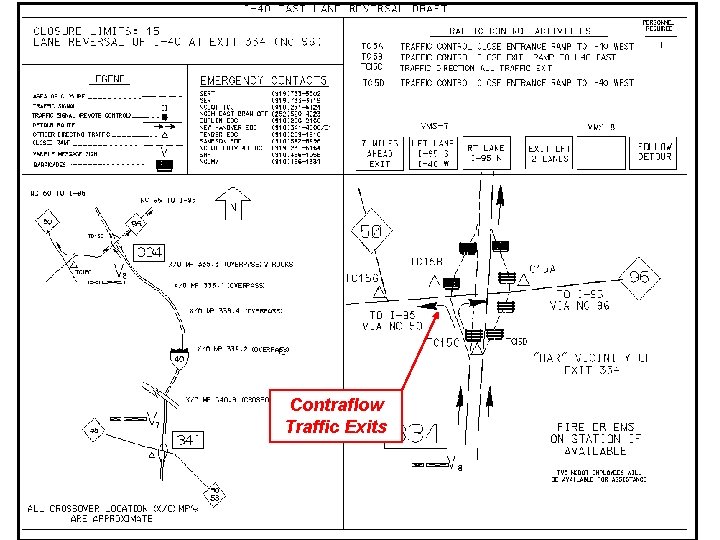

NCDOT I-40 Termination Point Contraflow Traffic Exits

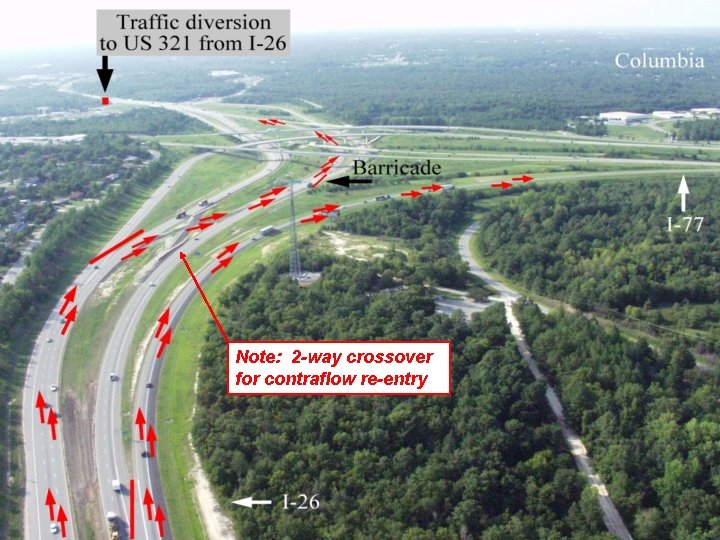

Note: 2 -way crossover for contraflow re-entry

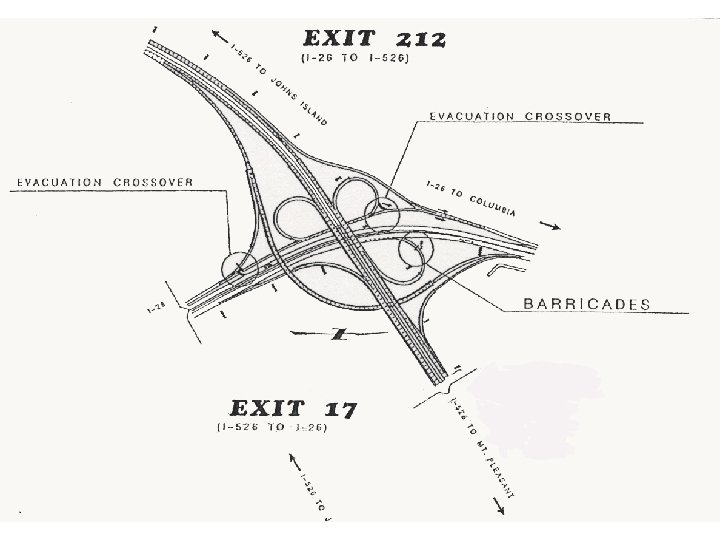

SCDOT I-26 Interchange Ramp Initiation Point

LSU HURRICANE CENTER Design Plans Features

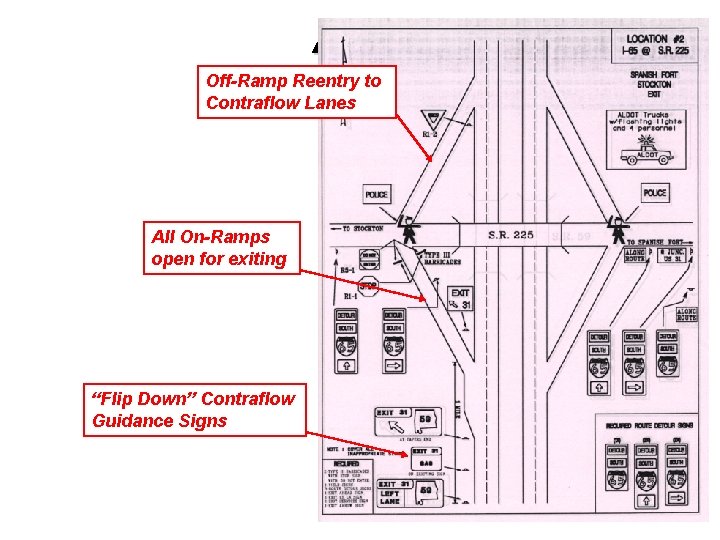

Alabama DOT I-65 Off-Ramp Reentry to Typical Interchange Contraflow Lanes All On-Ramps open for exiting “Flip Down” Contraflow Guidance Signs

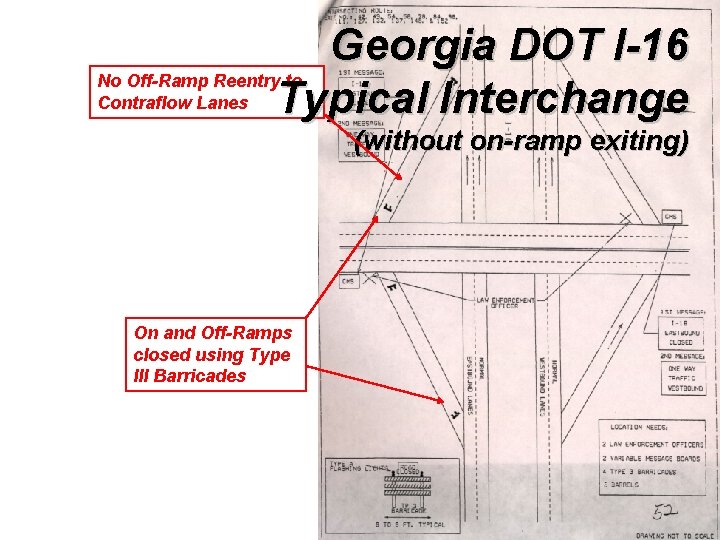

Georgia DOT I-16 No Off-Ramp Reentry to Contraflow Lanes Typical Interchange (without on-ramp exiting) On and Off-Ramps closed using Type III Barricades

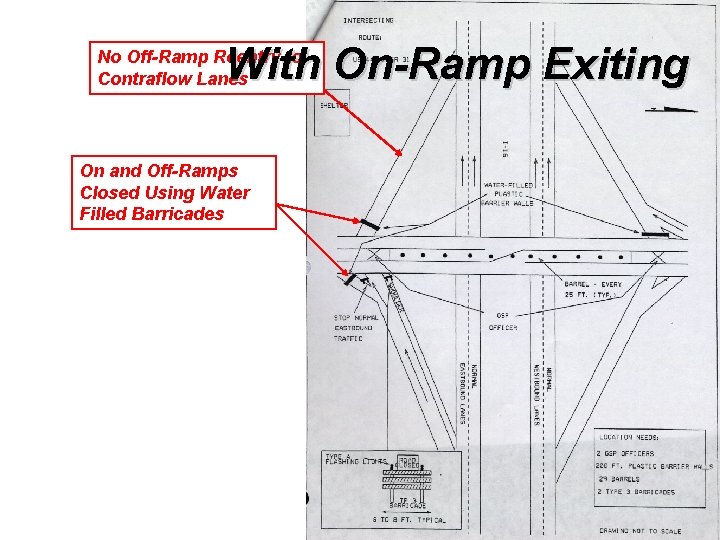

With On-Ramp Exiting No Off-Ramp Reentry to Contraflow Lanes On and Off-Ramps Closed Using Water Filled Barricades

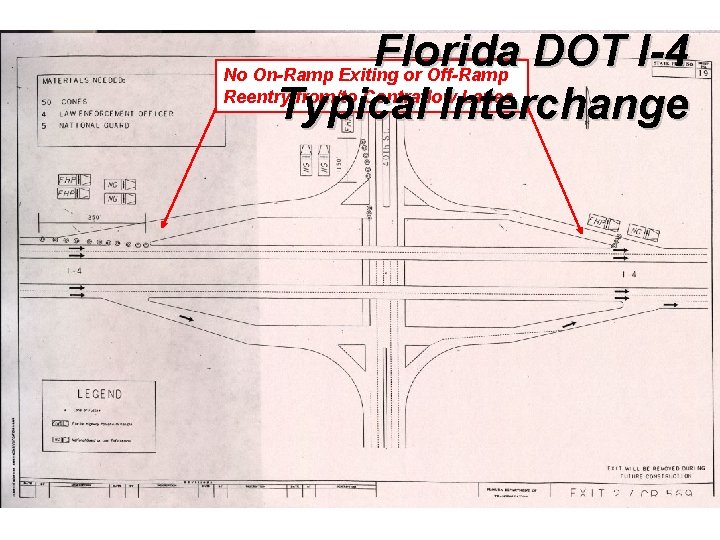

Florida DOT I-4 No On-Ramp Exiting or Off-Ramp Reentry from/to Contraflow Lanes Typical Interchange

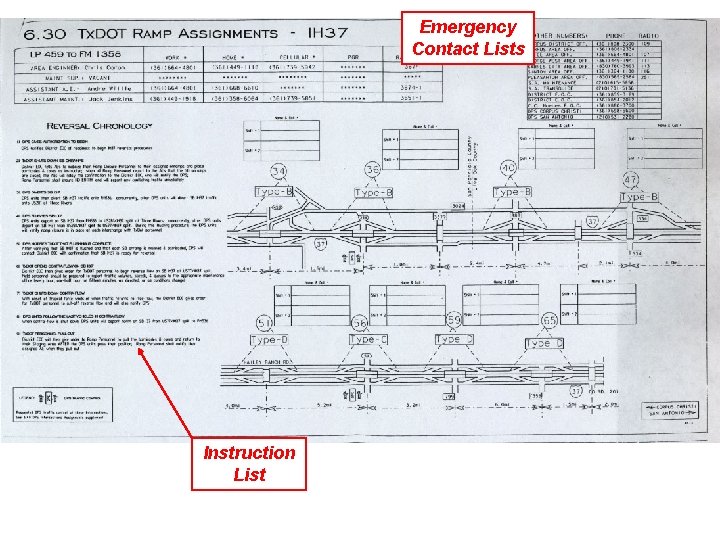

Emergency Contact Lists Tex. DOT I-37 Reversal Plan Instruction List

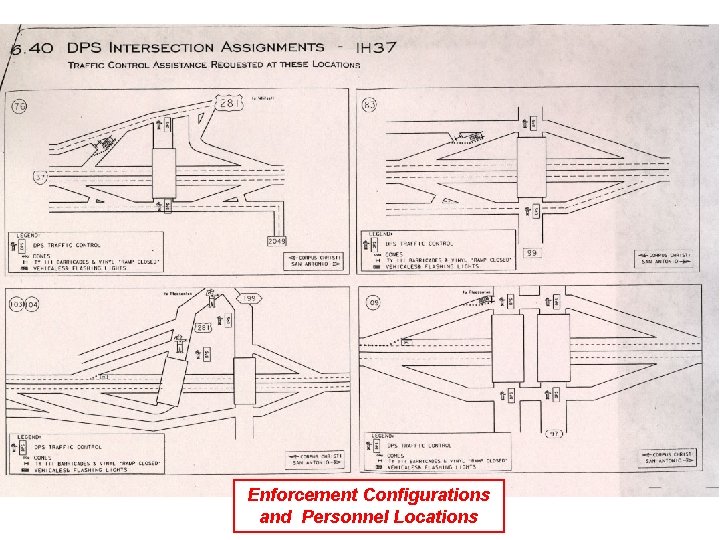

Enforcement Configurations and Personnel Locations

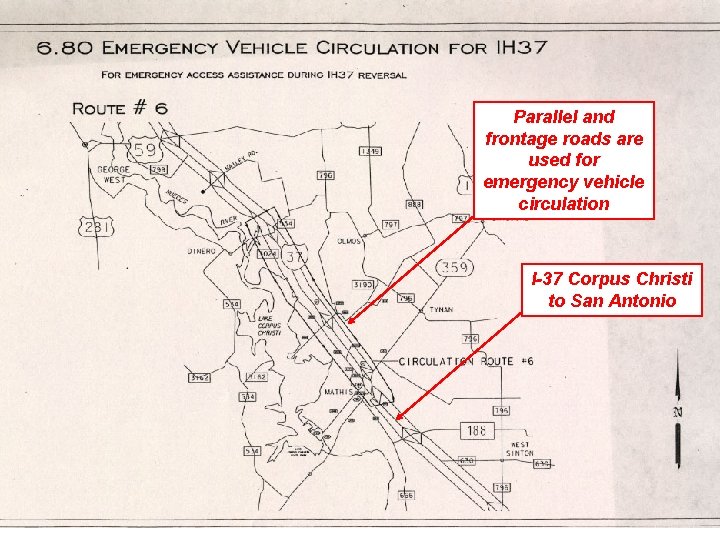

Tex. DOT I-37 Emergency Vehicle Circulation Plan Parallel and frontage roads are used for emergency vehicle circulation I-37 Corpus Christi to San Antonio

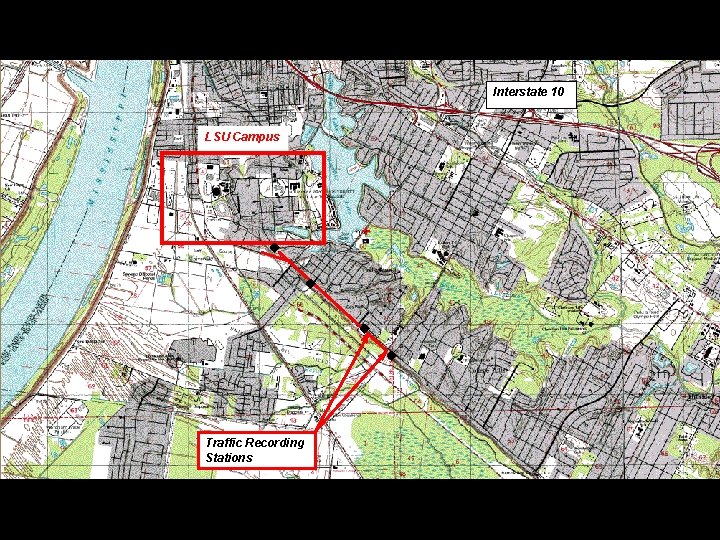

Interstate 10 LSU Campus Traffic Recording Stations
