HIGHWAY BRIDGE PROGRAM Improving the Safety of Off

HIGHWAY BRIDGE PROGRAM Improving the Safety of Off. System Bridges in Texas October 2018

Table of Contents 1 Introduction 3 2 Funding 5 3 Programming Process 10 4 Bridge Condition Performance Measure 24 5 Condition of Texas Bridges 25 6 Comparison to Other States 33 7 Historic Off- System Bridges 34 8 Questions 45 October 2018 2

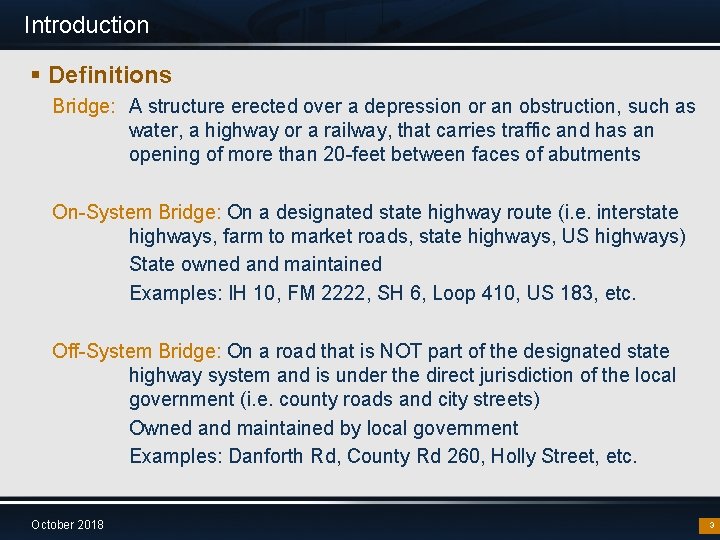

Introduction § Definitions Bridge: A structure erected over a depression or an obstruction, such as water, a highway or a railway, that carries traffic and has an opening of more than 20 -feet between faces of abutments On-System Bridge: On a designated state highway route (i. e. interstate highways, farm to market roads, state highways, US highways) State owned and maintained Examples: IH 10, FM 2222, SH 6, Loop 410, US 183, etc. Off-System Bridge: On a road that is NOT part of the designated state highway system and is under the direct jurisdiction of the local government (i. e. county roads and city streets) Owned and maintained by local government Examples: Danforth Rd, County Rd 260, Holly Street, etc. October 2018 3

Introduction § Highway Bridge Program (HBP) What: Tx. DOT’s program for using federal Surface Transportation Program bridges on (STP) funds for the rehabilitation/replacement of eligible pubic roads Where: For publicly owned bridges statewide When: Established in 1978 through federal legislation; and Annual program calls for funding projects in 4 to 5 year development plans Why: October 2018 To increase the safety of bridges 4

Funding Overview HBP is fiscally constrained to $230 M per fiscal year Funding Sources FHWA Tx. DOT Local $60 M – Off-system Federal funds require a participation match of 20% Off-system: 80% - Federal 10% - State 10% - Local -or 80% - Federal 20% - State* 10% 80% * If approved in accordance with § 15. 55(d) of the Texas Administrative Code October 2018 5

Funding § Overview – Fiscally constrained at $230 M per fiscal year • $60 M – Off-system – Federal funds require a 20% cost participation match • Off-system projects (80% federal, 10% state, 10% local) § Local funding participation alternatives – Payment match • Full 10% • Economically Disadvantage Counties program (EDC) • State Infrastructure Bank (SIB) – Participation Waived Project / Equivalent Match Project program (PWP/EMP) October 2018 6

Funding § Advanced Funding Agreement (AFA) – Must be executed between the state and local government before any work, either preliminary engineering or construction, can be performed. – Specifies the responsibilities of the parties in the performance and funding of the work, – Defines the contributions of the local government for its share of the project funding responsibilities. – Local government contributions can be either: – advance payments (escrow payments) or – work performed under the Participation Waived/Equivalent-Match Project Program (PWP/ EMP). October 2018 7

Funding § Participation Waived Project/Equivalent Match Projects – The local match requirement for off-system bridge program projects may be waived by participation in the PWP/EMP. – Local government agrees to use local funds to perform structural or other safety improvement work on other load-carrying deficient bridges or cross-drainage structures in its jurisdiction. – Must have a dollar value at least equivalent to the required local match participation or local participation as adjusted under the EDC provision. – Requirements defined in 43 TAC Section 15. 55(d) October 2018 8

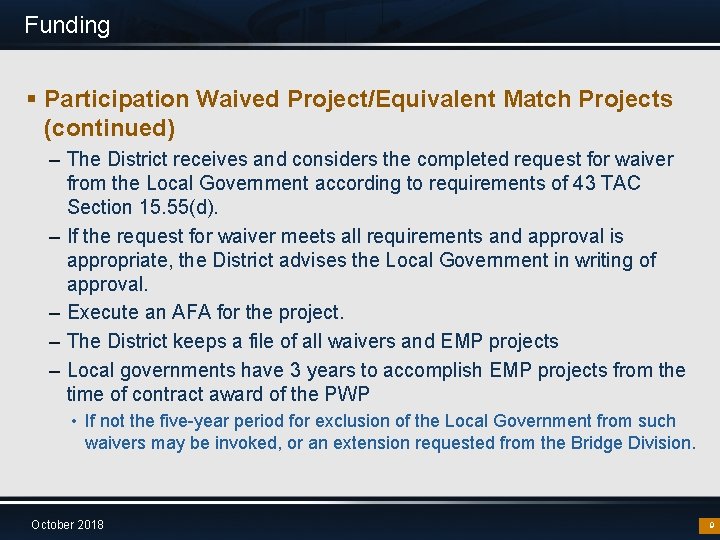

Funding § Participation Waived Project/Equivalent Match Projects (continued) – The District receives and considers the completed request for waiver from the Local Government according to requirements of 43 TAC Section 15. 55(d). – If the request for waiver meets all requirements and approval is appropriate, the District advises the Local Government in writing of approval. – Execute an AFA for the project. – The District keeps a file of all waivers and EMP projects – Local governments have 3 years to accomplish EMP projects from the time of contract award of the PWP • If not the five-year period for exclusion of the Local Government from such waivers may be invoked, or an extension requested from the Bridge Division. October 2018 9

Programming Process Inspections Eligibility Listing Communication between Tx. DOT and locals Project constructio n Communicatio n Project lettings & monitor funding October 2018 Maintenance Proposed bridge lists prioritized & ranked Inspections Program bridges based on program requirement s Develop projects 10

Programming Process continuous Inspections and Eligibility Process 1. Inspect 2. Classify 2 months Project Selection Process PART A 1. Distribution/ Notification of Eligibility List 2. Districts and local officials work together to prioritize and rank candidate bridges thus determining which bridges should be submitted for funding consideration 2 months Project Selection Process Project Development Process Monthly Monitoring Process PART B 1. Districts submit bridge: priority, rank, and estimate for bridges that are to be considered 2. Bridge Division prioritizes and ranks bridges submitted on a statewide basis RESULT: Eligibility List for HBP District Proposed Project Lists Statewide List of Funded Bridge Projects October 2018 continuous 1. Execute Advance Funding Agreement 1. Bridge Division reviews HBP fund balance 2. Begin project development 2. Projects may be delayed / accelerated based on funds available and project eligibility RESULTS: A. Projects proceed as programmed B. Project schedules may change C. Communication between Tx. DOT & local entity 3. Emergency projects may be added RESULT: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints 11

Programming Process continuous Inspections and Eligibility Process 1. Inspect 2. Classify 2 months Project Selection Process PART A 1. Distribution/ Notification of Eligibility List 2. Districts and local officials work together to prioritize and rank candidate bridges thus determining which bridges should be submitted for funding consideration RESULT: Eligibility List for HBP October 2018 2 months Project Selection Process PART B 1. Districts submit bridge: priority, rank, and estimate for bridges that are to be considered 2. Bridge Division prioritizes and ranks bridges submitted on a statewide basis RESULT: District Proposed Project Lists Statewide List of Funded Bridge Projects continuous Project Development Process 1. Execute Advance Funding Agreement 2. Begin project development RESULTS: A. Projects proceed as programmed B. Project schedules may change C. Communication between Tx. DOT & local entity Monthly Monitoring Process 1. Bridge Division reviews HBP fund balance 2. Projects may be delayed / accelerated based on funds available and project eligibility 3. Emergency projects may be added RESULT: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints 12

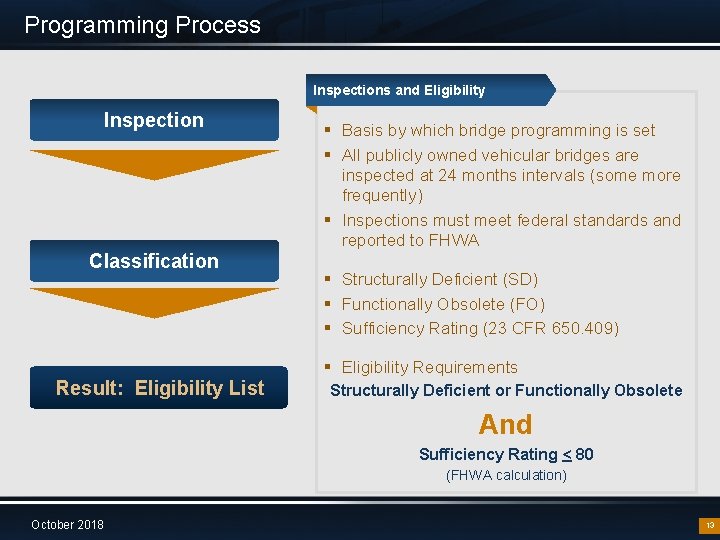

Programming Process Inspections and Eligibility Inspection Classification § Basis by which bridge programming is set § All publicly owned vehicular bridges are inspected at 24 months intervals (some more frequently) § Inspections must meet federal standards and reported to FHWA § Structurally Deficient (SD) § Functionally Obsolete (FO) § Sufficiency Rating (23 CFR 650. 409) § Eligibility Requirements Result: Eligibility List Structurally Deficient or Functionally Obsolete And Sufficiency Rating < 80 (FHWA calculation) October 2018 13

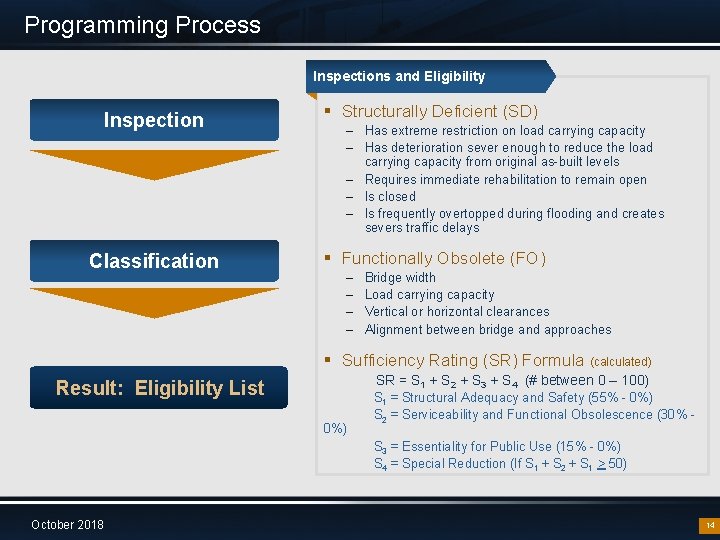

Programming Process Inspections and Eligibility Inspection § Structurally Deficient (SD) Classification § Functionally Obsolete (FO) – Has extreme restriction on load carrying capacity – Has deterioration sever enough to reduce the load carrying capacity from original as-built levels – Requires immediate rehabilitation to remain open – Is closed – Is frequently overtopped during flooding and creates severs traffic delays – – Bridge width Load carrying capacity Vertical or horizontal clearances Alignment between bridge and approaches § Sufficiency Rating (SR) Formula (calculated) SR = S 1 + S 2 + S 3 + S 4 (# between 0 – 100) Result: Eligibility List 0%) S 1 = Structural Adequacy and Safety (55% - 0%) S 2 = Serviceability and Functional Obsolescence (30% S 3 = Essentiality for Public Use (15% - 0%) S 4 = Special Reduction (If S 1 + S 2 + S 1 > 50) October 2018 14

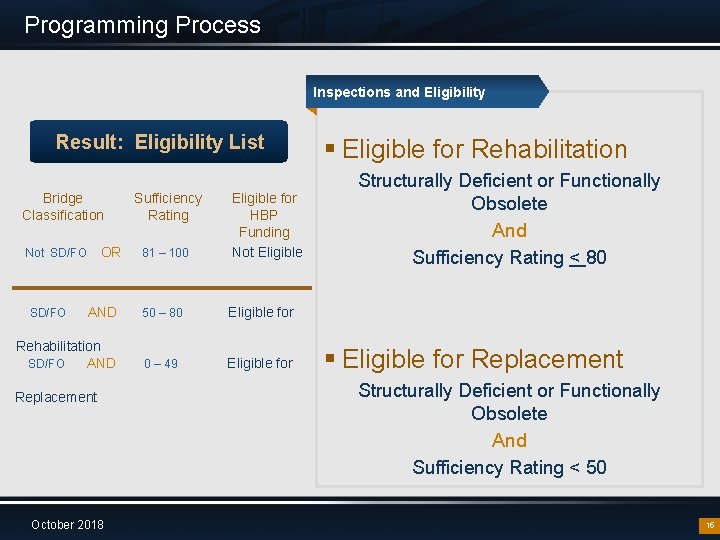

Programming Process Inspections and Eligibility Result: Eligibility List Bridge Classification OR Not SD/FO AND Rehabilitation SD/FO AND Replacement October 2018 81 – 100 Eligible for HBP Funding Not Eligible 50 – 80 Eligible for 0 – 49 Eligible for Sufficiency Rating § Eligible for Rehabilitation Structurally Deficient or Functionally Obsolete And Sufficiency Rating < 80 § Eligible for Replacement Structurally Deficient or Functionally Obsolete And Sufficiency Rating < 50 15

Programming Process continuous Inspections and Eligibility Process 1. Inspect 2. Classify 2 months Project Selection Process PART A 1. Distribution/ Notification of Eligibility List 2. Districts and local officials work together to prioritize and rank candidate bridges thus determining which bridges should be submitted for funding consideration RESULT: Eligibility List for HBP October 2018 RESULT: District Proposed Project Lists 2 months Project Selection Process continuous Project Development Process HBP Monthly Monitoring Process PART B 1. Districts submit bridge: priority, rank, and estimate for bridges that are to be considered 2. Bridge Division prioritizes and ranks bridges submitted on a statewide basis RESULT: Statewide List of Funded Bridge Projects 1. Execute Advance Funding Agreement 2. Begin project development RESULTS: A. Projects proceed as programmed B. Project schedules may change C. Communication between Tx. DOT & local entity 1. Bridge Division reviews HBP fund balance 2. Projects may be delayed / accelerated based on funds available and project eligibility 3. Emergency projects may be added RESULT: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints 16

Programming Process Project Selection Process: Part A Distribute Eligibility List § BRG notifies districts of program call based on eligible bridge list – District specific lists in the Bridge Portfolio Management application § Districts work with local officials to Bridge Priorities/Rankings Statewide Proposed Bridge Project Listing October 2018 – Evaluate currently approved bridges to verify project need and funding – Determine new candidate bridges to submit for consideration – Set bridge priorities and rankings for candidate bridges § Districts update/upload estimates, proposed letting dates, project needs, district/local priorities, and district/local rankings for previously approved bridges and new candidate bridges to be considered for programming 17

Programming Process BRG Review of Statewide Proposed Project Listing Prioritization of Bridges Project Selection Process: Part B § BRG reviews proposed bridge project list – Verifies eligibility, estimates, proposed lettings dates, project needs, district/local priorities have been entered – Ensures special consideration justifications have been provided, as needed SR = Higher Lower § BRG evaluates bridge project list Probability of being programmed Statewide Approved Bridge Project Listing October 2018 – Updates currently approved project estimates and letting dates based on district information and fiscal constraints to determine available funding within the programming FYs – Evaluates and selects bridges 1 st round: SD/FO with SR < 50 & Approved special consideration projects nd 2 round: SD/FO with SR < 80 district/local priorities and rankings break ties and ensure the project with the highest need is selected 18

Programming Process continuous Inspections and Eligibility Process 1. Inspect 2. Classify 2 months Project Selection Process PART A 1. Distribution/ Notification of Eligibility List 2. Districts and local officials work together to prioritize and rank candidate bridges thus determining which bridges should be submitted for funding consideration 2 months Project Selection Process PART B 1. Districts submit bridge: priority, rank, and estimate for bridges that are to be considered 2. Bridge Division prioritizes and ranks bridges submitted on a statewide basis RESULT: Eligibility List for HBP District Proposed Project Lists Statewide List of Funded Bridge Projects October 2018 continuous Project Development Process 1. Execute Advance Funding Agreement 2. Begin project development RESULTS: A. Projects proceed as programmed B. Project schedules may change C. Communication between Tx. DOT & local entity Monthly Monitoring Process 1. Bridge Division reviews HBP fund balance 2. Projects may be delayed / accelerated based on funds available and project eligibility 3. Emergency projects may be added RESULT: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints 19

Programming Process Project Development Process Develop Projects A B C Result A Projects proceed as programme d – Availability of funds • Change orders • Program over-runs/under-runs • Revised estimates Result B Project schedules may change Result C Communicatio n between Tx. DOT & local entity October 2018 § BRG notifies districts and other divisions of the approved bridge project list § Projects may be developed upon being approved for the program; however, project development is based on resource availability and fiscal constraints § Development time varies § Projects may be accelerated/delayed – Design complexity – Emergency projects • Force majeure – Environmental and/or ROW clearance – Local priorities 20

Programming Process continuous Inspections and Eligibility Process 1. Inspect 2. Classify 2 months Project Selection Process PART A 1. Distribution/ Notification of Eligibility List 2. Districts and local officials work together to prioritize and rank candidate bridges thus determining which bridges should be submitted for funding consideration 2 months Project Selection Process PART B 1. Districts submit bridge: priority, rank, and estimate for bridges that are to be considered 2. Bridge Division prioritizes and ranks bridges submitted on a statewide basis RESULT: Eligibility List for HBP District Proposed Project Lists Statewide List of Funded Bridge Projects October 2018 continuous Project Development Process Monthly Monitoring Process 1. Execute Advance Funding Agreement 1. Bridge Division reviews HBP fund balance 2. Begin project development 2. Projects may be delayed / accelerated based on funds available and project eligibility RESULTS: A. Projects proceed as programmed B. Project schedules may change C. Communication between Tx. DOT & local entity 3. Emergency projects may be added RESULT: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints 21

Programming Process Monthly Monitoring Process Monthly Project Lettings Change Orders Result: Adjustment of Statewide List of Funded Bridge Projects to uphold fiscal constraints October 2018 § Monitoring of monthly lettings for project over-runs/under-runs § Coordinating with Finance Division to develop balanced monthly lettings and reviewing funding constraints § Coordinating with districts throughout project development process to adjust project letting dates due to design, ROW, etc. issues § Reviews requests for project change orders and approves/denies § Incorporating emergency and preventative maintenance projects Continual optimization of program while meeting the organizational strategic goals and federal performance measures 22

Programming Process Review Inspections Eligibility Listing Communication between Tx. DOT and locals Project constructio n Communicatio n Project lettings & monitoring funding October 2018 Maintenance Proposed bridge lists prioritized & ranked Inspections Program bridges based on program requirement s Develop projects 23

Bridge Condition Performance Measure § 80% of all Texas bridges in “good or better” condition – “Good or Better” • Meets current federal and state requirements • Not SD/FO • Not sub-standard for load only – Not SD/FO but has a load capacity less than the maximum legal load – Not deteriorated enough to reduce its load capacity beneath its original as -built capacity, but its as-built capacity was not designed to carry currently legal loads – Load posted or recommended for load posting Current status: 82. 0% of all Texas bridges are in “good or better” condition (as of September 2018) October 2018 24

Condition of Texas Bridges 1, 164 (2. 1%) By Count 2016: On- & Off-system "Good or Better" Bridges 707 (1. 3%) 7, 928 (14. 6%) Structurally Deficient Bridges Functionally Obsolete Bridges 44, 539 (82. 0%) October 2018 Sub-Standard for Load Only Bridges 25

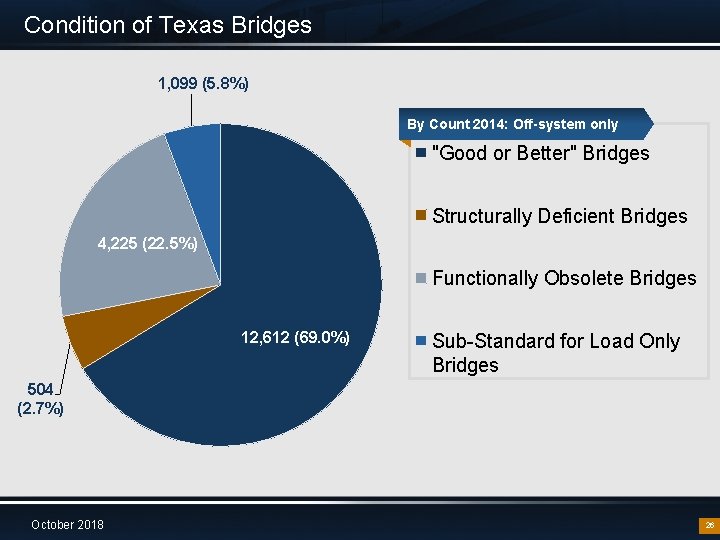

Condition of Texas Bridges 1, 099 (5. 8%) By Count 2014: Off-system only "Good or Better" Bridges Structurally Deficient Bridges 4, 225 (22. 5%) Functionally Obsolete Bridges 12, 612 (69. 0%) Sub-Standard for Load Only Bridges 504 (2. 7%) October 2018 26

Condition of Texas Bridges Change in Condition: On- & Offsystem SD Bridges FO Bridges Sub-standard for Load Only Bridges (not eligible) 2006 2, 125 7, 802 1, 409 49, 829 77. 3% 2018 707 7, 928 1, 164 52, 989 82. 0% Change -1, 418 +126 -245 +3, 160 +4. 7% SD Bridges FO Bridges Sub-standard for Load Only Bridges (not eligible) Good or Better Bridges 2006 1, 642 3, 851 1, 304 10, 358 60. 4% 2018 504 4, 225 1, 099 12, 962 69. 0% Change -1, 138 +374 -205 +2, 604 +8. 6% Fiscal Year Change in Condition: Off-system Only Fiscal Year October 2018 Good or Better Bridges % Good or Better Bridges 27

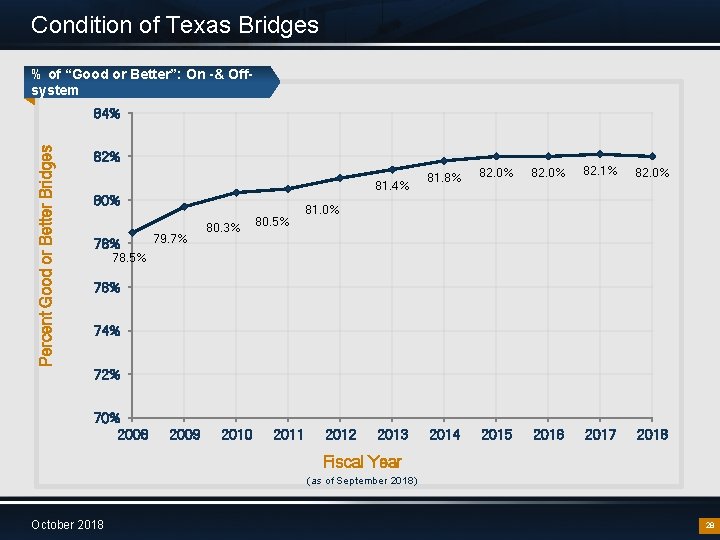

Condition of Texas Bridges % of “Good or Better”: On -& Offsystem Percent Good or Better Bridges 84% 82% 81. 4% 80% 78% 79. 7% 80. 3% 80. 5% 81. 8% 82. 0% 82. 1% 82. 0% 2014 2015 2016 2017 2018 81. 0% 78. 5% 76% 74% 72% 70% 2008 2009 2010 2011 2012 2013 Fiscal Year (as of September 2018) October 2018 28

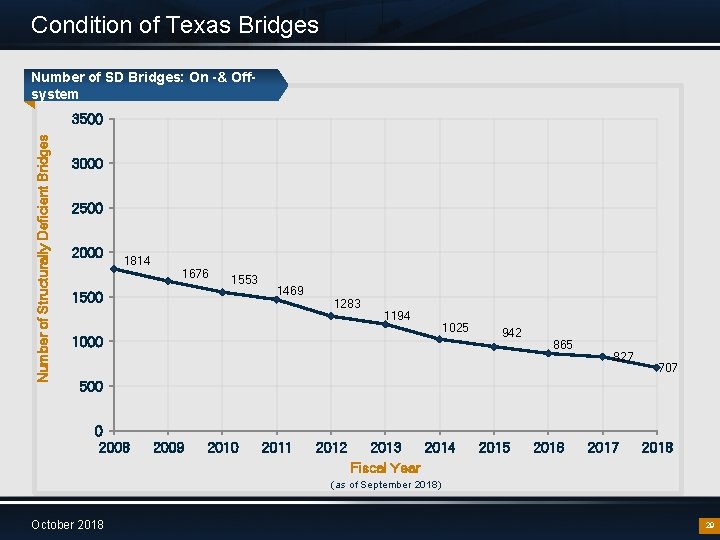

Condition of Texas Bridges Number of SD Bridges: On -& Offsystem Number of Structurally Deficient Bridges 3500 3000 2500 2000 1814 1676 1553 1500 1469 1283 1194 1000 1025 942 865 827 707 500 0 2008 2009 2010 2011 2012 2013 2014 Fiscal Year 2015 2016 2017 2018 (as of September 2018) October 2018 29

Condition of Texas Bridges Number of SD Bridges: Off-system Number of Structurally Deficient Bridges 3000 2500 2000 1500 1460 1347 1248 1178 1025 1000 973 832 759 678 500 0 2008 2009 2010 2011 2012 2013 2014 Fiscal Year 2015 2016 640 2017 504 2018 (as of September 2018) October 2018 30

Condition of Texas Bridges Highway Bridge Program: History Year Number of Bridges Federal Aid HBP Replaced or Funds On-System Rehabilitated ($M) On-System 1978 -1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 October 2018 360 92 80 137 52 90 72 67 99 58 48 47 63 90 62 79 86 69 93 145 119 140 106 86 59 $296. 06 $41. 21 $33. 17 $49. 15 $31. 14 $52. 91 $83. 96 $37. 22 $87. 36 $72. 85 $52. 12 $61. 40 $133. 00 $112. 00 $68. 33 $84. 27 $213. 72 $87. 06 $136. 10 $198. 25 $232. 78 $200. 90 $134. 77 $186. 54 $171. 19 Number of Bridges Federal Aid HBP Total Number of Replaced or Funds Off-System Bridges Replaced Rehabilitated ($M) or Rehabilitated Off-System 232 37 142 125 67 63 30 52 100 78 99 80 95 102 131 125 134 153 136 146 170 105 133 154 115 $52. 51 $7. 46 $22. 80 $19. 60 $12. 29 $18. 41 $16. 20 $14. 27 $23. 91 $19. 04 $20. 12 $21. 40 $30. 10 $24. 80 $41. 78 $28. 63 $32. 37 $45. 58 $38. 10 $52. 02 $54. 06 $46. 40 $48. 96 $56. 84 $84. 36 592 129 222 262 119 153 102 119 199 136 147 127 158 192 193 204 220 222 229 291 289 245 239 240 174 Total Federal Aid HBP Funds ($M) $348. 57 $48. 67 $55. 97 $68. 75 $43. 43 $71. 32 $100. 16 $51. 49 $111. 27 $91. 89 $72. 24 $82. 80 $163. 10 $136. 80 $110. 11 $112. 90 $246. 09 $132. 64 $174. 20 $250. 27 $286. 84 $247. 30 $183. 73 $243. 38 $255. 55 31

Condition of Texas Bridges Highway Bridge Program: History Year Number of Bridges Federal Aid HBP Replaced or Funds On-System Rehabilitated ($M) On-System 2012 2013 2014 2015 Totals 10 -Yr. Avg. October 2018 67 102 103 151 2822 108 $135. 16 $227. 04 $95. 62 $111. 23 $3, 426. 51 $169. 35 Number of Bridges Federal Aid HBP Total Number of Replaced or Funds Off-System Bridges Replaced Rehabilitated ($M) or Rehabilitated Off-System 118 108 129 112 $38. 29 $34. 48 $32. 19 $28. 43 3, 271 129 $965. 40 $47. 60 185 210 232 236 6093 237 Total Federal Aid HBP Funds ($M) $173. 45 $261. 52 $127. 81 $139. 66 $4, 391. 91 $216. 95 32

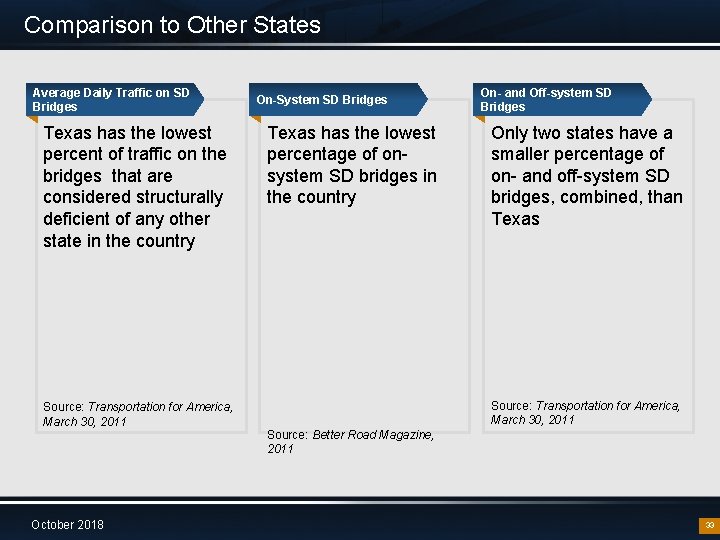

Comparison to Other States Average Daily Traffic on SD Bridges Texas has the lowest percent of traffic on the bridges that are considered structurally deficient of any other state in the country Source: Transportation for America, March 30, 2011 October 2018 On-System SD Bridges Texas has the lowest percentage of onsystem SD bridges in the country On- and Off-system SD Bridges Only two states have a smaller percentage of on- and off-system SD bridges, combined, than Texas Source: Transportation for America, March 30, 2011 Source: Better Road Magazine, 2011 33

Historic Off-System Bridges § On or Eligible for National Register of Historic Places § Environmental clearance § Trusses can be picked up and moved to a pedestrian location § Bridges replaced with federal funds that are identified as historically significant may be preserved for adaptive reuse with federal fund participation up to the estimated demolition cost. § Historic structures have lower minimum criteria to stay in vehicular use October 2018 34

What is a Historic Bridge? October 2018

What is a Historic Bridge? October 2018 36

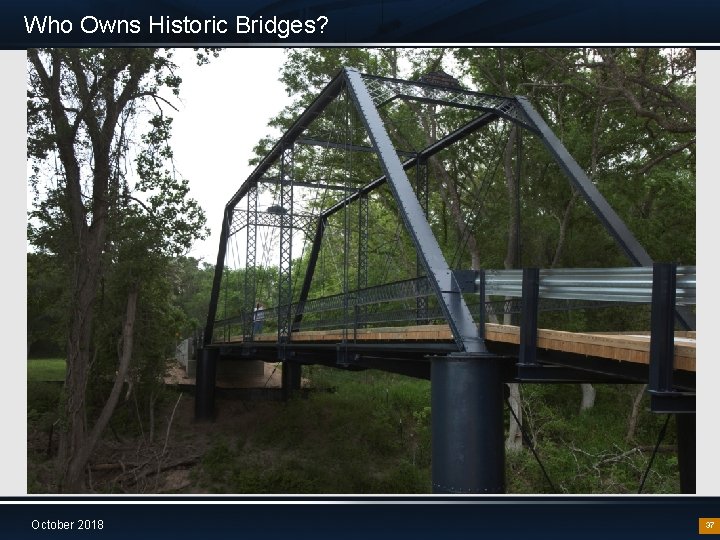

Who Owns Historic Bridges? October 2018 37

Who Owns Historic Bridges? October 2018 38

Who Owns Historic Bridges? October 2018 39

How Do I Know if a Bridge is Historic? October 2018 40

My Bridge is Historic, Now What? October 2018 41

My Bridge is Historic, Now What? October 2018 42

New Uses for Old Bridges October 2018 43

Historic October 2018 Bridge Resources 44

QUESTIONS? Jamie Griffin, P. E. Tx. DOT Bridge Division 512 -416 -2247 Jamie. Griffin@txdot. gov October 2018 Rebekah Dobrasko Tx. DOT Environmental Division – Historical Studies (512) 416 -2570 Rebekah. Dobrasko@txdot. gov
