High-Level Transformations for Embedded Computing

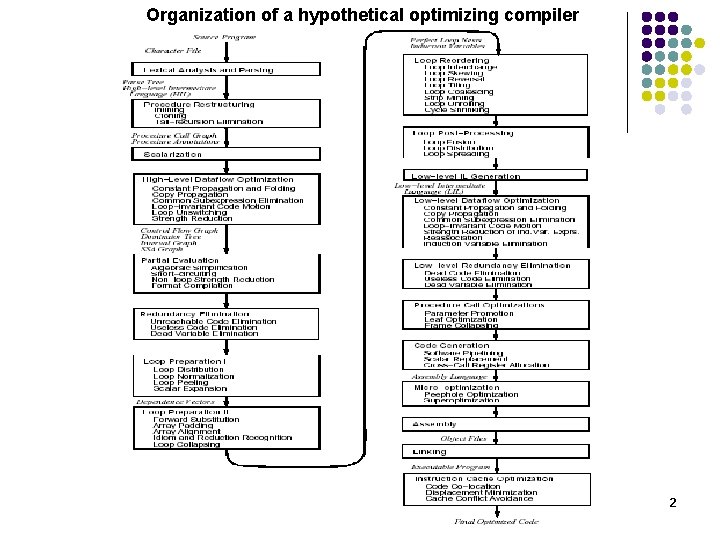

Organization of a hypothetical optimizing compiler 2

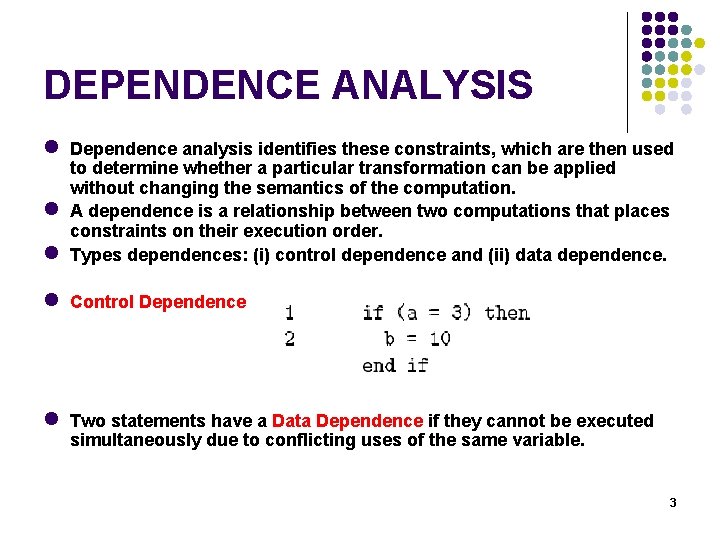

DEPENDENCE ANALYSIS l Dependence analysis identifies these constraints, which are then used l l to determine whether a particular transformation can be applied without changing the semantics of the computation. A dependence is a relationship between two computations that places constraints on their execution order. Types dependences: (i) control dependence and (ii) data dependence. l Control Dependence l Two statements have a Data Dependence if they cannot be executed simultaneously due to conflicting uses of the same variable. 3

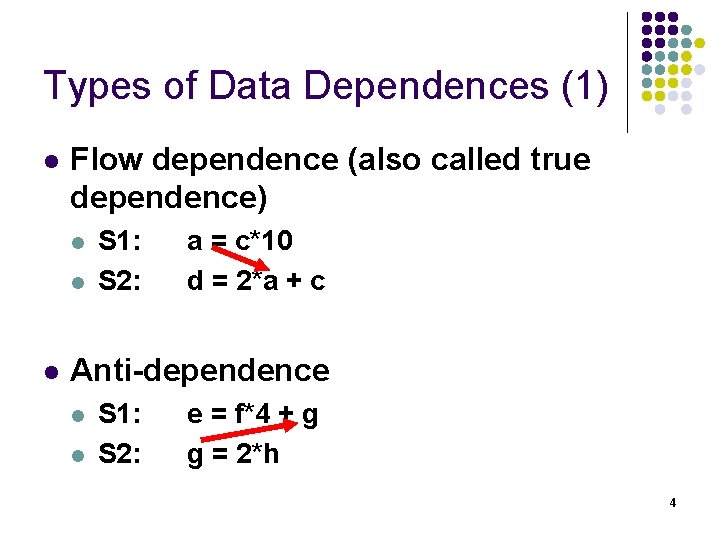

Types of Data Dependences (1) l Flow dependence (also called true dependence) l l l S 1: S 2: a = c*10 d = 2*a + c Anti-dependence l l S 1: S 2: e = f*4 + g g = 2*h 4

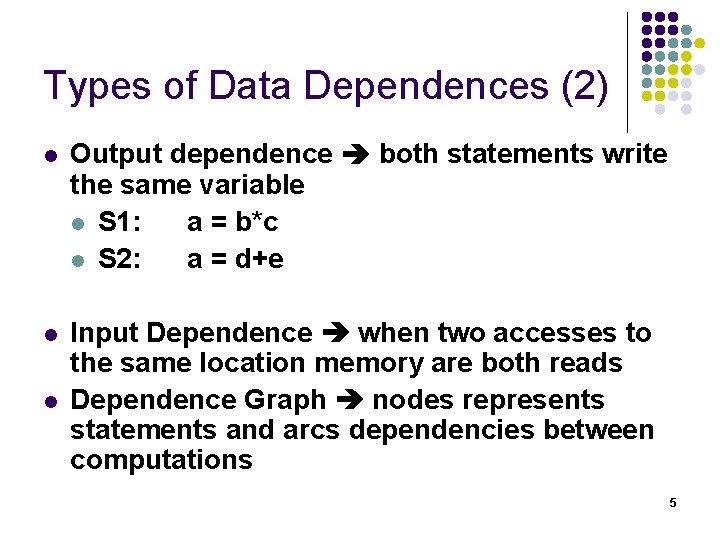

Types of Data Dependences (2) l Output dependence both statements write the same variable l S 1: a = b*c l S 2: a = d+e l Input Dependence when two accesses to the same location memory are both reads Dependence Graph nodes represents statements and arcs dependencies between computations l 5

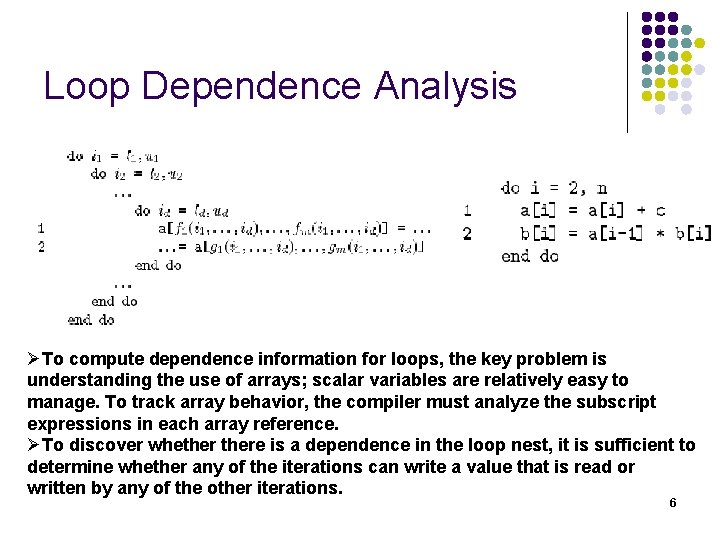

Loop Dependence Analysis ØTo compute dependence information for loops, the key problem is understanding the use of arrays; scalar variables are relatively easy to manage. To track array behavior, the compiler must analyze the subscript expressions in each array reference. ØTo discover whethere is a dependence in the loop nest, it is sufficient to determine whether any of the iterations can write a value that is read or written by any of the other iterations. 6

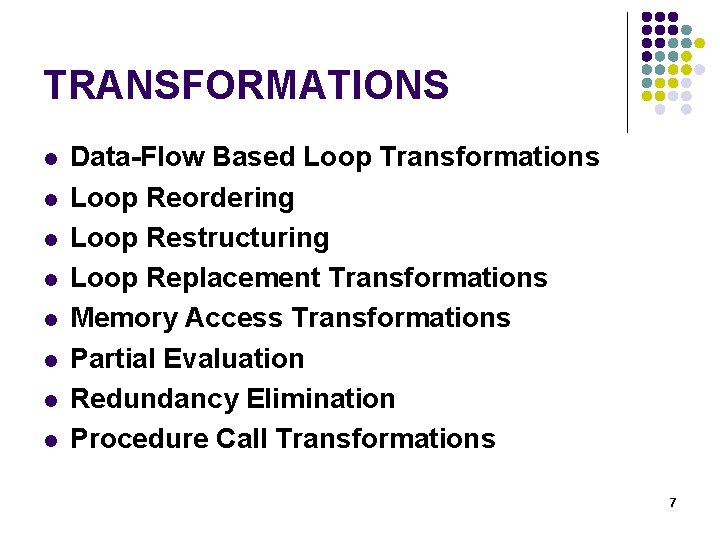

TRANSFORMATIONS l l l l Data-Flow Based Loop Transformations Loop Reordering Loop Restructuring Loop Replacement Transformations Memory Access Transformations Partial Evaluation Redundancy Elimination Procedure Call Transformations 7

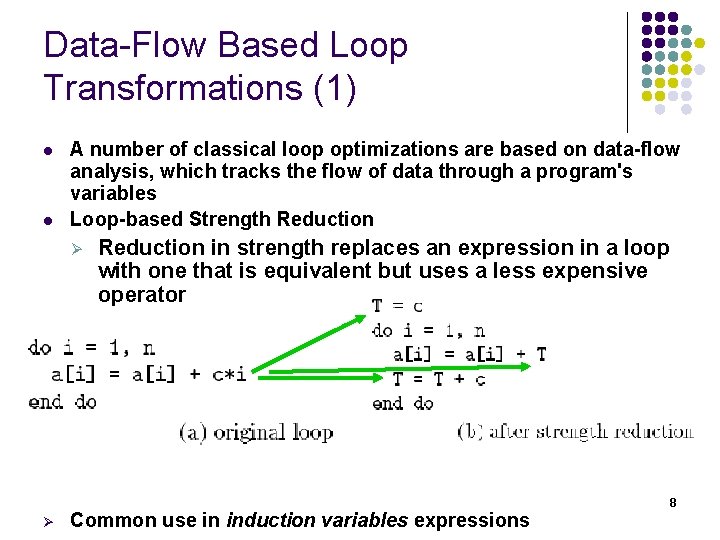

Data-Flow Based Loop Transformations (1) l l A number of classical loop optimizations are based on data-flow analysis, which tracks the flow of data through a program's variables Loop-based Strength Reduction Ø Ø Reduction in strength replaces an expression in a loop with one that is equivalent but uses a less expensive operator Common use in induction variables expressions 8

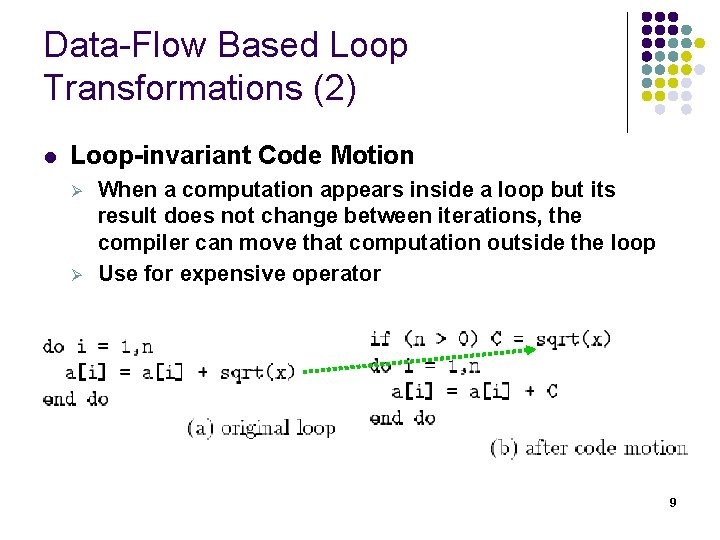

Data-Flow Based Loop Transformations (2) l Loop-invariant Code Motion Ø Ø When a computation appears inside a loop but its result does not change between iterations, the compiler can move that computation outside the loop Use for expensive operator 9

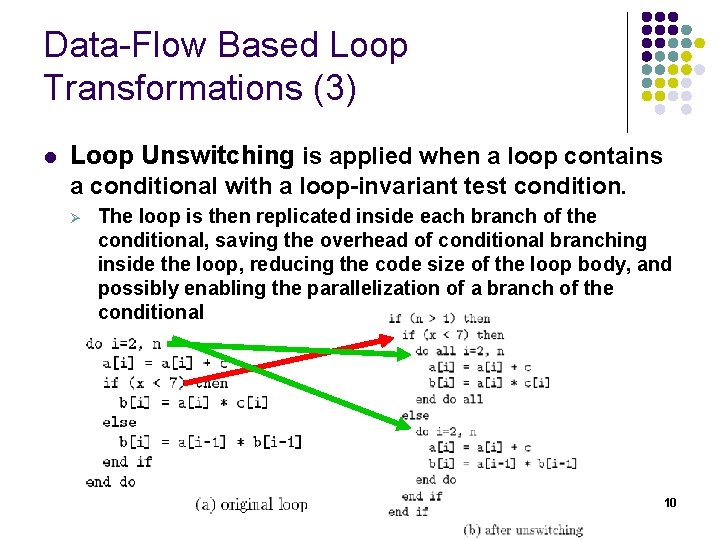

Data-Flow Based Loop Transformations (3) l Loop Unswitching is applied when a loop contains a conditional with a loop-invariant test condition. Ø The loop is then replicated inside each branch of the conditional, saving the overhead of conditional branching inside the loop, reducing the code size of the loop body, and possibly enabling the parallelization of a branch of the conditional 10

Loop Reordering Transformations l Change the relative order of execution of the iterations of a loop nest or nests. Ø Expose parallelism and improve memory locality. 11

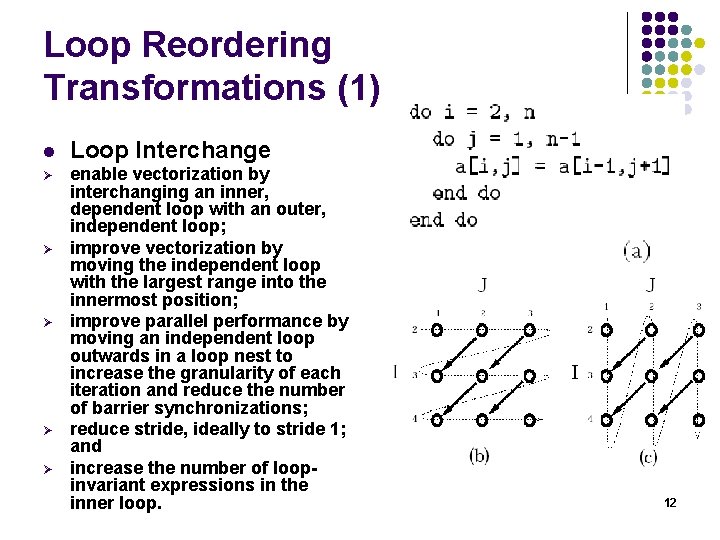

Loop Reordering Transformations (1) l Loop Interchange Ø enable vectorization by interchanging an inner, dependent loop with an outer, independent loop; improve vectorization by moving the independent loop with the largest range into the innermost position; improve parallel performance by moving an independent loop outwards in a loop nest to increase the granularity of each iteration and reduce the number of barrier synchronizations; reduce stride, ideally to stride 1; and increase the number of loopinvariant expressions in the inner loop. Ø Ø 12

Loop Reordering Transformations (2) l l Loop Skewing skew iterations execution Useful for Loop Interchange Skewing factor “i” 13 Parallel iterations

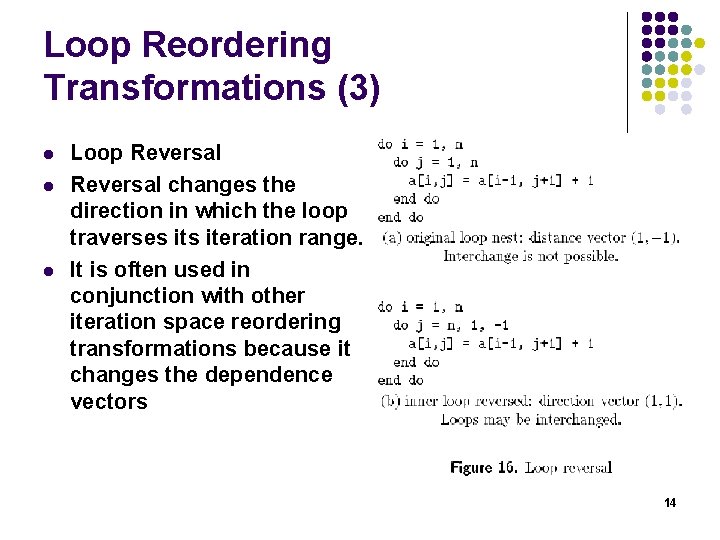

Loop Reordering Transformations (3) l l l Loop Reversal changes the direction in which the loop traverses iteration range. It is often used in conjunction with other iteration space reordering transformations because it changes the dependence vectors 14

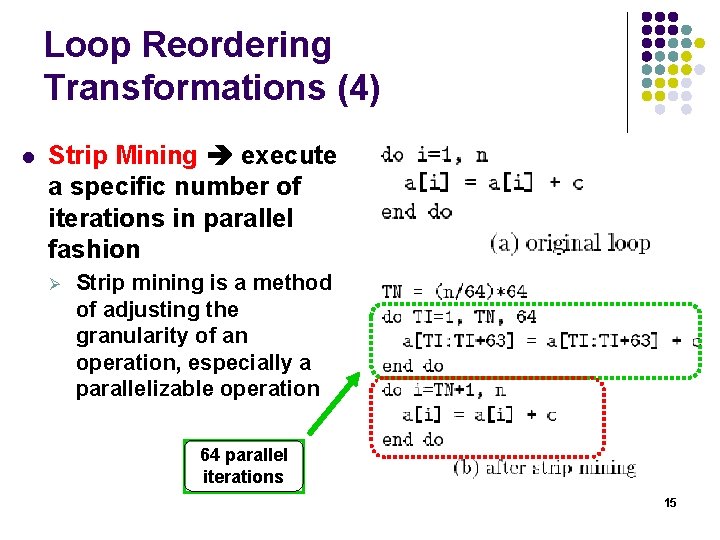

Loop Reordering Transformations (4) l Strip Mining execute a specific number of iterations in parallel fashion Ø Strip mining is a method of adjusting the granularity of an operation, especially a parallelizable operation 64 parallel iterations 15

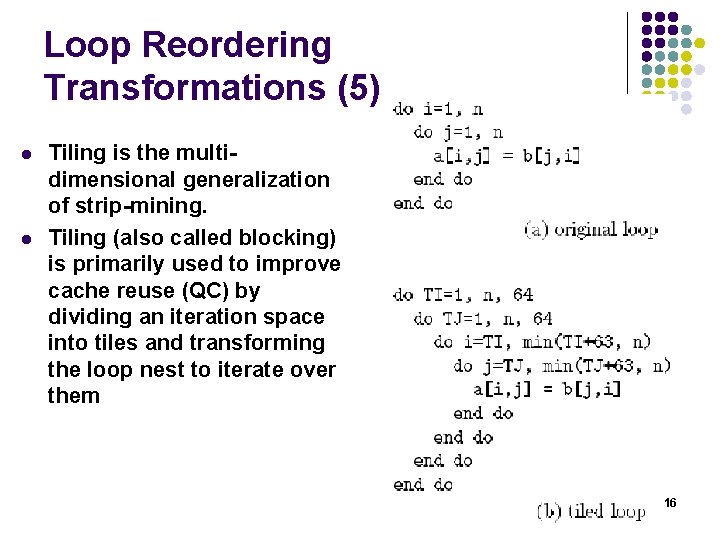

Loop Reordering Transformations (5) l l Tiling is the multidimensional generalization of strip-mining. Tiling (also called blocking) is primarily used to improve cache reuse (QC) by dividing an iteration space into tiles and transforming the loop nest to iterate over them 16

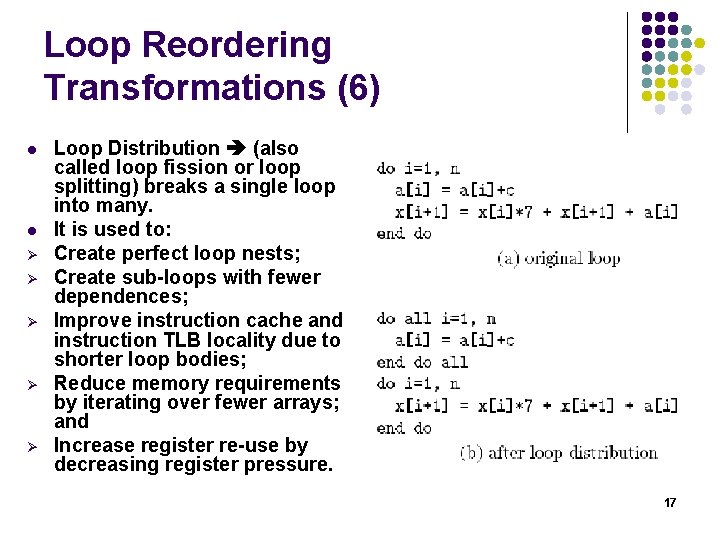

Loop Reordering Transformations (6) l l Ø Ø Ø Loop Distribution (also called loop fission or loop splitting) breaks a single loop into many. It is used to: Create perfect loop nests; Create sub-loops with fewer dependences; Improve instruction cache and instruction TLB locality due to shorter loop bodies; Reduce memory requirements by iterating over fewer arrays; and Increase register re-use by decreasing register pressure. 17

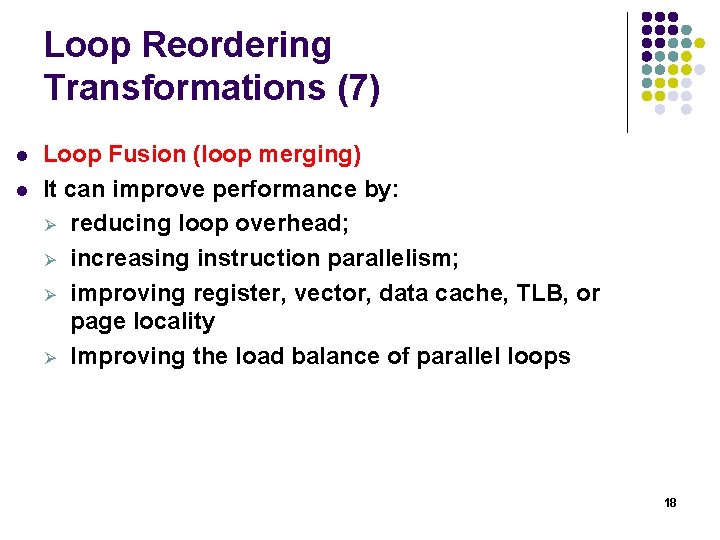

Loop Reordering Transformations (7) l l Loop Fusion (loop merging) It can improve performance by: Ø reducing loop overhead; Ø increasing instruction parallelism; Ø improving register, vector, data cache, TLB, or page locality Ø Improving the load balance of parallel loops 18

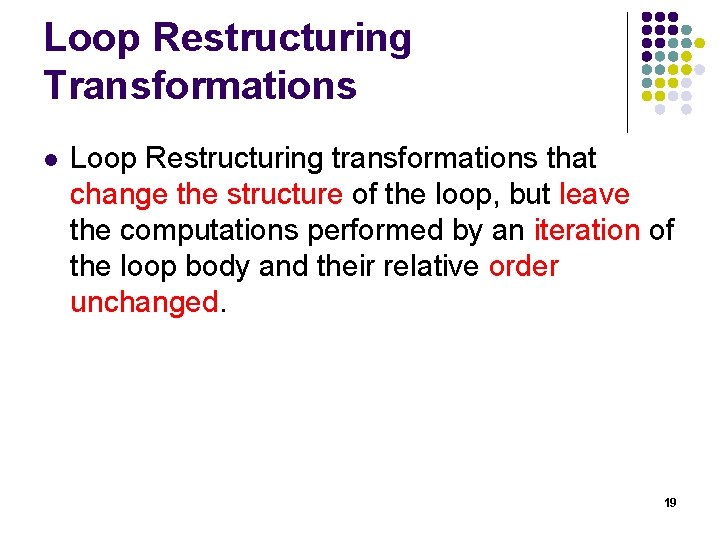

Loop Restructuring Transformations l Loop Restructuring transformations that change the structure of the loop, but leave the computations performed by an iteration of the loop body and their relative order unchanged. 19

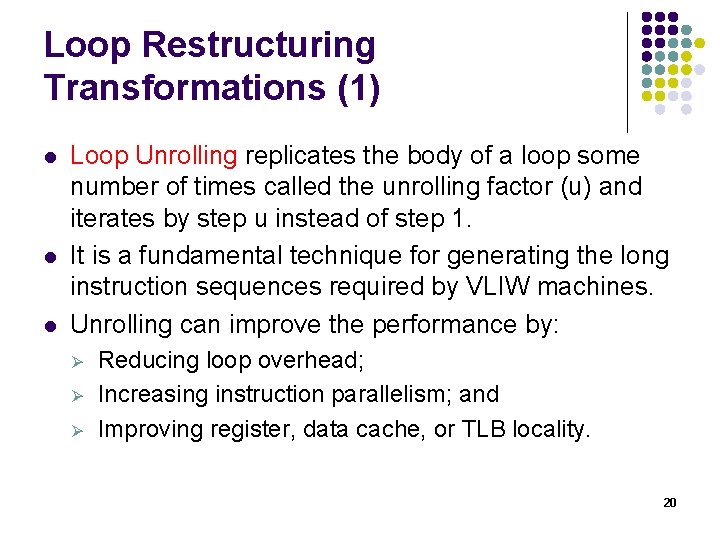

Loop Restructuring Transformations (1) l l l Loop Unrolling replicates the body of a loop some number of times called the unrolling factor (u) and iterates by step u instead of step 1. It is a fundamental technique for generating the long instruction sequences required by VLIW machines. Unrolling can improve the performance by: Ø Ø Ø Reducing loop overhead; Increasing instruction parallelism; and Improving register, data cache, or TLB locality. 20

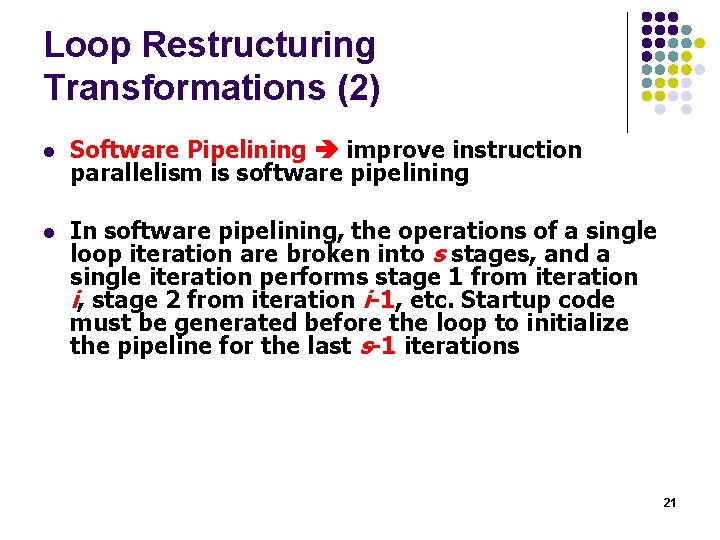

Loop Restructuring Transformations (2) l Software Pipelining improve instruction parallelism is software pipelining l In software pipelining, the operations of a single loop iteration are broken into s stages, and a single iteration performs stage 1 from iteration i, stage 2 from iteration i-1, etc. Startup code must be generated before the loop to initialize the pipeline for the last s-1 iterations 21

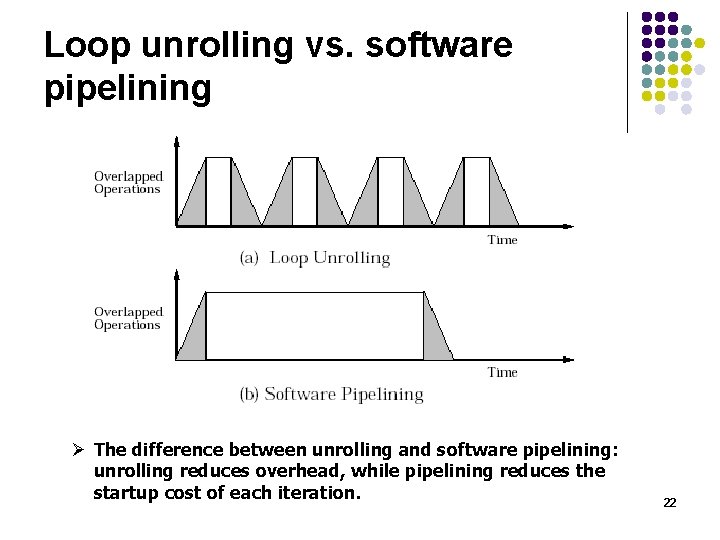

Loop unrolling vs. software pipelining Ø The difference between unrolling and software pipelining: unrolling reduces overhead, while pipelining reduces the startup cost of each iteration. 22

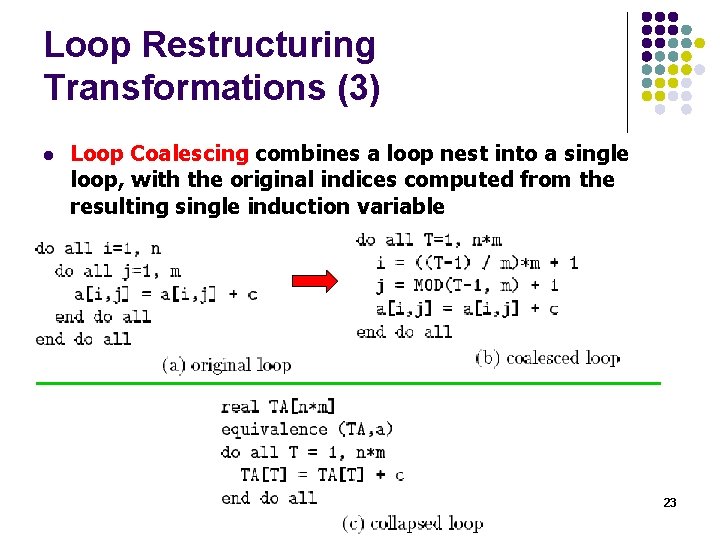

Loop Restructuring Transformations (3) l Loop Coalescing combines a loop nest into a single loop, with the original indices computed from the resulting single induction variable 23

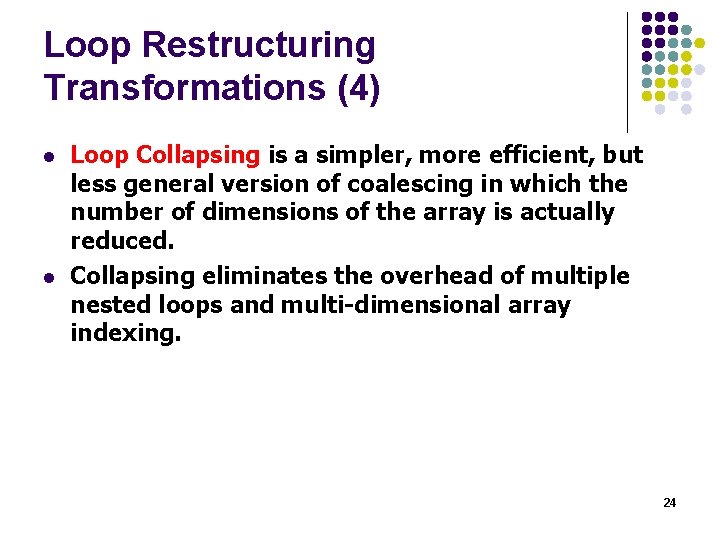

Loop Restructuring Transformations (4) l l Loop Collapsing is a simpler, more efficient, but less general version of coalescing in which the number of dimensions of the array is actually reduced. Collapsing eliminates the overhead of multiple nested loops and multi-dimensional array indexing. 24

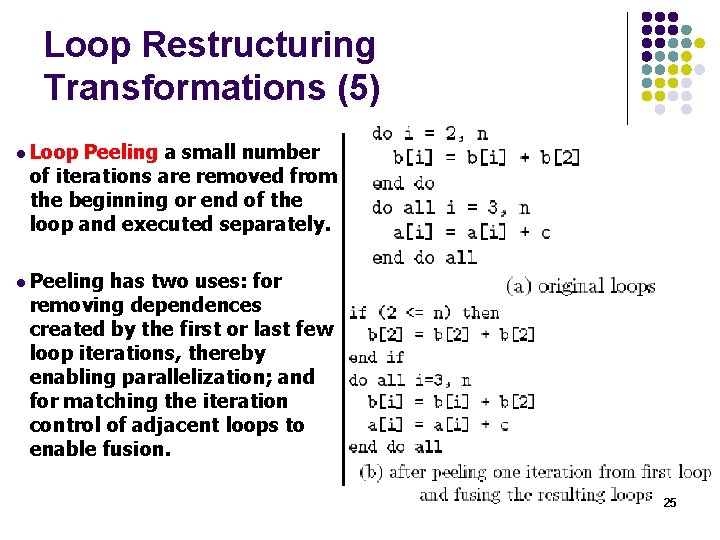

Loop Restructuring Transformations (5) l Loop Peeling a small number of iterations are removed from the beginning or end of the loop and executed separately. l Peeling has two uses: for removing dependences created by the first or last few loop iterations, thereby enabling parallelization; and for matching the iteration control of adjacent loops to enable fusion. 25

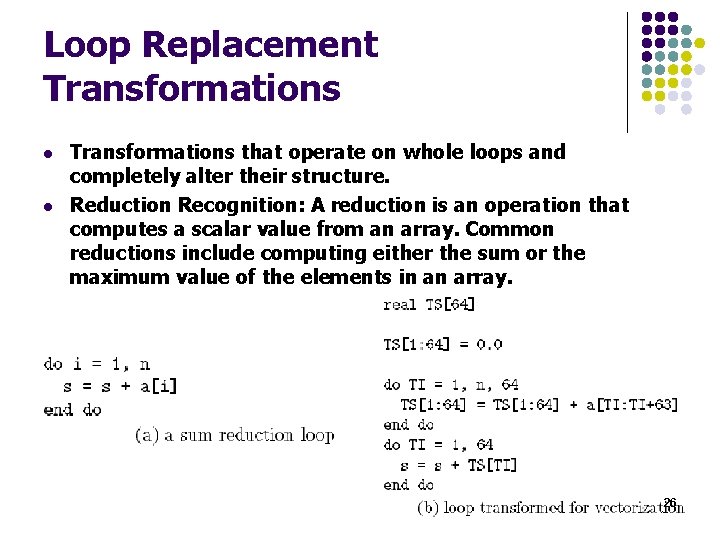

Loop Replacement Transformations l l Transformations that operate on whole loops and completely alter their structure. Reduction Recognition: A reduction is an operation that computes a scalar value from an array. Common reductions include computing either the sum or the maximum value of the elements in an array. 26

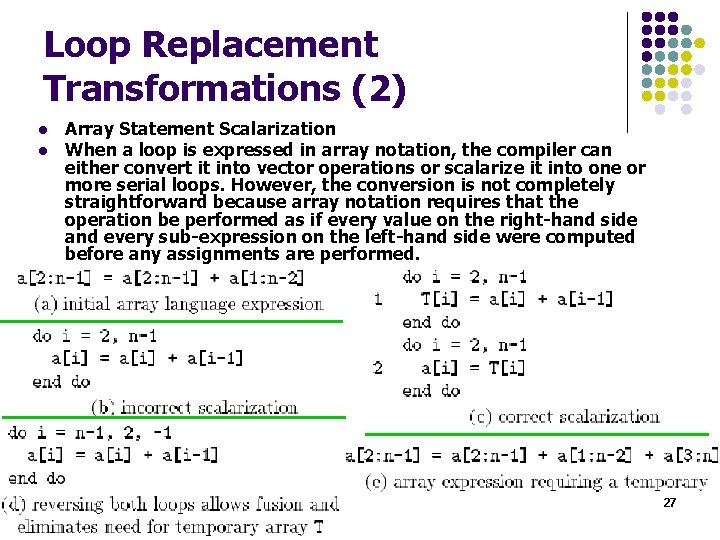

Loop Replacement Transformations (2) l l Array Statement Scalarization When a loop is expressed in array notation, the compiler can either convert it into vector operations or scalarize it into one or more serial loops. However, the conversion is not completely straightforward because array notation requires that the operation be performed as if every value on the right-hand side and every sub-expression on the left-hand side were computed before any assignments are performed. 27

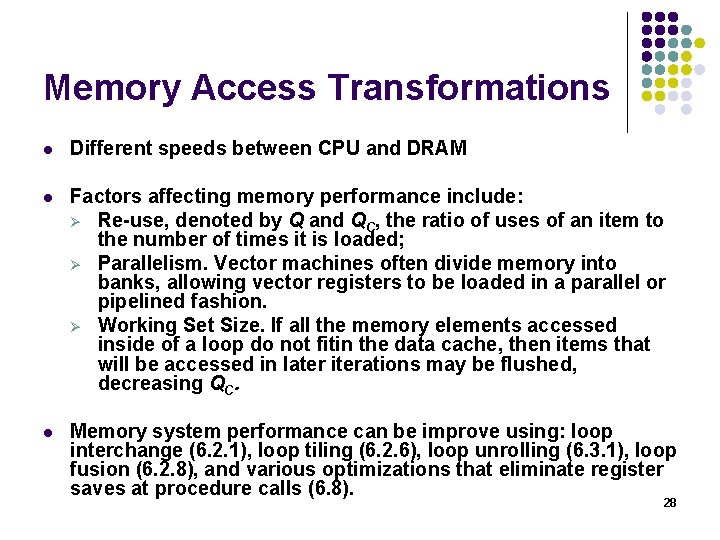

Memory Access Transformations l Different speeds between CPU and DRAM l Factors affecting memory performance include: Ø Re-use, denoted by Q and QC, the ratio of uses of an item to the number of times it is loaded; Ø Parallelism. Vector machines often divide memory into banks, allowing vector registers to be loaded in a parallel or pipelined fashion. Ø Working Set Size. If all the memory elements accessed inside of a loop do not fitin the data cache, then items that will be accessed in later iterations may be flushed, decreasing QC. l Memory system performance can be improve using: loop interchange (6. 2. 1), loop tiling (6. 2. 6), loop unrolling (6. 3. 1), loop fusion (6. 2. 8), and various optimizations that eliminate register saves at procedure calls (6. 8). 28

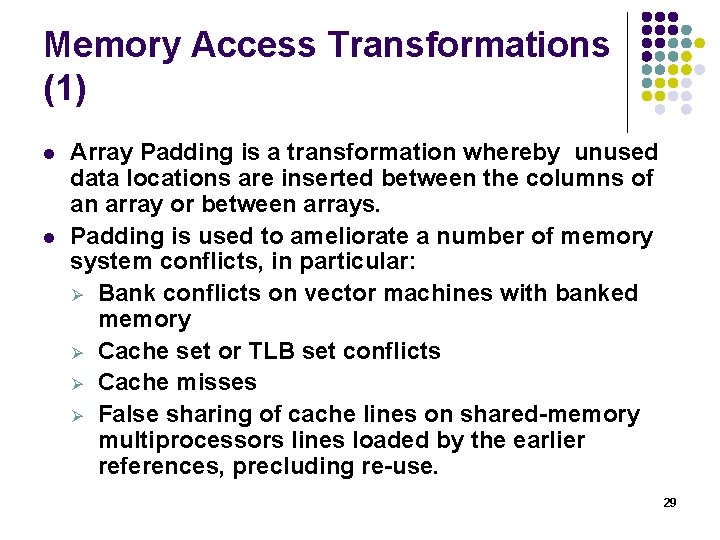

Memory Access Transformations (1) l l Array Padding is a transformation whereby unused data locations are inserted between the columns of an array or between arrays. Padding is used to ameliorate a number of memory system conflicts, in particular: Ø Bank conflicts on vector machines with banked memory Ø Cache set or TLB set conflicts Ø Cache misses Ø False sharing of cache lines on shared-memory multiprocessors lines loaded by the earlier references, precluding re-use. 29

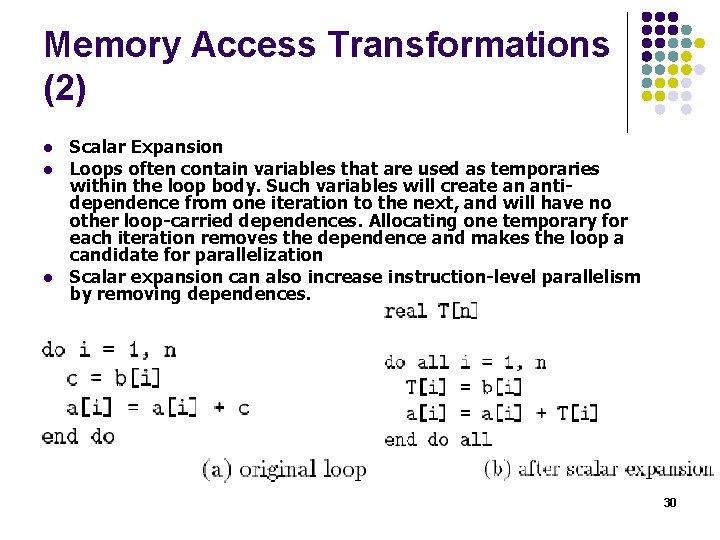

Memory Access Transformations (2) l l l Scalar Expansion Loops often contain variables that are used as temporaries within the loop body. Such variables will create an antidependence from one iteration to the next, and will have no other loop-carried dependences. Allocating one temporary for each iteration removes the dependence and makes the loop a candidate for parallelization Scalar expansion can also increase instruction-level parallelism by removing dependences. 30

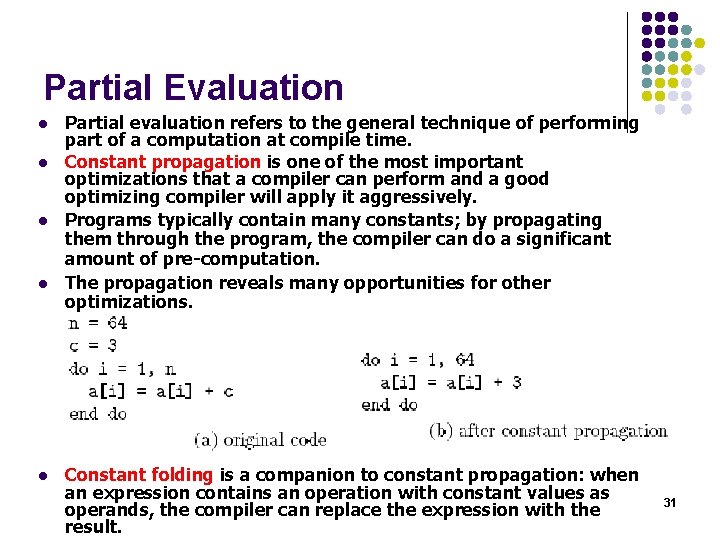

Partial Evaluation l l l Partial evaluation refers to the general technique of performing part of a computation at compile time. Constant propagation is one of the most important optimizations that a compiler can perform and a good optimizing compiler will apply it aggressively. Programs typically contain many constants; by propagating them through the program, the compiler can do a significant amount of pre-computation. The propagation reveals many opportunities for other optimizations. Constant folding is a companion to constant propagation: when an expression contains an operation with constant values as operands, the compiler can replace the expression with the result. 31

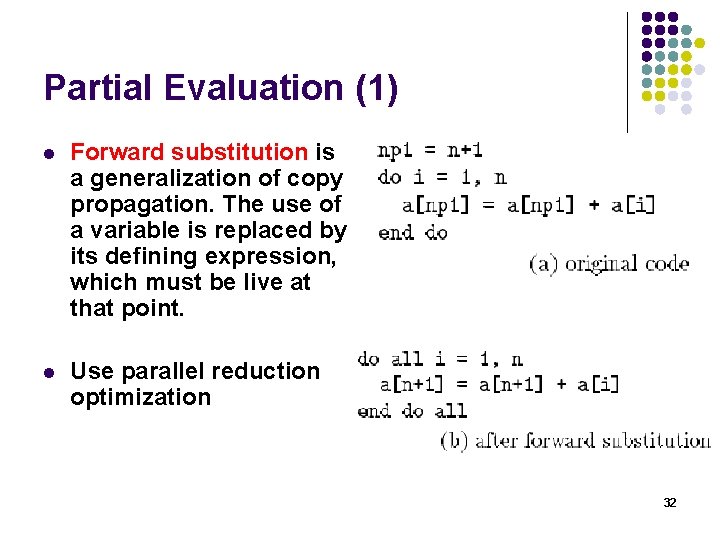

Partial Evaluation (1) l Forward substitution is a generalization of copy propagation. The use of a variable is replaced by its defining expression, which must be live at that point. l Use parallel reduction optimization 32

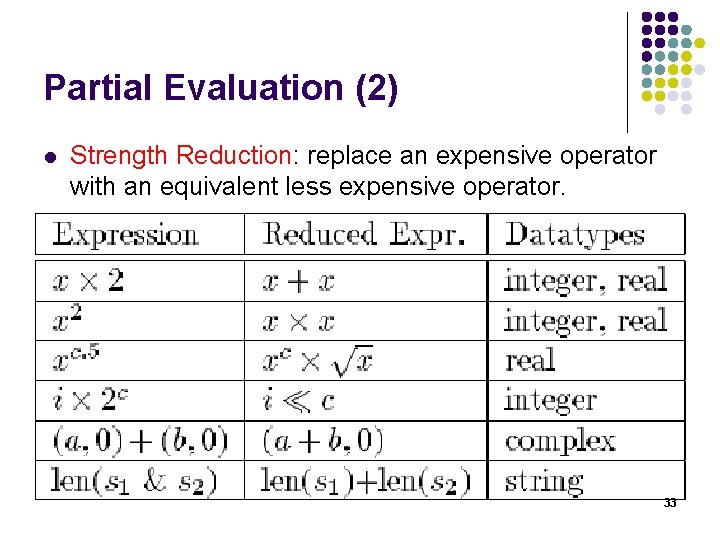

Partial Evaluation (2) l Strength Reduction: replace an expensive operator with an equivalent less expensive operator. 33

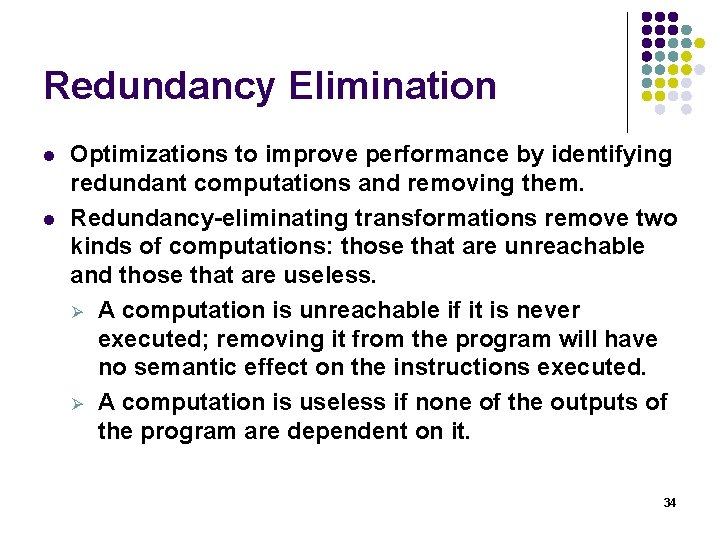

Redundancy Elimination l l Optimizations to improve performance by identifying redundant computations and removing them. Redundancy-eliminating transformations remove two kinds of computations: those that are unreachable and those that are useless. Ø A computation is unreachable if it is never executed; removing it from the program will have no semantic effect on the instructions executed. Ø A computation is useless if none of the outputs of the program are dependent on it. 34

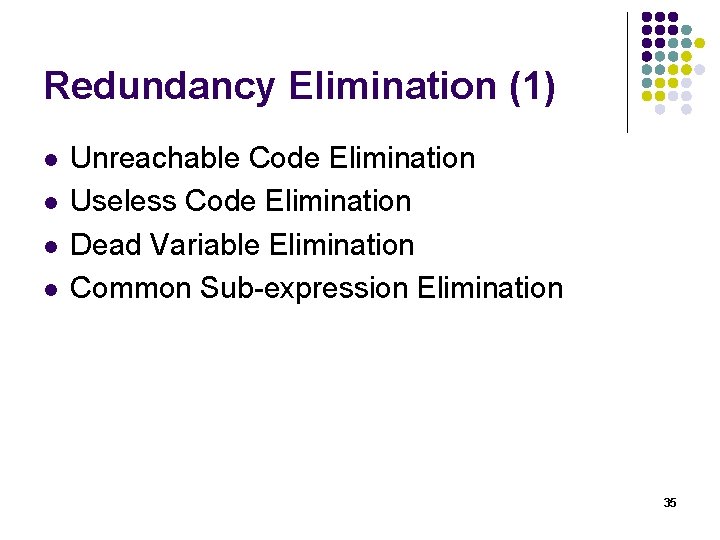

Redundancy Elimination (1) l l Unreachable Code Elimination Useless Code Elimination Dead Variable Elimination Common Sub-expression Elimination 35

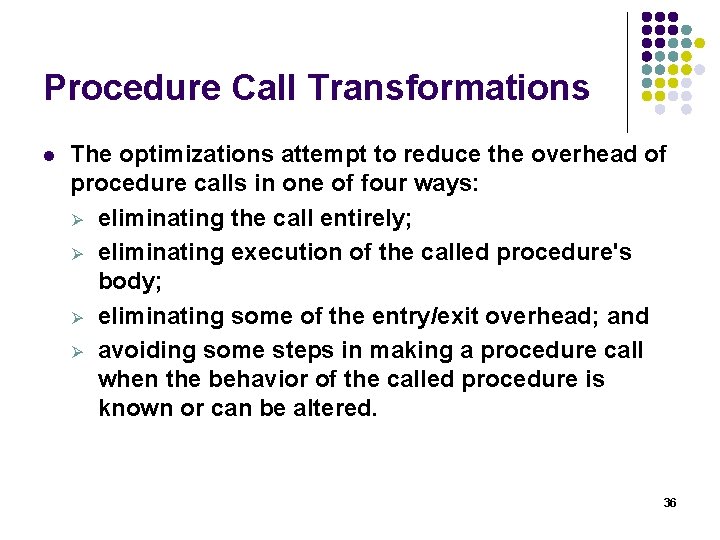

Procedure Call Transformations l The optimizations attempt to reduce the overhead of procedure calls in one of four ways: Ø eliminating the call entirely; Ø eliminating execution of the called procedure's body; Ø eliminating some of the entry/exit overhead; and Ø avoiding some steps in making a procedure call when the behavior of the called procedure is known or can be altered. 36

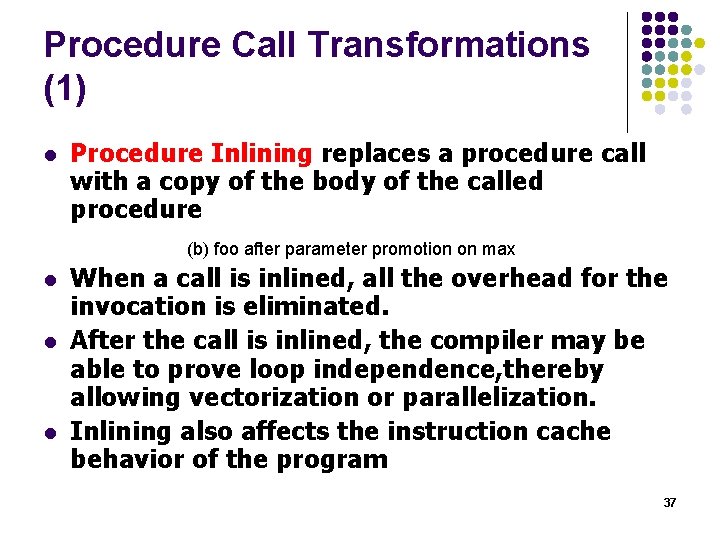

Procedure Call Transformations (1) l Procedure Inlining replaces a procedure call with a copy of the body of the called procedure (b) foo after parameter promotion on max l l l When a call is inlined, all the overhead for the invocation is eliminated. After the call is inlined, the compiler may be able to prove loop independence, thereby allowing vectorization or parallelization. Inlining also affects the instruction cache behavior of the program 37

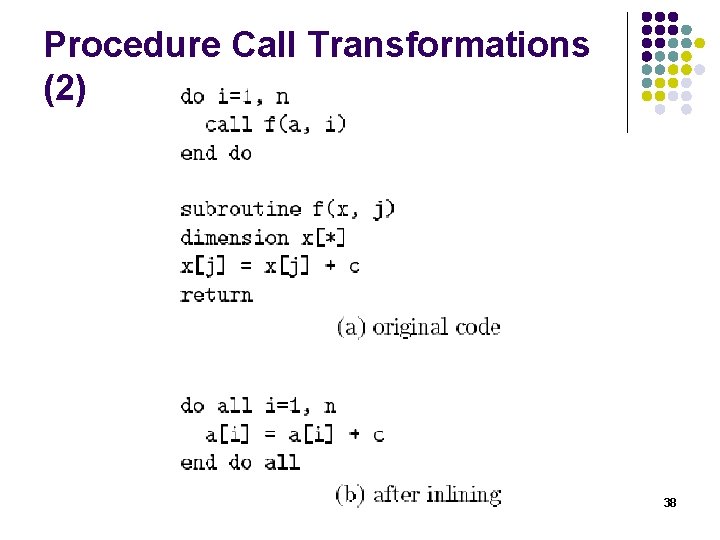

Procedure Call Transformations (2) 38
