Higher Unit 3 www. mathsrevision. com Higher Outcome 1 Vectors and Scalars Properties of vectors Adding / Sub of vectors Multiplication by a Scalar Unit Vector 3 D Vectors Properties 3 D Section formula Scalar Product Component Form Position Vector Collinearity Section Formula Exam Type Questions www. mathsrevision. com Angle between vectors Perpendicular Properties of Scalar Product

Vectors & Scalars Outcome 1 www. mathsrevision. com Higher A vector is a quantity with BOTH magnitude (length) and direction. Examples : Gravity Velocity Force

Vectors & Scalars Outcome 1 www. mathsrevision. com Higher A scalar is a quantity that has magnitude ONLY. Examples : Time Speed Mass

Vectors & Scalars Outcome 1 www. mathsrevision. com Higher A vector is named using the letters at the end of the directed line segment or using a lowercase bold / underlined letter u u This vector is named or u

Vectors & Scalars Outcome 1 Higher Also known as column vector www. mathsrevision. com A vector may also be represented in component form. w z

Magnitude of a Vector www. mathsrevision. com Higher Outcome 1 A vector’s magnitude (length) is represented by A vector’s magnitude is calculated using Pythagoras Theorem. u

Vectors & Scalars Outcome 1 Higher www. mathsrevision. com Calculate the magnitude of the vector. w

Vectors & Scalars Higher Outcome 1 www. mathsrevision. com Calculate the magnitude of the vector.

Equal Vectors Outcome 1 Higher www. mathsrevision. com Vectors are equal only if they both have the same magnitude ( length ) and direction. Vectors are equal if they have equal components. For vectors

Equal Vectors Outcome 1 www. mathsrevision. com Higher By working out the components of each of the vectors determine which are equal. a b c d g e f h

Addition of Vectors Outcome 1 Higher www. mathsrevision. com Any two vectors can be added in this way b Arrows must be nose to tail a a+b

Addition of Vectors Outcome 1 Higher www. mathsrevision. com Addition of vectors B A C

Addition of Vectors Higher Outcome 1 www. mathsrevision. com In general we have For vectors u and v

Zero Vector Higher Outcome 1 www. mathsrevision. com The zero vector

Negative Vector Higher Outcome 1 www. mathsrevision. com Negative vector For any vector u

Subtraction of Vectors Outcome 1 Higher www. mathsrevision. com Any two vectors can be subtracted in this way Notice arrows nose to nose u v u-v

Subtraction of Vectors Outcome 1 Higher www. mathsrevision. com Subtraction of vectors Notice arrows nose to nose a a-b b

Subtraction of Vectors Higher Outcome 1 www. mathsrevision. com In general we have For vectors u and v

Multiplication by a Scalar Higher Outcome 1 www. mathsrevision. com Multiplication by a scalar ( a number) Hence if u = kv then u is parallel to v Conversely if u is parallel to v then u = kv

Multiplication by a Scalar Outcome 1 Higher www. mathsrevision. com Multiplication by a scalar Write down a vector b a parallel to a Write down a vector parallel to b

Multiplication by a Scalar www. mathsrevision. com Higher Outcome 1 Show that the two vectors are parallel. If z = kw then z is parallel to w

Multiplication by a Scalar www. mathsrevision. com Higher Outcome 1 Alternative method. If w = kz then w is parallel to z

Unit Vectors www. mathsrevision. com Higher Outcome 1 For ANY vector v there exists a parallel vector u of magnitude 1 unit. This is called the unit vector.

Unit Vectors www. mathsrevision. com Higher v Outcome 1 u Find the components of the unit vector, u , parallel to vector v , if So the unit vector is u

A Position Vectors www. mathsrevision. com Higher B Outcome 1 A is the point (3, 4) and B is the point (5, 2). Write down the components of Answers the same !

A Position Vectors Higher a Outcome 1 www. mathsrevision. com 0 B b

A Position Vectors Higher a Outcome 1 www. mathsrevision. com 0 B b

Position Vectors www. mathsrevision. com Higher Outcome 1 If P and Q have coordinates (4, 8) and (2, 3) respectively, find the components of

Position Vectors Outcome 1 www. mathsrevision. com Higher P Graphically P (4, 8) Q (2, 3) p q-p Q q O

Collinearity Outcome 1 www. mathsrevision. com Higher Reminder from chapter 1 Points are said to be collinear if they lie on the same straight line. For vectors

Collinearity www. mathsrevision. com Higher Outcome 1 Prove that the points A(2, 4), B(8, 6) and C(11, 7) are collinear.

Collinearity www. mathsrevision. com Higher Outcome 1

Section Formula www. mathsrevision. com Higher Outcome 1 B 3 1 2 S s A a b O

General Section Formula www. mathsrevision. com Higher Outcome 1 B m+n m n P p A a b O

General Section Formula Outcome 1 www. mathsrevision. com Higher Summarising we have B n If p is a position vector of the point P that divides AB in the ratio m : n then A m P

General Section Formula Higher Outcome 1 www. mathsrevision. com A and B have coordinates (-1, 5) and (4, 10) respectively. P Find P if AP : PB is 3: 2 3 A 2 B

3 D Coordinates Outcome 1 www. mathsrevision. com Higher In the real world points in space can be located using a 3 D coordinate system. For example, air traffic controllers find the location a plane by its height and grid reference. z y O (x, y, z) x

3 D Coordinates Outcome 1 Higher www. mathsrevision. com Write down the coordinates for the 7 vertices z (0, 0, 2) F (0, 0, 0) G E(0, 1, 2) H O y (6, 0, 2)B 6 A(6, 1, 2) 2 1 D(6, 1, 0) C (6, 0, 0) What is the coordinates of the vertex H so that it makes a cuboid shape. x H(0, 1, 0 )

3 D Vectors Outcome 1 www. mathsrevision. com Higher 3 D vectors are defined by 3 components. For example, the velocity of an aircraft taking off can be illustrated by the vector v. z (7, 3, 2) 2 v y 2 3 O 3 7 7 x

3 D Vectors Outcome 1 Higher www. mathsrevision. com Any vector can be represented in terms of the i , j and k Where i, j and k are unit vectors z in the x, y and z directions. y k O j i x

3 D Vectors Outcome 1 Higher www. mathsrevision. com Any vector can be represented in terms of the i , j and k Where i, j and k are unit vectors in the x, y and z directions. z (7, 3, 2) v y 2 3 O 7 x v = ( 7 i+ 3 j + 2 k )

3 D Vectors www. mathsrevision. com Higher Outcome 1 Good News All the rules for 2 D vectors apply in the same way for 3 D.

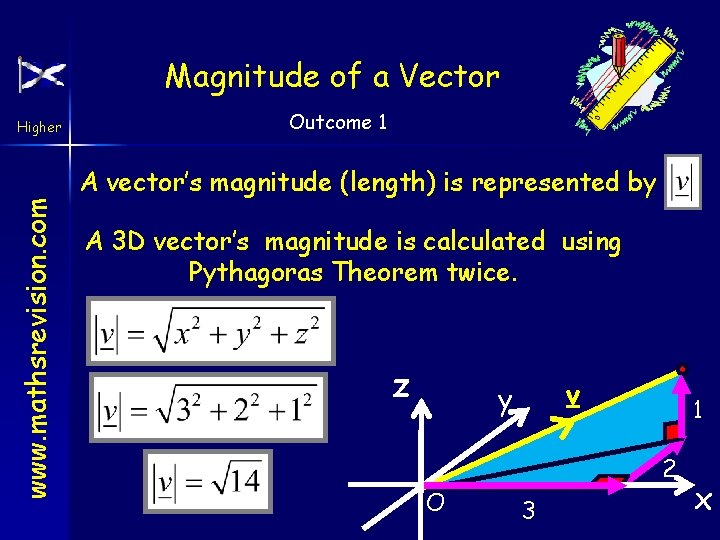

Magnitude of a Vector www. mathsrevision. com Higher Outcome 1 A vector’s magnitude (length) is represented by A 3 D vector’s magnitude is calculated using Pythagoras Theorem twice. z v y 1 2 O 3 x

Addition of Vectors Higher Outcome 1 www. mathsrevision. com Addition of vectors

Addition of Vectors Higher Outcome 1 www. mathsrevision. com In general we have For vectors u and v

Negative Vector Higher Outcome 1 www. mathsrevision. com Negative vector For any vector u

Subtraction of Vectors Higher Outcome 1 www. mathsrevision. com Subtraction of vectors

Subtraction of Vectors Higher Outcome 1 www. mathsrevision. com For vectors u and v

Multiplication by a Scalar Higher Outcome 1 www. mathsrevision. com Multiplication by a scalar ( a number) Hence if u = kv then u is parallel to v Conversely if u is parallel to v then u = kv

Multiplication by a Scalar www. mathsrevision. com Higher Outcome 1 Show that the two vectors are parallel. If z = kw then z is parallel to w

Position Vectors www. mathsrevision. com Higher Outcome 1 A (3, 2, 1) z a y 1 2 O 3 x

Position Vectors www. mathsrevision. com Higher Outcome 1

General Section Formula Outcome 1 www. mathsrevision. com Higher Summarising we have B n If p is a position vector of the point P that divides AB in the ratio m : n then A m P

The scalar product Higher Outcome 1 Must be www. mathsrevision. com The scalar product is defined being: tail as to tail a θ b

The Scalar Product www. mathsrevision. com Higher Outcome 1 Find the scalar product for a and b when |a|= 4 , |b|= 5 when (a) θ = 45 o (b) θ = 90 o

The Scalar Product www. mathsrevision. com Higher Outcome 1 Find the scalar product for a and b when |a|= 4 , |b|= 5 when (a) θ = 45 o (b) θ = 90 o Important : If a and b are perpendicular then a. b=0

Component Form Scalar Product Outcome 1 www. mathsrevision. com Higher If then

Angle between Vectors www. mathsrevision. com Higher Outcome 1 To find the angle between two vectors we simply use the scalar product formula rearranged or

Angle between Vectors www. mathsrevision. com Higher Outcome 1 Find the angle between the two vectors below.

Angle between Vectors www. mathsrevision. com Higher Outcome 1 Find the angle between the two vectors below.

Perpendicular Vectors Outcome 1 www. mathsrevision. com Higher Show that for a. b =0 a and b are perpendicular

Perpendicular Vectors Outcome 1 www. mathsrevision. com Higher Then If a. b = 0 then a and b are perpendicular

Properties of a Scalar Product Higher Outcome 1 www. mathsrevision. com Two properties that you need to be aware of
