The Wave Function www. mathsrevision. com Higher Heart beat Outcome 4 Many wave shapes, whether occurring as sound, light, water or electrical waves, can be described mathematically as a combination of sine and cosine waves. Spectrum Analysis Electrical

General shape for y = sinx + cosx The Wave Function 1. Like y = sin(x) shifted left Higher 4 right 2. Like y =Outcome cosx shifted www. mathsrevision. com 3. Vertical height different y = sin(x)+cos(x) y = sin(x) y = cos(x)

The Wave Function Outcome 4 www. mathsrevision. com Higher Whenever a function is formed by adding cosine and sine functions the result can be expressed as a related cosine or sine function. In general: With these constants the expressions on the right hand sides = those on the left hand side FOR ALL VALUES OF x

The Wave Function www. mathsrevision. com Higher Worked Example: Outcome 4 Re-arrange The left and right hand sides must be equal for all values of x. So, the coefficients of cos x and sin x must be equal: A pair of simultaneous equations to be solved

The Wave Function www. mathsrevision. com Higher Outcome 4 Find tan ratio Square and add note: sin(+) and cos(+)

The Wave Function www. mathsrevision. com Higher Outcome 4 Note: sin(+) and cos(+) 90 o 180 o S A T C 270 o 0 o

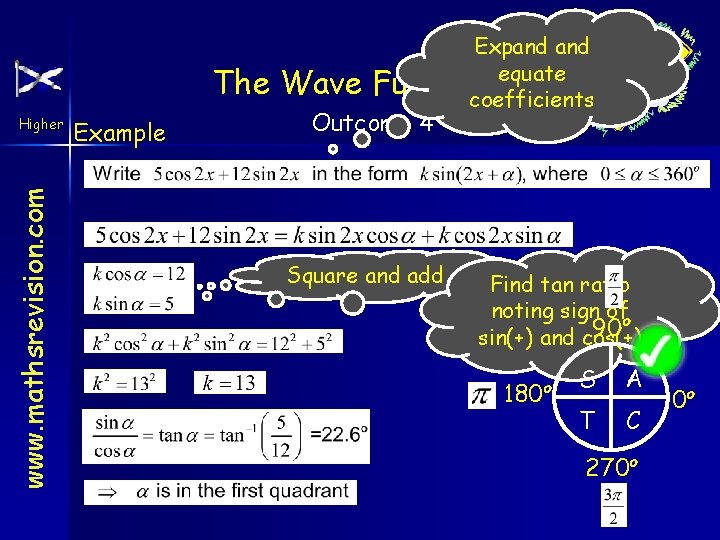

The Wave www. mathsrevision. com Higher Example Expand Function equate coefficients Outcome 4 Square and add Find tan ratio note: sin(+) and cos(+) 90 o 180 o S A T C 270 o 0 o

The Wave Function Outcome 4 www. mathsrevision. com Higher Finally:

The Wave www. mathsrevision. com Higher Example Expand equate Function coefficients Outcome 4 Square and add Find tan ratio noting sign ofo 90 sin(+) and cos(+) 180 o S A T C 270 o 0 o

The Wave Function Outcome 4 www. mathsrevision. com Higher Finally:

Maximum and Minimum Values www. mathsrevision. com Higher Worked Example: Outcome 4 b) Hence find: i) Its maximum value and the value of x at which this maximum occurs. ii) Its minimum value and the value of x at which this minimum occurs.

Maximum and Minimum www. mathsrevision. com Higher Outcome 4 Expand Values equate coefficients Square and add Find tan ratio o 90 note: sin(+) and cos(-) 180 o S A T C 270 o 0 o

Maximum and Minimum Values Outcome 4 www. mathsrevision. com Higher Maximum, we have:

Maximum and Minimum Values Outcome 4 www. mathsrevision. com Higher Minimum, we have:

Maximum and Minimum Values www. mathsrevision. com Higher Example Outcome 4 A synthesiser adds two sound waves together to make a new sound. The first wave is described by V = 75 sin to and the second by V = 100 cos to, where V is the amplitude in decibels and t is the time in milliseconds. Find the minimum value of the resultant wave and the value of t at which it occurs. For later, remember K = 25 k

Maximum and Minimum www. mathsrevision. com Higher Outcome 4 Expand Values equate coefficients Square and add Find tan ratio note: sin() and cos(+) 90 o 180 o S A T C 270 o 0 o

Maximum and Minimum Values www. mathsrevision. com Higher Outcome 4 remember K = 25 k =25 x 5 = 125 The minimum value of sin is -1 and it occurs where the angle is 270 o Therefore, the minimum value of Vresult is -125 Adding or subtracting 360 o leaves the sin unchanged

Maximum and Minimum Values Outcome 4 www. mathsrevision. com Higher Minimum, we have:

Solving Trig Equations www. mathsrevision. com Higher Worked Example: Outcome 4 Step 1: Compare Coefficients: Square &Add True for ALL x means coefficients equal.

Find tan ratio Solving Trig Equations note: www. mathsrevision. com Higher Outcome 4 sin(+) and cos(+) 90 o 180 o S A T C 270 o 0 o

Solving Trig Equations www. mathsrevision. com Higher Step 2: Outcome 4 Re-write the trig. equation using your result from step 1, then solve. 90 o 180 o S A T C 270 o 0 o

Solving Trig Equations www. mathsrevision. com Higher Step 2: Outcome 4

Solving Trig www. mathsrevision. com Higher Example Expand Equations equate coefficients Outcome 4 Find tan ratio note: sin() and cos(-) 90 o Square and add 180 o S A T C 270 o 0 o

Solving Trig Equations Outcome 4 www. mathsrevision. com Higher 2 x – 213. 7 = 16. 1 o , (180 -16. 1 o), (360+180 -16. 1 o) 2 x – 213. 7 = 16. 1 o , 163. 9 o, 2 x = 229. 8 o , 310. 2 o, x = 114. 9 o , 188. 8 o, 376. 1 o, 589. 9 o, 294. 9 o, 523. 9 o, …. 670. 2 o, …. 368. 8 o, ….

Solving Trig Equations (From a past paper) www. mathsrevision. com Higher Example Outcome 4 A builder has obtained a large supply of 4 metre rafters. He wishes to use them to build some holiday chalets. The planning department insists that the gable end of each chalet should be in the form of an isosceles triangle surmounting two squares, as shown in the diagram. a) If θo is the angle shown in the diagram and A is the area m 2 of the gable end, show that 4 c) Find algebraically the value of θo for which the area of the gable end is 30 m 2. 4

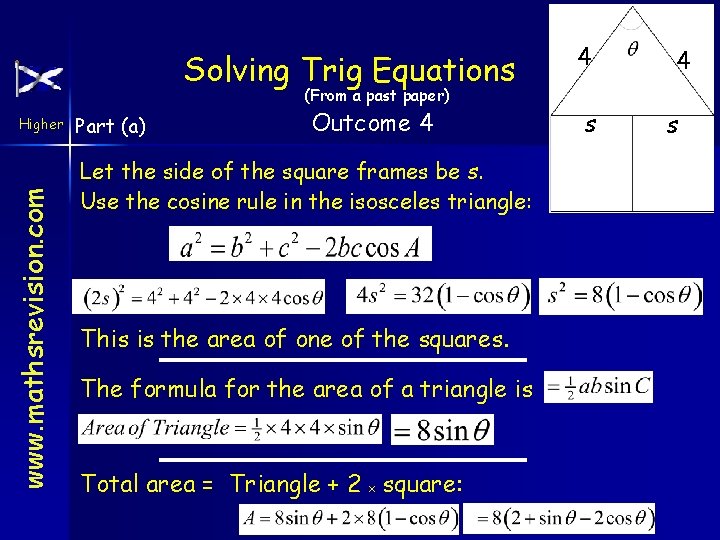

Solving Trig Equations (From a past paper) www. mathsrevision. com Higher Part (a) Outcome 4 Let the side of the square frames be s. Use the cosine rule in the isosceles triangle: This is the area of one of the squares. The formula for the area of a triangle is Total area = Triangle + 2 x square: 4 s

Solving Trig Equations (From a past paper) Part (b) www. mathsrevision. com Higher Outcome 4 Find tan ratio note: sin(+) and cos(+) 90 o Square and add 180 o S A T C 270 o Finally: 0 o

Solving Trig Equations (From a past paper) Higher Part (c) Outcome 4 www. mathsrevision. com Find algebraically the value of θo for which the area is the 30 m 2 From diagram θo < 90 o ignore 2 nd quad 90 o 180 o S A T C 270 o 0 o
