High reliable and high costperformance CNC FANUC Series

High reliable and high cost-performance CNC FANUC Series 0 i - MD Ne w High reliable and cost-performance CNC with NANO interpolation for machining center Series 0 i-MD Memory card 10. 4" color LCD Packages of the most efficient CNC features l Max. controlled axes : 5 axes l Simultaneously controlled axes : 4 axes l Max. spindle motors : 2 motors l Applicable servo : i , i Series l Available LCD unit : 8. 4"/10. 4" color l AI contour control and NANO interpolation l Spindle control with servo motor l Embedded Ethernet as standard l Memory card / Data server Editing・Operation l Plenty of customize functions C language executor, FANUC PICTURE l Function Block (PMC function) l NCGuide, NCGuide. Pro l 8. 4" color LCD/MDI FANUC LTD

System configuration Ne w FANUC Series 0 i - MD Embedded Ethernet 100 BASE-TX * (standard) Internet Series 0 i-MD PC 8. 4" LCD/MDI 　(color) 10. 4" LCD 　(color) SERVO AMPLIFIER i series AC SPINDLE MOTOR i series FSSB FANUC I/O Link DI/DO 1024/1024（standard） 2048/2048（option） AC SERVO MOTOR i. S series Connection can also be established with i series. AC SERVO MOTOR i. S series Operator’s panel Connection panel SERVO AMPLIFIER i SV series I/O module (with I/O Link) * In case of connection with 10 BASE-T, it is need to relay with HUB, which meets the following requirements. 　　　correspondence to 100 BASE-TX, with Auto negotiation function, store & forward method FANUC LTD

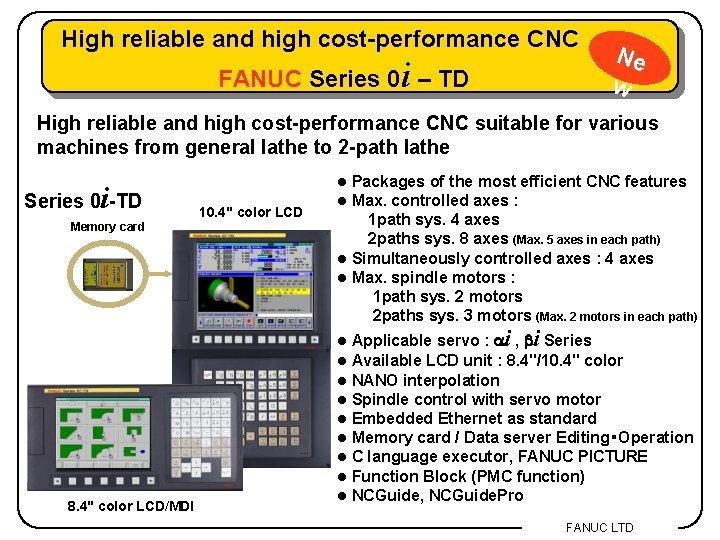

High reliable and high cost-performance CNC FANUC Series 0 i – TD Ne w High reliable and high cost-performance CNC suitable for various machines from general lathe to 2 -path lathe Series 0 i-TD Memory card 10. 4" color LCD Packages of the most efficient CNC features Max. controlled axes : 1 path sys. 4 axes 2 paths sys. 8 axes (Max. 5 axes in each path) l Simultaneously controlled axes : 4 axes l Max. spindle motors : 1 path sys. 2 motors 2 paths sys. 3 motors (Max. 2 motors in each path) l l Applicable servo : i , i Series l Available LCD unit : 8. 4"/10. 4" color l NANO interpolation l Spindle control with servo motor l Embedded Ethernet as standard l Memory card / Data server Editing・Operation l C language executor, FANUC PICTURE l Function Block (PMC function) l NCGuide, NCGuide. Pro l 8. 4" color LCD/MDI FANUC LTD

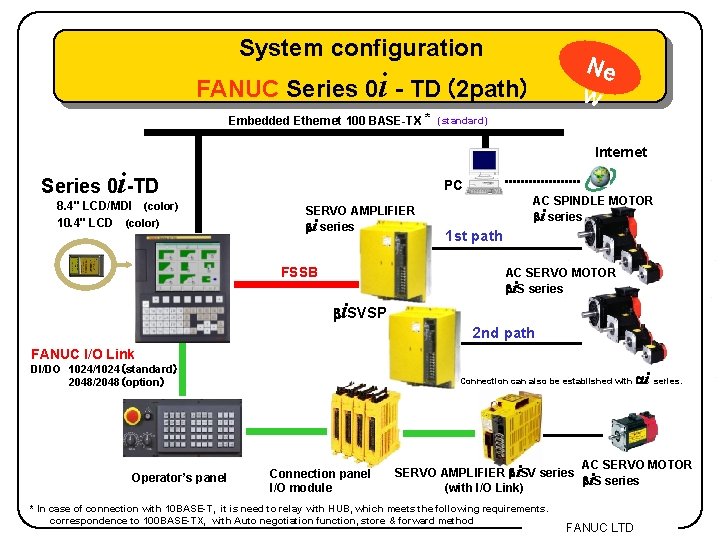

System configuration Ne w FANUC Series 0 i - TD (2 path) Embedded Ethernet 100 BASE-TX * (standard) Internet Series 0 i-TD 8. 4" LCD/MDI 　(color) 10. 4" LCD 　(color) PC SERVO AMPLIFIER i series FSSB AC SPINDLE MOTOR i series 1 st path AC SERVO MOTOR i. S series i. SVSP 2 nd path FANUC I/O Link DI/DO 1024/1024（standard） 2048/2048（option） Operator’s panel Connection can also be established with Connection panel I/O module i series. AC SERVO MOTOR SERVO AMPLIFIER i. SV series i. S series (with I/O Link) * In case of connection with 10 BASE-T, it is need to relay with HUB, which meets the following requirements. 　　　correspondence to 100 BASE-TX, with Auto negotiation function, store & forward method FANUC LTD

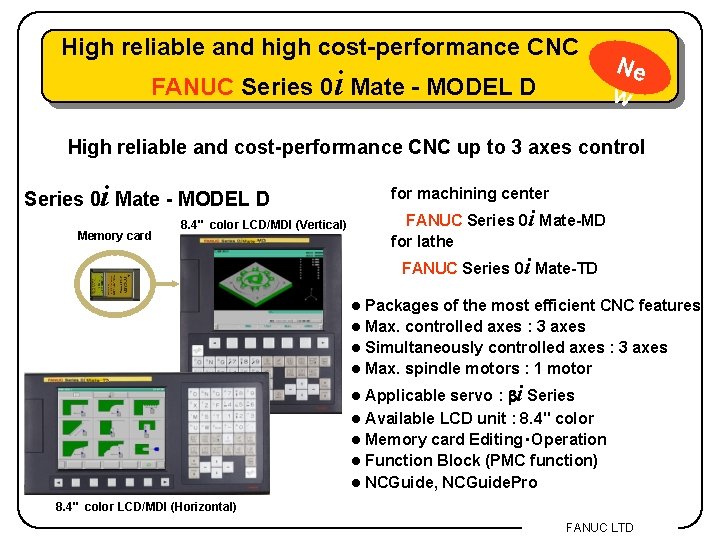

High reliable and high cost-performance CNC FANUC Series 0 i Mate - MODEL D Ne w High reliable and cost-performance CNC up to 3 axes control Series 0 i Mate - MODEL D Memory card for machining center 　FANUC Series 0 i Mate-MD for lathe 8. 4" color LCD/MDI (Vertical) 　FANUC Series 0 i Mate-TD Packages of the most efficient CNC features l Max. controlled axes : 3 axes l Simultaneously controlled axes : 3 axes l Max. spindle motors : 1 motor l Applicable servo : i Series l Available LCD unit : 8. 4" color l Memory card Editing・Operation l Function Block (PMC function) l NCGuide, NCGuide. Pro l 8. 4" color LCD/MDI (Horizontal) FANUC LTD

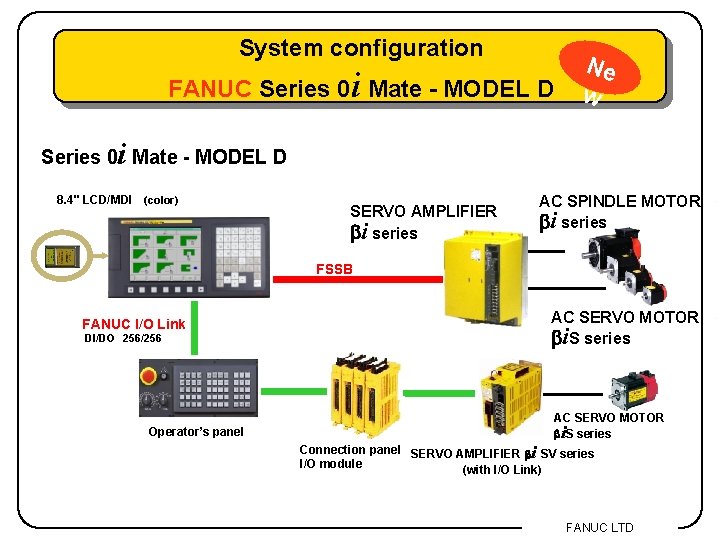

System configuration FANUC Series 0 i Mate - MODEL D Ne w Series 0 i Mate - MODEL D 8. 4" LCD/MDI 　(color) SERVO AMPLIFIER i series AC SPINDLE MOTOR i series FSSB FANUC I/O Link DI/DO　256/256 Operator’s panel AC SERVO MOTOR i. S series Connection panel SERVO AMPLIFIER i SV series I/O module (with I/O Link) FANUC LTD

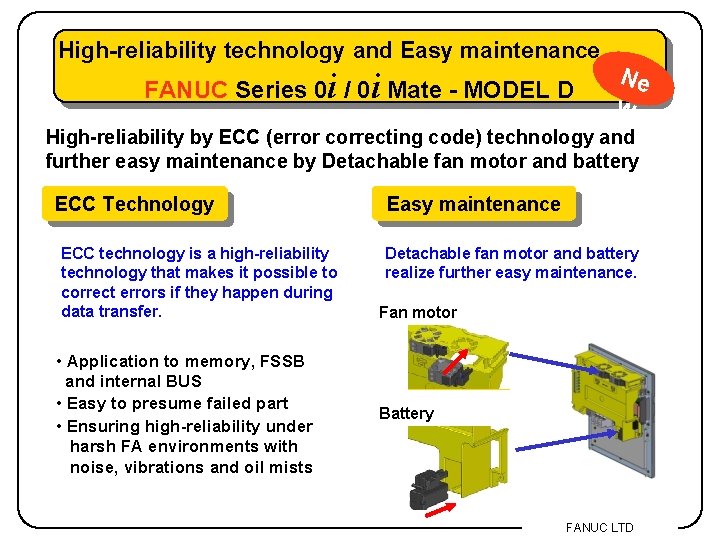

High-reliability technology and Easy maintenance FANUC Series 0 i / 0 i Mate - MODEL D Ne w High-reliability by ECC (error correcting code) technology and further easy maintenance by Detachable fan motor and battery ECC Technology ECC technology is a high-reliability technology that makes it possible to correct errors if they happen during data transfer. • Application to memory, FSSB and internal BUS • Easy to presume failed part • Ensuring high-reliability under harsh FA environments with noise, vibrations and oil mists Easy maintenance Detachable fan motor and battery realize further easy maintenance. Fan motor Battery FANUC LTD

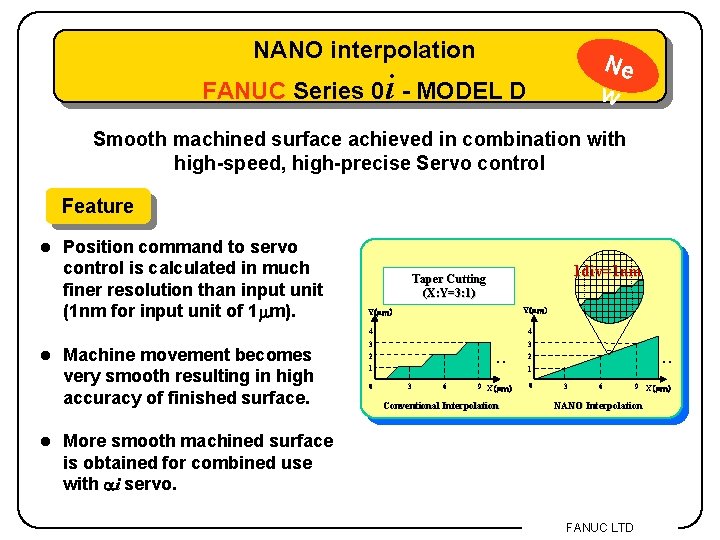

NANO interpolation Ne w FANUC Series 0 i - MODEL D Smooth machined surface achieved in combination with high-speed, high-precise Servo control Feature l l l Position command to servo control is calculated in much finer resolution than input unit (1 nm for input unit of 1 m). Machine movement becomes very smooth resulting in high accuracy of finished surface. 1 div=1 nm Taper Cutting (X: Y=3: 1) Y（μｍ） 4 4 3 2 . . 1 0 3 6 9 X（μｍ） Conventional Interpolation . . 1 0 3 6 9 X（μｍ） NANO Interpolation More smooth machined surface is obtained for combined use with i servo. FANUC LTD

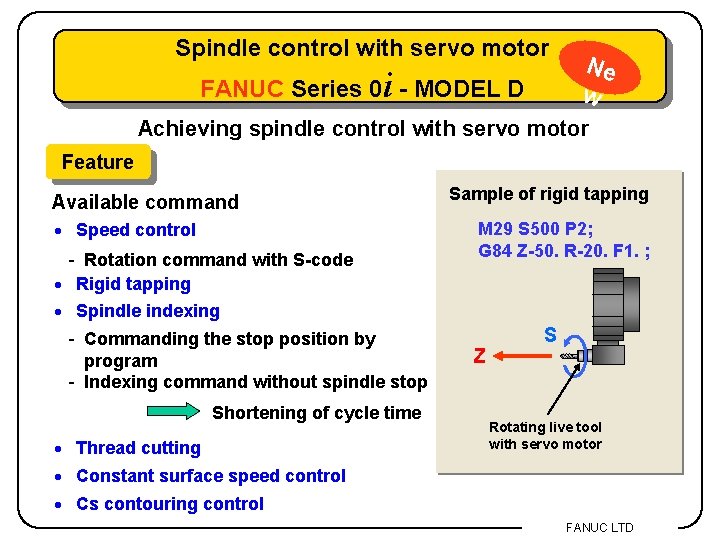

Spindle control with servo motor FANUC Series 0 i - MODEL D Ne w Achieving spindle control with servo motor Feature Available command · Speed control - Rotation command with S-code · Rigid tapping · Spindle indexing - Commanding the stop position by program - Indexing command without spindle stop Shortening of cycle time · Thread cutting Sample of rigid tapping M 29 S 500 P 2; G 84 Z-50. R-20. F 1. ; Z S Rotating live tool with servo motor · Constant surface speed control · Cs contouring control FANUC LTD

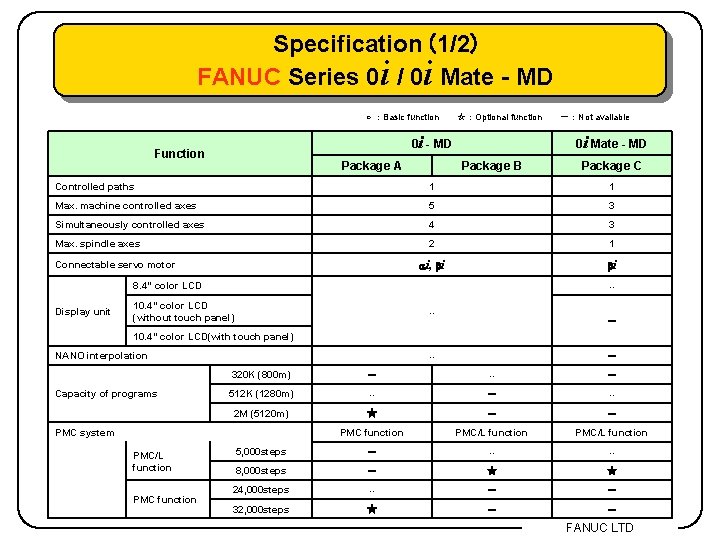

Specification (1/2) FANUC Series 0 i / 0 i Mate - MD ○ ：Basic function　　☆：Optional function　　－：Not available 0 i - MD Function Package A 0 i Mate - MD Package B Package C Controlled paths 1 1 Max. machine controlled axes 5 3 Simultaneously controlled axes 4 3 Max. spindle axes 2 1 i, i i Connectable servo motor 8. 4” color LCD Display unit ○ 10. 4” color LCD (without touch panel) ○ － 10. 4” color LCD(with touch panel) NANO interpolation Capacity of programs ○ 320 K (800 m) － ○ － 512 K (1280 m) ○ － ○ 2 M (5120 m) ☆ － － PMC function PMC/L function 5, 000 steps － ○ ○ 8, 000 steps － ☆ ☆ 24, 000 steps ○ － － 32, 000 steps ☆ － － PMC system PMC/L function PMC function － FANUC LTD

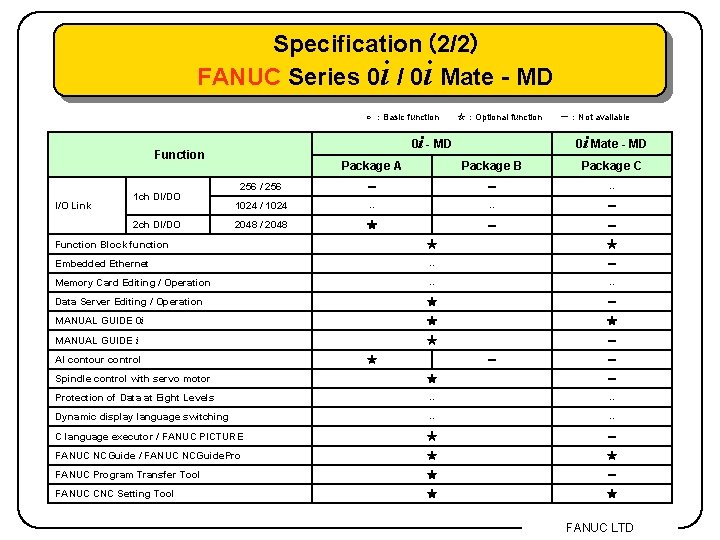

Specification (2/2) FANUC Series 0 i / 0 i Mate - MD ○ ：Basic function　　☆：Optional function　　－：Not available 0 i - MD Function I/O Link 1 ch DI/DO 2 ch DI/DO 0 i Mate - MD Package A Package B Package C 256 / 256 － － ○ 1024 / 1024 ○ ○ － 2048 / 2048 ☆ － － Function Block function ☆ ☆ Embedded Ethernet ○ － Memory Card Editing / Operation ○ ○ Data Server Editing / Operation ☆ － MANUAL GUIDE 0 i ☆ ☆ MANUAL GUIDE i ☆ － AI contour control ☆ － － Spindle control with servo motor ☆ － Protection of Data at Eight Levels ○ ○ Dynamic display language switching ○ ○ C language executor / FANUC PICTURE ☆ － FANUC NCGuide / FANUC NCGuide. Pro ☆ ☆ FANUC Program Transfer Tool ☆ － FANUC CNC Setting Tool ☆ ☆ FANUC LTD

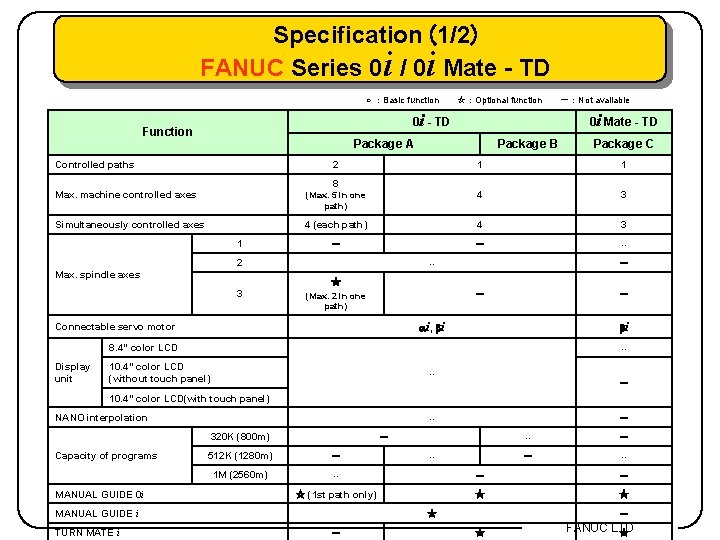

Specification (1/2) FANUC Series 0 i / 0 i Mate - TD ○ ：Basic function　　☆：Optional function　　－：Not available 0 i - TD Function 0 i Mate - TD Package A Controlled paths Package B 2 8 Package C 1 1 Max. machine controlled axes (Max. 5 in one path) 4 3 Simultaneously controlled axes 4 (each path) 4 3 － － ○ 1 2 Max. spindle axes ○ － ☆ 3 － (Max. 2 in one path) － i, i Connectable servo motor i 8. 4” color LCD Display unit ○ 10. 4” color LCD (without touch panel) ○ － 10. 4” color LCD(with touch panel) NANO interpolation ○ 320 K (800 m) Capacity of programs MANUAL GUIDE 0 i － ○ ○ － － ○ 512 K (1280 m) － 1 M (2560 m) ○ － － ☆ (1 st path only) ☆ ☆ MANUAL GUIDE i TURN MATE i － ☆ － － ☆ FANUC LTD ☆

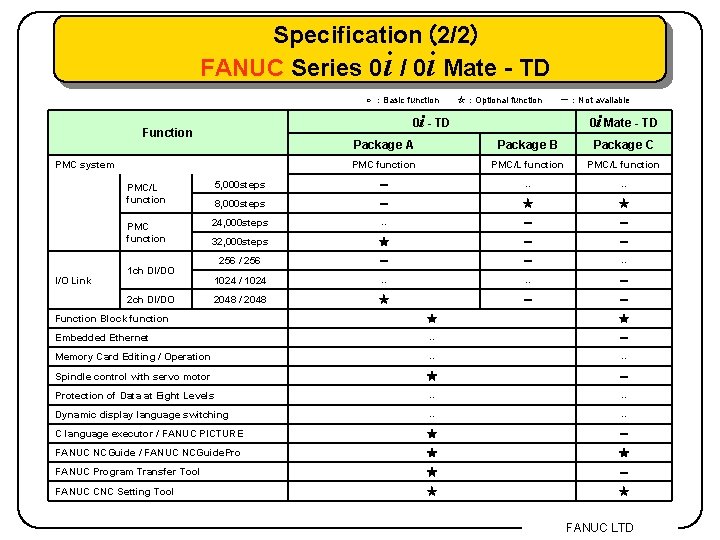

Specification (2/2) FANUC Series 0 i / 0 i Mate - TD ○ ：Basic function　　☆：Optional function　　－：Not available 0 i - TD Function PMC system I/O Link 0 i Mate - TD Package A Package B Package C PMC function PMC/L function 5, 000 steps － ○ ○ 8, 000 steps － ☆ ☆ PMC function 24, 000 steps ○ － － 32, 000 steps ☆ － － 256 / 256 － － ○ 1024 / 1024 ○ ○ － 2048 / 2048 ☆ － － 1 ch DI/DO 2 ch DI/DO Function Block function ☆ ☆ Embedded Ethernet ○ － Memory Card Editing / Operation ○ ○ Spindle control with servo motor ☆ － Protection of Data at Eight Levels ○ ○ Dynamic display language switching ○ ○ C language executor / FANUC PICTURE ☆ － FANUC NCGuide / FANUC NCGuide. Pro ☆ ☆ FANUC Program Transfer Tool ☆ － FANUC CNC Setting Tool ☆ ☆ FANUC LTD
