High Performance MOS Current Mode Logic Circuits Saied

High Performance MOS Current Mode Logic Circuits Saied Hemati Ph. D. Candidate Ottawa-Carleton Institute for Electrical & Computer Engineering (OCIECE) Carleton University Ottawa, Canada

Outline v Introduction v CML versus VML v Different types of CML - ECL - CSL - MCML - Dy. CML - Feedback MCML v A 10 -Gbps MUX/De. MUX v Conclusion

Motivations for new logic styles: - Higher speed. - Lower power consumption. - Lower area consumption. - Lower fabrication cost. - Higher robustness (environment noise , fabrication fluctuations, …). - Low noise operation. - Lower complexity (design, optimization, test, …).

What is wrong with CMOS? 1 - It is not suitable for high speed applications. - Turn off time and turn on time limit the maximum speed. - Power consumption increases by frequency. - Each input at least is connected to two gates. - P-type devices play a key role in CMOS. - Voltage swing is too large. - Rate of charging and discharging is not constant. 2 - High dynamic power dissipation. - Large swing voltage. - Large supply voltage and threshold voltage.

What isis Wrong With CMOS? What Wrong With CMOS? 3 - CMOS produces lots of noise. - Sharp switching currents. - Voltage variation. CMOS 4 - CMOS suffers from low robustness. - Propagation delay varies with supply voltage. - Propagation delay varies with threshold voltage (80%). - Noise can degrade the performance. 5 - CMOS consumes too much area. - Pull up network. 6 - Low degree of freedom in optimization. 1963 201 X

Current Mode Logic 1 - Transistors are always on (fully or partially). - Higher speed - Low threshold devices can be used. - Lower Vdd. out R 1 R 2 Inputs - Lower power dissipation. - Static power dissipation. I out

Current Mode Logic 2 - Swing voltage is small. - Higher speed - Lower dynamic power dissipation. - Lower noise generation. out R 1 R 2 Inputs - Lower noise margin. 3 - Gates are based on n-type differential pair. - Immunity to common mode noise (supply bounce). - Smaller input capacitance. - Transistors should be identical. I out

Current Mode Logic 4 - Gates draw a static amount of current from power supply. - Reduces the amount of spiking of the supply and substrate voltages (lower noise). out R 1 R 2 - Rate of charging and discharging is constant. Inputs I - Higher level of freedom. - Static power consumption. out

Current Mode Logic 5 - P-type devices are never used as switch. - Higher speed. out - Lower number of transistors. 6 - Pull up resistors are expensive. R 1 R 2 Inputs 7 - Suitable power down techniques should be found. 8 - The matching of fall and rise delays is not easy. I out

Emitter Coupled Logic (ECL) ECL is the fastest known logic family for silicon integrated circuits. ECL gates consists of : - differential amplifier. Rl A+B A R 2 B Vref A+B - temperature and voltage compensated bias network. - Emitter follower output. VEE Vcs Vref=-1. 25 V VEE VOH= -0. 85 V VOL= -1. 75 V VEE ECL NOR/ OR

Emitter Coupled Logic (ECL) Chip Technology in top 500 supercomputers

Current Steering Logic (CSL) Vdd Ibias A simple current mode logic with shortened swing voltage. VOH = VT + Veff VOL Veff Vref Vout A B C D A 4 -input CSL NOR

MOS Current Mode Logic (MCML) Inputs and outputs are differential. Buffer and Inverter gates are the same. RFP Nor/Or/And/Nand gates are the same. Mux/Xor gates are similar. out A RFN Buffer/ Inverter

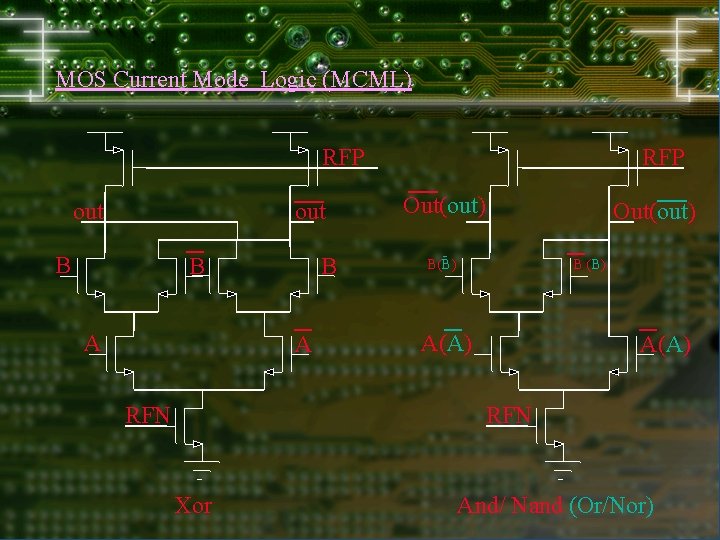

MOS Current Mode Logic (MCML) RFP out B B B A A RFN RFP Out(out) B(B) B (B) A(A) RFN Xor And/ Nand (Or/Nor)

MOS Current Mode Logic (MCML) 70 60 Energy-Delay (p. J*ps) Energy-delay (p. J*ps) 2. 5 MCML XOR 3 CMOS MCML 2 1. 5 50 40 30 20 1 0 200 400 600 800 Delay (ps) Energy-Delay vs. Delay for MCML and CMOS Inverters 1000 10 0 500 1000 1500 2000 2500 3000 Delay (ps) Energy-Delay vs. Delay for MCML and CMOS XOR 3

MOS Current Mode Logic (MCML) RFP out Vdd- Vswing + out Vdd RFN

Dynamic Current Mode Logic (Dy. CML) Current source and load resistors Vdd have been redesigned. This configuration is similar CLK to differential cascode voltage swing logic (DCVSL). Inputs Vdd CLK out MCML Circuit CLK

Feedback MOS Current Mode Logic Threshold voltage fluctuation in short channel devices degrade matching between transistors in CML circuits. Vth fluctuation is due to fluctuation in fabrication process : - gate-oxide thickness. - channel length. - Random placement of the channel dopants. . . Negative feedback can be used to improve robustness.

Feedback MOS Current Mode Logic out A A RFN Buffer/ Inverter

Feedback MOS Current Mode Logic For a first order system, gain-bandwidth is constant and feedback decreases gain and consequently increases bandwidth. Sensitivity of the circuit to transistor mismatch decreases too.

Feedback MOS Current Mode Logic D_Type flip-flop out A A CLK RFN CLK

Feedback MOS Current Mode Logic A 10 Gb/s 1: 2 De. Mux Master Slave Master D D Q D Q D Q Q 0 CLK CLK CLK Slave Master D Q D Q Q 1 CLK CLK CLK

Feedback MOS Current Mode Logic Power-delay product for different approaches

Conclusion: ü Current mode logic is attractive because of: - high speed. - Energy-delay product can be optimized by designer. - immunity against noise. - quiet logic family. - suitable for low voltage applications. ü Optimization of CML circuits is challenging and need more research.

References: § N. S. Pickles, M. C. Lefebvre, “ ECL I/O buffers for Bi. CMOS integrated systems: a tutorial overview, ” IEEE Trans. Education, vol. 40, No. 4, pp. 229 -241, Nov. 1997. § H. Ng, D. Allost, “ CMOS current steering logic for low-voltage mixed-signal integrated circuits, ” IEEE Trans. VLSI Systems, Vol. 5, No. 3, pp. 301 -308, Sept. 1997. § J. Musicer, An Analysis of MOS Current Mode Logic for Low Power and High Performance Digital Logic, M. Sc. Thesis, University of California, Berkeley, 2000. § M. W. Allam, M. I. Elmasry, “ Dynamic current mode logic (Dy. MCL): A new lowpower high performance logic style, ” IEEE J. Solid State Circuits, Vol. 36, No. 3, pp. 550 -558, March. 2001. § A. Tanabe, et al , “ 0. 18 u CMOS 10 Gb/s Multiplexer/Demultiplexer ICs using current mode logic with tolerance to threshold voltage fluctuation, ” IEEE J. Solid State Circuits, Vol. 36, No. 6, pp. 988 -996, June. 2001.
