High Performance, Compact and Economical IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY

High Performance, Compact and Economical IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

PRODUCT LINE-U IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC

PRODUCT LINE-U IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

12 I/O CPU POWER 24 V DC or 100 -240 V AC 8 -pt

12 I/O CPU POWER 24 V DC or 100 -240 V AC 8 -pt Digital Inputs I 6 and I 7 can be configured as 0 -10 V DC AINs (0 -1000 Res, DC powered units only) WITHOUT LCD : Smart. AXIS Lite 2 -100 KHz High-speed Inputs (Pro version ONLY) WITH LCD : Smart. AXIS Pro Display critical information Built-in Real-Time Clock 12 KB Memory Embedded mini-B USB programming port Built-in Keypad (LCD models only) Access and control any PLC parameters Optional memory cartridge Convenient method to update program without a PC Four 10 A Relay contacts High switching capacity IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

24 I/O CPU 16 -pt Digital Inputs I 14 to I 17 can be

24 I/O CPU 16 -pt Digital Inputs I 14 to I 17 can be configured as 0 -10 V DC AINs (0 -1000 Res, DC powered units only) 4 -100 KHz High-speed Inputs (Pro version ONLY) POWER 24 V DC or 100 -240 V AC One Built-in RJ 45 Ethernet port WITHOUT LCD : Smart. AXIS Lite WITH LCD : Smart. AXIS Pro Display critical information Built-in Real-Time Clock 48 KB Memory Embedded mini-B USB programming port One RS 232/485 (Optional) Supports Modbus RTU Optional memory cartridge Convenient method to update program without a PC Built-in Keypad (LCD models only) Access and control any PLC parameters Eight Relay contacts (4 pt 10 A, 4 pt 2 A) IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

40 I/O CPU 24 -pt Digital Inputs I 22 to I 27 can be

40 I/O CPU 24 -pt Digital Inputs I 22 to I 27 can be configured as 0 -10 V DC AINs (0 -1000 Res, DC powered units only) POWER 24 V DC or 100 -240 V AC 4 -100 KHz High-speed Inputs (Pro version ONLY) WITHOUT LCD : Smart. AXIS Lite One Built-in RJ 45 Ethernet port WITH LCD : Smart. AXIS Pro Display critical information Built-in Real-Time Clock 48 KB Memory Embedded mini-B USB programming port Two RS 232/485 (Optional) Supports Modbus RTU Optional memory cartridge Convenient method to update program without a PC Relay type: (4 pt 10 A, 12 pt 2 A) Mixed type: (4 pt 10 A, 8 pt 2 A Relay outputs, and 4 pt Transistor) 2 -PULSE OUTPUTS Built-in Keypad (LCD models only) Access and control any PLC parameters Built-in SD card slot For Data logging IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

48 I/O CPU 30 -pt Digital Inputs I 26 to I 35 can be

48 I/O CPU 30 -pt Digital Inputs I 26 to I 35 can be configured as 0 -10 V DC AINs (0 -1000 Res, DC powered units only) 4 -100 KHz High-speed Inputs (Pro version ONLY) POWER 24 V DC or 100 -240 V AC WITHOUT LCD : Smart. AXIS Lite One Built-in RJ 45 Ethernet port WITH LCD : Smart. AXIS Pro Display critical information Built-in Real-Time Clock 48 KB Memory Embedded mini-B USB programming port Two RS 232/485 (Optional) Supports Modbus RTU Optional memory cartridge Convenient method to update program without a PC Transistor Outputs ONLY ( 18 pt Transistor Sink or Source ) 2 -PULSE OUTPUTS Built-in Keypad (LCD models only) Access and control any PLC parameters Built-in SD card slot For Data logging IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

Smart. AXIS Touc Backlight dimming & colour control: - Backlight can be dimmed to

Smart. AXIS Touc Backlight dimming & colour control: - Backlight can be dimmed to save energy and to extend the life of backlight - Backlight colour can be changed to show system status. Available colours: Pink, Red or White 3. 8” Touchscreen with 12 I/O PLC 65 K colour TFT or Monochrome Built-in mini-B USB prog port POWER 24 V DC Built-in USB-A port 5 MB Memory Portrait or Landscape mounting 8 -pt Digital Inputs I 6 & I 7 can be configured as 0 -10 V DC AINs (0 -1000) Built-in RS 232/485 Modbus-RTU 4 -10 KHz High-speed Inputs Four 10 A Relay contacts IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166 Built-in RJ 45 Ethernet port

KEY FEATURE Smart LCD/Keypad - Max. 24 digits x 8 Lines - ON/OFF backlight

KEY FEATURE Smart LCD/Keypad - Max. 24 digits x 8 Lines - ON/OFF backlight control - 50 Customizable Alarm and Dynamic Messages - Support text Scrolling and Flashing - Display Operation Menu - Display and Edit PLC Parameter - Display I/O Status - Display and Edit Network Settings (IP Address) - Display Vertical/Horizontal Bar Graph - Ladder Program Monitors and Controls Ethernet Port - Upload, Download, Monitor PLC program - Support Static or DHCP IP address - Modbus TCP/IP Client and Max. 3 Servers SD Card - Supports data logging - Saved data can be retrieved via Ethernet IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

KEY FEATURE Built-in Real Time Clock - Support Daylight saving time for USA, Canada,

KEY FEATURE Built-in Real Time Clock - Support Daylight saving time for USA, Canada, Europe, Australia or User configurable 10 Amp Relay contacts - All FT 1 A Controllers are equipped with 10 A Relay contacts Built-in 0 -10 V Analogue Inputs - All Smart. AXIS controllers have a minimum of 2 -Analogue inputs USB Programming port - All Smart. AXIS Controllers have USB prog. ports ( mini-B type) - No special cables are required Ladder monitor and controls - Program in LCD and Touch models can be controlled and monitored on the unit 100 KHz High Speed Counters -Each FT 1 A is equipped with 4 or 6 HSC - Read from rotary encoders 100 KHz High Speed Outputs - 40 I/O and 48 I/O CPU is equipped with 2 pt 100 KHz outputs - Support PULS, RAMP, PWM, ZRN (stepper-motor control) IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

PRODUCT POSITIONI FT 1 A Pro and Lite: FT 1 A Smart. AXIS is

PRODUCT POSITIONI FT 1 A Pro and Lite: FT 1 A Smart. AXIS is feature rich yet Economical. Perfect for small application where the IO requirement is less than 48 -IO in total. FC 4 A/5 A Slim type FC 4 A/5 A All-in-One Smart. Relay FT 1 A Smart. AXIS IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

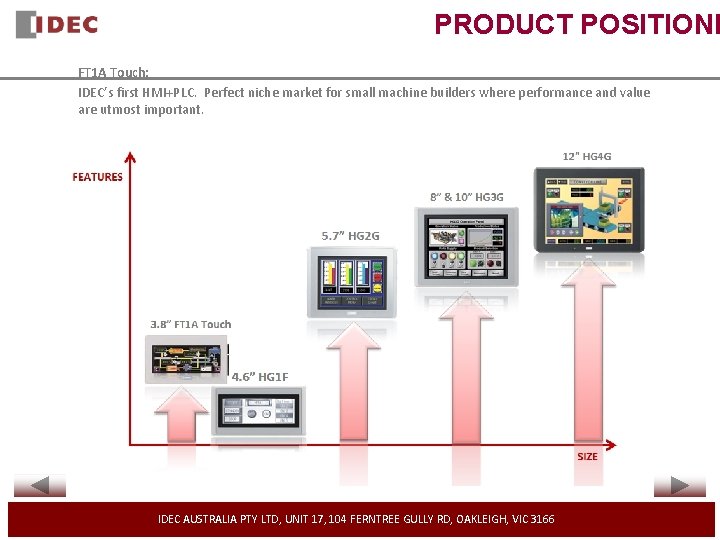

PRODUCT POSITIONI FT 1 A Touch: IDEC’s first HMI+PLC. Perfect niche market for small

PRODUCT POSITIONI FT 1 A Touch: IDEC’s first HMI+PLC. Perfect niche market for small machine builders where performance and value are utmost important. IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

COMMUNICATION This function enables you to control and communicate with external devices such as

COMMUNICATION This function enables you to control and communicate with external devices such as PCs, Serial Printers and Barcode readers. In order to enable this function, CPU must have an Ethernet port or CPU should be able to support the expansion serial communication Port (RS 232/485). 12 -IO CPUs do not support this function IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

COMMUNICATION Smart. AXIS is compliant with Modbus protocol and can be used as either

COMMUNICATION Smart. AXIS is compliant with Modbus protocol and can be used as either Modbus master or slave. Maximum of 31 -slaves can be connected ONE MASTER. Note: 12 -IO CPUs do not support this function IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

COMMUNICATION Modbus TCP protocol can also be used with CPUs with Ethernet ports. They

COMMUNICATION Modbus TCP protocol can also be used with CPUs with Ethernet ports. They can used as Client (master) or as Server (Slave) to monitor and exchange data. Note: Smart. AXIS Pro/Lite versions can support only 3 - servers (slaves) per 1 - Master Smart. AXIS Touch can support up to 16 - severs (slaves) per 1 -Master 12 -IO CPUs do not support this function. IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

SOFTWARE: Automation Orga New version of Automation Organizer software (Version 2. 00) supports FT

SOFTWARE: Automation Orga New version of Automation Organizer software (Version 2. 00) supports FT 1 A Smart. AXIS. Therefore, existing users AO users needs to upgrade to version 2. 00. This upgrade is available to download through IDEC website. Automation Organizer software Version 2. 00 includes: -Wind. LDR version 7. 0 which supports FC 4 A, FC 5 A and Smart. AXIS (Pro-Lite) -Wind. OI-NV 2 to support HG 1 F, HG 2 G/HG 2 F, HG 3 G/HG 3 F, HG 4 G/HG 4 F - Wind. LDR and Wind. OI-NV 3 which supports Smart. AXIS Touch IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

12 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE

12 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

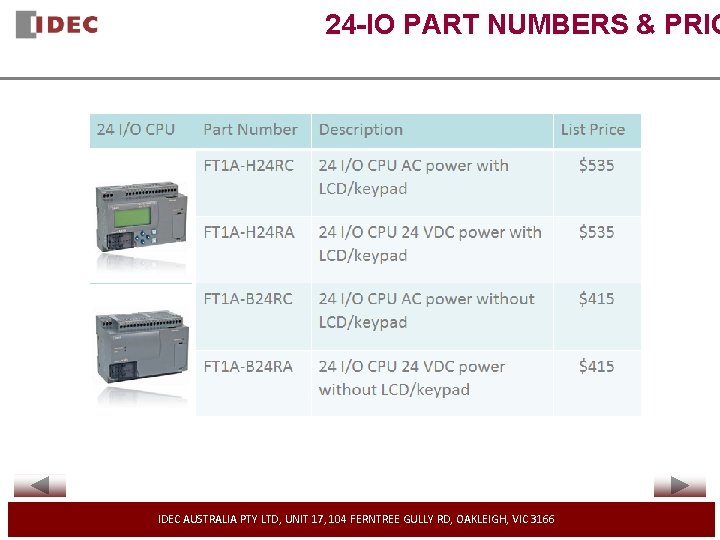

24 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE

24 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

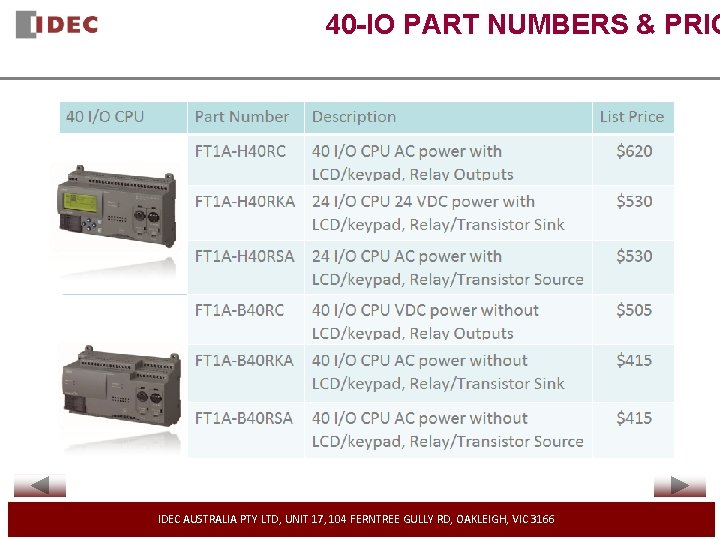

40 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE

40 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

48 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE

48 -IO PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

TOUCH PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY

TOUCH PART NUMBERS & PRIC IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166

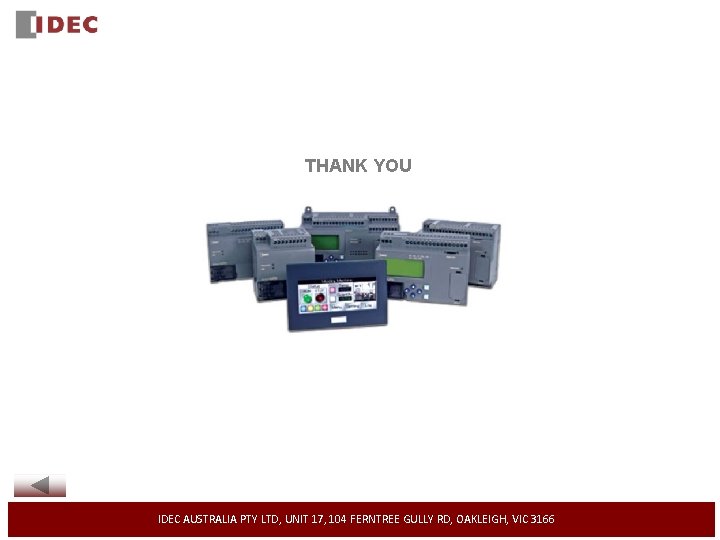

THANK YOU IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC

THANK YOU IDEC AUSTRALIA PTY LTD, UNIT 17, 104 FERNTREE GULLY RD, OAKLEIGH, VIC 3166
