High Lumen Flood BVP 621 Jeff Wu Professional
High Lumen Flood BVP 621 (場地照明版) 港口/碼頭/機場照明解決方案 Jeff Wu Professional Lighting Solutions April 06, 2016
隆重推出新款高功率LED投光燈 BVP 621 3 Professional Lighting Solutions
外觀 4 Professional Lighting Solutions
泛光燈�品系列 High End Sports 1 Arean. Vision MVF 403 MHN-SA 2000 W 1 No LED Sports. Luminaire for 2000 W Replacement 2 Arean. Vision MVF 403 MHN-LA 1000 W 2 LED Sports Lum for 1000 w replacement 高功率LED投光燈-體育 館照明 Arean. Vision MVF 403 1000 W Mid-High Wattage Area Low-Mid Wattage Area Product Positioning 3 Area Lighting 1000 W Luminaires 3 Mid-high wattage LED lum 高功率LED投光燈-場地 照明 Optivision MVP 507 Landmark MVF 028 5 Savings-oriented entities Tango G 2 / Mini / G 3 4 HNF 003 HNF 207 <400 W/250 W/150 W Flood Luminaires 4 Low-mid wattage LED lum Tango 1/2/3 con. Tempo § 傳統�品 5 Arean. Vision MVF 403 1000 W Professional Lighting Solutions LED Tempo § LED�品 LED Tempo Mini
BVP 621高功率LED投光燈應用 港口機械 機場 大型停車 場 6 交叉路口 Professional Lighting Solutions

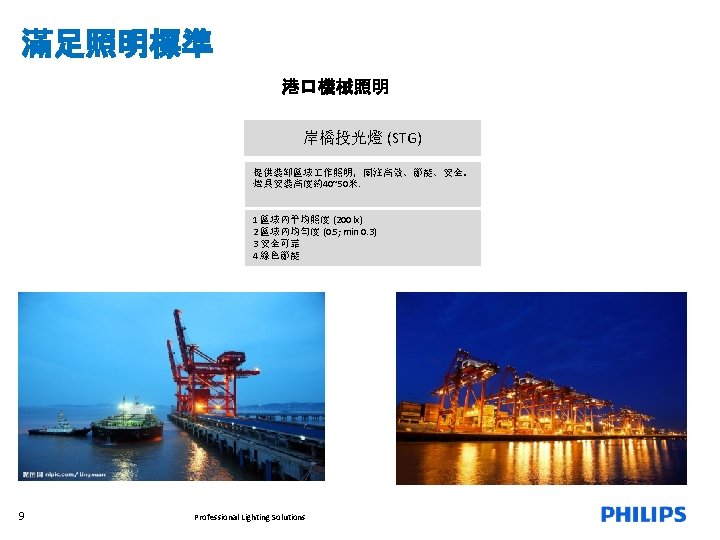

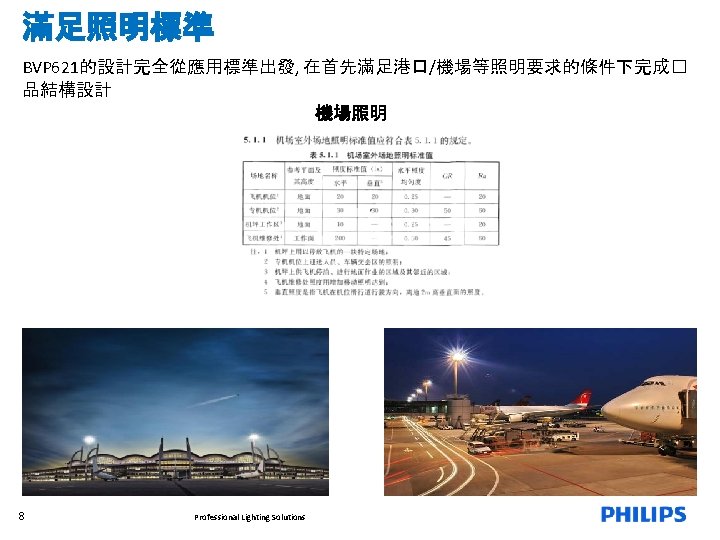

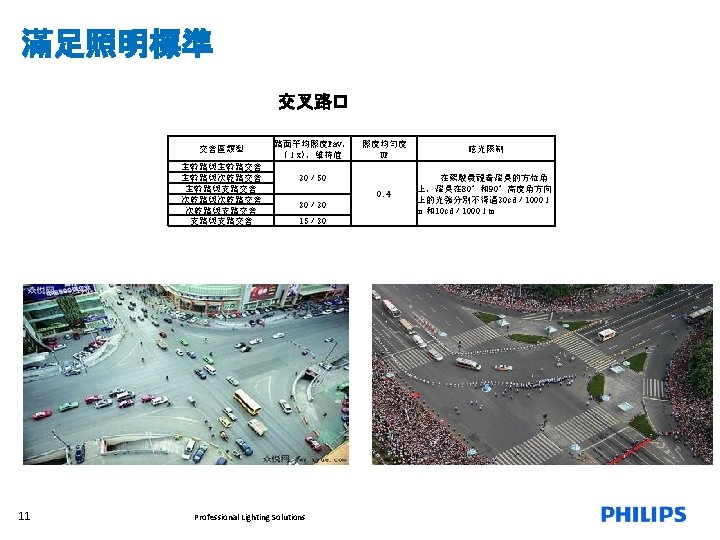

滿足照明標準 7 Professional Lighting Solutions
滿足照明標準 室外停車場照明 10 Professional Lighting Solutions

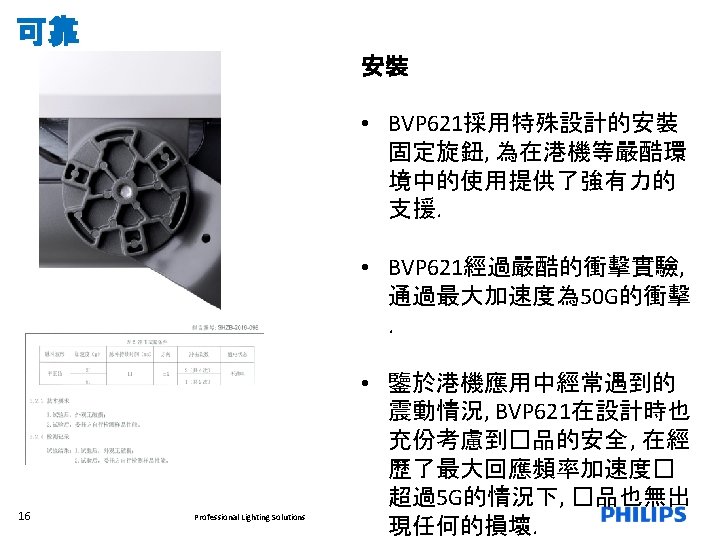

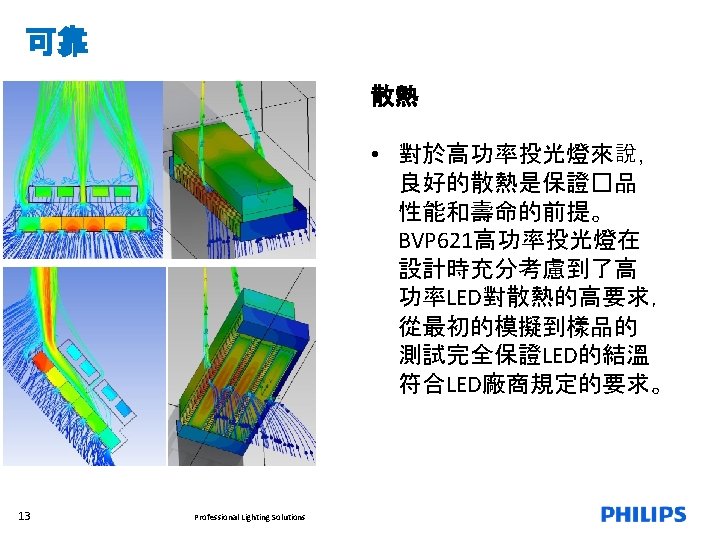

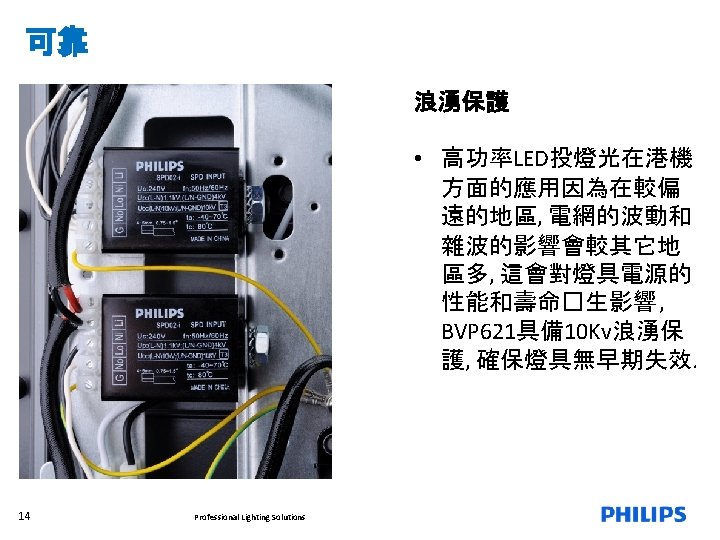

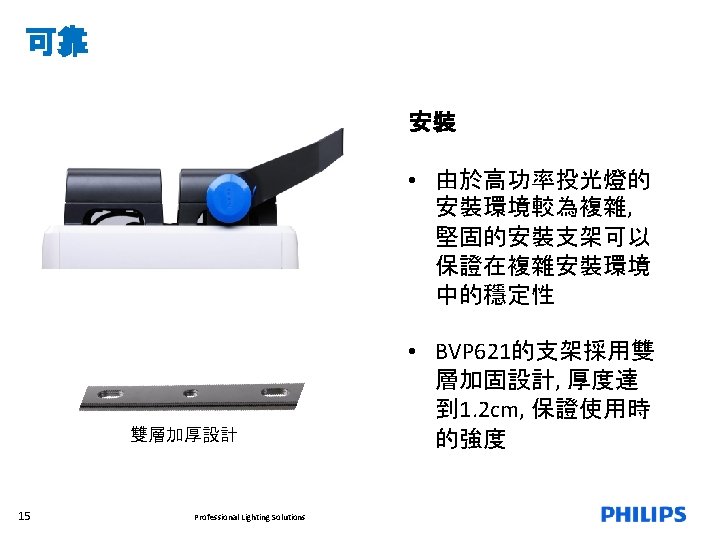

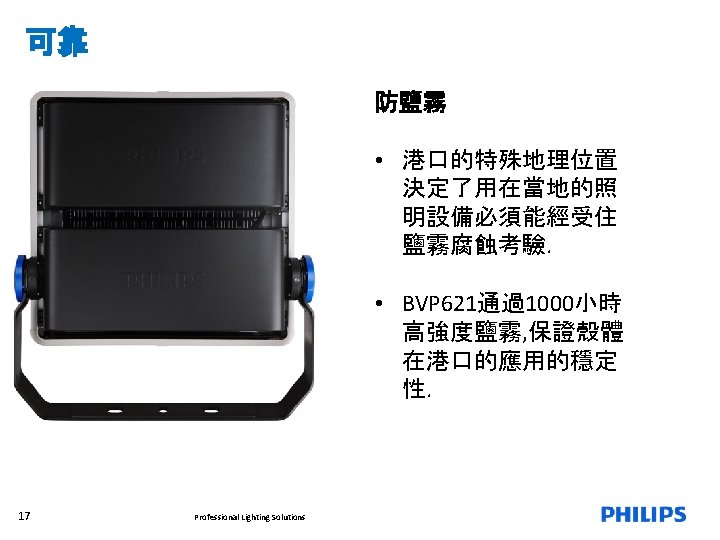

可靠 12 Professional Lighting Solutions

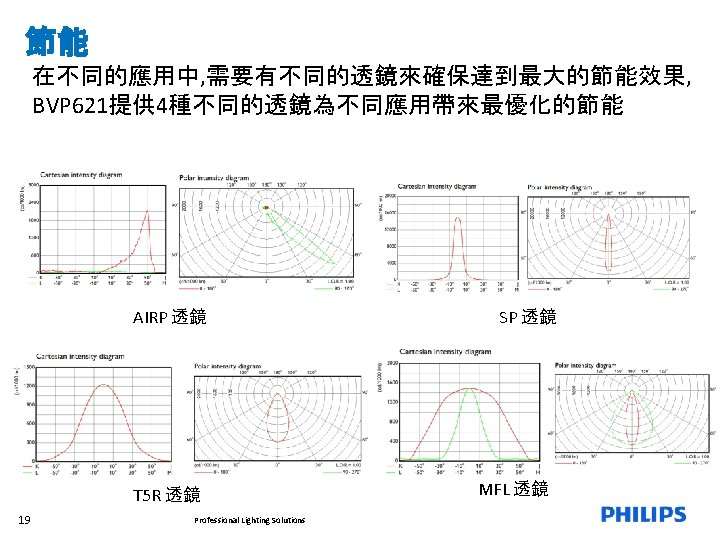

節能 18 Professional Lighting Solutions
節能 某機場專案模擬 燈具 燈具功率 場地面積 CCT lm output Eave(lx) Uo BVP 621 ~800 w 60 x 90 m 3000 K 72000 70 0. 48 GE PF 1000 ~1100 w 60 x 90 m 3000 K 74000 68 0. 46 MVP 507 ~1100 w 60 x 90 m 3000 K 74000 78 0. 42 根據上述計算, BVP 621可以在達到相 似照度的情況下與傳統燈具相比, 節 省約25%的電能 20 Professional Lighting Solutions

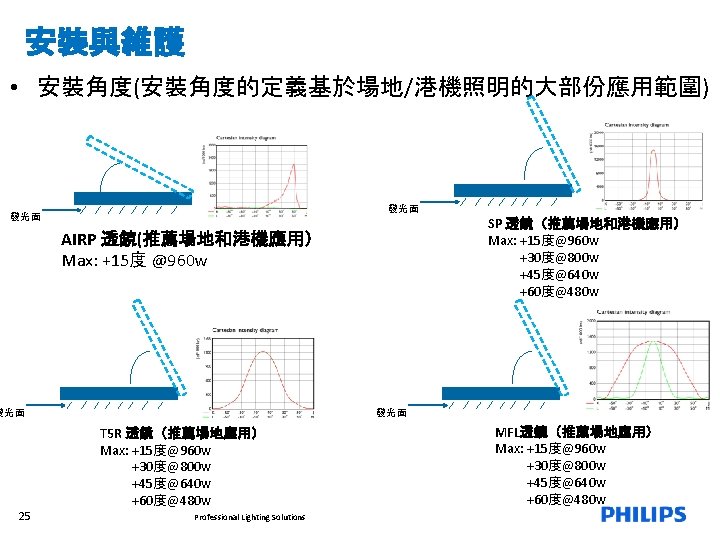

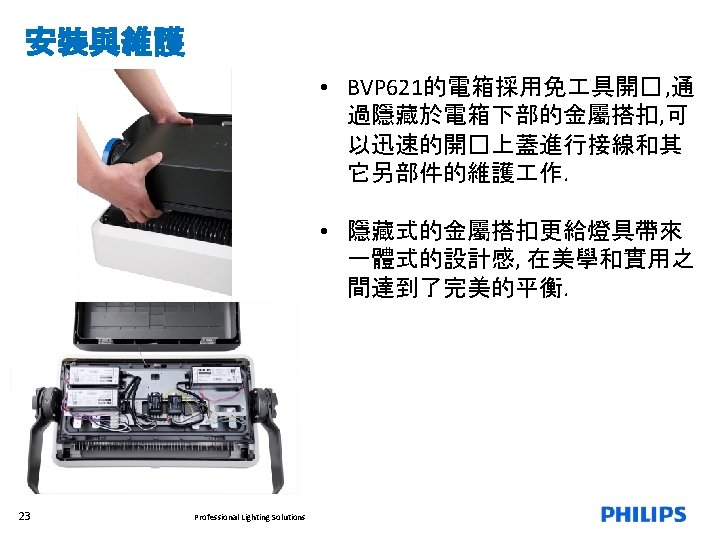

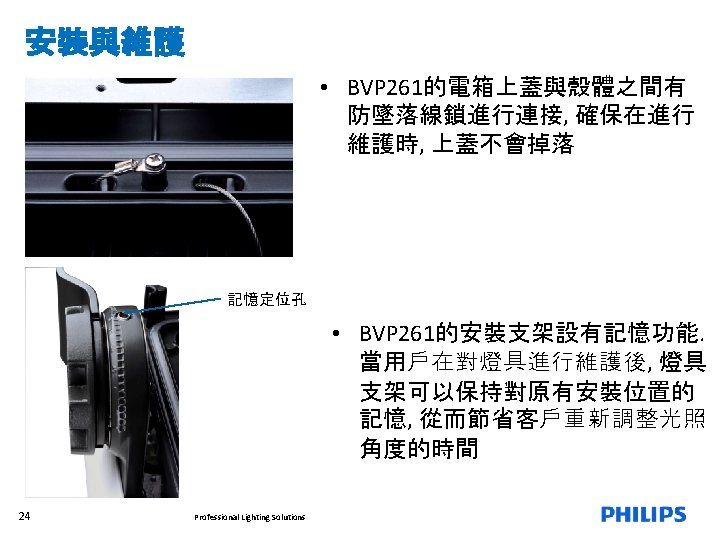

安裝與維護 22 Professional Lighting Solutions
�品主要型號 Max. 800 w (5模組) Max. 960 w (6模組) Max. 480 w (3模組 ) Max. 640 w (4模組) 26 Professional Lighting Solutions

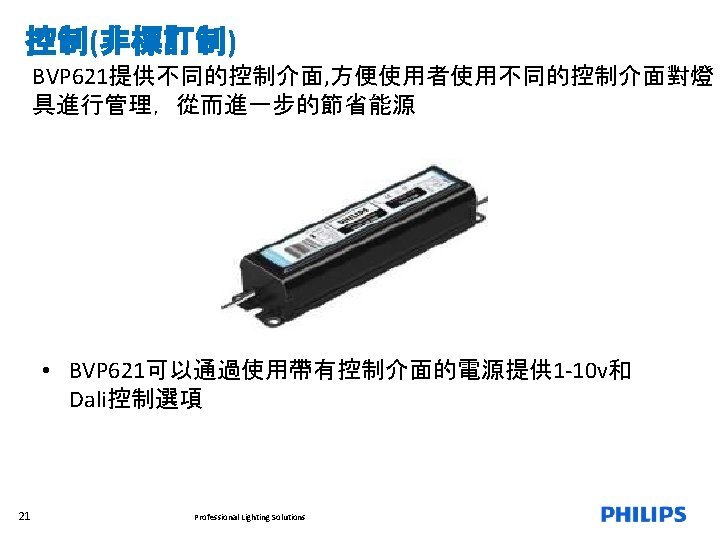

�品主要規格 規格 參數 系統效率 5700 K/4000 K: 100 lm/w 3000 K: 90 lm/w CRI 70(典型� ) 功率 480/640/800/960 w 流明輸出 5700/4000 K: 48 K – 96 K lm 3000 K: 43. 2 K – 86. 4 K lm 作溫度 -40 – 50 C IP 66 作電壓 220 -240 v/50/60 Hz(標準品); 120 -277 v (非標) PF 0. 95 SPD 10 Kv 透鏡 AIRP/T 5 R/MFL/SP 尺寸 最大 675 x 618 x 225 mm 重量 最大 36 kg �品壽命 50 K 小時/ L 70 (基於室外Ta=35度) 防鹽霧 最大 1000小時 控制介面 非標: 1 -10 v(不支持120 -277 v); Dali 電器箱位置 與燈具一體式 27 Professional Lighting Solutions
�品主要型號 BVP 621 LED 430/WW 480 W 220 -240 V BVP 621 LED 490/WW 560 W 220 -240 V BVP 621 LED 580/WW 640 W 220 -240 V BVP 621 LED 650/WW 720 W 220 -240 V BVP 621 LED 720/WW 800 W 220 -240 V BVP 621 LED 790/WW 880 W 220 -240 V BVP 621 LED 860/WW 960 W 220 -240 V 3000 K BVP 621 LED 480/NW 480 W 220 -240 V BVP 621 LED 560/NW 560 W 220 -240 V BVP 621 LED 640/NW 640 W 220 -240 V BVP 621 LED 720/NW 720 W 220 -240 V BVP 621 LED 800/NW 800 W 220 -240 V BVP 621 LED 880/NW 880 W 220 -240 V BVP 621 LED 960/NW 960 W 220 -240 V 4000 K • 每一種色溫都支持4種不同的透鏡。 • 透鏡種類為AIRP; SP; T 5 R; MFL 328 Professional Lighting Solutions December 30, 2015 Area/Sports Segment Confidential BVP 621 LED 480/CW 480 W 220 -240 V BVP 621 LED 560/CW 560 W 220 -240 V BVP 621 LED 640/CW 640 W 220 -240 V BVP 621 LED 720/CW 720 W 220 -240 V BVP 621 LED 800/CW 800 W 220 -240 V BVP 621 LED 880/CW 880 W 220 -240 V BVP 621 LED 960/CW 960 W 220 -240 V 5700 K

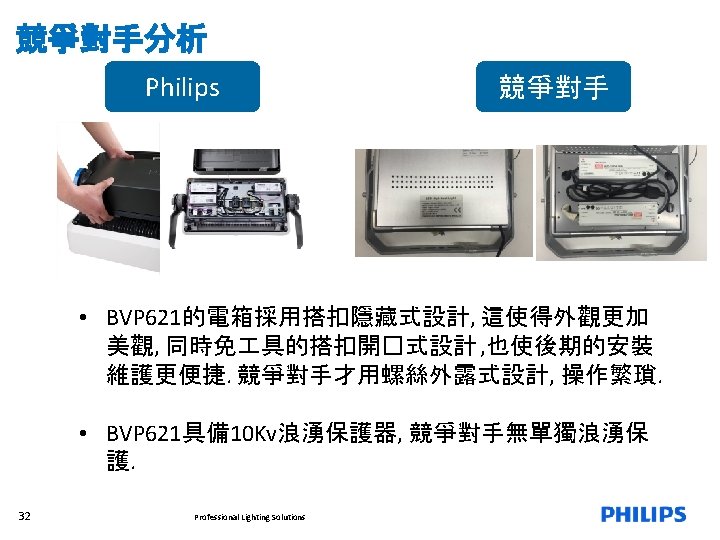

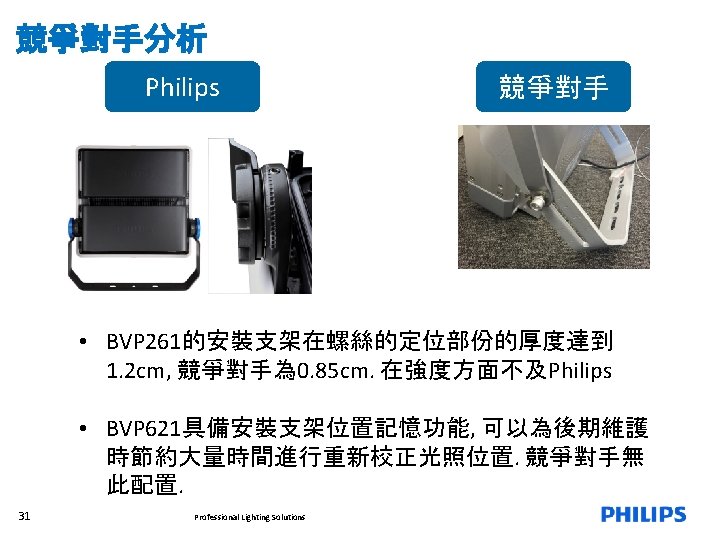

競爭對手分析 Profile Brand Name High Lumen Flood Photo GRCL-HP 2015 Q 2 AC 100 -277 V AC 347 -480 V Philips 374 -1379 W NA 2014 Driver Wattage (W) PF AC 220 V~240 V/50 Hz AC 380 V~415 V/3 -phase Philips 480 -960 W 0. 95 No. of optic 4 8 96000 lm 100 lm/W @CRI 70 70/90 5700 K 50 k hrs IP 66 Die-casting Alu “U” shape bracket -40~55°C CQC, CB/EMC, CE, Ro. HS 3 yrs 10 k. V 128000 lm Up to 128 lm/W 70 4000/5700 K 40 k hrs IP 66 615 x 785 x 446 mm 29. 7 kg Molded Alu. “U” shape bracket -30~45°C CE, ENEC, Ro. HS NA 4 k. V Voltage (V) Max. Lumen Photometric Efficacy CRI CCT Lifetime IP Size (mm) Mechanical Weight Housing Mounting Working temp. Approbation Warranty SPD 29 Greener Opti. Vision LED Launched date Electrical Philips Professional Lighting Solutions AC 95 -265 V Meanwell 120 -500 W 0. 95 1 Claim can be customized 50000 lm 100 -110 lm/W 75 2700 K-4500 K 50 k hrs IP 65 767 x 503 x 172 mm 18. 4 kg Aluminum “U” shape bracket -40~+50°C CE, CQC, Ro. HS 5 yrs No
競爭對手分析 Philips BVP 621 30 Philips Optivision LED 壽命 50 K hours @ ta=35 C 40 K hours @ ta=35 C 效率 100 lm/w @ 5700 K 94 lm/w @ 5700 K 價格 Hundred會提供競爭 力的價格 自己發揮聯想 Professional Lighting Solutions
