High Confidence Medical Device Software and Systems: A programming languages and tools perspective Mark P Jones Department of Computer Science & Electrical Engineering OGI School of Science & Engineering Oregon Health & Science University Beaverton, OR 97006

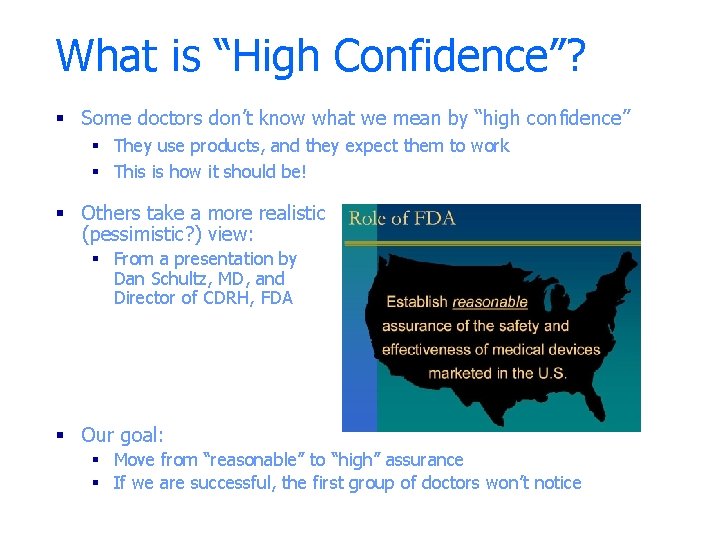

What is “High Confidence”? § Some doctors don’t know what we mean by “high confidence” § They use products, and they expect them to work § This is how it should be! § Others take a more realistic (pessimistic? ) view: § From a presentation by Dan Schultz, MD, and Director of CDRH, FDA § Our goal: § Move from “reasonable” to “high” assurance § If we are successful, the first group of doctors won’t notice

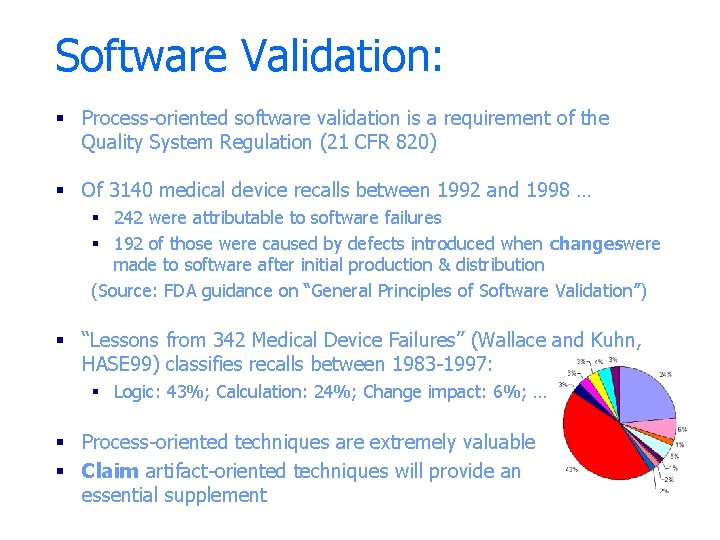

Software Validation: § Process-oriented software validation is a requirement of the Quality System Regulation (21 CFR 820) § Of 3140 medical device recalls between 1992 and 1998 … § 242 were attributable to software failures § 192 of those were caused by defects introduced when changeswere made to software after initial production & distribution (Source: FDA guidance on “General Principles of Software Validation”) § “Lessons from 342 Medical Device Failures” (Wallace and Kuhn, HASE 99) classifies recalls between 1983 -1997: § Logic: 43%; Calculation: 24%; Change impact: 6%; … § Process-oriented techniques are extremely valuable § Claim: artifact-oriented techniques will provide an essential supplement

Candidate Technologies: Formal Methods : Intel is building & using theorem provingtechnology: § e. g. , software/microcode verification of floating point unit, memory hierarchies, etc…) Microsoft is building & using model checkingtechnology: § e. g. , the Static Driver Verifier (SDV), including SLAM, uncovers critical bugs in device drivers, and will ship with the next Windows DDK Domain Specific Languages : Galois has developed Cryptol as a DSL for cryptography : § significant productivity boost for developers of Type 1 crypto Project Timber developed a DSL for component configuration : § smaller code (factor>30), prevented 100 s of errors in non-DSL version

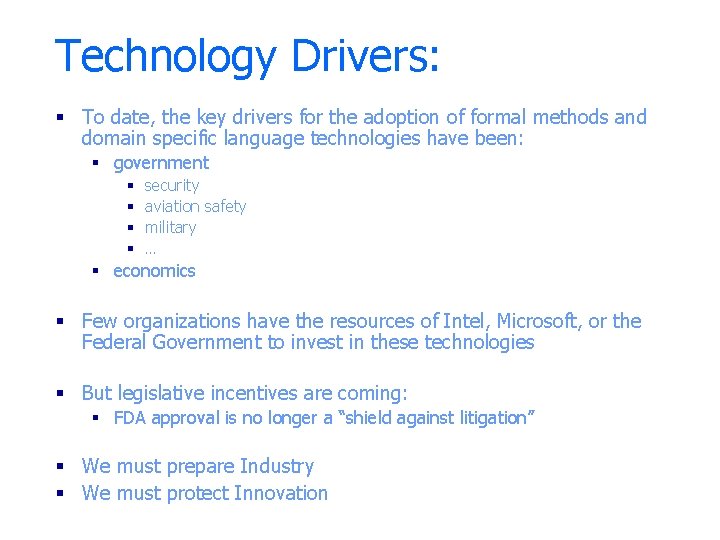

Technology Drivers: § To date, the key drivers for the adoption of formal methods and domain specific language technologies have been: § government § § security aviation safety military … § economics § Few organizations have the resources of Intel, Microsoft, or the Federal Government to invest in these technologies § But legislative incentives are coming: § FDA approval is no longer a “shield against litigation” § We must prepare Industry § We must protect Innovation

Change Management: § Change is the norm: § requirements, systems, and assurance needs all change § change is a significant contributor to device recalls … § Several commercial software packages have been developed in support of the Quality System Regulations § Programmer’s perspective: “make” tools for quality systems § “Programatica” § Integrate broad and open spectrum of assurance techniques in a software development environment § Fine-grained, automated dependency tracking to reduce cost of recertification § Tools like these can: § embrace current evaluation methodologies § offer an evolution path for introducing and applying formal methods

Open Experimental Platforms: § The academic community needs relevant, open platforms: § to serve as case studies § to provide baselines for comparison and evaluation § to drive development of new tools & prototypes § Examples like this are currently hard to find: § Trade secrets, proprietary IP, patents, … § Nobody likes to advertise their failures … § … or give away their corporate crown jewels § Significant benefits in the long term for device manufacturers and for society § How do we leverage community? § “Open Source” Medical Devices?

Bio Mark Jones is an Associate Professor at the School of Science and Engineering at Oregon Health & Science University (OGI). His area of expertise is in the design, implementation, and application of programming languages. He has worked as an Associate Research Scientist at Yale University, and as a Reader at the University of Nottingham, where he founded and led a research group on Languages and Programming. He was Principal Investigator on the DARPA-funded Project Timber, dealing with the development of new programming language technology to support the design of reliable, real-time embedded systems. Jones is now leading the Programatica project, which is using the construction of a micro kernel implementation with strong security properties to demonstrate and inform the design of tools for evidence management and validation of complex, high-confidence software. He has a Ph. D. from the University of Oxford.
