Hierarchical Statistical Modeling of Boundary Image Profiles Sean Ho Department of Computer Science University of North Carolina, Chapel Hill, NC, USA Supported by NIH-NCI P 01 CA 47982.

Bayesian image segmentation log p(m | I) = log p(m) + log [p(I | m) / p(I)] Geometric prior Image match

Model-based segmentation Shape typicality (“prior”) n Shape representation n PDM, SPHARM, Mrep, level-set, etc. Probabilistic model n Model-to-image match Likelihood of a given shape Image representation Global (no corresp. ) n Local (req. corresp. ) n n Probabilistic model n Fit of a given shape in a given image

Example: corpus callosum n Automatic segmentation n Shape rep: 2 D Fourier (Staib et al) n Image rep: 1 D profiles normal to boundary (Cootes et al) Each profile independent of its neighbors n 100 profiles => 100 separate PCAs n n (movie)

Some examples of related work n Snakes: gradient magnitude n Also region-based inside/outside snakes n Template matching, correlation n ASM/SPHARM: independent profiles n AAM: hierarchical over whole image

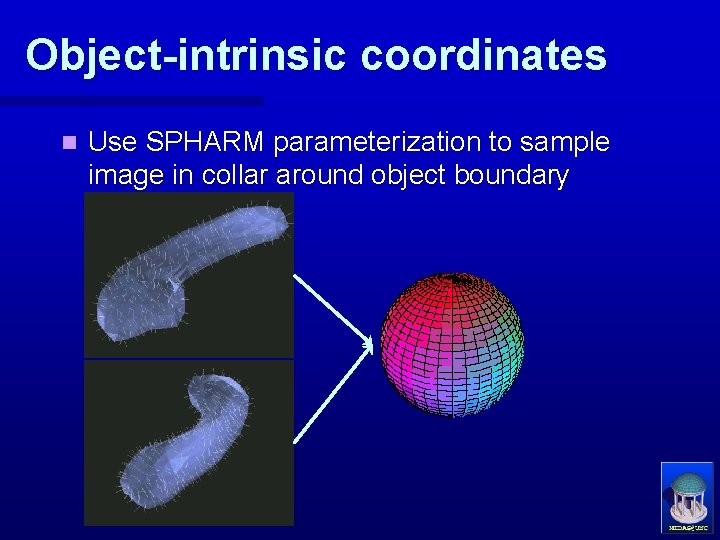

Object-intrinsic coordinates n Use SPHARM parameterization to sample image in collar around object boundary

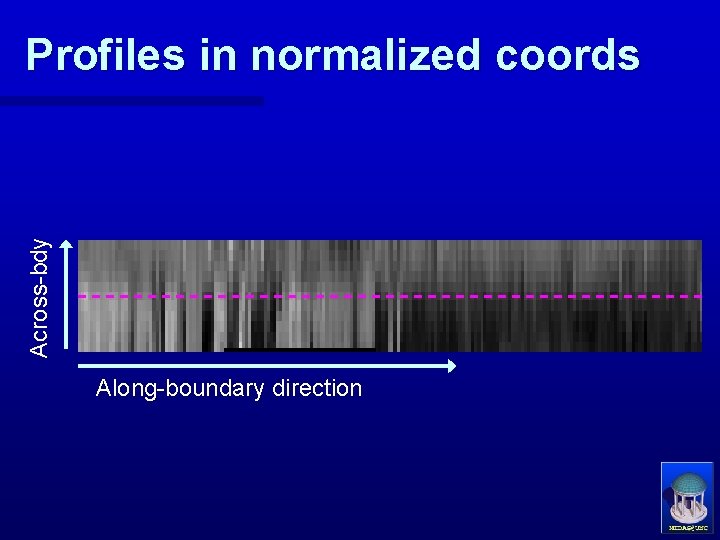

Across-bdy Profiles in normalized coords Along-boundary direction

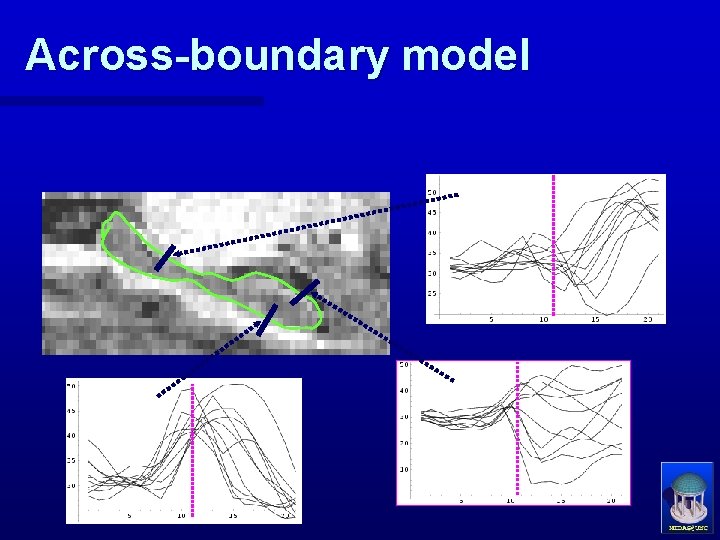

Across-boundary model

Driving Questions n fine sampling necessary? pyramid n object specific n n how do we deal with noise? n would like to blur along boundary n local statistical model

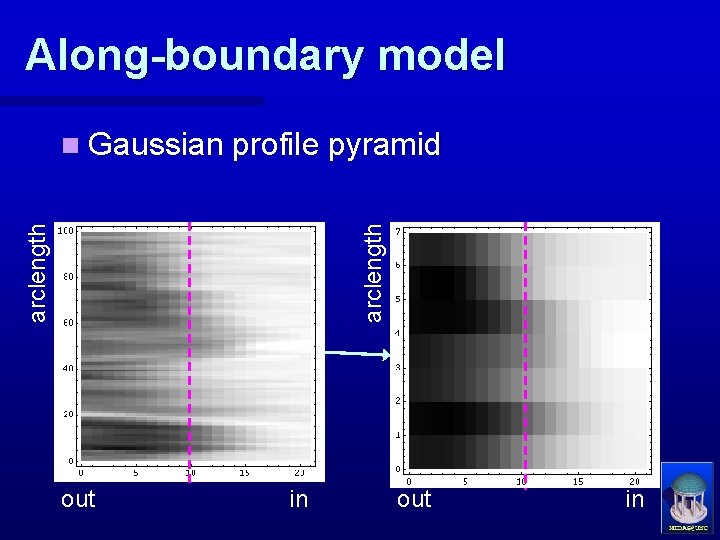

Along-boundary model arclength n Gaussian profile pyramid out in

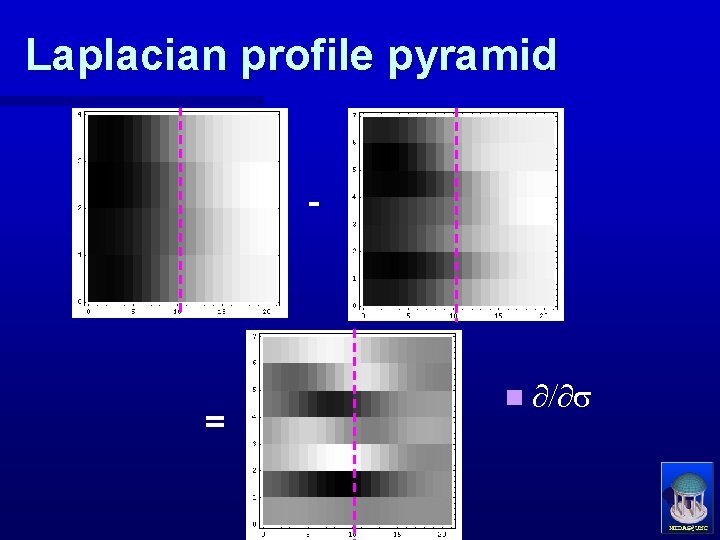

Laplacian profile pyramid - = n / s

Laplacian, local differences n / s / u

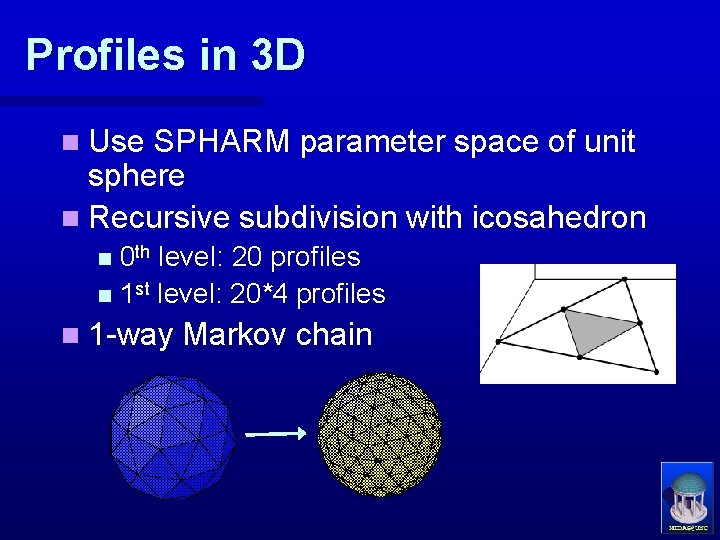

Profiles in 3 D n Use SPHARM parameter space of unit sphere n Recursive subdivision with icosahedron 0 th level: 20 profiles n 1 st level: 20*4 profiles n n 1 -way Markov chain

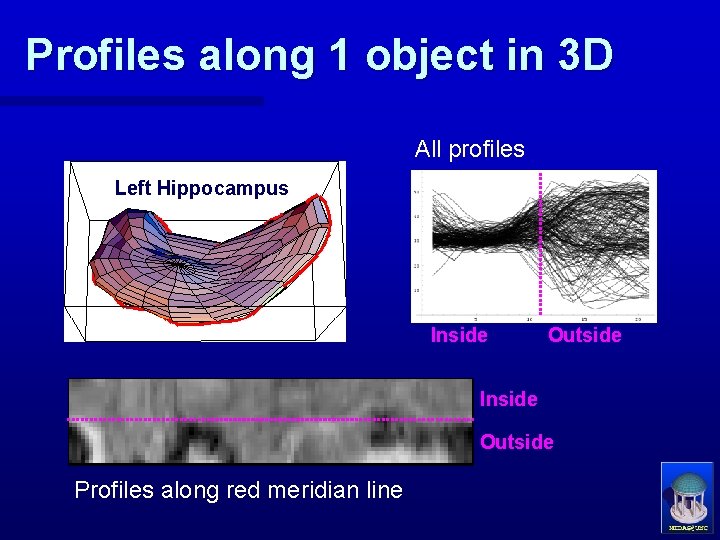

Profiles along 1 object in 3 D All profiles Left Hippocampus Inside Outside Profiles along red meridian line

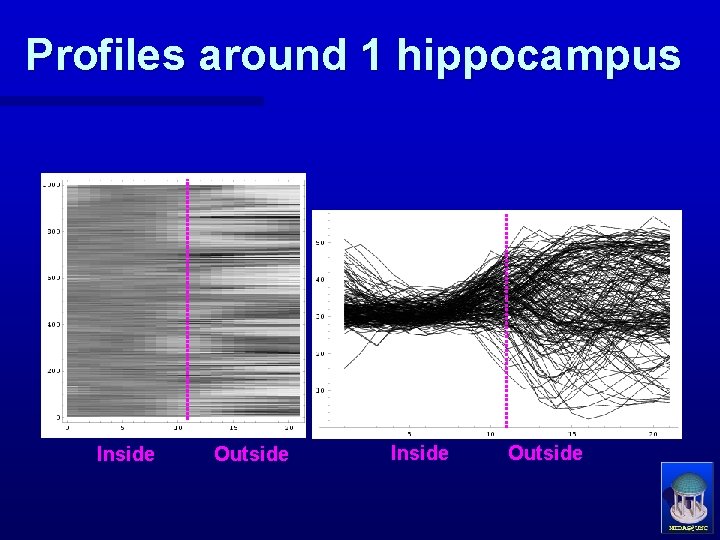

Profiles around 1 hippocampus Inside Outside

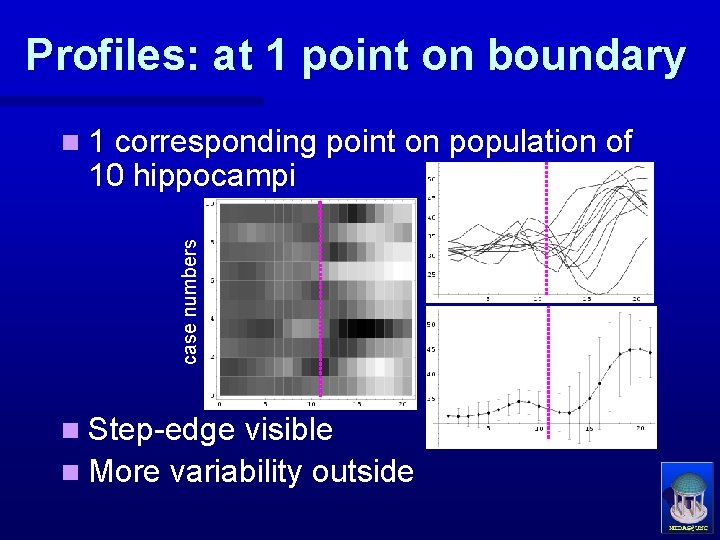

Profiles: at 1 point on boundary n 1 corresponding point on population of case numbers 10 hippocampi n Step-edge visible n More variability outside

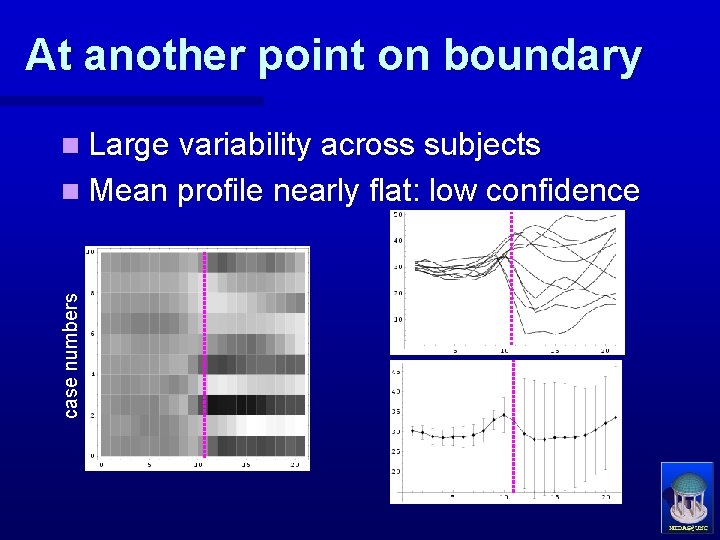

At another point on boundary n Large variability across subjects case numbers n Mean profile nearly flat: low confidence

Current / ongoing work n SPHARM segmentation framework: Standard ASM-like independent profiles n New hierarchical along-boundary model n New statistical model (local PCA, MRF) n n Testbed in 2 D with 71 corpora callosa n Testbed in 3 D with: 90 caudates (L/R) n 90 hippocampi (L/R) n

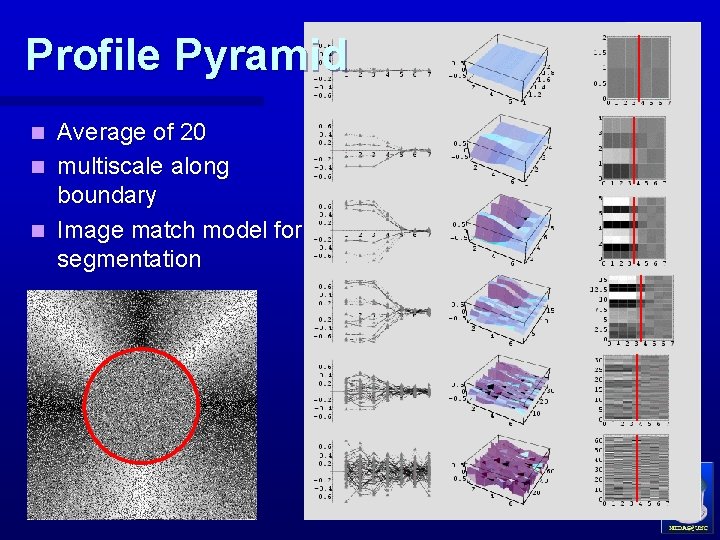

Profile Pyramid Average of 20 n multiscale along boundary n Image match model for segmentation n
