Hierarchical Routing Problem as size of network grows

Hierarchical Routing Problem: as size of network grows, routing table, complexity grows. millions of nodes (hosts, routers) in Internet Solution: hierarchically aggregate nodes into "regions" (domain). node have full knowledge of routes, topological structure within region . one (or more) nodes in region responsible for routing to the outside Teminology: . . intradomain routing: within domain interdomain routing: between domains autonomous system (AS): domain, region, administrative domain gateway: routes to/from domain, a. k. a. border router

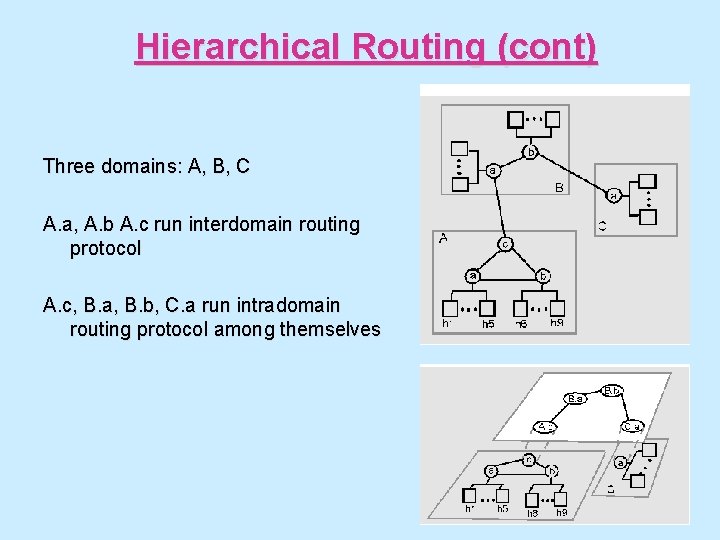

Hierarchical Routing (cont) Three domains: A, B, C A. a, A. b A. c run interdomain routing protocol A. c, B. a, B. b, C. a run intradomain routing protocol among themselves

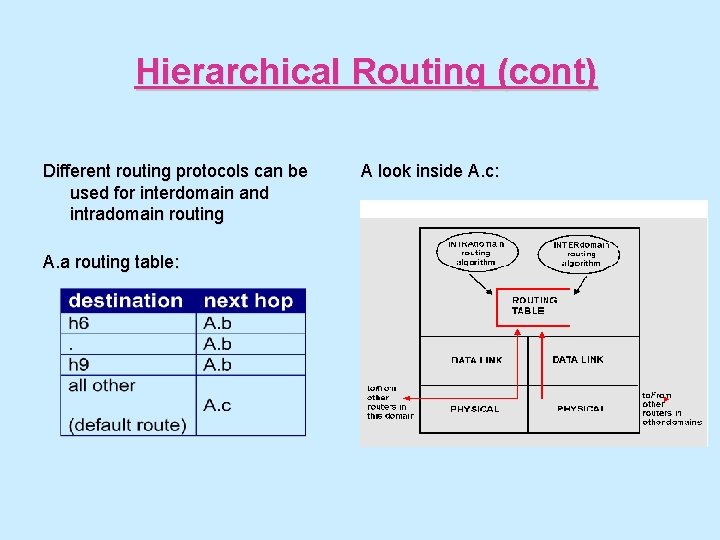

Hierarchical Routing (cont) Different routing protocols can be used for interdomain and intradomain routing A. a routing table: A look inside A. c:

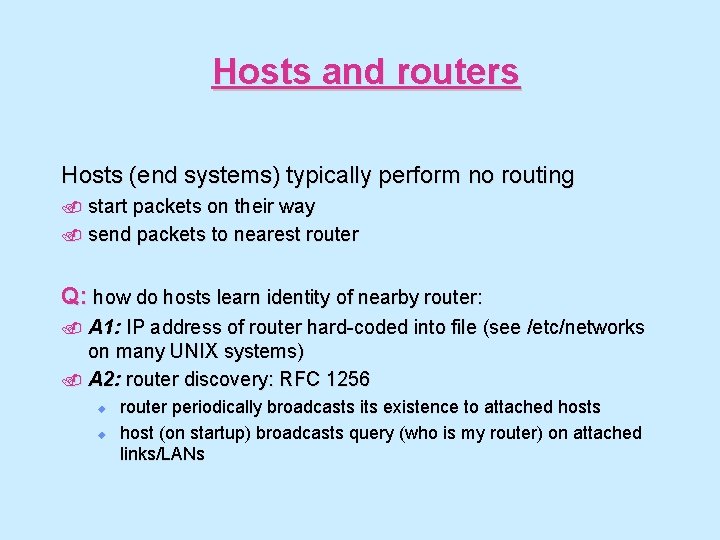

Hosts and routers Hosts (end systems) typically perform no routing. start packets on their way. send packets to nearest router Q: how do hosts learn identity of nearby router: . A 1: IP address of router hard-coded into file (see /etc/networks on many UNIX systems). A 2: router discovery: RFC 1256 u u router periodically broadcasts its existence to attached hosts host (on startup) broadcasts query (who is my router) on attached links/LANs

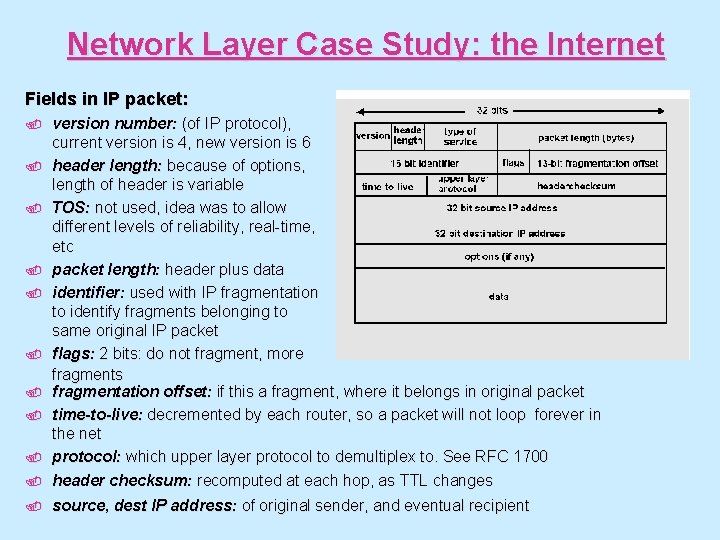

Network Layer Case Study: the Internet Fields in IP packet: . version number: (of IP protocol), current version is 4, new version is 6 header length: because of options, length of header is variable TOS: not used, idea was to allow different levels of reliability, real-time, etc packet length: header plus data identifier: used with IP fragmentation to identify fragments belonging to same original IP packet flags: 2 bits: do not fragment, more fragments fragmentation offset: if this a fragment, where it belongs in original packet time-to-live: decremented by each router, so a packet will not loop forever in the net protocol: which upper layer protocol to demultiplex to. See RFC 1700 header checksum: recomputed at each hop, as TTL changes . source, dest IP address: of original sender, and eventual recipient . .

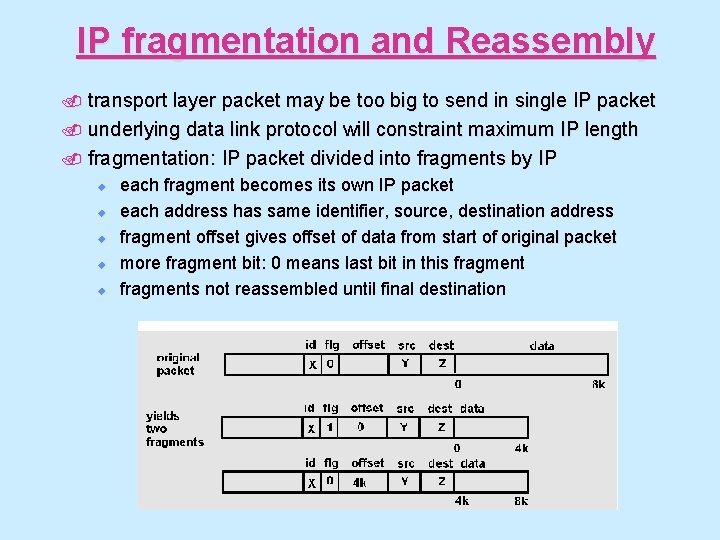

IP fragmentation and Reassembly. transport layer packet may be too big to send in single IP packet. underlying data link protocol will constraint maximum IP length. fragmentation: IP packet divided into fragments by IP u u u each fragment becomes its own IP packet each address has same identifier, source, destination address fragment offset gives offset of data from start of original packet more fragment bit: 0 means last bit in this fragments not reassembled until final destination

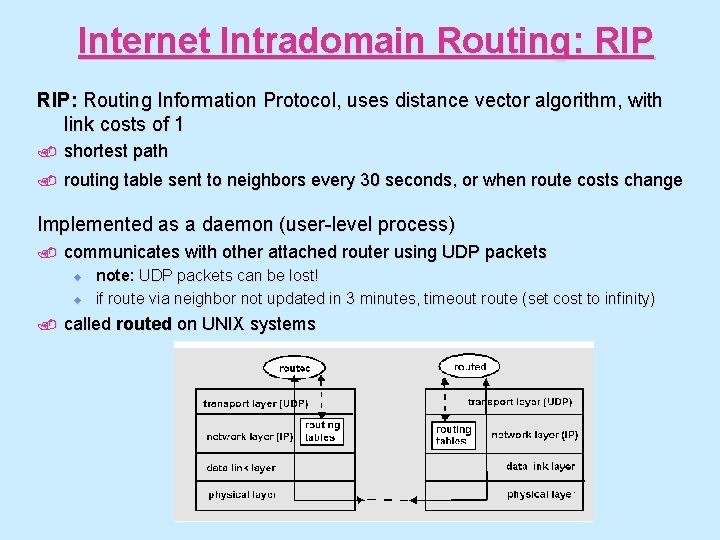

Internet Intradomain Routing: RIP: Routing Information Protocol, uses distance vector algorithm, with link costs of 1. shortest path . routing table sent to neighbors every 30 seconds, or when route costs change Implemented as a daemon (user-level process). communicates with other attached router using UDP packets u u . note: UDP packets can be lost! if route via neighbor not updated in 3 minutes, timeout route (set cost to infinity) called routed on UNIX systems

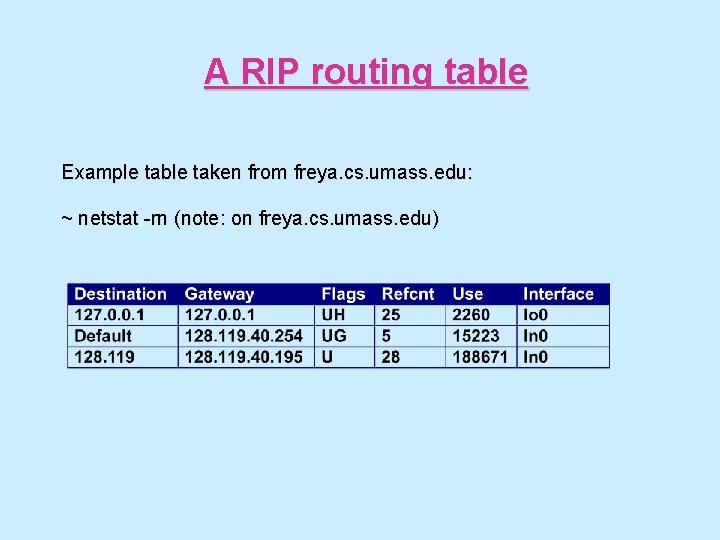

A RIP routing table Example table taken from freya. cs. umass. edu: ~ netstat -rn (note: on freya. cs. umass. edu)

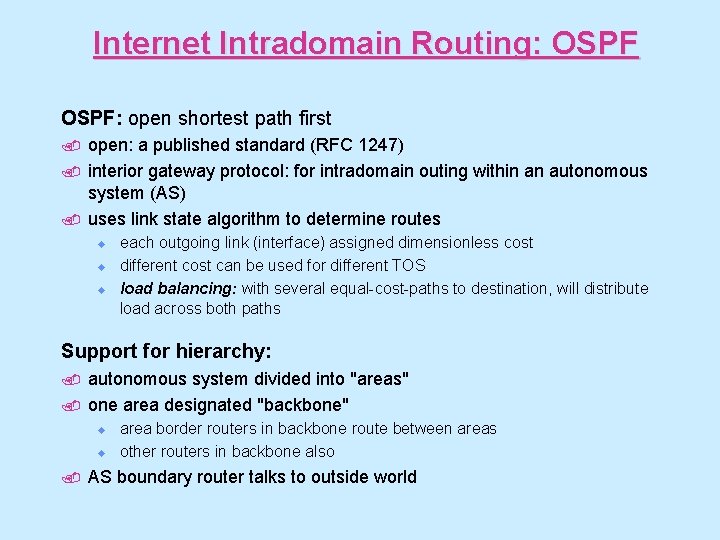

Internet Intradomain Routing: OSPF: open shortest path first. . . open: a published standard (RFC 1247) interior gateway protocol: for intradomain outing within an autonomous system (AS) uses link state algorithm to determine routes u u u each outgoing link (interface) assigned dimensionless cost different cost can be used for different TOS load balancing: with several equal-cost-paths to destination, will distribute load across both paths Support for hierarchy: . . autonomous system divided into "areas" one area designated "backbone" u u . area border routers in backbone route between areas other routers in backbone also AS boundary router talks to outside world

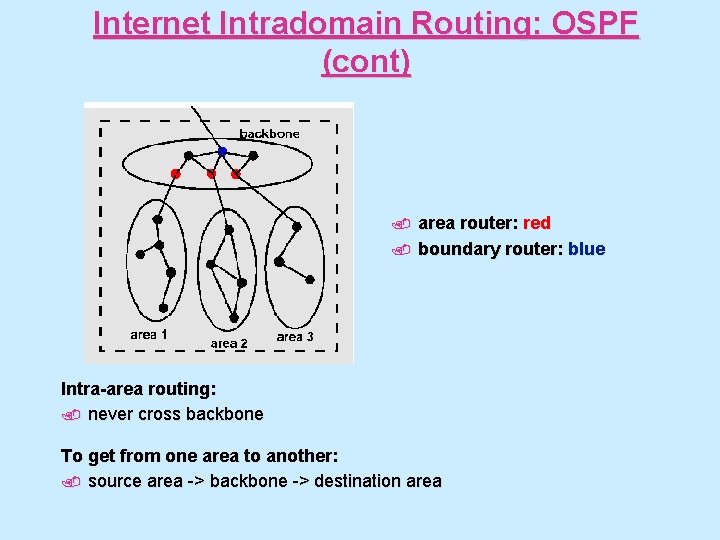

Internet Intradomain Routing: OSPF (cont) . . area router: red boundary router: blue Intra-area routing: . never cross backbone To get from one area to another: . source area -> backbone -> destination area

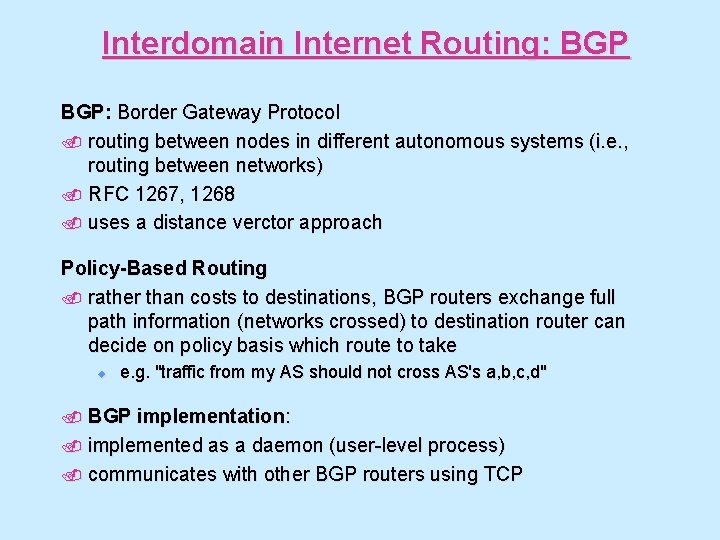

Interdomain Internet Routing: BGP: Border Gateway Protocol. routing between nodes in different autonomous systems (i. e. , routing between networks). RFC 1267, 1268. uses a distance verctor approach Policy-Based Routing. rather than costs to destinations, BGP routers exchange full path information (networks crossed) to destination router can decide on policy basis which route to take u e. g. "traffic from my AS should not cross AS's a, b, c, d" . BGP implementation: . implemented as a daemon (user-level process). communicates with other BGP routers using TCP

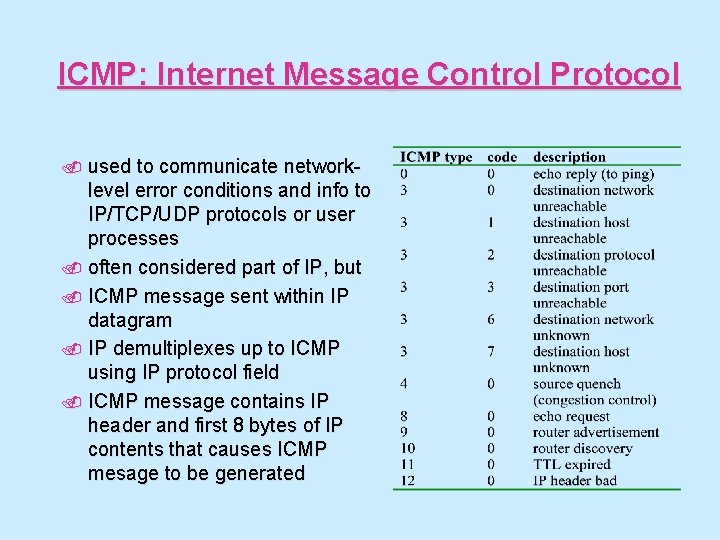

ICMP: Internet Message Control Protocol. used to communicate networklevel error conditions and info to IP/TCP/UDP protocols or user processes. often considered part of IP, but. ICMP message sent within IP datagram. IP demultiplexes up to ICMP using IP protocol field. ICMP message contains IP header and first 8 bytes of IP contents that causes ICMP mesage to be generated

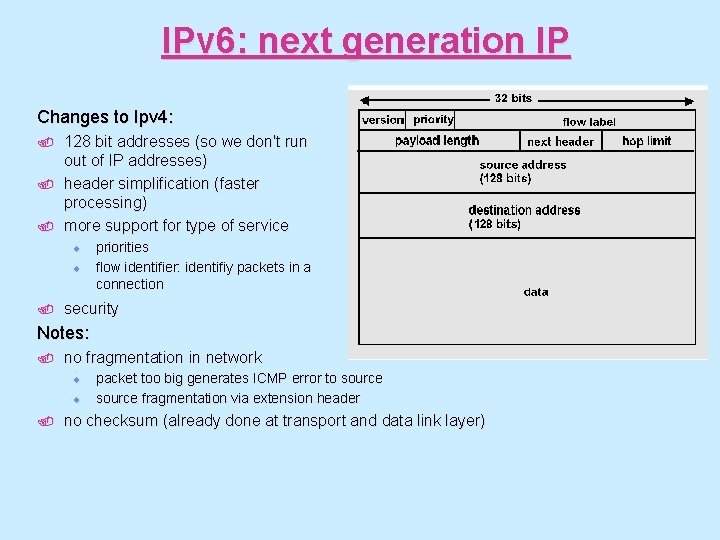

IPv 6: next generation IP Changes to Ipv 4: . . . 128 bit addresses (so we don't run out of IP addresses) header simplification (faster processing) more support for type of service u u . priorities flow identifier: identifiy packets in a connection security Notes: . no fragmentation in network u u . packet too big generates ICMP error to source fragmentation via extension header no checksum (already done at transport and data link layer)

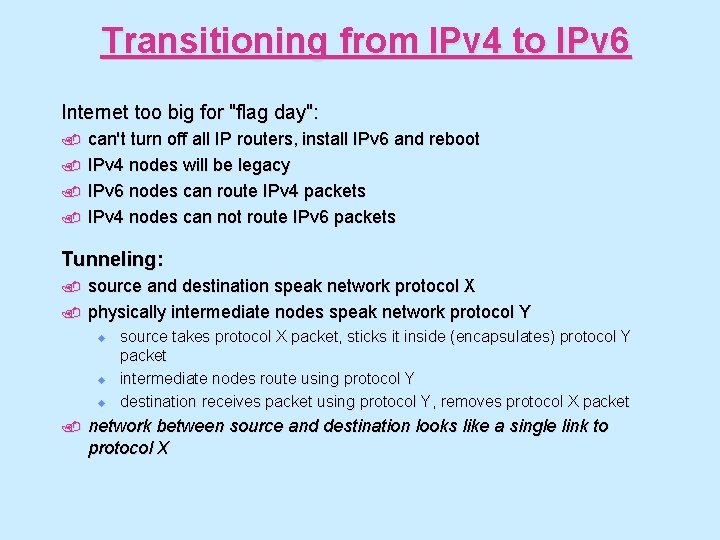

Transitioning from IPv 4 to IPv 6 Internet too big for "flag day": . . can't turn off all IP routers, install IPv 6 and reboot IPv 4 nodes will be legacy IPv 6 nodes can route IPv 4 packets IPv 4 nodes can not route IPv 6 packets Tunneling: . . source and destination speak network protocol X physically intermediate nodes speak network protocol Y u u u . source takes protocol X packet, sticks it inside (encapsulates) protocol Y packet intermediate nodes route using protocol Y destination receives packet using protocol Y, removes protocol X packet network between source and destination looks like a single link to protocol X

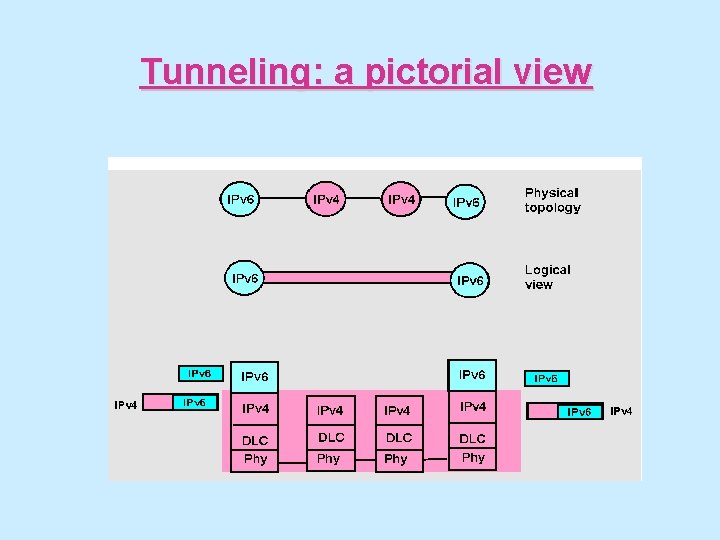

Tunneling: a pictorial view

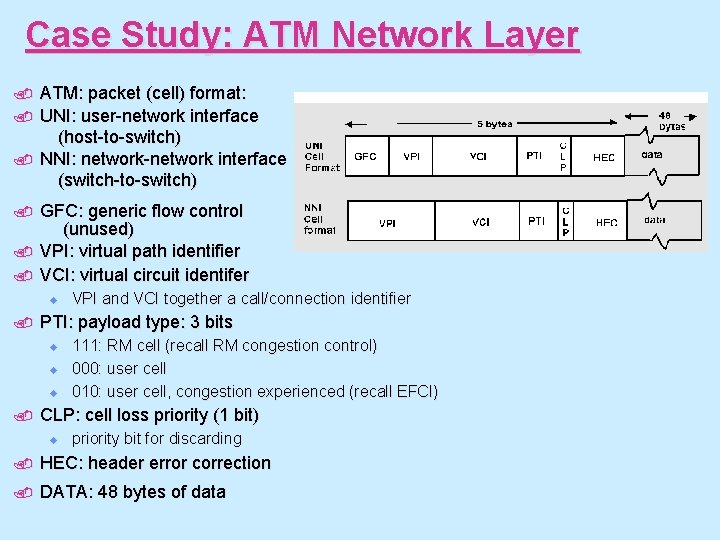

Case Study: ATM Network Layer. . . ATM: packet (cell) format: UNI: user-network interface (host-to-switch) NNI: network-network interface (switch-to-switch) GFC: generic flow control (unused) VPI: virtual path identifier VCI: virtual circuit identifer u . PTI: payload type: 3 bits u u u . VPI and VCI together a call/connection identifier 111: RM cell (recall RM congestion control) 000: user cell 010: user cell, congestion experienced (recall EFCI) CLP: cell loss priority (1 bit) u priority bit for discarding . HEC: header error correction . DATA: 48 bytes of data

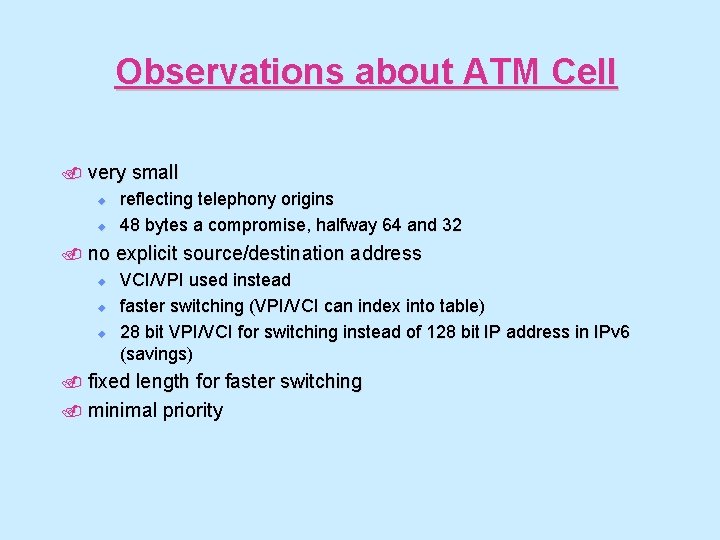

Observations about ATM Cell. very u u . no u u u small reflecting telephony origins 48 bytes a compromise, halfway 64 and 32 explicit source/destination address VCI/VPI used instead faster switching (VPI/VCI can index into table) 28 bit VPI/VCI for switching instead of 128 bit IP address in IPv 6 (savings) . fixed length for faster switching. minimal priority

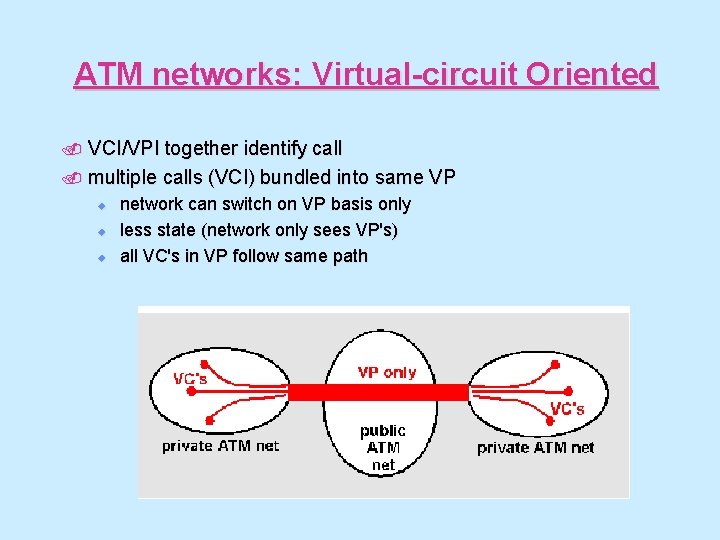

ATM networks: Virtual-circuit Oriented. VCI/VPI together identify call. multiple calls (VCI) bundled into same VP u u u network can switch on VP basis only less state (network only sees VP's) all VC's in VP follow same path

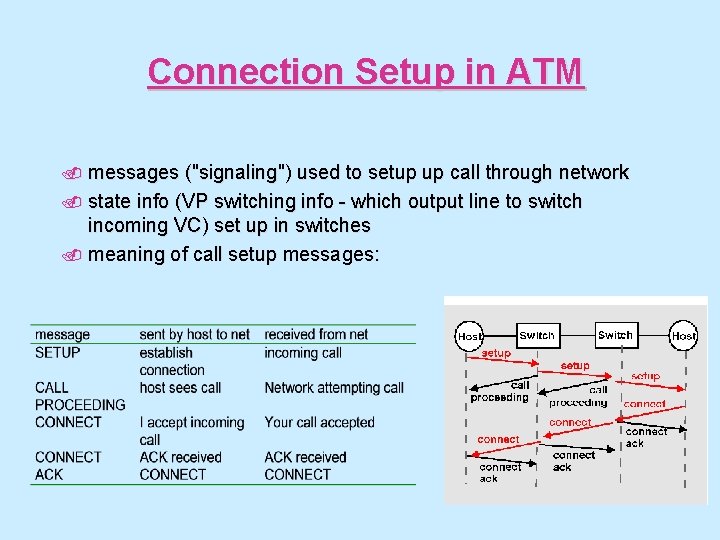

Connection Setup in ATM. messages ("signaling") used to setup up call through network. state info (VP switching info - which output line to switch incoming VC) set up in switches. meaning of call setup messages:

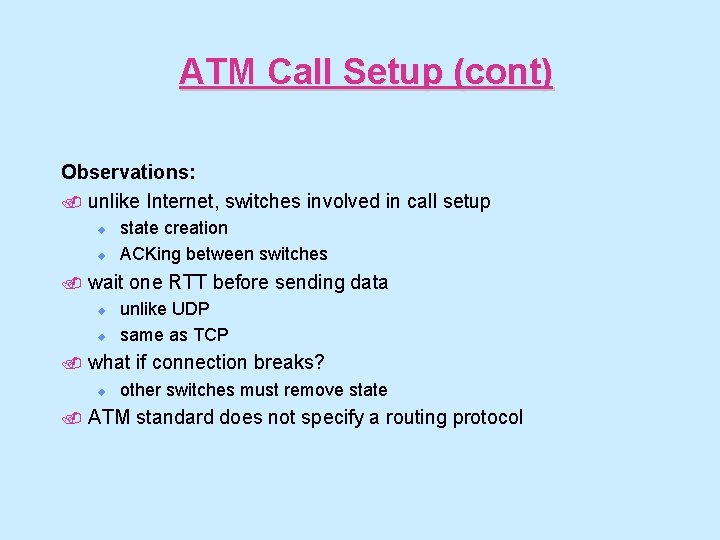

ATM Call Setup (cont) Observations: . unlike Internet, switches involved in call setup u u . wait one RTT before sending data u u . unlike UDP same as TCP what if connection breaks? u . state creation ACKing between switches other switches must remove state ATM standard does not specify a routing protocol

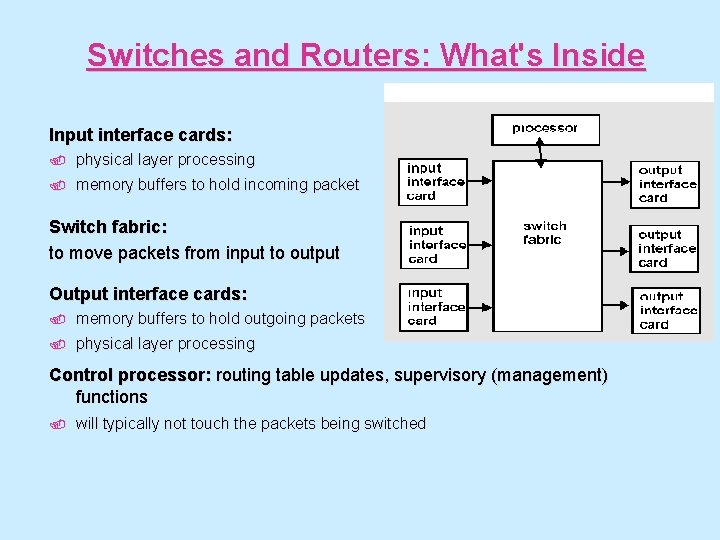

Switches and Routers: What's Inside Input interface cards: . physical layer processing . memory buffers to hold incoming packet Switch fabric: to move packets from input to output Output interface cards: . memory buffers to hold outgoing packets . physical layer processing Control processor: routing table updates, supervisory (management) functions. will typically not touch the packets being switched

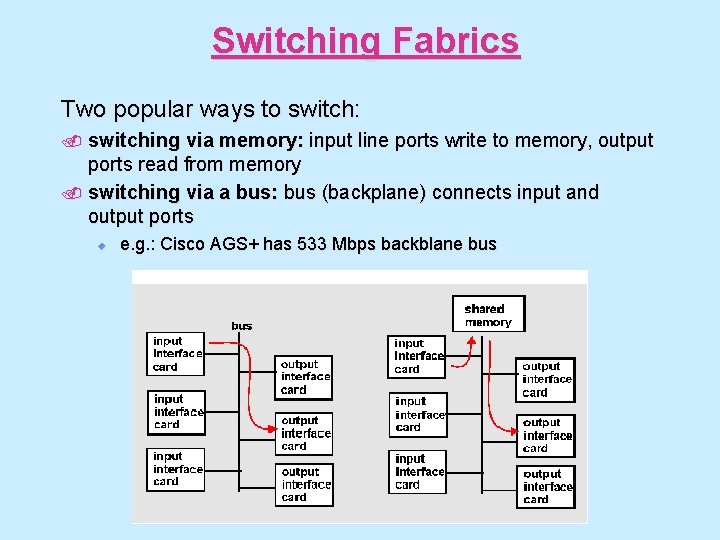

Switching Fabrics Two popular ways to switch: . switching via memory: input line ports write to memory, output ports read from memory. switching via a bus: bus (backplane) connects input and output ports u e. g. : Cisco AGS+ has 533 Mbps backblane bus

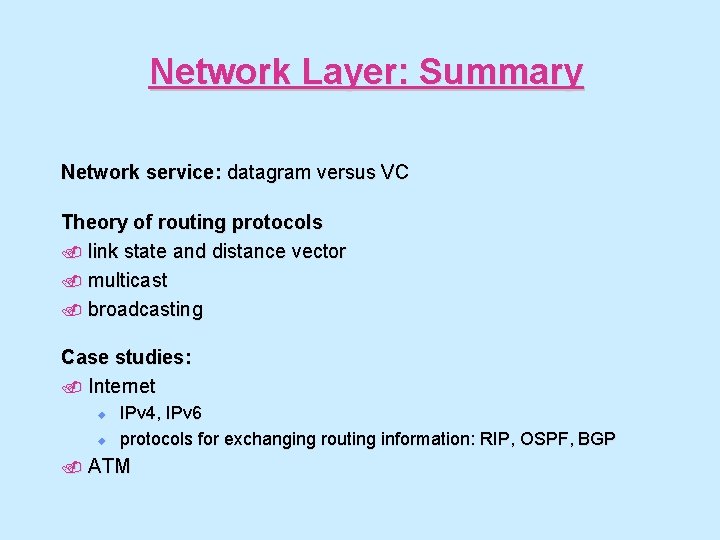

Network Layer: Summary Network service: datagram versus VC Theory of routing protocols. link state and distance vector. multicast. broadcasting Case studies: . Internet u u IPv 4, IPv 6 protocols for exchanging routing information: RIP, OSPF, BGP . ATM
