Hierarchical Part-Based Human Body Pose Estimation * Ramanan Navaratnam * Arasanathan Thayananthan † Prof. Phil Torr * Prof. Roberto Cipolla * University Of Cambridge † Oxford Brookes University 1
Introduction Input 2
Introduction Input Output 3
Overview 1. Motivation 2. Hierarchical parts 3. Template search 4. Pose estimation in a single frame 5. Temporal smoothing 6. Summary & Future work 4
Overview 1. Problem motivation ? ? ? 2. Hierarchical parts 3. Template search 4. Pose estimation in a single frame 5. Temporal smoothing 6. Summary & Future work 5
Overview 1. Problem motivation ? ? ? 2. Hierarchical parts 3. Template search 4. Pose estimation in a single frame 5. Temporal smoothing 6. Summary & Future work 6
Overview 1. Problem motivation ? ? ? 2. Hierarchical parts 3. Template search 4. Pose estimation in a single frame 5. Temporal smoothing 6. Summary & Future work 7
Motivation v ‘Real-time Object Detection for Smart Vehicles’ – D. M. Gavrila & V. Philomin (ICCV 1999) v ‘Filtering using a tree-based estimator’ – Stenger et. al. (ICCV 2003) 8
Motivation v ‘Real-time Object Detection for Smart Vehicles’ – D. M. Gavrila & V. Philomin (ICCV 1999) v ‘Filtering using a tree-based estimator’ – Stenger et. al. (ICCV 2003) v Exponential increase of templates with dimensions 9
Motivation v v ‘Pictorial Structures for Object Recognition’ – P. Felzenszwalb & D. Huttenlocher (IJCV 2005) ‘Human upper body pose estimation in static images’ – M. W. Lee & I. Cohen (ECCV 2004) 10
Motivation v v ‘Pictorial Structures for Object Recognition’ – P. Felzenszwalb & D. Huttenlocher (IJCV 2005) ‘Human upper body pose estimation in static images’ – M. W. Lee & I. Cohen (ECCV 2004) v v Part based approach Assembling parts together is complex 11
Motivation v ‘Automatic Annotation of Everyday Movements’ – D. Ramanan & D. A. Forsyth (NIPS 2003) v ‘ 3 -D model-based tracking of humans in action: a multi-view approach’ – D. M. Gavrila & L. S. Davis (CVPR 1996) 12
Motivation v ‘Automatic Annotation of Everyday Movements’ – D. Ramanan & D. A. Forsyth (NIPS 2003) v ‘ 3 -D model-based tracking of humans in action: a multi-view approach’ – D. M. Gavrila & L. S. Davis (CVPR 1996) v ‘State space decomposition’ 13
Hierarchical Parts 14
Hierarchical Parts 15
Hierarchical Parts 16
Hierarchical Parts 17
Hierarchical Parts p(xi/xparent(i)) Conditional prior Spa tial dim ens ion s (t ran slat ion ) les Jo ng int A 18
Hierarchical Parts True Positive Head and torso Upper arm Lower Arm False Positive 19
Hierarchical Parts Detection Threshold = 0. 81 Part Detections Head and torso 56 61 20
Hierarchical Parts Detection Threshold = 0. 81 Part Detections Head and torso 56 61 Lower arm 13 199 44 993 21
Template Search 22
Template Search 23
Template Search 24
Template Search Features v v Chamfer distance Appearance 25
Template Search Features v v Chamfer distance Appearance 26
Template Search Features v v Chamfer distance Appearance 27

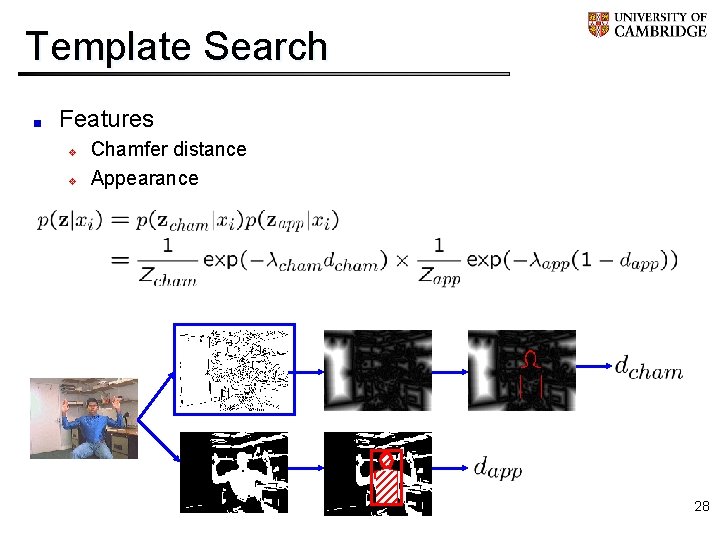

Template Search Features v v Chamfer distance Appearance 28
Template Search Features v v Chamfer distance Appearance 29
Template Search Features v v Chamfer distance Appearance 30
Template Search Features v v Chamfer distance Appearance 31

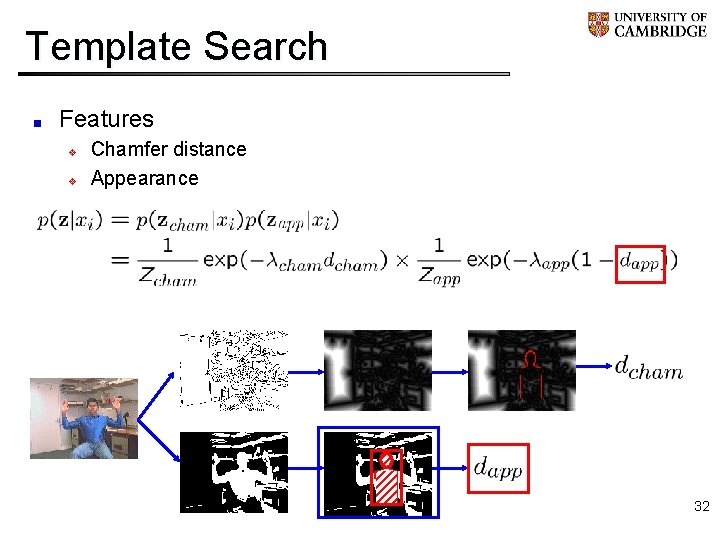

Template Search Features v v Chamfer distance Appearance 32
Template Search Features v v Chamfer distance Appearance 33

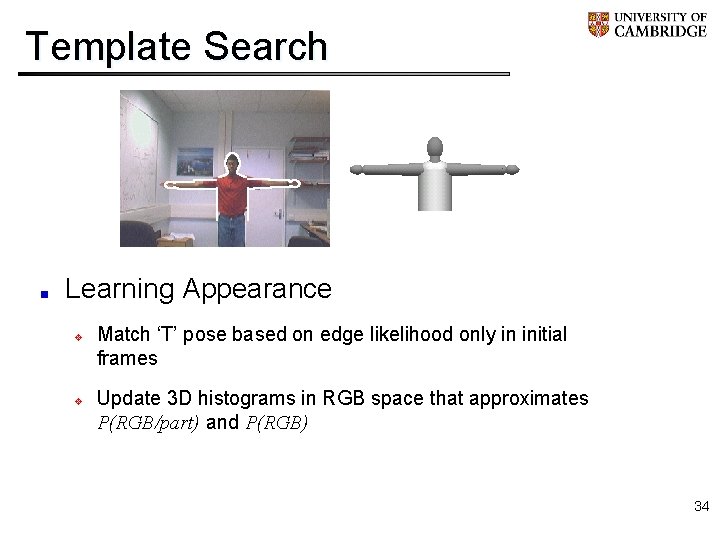

Template Search Learning Appearance v v Match ‘T’ pose based on edge likelihood only in initial frames Update 3 D histograms in RGB space that approximates P(RGB/part) and P(RGB) 34
Pose Estimation in a Single Frame 35

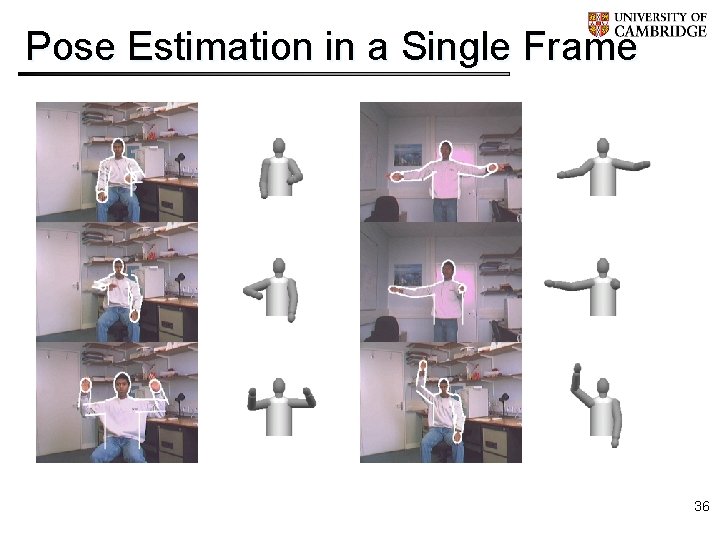

Pose Estimation in a Single Frame 36
Pose Estimation in a Single Frame 37
Temporal Smoothing HMM 38
Temporal Smoothing T=t HMM 39

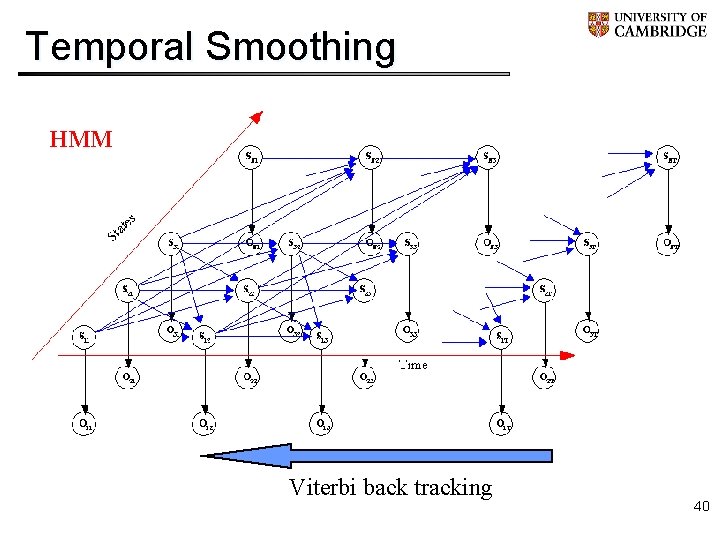

Temporal Smoothing HMM Viterbi back tracking 40
Temporal Smoothing 41 Viterbi back tracking
Temporal Smoothing 42

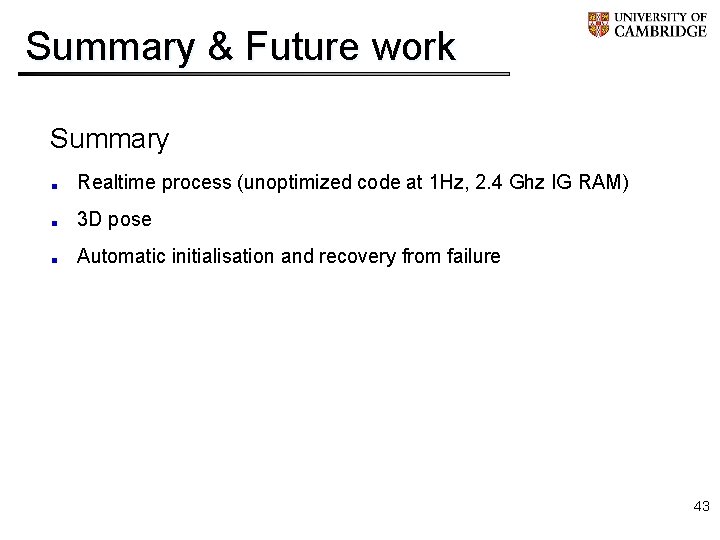

Summary & Future work Summary Realtime process (unoptimized code at 1 Hz, 2. 4 Ghz IG RAM) 3 D pose Automatic initialisation and recovery from failure 43
Summary & Future work Summary Realtime process (unoptimized code at 1 Hz, 2. 4 Ghz IG RAM) 3 D pose Automatic initialisation and recovery from failure Future work Extend robustness to illumination changes Non-fronto-parallel poses Poses when arms are inside the body silhouette Simple gesture recognition by assigning semantics to regions of articulation space 44
