SUMMARY • Hi. Rad. Mat web site • EYETS 2016 -2017 • Recovery line Helium • Installation HRMT 28 and HRMT 18 • Optical line BTV
Hi. Rad. Mat Web Site https: //espace. cern. ch/hiradmat-sps/Wiki%20 Pages/Experiments. aspx • Update of the tables of the experiments 2016 and 2017 • Experiments planning 2017: • https: //espace. cern. ch/hiradmatsps/EDMS%20 documentation/Planning%20 Hi. Rad. Mat%202017. pdf • HRMT Tables Status: • https: //espace. cern. ch/hiradmatsps/EDMS%20 documentation/Status%20 tables. pdf

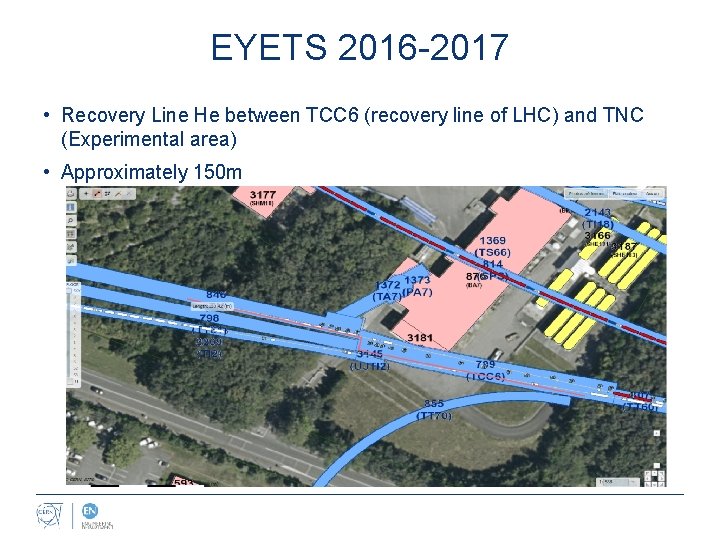

EYETS 2016 -2017 • Recovery Line He between TCC 6 (recovery line of LHC) and TNC (Experimental area) • Approximately 150 m

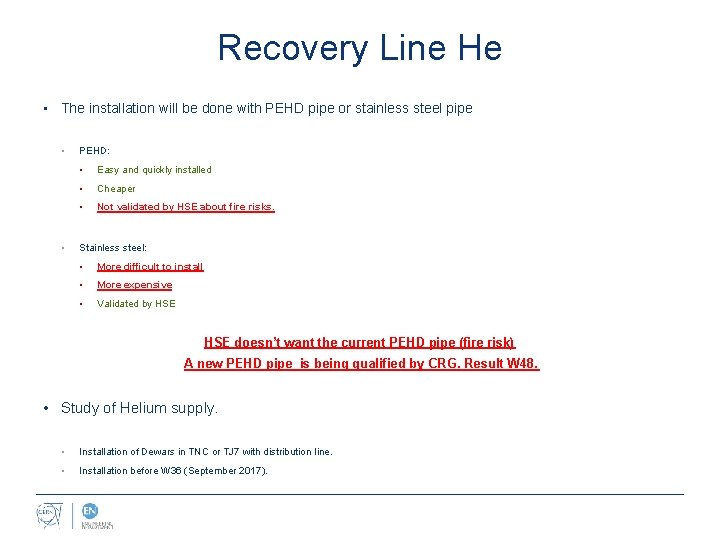

Recovery Line He • The installation will be done with PEHD pipe or stainless steel pipe • • PEHD: • Easy and quickly installed • Cheaper • Not validated by HSE about fire risks. Stainless steel: • More difficult to install • More expensive • Validated by HSE doesn’t want the current PEHD pipe (fire risk) A new PEHD pipe is being qualified by CRG. Result W 48. • Study of Helium supply. • Installation of Dewars in TNC or TJ 7 with distribution line. • Installation before W 36 (September 2017).
EYETS 2016 -2017 • Installation HRMT 28 (TCDI) and HRMT 18 (CRY 2) before W 17. HRMT 28 HRMT 18

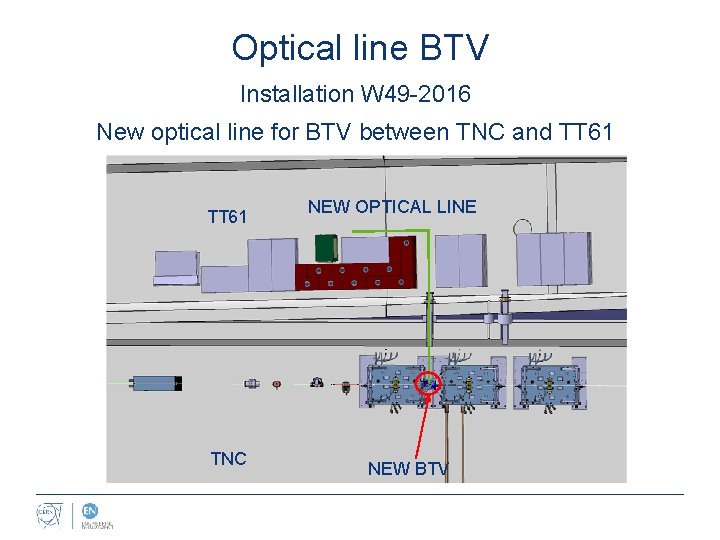

Optical line BTV Installation W 49 -2016 New optical line for BTV between TNC and TT 61 TNC NEW OPTICAL LINE NEW BTV
OPTIC 45° BEAM

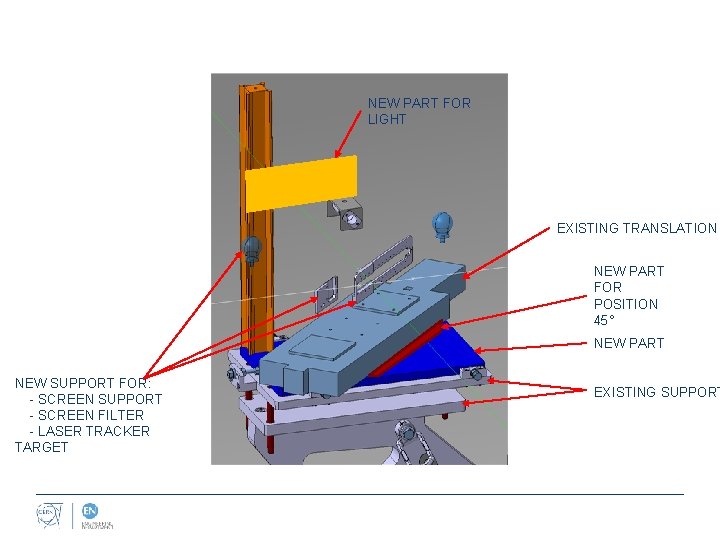

NEW PART FOR LIGHT EXISTING TRANSLATION NEW PART FOR POSITION 45° NEW PART NEW SUPPORT FOR: - SCREEN SUPPORT - SCREEN FILTER - LASER TRACKER TARGET EXISTING SUPPORT
