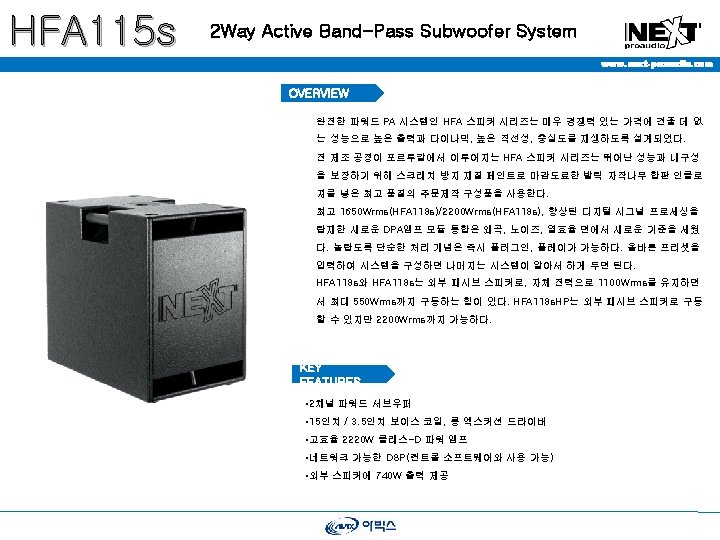

HFA 115 s 2 Way Active BandPass Subwoofer

HFA 115 s 2 Way Active Band-Pass Subwoofer System www. next-proaudio. com Specifications MODEL HFA 115 s Type 2 channels Active Bandpass subwoofer FREQUENCY RESPONSE 34 Hz - 200 Hz (-6 d. B) MAXIMUM SPL (Calc. ) (Continuous/Peak) 131 d. B/137 d. B (Half-space) DRIVERS 15" (380 mm)/3. 5" (76 mm) VC, high excursion B&C custom speaker AMPLIFIER TECHNOLOGY 2 channel switched mode class D with DSP SECTION POWER (RMS/Program/Peak) Subwoofer (internal): 1100 W/1480 W/2960 W Satellite (external): 550 W/740 W/1480 W (4Ω) CONTROLLER PC controlled Networkable DSP 24 bit/48 k. Hz SYSTEM PRESETS 6 Factory and 2 User, selectable via software or rear panel switch PC CONTROL Via RS 485 and suplied software ’’SOUNDWARE’’ DSP ADJUSTABLE PARAMETERS 6 PEQ, delay, HPF, LPF, Bass Enhancer, Level, Polarity, Mute AC OPERATING VOLTAGE 180 V - 245 VAC NOMINAL POWER CONSUMPTION 425 W CONNECTORS Signal: 2 x XLR ; Power: 2 x power. CON ; Output to external satellite: 1 x NL 4 DIMENSIONS (Wx. Hx. D) 430 x 650 x 577 mm WEIGHT 36 kg
