HFA 115 Active 2 Way Speaker System www

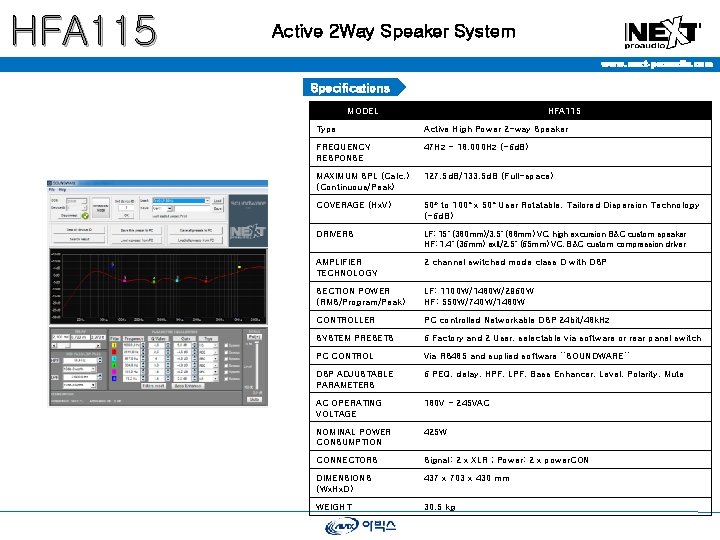

HFA 115 Active 2 Way Speaker System www. next-proaudio. com Specifications MODEL HFA 115 Type Active High Power 2 -way Speaker FREQUENCY RESPONSE 47 Hz - 18. 000 Hz (-6 d. B) MAXIMUM SPL (Calc. ) (Continuous/Peak) 127. 5 d. B/133. 5 d. B (Full-space) COVERAGE (Hx. V) 50º to 100° x 50° User Rotatable, Tailored Dispersion Technology (-6 d. B) DRIVERS LF: 15" (380 mm)/3. 5" (88 mm) VC, high excursion B&C custom speaker HF: 1. 4" (36 mm) exit/2. 5" (65 mm) VC, B&C custom compression driver AMPLIFIER TECHNOLOGY 2 channel switched mode class D with DSP SECTION POWER (RMS/Program/Peak) LF: 1100 W/1480 W/2960 W HF: 550 W/740 W/1480 W CONTROLLER PC controlled Networkable DSP 24 bit/48 k. Hz SYSTEM PRESETS 6 Factory and 2 User, selectable via software or rear panel switch PC CONTROL Via RS 485 and suplied software ’’SOUNDWARE’’ DSP ADJUSTABLE PARAMETERS 6 PEQ, delay, HPF, LPF, Bass Enhancer, Level, Polarity, Mute AC OPERATING VOLTAGE 180 V - 245 VAC NOMINAL POWER CONSUMPTION 425 W CONNECTORS Signal: 2 x XLR ; Power: 2 x power. CON DIMENSIONS (Wx. Hx. D) 437 x 703 x 430 mm WEIGHT 30. 5 kg
