Heterostructures Optoelectronic Devices n Light generation in semiconductor

Heterostructures & Optoelectronic Devices n Light generation in semiconductor n Light emission diode (LED) n Semiconductor laser n Heterojunction transistors n Photo-detector

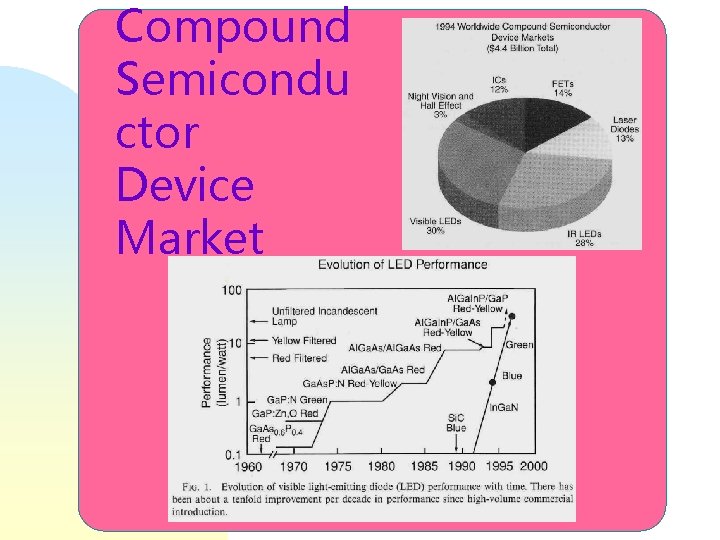

Compound Semicondu ctor Device Market

Light Emission in Semiconductors E conduction electron band - h Band gap valence band + Electron-hole recombination hole Si: Eg = 1. 1 e. V Ga. As: Eg = 1. 4 e. V, = 880 nm Al. As: Eg = 2. 2 e. V, = 565 nm Si: indirect bandgap, ineffective Ga. As: direct bandgap, effective

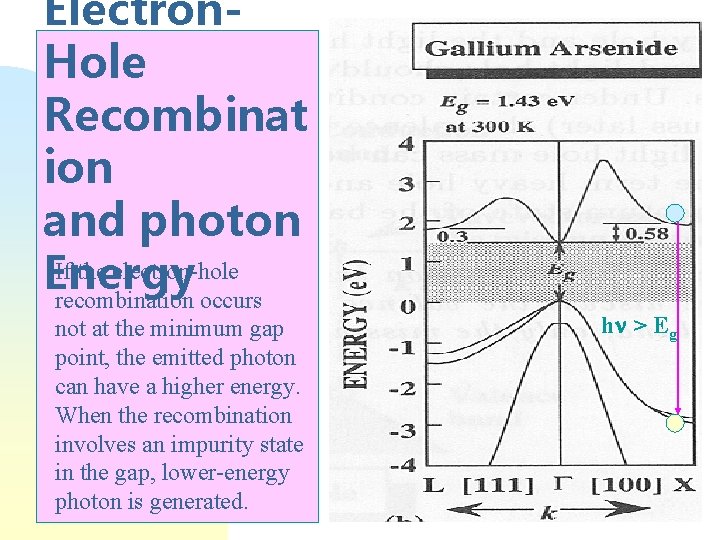

Electron. Hole Recombinat ion and photon If the electron-hole Energy recombination occurs not at the minimum gap point, the emitted photon can have a higher energy. When the recombination involves an impurity state in the gap, lower-energy photon is generated. h > Eg

Light Emission Diode More efficient Simple PN Junction LED heterojunction LED

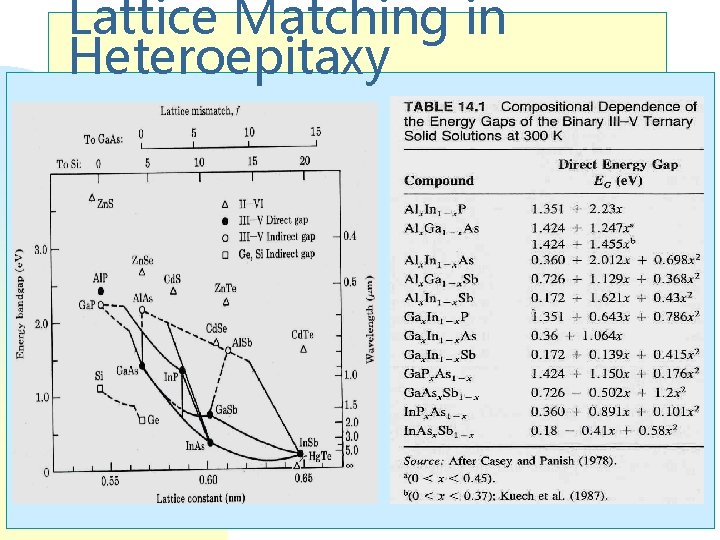

Lattice Matching in Heteroepitaxy

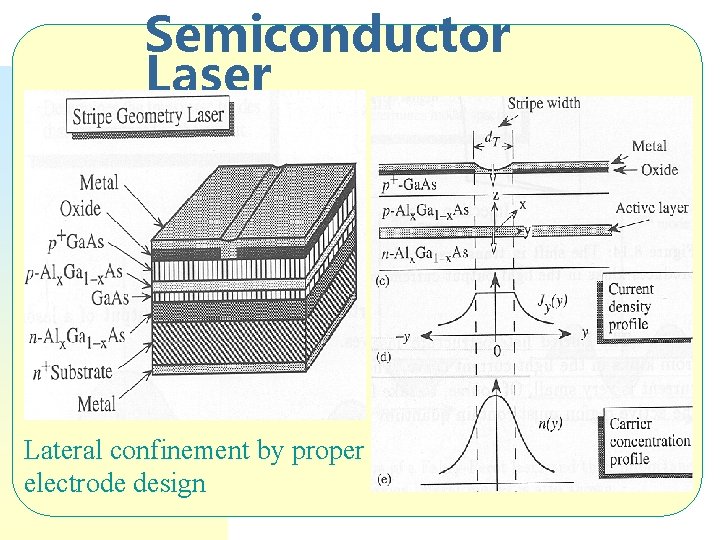

Semiconductor Laser Lateral confinement by proper electrode design

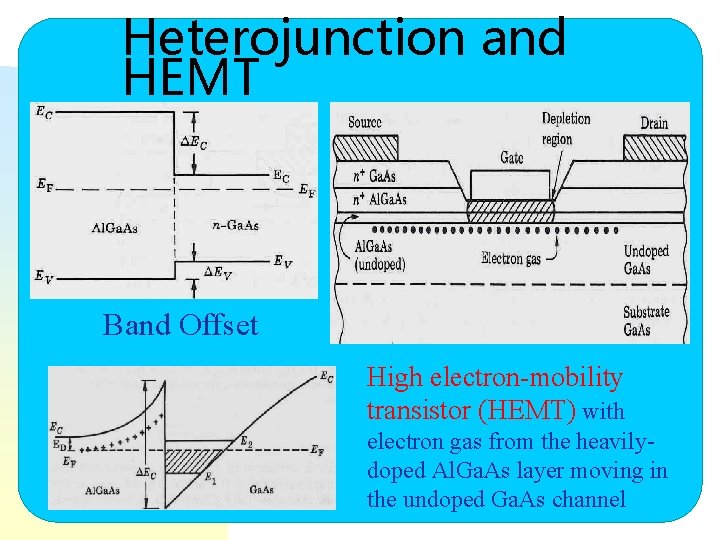

Heterojunction and HEMT Band Offset High electron-mobility transistor (HEMT) with electron gas from the heavilydoped Al. Ga. As layer moving in the undoped Ga. As channel

Quantum Well and Superlattice Bound states in quantum well to mini-band in superlattice Adjustable bandgap Strained superlatti

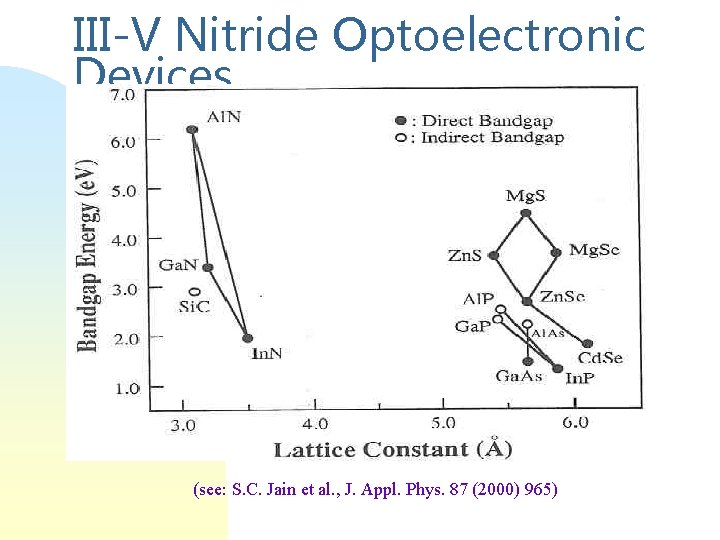

III-V Nitride Optoelectronic Devices (see: S. C. Jain et al. , J. Appl. Phys. 87 (2000) 965)

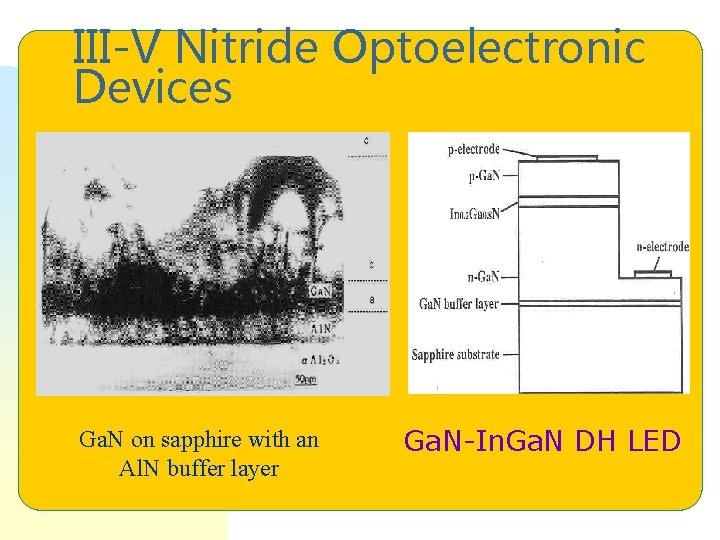

III-V Nitride Optoelectronic Devices Ga. N on sapphire with an Al. N buffer layer Ga. N-In. Ga. N DH LED

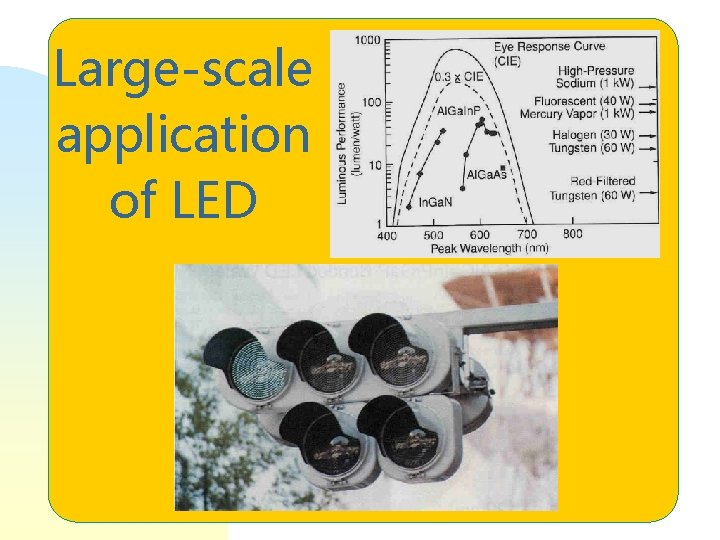

Large-scale application of LED

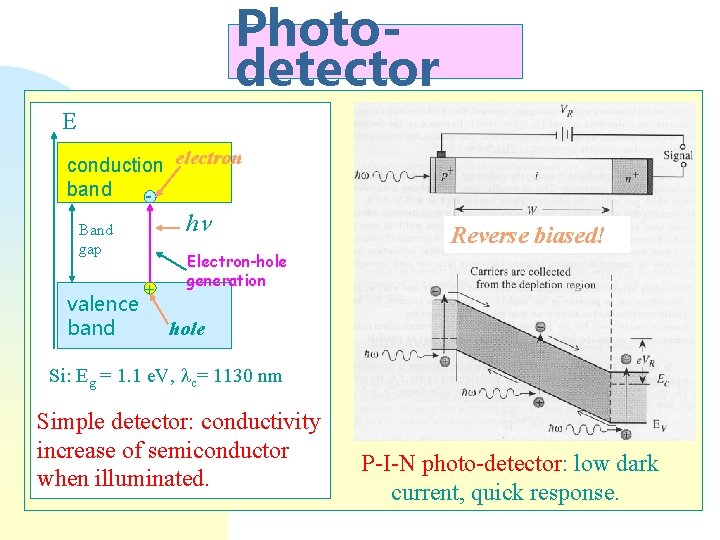

Photodetector E conduction electron band - h Band gap valence band + Reverse biased! Electron-hole generation hole Si: Eg = 1. 1 e. V, c= 1130 nm Simple detector: conductivity increase of semiconductor when illuminated. P-I-N photo-detector: low dark current, quick response.
