Herzlich Willkommen Bienvenue Welcome JUMO e. TRON M 100 according to data sheet 70. 1061 Electronic 2 -channel microstat Klaus Otto

JUMO e. TRON M 100 model 70. 1061 Electronic 2 -channel microstat Special version model 70. 1061 2 analog inputs Maximum 4 relays The inputs can be freely assigned to the relays. Operation only via keys (no setup) Version 1. 0 / © Peter Weibel 2

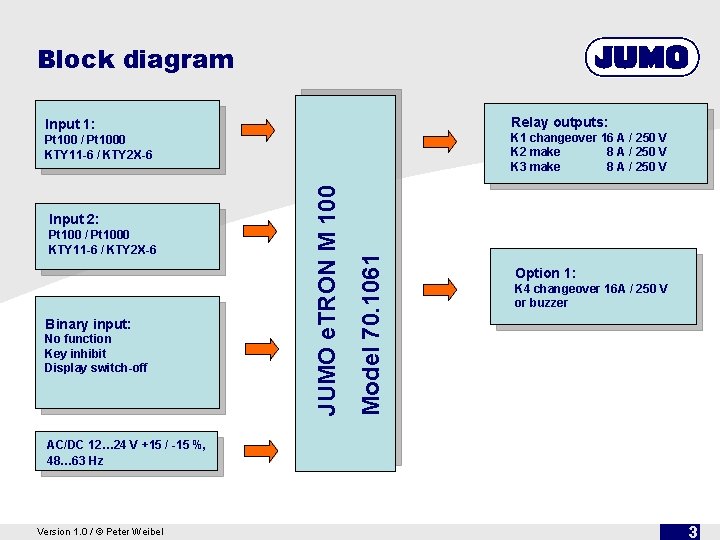

Block diagram Relay outputs: Input 1: K 1 changeover 16 A / 250 V K 2 make 8 A / 250 V K 3 make 8 A / 250 V Pt 100 / Pt 1000 KTY 11 -6 / KTY 2 X-6 Binary input: No function Key inhibit Display switch-off Model 70. 1061 Input 2: JUMO e. TRON M 100 Pt 100 / Pt 1000 KTY 11 -6 / KTY 2 X-6 Option 1: K 4 changeover 16 A / 250 V or buzzer AC/DC 12… 24 V +15 / -15 %, 48… 63 Hz Version 1. 0 / © Peter Weibel 3

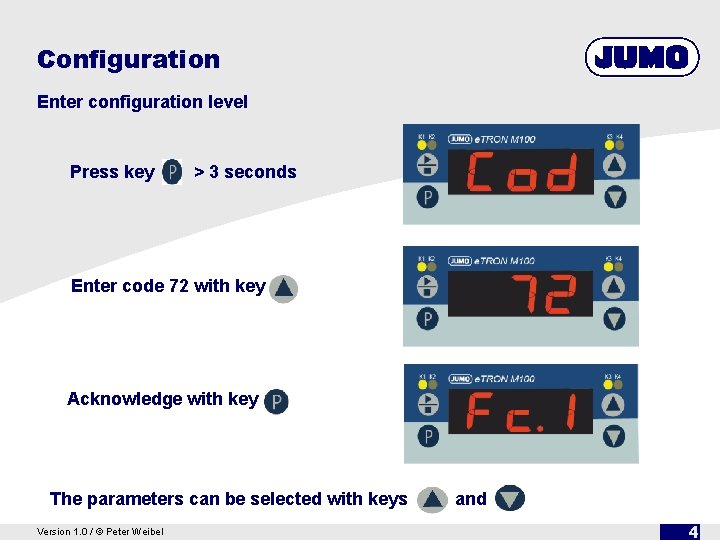

Configuration Enter configuration level Press key > 3 seconds Enter code 72 with key Acknowledge with key The parameters can be selected with keys Version 1. 0 / © Peter Weibel and 4

Contact functions The maximum 4 relays can be freely assigned to both measurement inputs. For each relay the functions direct (cooling) or inverse (heating) can be selected and a setpoint with hysteresis can be set. For relays 2… 4 the switching function („absolute“ = fixed switching point or „relative“ = switching point depends on the setpoint) can additionally be selected. Version 1. 0 / © Peter Weibel 5

Cooling (switching operation) With fixed setpoints (absolute) Version 1. 0 / © Peter Weibel 6

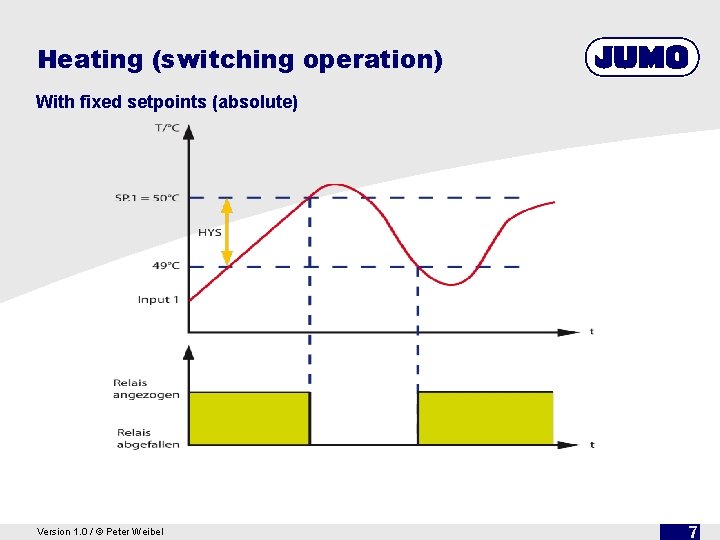

Heating (switching operation) With fixed setpoints (absolute) Version 1. 0 / © Peter Weibel

Relative switching function K 2 to K 4 Version 1. 0 / © Peter
