Herringbone Colin Murphy Jan 21 2012 Atomic Packing
Herringbone Colin Murphy Jan 21 2012
Atomic Packing http: //che. uri. edu/course/che 333/Structure. pdf
Atomic Packing i. e. Fe http: //che. uri. edu/course/che 333/Structure. pdf
Atomic Packing i. e. Fe http: //che. uri. edu/course/che 333/Structure. pdf
Atomic Packing http: //che. uri. edu/course/che 333/Structure. pdf
Atomic Packing i. e. Cu Ag http: //che. uri. edu/course/che 333/Structure. pdf
Atomic Packing i. e. Cu Ag http: //che. uri. edu/course/che 333/Structure. pdf i. e. Co Zn
Atomic Packing i. e. Cu Ag Au http: //che. uri. edu/course/che 333/Structure. pdf i. e. Co Zn
FCC vs HCP Stacking • FCC Stacking ABC • HCP Stacking AB AB

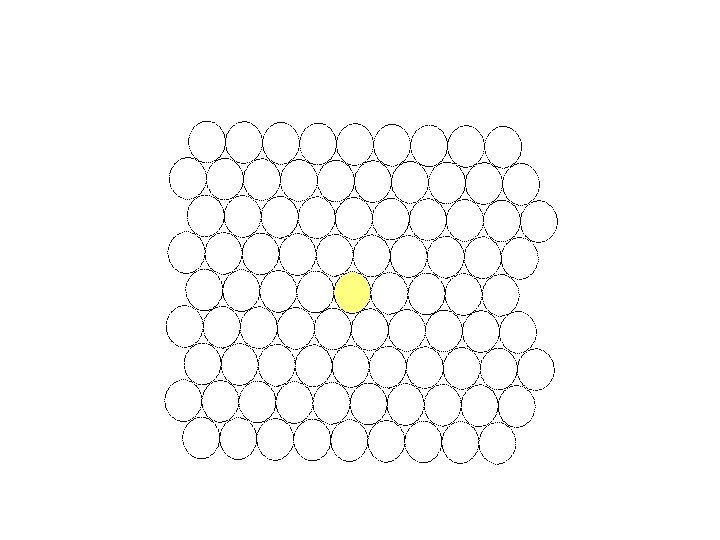

Close packed direction
√ 3 direction A = Atomic Diameter 2 A 1 A √ 3 A
112 Au{111} 23 x 3 110
Dimensions: Bulk Au = 2. 88 Å Therefore in 112 direction spacing = 2. 88 Å In 110 direction spacing = 2. 75 Å That’s why Maksymovych et al. say average distance = 2. 81 Å
Friend Group Help understand unit cell Dosing of O or S restructures herringbone Min, B. K. et al. Topics in Catalysis 36, 77– 90 (2005).
Herringbone Black arrow: Compressed axes White arrow: uncompressed √ 3 axes Dashed line: partially compressed √ 3
Image of herring bone Love, J. C. et al. Chemical reviews 105, 1103– 69 (2005).
Image of herring bone Love, J. C. et al. Chemical reviews 105, 1103– 69 (2005).
Uses of herringbone Patterning surface with molecules Gao, L. et al. Constructing an Array of Anchored Single-Molecule Rotors on Gold Surfaces. PRL 101, 1– 4 (2008).
Corso, M. et al. Condens. Matter Phys 21, 353001 (2009).
Repain, V. et al. Europhysics Letters (EPL) 47, 435– 441 (1999).
Repain, V. et al. Europhysics Letters (EPL) 47, 435– 441 (1999).
Yin, F. et al. Surface Science 600, 1504– 1509 (2006).
Extra slides from here on
Repain, V. et al. Europhysics Letters (EPL) 47, 435– 441 (1999).
- Slides: 25
