HEMOGLOBIN DETERMINATION Cyanmethemoglobin Method

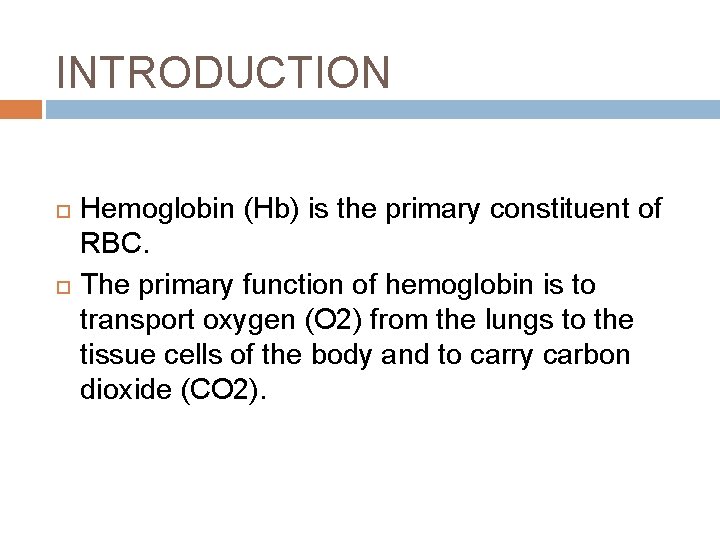

INTRODUCTION Hemoglobin (Hb) is the primary constituent of RBC. The primary function of hemoglobin is to transport oxygen (O 2) from the lungs to the tissue cells of the body and to carry carbon dioxide (CO 2).

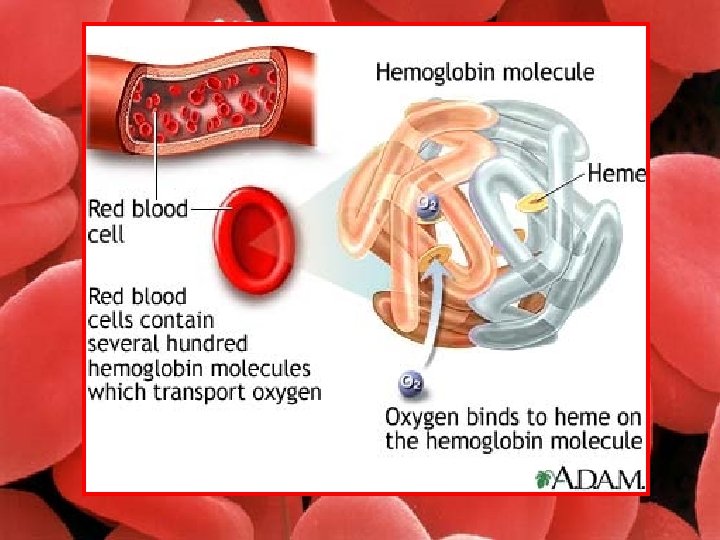

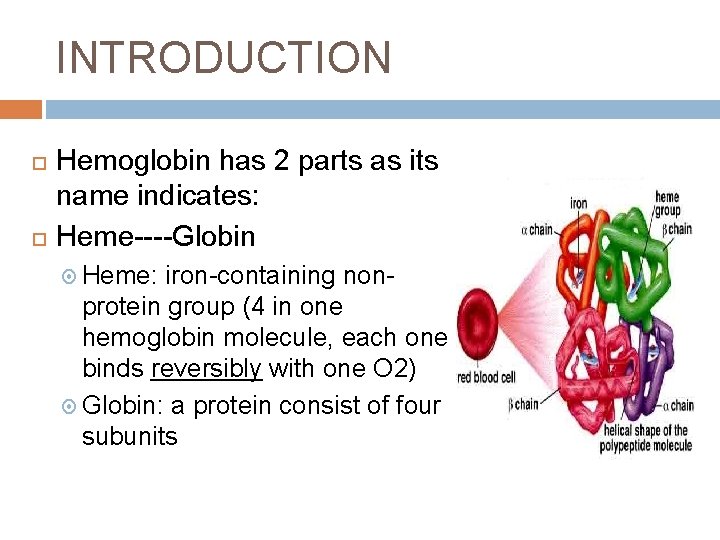

INTRODUCTION Hemoglobin has 2 parts as its name indicates: Heme----Globin Heme: iron-containing nonprotein group (4 in one hemoglobin molecule, each one binds reversibly with one O 2) Globin: a protein consist of four subunits

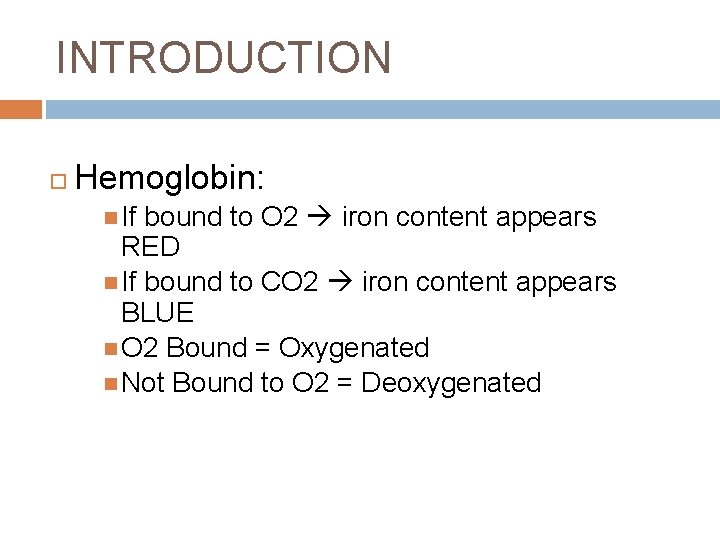

INTRODUCTION Hemoglobin: If bound to O 2 iron content appears RED If bound to CO 2 iron content appears BLUE O 2 Bound = Oxygenated Not Bound to O 2 = Deoxygenated

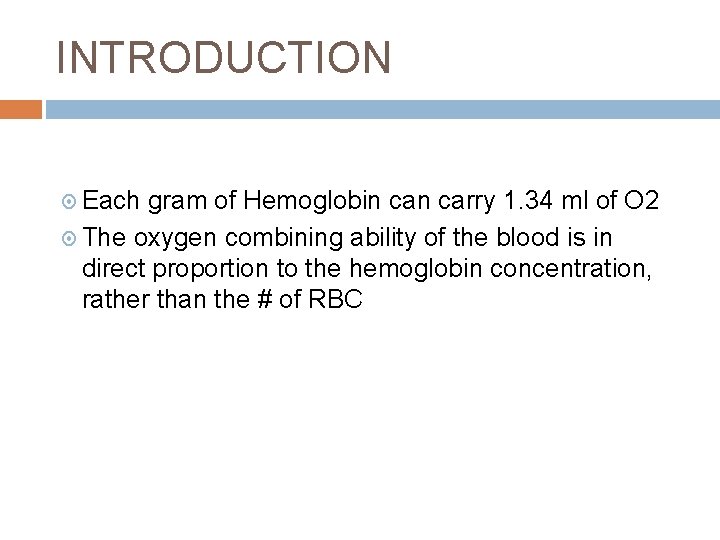

INTRODUCTION Each gram of Hemoglobin carry 1. 34 ml of O 2 The oxygen combining ability of the blood is in direct proportion to the hemoglobin concentration, rather than the # of RBC

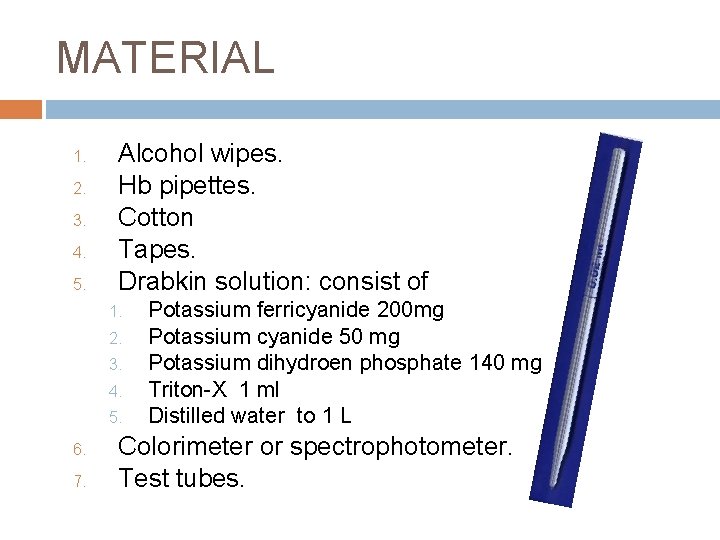

MATERIAL 1. 2. 3. 4. 5. Alcohol wipes. Hb pipettes. Cotton Tapes. Drabkin solution: consist of 1. 2. 3. 4. 5. 6. 7. Potassium ferricyanide 200 mg Potassium cyanide 50 mg Potassium dihydroen phosphate 140 mg Triton-X 1 ml Distilled water to 1 L Colorimeter or spectrophotometer. Test tubes.

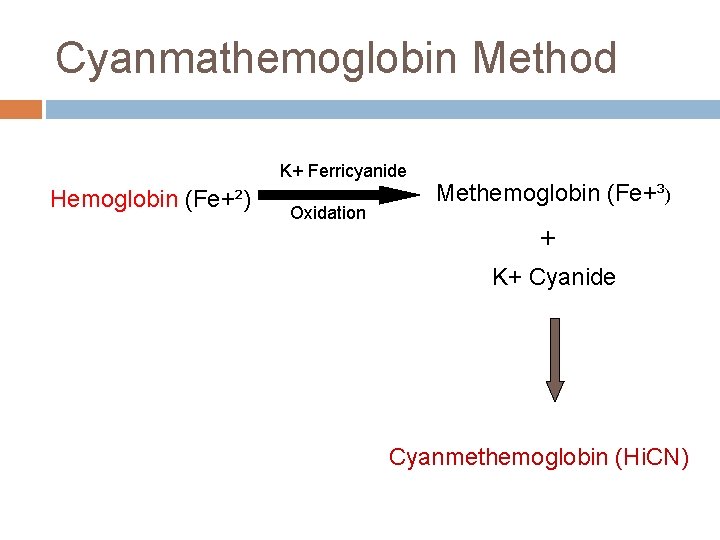

Cyanmathemoglobin Method K+ Ferricyanide Hemoglobin (Fe+²) Oxidation Methemoglobin (Fe+³) + K+ Cyanide Cyanmethemoglobin (Hi. CN)

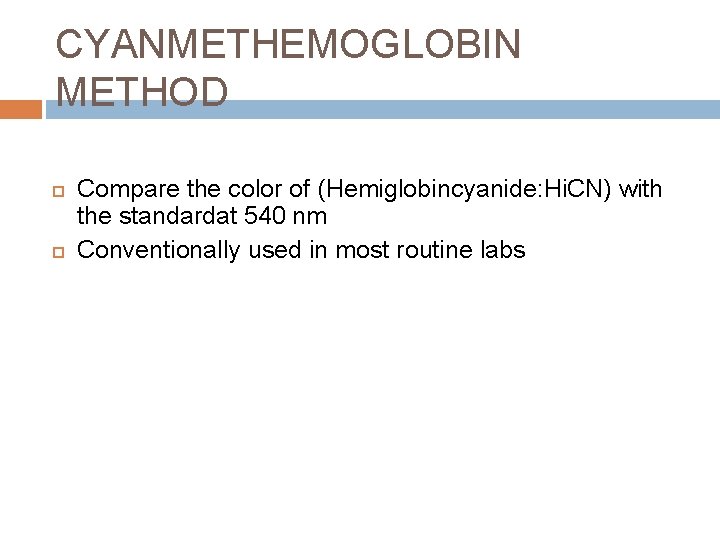

CYANMETHEMOGLOBIN METHOD Compare the color of (Hemiglobincyanide: Hi. CN) with the standardat 540 nm Conventionally used in most routine labs

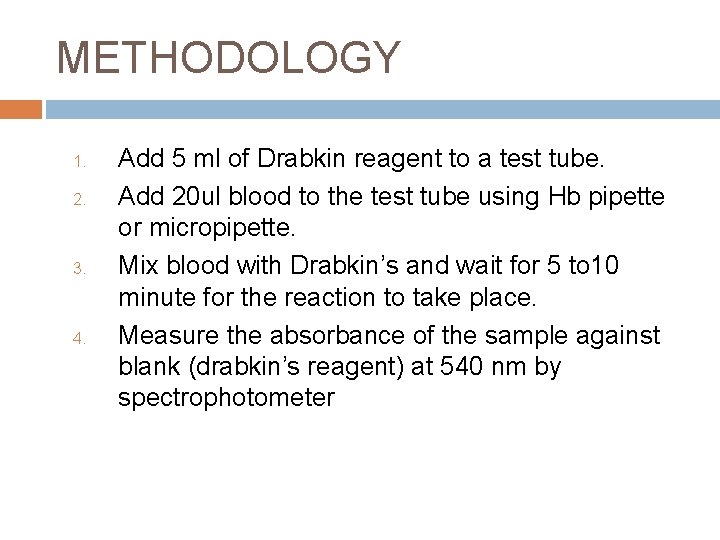

METHODOLOGY 1. 2. 3. 4. Add 5 ml of Drabkin reagent to a test tube. Add 20 ul blood to the test tube using Hb pipette or micropipette. Mix blood with Drabkin’s and wait for 5 to 10 minute for the reaction to take place. Measure the absorbance of the sample against blank (drabkin’s reagent) at 540 nm by spectrophotometer

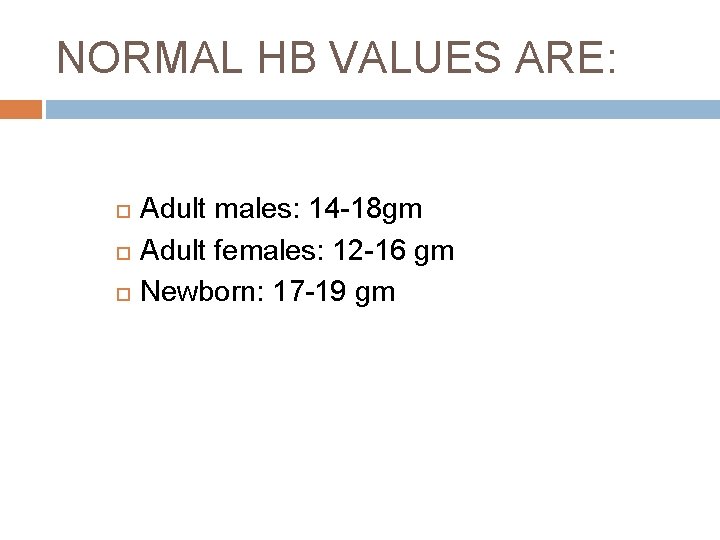

NORMAL HB VALUES ARE: Adult males: 14 -18 gm Adult females: 12 -16 gm Newborn: 17 -19 gm

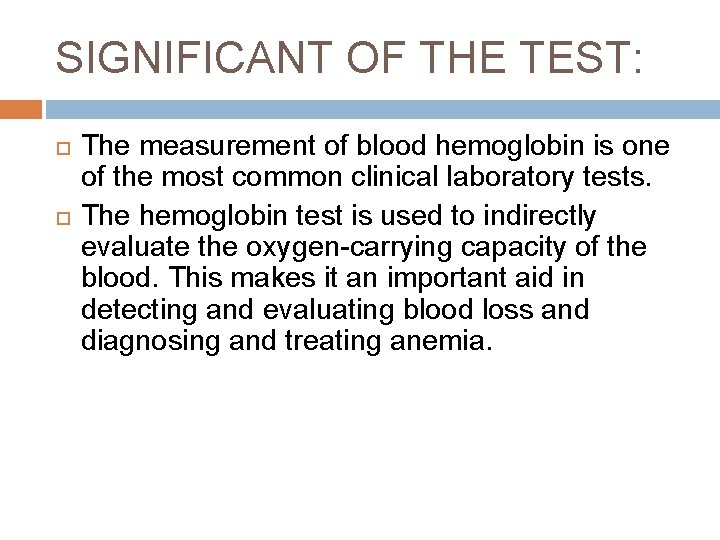

SIGNIFICANT OF THE TEST: The measurement of blood hemoglobin is one of the most common clinical laboratory tests. The hemoglobin test is used to indirectly evaluate the oxygen-carrying capacity of the blood. This makes it an important aid in detecting and evaluating blood loss and diagnosing and treating anemia.

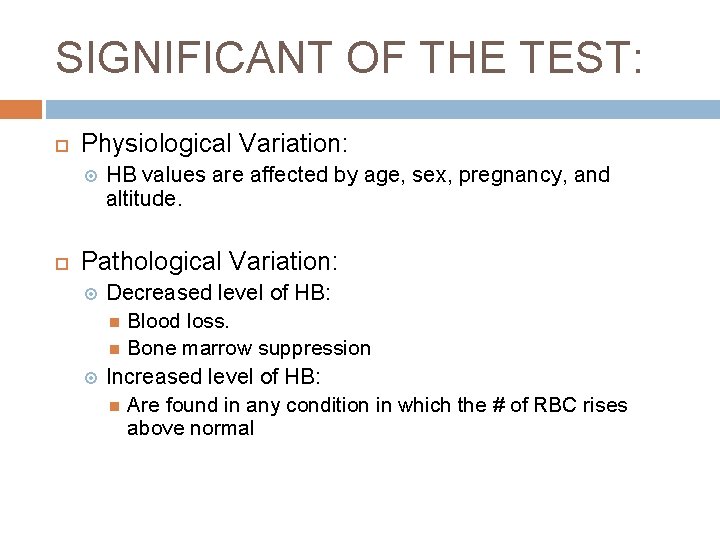

SIGNIFICANT OF THE TEST: Physiological Variation: HB values are affected by age, sex, pregnancy, and altitude. Pathological Variation: Decreased level of HB: Blood loss. Bone marrow suppression Increased level of HB: Are found in any condition in which the # of RBC rises above normal

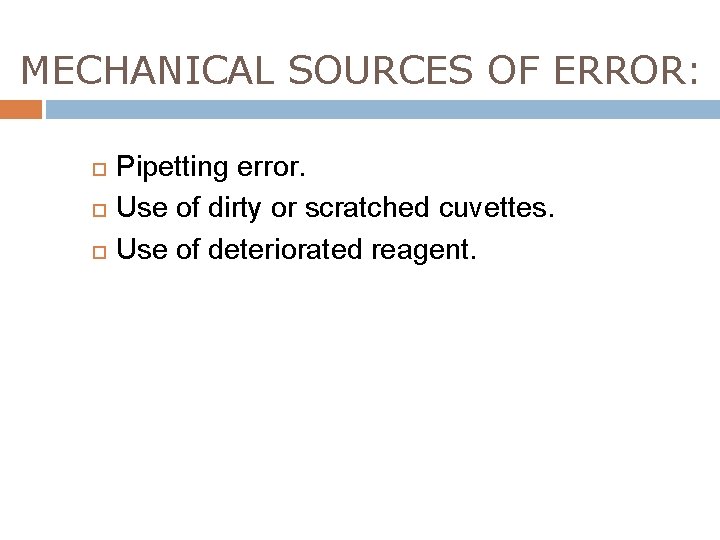

MECHANICAL SOURCES OF ERROR: Pipetting error. Use of dirty or scratched cuvettes. Use of deteriorated reagent.

HEMATOCRIT (Packed Cell Volume of Whole Blood)

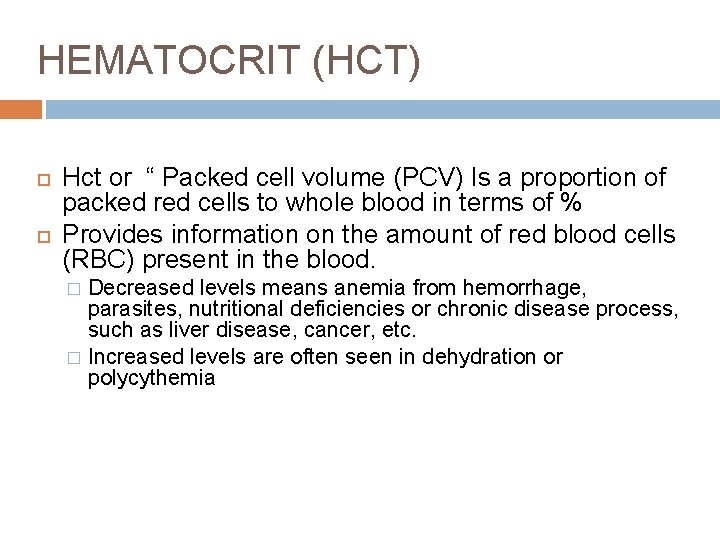

HEMATOCRIT (HCT) Hct or “ Packed cell volume (PCV) Is a proportion of packed red cells to whole blood in terms of % Provides information on the amount of red blood cells (RBC) present in the blood. Decreased levels means anemia from hemorrhage, parasites, nutritional deficiencies or chronic disease process, such as liver disease, cancer, etc. � Increased levels are often seen in dehydration or polycythemia �

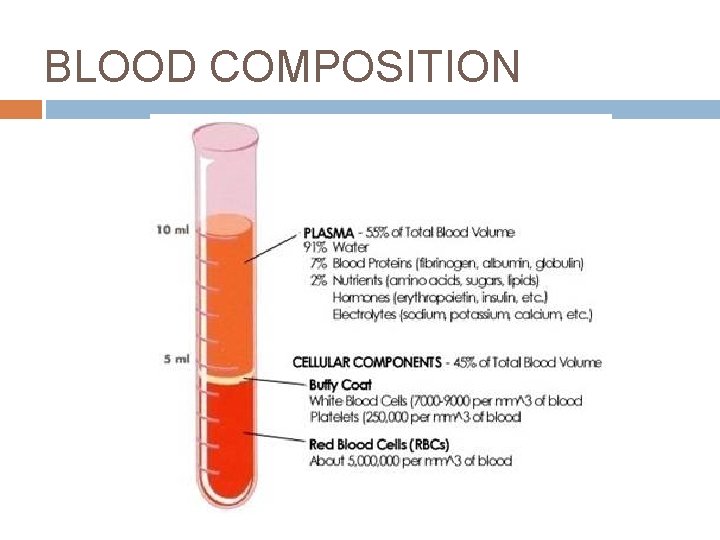

BLOOD COMPOSITION

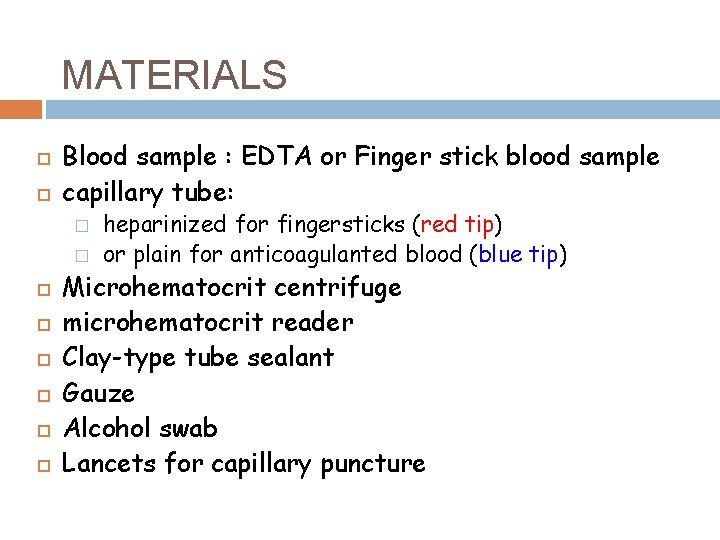

MATERIALS Blood sample : EDTA or Finger stick blood sample capillary tube: � � heparinized for fingersticks (red tip) or plain for anticoagulanted blood (blue tip) Microhematocrit centrifuge microhematocrit reader Clay-type tube sealant Gauze Alcohol swab Lancets for capillary puncture

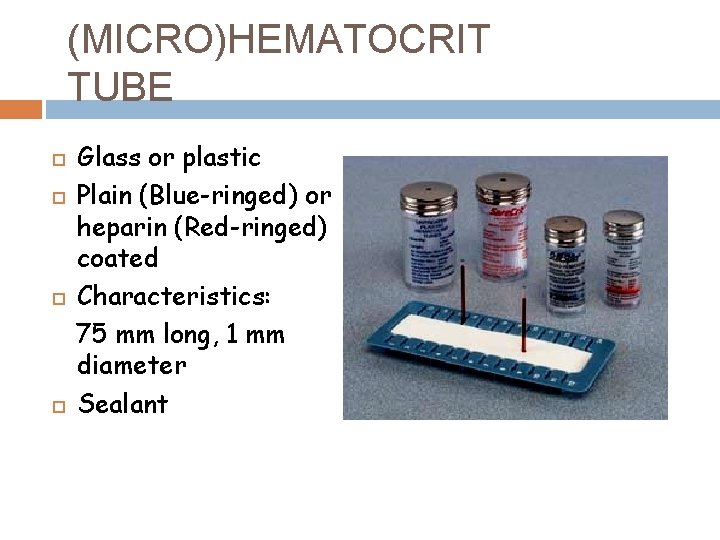

(MICRO)HEMATOCRIT TUBE Glass or plastic Plain (Blue-ringed) or heparin (Red-ringed) coated Characteristics: 75 mm long, 1 mm diameter Sealant

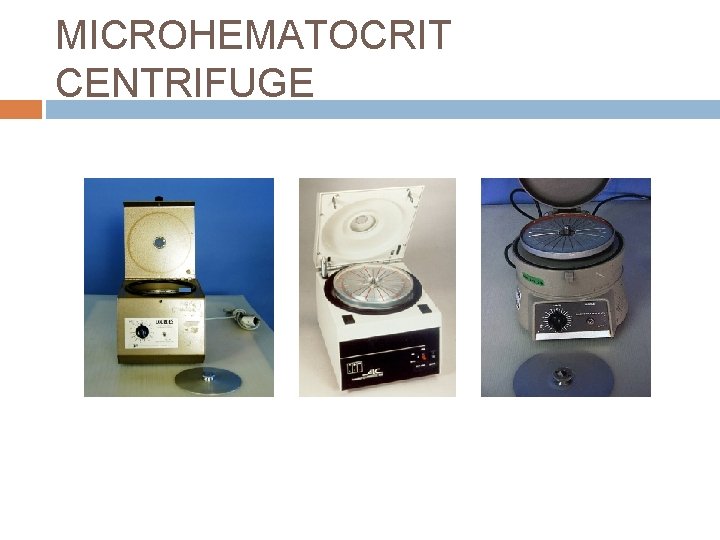

MICROHEMATOCRIT CENTRIFUGE

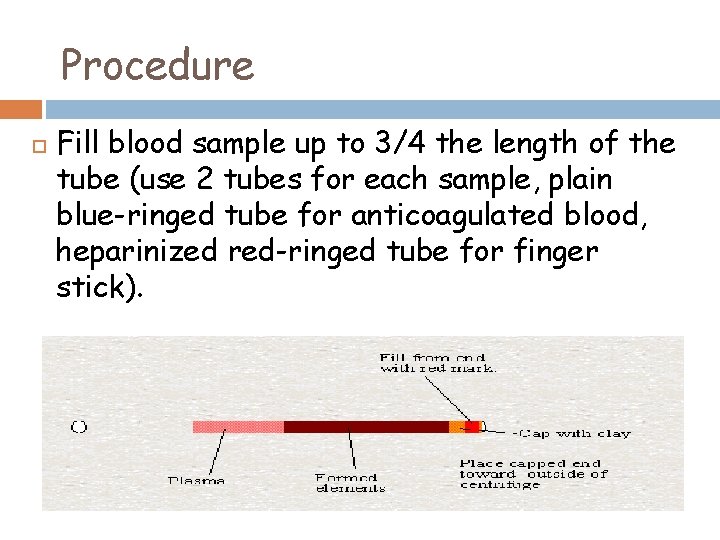

Procedure Fill blood sample up to 3/4 the length of the tube (use 2 tubes for each sample, plain blue-ringed tube for anticoagulated blood, heparinized red-ringed tube for finger stick).

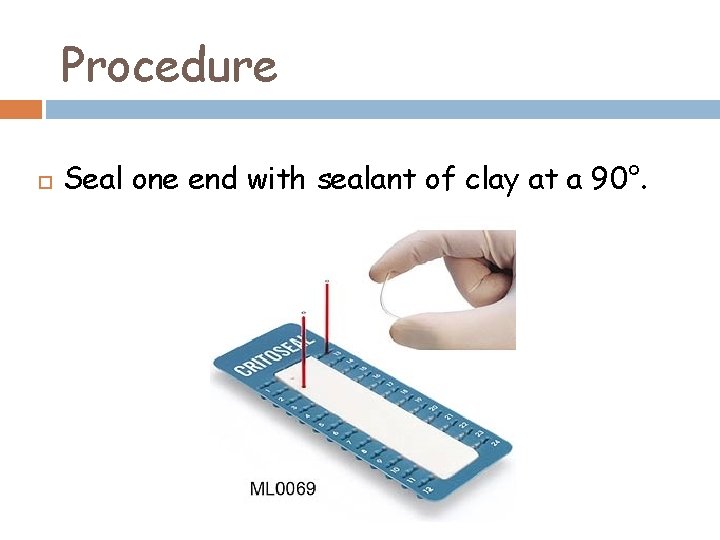

Procedure Seal one end with sealant of clay at a 90°.

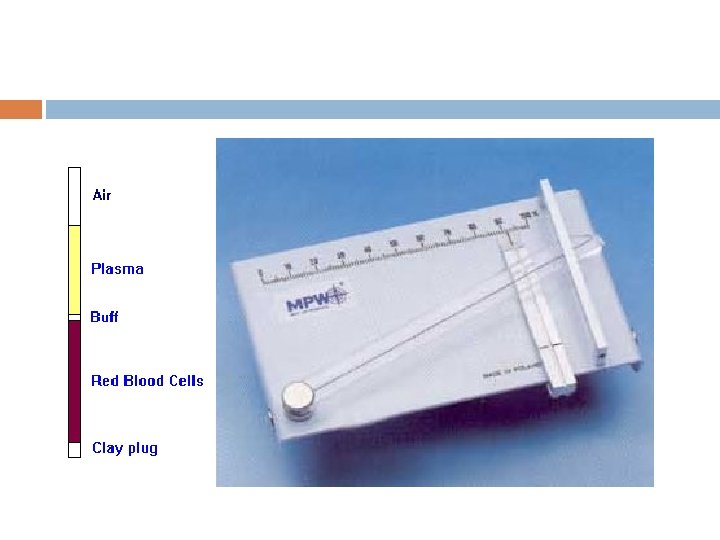

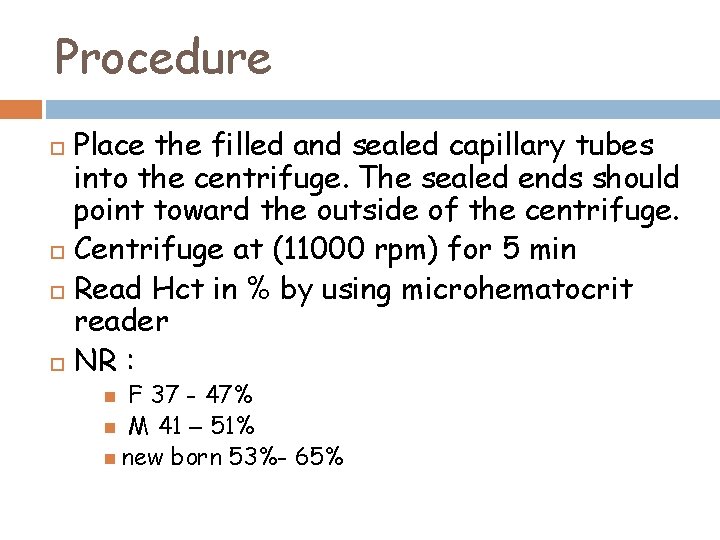

Procedure Place the filled and sealed capillary tubes into the centrifuge. The sealed ends should point toward the outside of the centrifuge. Centrifuge at (11000 rpm) for 5 min Read Hct in % by using microhematocrit reader NR : F 37 - 47% M 41 – 51% new born 53%- 65%

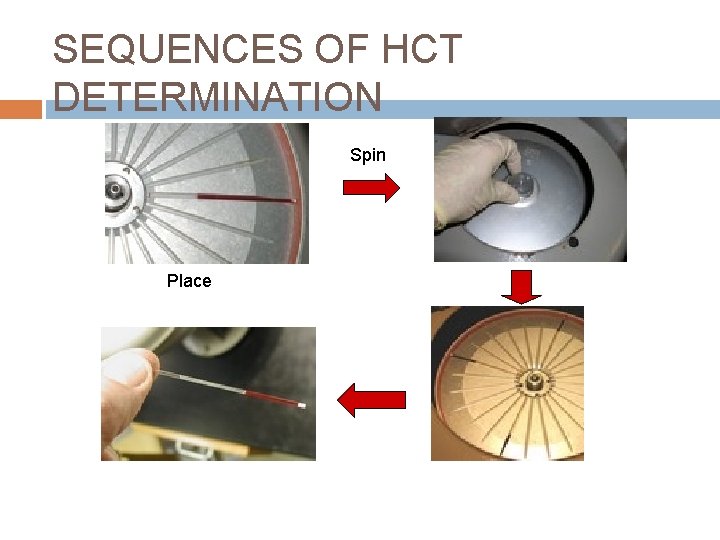

SEQUENCES OF HCT DETERMINATION Spin Place

RBC INDICES

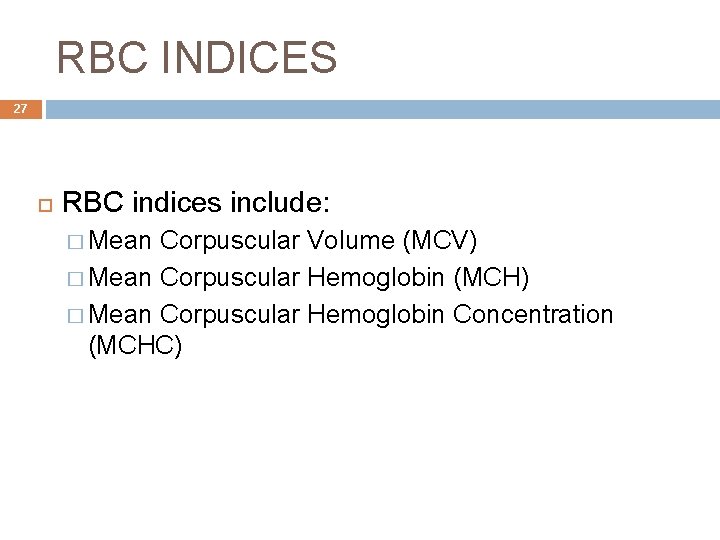

RBC INDICES 27 RBC indices include: � Mean Corpuscular Volume (MCV) � Mean Corpuscular Hemoglobin (MCH) � Mean Corpuscular Hemoglobin Concentration (MCHC)

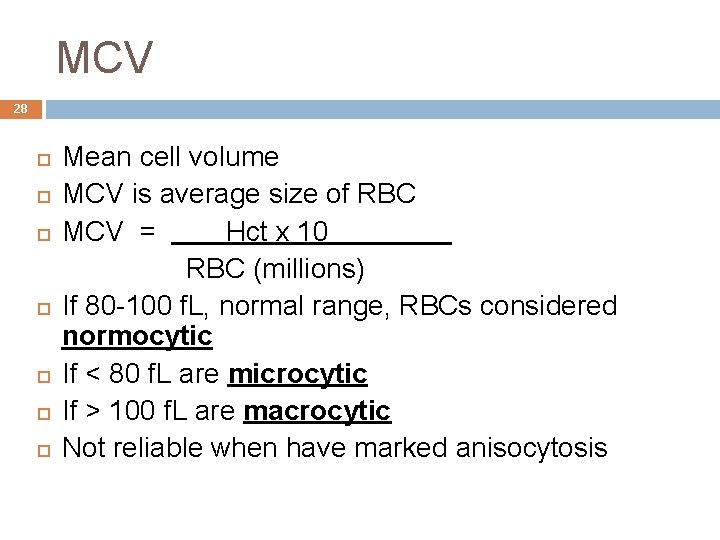

MCV 28 Mean cell volume MCV is average size of RBC MCV = Hct x 10 RBC (millions) If 80 -100 f. L, normal range, RBCs considered normocytic If < 80 f. L are microcytic If > 100 f. L are macrocytic Not reliable when have marked anisocytosis

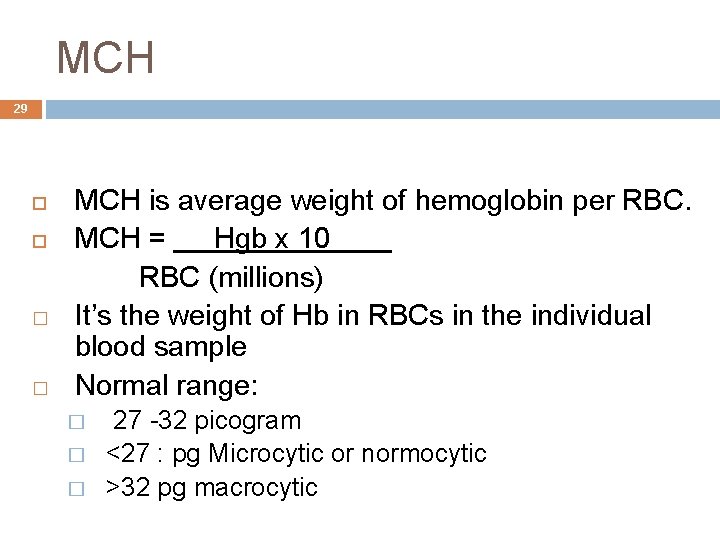

MCH 29 � � MCH is average weight of hemoglobin per RBC. MCH = Hgb x 10 RBC (millions) It’s the weight of Hb in RBCs in the individual blood sample Normal range: � � � 27 -32 picogram <27 : pg Microcytic or normocytic >32 pg macrocytic

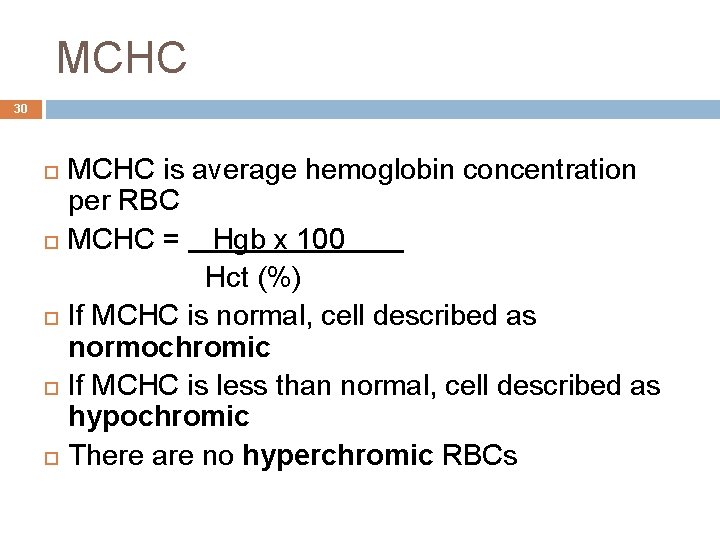

MCHC 30 MCHC is average hemoglobin concentration per RBC MCHC = Hgb x 100 Hct (%) If MCHC is normal, cell described as normochromic If MCHC is less than normal, cell described as hypochromic There are no hyperchromic RBCs

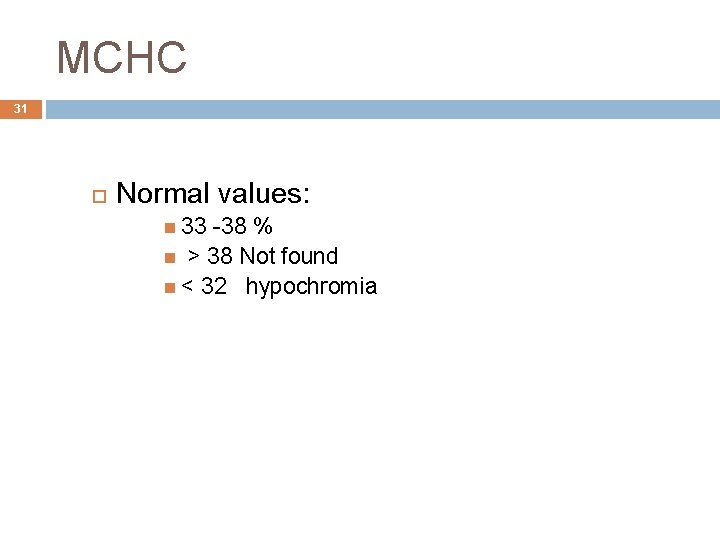

MCHC 31 Normal values: 33 -38 % > 38 Not found < 32 hypochromia
